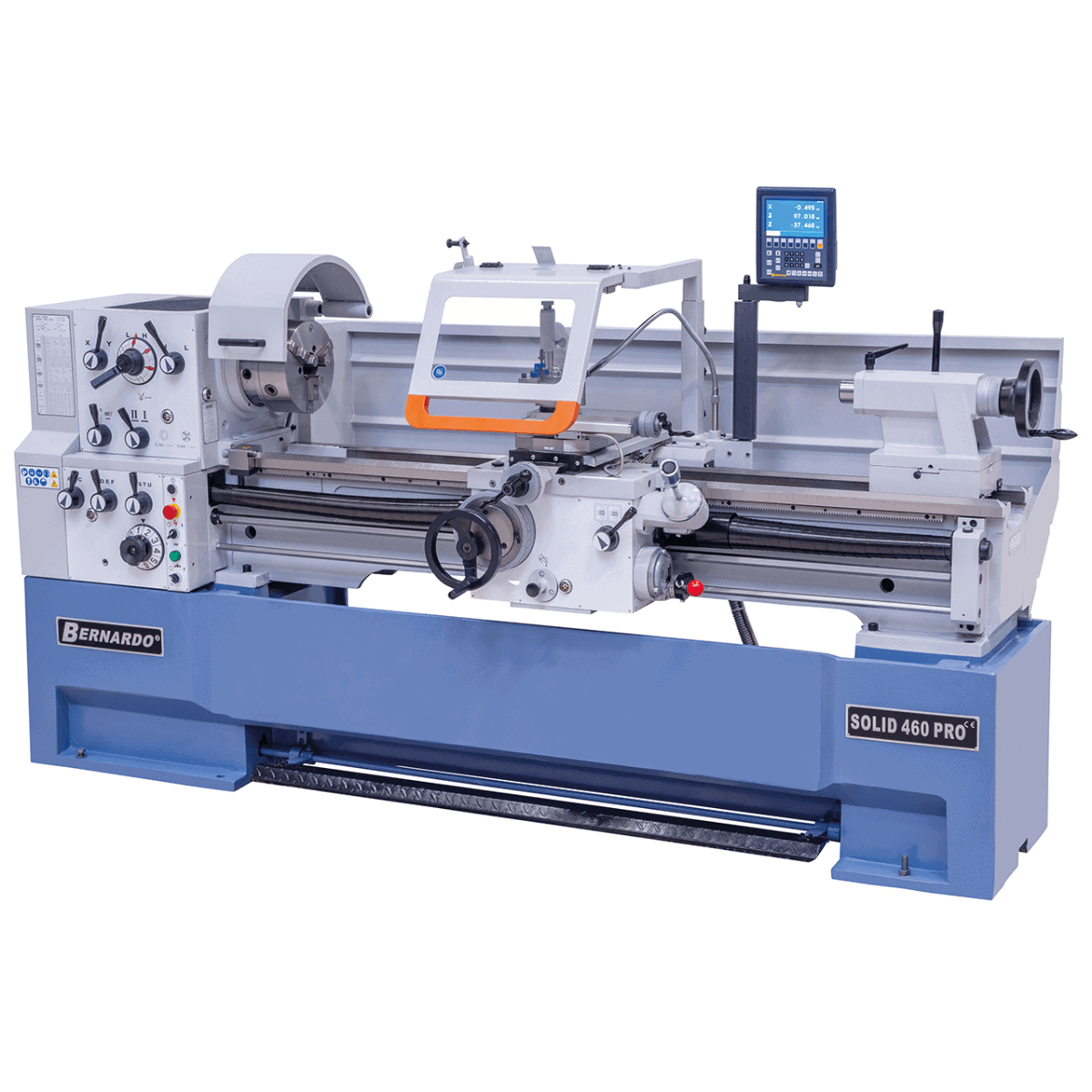

Bernardo Solid 460 x 1500 Pro Metal Lathe with 3-axis Digital Readout

Name: Bernardo Solid 460 x 1500 Pro Metal Lathe with 3-axis Digital Readout
Brand: Bernardo
SKU: 03-1309XL0
Price: 20850.22 EUR
Availability: InStock

€20.850,22 (22% VAT incl.)

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

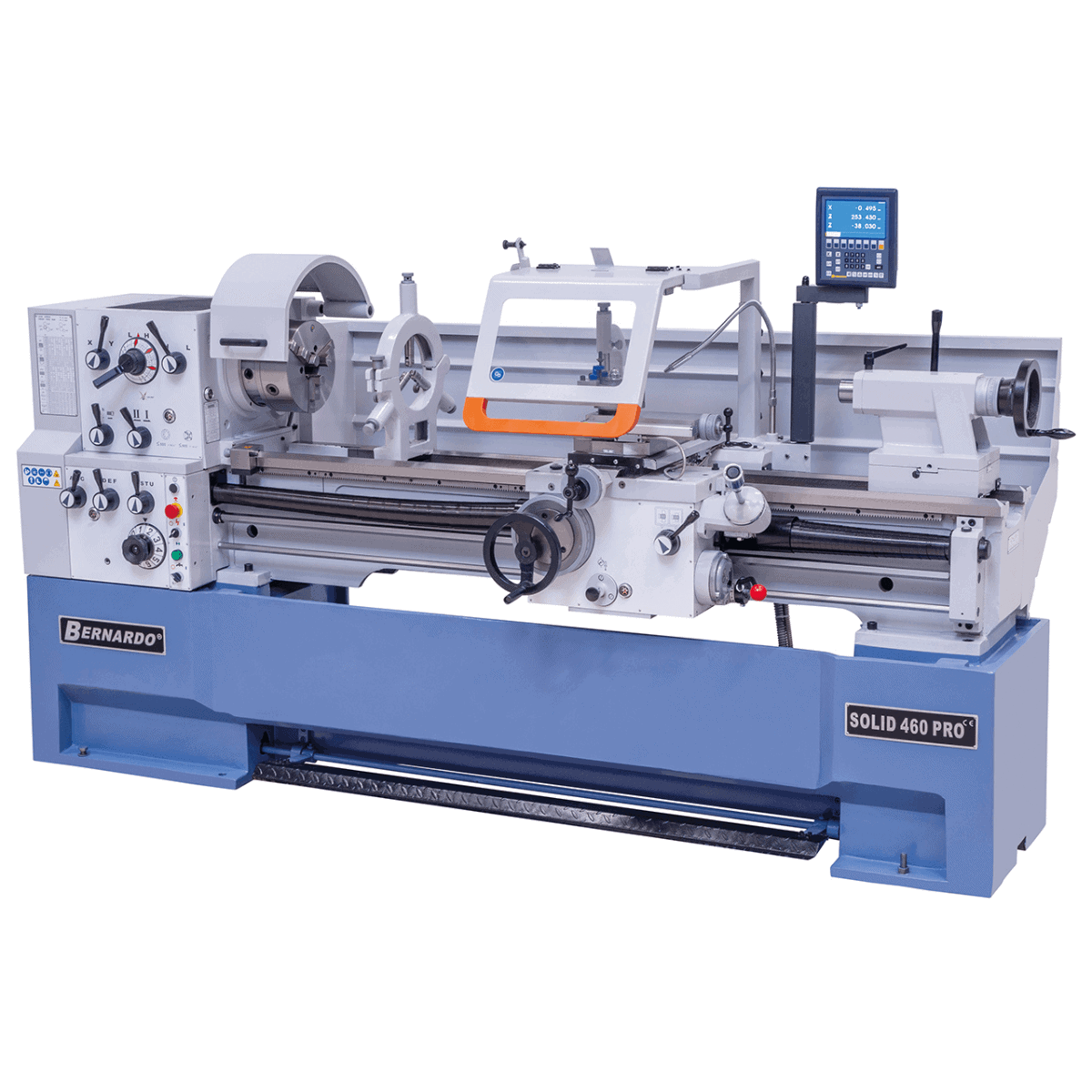

The Bernardo Solid 460 x 1500 Pro with 3-axis digital display is a metal lathe for professional use, with a distance between centers of 1500 mm, a center height of 230 mm, a 5.5 kW (7.5 HP) motor, and a weight of approx. 1845 kg. Krollit, official Bernardo distributor since 2007.

Distance between centers: 1500 mm
Center height: 230 mm
Swing over bed: 460 mm
Swing in gap: 690 mm
Swing over cross slide: 270 mm
Bed width: 300 mm

Who uses the Solid 460 x 1500 Pro with 3-axis digital display and for what

Mechanical workshops and artisan turners use the Solid 460 x 1500 Pro with 3-axis digital display for cylindrical and conical turning, and threading on steels and alloys. The machine supports the production of spare parts, shafts, bushings, and small series.

Its place in the Bernardo range

The Bernardo Solid 460 x 1500 Pro with 3-axis digital display is part of Bernardo's range of metal lathes, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.

Krollit Logistics and Support

Machine shipping in 5-9 business days (7 days to the South). For spare parts and accessories, shipping in 3-5 business days from Krollit warehouse. Italian customer support available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.

Who is the Solid 460 x 1500 Pro with 3-axis digital display for?

The Solid 460 x 1500 Pro with 3-axis digital display is recommended for the following professional profiles:

Mechanical workshops and artisan turners: cylindrical and conical turning, and threading on steels and alloys.
Industrial maintenance technicians and repair centers: processing of spare parts, shafts, bushings, and small production.
Hobbyists and model making: professional machine: for occasional home use, consider smaller benchtop models.

Technical specifications

Spindle, tools and speed

Distance between centers	1500 mm
Center height	230 mm
Spindle mount	DIN 55029, D1-8
Spindle speed	25 – 1700 rpm (12)

Table, dimensions and geometry

Bed width	300 mm
Machine dimensions	2750 x 1080 x 1600 mm
Weight	approx. 1845 kg

Other specifications

Swing over bed	460 mm
Swing in gap	690 mm
Swing over cross slide	270 mm
Spindle bore	80 mm
Metric threads	0.1 – 14 mm (41)
Inch threads	2 – 112 TPI (60)
Longitudinal feeds	0.055 – 3.065 mm/rev
Cross feeds	0.025 – 1.386 mm/rev

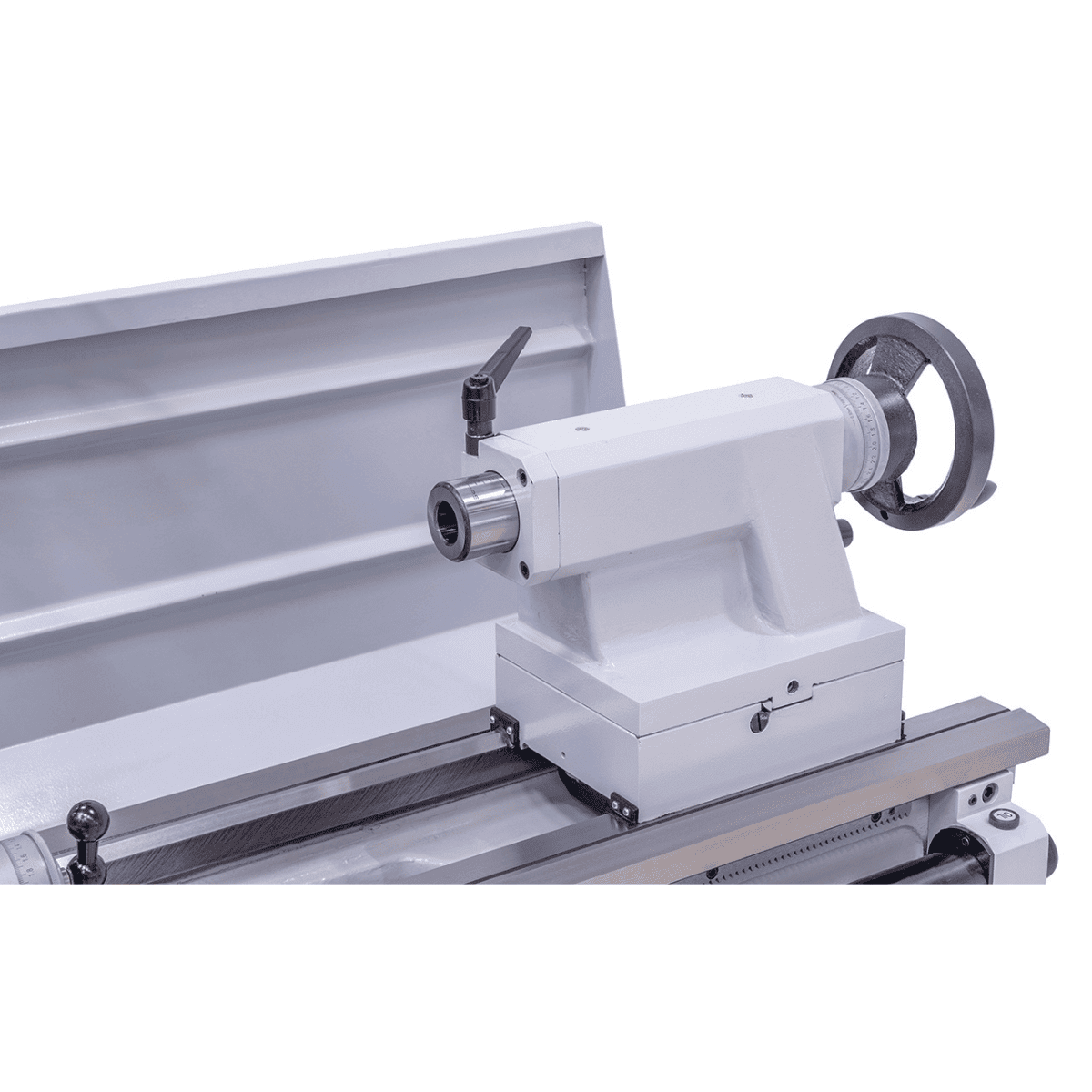

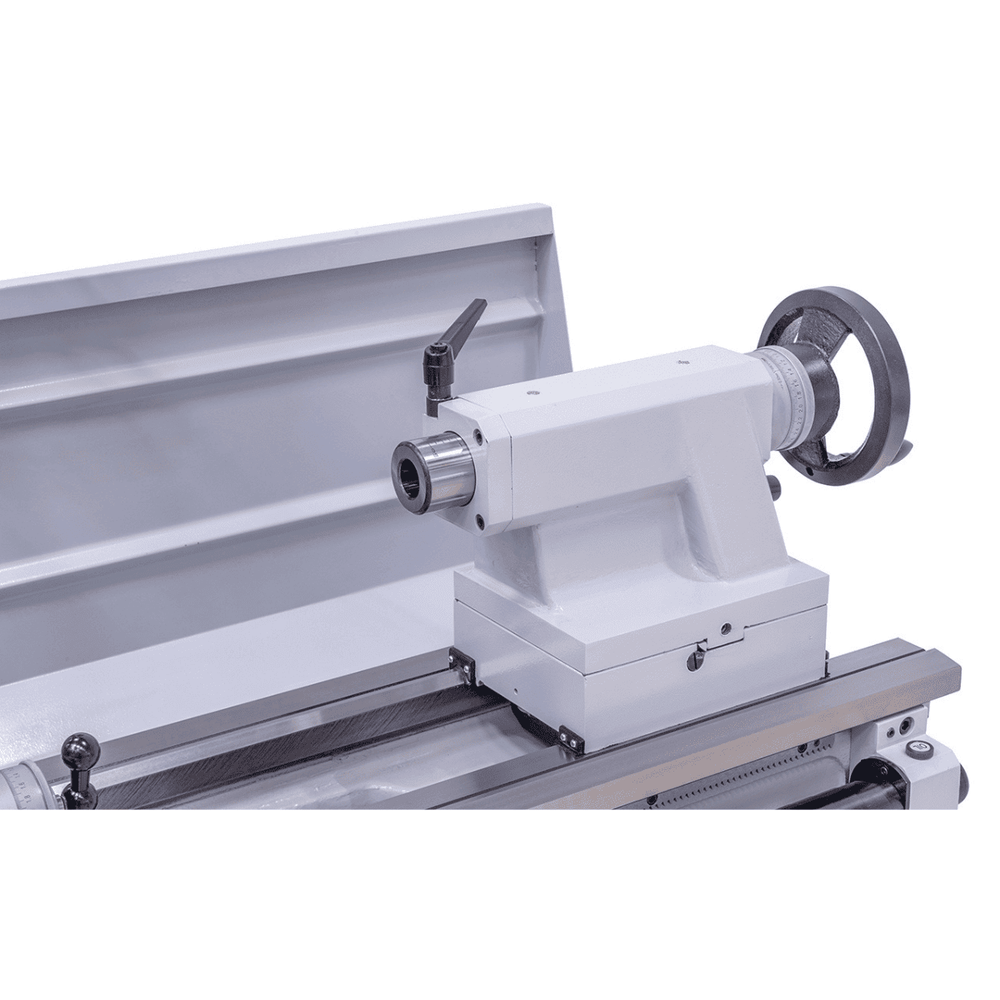

Tailstock – quill	Ø 60 mm, travel 130 mm, MT4 taper
Motor power	5.5 kW (7.5 HP)

Warranty

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

FAQ / Frequently asked questions

Frequently asked questions

What materials can the Solid 460 x 1500 Pro with 3-axis digital display work with?

Mild steels, alloy steels, cast iron, brass and aluminum within the pass limits indicated in the technical specifications.

For hardened or high-strength alloy steels, it is advisable to reduce cutting speed and depth of cut. The machine is dimensioned for general mechanical production; for special alloys, check the compatibility of the spindle and tailstock Morse taper.

What is included in the standard equipment?

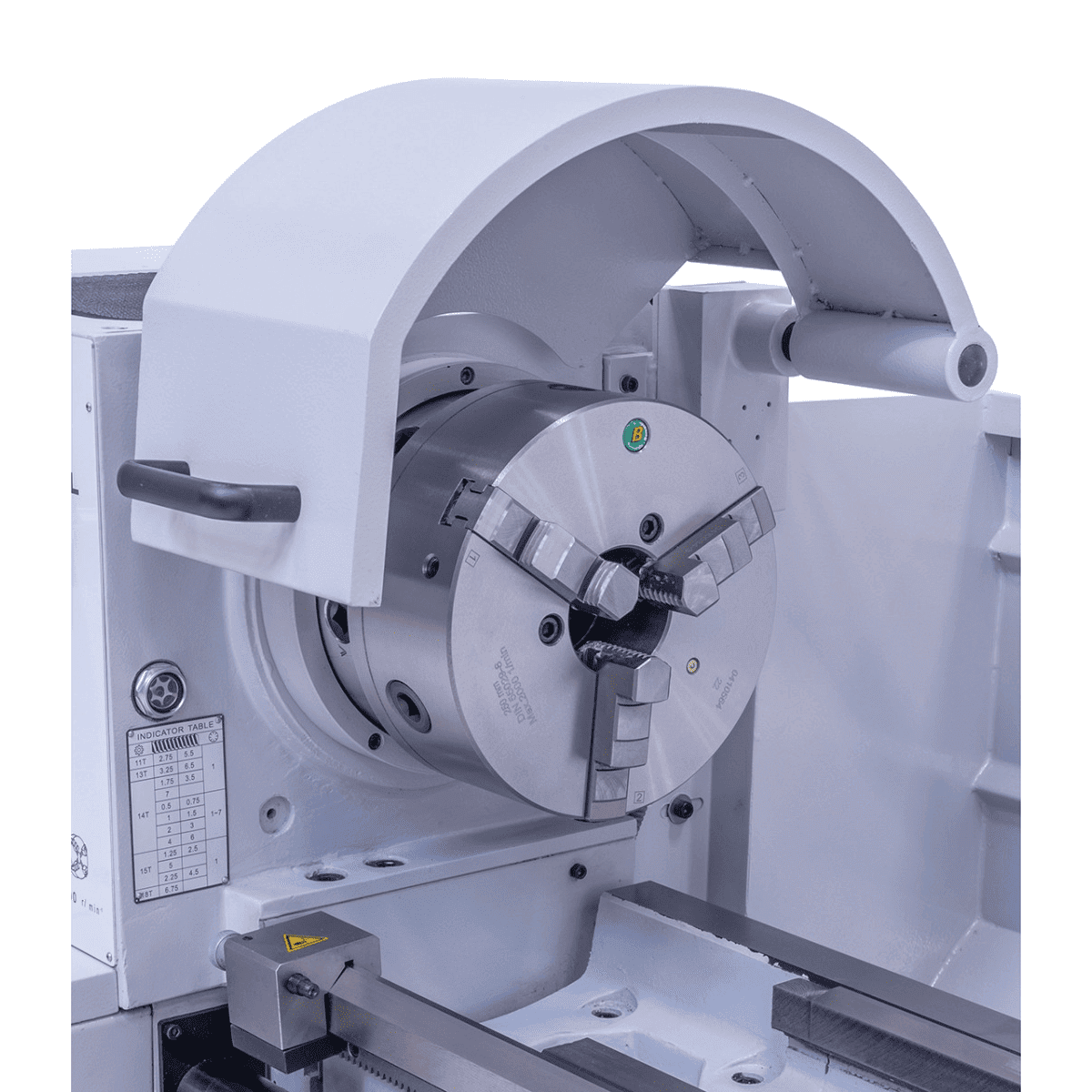

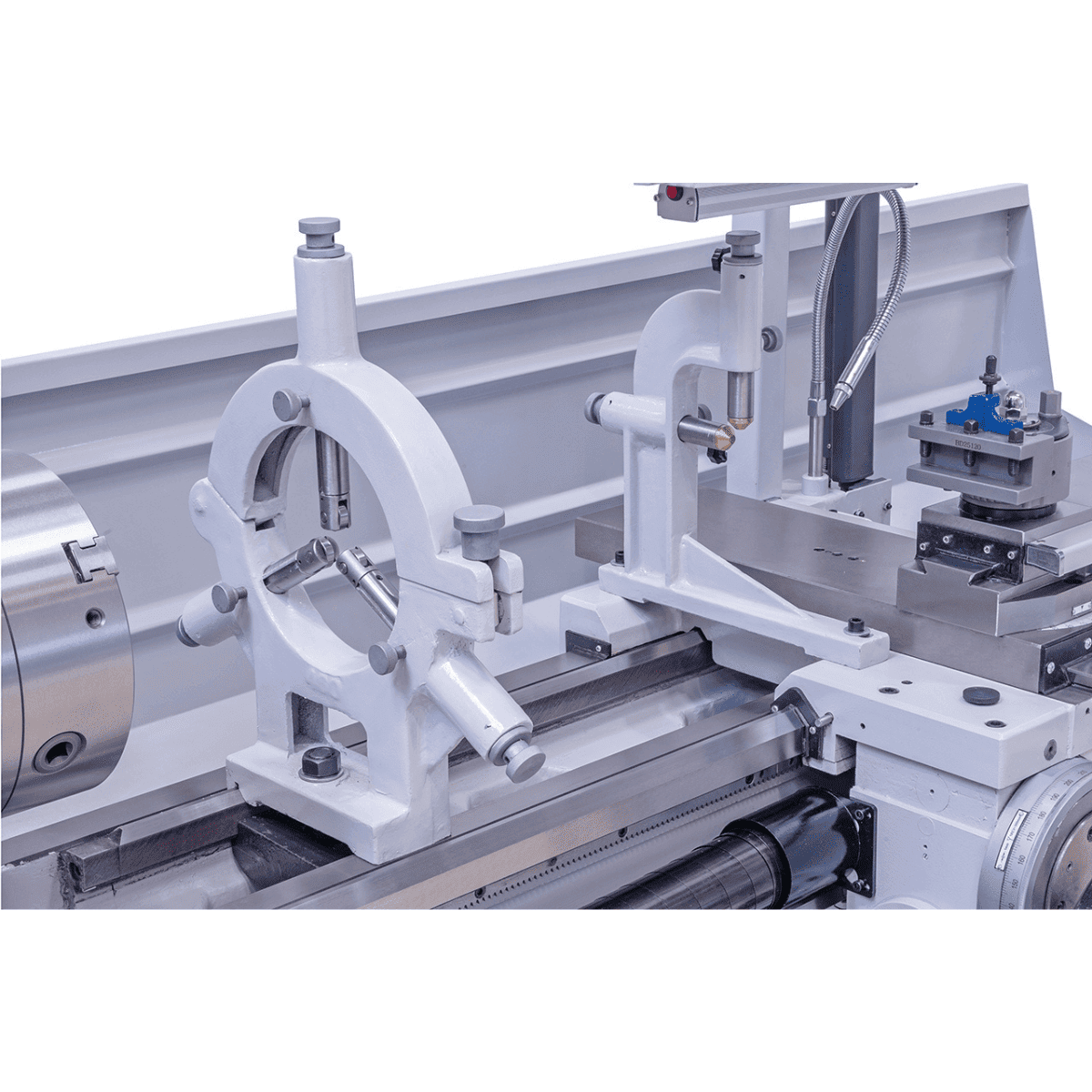

The equipment includes a self-centering chuck, tailstock, steady rest, threading accessories and a set of wrenches.

For the exact list of accessories and spare parts supplied, consult the manufacturer's technical sheet. Krollit provides support for original Bernardo spare parts with delivery times of 3-5 business days.

What type of power supply does it require?

See the voltage data in the technical table. Compact bench machines are often 230 V single-phase, professional models 400 V three-phase.

For 400 V three-phase models, an industrial power line is required. Check for adequate power supply in the workshop before purchasing.

Is the machine suitable for series production?

It depends on the model class: Bernardo professional lathes handle continuous cycles, bench models are suitable for medium use.

Profi and Apollo models are designed for intensive multi-shift use; Hobby and Goliath series for occasional use or small workshops.

How much does it weigh and what installation does it require?

Weight varies significantly by model: see "Weight" in the technical table.

Machines over 500 kg require industrial flooring and fixing with anchors. Bench models up to 100 kg are installed on a sturdy workbench with an adequately sized top.
