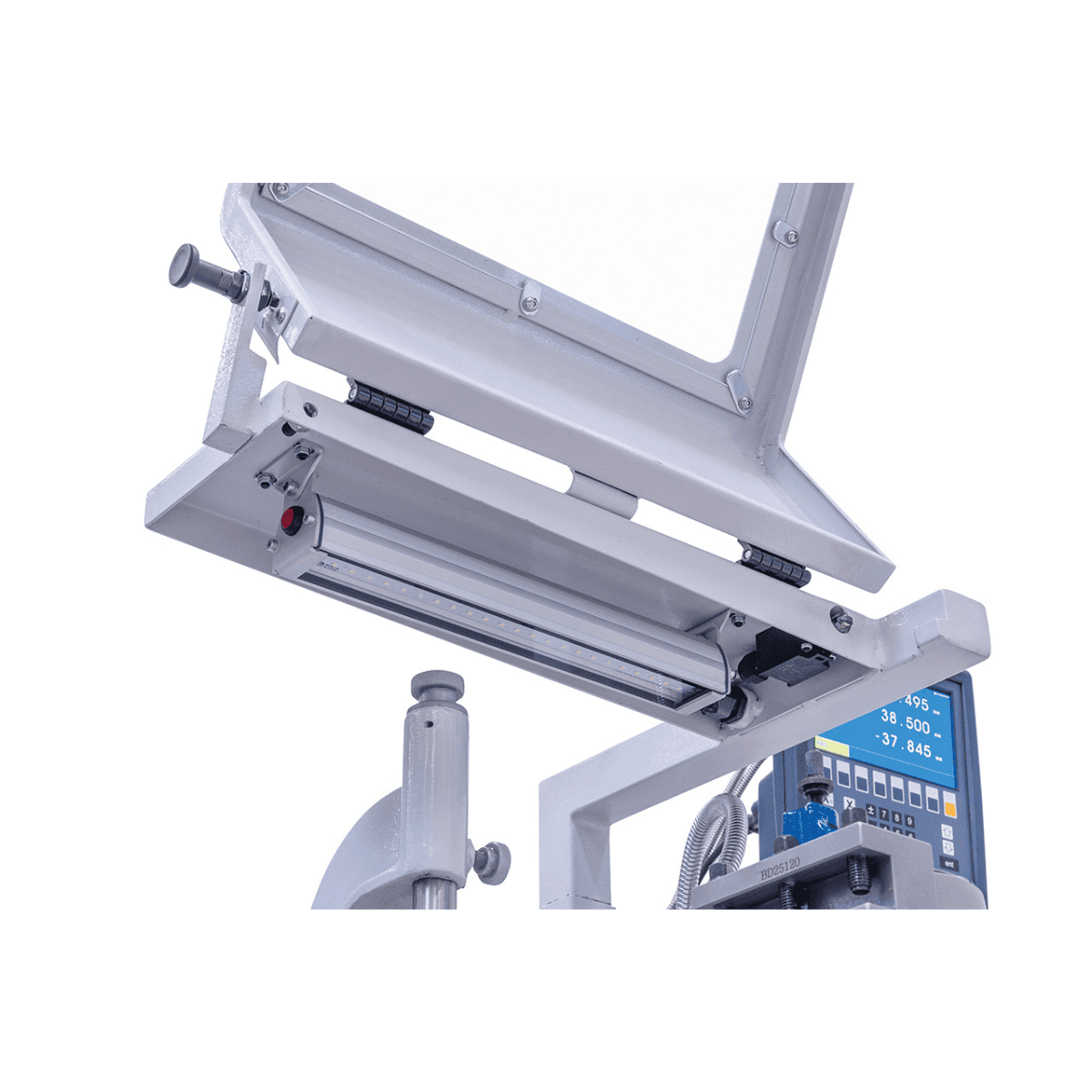

Bernardo Solid 460 x 2000 Pro Metal Lathe with 3-Axis Digital Readout
Bernardo Solid 460 x 2000 Pro Metal Lathe with 3-Axis Digital Readout is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Product safety
-
Reviews
Description

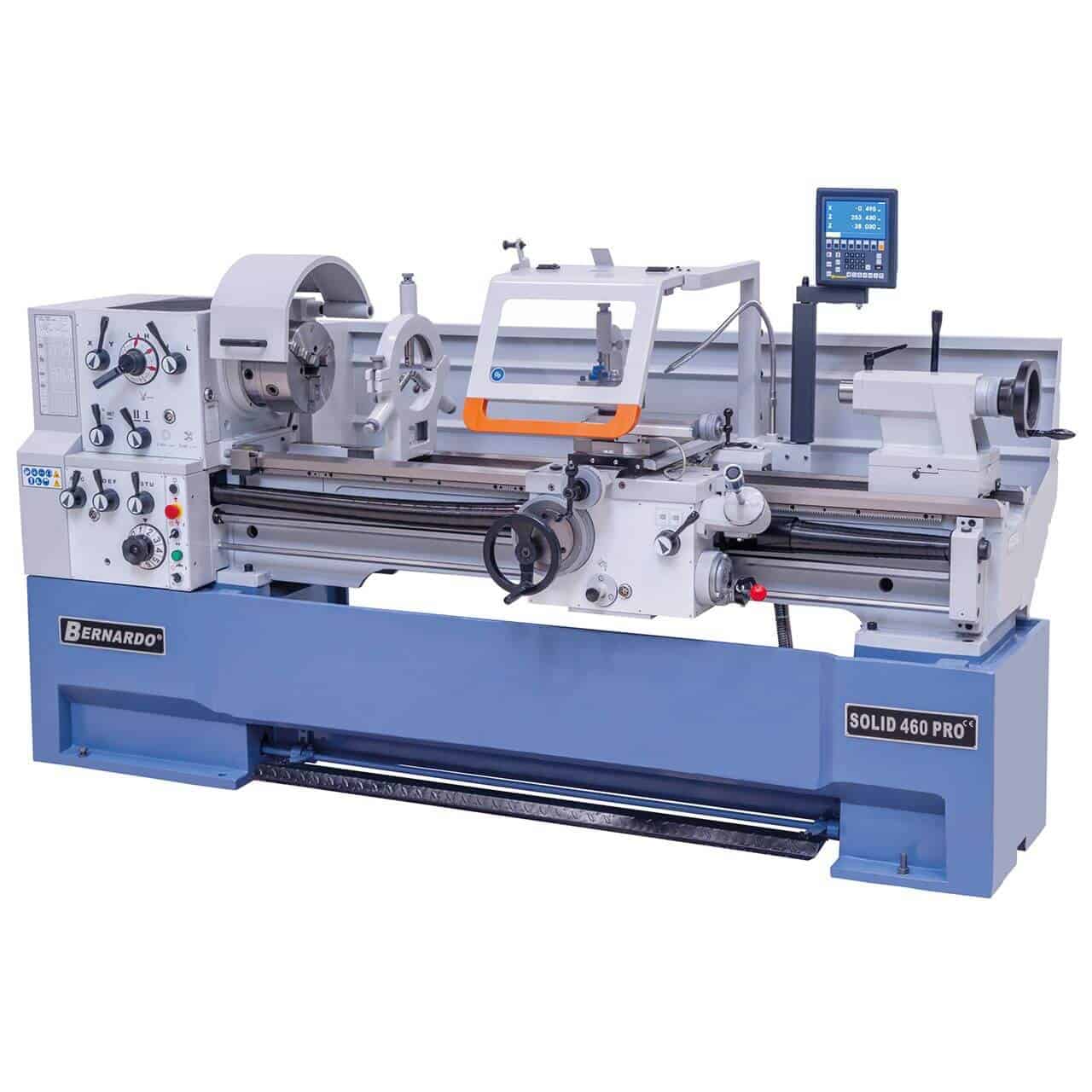

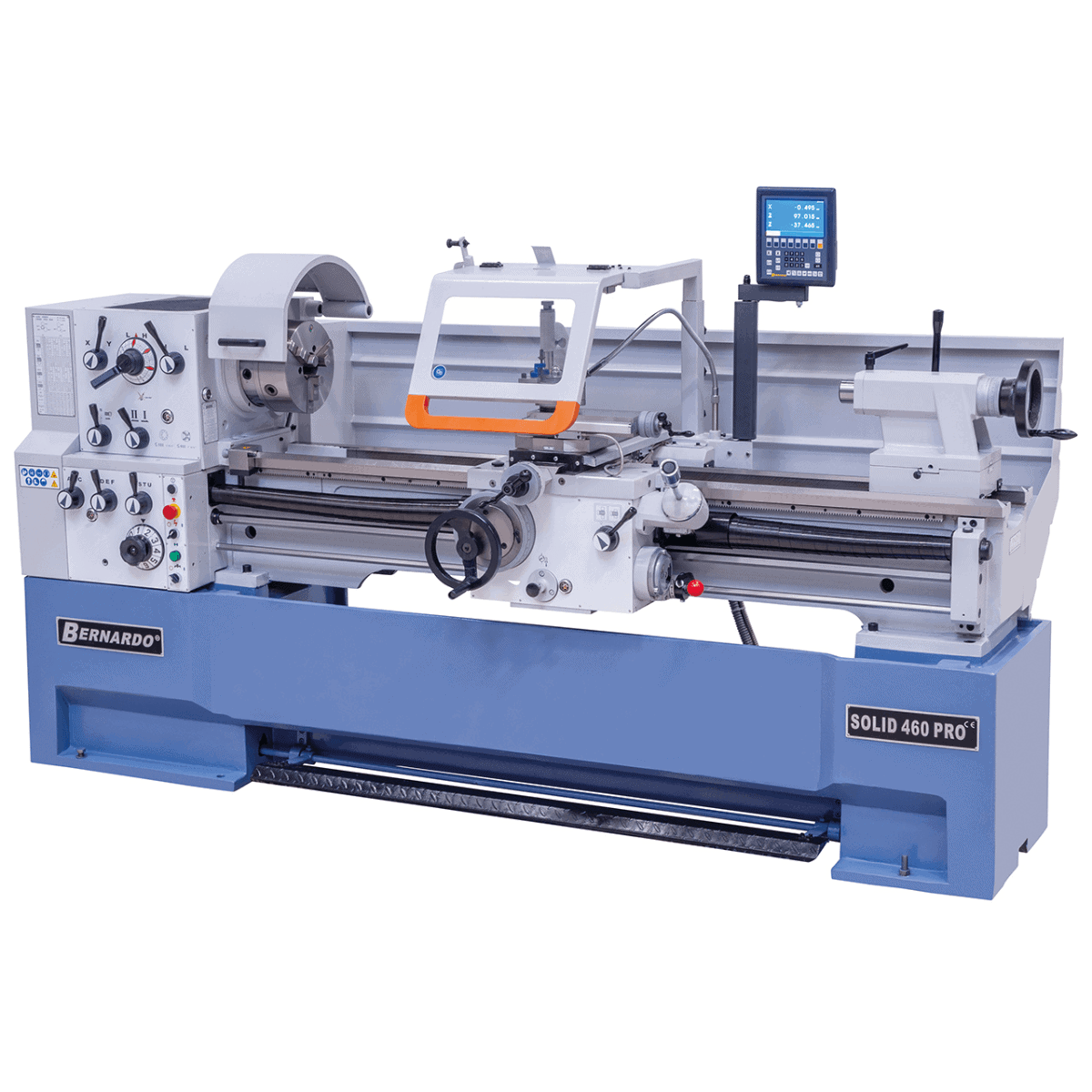

The Bernardo Solid 460 x 2000 Pro with 3-axis digital readout is a metal lathe for professional use, with a distance between centers of 2000 mm, center height of 230 mm, 5.5 kW (7.5 HP) motor, and a weight of approx. 1995 kg. Krollit, official Bernardo distributor since 2007.
- Distance between centers: 2000 mm
- Center height: 230 mm
- Swing over bed: 460 mm
- Swing in gap: 690 mm
- Swing over cross slide: 270 mm
- Bed width: 300 mm
Who uses the Solid 460 x 2000 Pro with 3-axis digital readout and for what
Mechanical workshops and artisan turners use the Solid 460 x 2000 Pro with 3-axis digital readout for cylindrical, conical turning, and threading operations on steels and alloys. The machine supports the production of spare parts, shafts, bushings, and small series.
Its place in the Bernardo range
The Bernardo Solid 460 x 2000 Pro with 3-axis digital readout is part of the Bernardo metal lathe range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Italian-speaking customer service available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the Solid 460 x 2000 Pro with 3-axis digital readout for
The Solid 460 x 2000 Pro with 3-axis digital readout is recommended for the following professional profiles:
- Mechanical workshops and artisan turners: cylindrical, conical turning, and threading on steels and alloys.
- Industrial maintenance technicians and repair centers: processing of spare parts, shafts, bushings, and small-scale production.
- Hobbyists and model making: professional machine: for occasional home use, consider smaller benchtop models.
Spindle, tools and speeds
| Distance between centers | 2000 mm |
| Center height | 230 mm |
| Spindle nose | DIN 55029, D1-8 |
| Spindle speeds | 25 – 1700 rpm (12) |
Table, dimensions and geometry
| Bed width | 300 mm |
| Machine dimensions | 3250 x 1080 x 1600 mm |
| Weight | approx. 1995 kg |
Other specifications
| Swing over bed | 460 mm |
| Swing in gap | 690 mm |
| Swing over cross slide | 270 mm |
| Spindle bore | 80 mm |
| Metric threads | 0.1 – 14 mm (41) |
| Inch threads | 2 – 112 TPI (60) |
| Longitudinal feeds | 0.055 – 3.065 mm/rev |
| Cross feeds | 0.025 – 1.386 mm/rev |

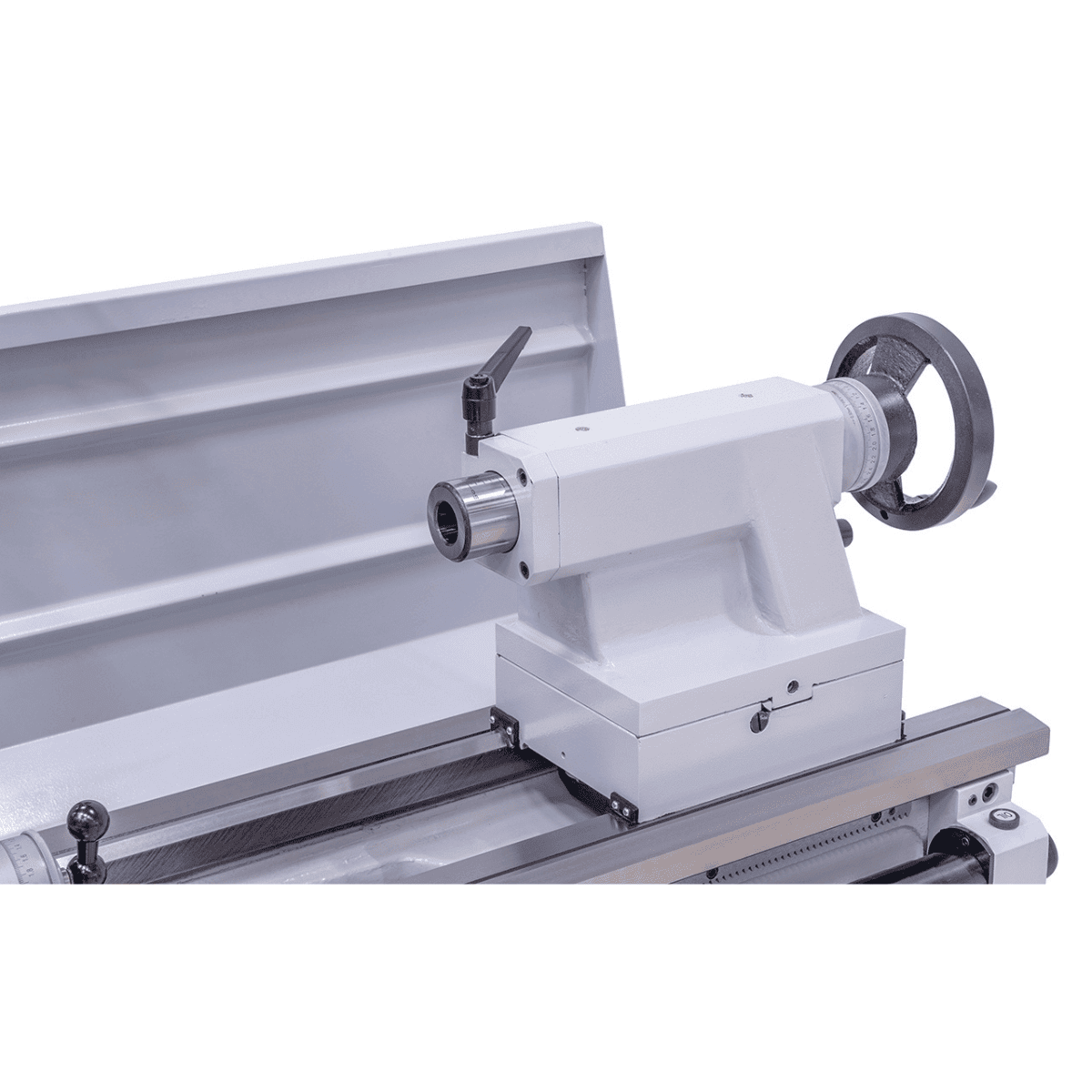

| Tailstock – quill | Ø 60 mm, travel 130 mm, MT4 taper |
| Motor power | 5.5 kW (7.5 HP) |
Frequently Asked Questions
What materials can the Solid 460 x 2000 Pro with 3-axis digital readout work on?
Mild steels, alloy steels, cast iron, brass, and aluminum within the cutting limits indicated in the technical specifications.
For hardened or high-strength alloy steels, it is recommended to reduce cutting speed and depth of cut. The machine is sized for general mechanical production; for special alloys, check the compatibility of the spindle and tailstock Morse taper.
What is included in the standard equipment?

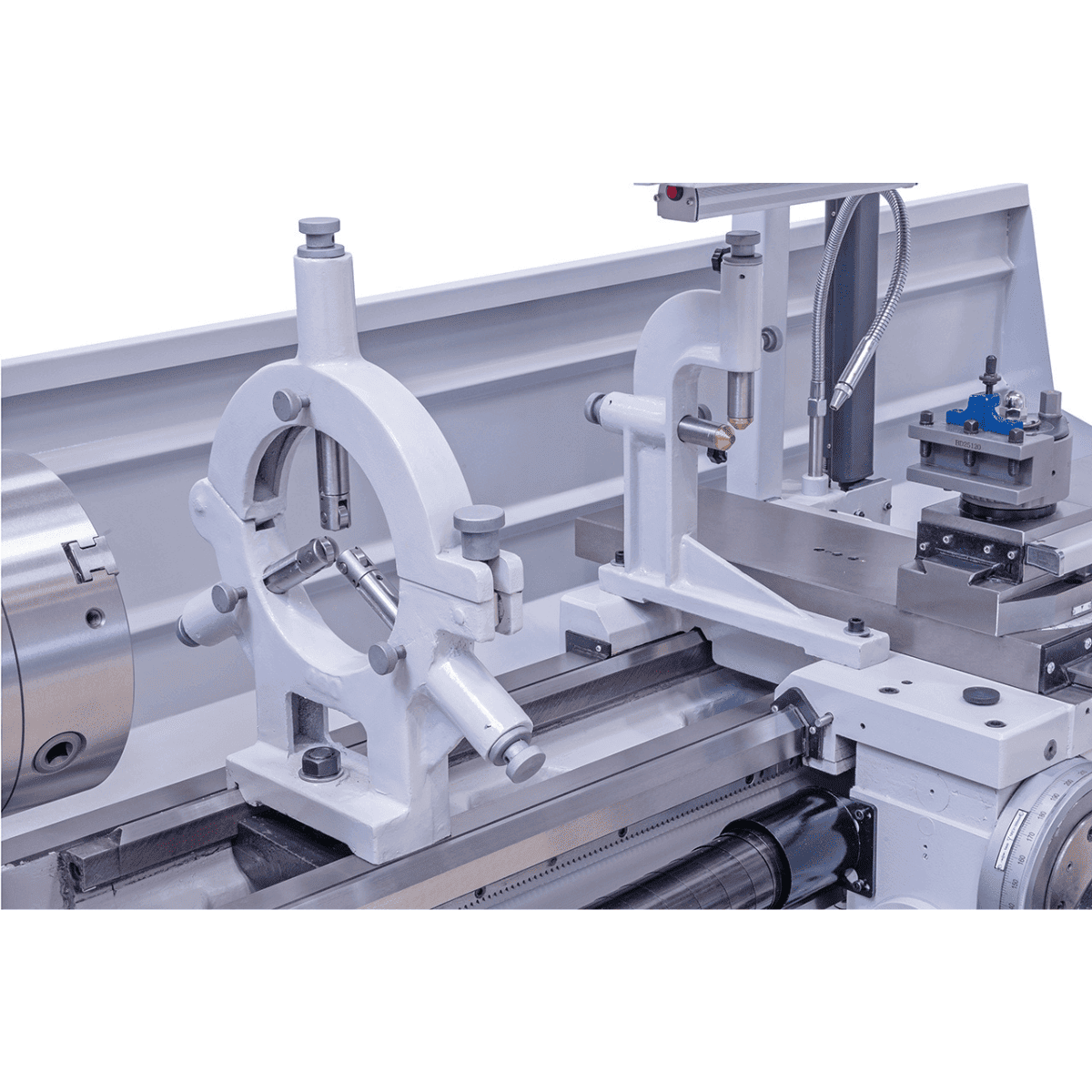

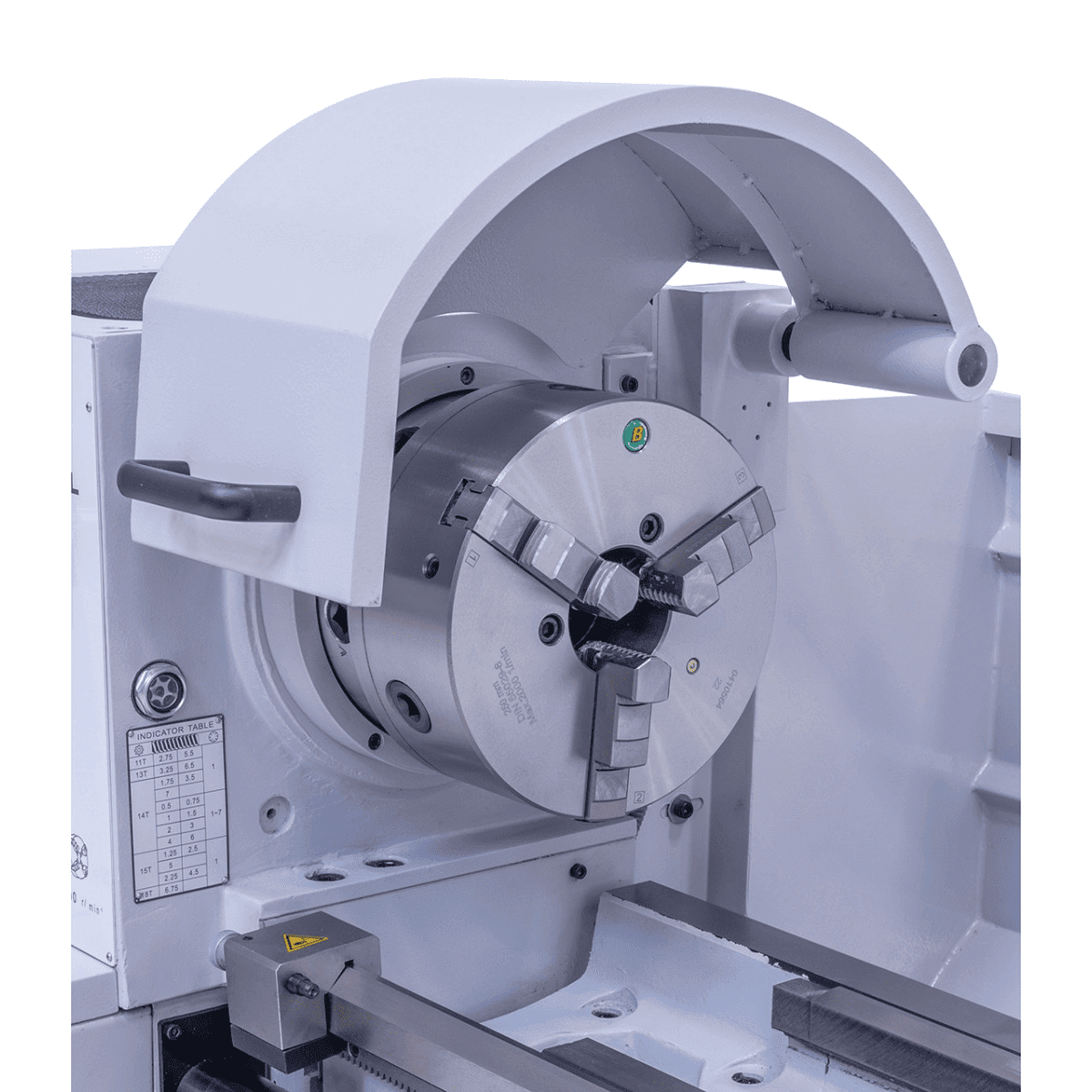

The equipment includes a self-centering chuck, tailstock, steady rest, threading accessories, and a wrench set.
For the exact list of accessories and spare parts supplied, consult the manufacturer's technical data sheet. Krollit provides support for original Bernardo spare parts with delivery times of 3-5 working days.
What type of power supply does it require?
See the voltage data in the technical table. Compact benchtop machines are often 230 V single-phase, professional models 400 V three-phase.
For 400 V three-phase models, an industrial power line is required. Verify the presence of adequate power supply in the workshop before purchasing.
Is the machine suitable for series production?
It depends on the model class: professional Bernardo lathes handle continuous cycles, while benchtop models are suitable for medium use.
Profi and Apollo models are designed for intensive multi-shift use; Hobby and Goliath series for occasional use or small workshops.
How much does it weigh and what installation does it require?
Weight varies significantly by model: see "Weight" in the technical table.
Machines over 500 kg require industrial flooring and fixing with anchor bolts. Benchtop models up to 100 kg are installed on a sturdy workbench with an adequately sized top.
