Bernardo | SKU: 08-10140 | Barcode: 9009468070038

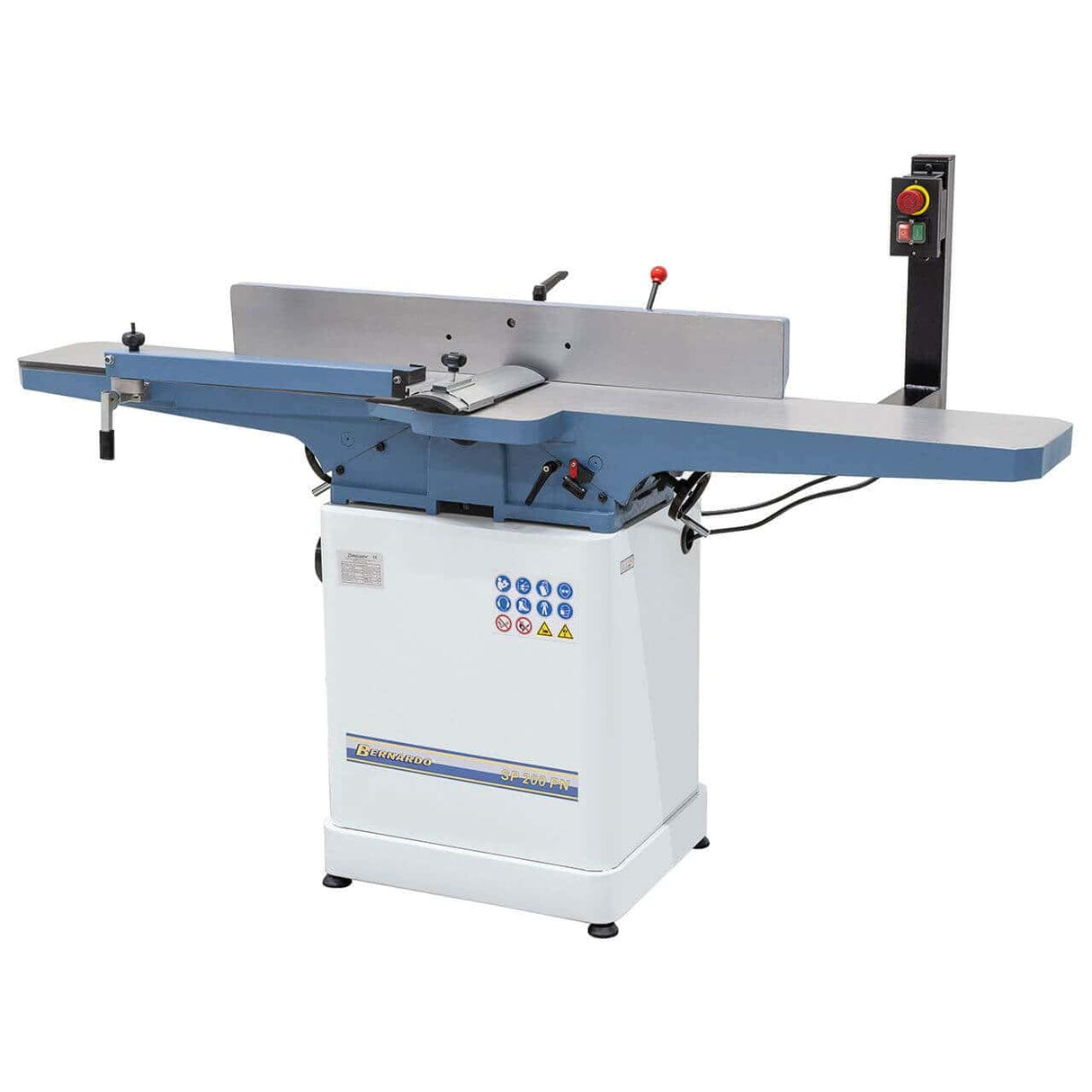

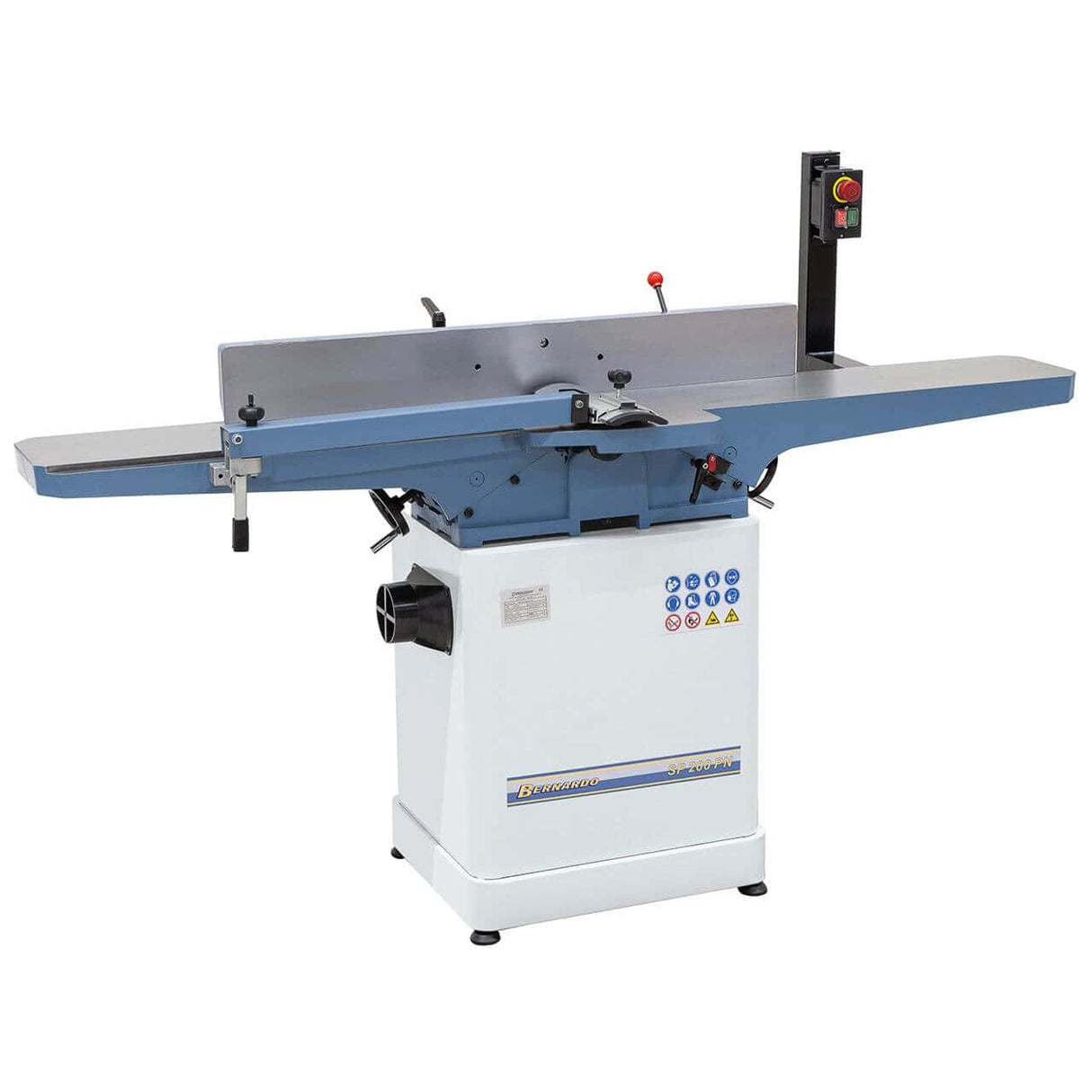

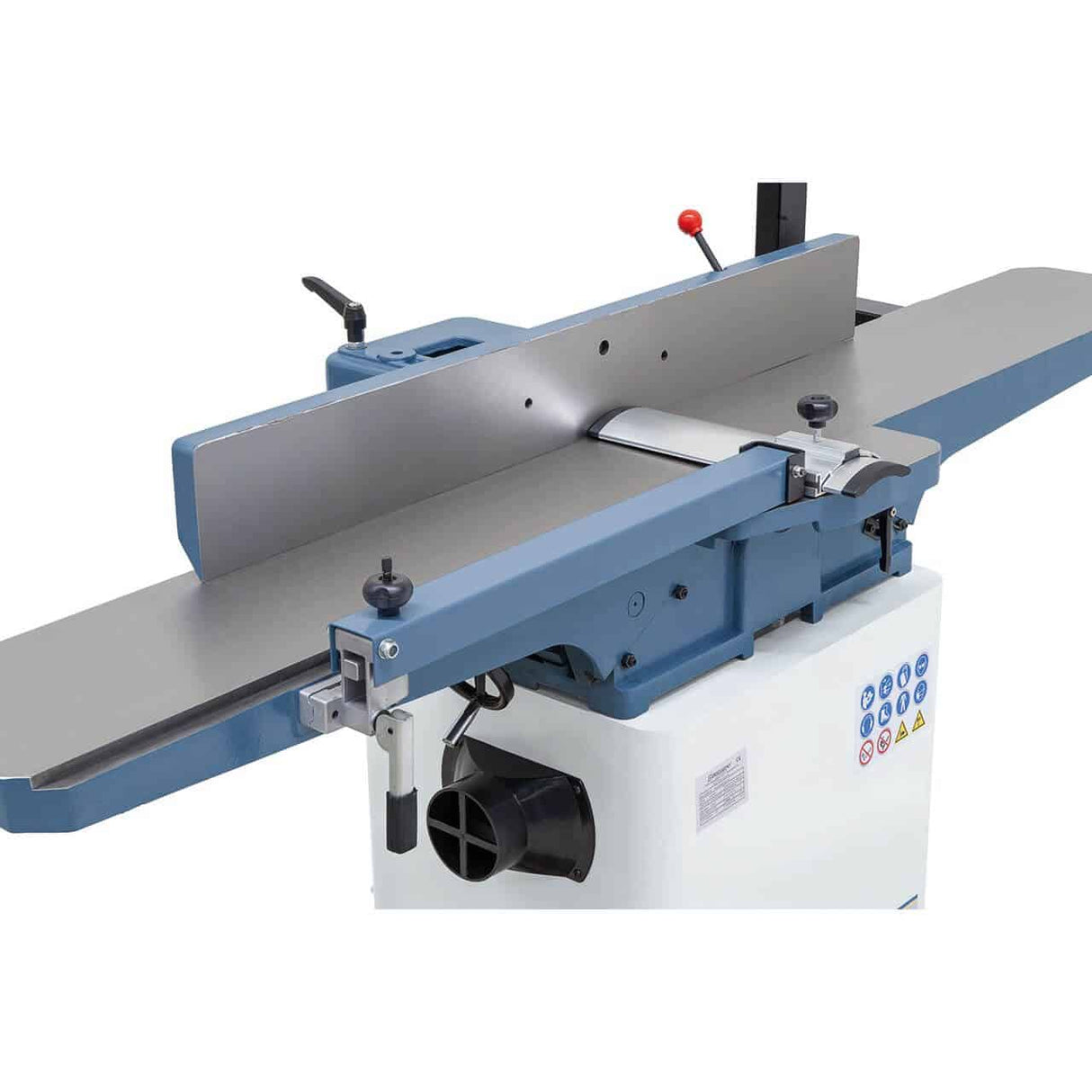

Bernardo SP 200 PN Jointer – 230V

Name: Bernardo SP 200 PN Jointer – 230V
Brand: Bernardo
SKU: 08-10140
Price: 1548.05 EUR
Availability: InStock

€1.548,05 (22% VAT incl.)

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

The Bernardo SP 200 PN – 230V planer offers a planing width of 200 mm, a total table length of 1,805 mm (infeed 880 mm + outfeed 880 mm), a Ø 72 mm cutter block with 4 HSS knives at 4,800 rpm, a maximum cutting depth of 8 mm, and a 2.2 kW single-phase 230V motor. Weight 181 kg. This machine is a jointer only; it does not have a thicknessing function. Produced in Austria, distributed in Italy by Krollit as an official Bernardo distributor since 2007.

Function: Jointer only (planer)
Planing width: 200 mm
Total table: 1,805 mm (880 infeed + 880 outfeed)
Cutter block: Ø 72 mm – 4 HSS knives – 4,800 rpm
Max. cutting depth: 8 mm
Motor: 2.2 kW S1 / 3.0 kW S6 – 230V single-phase
Weight: 181 kg

Who uses the SP 200 PN – 230V and for what

The Bernardo SP 200 PN – 230V is identical to the 400V version in everything except the power supply: single-phase 230V instead of three-phase. Same 1,805 mm table, same cutter block with 4 HSS knives, same weight (181 kg). For joiners, restorers, and parquet manufacturers who work in workshops without a three-phase system and are looking for a dedicated jointer with a long table for pieces up to 200 mm wide. The 2.2 kW single-phase motor is sized for continuous professional use on medium woods for up to 6-7 hours/day.

Krollit Logistics and support

Bernardo shipping in 5-9 working days (7 days to the South). Original Bernardo spare parts available from stock with 3-5 working days shipping. Italian customer assistance available.

Who is the Bernardo SP 200 PN – 230V for?

Profile	Compatibility	Reason
Passionate hobbyist	Not recommended	Professional jointer weighing 181 kg. For hobby use, consider lighter combined planer-thicknessers.
Joiner / parquet manufacturer without three-phase	Recommended	1,805 mm table for long boards, 200 mm width, 4 HSS knives at 4,800 rpm in single-phase 230V: the dedicated jointer for those without three-phase.
Joinery with separate thicknesser without three-phase	Suitable	As a dedicated jointer alongside an existing thicknesser. For those with three-phase, prefer SP 200 PN – 400V or SP 200 PS.

Not recommended for: workshops with available three-phase (prefer SP 200 PN – 400V or SP 200 PS); pieces over 200 mm wide; those also requiring the thicknessing function.

Technical specifications

Jointer (planer)

Specification	Value
Planing width	200 mm
Infeed table	880 mm
Outfeed table	880 mm
Total table length	1,805 mm
Table height	840 mm

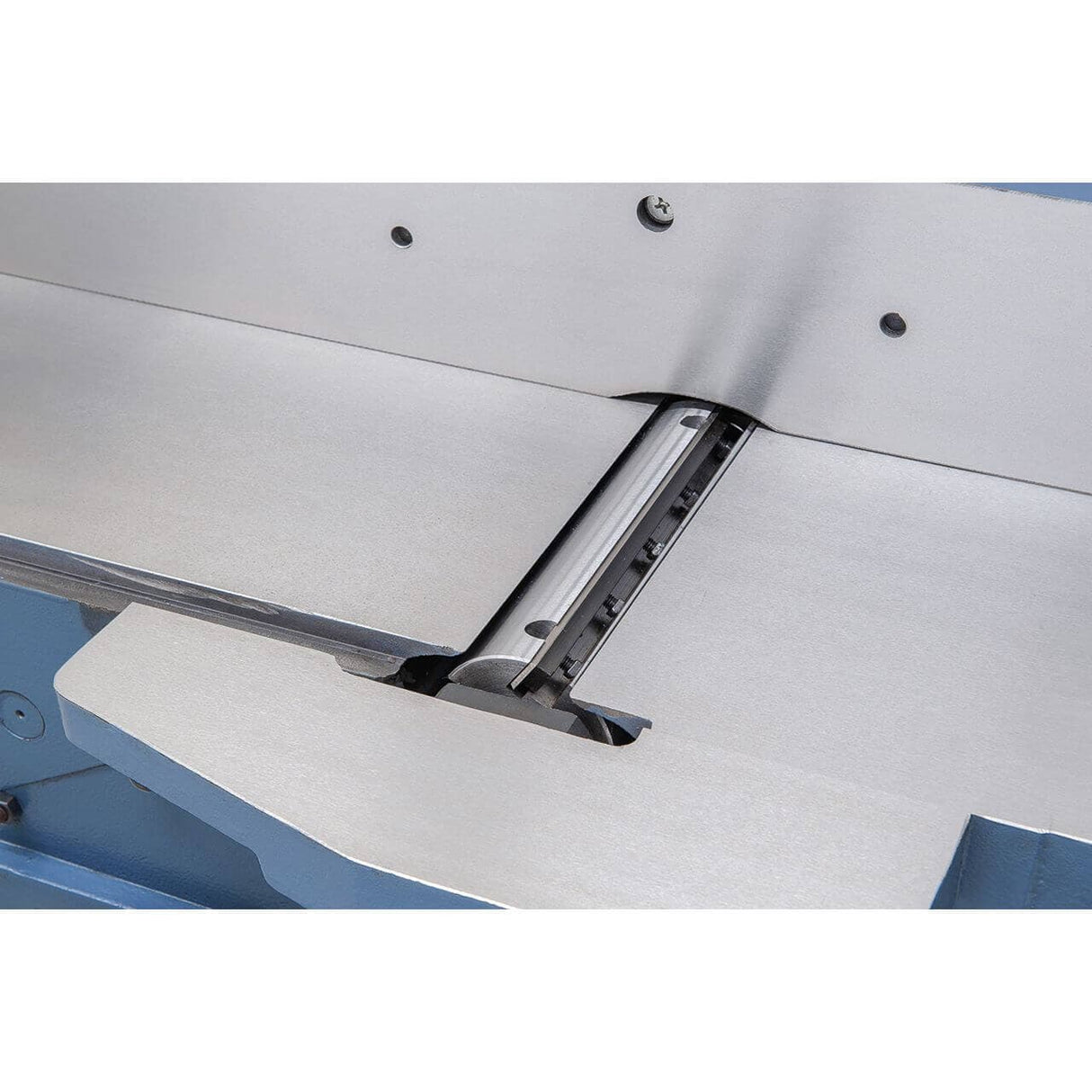

Cutter block – diameter	Ø 72 mm
Knives	4 pcs HSS
Cutter block speed	4,800 rpm

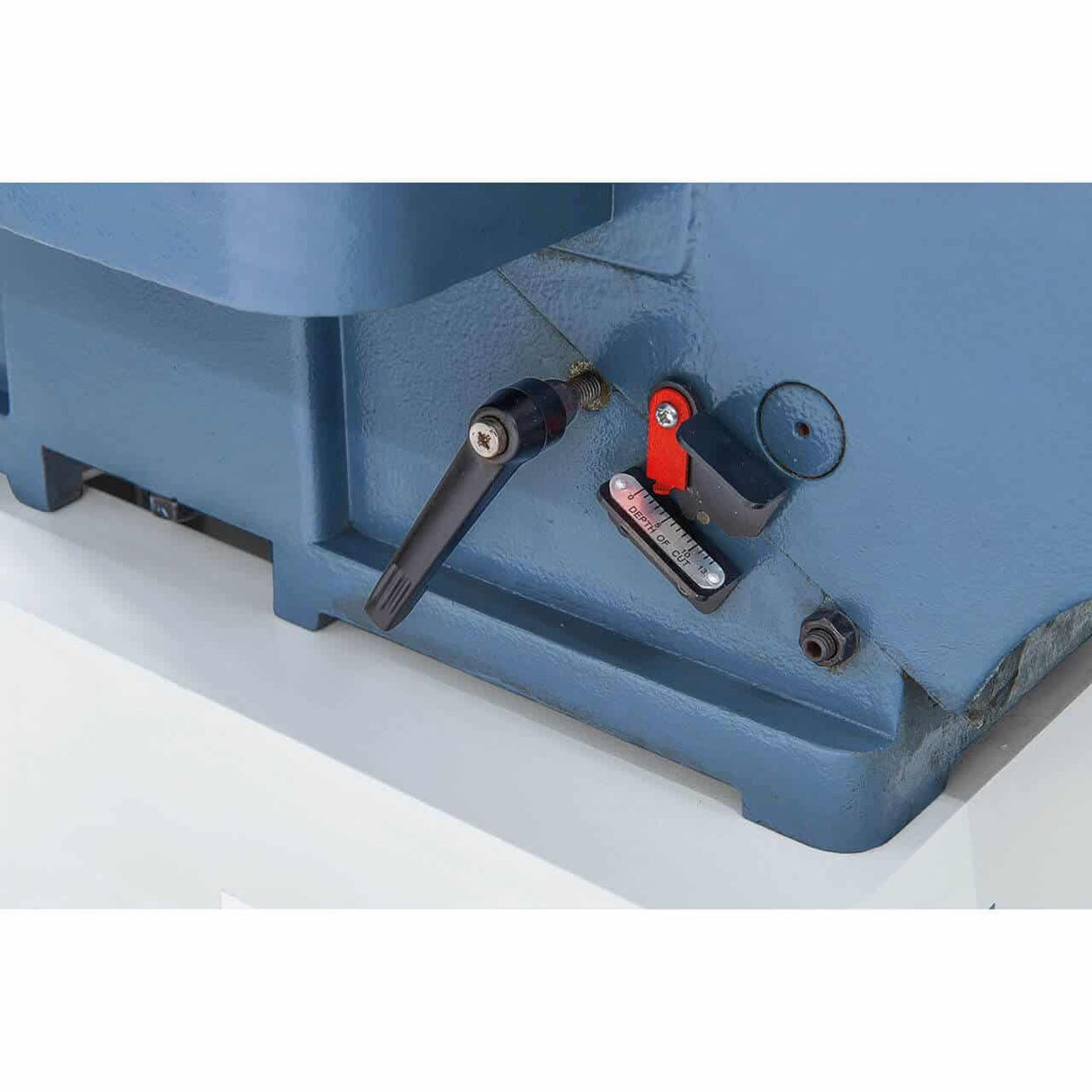

Max. cutting depth	8 mm

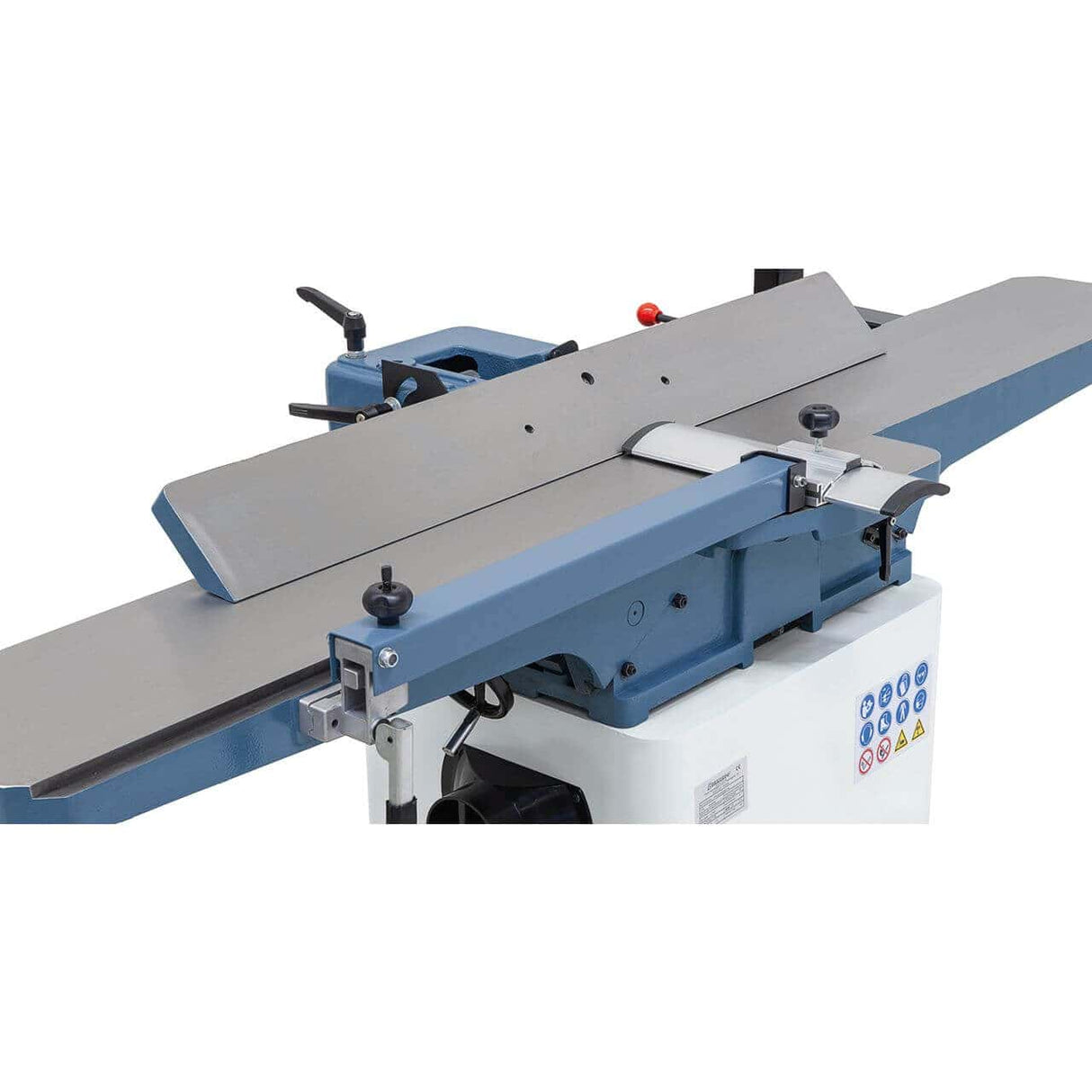

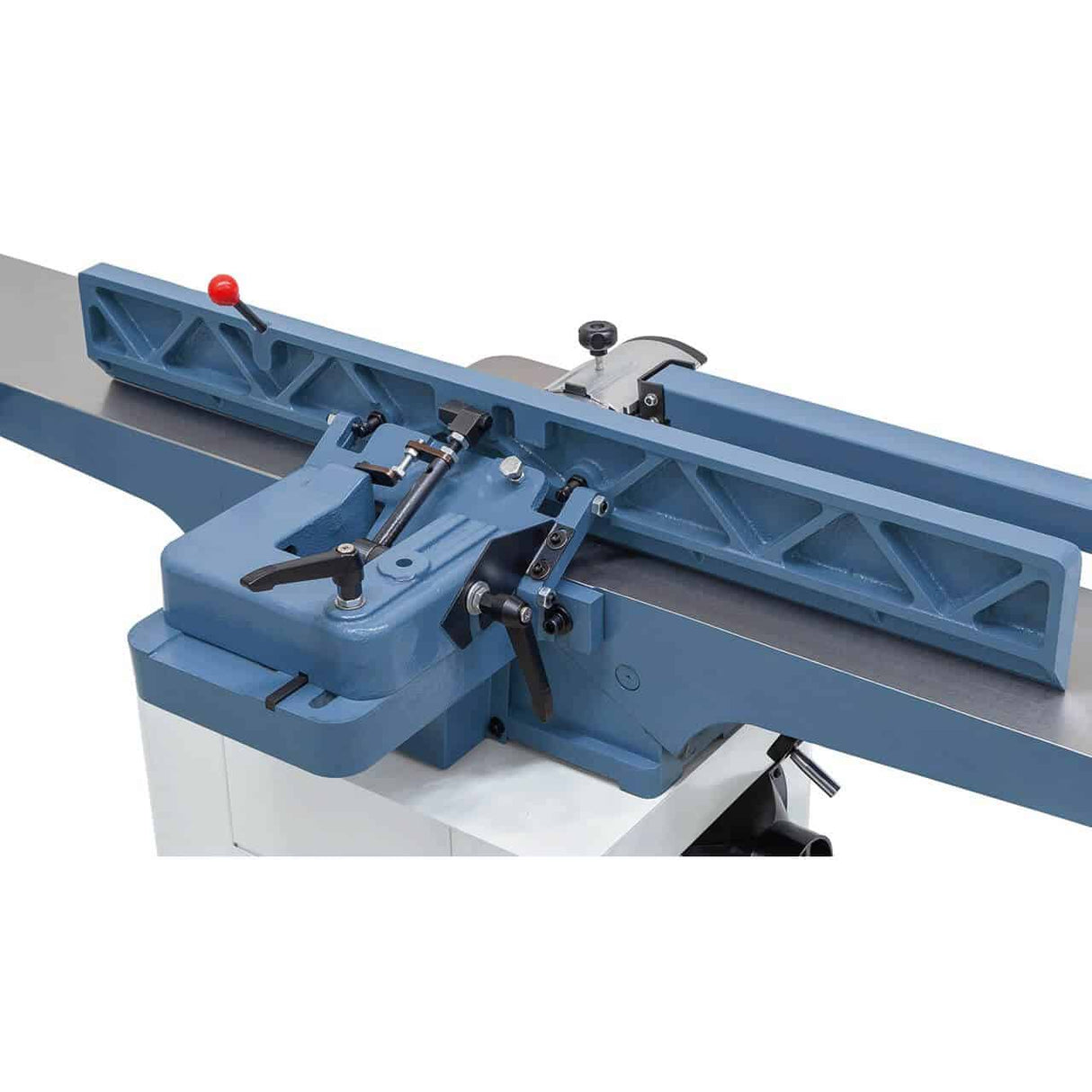

Fence	1,020 × 125 mm, inclinable 90°–45°
Dust extraction port	Ø 100 mm

Motor and power supply

Specification	Value
Motor power S1 (100%)	2.2 kW (3.0 HP)
Motor power S6 (40%)	3.0 kW (4.0 HP)
Power supply	230V – single-phase

Dimensions and weight

Specification	Value
Machine dimensions (L × W × H)	1,805 × 660 × 1,200 mm
Net weight	181 kg

Compliance and safety

Specification	Value
Marking	CE
Directive	Machinery 2006/42/EC

Included equipment

Standard equipment

4 HSS knives mounted
Knife setting jig

Warranty

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

FAQ / Frequently asked questions

Frequently asked questions

What is the difference between SP 200 PN – 230V and SP 200 PN – 400V?

No structural difference: same operational specifications, same table, same cutter block, same weight. The only difference is in the power supply: single-phase 230V vs three-phase 400V. If three-phase is available, the 400V version is always preferable for more uniform motor torque; without three-phase, the 230V is the only viable option.

Does the SP 200 PN – 230V have a thicknessing function?

No. It is exclusively a jointer. For the combined jointer+thicknesser function in single-phase at similar widths, consider the ADM 260 – 230V (250 mm) or FS 310 P – 230V (310 mm).

How often should the 4 HSS knives be sharpened?

In professional use (6-8 hours/day) on medium woods, every 2-3 weeks. On hard woods, every 1-2 weeks. To reduce maintenance frequency, consider the SP 200 PS with TCT inserts.

How much space is needed in the workshop?

The machine dimensions are 1,805 × 660 × 1,200 mm. For handling long pieces, at least 2 m of free space is needed in front and behind. With 181 kg Bernardo shipping.

Can the 2.2 kW single-phase motor handle continuous professional use?

Yes, for shifts of up to 6-7 hours on medium woods. On hard woods (oak, ash), it is advisable to reduce the cutting depth to 1.5-2 mm and take short breaks every 30-45 minutes. A dedicated line with a thermal-magnetic circuit breaker of at least 16A is recommended to avoid trips during startup.
