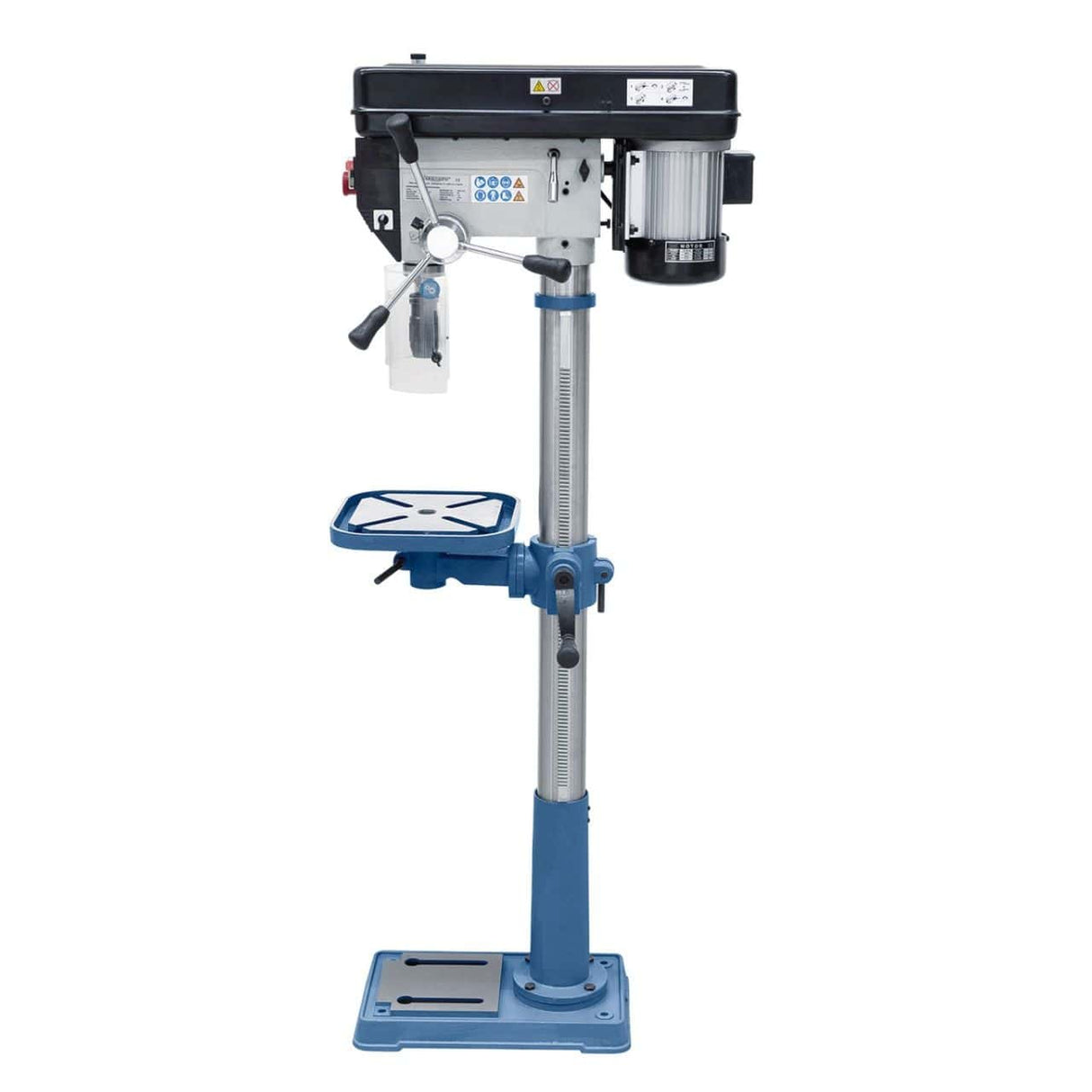

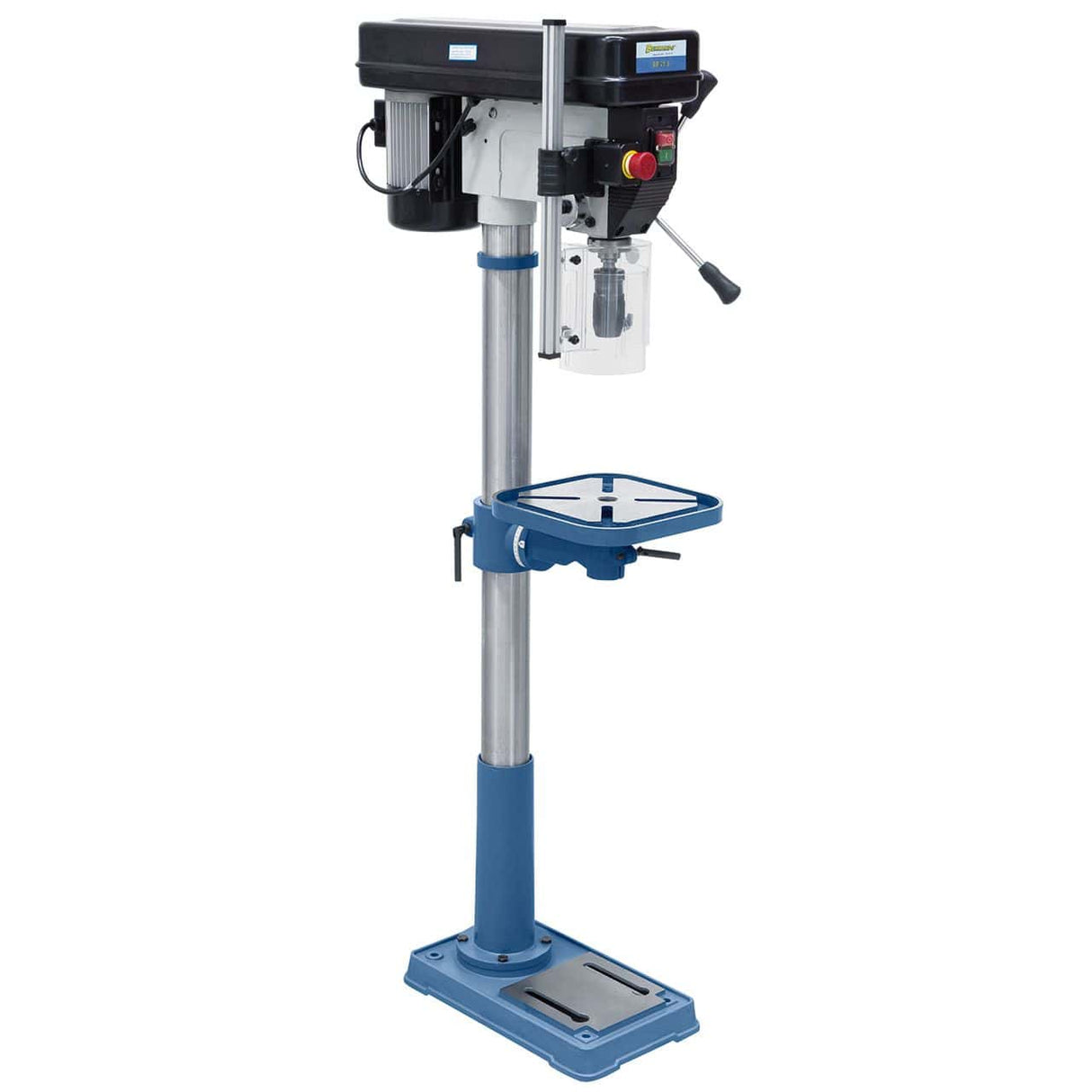

Bernardo Pillar Drill SB 25 S / 400 V

Bernardo Pillar Drill SB 25 S / 400 V R/L

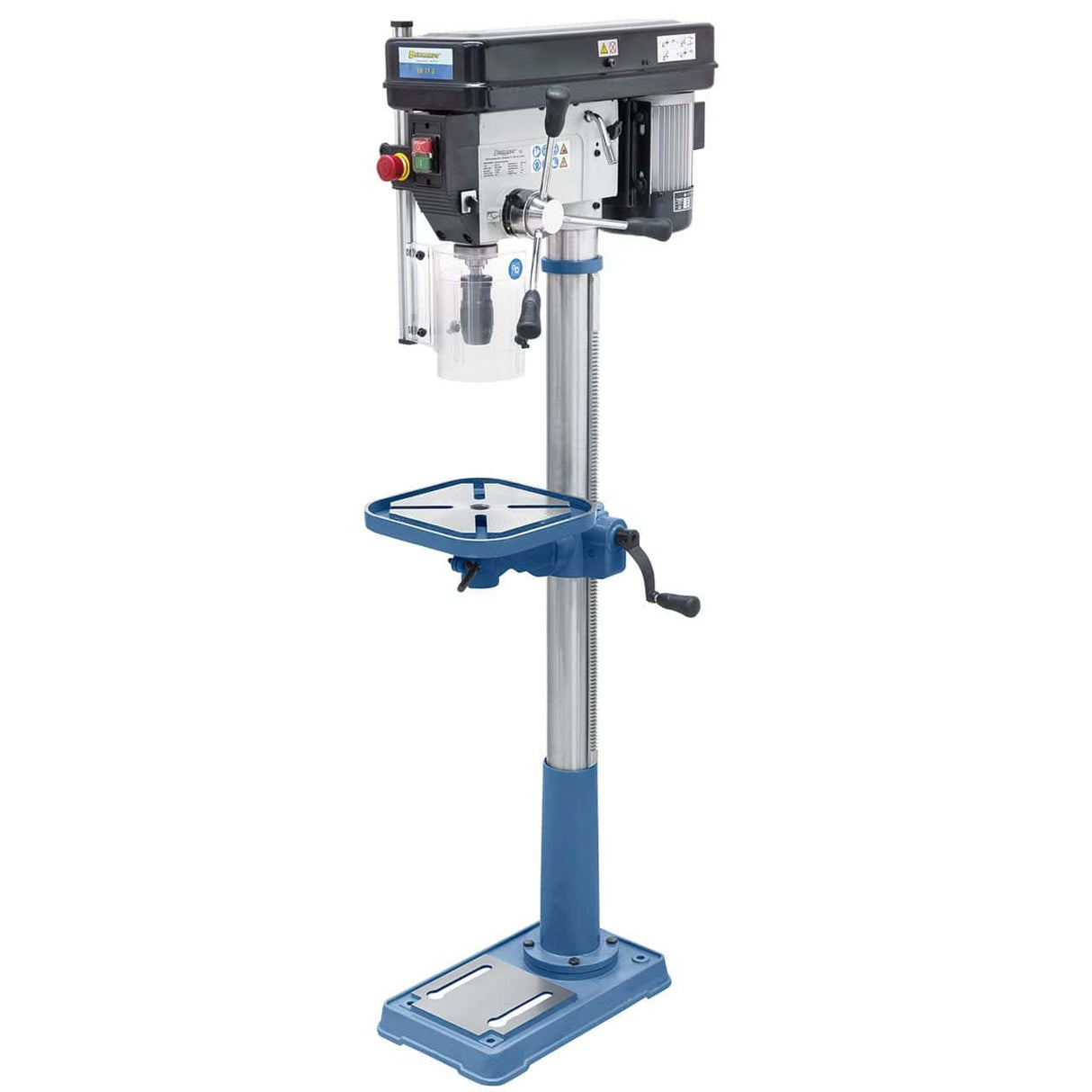

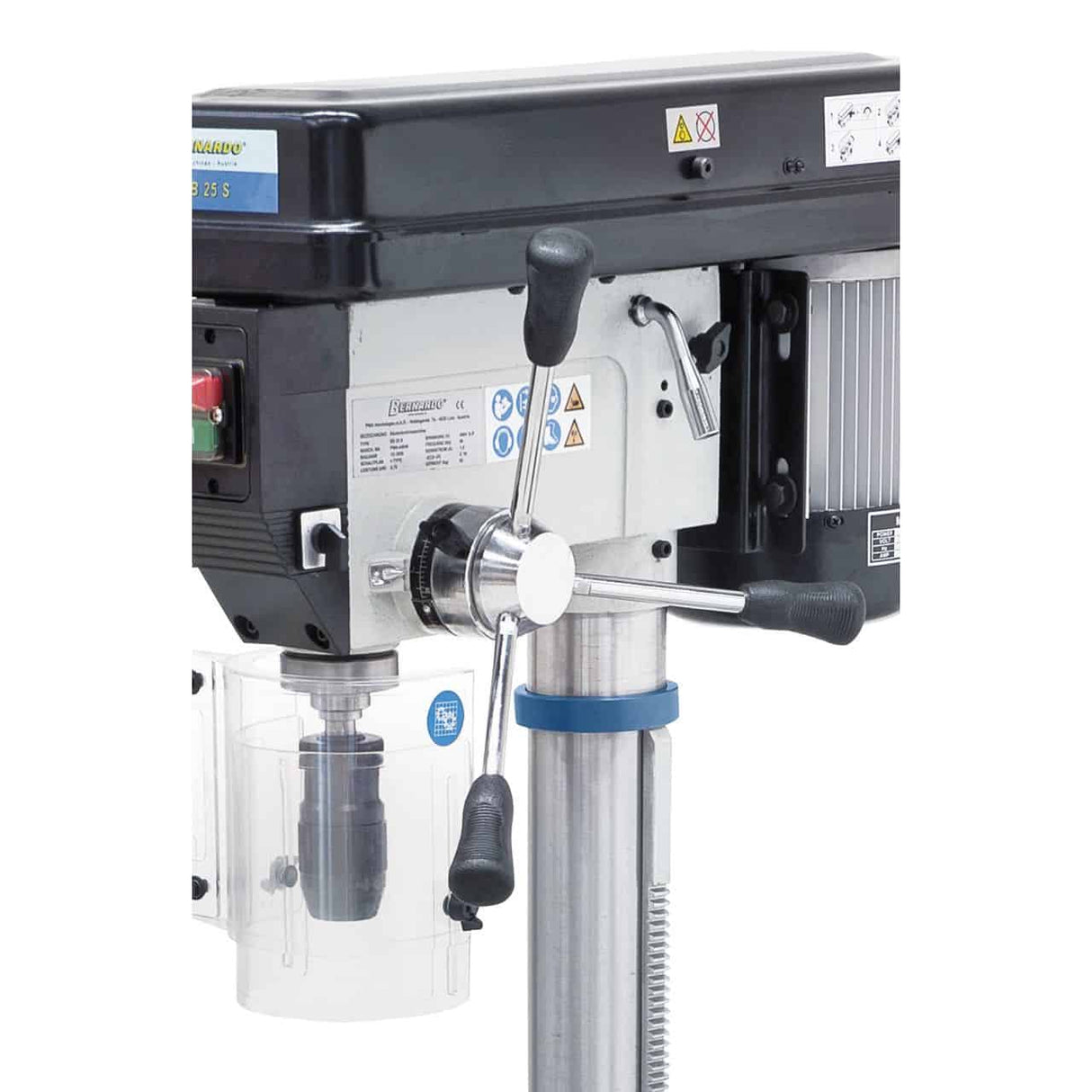

The Bernardo Pillar Drill SB 25 S / 400 V R/L is designed for stability, precision, and power in professional applications. Thanks to a high-torque aluminum motor conforming to the IP 54 standard and professional-quality bearings, it ensures spindle concentricity and long lifespan. With a drilling capacity of up to 25 mm in steel and a 1–16 mm keyless drill chuck included as standard, it offers high performance. The height-adjustable table, which can be tilted from -45° to +45° and features T-slots and a coolant groove, is adjusted via a rack. Reversible R/L rotation, a separate emergency stop, and adjustable protection complete the safety features. Suitable for mechanical workshops and artisans seeking reliability and precision in a robust and versatile pillar drill.

---

Main specifications

Max. drilling capacity: 25 mm
Keyless drill chuck 1–16 mm / B18 included
Spindle taper MT 3
Spindle speeds: 12 positions, 280–2380 rpm

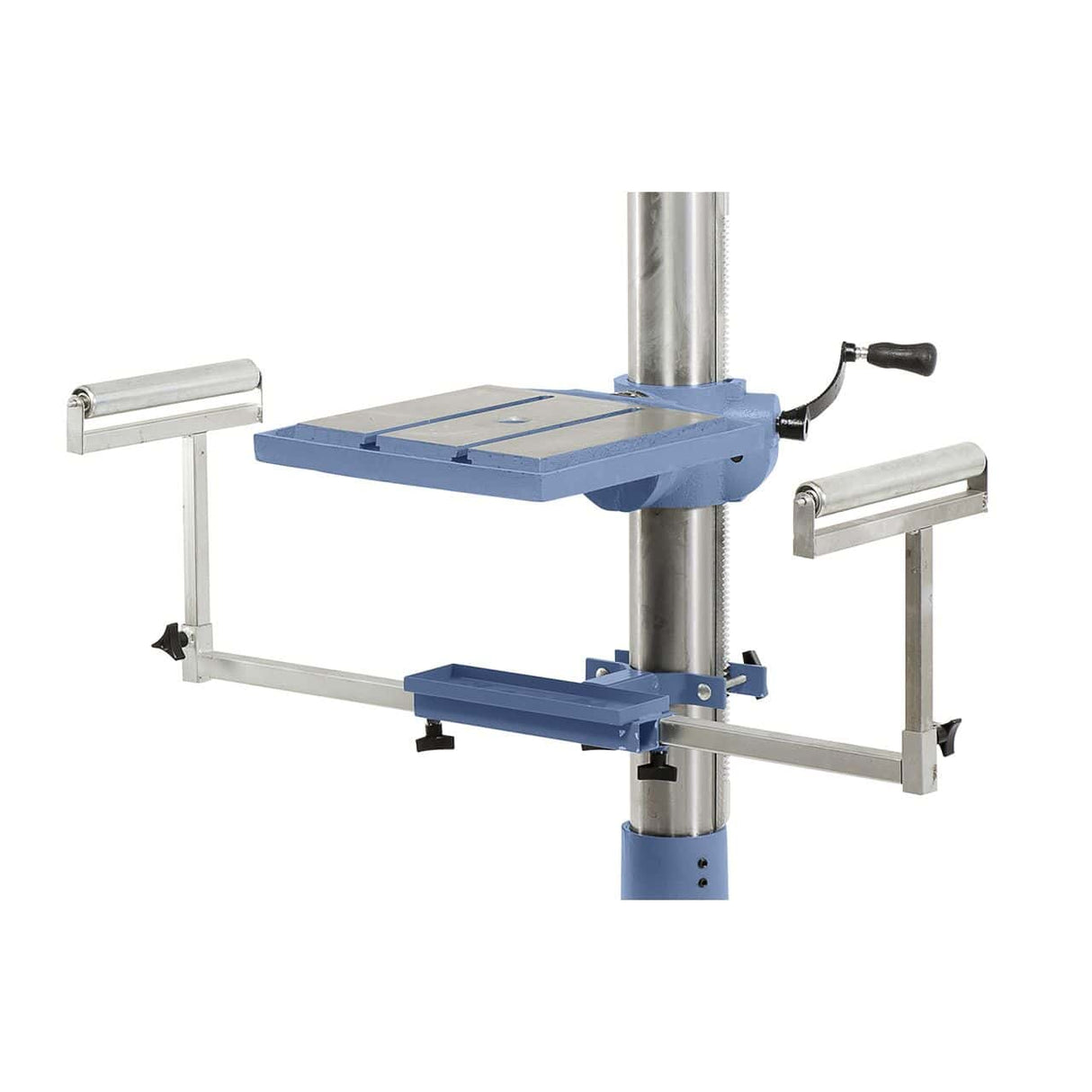

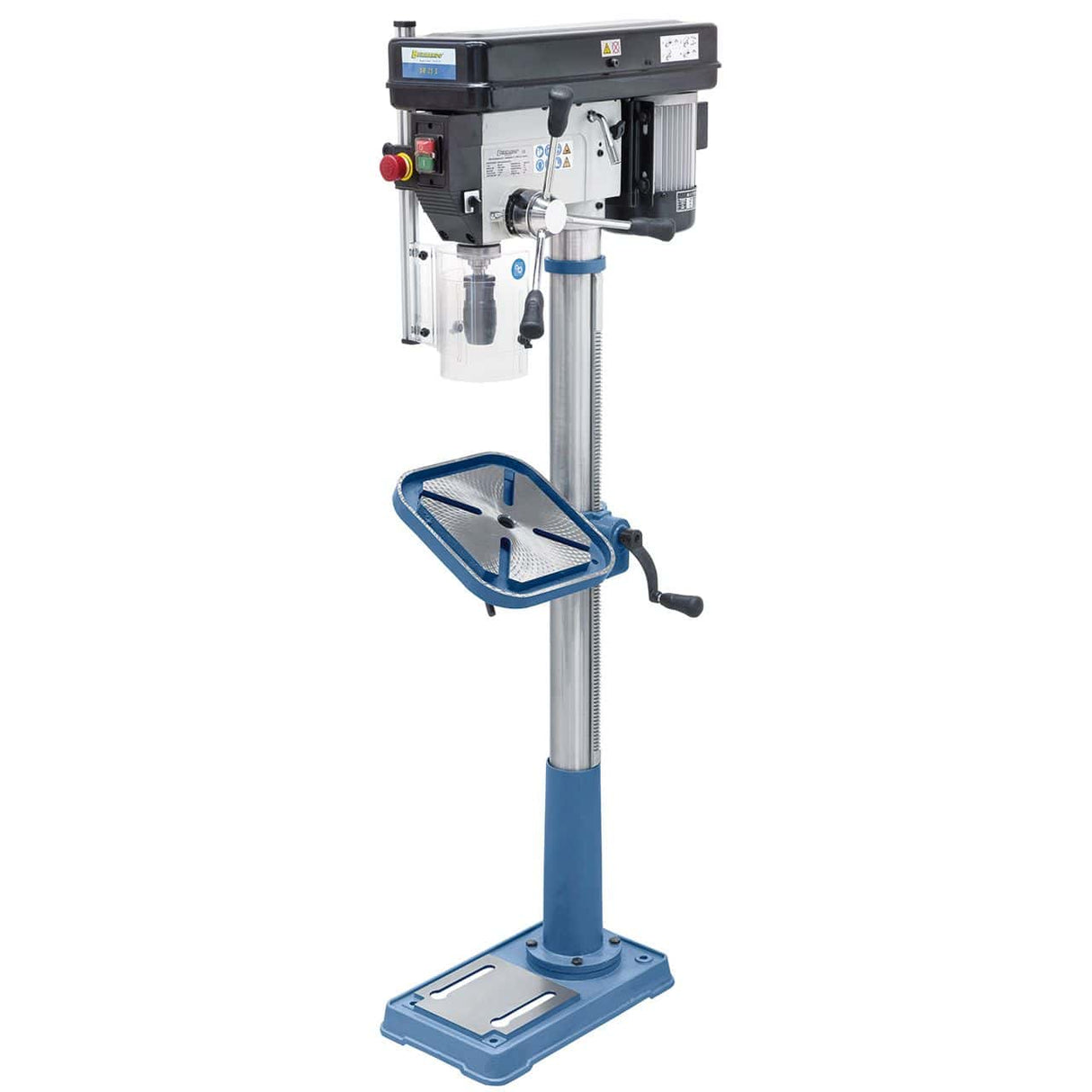

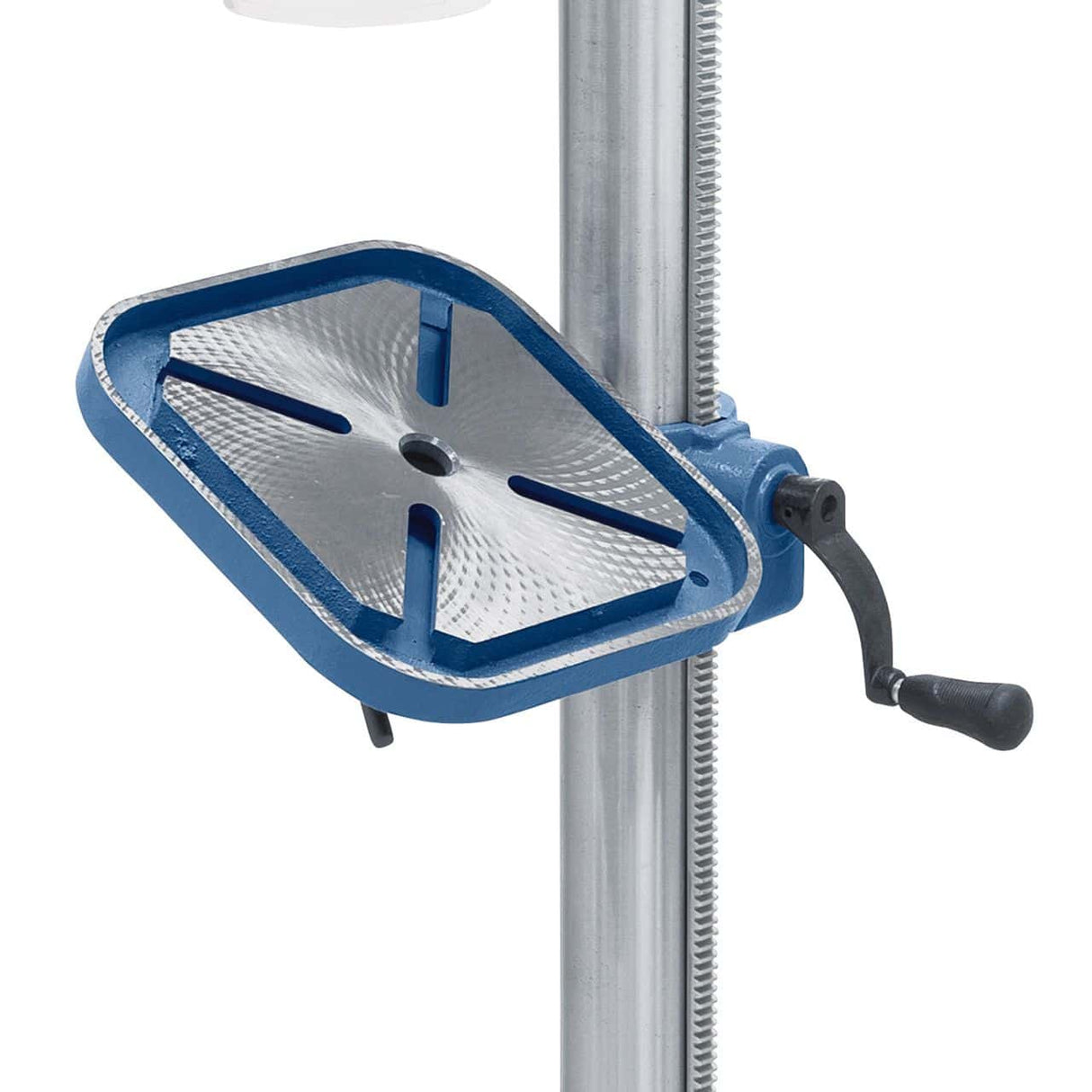

Table 290 x 290 mm tiltable from -45° to +45° with 16 mm T-slots
Max. spindle-table distance: 685 mm
Spindle-base distance: 1175 mm
Spindle stroke: 85 mm

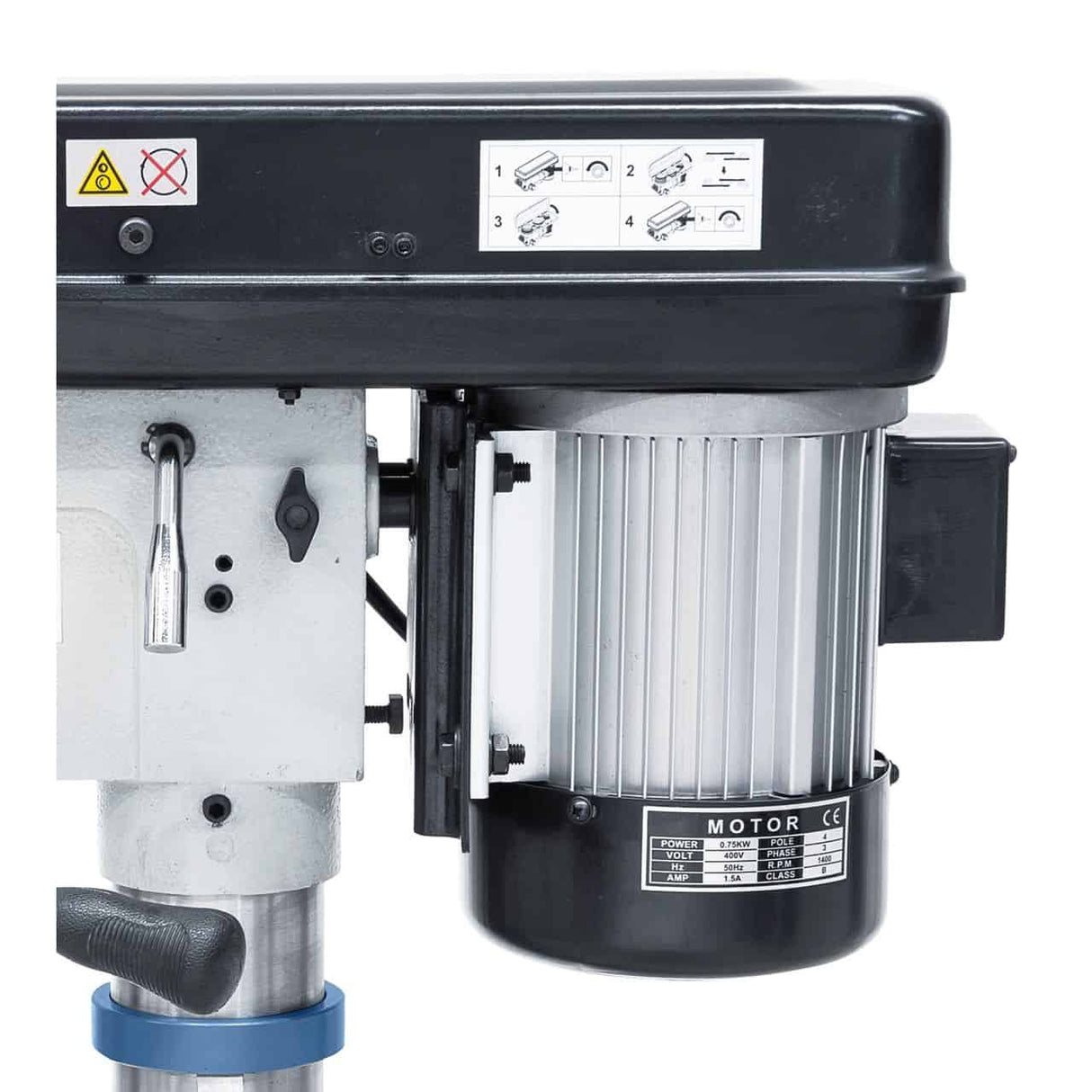

Motor: 0.75 kW S1 – 1.1 kW S6 / 400 V
Weight: 65 kg

---

Scope of delivery:
Keyless drill chuck 1–16 mm / B18
Drill chuck arbor MT 3 / B18

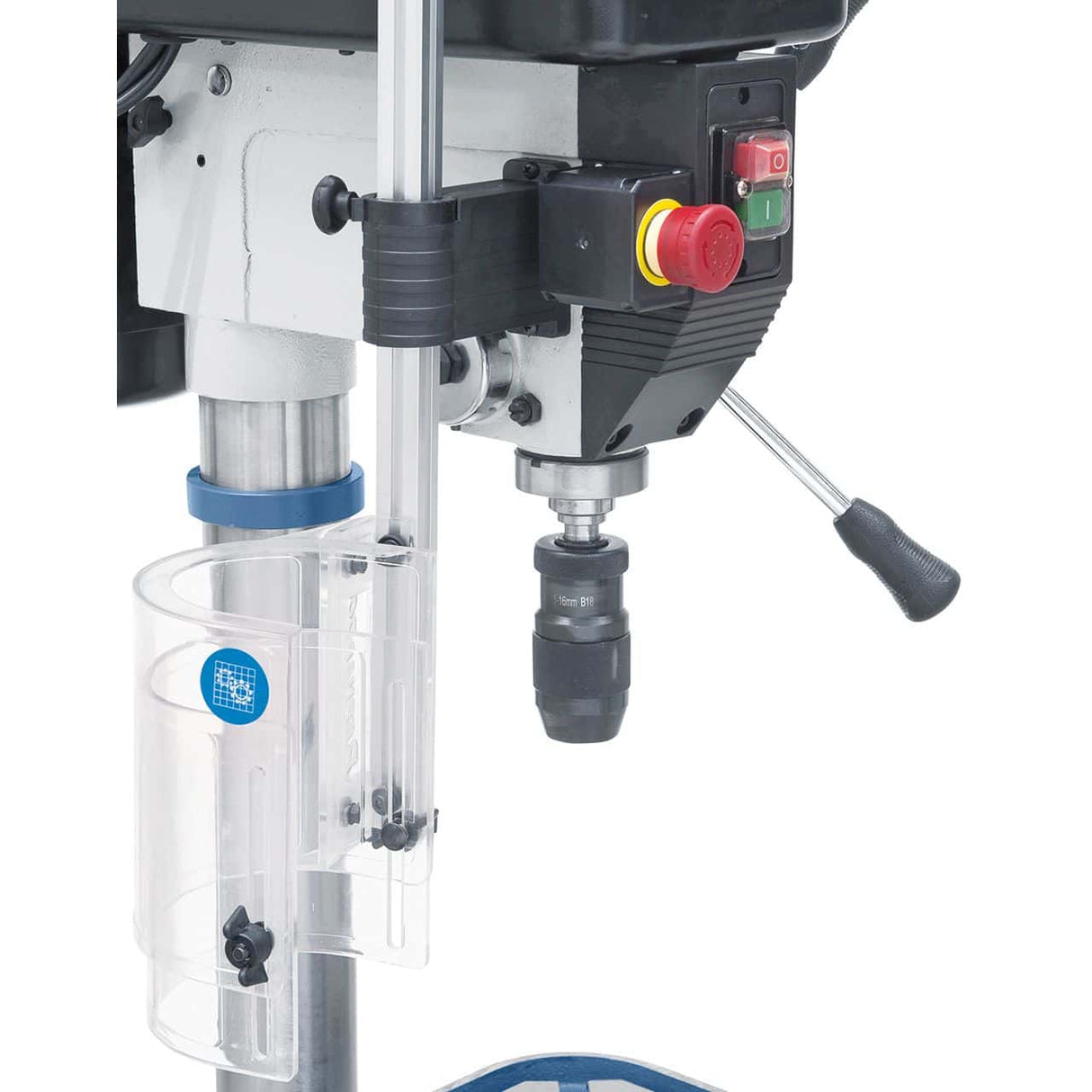

Height-adjustable protective cover

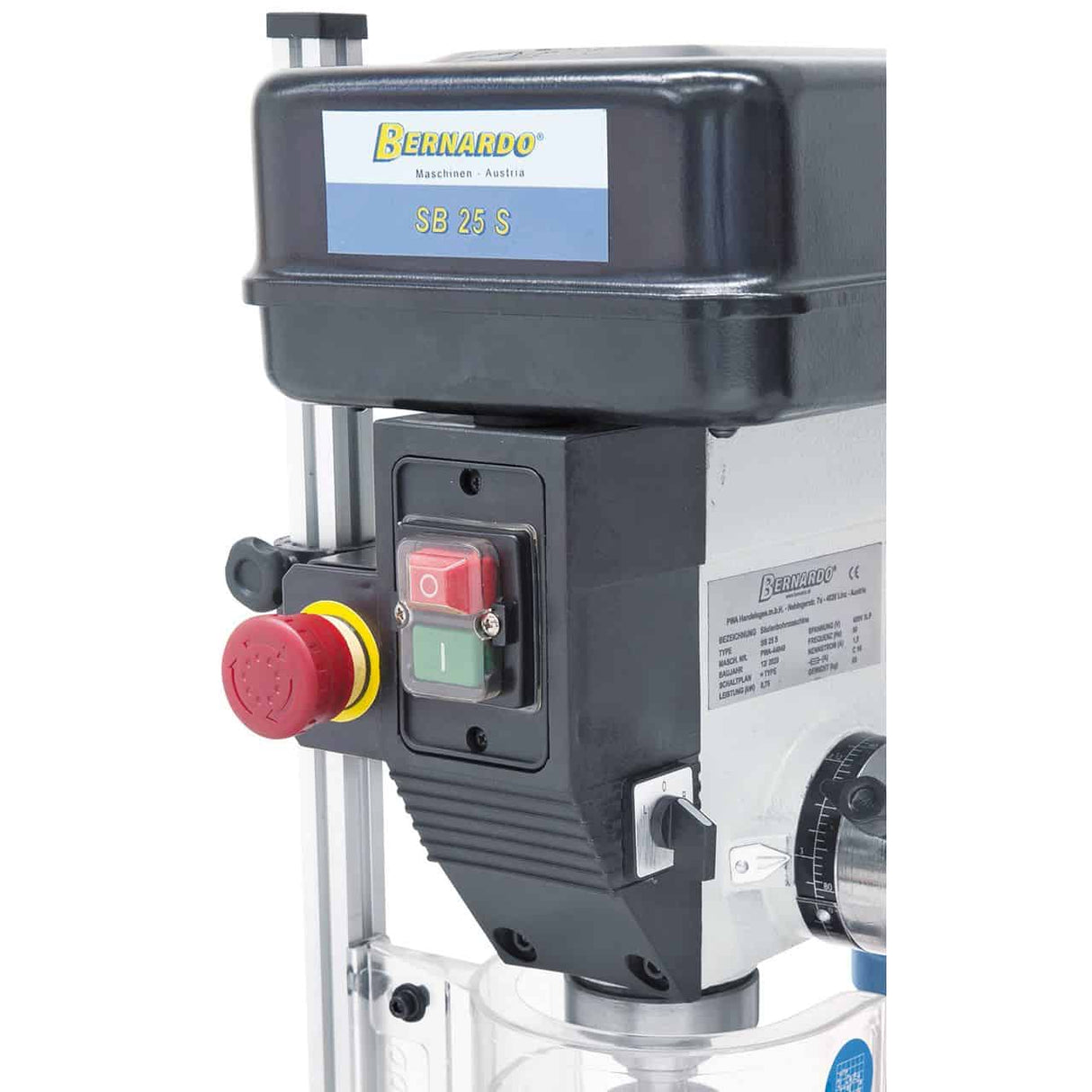

Separate emergency switch
R/L rotation switch
T-slot bolts
Service wrenches

Why buy the Pillar Drill SB 25 S / 400 V R/L with digital display on Krollit

Buying the Pillar Drill SB 25 S / 400 V R/L on Krollit means choosing not only a machine for hobbyists for metalworking, but also concrete support before and after the purchase.
Krollit assists professionals, artisans, and workshops in choosing the most suitable machine, offering assistance, technical support, and spare parts management.

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer service available in Italian.

---

Technical table:

Specification	Value
Brand	Bernardo
Model	SB 25 S / 400 V R/L
Max. drilling capacity	25 mm
Drill chuck	1–16 mm / B18 keyless
Spindle taper	MT 3
Spindle speeds	12 – 280 ÷ 2380 rpm
Spindle-column distance	175 mm
Tilting table	-45° to +45°
Spindle-table distance	685 mm
Spindle-base distance	1175 mm
Spindle stroke	85 mm
Column diameter	80 mm
Table dimensions / T-slots	290 x 290 mm / 16 mm
Usable base surface	205 x 205 mm
Motor power (S1/S6)	0.75 kW / 1.1 kW – 400 V
Machine dimensions (L x W x H)	380 x 660 x 1560 mm
Weight	65 kg

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

Frequently Asked Questions

Belt-driven pillar drill vs. geared drill: which to choose?

V-belt drills (such as the Bernardo Pillar Drill SB) are quieter, less expensive, and have sufficient torque for drilling up to Ø 32 mm in standard steel. Geared drills (GB series) deliver higher torque at low speeds — necessary for deep reaming, large diameter tapping, and drilling hard materials over Ø 30 mm. For standard drilling up to Ø 32 mm, a belt drive is the correct choice.

What is the maximum drilling diameter in steel with the Bernardo Pillar Drill SB?

Nominal capacity Ø 32 mm in S235 steel with HSS drill bit. In AISI 304 stainless steel, the capacity is reduced by 30–40% — use specific drill bits for stainless steel and reduced speed with coolant. In aluminum, the capacity increases by 30%. For holes over Ø 20 mm in steel, always use the lowest available speed and controlled manual feed.

How do you choose the correct speed for the material?

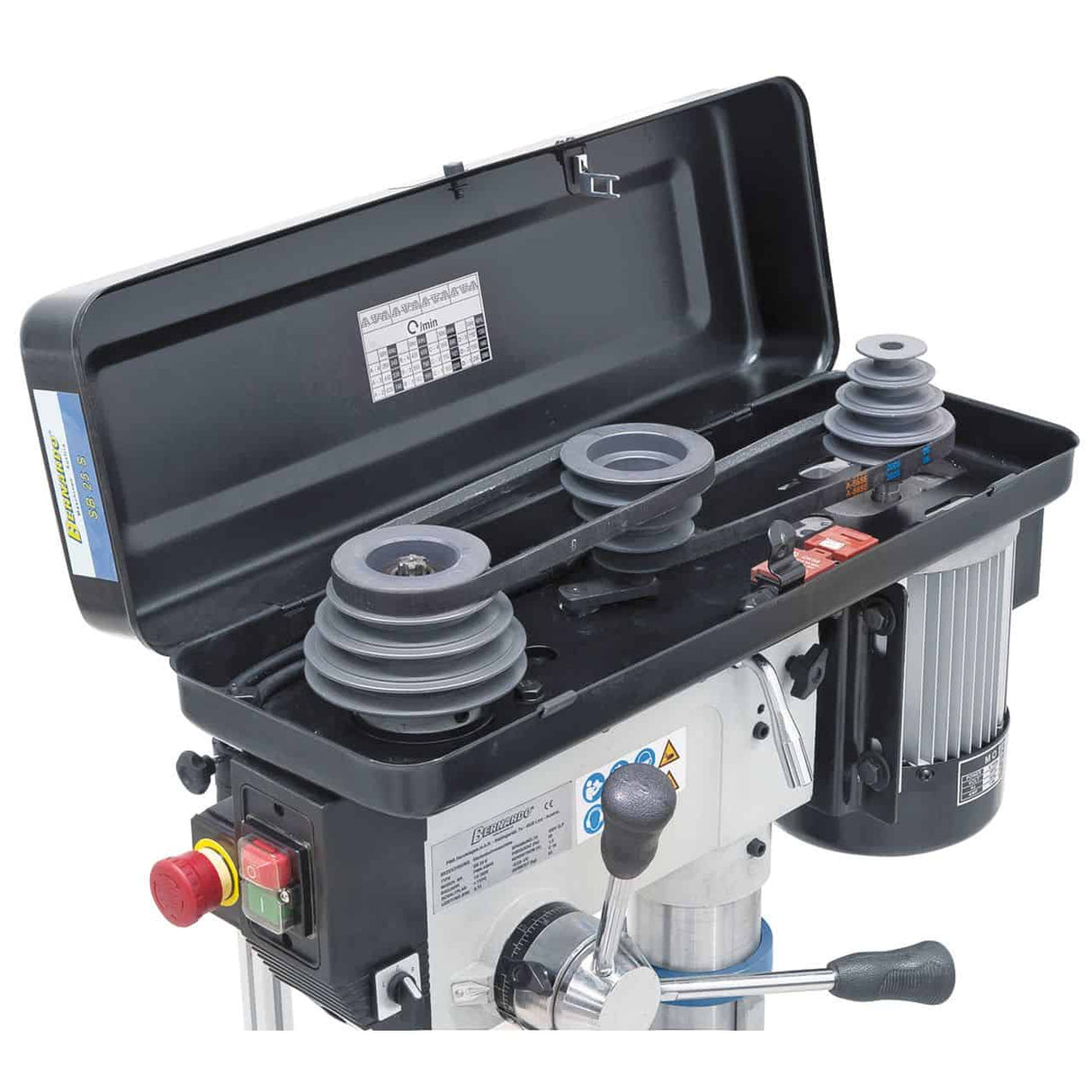

Optimal peripheral speed: mild steel 15–25 m/min, stainless steel 8–15 m/min, aluminum 60–100 m/min, plastic 40–80 m/min. The formula: n (rpm) = (v × 1000) / (π × d). For Ø 10 mm drill bits in steel: 500–800 rpm. Too high a speed burns the cutting edge; too low causes vibrations and long chips that wrap around the drill bit. The belt change allows for the selection of predefined speeds — choose the one closest to the calculated optimal speed.

400 V power supply: is a special system needed?

400 V three-phase — requires an industrial system. Check for three-phase power and switchboard capacity before purchasing.

Are spare parts available?

Original spare parts available with 3–5 working days shipping. Customer service available in Italian.
