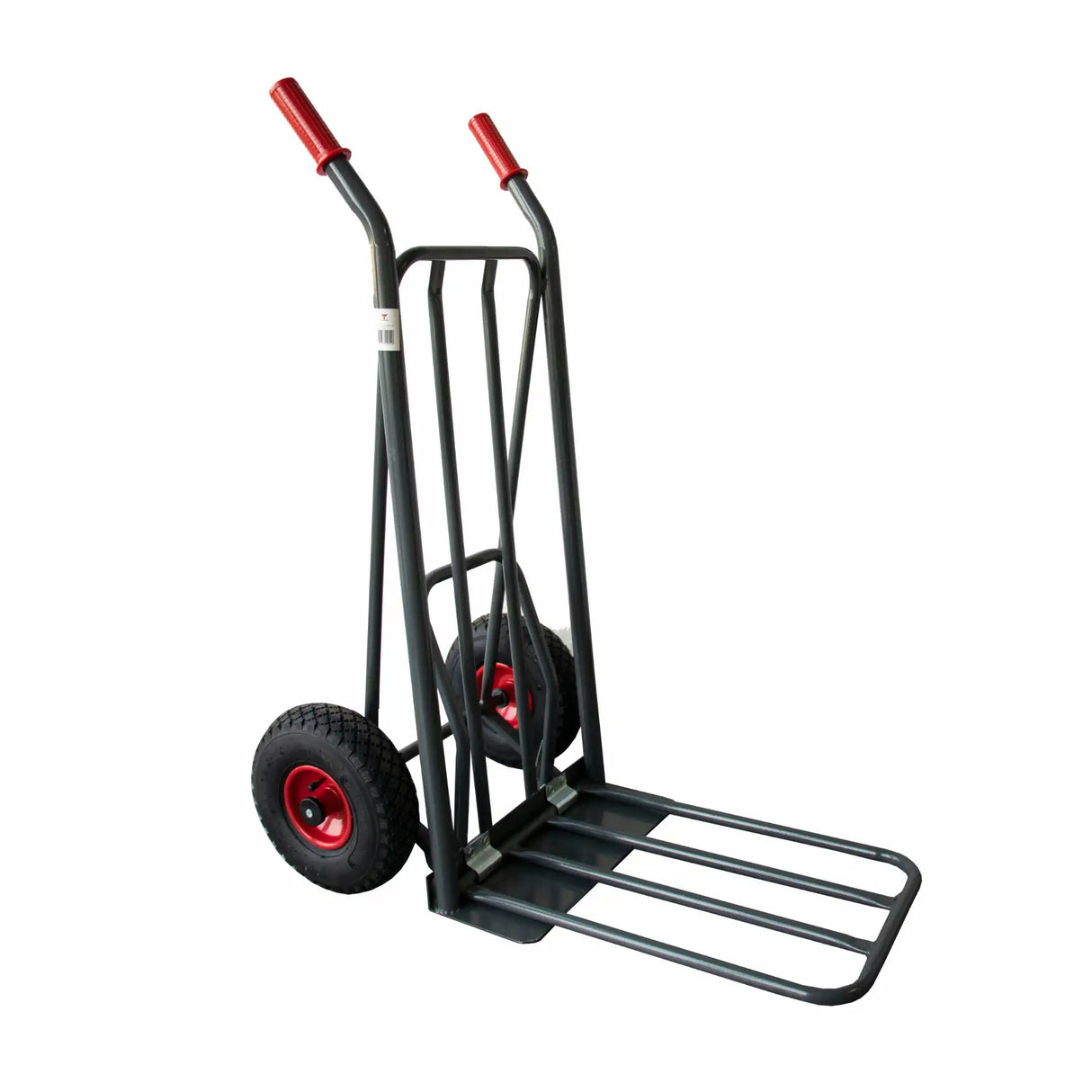

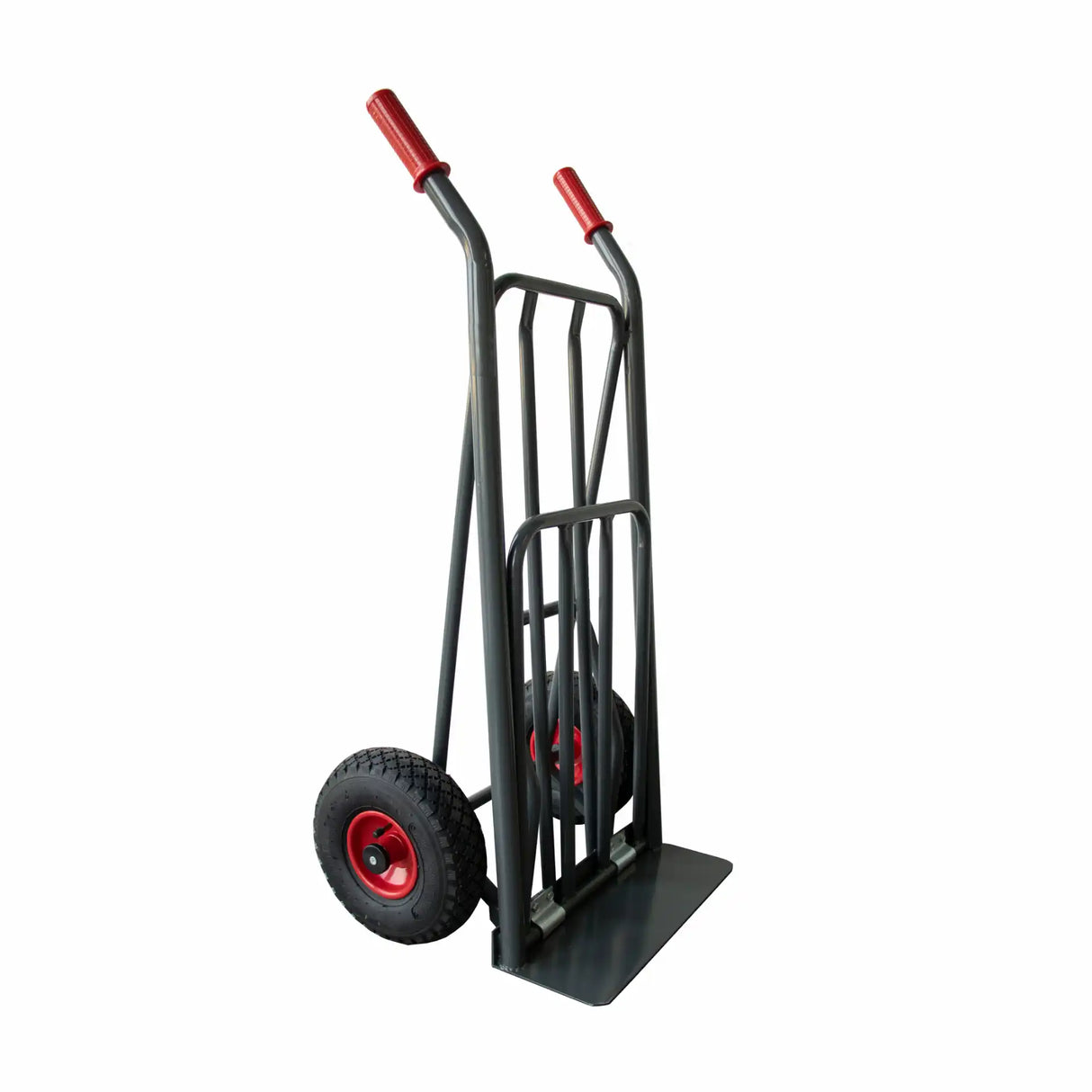

The Ravendo CLM 250 TIP LS sack truck is a professional transport trolley with a fully welded steel tube frame, Tip-Let system that reduces tilting effort by up to 50%, pneumatic wheels 3.00 x 4 and a maximum load capacity of 250 kg. Manufactured in Denmark by Ravendo, a company founded in 1946. Distributed in Italy by Krollit, Monteforte Irpino (AV).
- Maximum load capacity: 250 kg
- Foot-operated Tip-Let system: tilting effort reduced by up to 50%
- Frame: fully welded steel tubes
- Wheels: pneumatic 3.00 x 4 with steel rim
- Fixed loading toe plate: 415 x 130 mm
- Folding extension frame: 340 x 515 mm
- Overall dimensions: 520 x 430 x 1,150 mm
- Weight: 12 kg
- Finish: powder coating, grey colour
- Delivery: already assembled, ready for use
Who uses the CLM 250 TIP LS and what for
The CLM 250 TIP LS is used on construction sites for handling bags of cement, mortar and building materials, in warehouses for transporting boxes and parcels over mixed flooring, and in offices or shops for deliveries and internal moves. The Tip-Let pedal reduces the effort required when tilting the load, the most demanding operation in the daily use of a two-wheel sack truck. With its pneumatic wheels, the trolley moves over gravel, thresholds and uneven surfaces without transmitting vibrations to the load.
Who the CLM 250 TIP LS is suitable for
| Profile |
Compatibility |
Reason |
| Construction companies and site teams |
Suitable |
250 kg load capacity, pneumatic wheels for uneven ground, fully welded frame |
| Warehouses and light logistics |
Suitable |
Only 12 kg own weight, 340 x 515 mm extension frame for bulky parcels |
| Continuous industrial handling of heavy loads |
Not recommended |
For loads over 250 kg per item, pallet trucks or motorised trolleys are required |
Not recommended for: loads over 250 kg and continuous handling over long distances in industrial production, where an electric trolley or pallet truck is a better choice.
Technical specifications
Dimensions and capacity
| Maximum load capacity |
250 kg |
| Overall width |
520 mm |
| Overall height |
1,150 mm |
| Depth |
430 mm |
| Fixed loading toe plate (W x D) |
415 x 130 mm |
| Folding extension frame (W x L) |
340 x 515 mm |
| Weight |
12 kg |
Wheels
| Type |
Pneumatic rubber |
| Size |
3.00 x 4 |
| Rim |
Steel |
| Hub, diameter |
20 mm |
| Hub, length |
75 mm |
Materials and finish
| Frame material |
Steel |
| Surface |
Powder coating |
| Colour |
Grey |
Frequently asked questions
How much weight can the Ravendo CLM 250 TIP LS sack truck carry?
The maximum load capacity is 250 kg, with an own weight of only 12 kg.
The ratio between load capacity and own weight comes from the fully welded steel tube frame, which distributes the load across the entire structure without bolted joints. For loads over 250 kg, it is advisable to use a pallet truck or a motorised trolley.

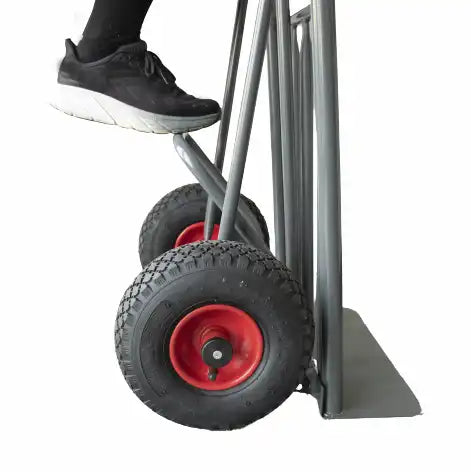

How does the Tip-Let system work?
Tip-Let is a pedal that makes it easier to tilt the trolley with the load, reducing the required effort by up to 50%.
In daily use, the most demanding phase of a two-wheel sack truck is the initial tilting movement, when the operator must overcome the weight of the load to bring it into transport position. With the Tip-Let pedal, the movement is assisted by foot leverage, reducing strain on the back and arms.
What is the folding extension frame used for?
The 340 x 515 mm extension frame increases the support surface of the fixed toe plate for transporting boxes and bulky parcels.
The fixed toe plate measures 415 x 130 mm and is suitable for bags and compact crates. By opening the folding frame, the loading depth increases to 515 mm, enough for large boxes, household appliances and irregular parcels. When not needed, it folds away to reduce the overall depth to 430 mm.
Are the pneumatic wheels suitable for construction site terrain?
Yes, the 3.00 x 4 pneumatic wheels with steel rim absorb the irregularities of gravel, dirt tracks and uneven flooring.
Compared with solid wheels, pneumatic tyres reduce the vibrations transmitted to the load and the pushing effort on uneven surfaces. The 20 mm diameter and 75 mm long hub is sized for the maximum load of 250 kg. It is advisable to check the tyre pressure periodically.
Does the trolley arrive assembled?
Yes, the CLM 250 TIP LS is delivered fully assembled and ready for use.
No tools or assembly operations are required: upon receipt, simply check the pressure of the pneumatic wheels. Shipping from the Krollit warehouse in Monteforte Irpino (AV) takes 3-5 working days, with Italian support at +39 0825-1494022.
