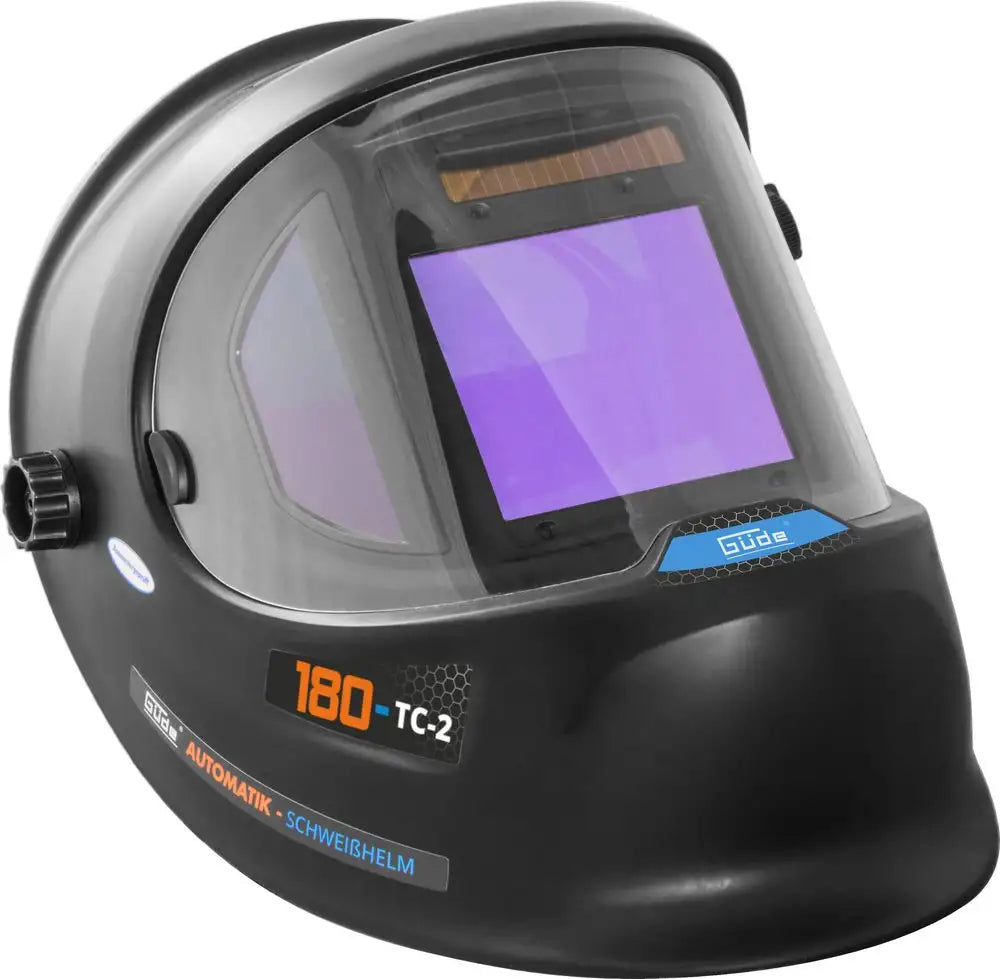

Güde GSH 180-TC-2 is a professional automatic welding helmet, with field of view extended to roughly 180° via two side windows, dual-range auto-darkening filter DIN 5-9 / DIN 9-13, solar power plus lithium CR2450 battery and a weight of 0.6 kg. Germany, since 1979. Distributed in Italy by Krollit, official Güde distributor since 2007.
- Power supply: lithium CR2450 battery plus solar
- Protective glass: EN 379
- Protective glass dimensions: 100 x 90 x 1 mm
- Field of view: 100 x 90 mm + side windows
- Light/dark response time: 1/10000 s
- Dark/light response time: 0.1-0.8 s
- Dark level: DIN 5-9 / DIN 9-13
- Light level: DIN4
- Net weight: 0.6 kg
- Universally usable for cutting, grinding and welding
- Battery control function
- True Colour technology for natural colour vision
Who uses the GSH 180-TC-2 and for what
The GSH 180-TC-2 is designed for those working professionally across different processes: welding, plasma cutting and grinding, thanks to the dual darkening range DIN 5-9 for lighter work and DIN 9-13 for welding itself. The two side windows extend the field of view to roughly 180°, providing greater awareness of the surrounding environment even in peripheral vision, a real advantage in a workshop where other people or equipment are moving around. True Colour technology delivers natural colour vision of the workpiece, while the dual power supply (CR2450 battery plus solar) ensures continuity of operation even in less than ideal lighting conditions.
Its place in the Güde range

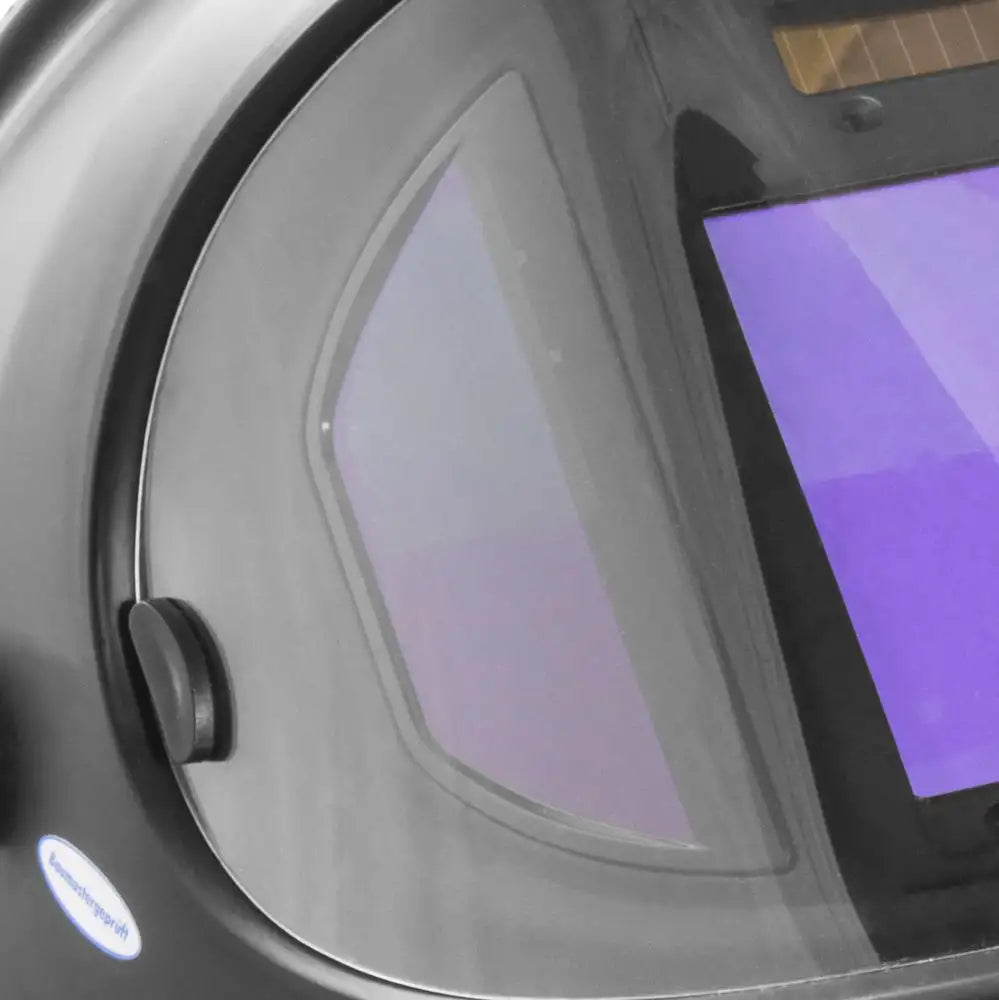

Within Güde's range of automatic welding helmets, the GSH 180-TC-2 is the higher-tier model: compared with the GSH-TC-2 (100 x 48 mm field of view, solar-only power, single DIN 9-13 range) it adds side windows for 180° vision, a dual darkening range and backup battery power. Compared with the GSH-K (flip-up visor with clear glass for grinding, 92.5 x 48 mm field of view) it offers peripheral vision instead of the flip-up visor. Those needing maximum awareness of the work environment, alternating between several processes independently, will find the GSH 180-TC-2 the most complete model in the range.
Krollit logistics and support
Shipping in 3-5 working days from Krollit's warehouse in Monteforte Irpino (AV), Italy. Technical support in Italian at +39 0825-1494022.
Who the GSH 180-TC-2 is for
| Profile | Fit | Reason |
|---|
| Professional alternating welding, plasma cutting and grinding | Suitable | Dual darkening range DIN 5-9 / DIN 9-13 covers both lighter and darker work without changing device |
| Those working in a workshop with other people or moving machinery | Suitable | Side windows extend the field of view to roughly 180°, for better awareness of the surrounding environment |
| Those needing only a basic helmet for occasional single-process welding | Not suitable | The extra features (dual range, side windows, dual power) represent a higher investment not needed for simple use; in this case the GSH-TC-2 is sufficient |
Not suitable for: those looking for the range's most affordable model for occasional hobby use on a single welding process, for which the GSH-TC-2 is a more targeted choice.
Technical specifications
| Power supply type | Lithium CR2450 battery plus solar |
| Protective glass | EN 379 |
| Protective glass dimensions (L x W x H) | 100 x 90 x 1 mm |
| Field of view (L x W) | 100 x 90 mm + side windows |
| Light/dark response time | 1/10000 s |
| Dark/light response time | 0.1-0.8 s |
| Dark level | DIN 5-9 / DIN 9-13 |
| Light level | DIN4 |
Dimensions and weight
| Dimensions (L x W x H) | 250 x 320 x 240 mm |
| Packaging dimensions (L x W x H) | 240 x 240 x 330 mm |
| Net weight | 0.6 kg |
| Gross weight | 1 kg |
Standard equipment
- Automatic welding helmet GSH 180-TC-2 with integrated auto-darkening filter and side windows

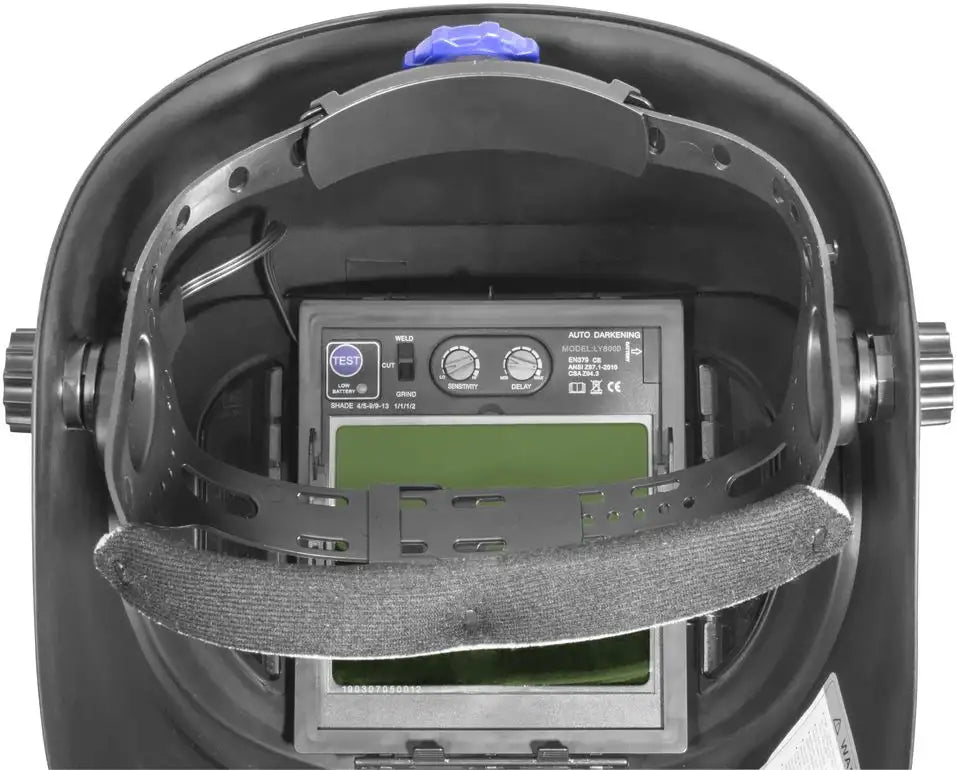

- Adjustable, padded headband
Frequently asked questions
What is the dual DIN 5-9 / DIN 9-13 darkening level for?
The DIN 5-9 range is designed for lighter work such as plasma cutting or grinding, while the DIN 9-13 range covers welding itself, with greater darkening to protect the eyes from the arc.
This dual adjustment allows switching between processes without changing protective equipment, an advantage for those working on multiple stages of the same piece in sequence.
How does the GSH 180-TC-2's dual power source work?
The helmet is powered by both a lithium CR2450 battery and a solar panel, with a battery control function indicating charge status.
This combination ensures continuity of operation even in environments with poor or inconsistent lighting, where solar power alone might not be enough.
How much does the field of view extend with the side windows?

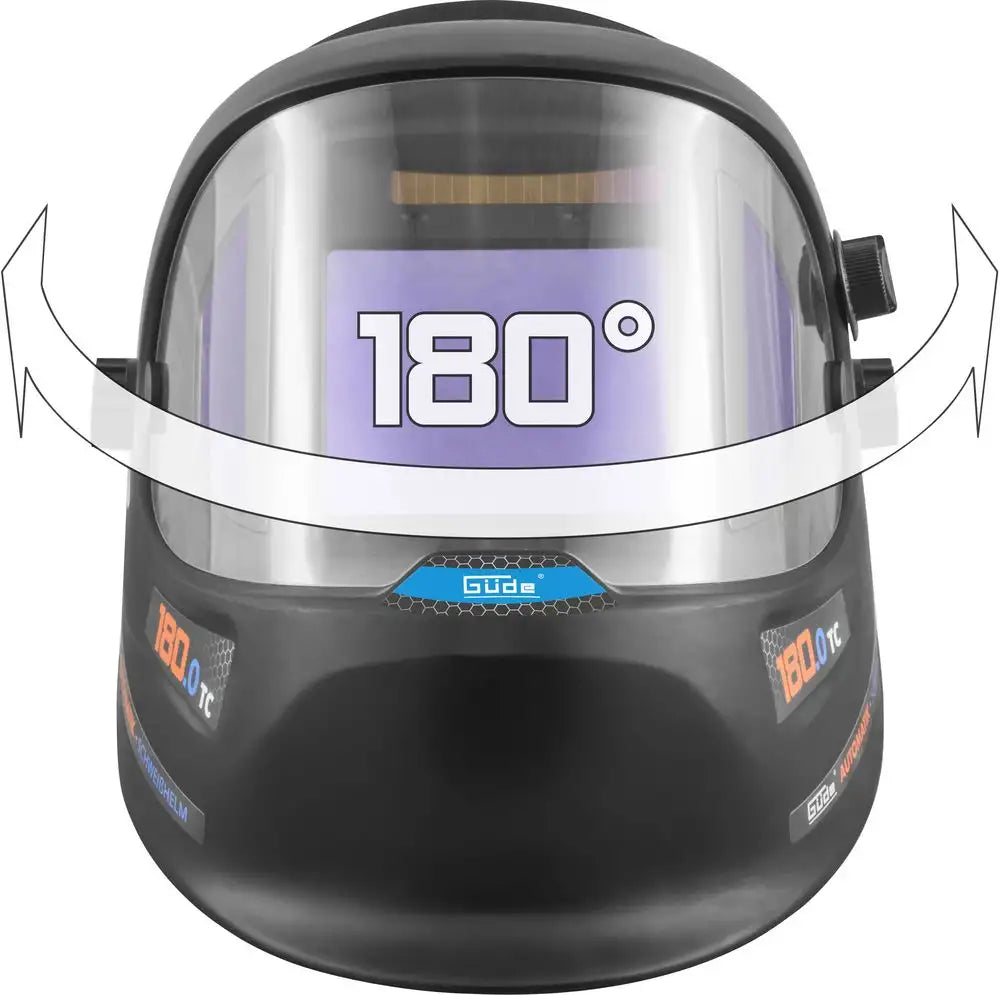

The two side windows extend the field of view to roughly 180°, in addition to the 100 x 90 mm forward field of view provided by the main auto-darkening filter.
This peripheral vision increases awareness of the surrounding environment while working, useful in workshops where other people or equipment are moving.
What's the difference between the GSH 180-TC-2 and the GSH-TC-2?
The GSH 180-TC-2 adds side windows for 180° vision, a dual darkening range DIN 5-9 / DIN 9-13, and CR2450 battery plus solar power. The GSH-TC-2, in turn, has a 100 x 48 mm forward field of view, a single DIN 9-13 range and solar-only power.
The choice depends on the need: those alternating multiple processes and wanting maximum peripheral vision will find the GSH 180-TC-2 the most complete model, while those looking for a simpler welding-only helmet will find the GSH-TC-2 a more targeted option.
What maintenance does a helmet like the GSH 180-TC-2 need?
Routine maintenance involves periodic checks of the protective glass, headband and CR2450 battery, to be replaced when the battery control function indicates insufficient charge.
For support or spare parts information, Krollit is the official Güde distributor since 2007, with technical support in Italian at +39 0825-1494022.
