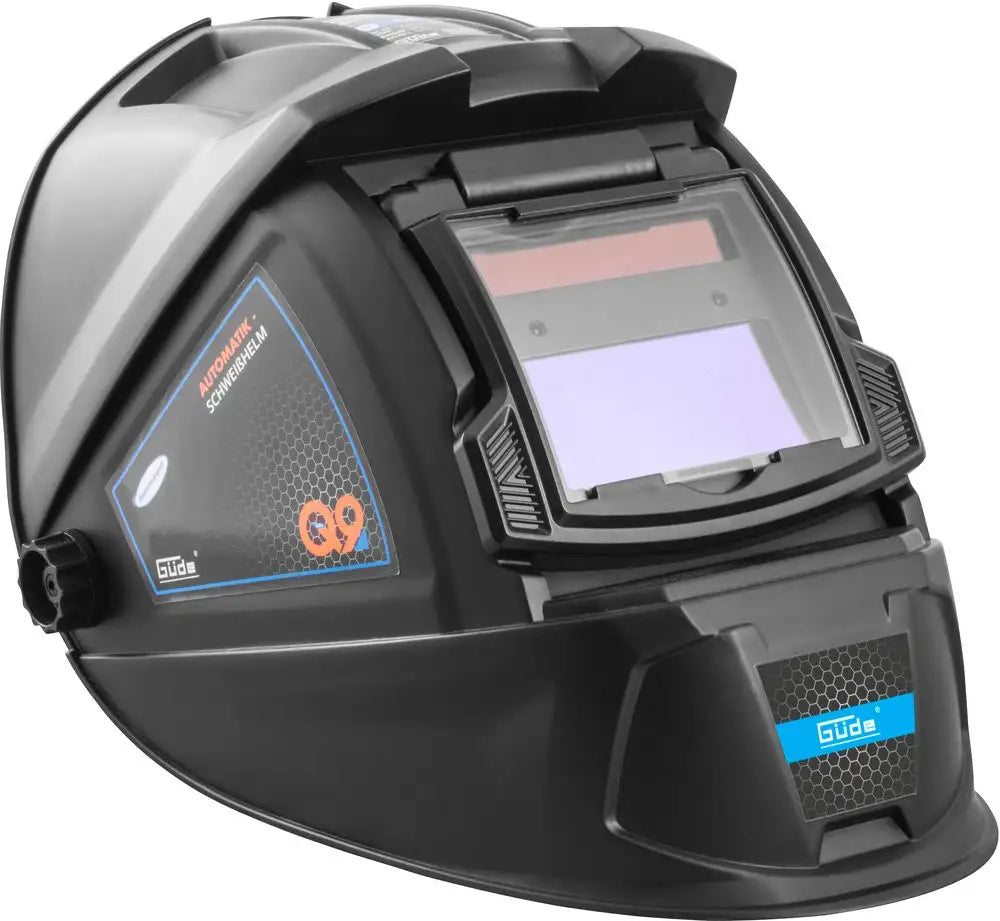

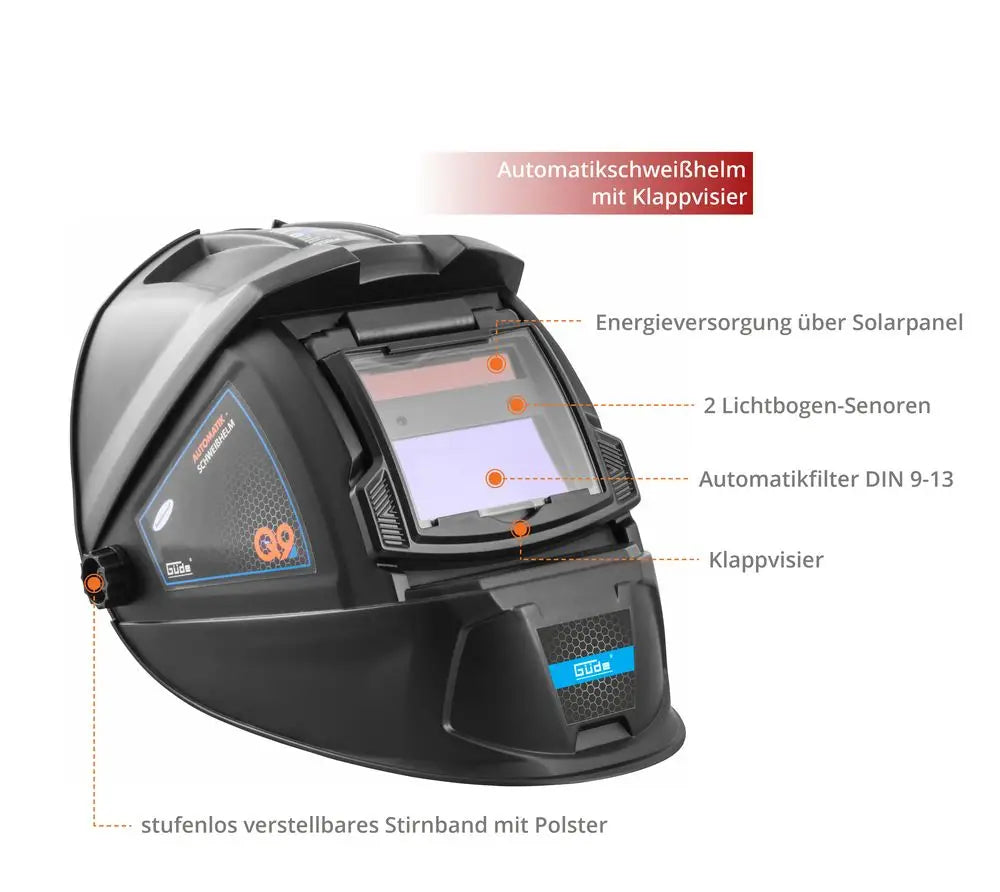

Güde GSH-K is an automatic welding helmet for professional use, with flip-up visor and auto-darkening filter DIN 9-13, solar power supply and a weight of 0.5 kg. Germany, since 1979. Distributed in Italy by Krollit, official Güde distributor since 2007.
- Power supply: solar
- Protective glass: EN 379
- Protective glass dimensions: 110 x 90 x 9 mm
- Field of view: 92.5 x 42.5 mm
- Light/dark response time: 3/10000 s
- Dark/light response time: 0.1-0.8 s
- Dark level: DIN 9-13
- Light level: DIN4
- Net weight: 0.5 kg

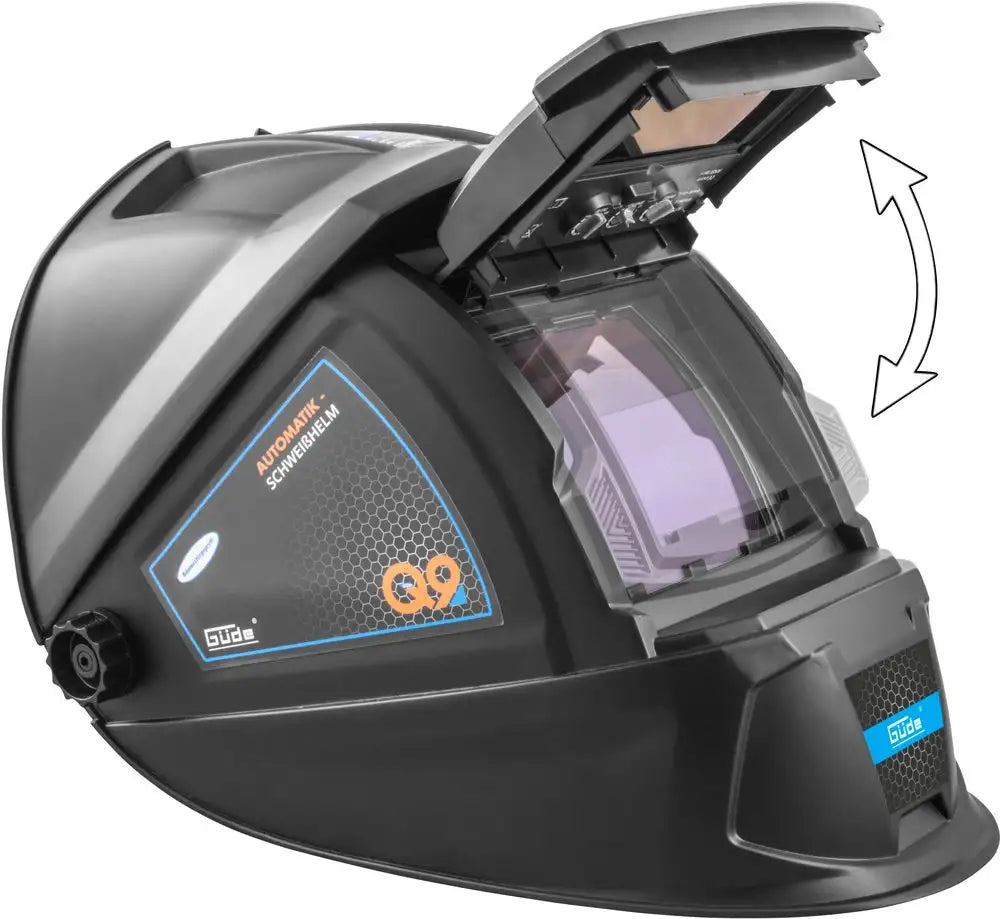

- Flip-up visor with clear protective glass for grinding work

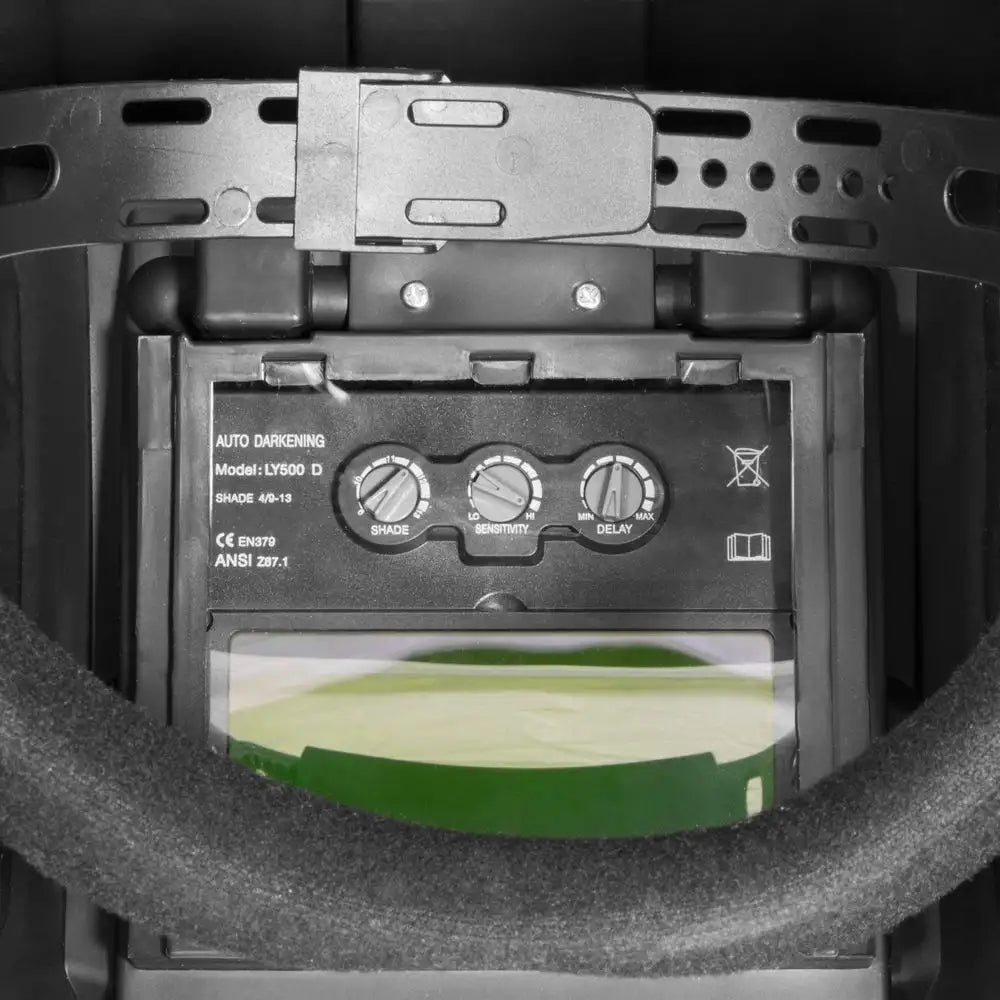

- Darkening, sensitivity and delay adjustable from outside
Who uses the GSH-K and for what
The GSH-K is designed for both experienced and beginner welders, usable universally for all common welding processes within the DIN 9-13 darkening range. The auto-darkening filter frees both hands during work, removing the need to hold a traditional welding shield. The distinctive feature is the flip-up visor: beneath the auto-darkening filter sits a large clear protective glass, designed for those who alternate welding and grinding without needing to swap protective equipment. The infinitely adjustable headband with padded forehead area ensures comfort during prolonged use.
Its place in the Güde range
Within Güde's range of automatic welding helmets, the GSH-K stands out for its flip-up visor with clear glass for grinding, a feature not found on the GSH-TC-2, which has a 100 x 48 mm field of view and solar-only power. The GSH 180-TC-2 remains the range's higher tier, with two side windows extending vision to roughly 180° and dual power supply, solar plus a replaceable CR2450 battery. Those who often alternate welding and grinding without wanting to swap protection will find the GSH-K a practical solution; those seeking maximum peripheral vision will find the GSH 180-TC-2 the more complete model.
Krollit logistics and support
Shipping in 3-5 working days from Krollit's warehouse in Monteforte Irpino (AV), Italy. Technical support in Italian at +39 0825-1494022.
Who the GSH-K is for
| Profile | Fit | Reason |
|---|
| Welder alternating welding and grinding | Suitable | The flip-up visor with clear glass allows switching to grinding without changing protective equipment |
| Beginner or experienced welder in a workshop | Suitable | Universal DIN 9-13 adjustment and darkening, sensitivity and delay adjustable from outside the helmet |
| Those needing extended peripheral vision while working | Not suitable | Field of view is limited to forward vision (92.5 x 42.5 mm), with no side windows; for this need the GSH 180-TC-2 offers 180° vision |
Not suitable for: those needing extended peripheral vision while welding or a backup battery power supply in addition to solar, features reserved for the higher-tier GSH 180-TC-2 model.
Technical specifications
| Power supply type | Solar |
| Protective glass | EN 379 |
| Protective glass dimensions (L x W x H) | 110 x 90 x 9 mm |
| Field of view (L x W) | 92.5 x 42.5 mm |
| Light/dark response time | 3/10000 s |
| Dark/light response time | 0.1-0.8 s |
| Dark level | DIN 9-13 |
| Light level | DIN4 |
Dimensions and weight
| Dimensions (L x W x H) | 320 x 225 x 220 mm |
| Packaging dimensions (L x W x H) | 240 x 330 x 240 mm |
| Net weight | 0.5 kg |
| Gross weight | 1 kg |
Standard equipment
- Automatic welding helmet GSH-K with integrated auto-darkening filter
- Flip-up visor with clear protective glass for grinding
- Adjustable, padded headband
Frequently asked questions
What is the GSH-K's flip-up visor for?
The flip-up visor allows lifting the auto-darkening filter to use the clear protective glass beneath it for grinding work, without needing to change protective equipment.
It's a practical solution for those who often alternate welding and grinding on the same piece, for example when preparing edges before welding or finishing the bead after cooling.
Which welding processes can the GSH-K be used with?
The GSH-K can be used universally for all common welding processes, thanks to the adjustable DIN 9-13 darkening range.
Darkening level, filter sensitivity and delay time are adjusted from outside the helmet, allowing quick adaptation to the process being used.
Does the GSH-K need a battery to work?
No, the GSH-K is powered exclusively by solar energy, with no replaceable battery.
Those who also want backup battery power can consider the higher-tier GSH 180-TC-2, fitted with solar power plus a replaceable CR2450 lithium battery.
What's the difference between the GSH-K and the GSH-TC-2?
The GSH-K has a flip-up visor with clear protective glass for grinding, a feature not present on the GSH-TC-2. The GSH-TC-2, in turn, has a slightly wider field of view (100 x 48 mm versus the GSH-K's 92.5 x 42.5 mm) and a lower weight (0.4 kg versus 0.5 kg).
The choice depends on the need: those alternating welding and grinding will find the GSH-K a more practical solution, while those looking for the lighter model with a wider forward field of view will find the GSH-TC-2 the better option.
Can the helmet be adjusted to fit different head shapes?

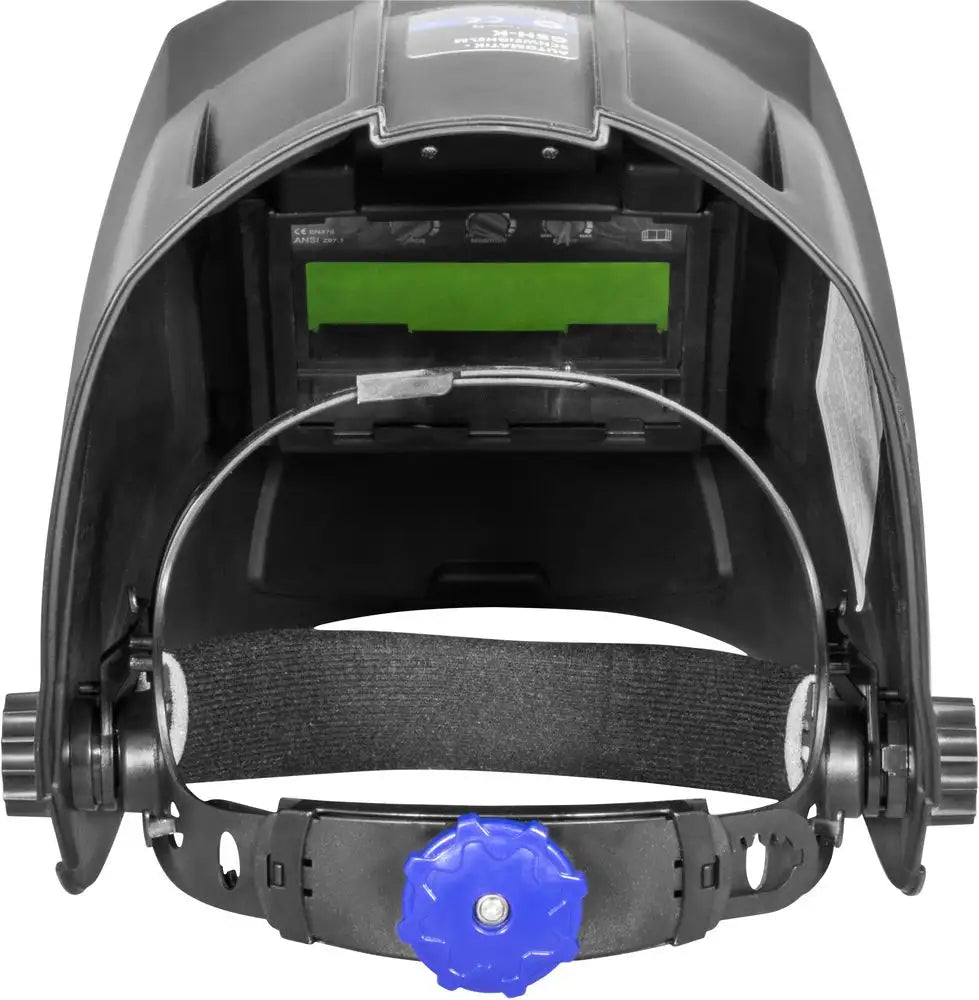

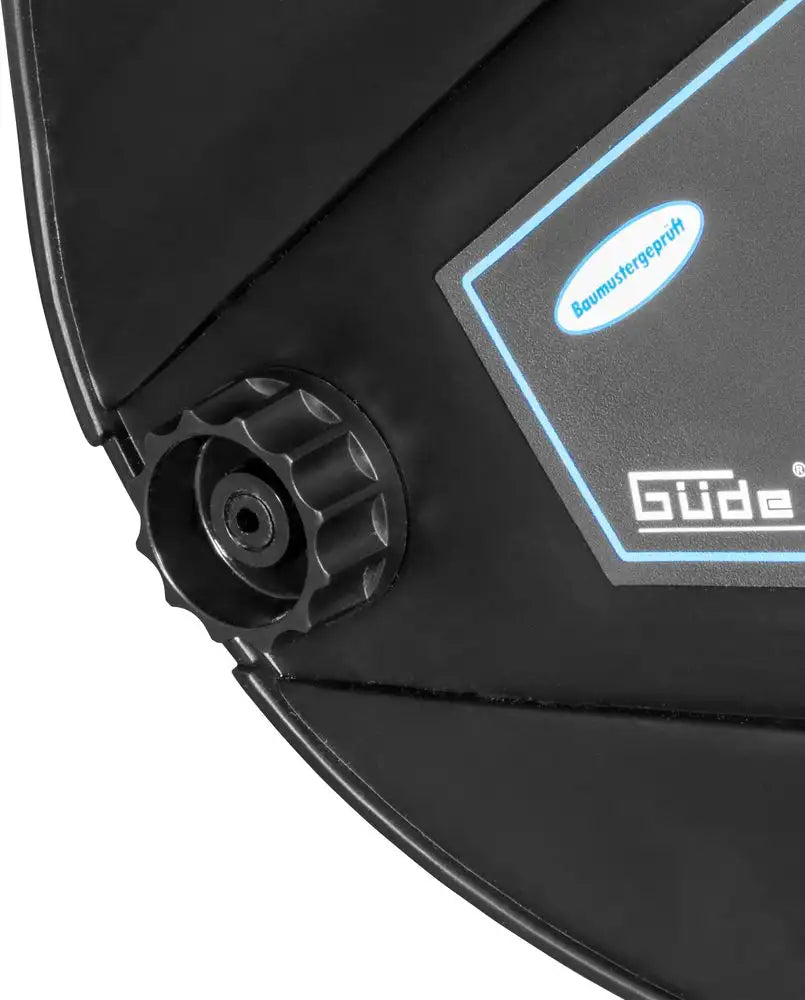

Yes, the headband is infinitely adjustable and padded at the forehead, adapting to different head shapes and sizes for comfort during prolonged use.
The helmet shell is made from lightweight, impact-resistant plastic, providing solid protection without weighing down everyday use.
