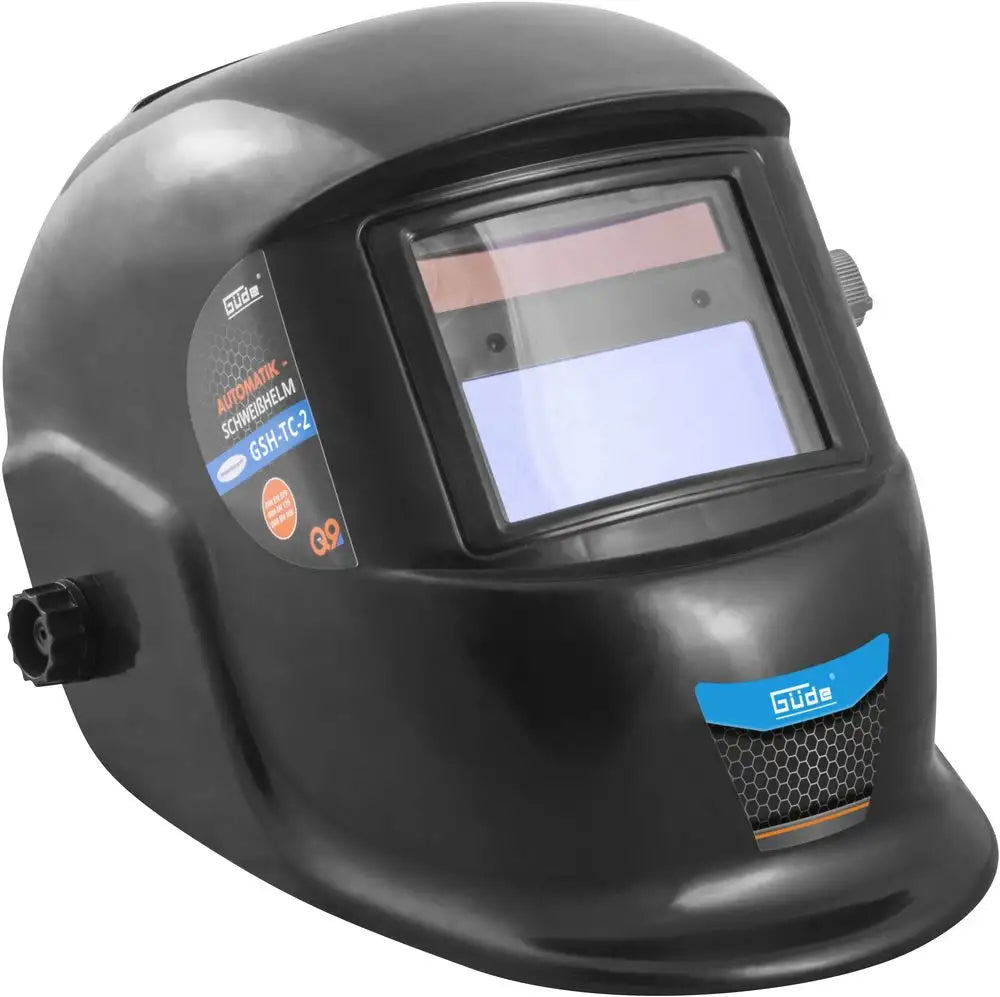

Güde GSH-TC-2 is an automatic welding helmet for professional use, with auto-darkening filter DIN 9-13, light/dark response time 3/10000 s, solar power supply and a weight of only 0.4 kg. Germany, since 1979. Distributed in Italy by Krollit, official Güde distributor since 2007.
- Power supply: solar
- Protective glass: EN 379
- Protective glass dimensions: 100 x 48 x 1 mm
- Field of view: 100 x 48 mm
- Light/dark response time: 3/10000 s
- Dark/light response time: 0.1-0.8 s
- Dark level: DIN 9-13
- Light level: DIN4
- Net weight: 0.4 kg
- True Colour technology for natural colour vision

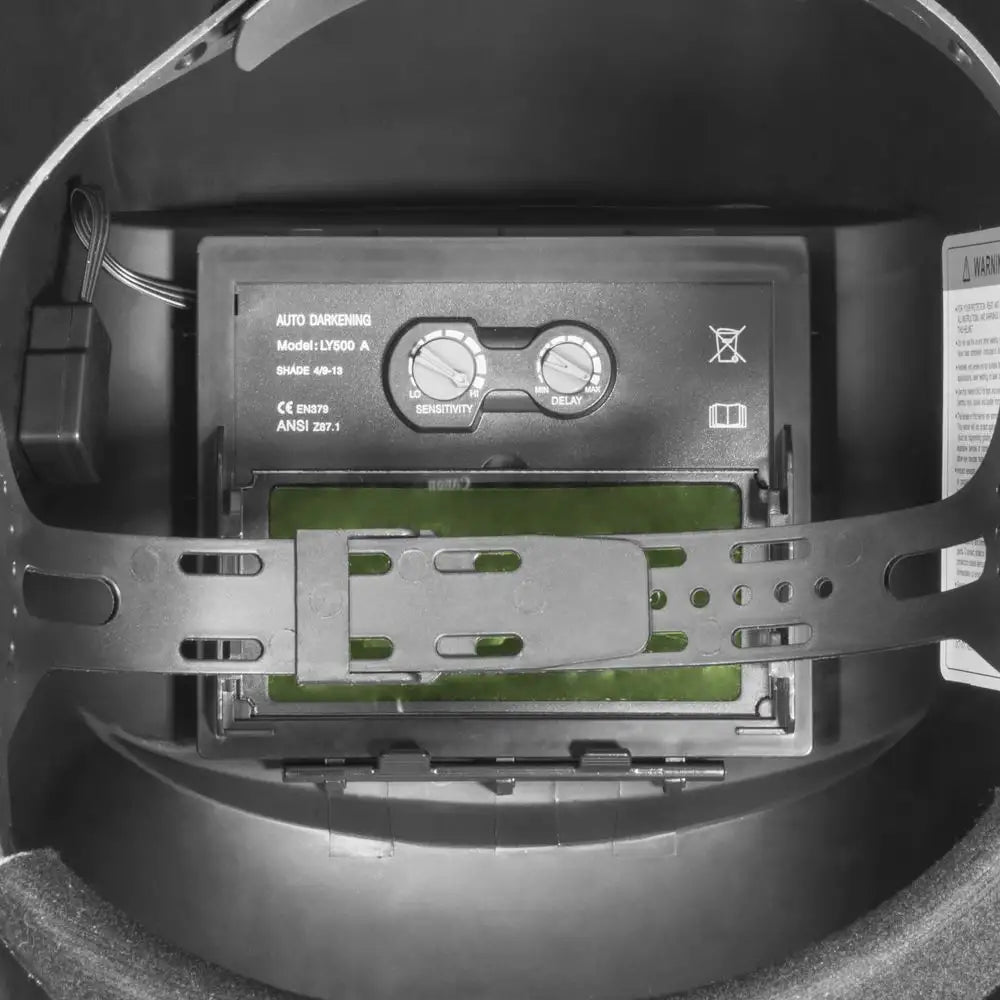

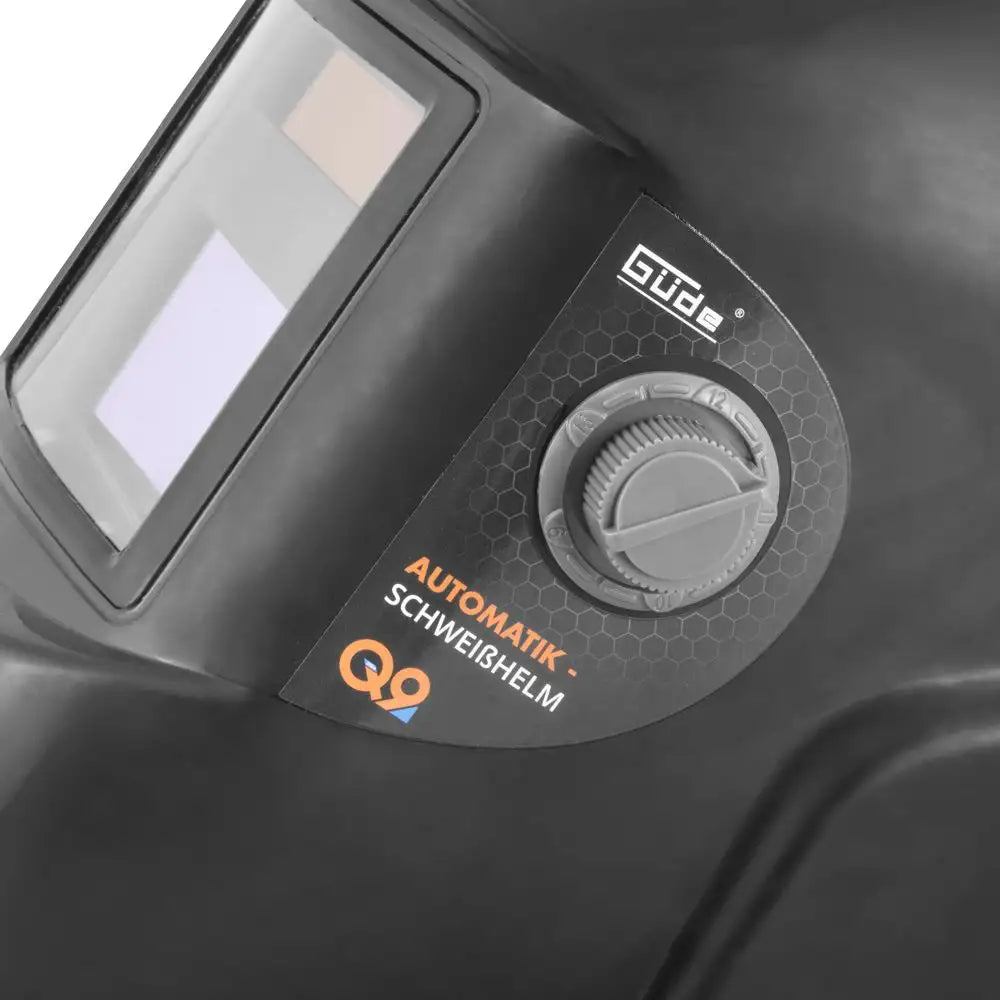

- Darkening, sensitivity and delay adjustable from outside, even wearing gloves
Who uses the GSH-TC-2 and for what
The GSH-TC-2 is designed for both beginner and advanced welders, usable universally for all common welding processes within the DIN 9-13 darkening range. The auto-darkening filter frees both hands during work, removing the need to hold a traditional welding shield, while True Colour technology delivers natural colour vision of the surroundings and workpiece, without the colour cast typical of older filters. Darkening level, sensitivity and delay time are adjusted from outside the helmet, even while wearing work gloves.
Its place in the Güde range
Within Güde's range of automatic welding helmets, the GSH-TC-2 is the model with a 100 x 48 mm field of view and solar power supply. The GSH 180-TC-2 is the range's higher-tier variant: it adds two side windows extending the field of view to roughly 180°, a larger protective glass (133 x 114 x 10 mm) and dual power supply, solar plus a replaceable CR2450 lithium battery. Those who only need forward vision for welding will find the GSH-TC-2 a more essential model, while those who alternate between welding, plasma cutting and grinding, or want wider peripheral vision, will find the GSH 180-TC-2 the more complete solution.
Krollit logistics and support
Shipping in 3-5 working days from Krollit's warehouse in Monteforte Irpino (AV), Italy. Technical support in Italian at +39 0825-1494022.
Who the GSH-TC-2 is for
| Profile | Fit | Reason |
|---|
| Beginner welder | Suitable | Universal DIN 9-13 adjustment and True Colour technology make it easier to learn the most common welding processes |
| Experienced welder or small workshop | Suitable | Darkening, sensitivity and delay adjustable from outside, even with gloves, for quick use between welds |
| Those alternating welding, plasma cutting and grinding who need peripheral vision | Not suitable | Field of view is limited to forward vision only (100 x 48 mm); for this need, the GSH 180-TC-2 offers side windows and 180° vision |
Not suitable for: those needing peripheral vision while working or a backup battery power supply in addition to solar, features reserved for the higher-tier GSH 180-TC-2 model.
Technical specifications
| Power supply type | Solar |
| Protective glass | EN 379 |
| Protective glass dimensions (L x W x H) | 100 x 48 x 1 mm |
| Field of view (L x W) | 100 x 48 mm |
| Light/dark response time | 3/10000 s |
| Dark/light response time | 0.1-0.8 s |
| Dark level | DIN 9-13 |
| Light level | DIN4 |
Dimensions and weight
| Dimensions (L x W x H) | 280 x 240 x 245 mm |
| Packaging dimensions (L x W x H) | 238 x 238 x 323 mm |
| Net weight | 0.4 kg |
| Gross weight | 0.9 kg |
Standard equipment
- Automatic welding helmet GSH-TC-2 with integrated auto-darkening filter
- Adjustable, padded headband
Frequently asked questions
Which welding processes can the GSH-TC-2 be used with?
The GSH-TC-2 can be used universally for all common welding processes, thanks to the adjustable DIN 9-13 darkening range.
Darkening level, filter sensitivity and delay time are adjusted from outside the helmet, even while wearing gloves, allowing quick adaptation to the process and lighting conditions at hand.
Does the GSH-TC-2 need a battery to work?
No, the GSH-TC-2 is powered exclusively by solar energy, with no replaceable battery.
Those who also want backup battery power, useful in prolonged low-light conditions, can consider the higher-tier GSH 180-TC-2, fitted with solar power plus a replaceable CR2450 lithium battery.
What does True Colour technology mean?
True Colour is the auto-darkening filter technology that delivers natural colour vision of the arc and workpiece, without the colour cast typical of older filters.
This helps distinguish weld pool details more clearly while working, an advantage especially for those new to welding.
What's the difference between the GSH-TC-2 and the GSH 180-TC-2?
The GSH-TC-2 has a 100 x 48 mm field of view and solar power supply. The GSH 180-TC-2 adds two side windows for vision extended to roughly 180°, a larger protective glass (133 x 114 x 10 mm) and dual power supply, solar plus a replaceable CR2450 battery.
The choice depends on the need for peripheral vision: those working mainly in a fixed position will find the GSH-TC-2 a more essential solution, while those often alternating welding, plasma cutting and grinding benefit from the side vision of the GSH 180-TC-2.
Can the helmet be adjusted to fit different head shapes?

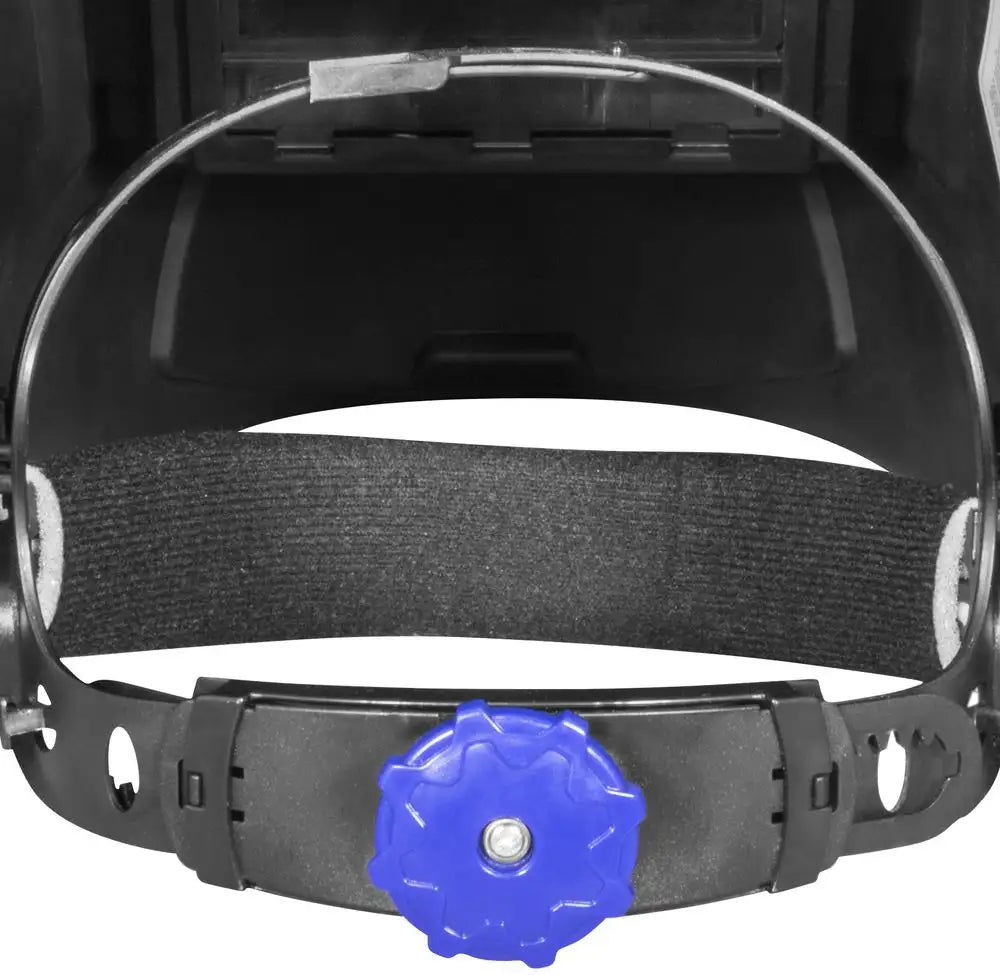

Yes, the headband is infinitely adjustable and padded at the forehead, adapting to different head shapes and sizes for comfort during prolonged use.
The helmet shell is made from impact-resistant plastic, providing solid protection without weighing down everyday use.
