Bernardo | SKU: combo08-1043

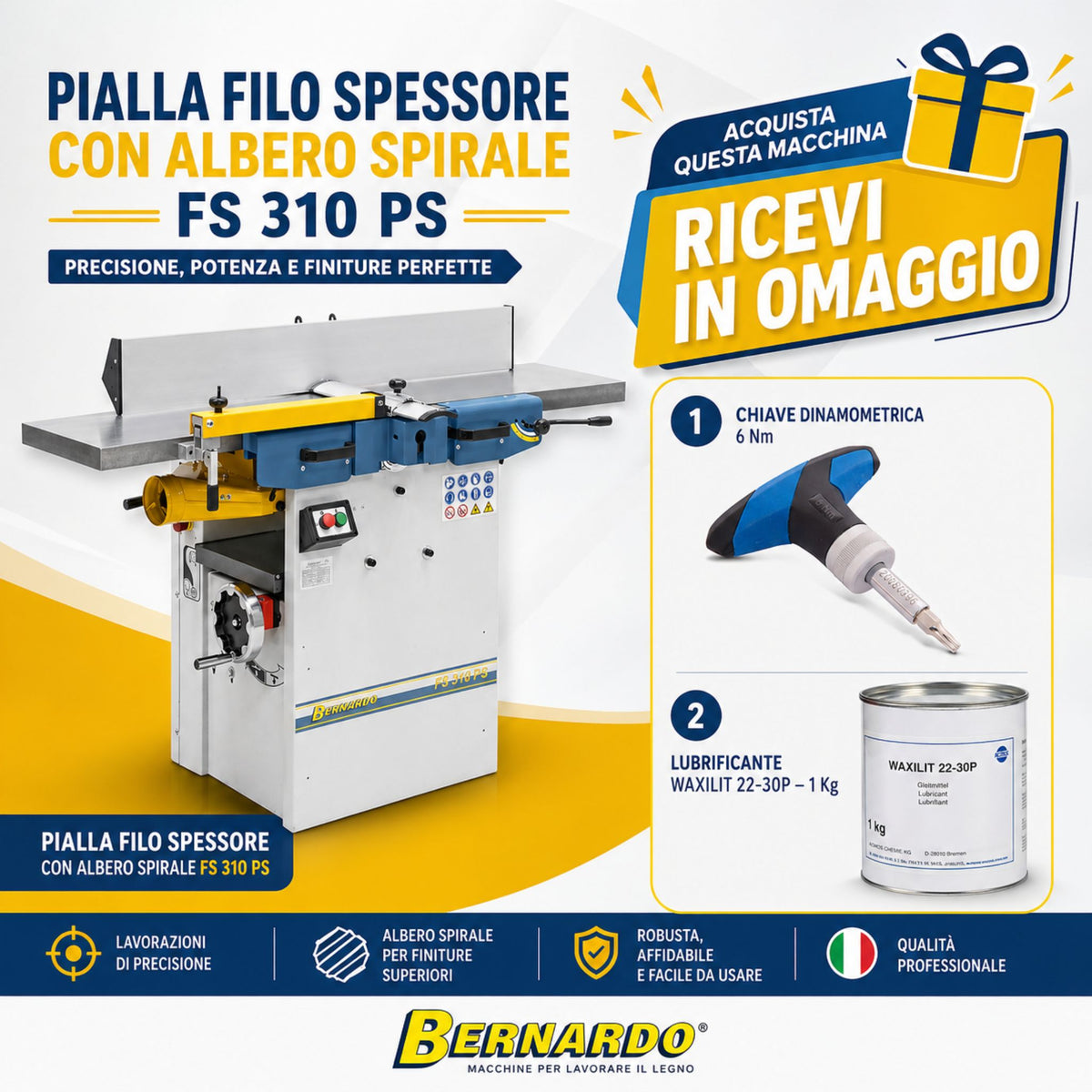

Bernardo FS 310 PS Jointer and Thicknesser Combo - 230V with spiral cutter block

Name: Bernardo FS 310 PS Jointer and Thicknesser Combo - 230V with spiral cutter block
Brand: Bernardo
SKU: combo08-1043
Price: 2343.28 EUR
Availability: InStock

€2.343,28 (22% VAT incl.) ~~€2.414,76~~

Manuale operativo

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

The Bernardo FS 310 PS – 230V planer-thicknesser offers a planing width of 310 mm, a surface planing table of 1,400 mm, a spiral cutter block Ø 75 mm with 30 HM inserts at 4,500 rpm, a maximum thicknessing height of 240 mm, a feed rate of 5.4 m/min, a 3.0 kW single-phase 230V motor, and an included digital display. Weight approx. 205 kg. Made in Austria, distributed in Italy by Krollit as the official Bernardo distributor since 2007.

Planing width (surface planer): 310 mm
Surface planing table (length): 1,400 mm
Thicknessing height: 5 – 240 mm
Cutter block: spiral Ø 75 mm – 30 HM inserts – 4,500 rpm
Thicknessing feed rate: 5.4 m/min
Motor: 3.0 kW S1 / 4.2 kW S6 – 230V single-phase
Digital display: 0.1 mm scale included
Weight: approx. 205 kg

Who uses the FS 310 PS – 230V and for what

The Bernardo FS 310 PS – 230V is the single-phase version of the FS 310 PS: same operating specifications (310 mm, 30-insert TCT cutter block, 240 mm thicknessing height, digital display, 205 kg) in a 230V configuration for workshops without three-phase power. With a 3.0 kW single-phase motor, it is the most powerful combination planer with a TCT spiral cutter block available in single-phase at 310 mm in the Bernardo catalog. For those who want the triple combination of 310 mm width, TCT technology, and single-phase 230V, without compromising on any of the three parameters. In Krollit customers' workshops, it is chosen by joinery shops in non-industrial premises that work wide pieces with high quality requirements and want to eliminate sharpening from maintenance.

FS 310 PS – 230V vs FS 310 PS – 400V

Same operating specifications: 310 mm width, 30 HM TCT inserts, 240 mm thicknessing height, digital display, identical dimensions and weight. The only difference is the power supply. With three-phase available, the 400V version is always preferable for more uniform motor torque; without three-phase, the 230V is the only option at this level of performance and technology.

Krollit logistics and support

Bernardo shipping in 5-9 business days (7 days to the South). Original Bernardo spare parts available from stock with 3-5 business day shipping. Customer support available in Italian.

Who is the Bernardo FS 310 PS – 230V for

Profile	Compatibility	Reason
Passionate hobbyist	Not recommended	Professional machine weighing 205 kg with a 3.0 kW motor. Dimensions geared towards professional use.
Small joinery / craftsman (1-5 employees)	Recommended	The most complete 310 mm combination planer with TCT available in single-phase: 240 mm thicknessing height, digital display, HM inserts without sharpening. For workshops without three-phase power that do not want to compromise.
Continuous / industrial production	Suitable	The 3.0 kW single-phase motor can handle shifts of up to 6-7 hours on medium woods. For more intensive production with three-phase available, prefer the 400V version.

Not recommended for: those with three-phase available (prefer FS 310 PS – 400V); pieces over 310 mm wide; intensive production on hardwoods for more than 7 hours/day in single-phase.

Technical specifications

Surface Planer

Specification	Value
Planing width	310 mm
Table length	1,400 mm
Table height	825 mm
Cutter block – diameter	Ø 75 mm
HM inserts	30 reversible pieces (4 cutting edges/insert)
Cutter block speed	4,500 rpm
Fence	1,120 × 150 mm
Fence inclination	90° – 45°
Max. stock removal	3 mm

Thickness Planer

Specification	Value
Working width	305 mm
Passage height (min–max)	5 – 240 mm
Thicknessing table length	600 mm
Max. stock removal	3 mm
Feed rate	5.4 m/min
Digital display	0.1 mm scale – included as standard

Motor and Power Supply

Specification	Value
Motor power S1 (100%)	3.0 kW (4.0 HP)
Motor power S6 (40%)	4.2 kW (5.7 HP)
Power supply	230V – single-phase
Dust extraction connection	Ø 100 mm

Dimensions and Weight

Specification	Value
Machine dimensions (L × W × H)	1,400 × 900 × 980 mm
Net weight	approx. 205 kg

Compliance and Safety

Specification	Value
Marking	CE
Directive	Machinery Directive 2006/42/EC

Included equipment

Standard Equipment

Spiral cutter block with 30 HM inserts installed
Spare HM inserts
Digital display with 0.1 mm scale
Push handle

Warranty

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

FAQ / Frequently asked questions

Frequently Asked Questions

What is the difference between FS 310 PS – 230V and FS 310 PS – 400V?

No constructive difference: same width, same TCT cutter block, same digital display, same dimensions and weight. The difference is only in the power supply: single-phase 230V vs three-phase 400V. With three-phase available, the 400V version is preferable for more uniform motor torque; without three-phase, the 230V is the necessary choice.

What is the difference between FS 310 PS – 230V and FS 310 P – 230V?

The FS 310 PS mounts 30 HM TCT inserts; the FS 310 P mounts 3 HSS knives. Structure, dimensions, digital display, and weight (205 kg) are identical. TCT offers reduced noise by approx. 50%, 10-20 times longer cutting edge life, and maintenance by insert rotation. The cost of the PS is higher; the maintenance savings recoup this in 12-18 months of professional use.

How often are the 30 HM inserts rotated?

In professional use (4-6 hours/day) on medium woods, one rotation per insert is necessary every 4-8 weeks. With 30 inserts, rotation is progressive. Complete replacement of an insert only occurs when all 4 cutting edges are worn out, every 4-8 months in professional use. Replacement inserts are available from Krollit stock.

Is the 240 mm thicknessing height the highest in single-phase at 310 mm?

Yes. Among the 310 mm combination planers in single-phase 230V configuration in the Bernardo catalog, the FS 310 PS – 230V and the FS 310 P – 230V share the record of 240 mm maximum thicknessing height, superior to the AD 310 (225 mm) and the PT 310 S (180 mm).

How much space is needed in the workshop?

The machine footprint is 1,400 × 900 × 980 mm. At 205 kg, it can be moved with a manual pallet jack. For material handling, at least 2.5 m of clear space is needed in front and behind.
