Bernardo AHS 2100 – 8.0 – 4-roll hydraulic plate bending machine

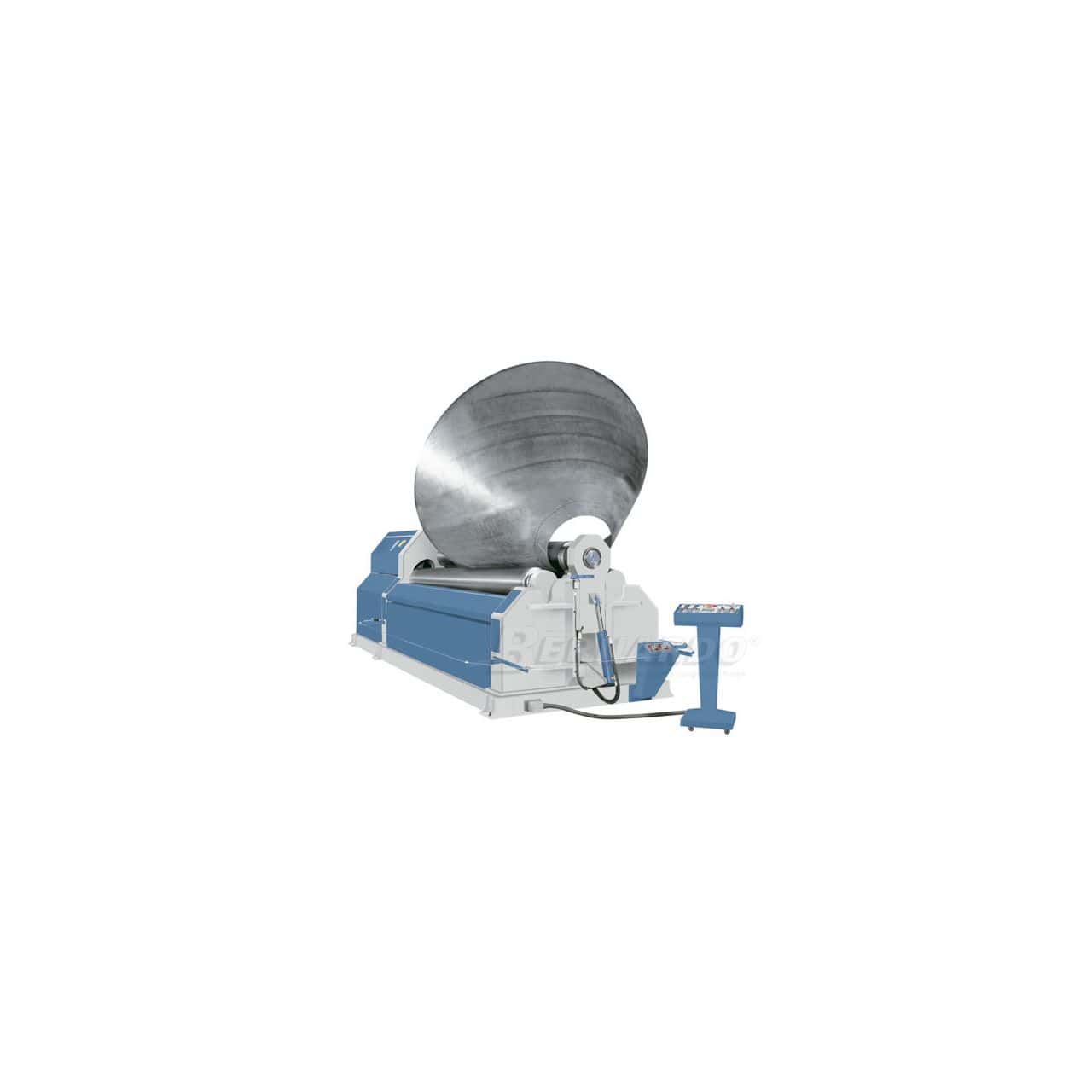

Bernardo AHS 2100 – 8.0 4-Roll Hydraulic Plate Bending Machine

The Bernardo AHS 2100 – 8.0 hydraulic plate bending machine is a professional 4-roll machine, designed for high-precision rolling of steel, stainless steel, galvanized sheet metal, and aluminum. With 2100 mm rolls and a capacity of up to 10 mm thickness (pre-bending 8 mm), it guarantees power and reliability in the most demanding applications. The upper rolls have a Ø of 210 mm, the lower rolls a Ø of 190 mm, and the side rolls a Ø of 170 mm, ensuring stability and uniformity during rolling. The machine is equipped with a 7.5 kW motor, which ensures high and consistent performance. The solid steel structure and hydraulic adjustment systems make the AHS 2100 – 8.0 ideal for producing cones, tubes, and cylinders with absolute precision. Optional accessories such as side support, central support, feed table material, and continuously adjustable rolling speed can be integrated.

✅ Main features:
• Roll length 2100 mm, max. sheet metal thickness 10 mm (pre-bending 8 mm)
• 4-roll hydraulic plate bending machine for heavy-duty and precise work
• Upper rolls Ø 210 mm, lower rolls Ø 190 mm, side rolls Ø 170 mm
• Powerful 7.5 kW motor
• Robust steel structure for stability and long life
• Ideal for producing metal cones, cylinders, and tubes
• Continuously adjustable rolling speed (optional)
• Optional accessories: side support, central support, feed table material

📊 Technical table:

📦 Package contents:
• Bernardo AHS 2100 – 8.0 bending machine
• High-quality steel rolls
• Hydraulic adjustment system
• Conical bending device
• Preparation for optional accessories
