Bernardo  |  SKU: 24-1013

Pergola spindle CM 5 - B 18

€39,35 (22% VAT incl.)
Business solution up to 30 installments

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

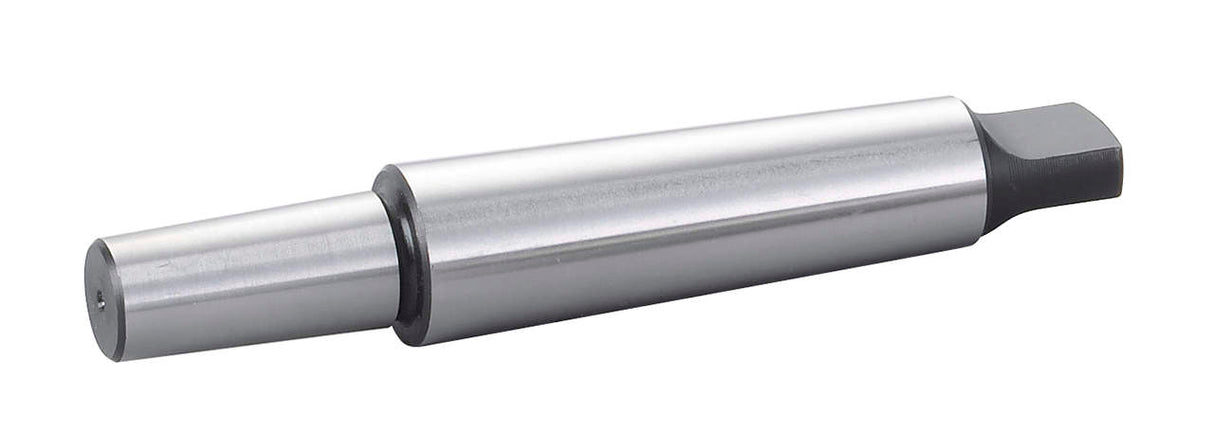

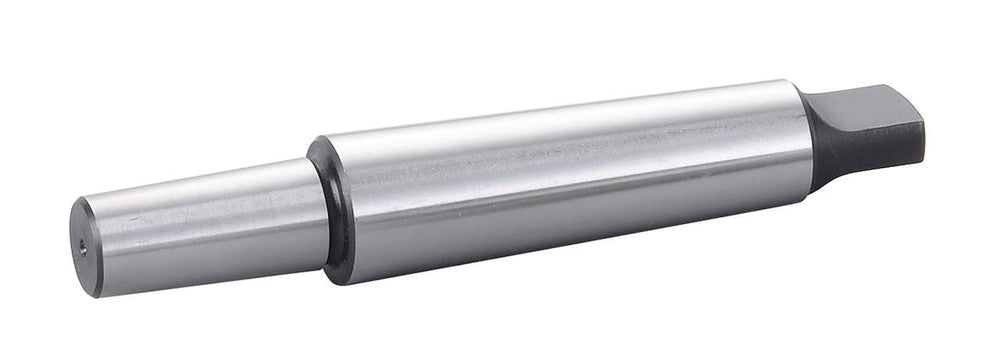

Arbor MT 5 - B 18. Krollit has been an official Bernardo distributor in Italy since 2007.

  • Technical data: Morse Taper MT 5 / Short Taper B 18

Technical specifications

Specification Value
Morse Taper MT 5 / Short Taper B 18

Logistics

Original spare parts available with 3–5 business days shipping. Customer support in Italian available.

Frequently asked questions

Arbor MT 5 / B 18 — what is it and what is it used for?

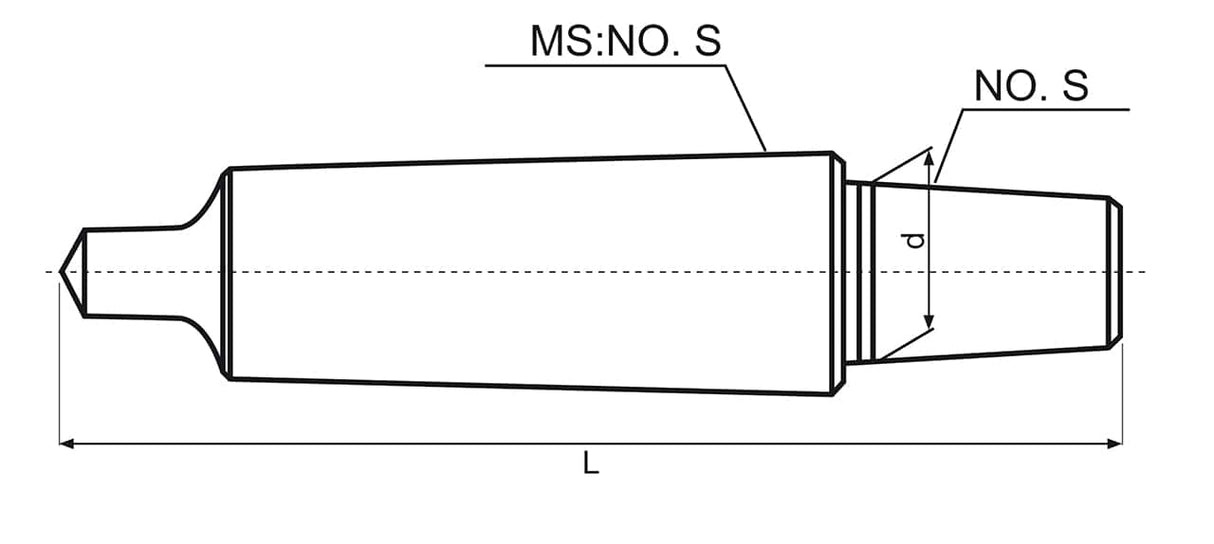

The arbor (or drill chuck arbor) is an adapter with an external Morse Taper MT 5 (which fits into the machine's spindle bore) and an internal Short Taper B 18 (which receives the drill chuck with a B 18 Jacobs taper). It allows mounting a drill chuck on machines with a Morse taper spindle bore — the Morse taper + short taper combination is the standard solution for pillar drills. Fully hardened and ground according to DIN 238.

How do you remove the chuck from the arbor without damaging the taper?

Insert the drift pin (drawbar) into the through-hole of the machine's spindle and strike firmly — the Morse taper is self-locking and requires a sharp blow to release. Do not use a hammer directly on the chuck. To remove the drill chuck from the short taper B 18: use the specific extraction wedge inserted into the slot of the short taper. Customer support in Italian available.

Delivery times?

Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
