The Guede KS 55-1300 is a handheld circular saw for professional use, with a 1300 W motor and weighing 3.8 kg. Krollit, official Guede distributor since 2007.
- Power supply voltage: 230 V
- Frequency: 50 Hz
- Motor power: 1300 W
- No-load speed: 4500 rpm
- Blade diameter: Ø 160 mm
- Blade bore: 20 mm
Who uses the KS 55-1300 and for what
The KS 55-1300 is a handheld circular saw for professional use distributed by Krollit.
Its place in the Guede range
The Guede KS 55-1300 is part of the Guede range of handheld circular saws, distributed in Italy by Krollit since 2007. The Guede range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Guede catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 business days (7 days to the South). For spare parts and accessories, shipping in 3-5 business days from Krollit warehouse. Italian customer assistance available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who the KS 55-1300 is for
The KS 55-1300 is recommended for the following professional profiles:
-
Mobile carpentry shops and installation sites: portable straight cuts on planks and battens directly on-site.
-
Carpenters and installers: installation work with a handheld tool for quick cuts on light materials.
Not suitable for: stationary precision cuts on large panels (for series production, consider table saws or fixed panel saws).
Spindle, tools, and speed
| No-load speed |
4500 rpm |
| Blade diameter |
Ø 160 mm |
| Blade bore |
20 mm |

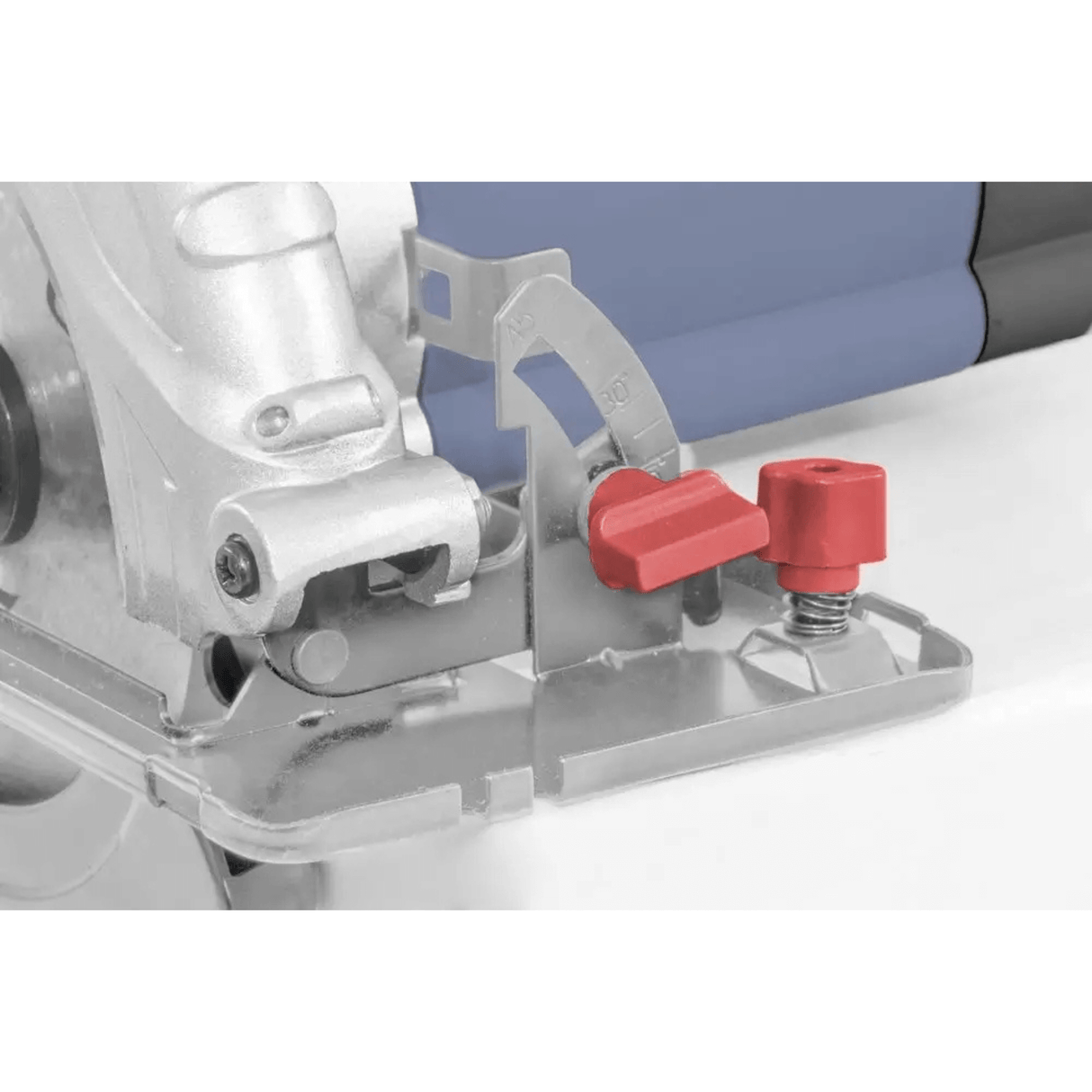

| Blade tilt |
up to +45° |
| Blade type |
HM (carbide) |
| Spindle lock |
Yes |
Table, dimensions, and geometry
| Cable length |
3 m (H05VV-F) |
| Weight |
3.8 kg |
| Dimensions (L x W x H) |
284 x 238 x 219 mm |
Motor and power supply
| Power supply voltage |
230 V |
| Frequency |
50 Hz |
| Motor power |
1300 W |
Other specifications
| Number of teeth |
18 |
| Sound level (LWA) |
106.5 dB |
| Vibrations |
2.462 m/s² |
| Dust extraction connection |
Yes |
| Cutting depth at 90° |
55 mm |
| Cutting depth at 45° |
38 mm |
Frequently Asked Questions
What is the cutting capacity of the KS 55-1300?
See "Cutting capacity" in the technical table for maximum thickness at 90° and 45°.
The capacity at 45° is always less than the cut at 90°. Check both values if you frequently make angled cuts.
Supported blade diameter?
See "Blade diameter" in the table: typically Ø 250-350 mm for professional models.
Larger blades offer greater cutting depth but require adequate motor power. Check the standard spindle bore.
Does it operate at 230 V or 400 V?
See "Voltage" in the table: the MKS-351 model is available in 400 V three-phase.
Professional circular saws over 2.2 kW require a three-phase line. Check power supply availability on site.
Does it have integrated dust extraction?
Professional saws have a dust extractor connection with a typical diameter of Ø50-100 mm.
Dust extraction is essential to reduce respirable dust and maintain visibility of the cutting area.
Is it suitable for on-site use?
Yes, handheld saws are designed for frequent movement and on-site cutting of planks and battens.
For stationary production of large panels, consider fixed table saws with a sliding carriage.
