Bernardo AD 410 S Planer-Thicknesser Combo + 6-Piece Left-Hand Long-Hole Drill Bit Set
Planing + drilling in one setup: professional machine + accessories for a complete woodworking workflow.
The combo combines two complementary components for efficient, high-quality woodworking.

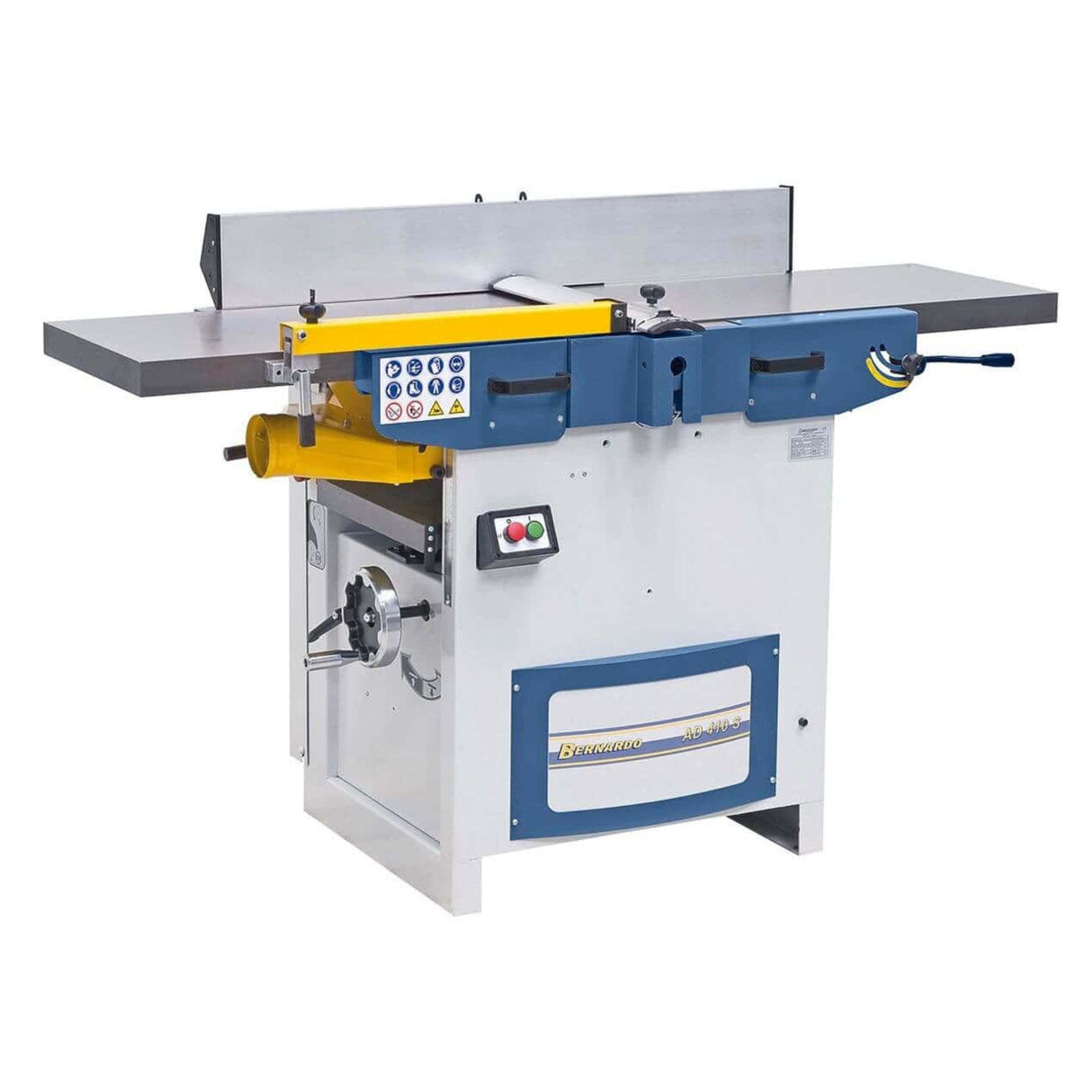

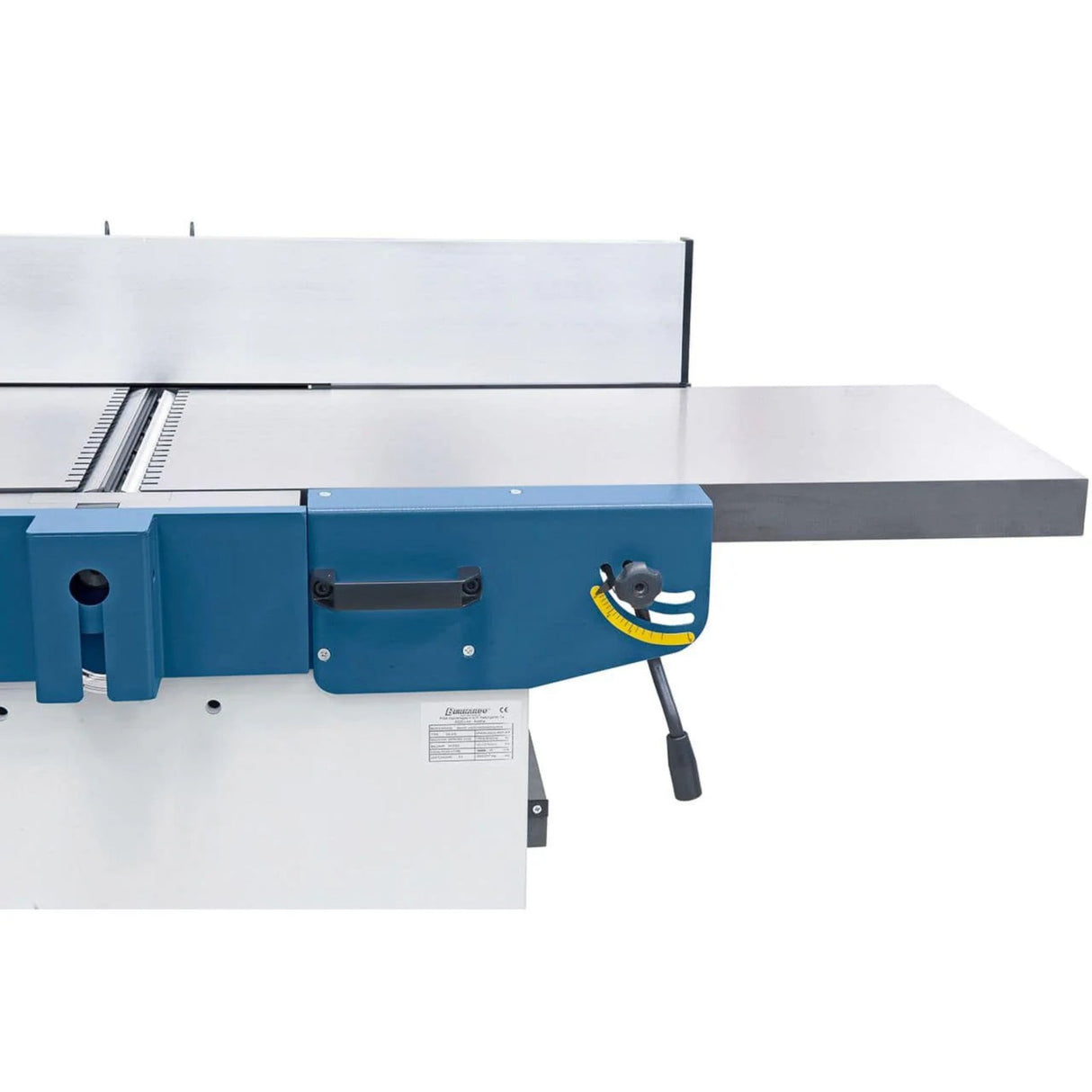

Bernardo AD 410 S - 400V is a combined surface planer and thicknesser with a spiral TCT cutterblock featuring reversible inserts. The Ø 95 mm cutterblock carries 72 inserts and runs at 4,300 rpm, providing an even cutting action across workpieces up to 410 mm wide. The 1,685 mm surfacing table provides stable support, while the 750 mm thicknessing table feeds workpieces at 6 m/min. Maximum stock removal is 3 mm when surfacing and 5 mm when thicknessing. Thicknessing capacity ranges from 4 to 220 mm. Motor power is 3.0 kW S1 / 4.2 kW S6, with 400 V three-phase supply.
6-Piece Left-Hand Long-Hole Drill Bit Set is designed for deep and elongated drilling operations in softwood and hardwood. Diameters included: Ø 6 / 8 / 10 / 12 / 14 / 16 mm, with 13 mm cylindrical shanks. The left-hand rotation is intended for machines configured for counter-clockwise drilling.
Who is this Bernardo AD 410 S + Long-Hole Drill Bit Combo suitable for?
| User profile | Suitable? | Reason |
|---|
| Professional window and door maker | Ideal | 410 mm planing width, spiral TCT cutterblock and long-hole drilling accessories |
| Cabinetmaker | Ideal | Uniform planing of panels and timber, plus dedicated drilling sizes |
| Small and medium joinery shop | Ideal | Professional planer-thicknesser with six common drilling diameters |
Not recommended for: hobby users without 400 V three-phase power or sufficient workshop space; very small production requirements where a 410 mm machine would be oversized.
Technical specifications — Bernardo AD 410 S - 400V
Surface planer
| Parameter | Value |
|---|
| Planing width | 410 mm |
| Surfacing table length | 1,685 mm |
| Table height | 920 mm |
| Cutterblock diameter | Ø 95 mm |
| TCT inserts | 72 reversible inserts, 4 cutting edges each |
| Cutterblock speed | 4,300 rpm |

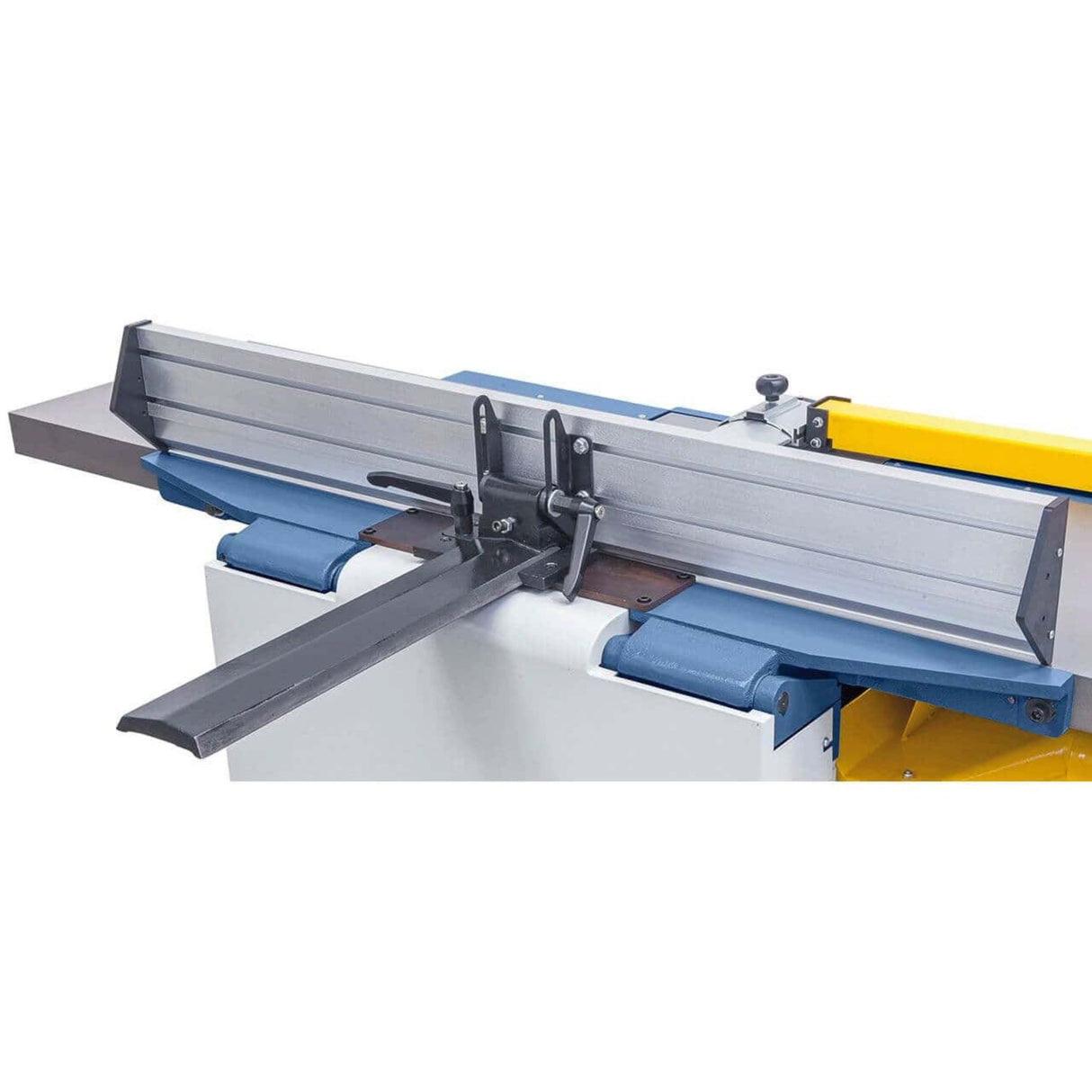

| Fence dimensions | 1,110 × 150 mm |
| Fence tilt | 90°–45° |
| Maximum stock removal | 3 mm |

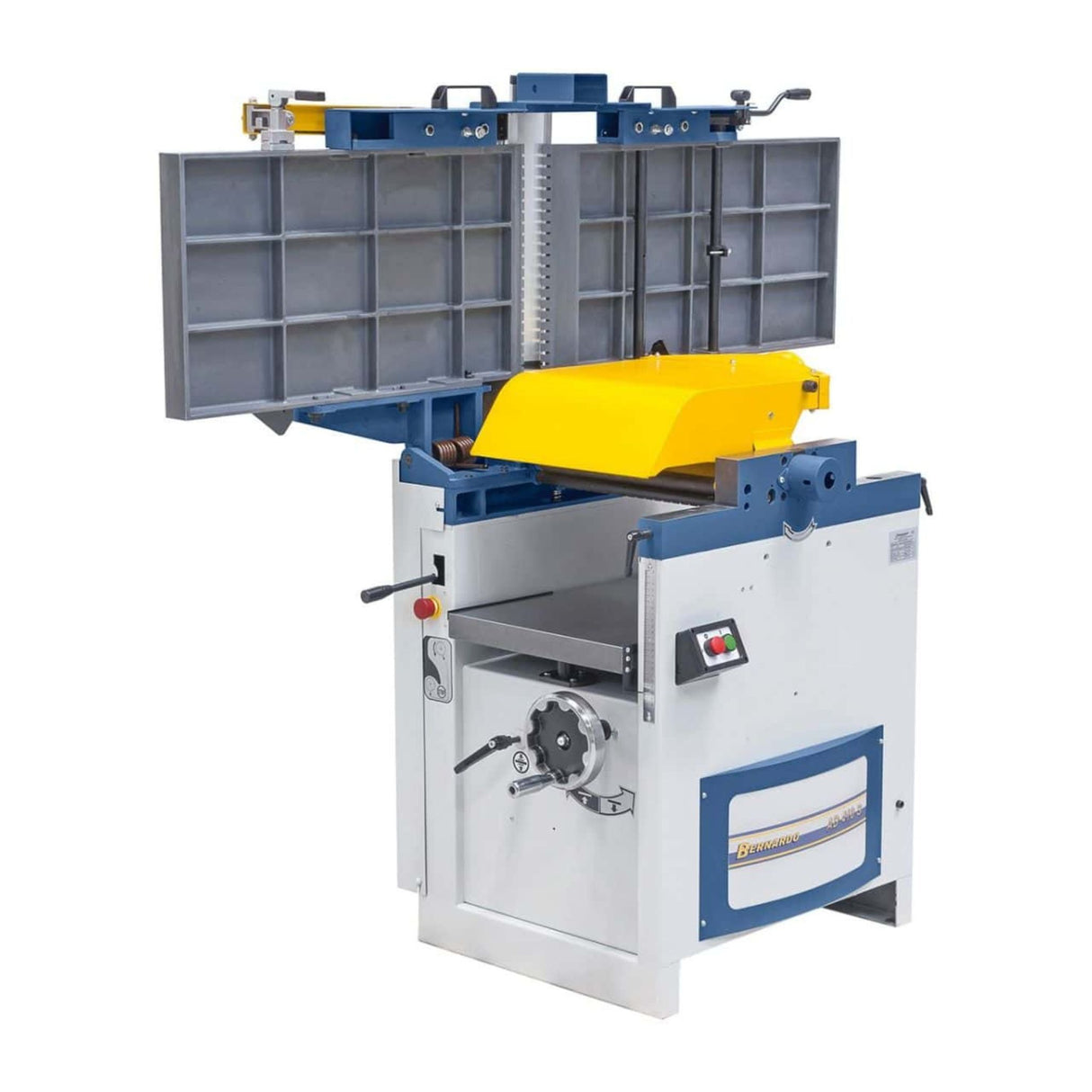

Thickness planer
| Parameter | Value |
|---|
| Working width | 410 mm |
| Thickness capacity | 4–220 mm |

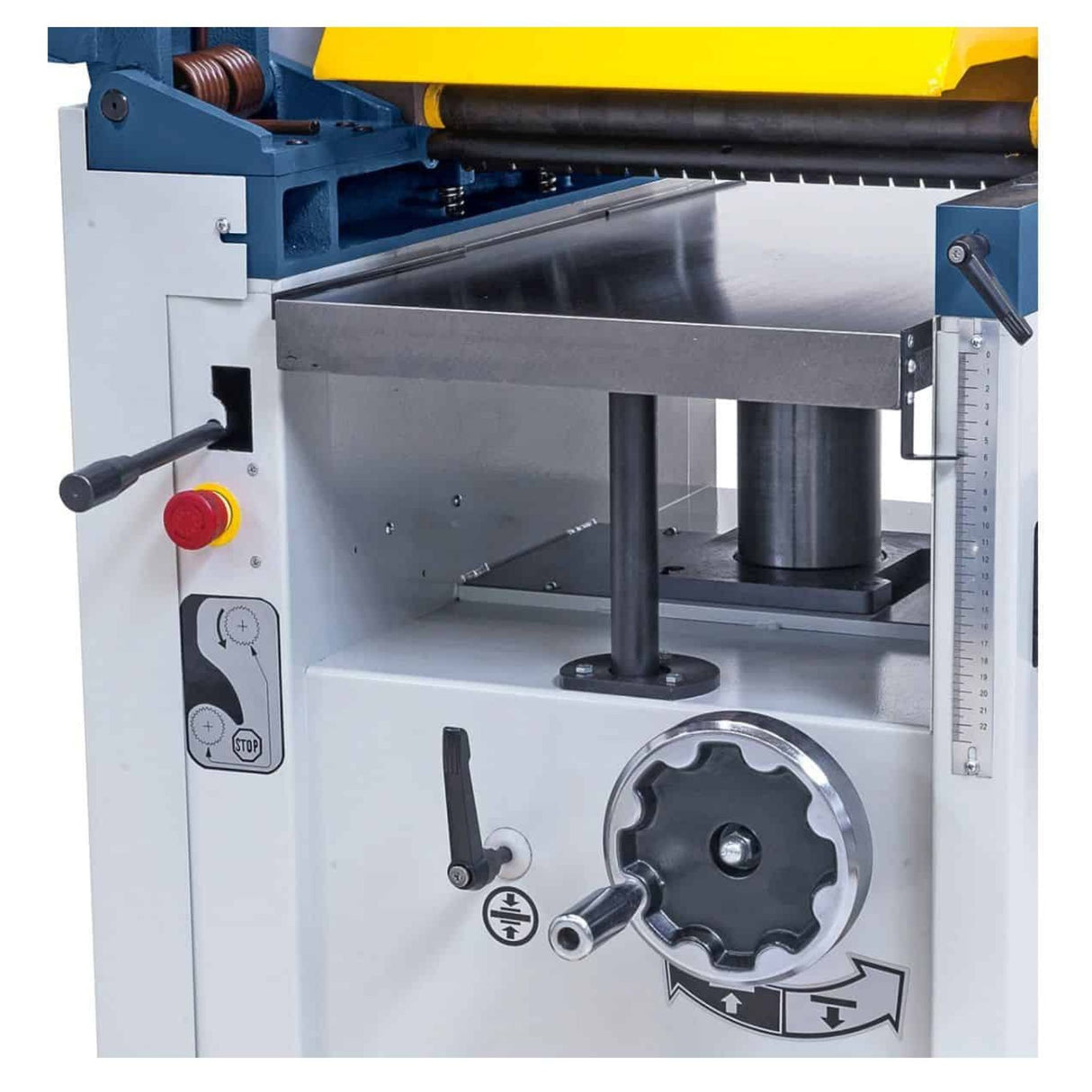

| Thicknessing table length | 750 mm |
| Feed speed | 6 m/min |
| Maximum stock removal | 5 mm |
Motor and power supply
| Parameter | Value |
|---|
| S1 continuous power | 3.0 kW (4.0 HP) |
| S6 40% power | 4.2 kW (5.7 HP) |
| Power supply | 400 V three-phase |
| Frequency | 50 Hz |

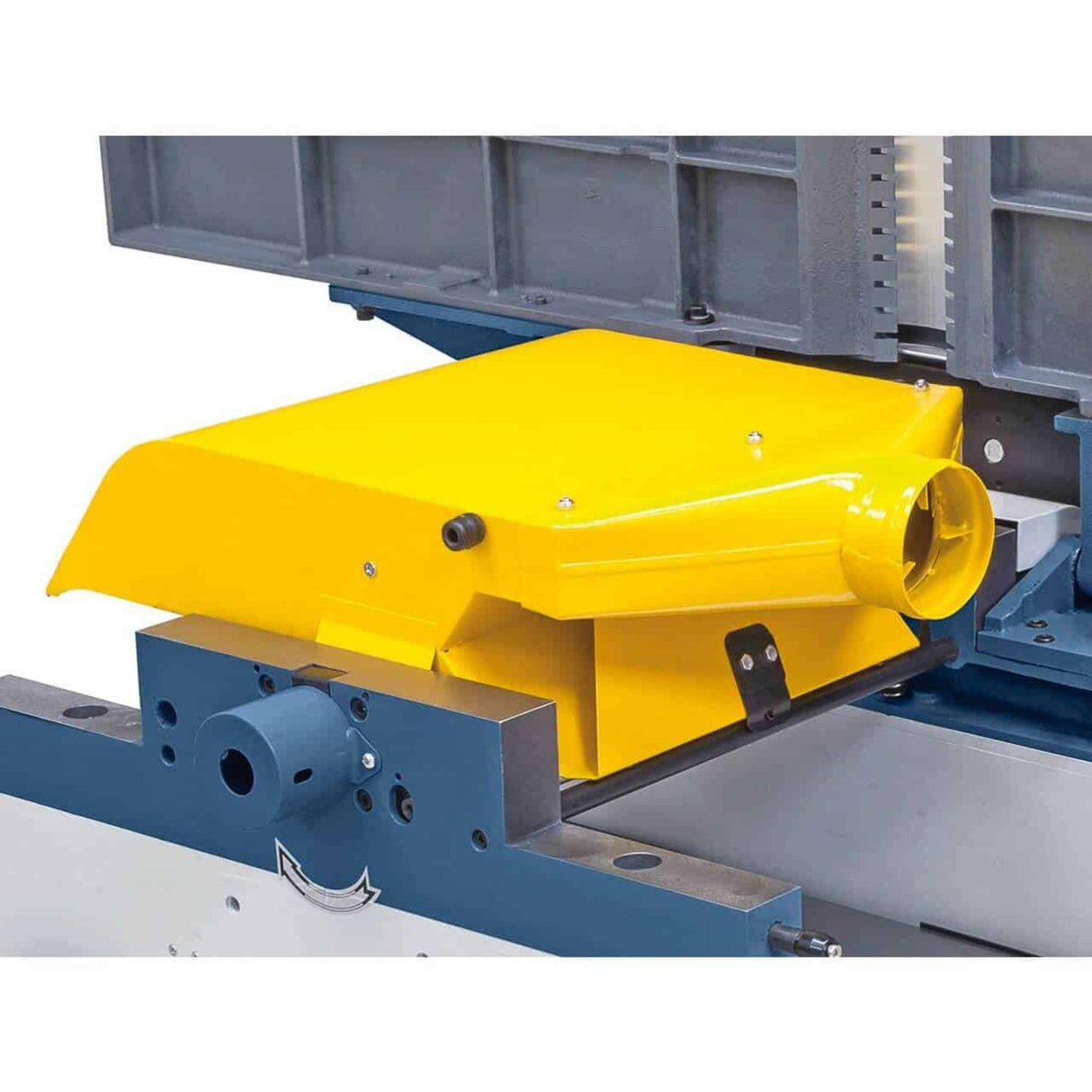

| Dust extraction port | Ø 100 mm |

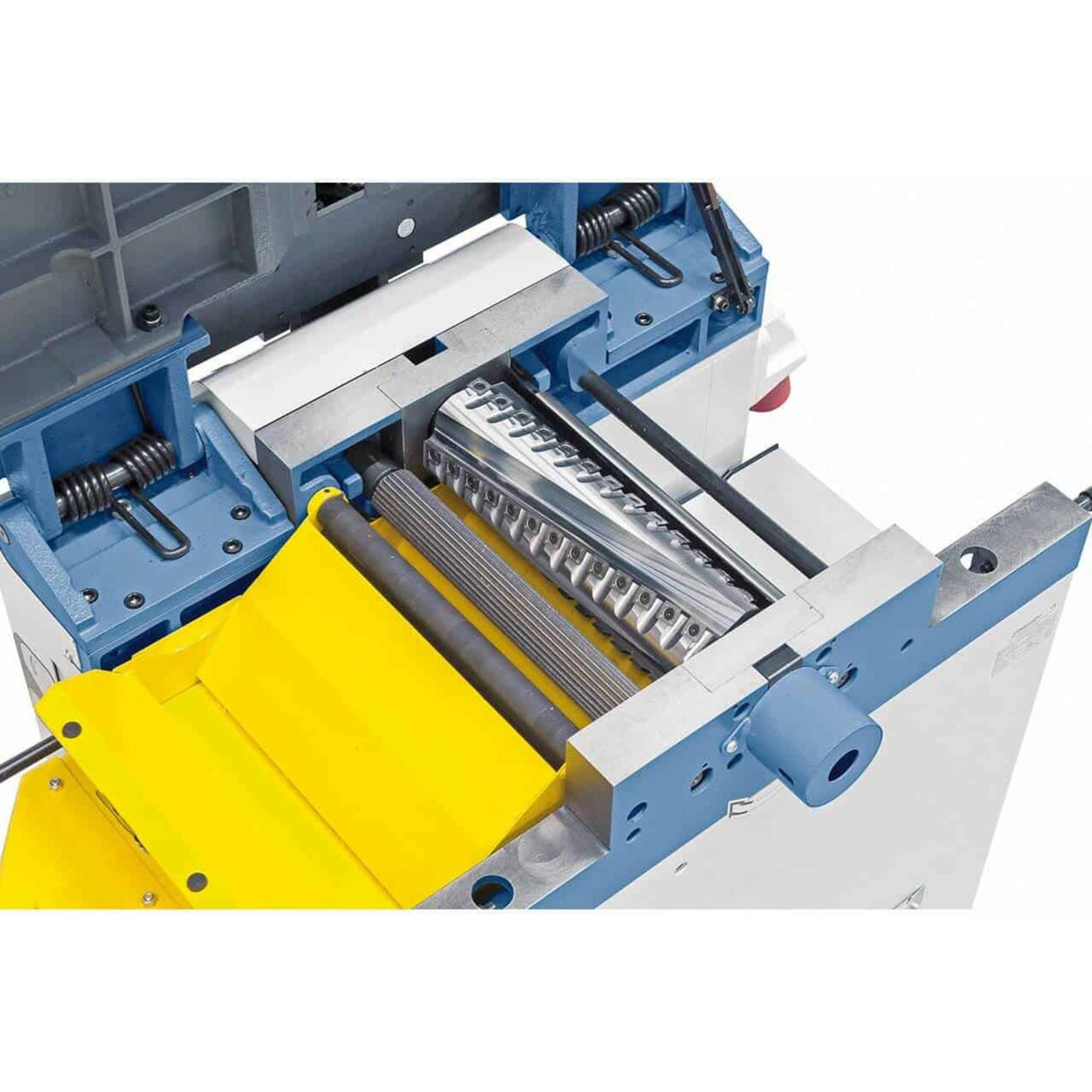

TCT cutterblock features
| Parameter | Detail |
|---|
| Noise | Spiral cutterblocks can reduce perceived cutting noise compared with conventional straight knives |
| Cutting-edge life | Reversible carbide inserts are designed for long service life |
| Maintenance | Individual inserts can be rotated or replaced without sharpening the complete cutterblock |
Dimensions and weight
| Parameter | Value |
|---|
| Dimensions (L × W × H) | 1,685 × 1,045 × 1,100 mm |
| Net weight | 340 kg |
| Country of origin | Austria |
Technical specifications — 6-Piece Left-Hand Long-Hole Drill Bit Set
Drill bit specifications
| Parameter | Value |
|---|
| Quantity | 6 pcs |
| Diameters | Ø 6 / 8 / 10 / 12 / 14 / 16 mm |
| Rotation | Left-hand / counter-clockwise |
| Shank | 13 mm cylindrical |
| Material | High-strength steel |
Applications
| Parameter | Detail |
|---|
| Use | Deep and long-hole drilling in wood |
| Suitable woods | Softwoods and hardwoods |
| Compatible machines | Mortising units, drilling attachments and multifunction machines with suitable 13 mm chuck |
| Left-hand design | For machines requiring counter-clockwise rotation |
Standard equipment — Complete Combo
Bernardo AD 410 S - 400V:
-
3.0 kW S1 / 4.2 kW S6 motor
-
Spiral cutterblock with 72 TCT inserts
-
5 additional replacement TCT inserts
-
Safety push block
-
Adjustment gauge
-
1,685 mm surfacing table
-
750 mm thicknessing table
-
Maintenance tools
-
Italian user manual
-
CE certificate

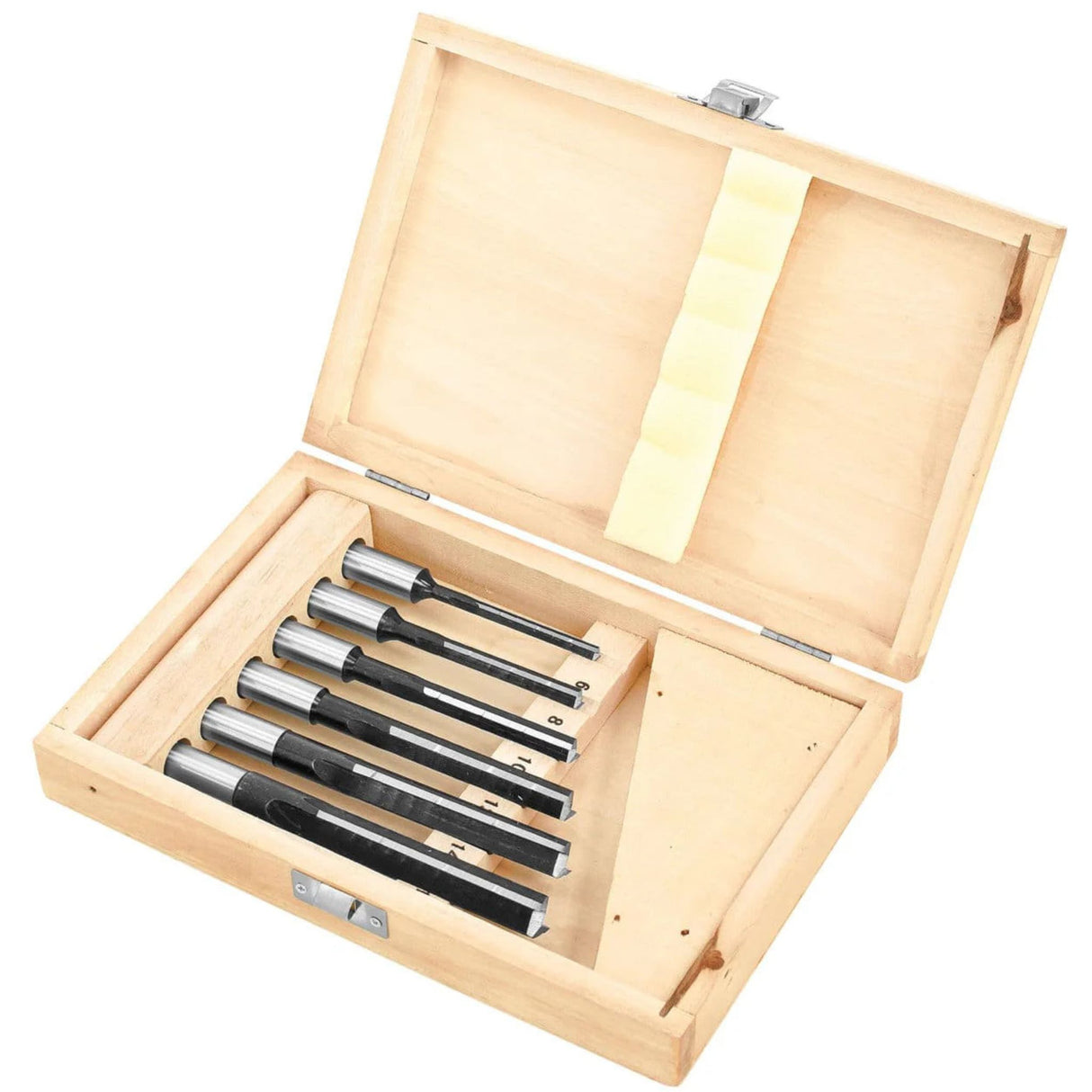

6-Piece Left-Hand Long-Hole Drill Bit Set:
-
1 × Ø 6 mm bit
-
1 × Ø 8 mm bit
-
1 × Ø 10 mm bit
-
1 × Ø 12 mm bit
-
1 × Ø 14 mm bit
-
1 × Ø 16 mm bit
-
13 mm cylindrical shanks
-
Protective storage case
-
Instructions
Frequently asked questions
1. What are the advantages of a spiral TCT cutterblock over traditional HSS knives?
A spiral TCT cutterblock uses many small carbide inserts distributed around the cutterblock. This provides progressive cutting engagement, makes it possible to rotate or replace individual inserts when worn or damaged, and can reduce downtime compared with sharpening a complete set of straight knives.
2. What are the 72 inserts and how do they work?
The cutterblock carries 72 small TCT inserts. Each insert has four usable cutting edges. When one edge becomes worn, the insert can be rotated to expose a fresh edge. Once all four edges have been used, the insert is replaced.
3. What is the difference between the AD 410 S and AD 310 S?
The principal difference is working width: 410 mm versus 310 mm. The AD 410 S is therefore suitable for wider workpieces, while the AD 310 S may be more economical for users who do not need the additional 100 mm capacity.
4. How flexible is the 4–220 mm thicknessing range?
It allows the machine to process a wide range of timber thicknesses from relatively thin stock up to large solid-wood sections, subject to appropriate workpiece support and machine settings.
5. Are the left-hand drill bits compatible with all mortising machines?
They are suitable for machines that accept a 13 mm cylindrical shank and are designed to rotate counter-clockwise. Compatibility should be checked against the chuck capacity and required rotation direction of the specific machine.
