IGM i2R A24 CNC Router Combo + Original Stand + Laptop Stand – Complete Professional CNC System
The combo brings together three complementary components for a complete professional CNC system ready to use, without the need for separate investments.

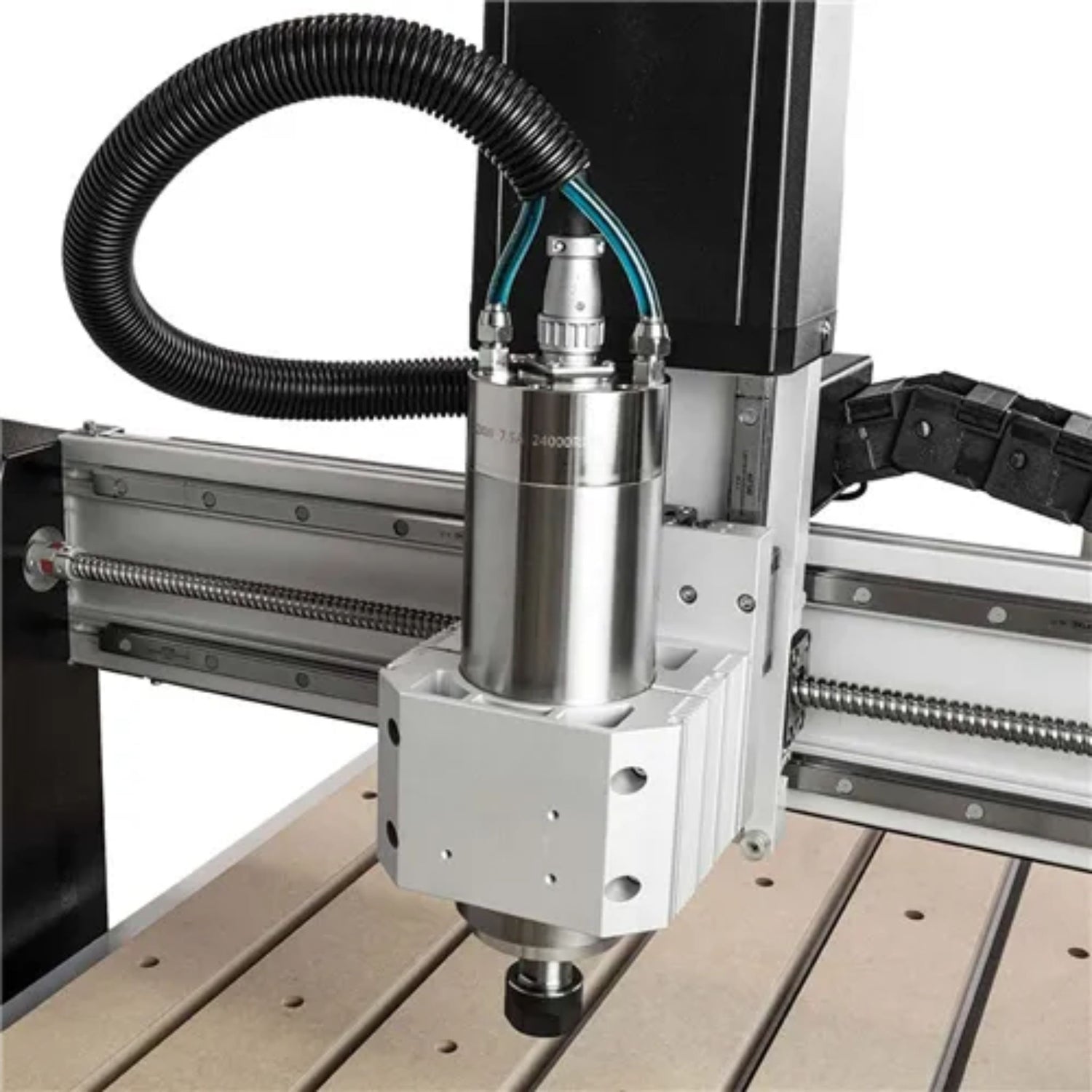

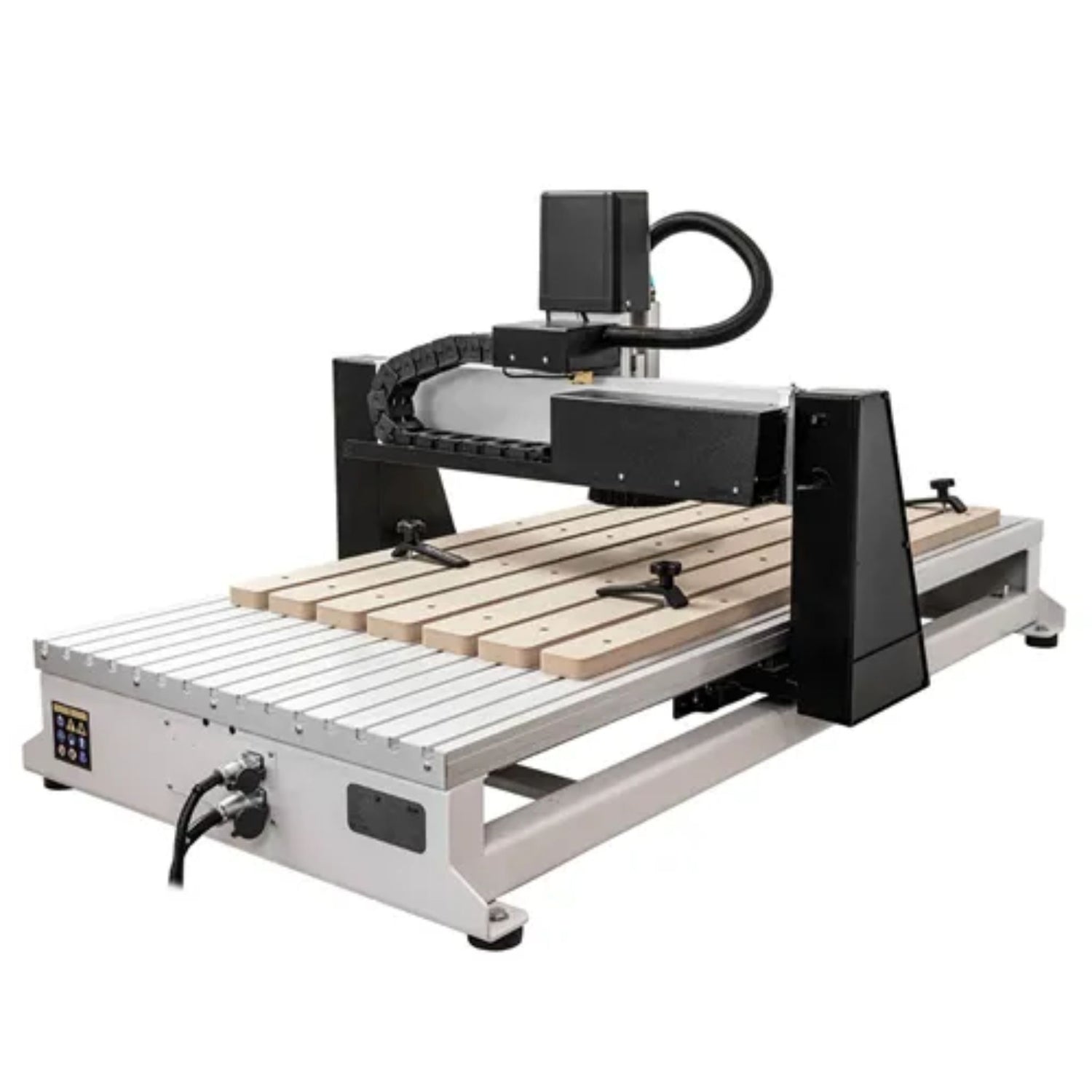

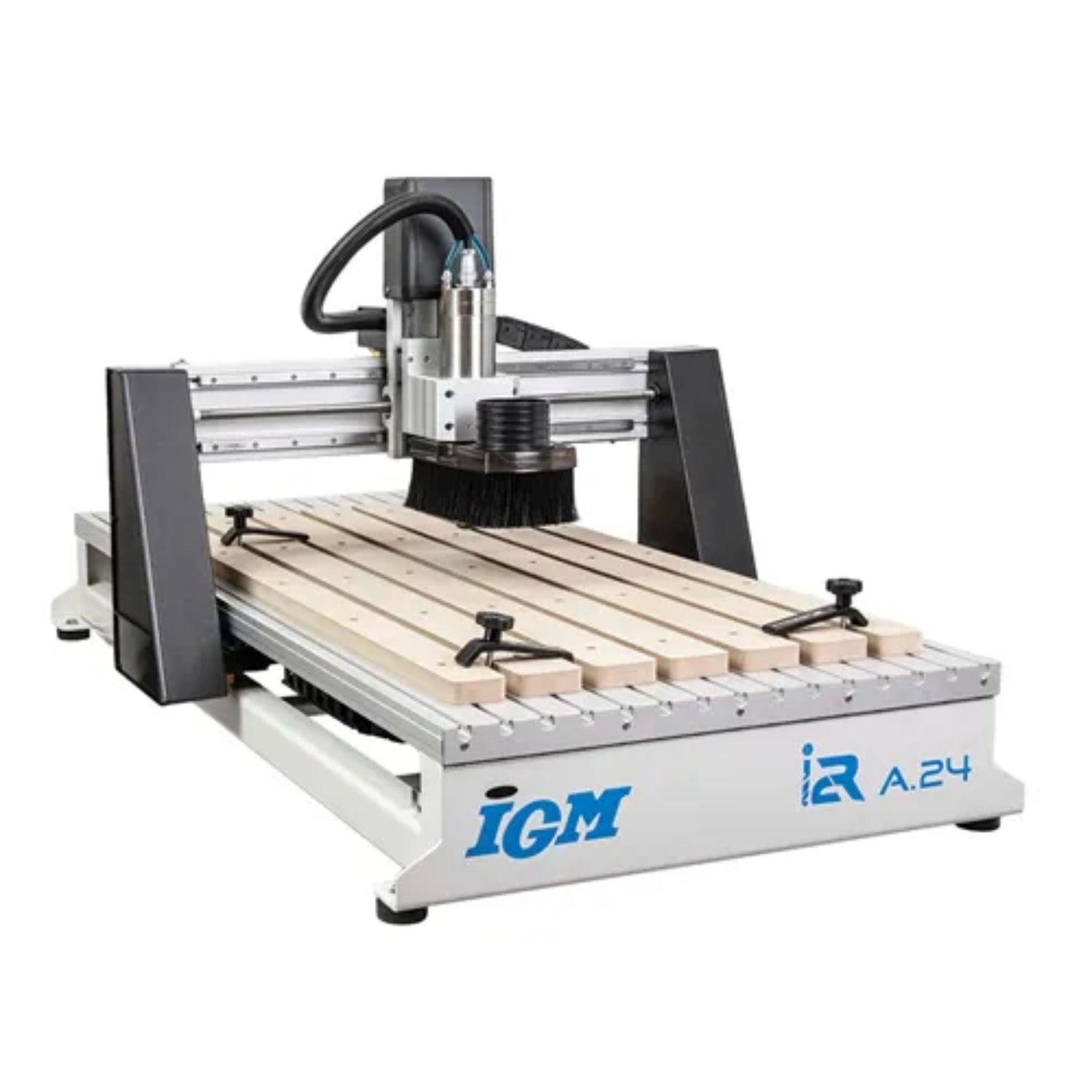

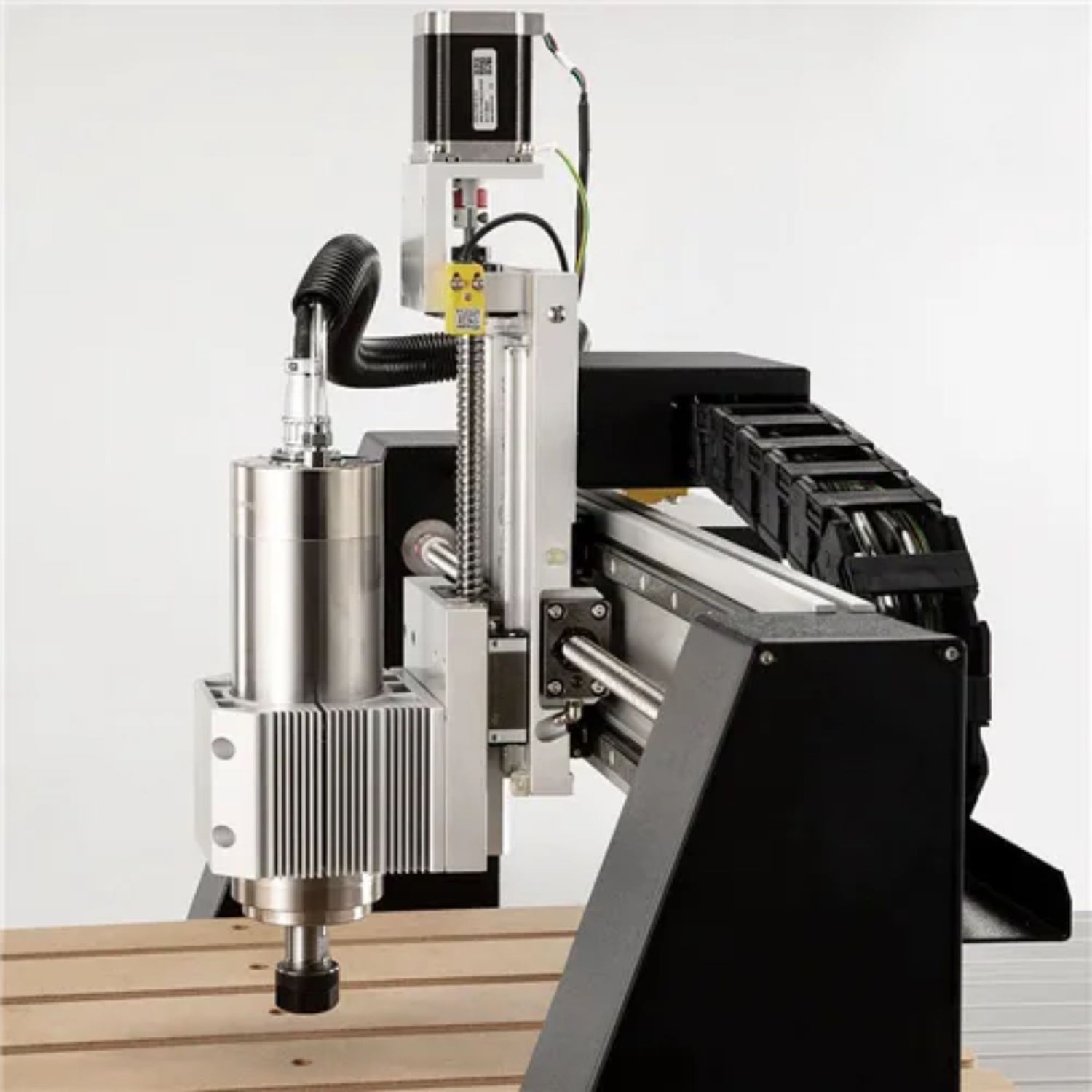

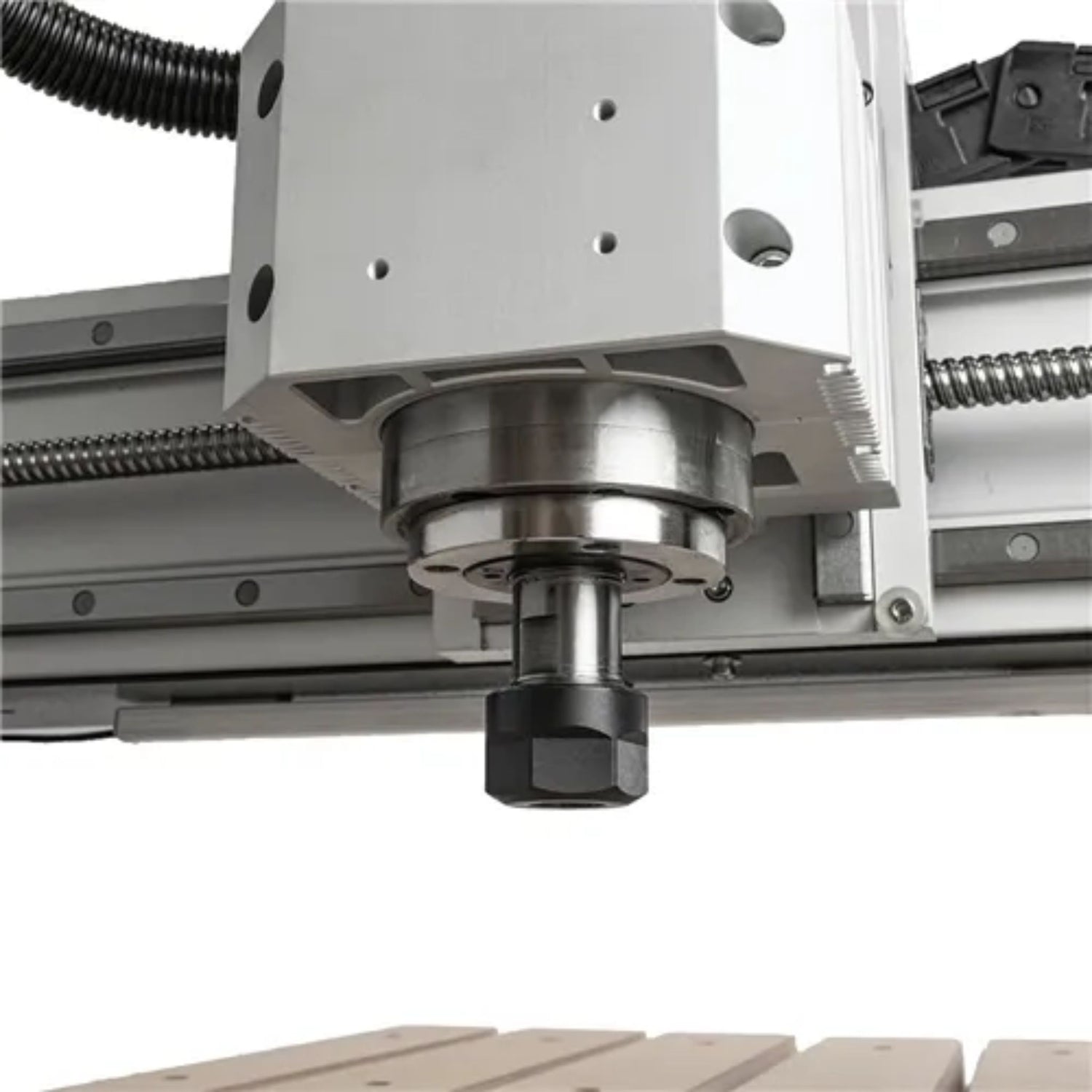

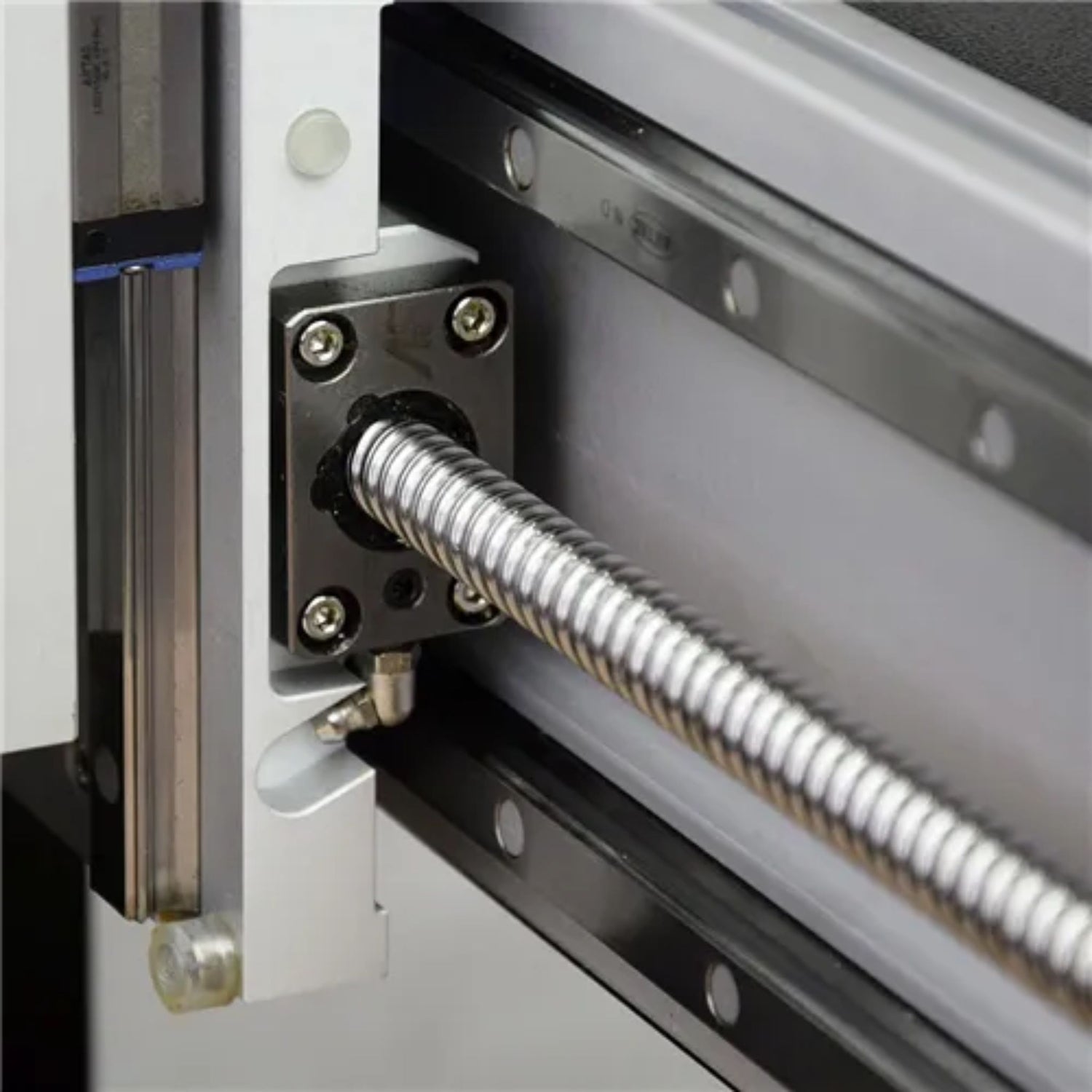

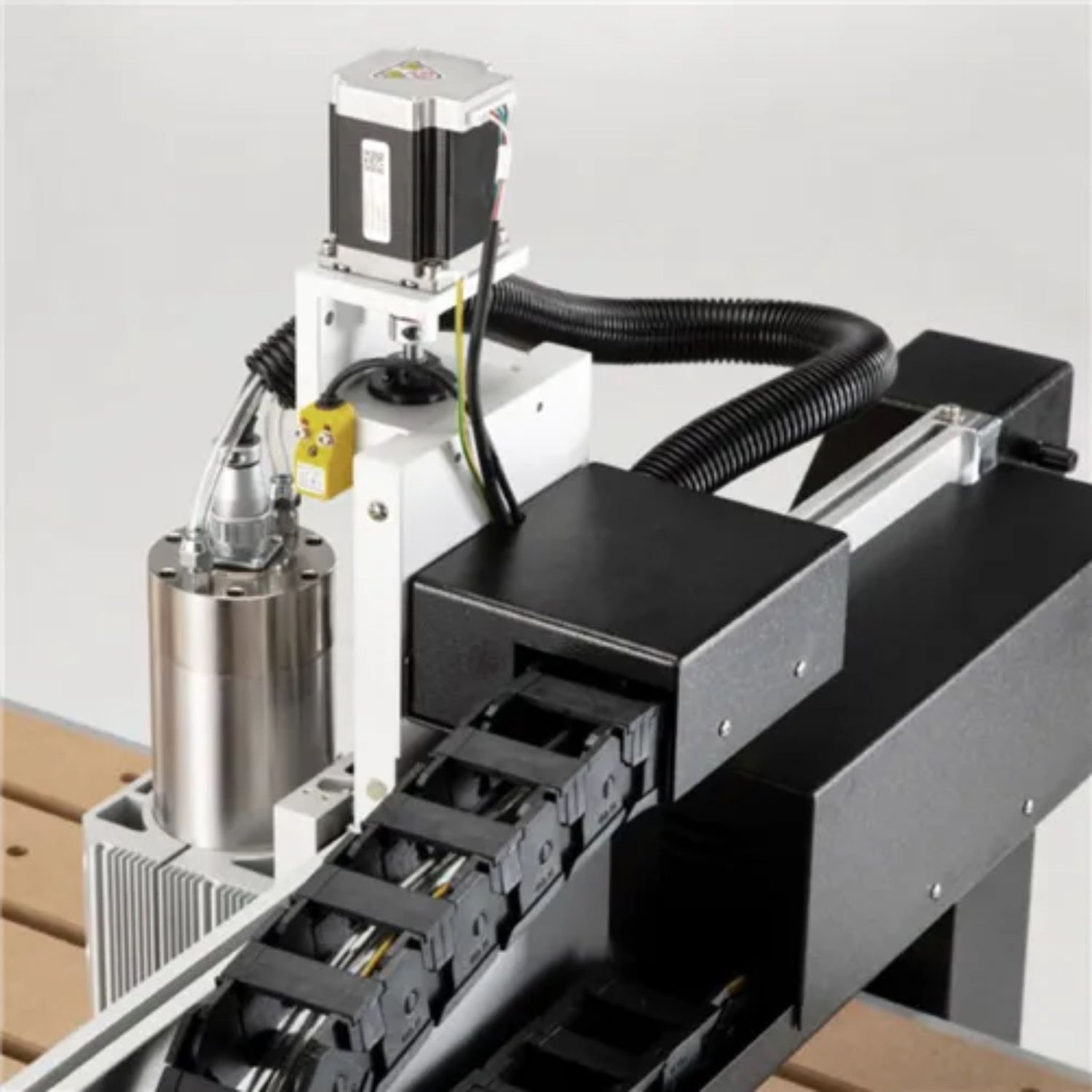

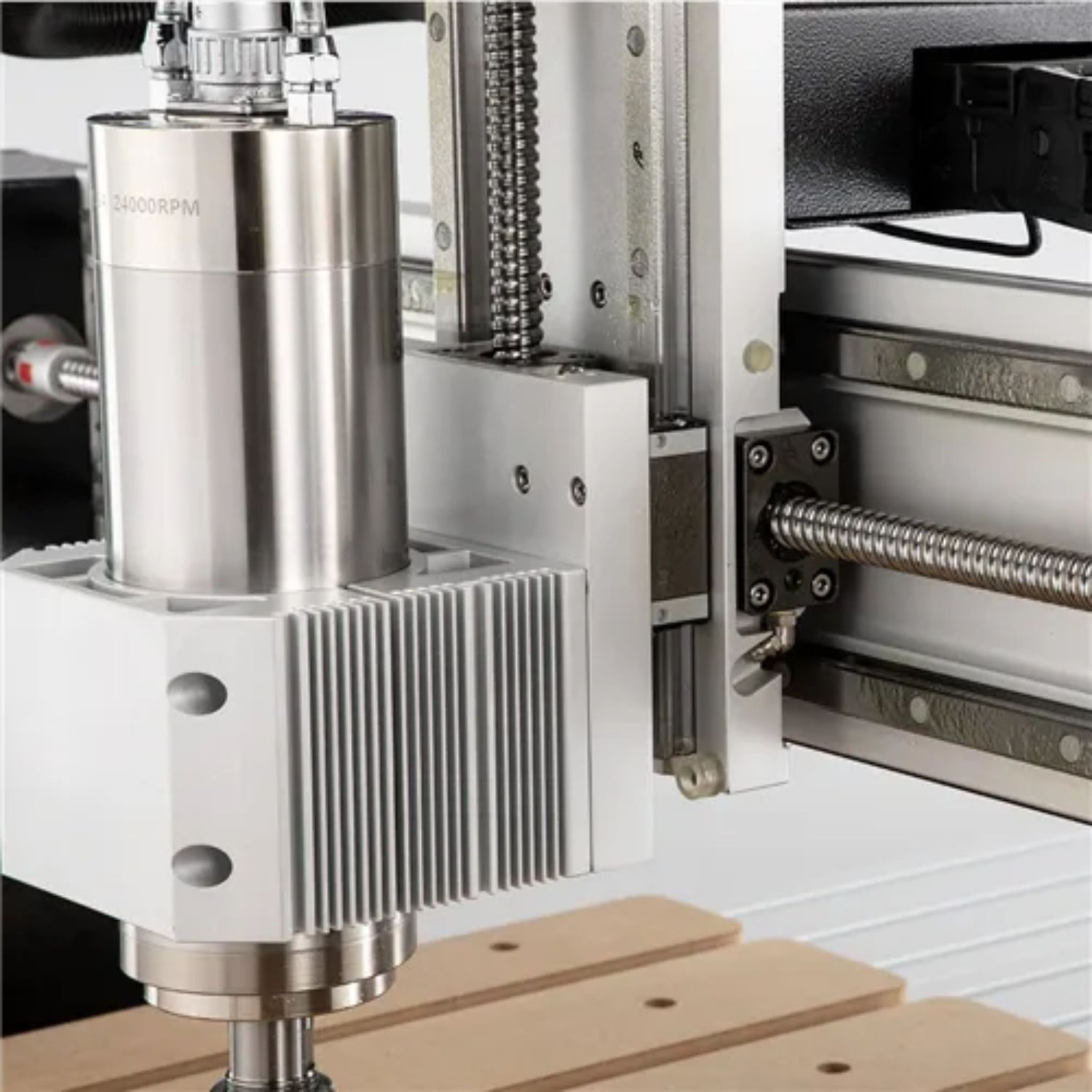

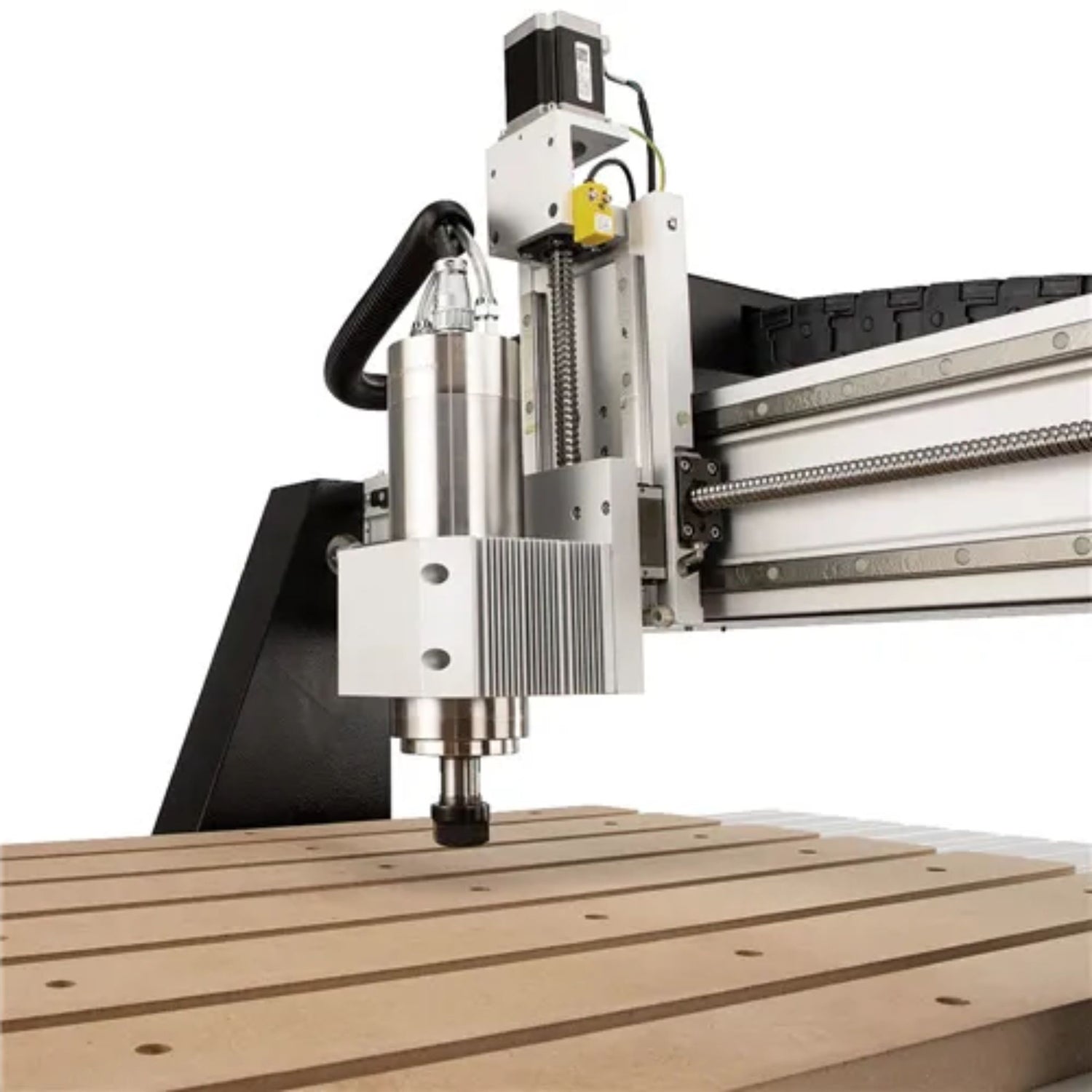

IGM i2R A24 is a compact 3-axis CNC router with 0.05 mm precision, ideal for wood, aluminium, plastics and brass. Working area: 610 × 1,220 × 150 mm, suitable for 2D/3D machining of furniture components, inlays, sculptures, prototypes and engravings. The 2,200 W liquid-cooled spindle operates from 0–24,000 rpm. 16 mm ball screws combined with linear guides provide precise travel, minimal backlash and reduced vibration. Magnetic sensors on each axis and a Z-axis touch sensor enable automatic calibration via the HOME function. The 40 mm aluminium worktable with integrated MDF panels and T-slots allows secure clamping of workpieces and accessories. UCCNC software with included licence provides an intuitive Windows interface, real-time 3D preview and PC control.

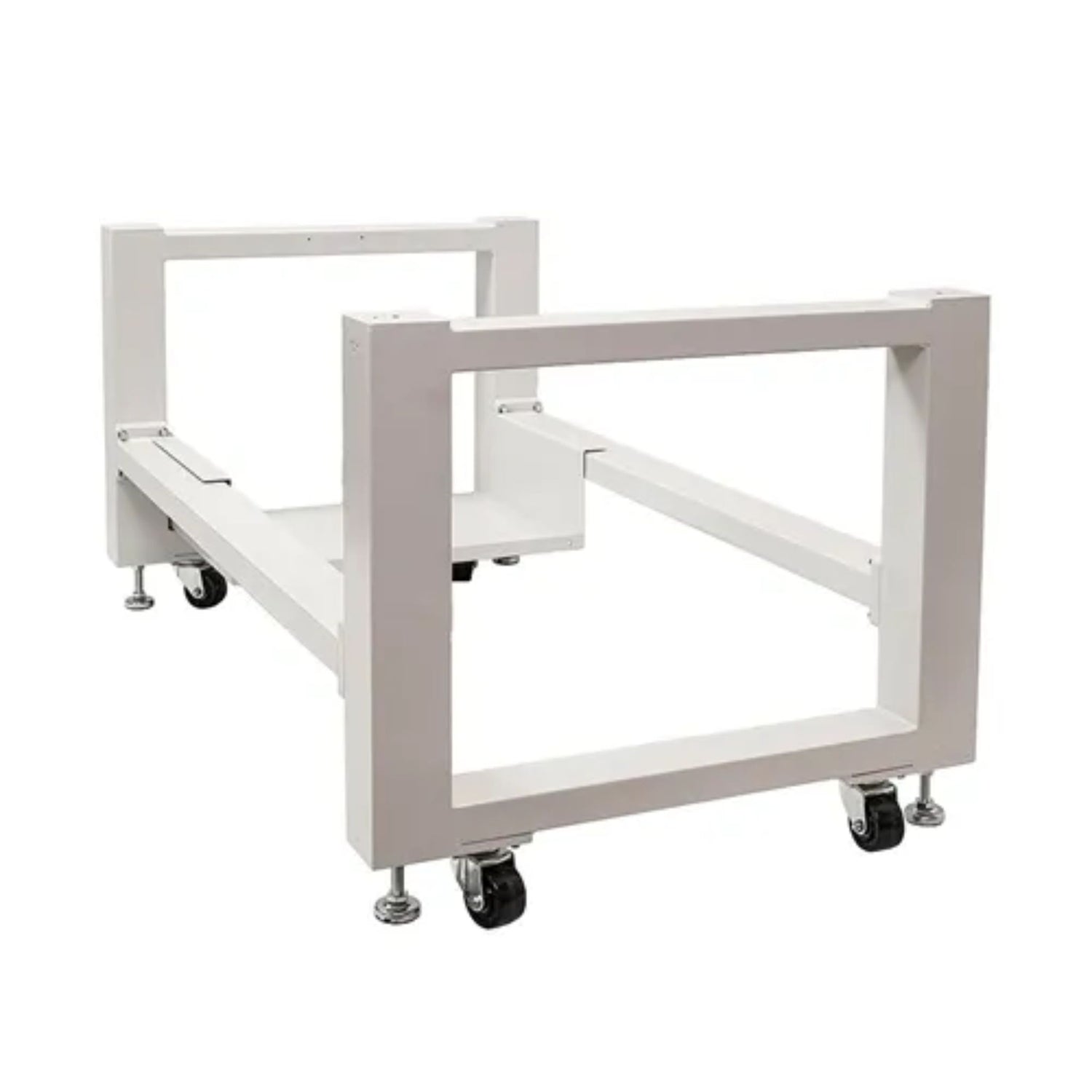

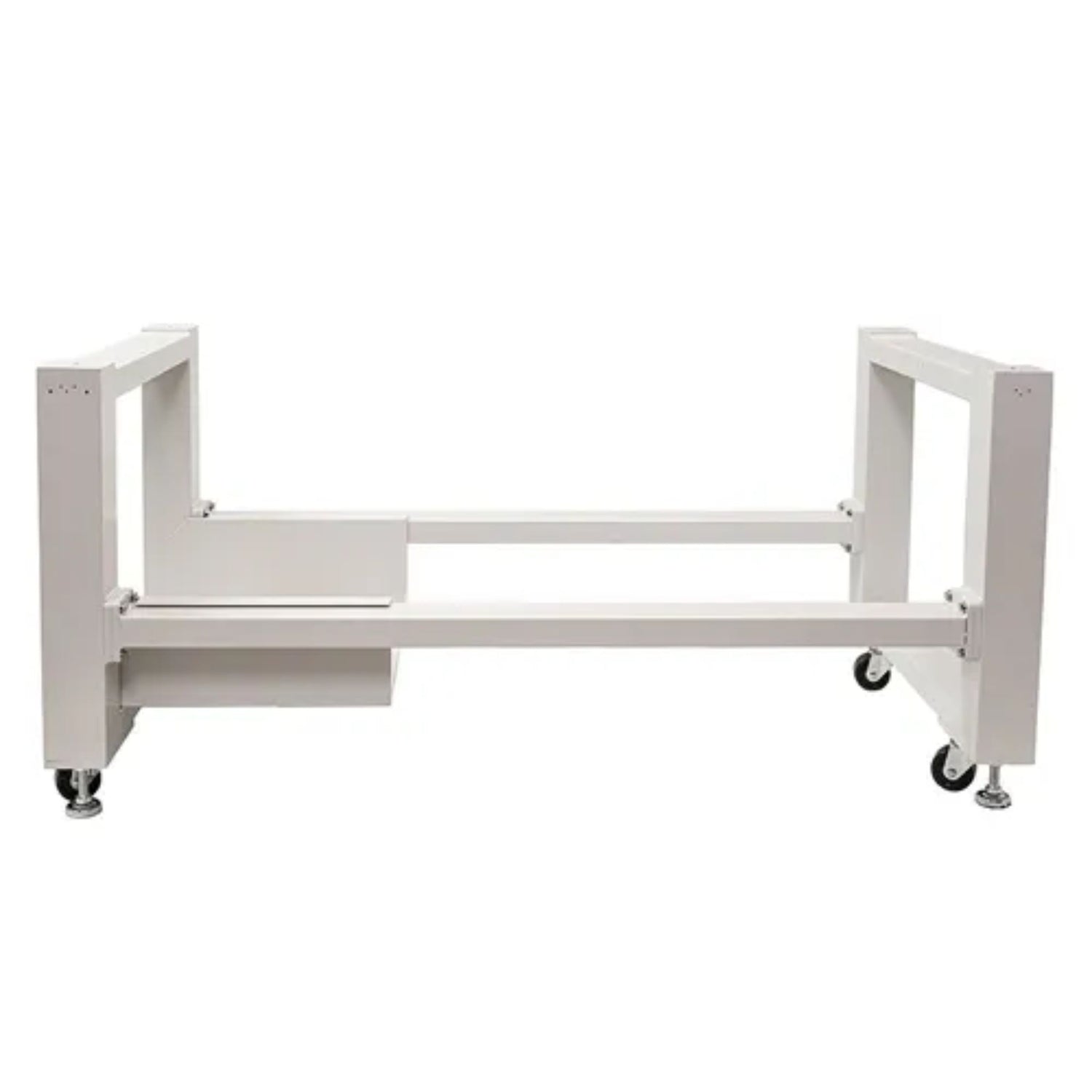

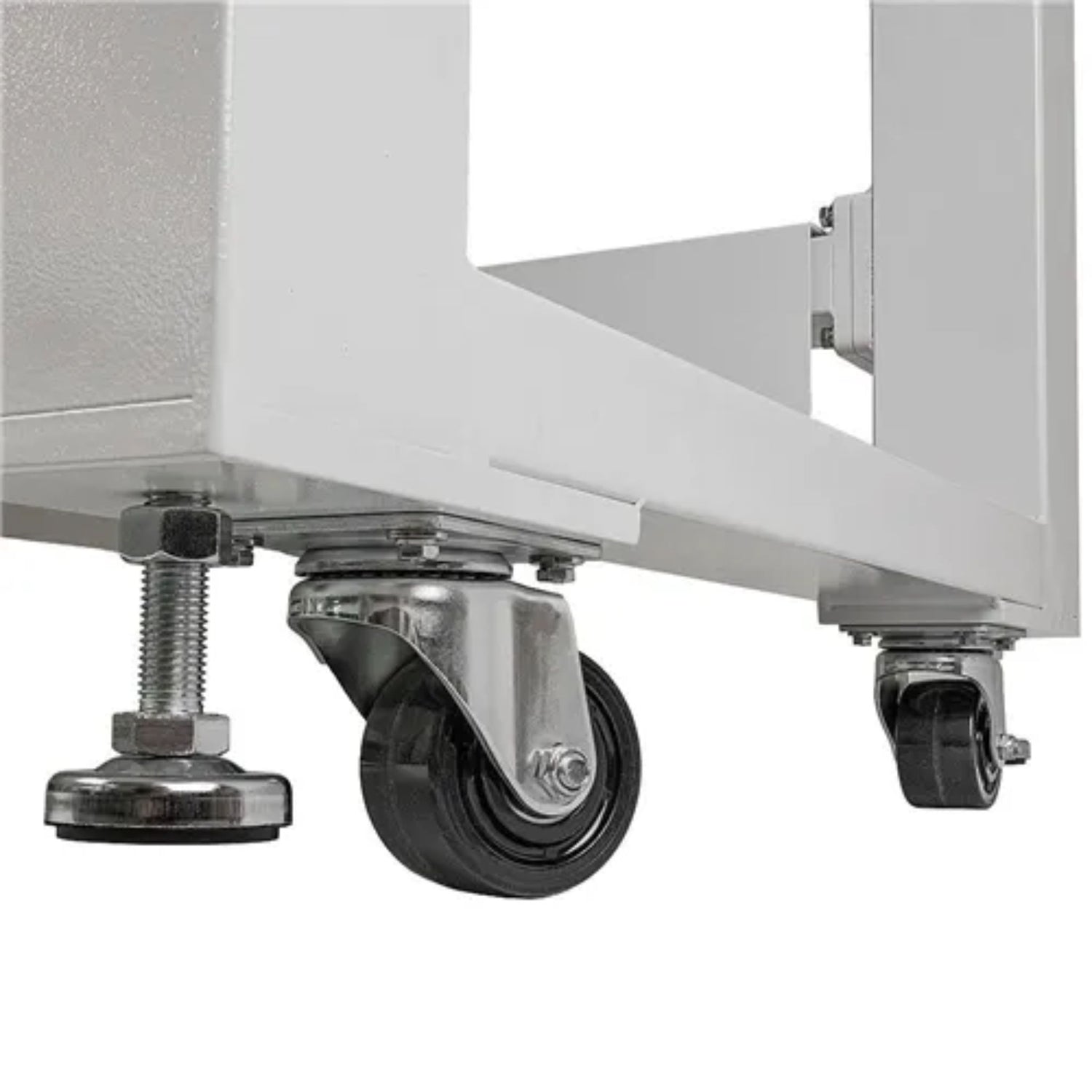

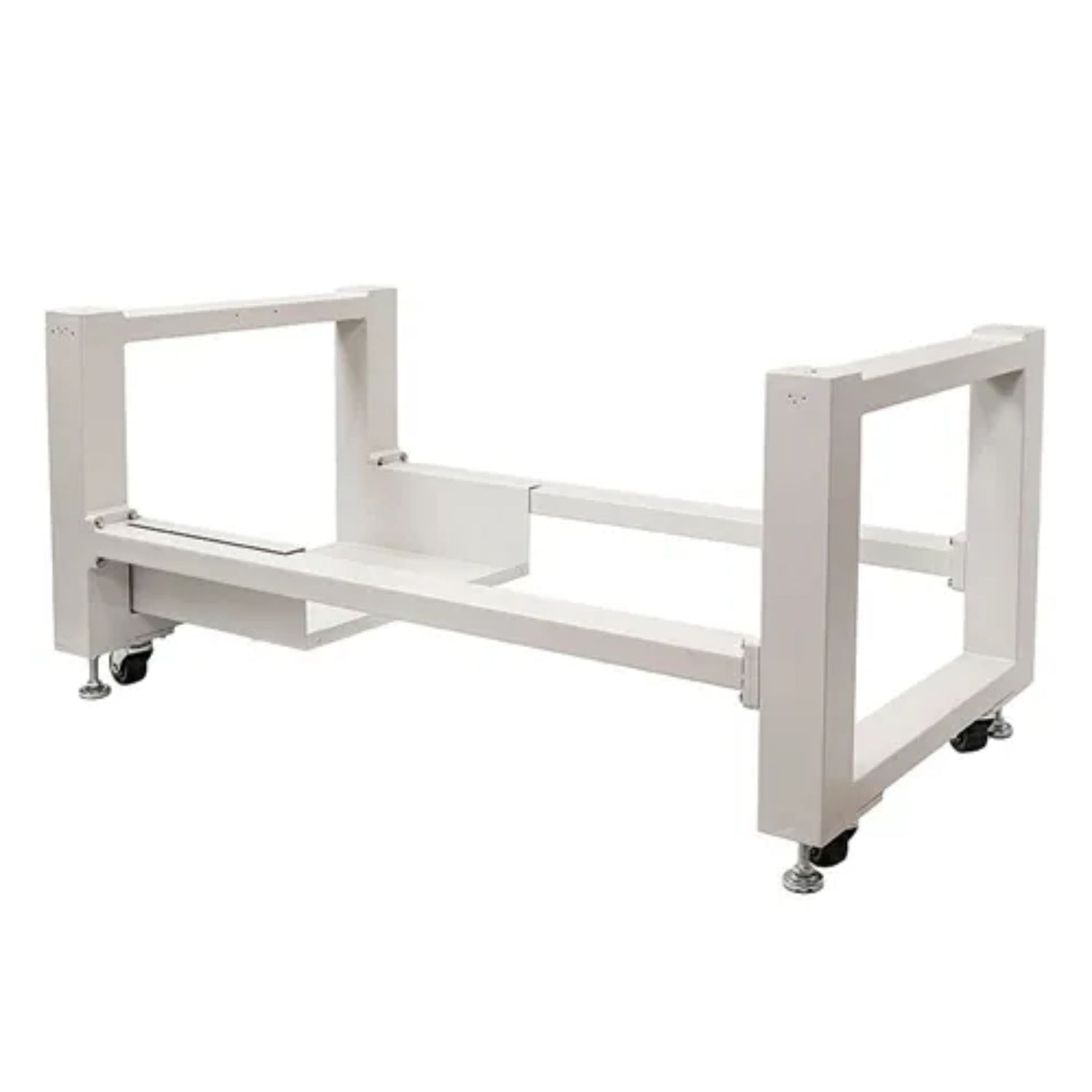

IGM Original Stand is a high-quality steel base equipped with mobile castors for moving the machine around the workshop and adjustable feet for precise levelling and stable positioning. It is designed to support the approximately 150 kg router together with tools and workpieces. Predrilled mounting points allow the addition of an IGM tool cabinet or laptop stand. The robust structure supports long machining cycles without unwanted movement.

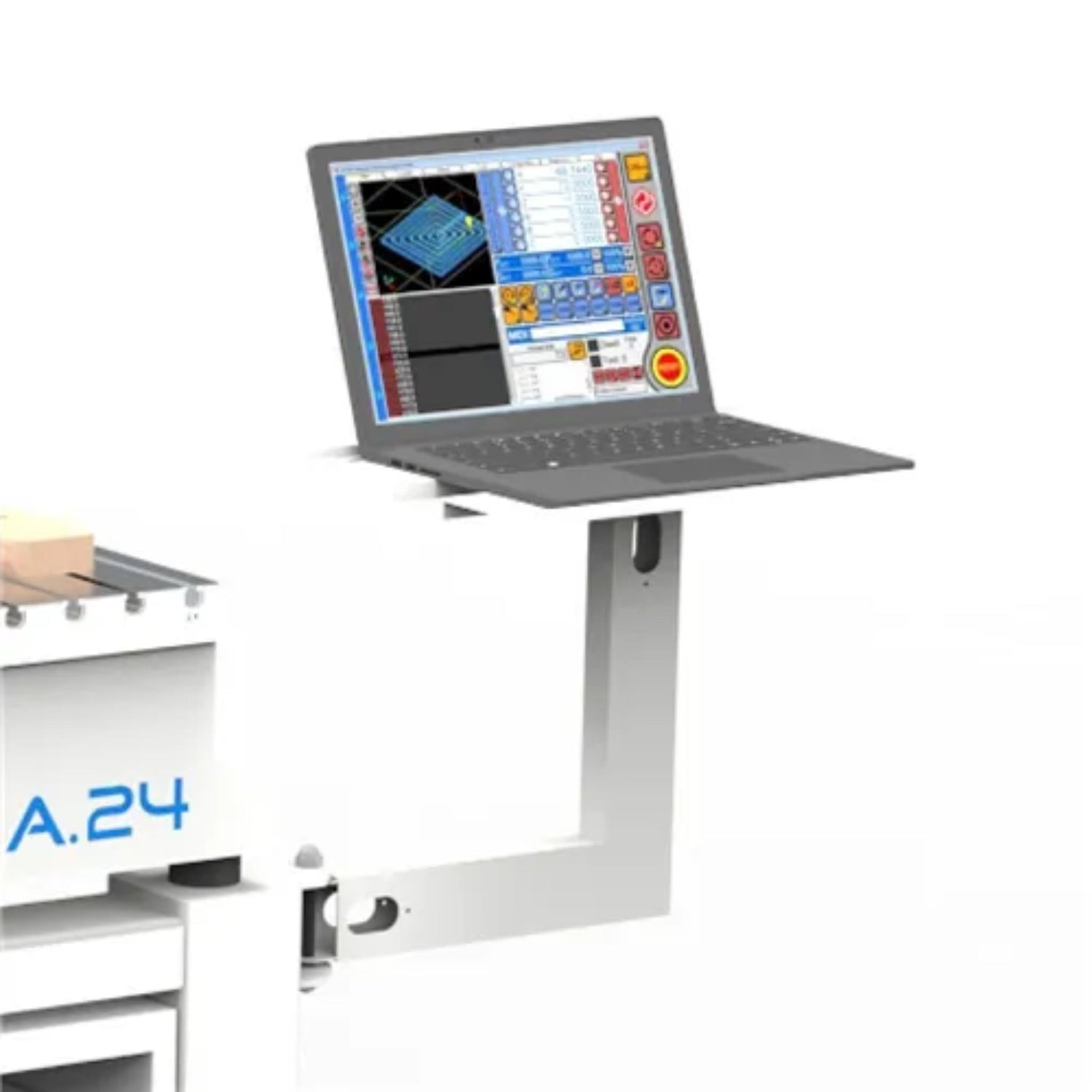

IGM Laptop Stand is a steel computer mounting bracket designed to attach directly to the original IGM stand using the predrilled mounting points. It positions the laptop ergonomically so the operator can monitor UCCNC at a comfortable viewing height.
Together: precision CNC router + stable mobile stand + ergonomic computer control = complete professional CNC workstation ready for operation. Result: precise wood and aluminium components, continuous machining cycles and real-time visual control.
Who is the IGM i2R A24 + Stands Combo suitable for?
| User profile | Suitable? | Reason |
|---|---|---|
| Professional woodworking craftsman | Ideal | 610 × 1,220 mm area, 0.05 mm precision, intuitive software and ergonomic laptop stand |
| Small prototyping company | Ideal | 2,200 W spindle, mobile base, adjustable feet and reliable continuous cycles |
| Decorative restoration workshop | Ideal | Complex 2D/3D machining, convenient laptop monitoring and precision for valuable woods |
Not recommended for: hobbyists with a limited budget; large-scale manufacturers producing more than 100 parts per month; heavy metal machining or deep aluminium cutting where a compact 2.2 kW spindle may be undersized.
Technical specifications — IGM i2R A24 CNC Router
Working area and axes
| Parameter | Value |
|---|---|
| X working area | 610 mm |
| Y working area | 1,220 mm |
| Z working area | 150 mm |
| X travel | 16 mm ball screw + linear guides |
| Y travel | 16 mm ball screw + linear guides |
| Z travel | 16 mm ball screw + linear guides |
Spindle and speed
| Parameter | Value |
|---|---|
| Spindle power (230V) | 2,200 W (2.2 kW) |
| Spindle cooling | Liquid, integrated system |
| Spindle speed | 0–24,000 rpm |
| Collet type | ER20 |
| Collet range | 1–13 mm |
| Maximum X/Y speed | 6,000 mm/min |
| Maximum Z speed | 2,000 mm/min |
Precision and sensors
| Parameter | Value |
|---|---|
| Repeatability | 0.05 mm |
| Magnetic sensors | Integrated on X, Y and Z axes |
| Z-axis touch sensor | Included for automatic tool-length setting |
Worktable
| Parameter | Value |
|---|---|
| Table material | 40 mm aluminium |
| Panels | Integrated MDF panels |
| Slots | T-slots for clamps and accessories |
| Dust extraction port | Ø 100 mm |
Control and software
| Parameter | Value |
|---|---|
| Software | UCCNC, unlimited licence included |
| Interface | Windows PC: Windows 7, 8, 10, 11 |
| Visualisation | Real-time 3D preview |
| Minimum PC requirements | 2 GHz processor, 4 GB RAM, 16 GB storage, USB-A + Ethernet |
Dimensions and weight
| Parameter | Value |
|---|---|
| Machine dimensions (L × W × H) | 1,650 × 950 × 770 mm |
| Machine weight | 150 kg |
| Shipping dimensions | 1,670 × 1,000 × 840 mm |
| Shipping weight | 188 kg |
Technical specifications — Original IGM A24 Stand
Structure and stability
| Parameter | Value |
|---|---|
| Material | High-quality steel |
| Castors | 4 mobile castors |
| Feet | Adjustable for levelling and stable positioning |
| Compatibility | IGM tool cabinet / IGM laptop stand |
| Load capacity | High, designed for router + tooling + material |
Technical specifications — IGM Laptop Stand
Mounting and positioning
| Parameter | Value |
|---|---|
| Material | Steel |
| Mounting | Original IGM stand via predrilled holes |
| Compatibility | Standard 13–17" laptops |
| Positioning | Ergonomic operator viewing height |
Standard equipment — Complete Combo
IGM i2R A24 CNC Router:
- Pre-assembled 3-axis CNC machine
- Installed 2,200 W liquid-cooled spindle
- 2 ER20 collets: 8 mm and 12 mm
- Dust extraction accessory
- 2 spindle wrenches
- Z-axis touch sensor

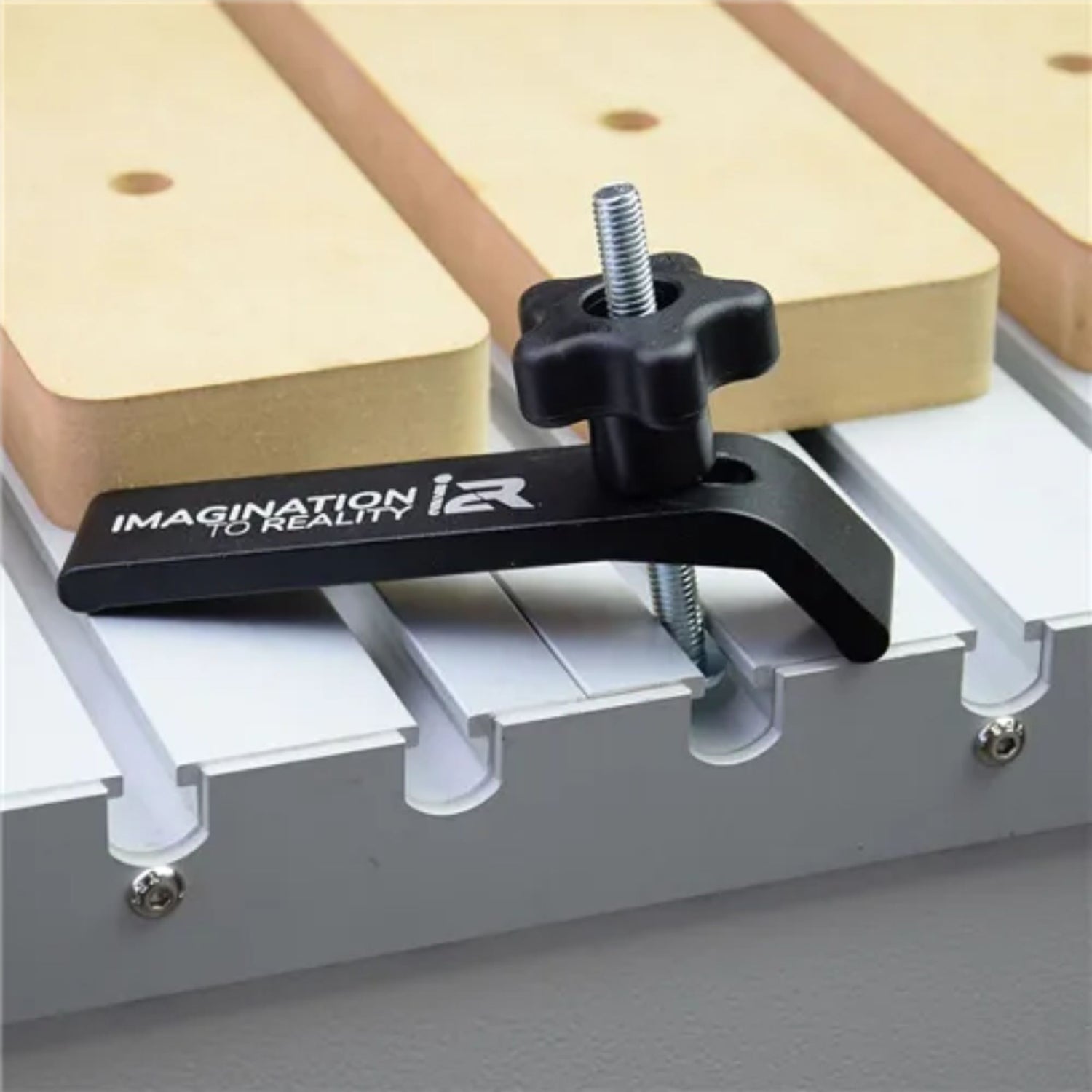

- 4 workpiece clamps
- Ethernet cable
- Grease gun
- UCCNC software with unlimited licence
- Italian manual
Original IGM A24 Stand:
- Steel base
- 4 mobile castors
- Adjustable feet
- Predrilled mounting holes for cabinet/laptop stand
IGM Laptop Stand:
- Steel bracket
- Predrilled mounting points
- Positioning pads
Frequently asked questions
1. Is the 610 × 1,220 mm working area sufficient for standard furniture components?
Yes. The 610 × 1,220 mm area covers most common woodworking components such as cabinet doors, frames, drawer panels and decorative parts. Components longer than 1,220 mm may require machining in two separate setups. The 150 mm Z travel provides useful clearance for reliefs, inlays and 3D work.
2. Does the 2,200 W liquid-cooled spindle really make a difference compared with air-cooled spindles?
Liquid cooling helps maintain stable spindle temperatures during long machining cycles and can reduce thermal variation. It is especially useful when operating for extended periods at high spindle speeds.
3. Is 0.05 mm precision realistic?
The combination of ball screws, linear guides and axis sensors is designed to provide repeatable positioning. Actual accuracy depends on setup, calibration, tooling, material and machining conditions.
4. Is UCCNC easy to use without CNC experience?
UCCNC provides a graphical interface for loading G-code, homing the machine, viewing the toolpath and starting the machining cycle. Basic operation is relatively accessible, although CNC machining still requires familiarity with tooling, feeds, speeds and workholding.
5. Is the wheeled base stable during high-speed routing?
Yes. The adjustable feet are used to level and stabilise the stand once the machine is positioned, so the castors are not relied upon for stability during machining.
6. What maintenance does the machine and stand require?
Regular maintenance includes cleaning dust, lubricating the ball screws and linear motion components according to the manufacturer’s instructions, checking the cooling system and inspecting the stand, castors and mounting hardware.
