Laguna MFlux 5 Dust Collector + LAGUNA 1938 SuperMax Drum Sander Combo – Complete Professional Sanding System with Free Shipping
The combo combines two complementary components:

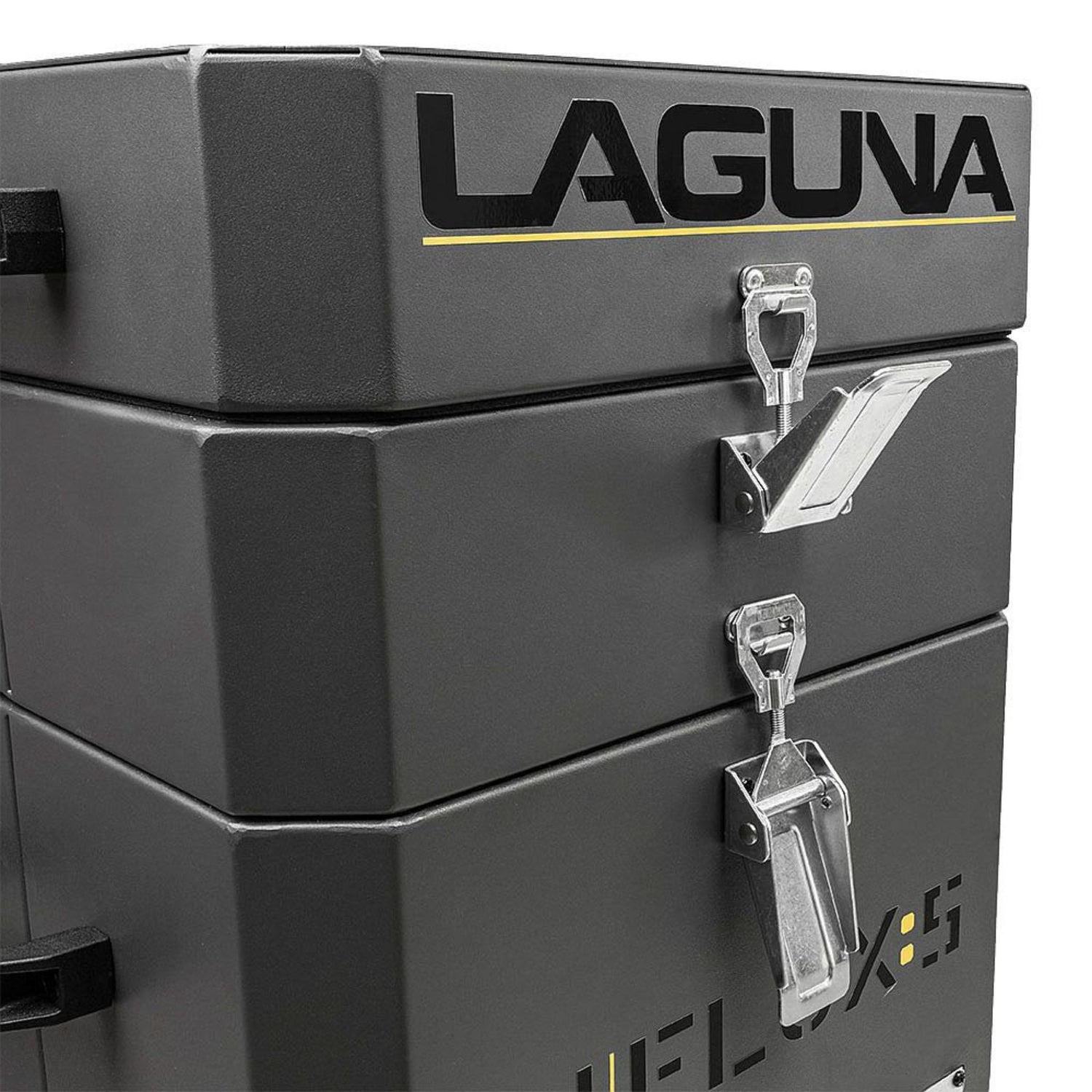

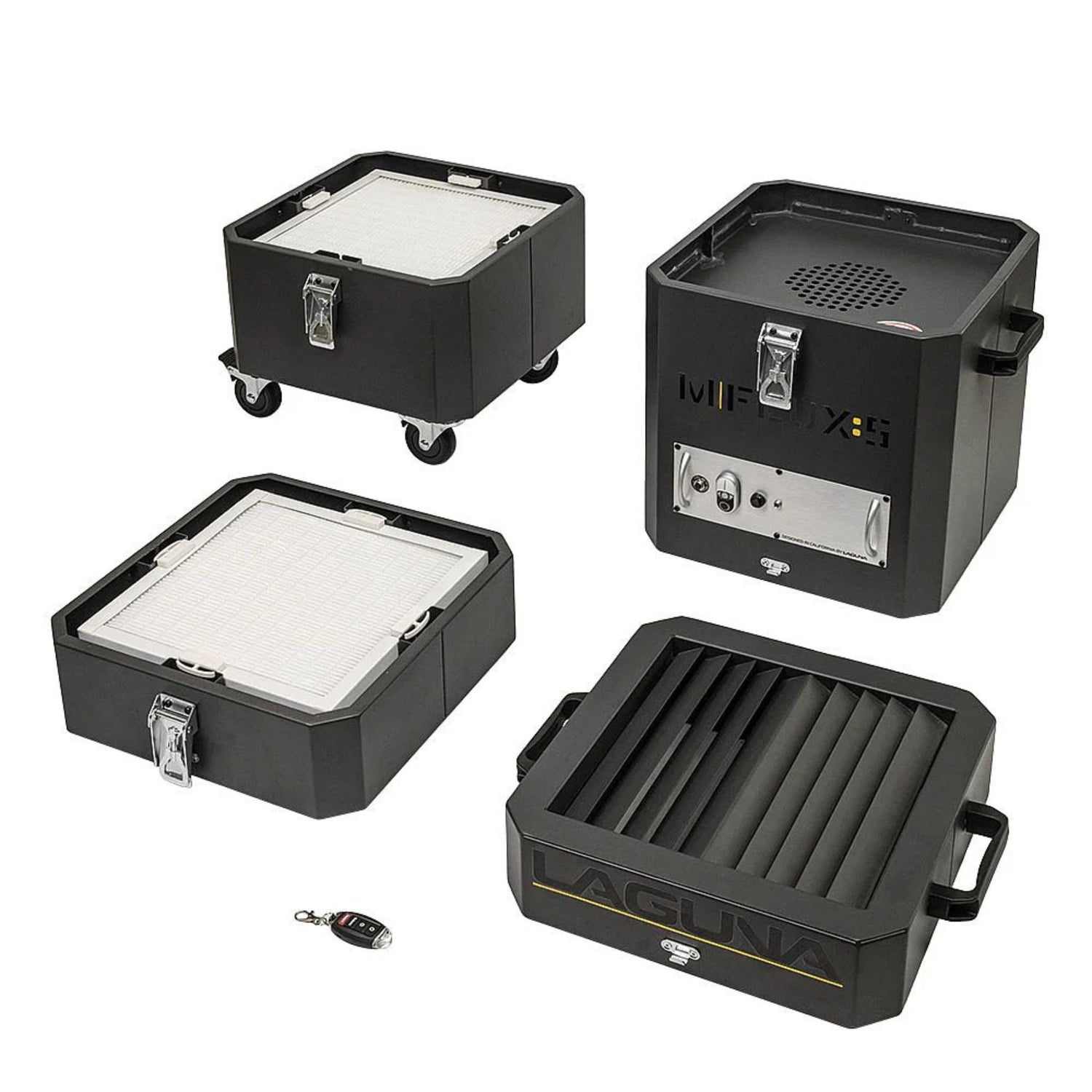

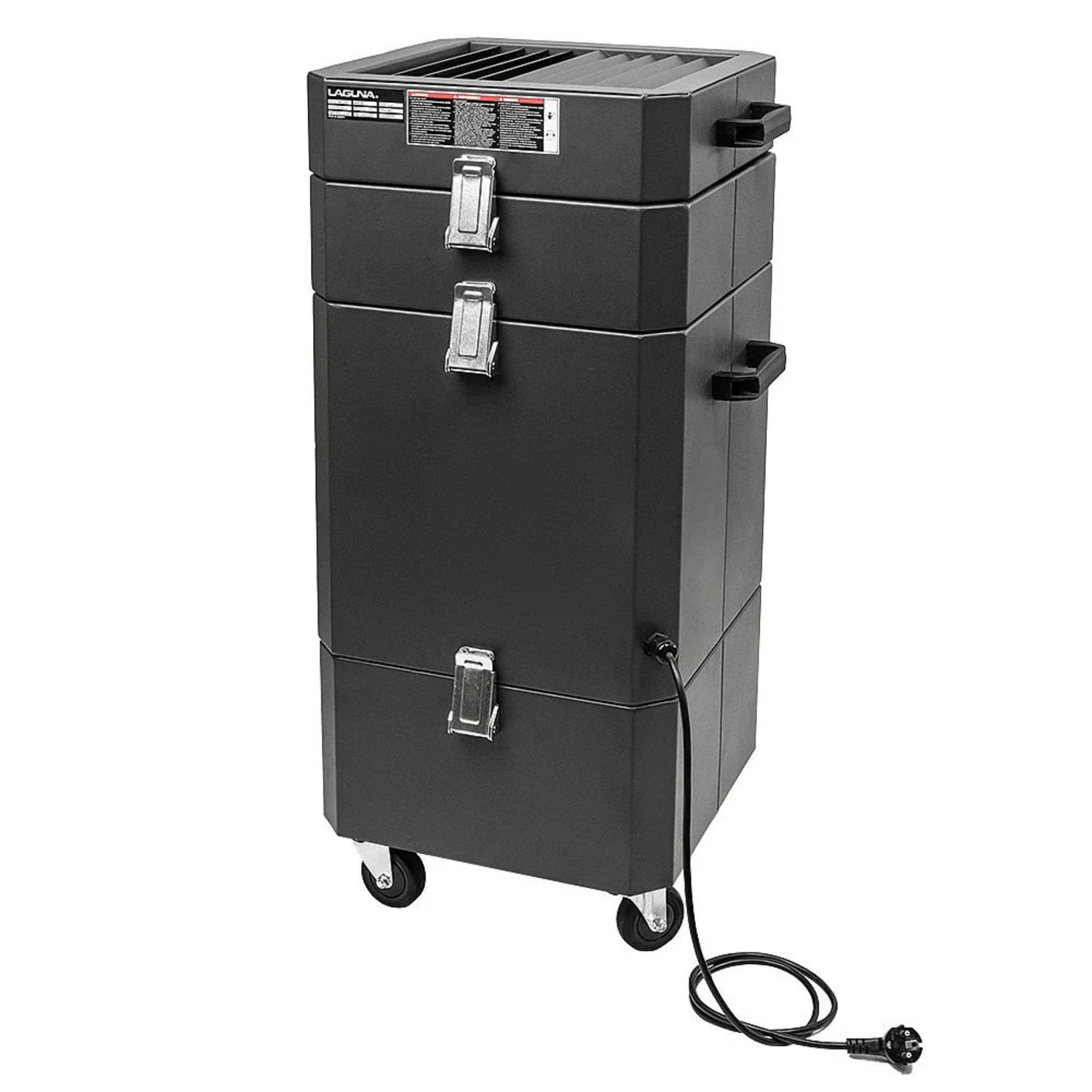

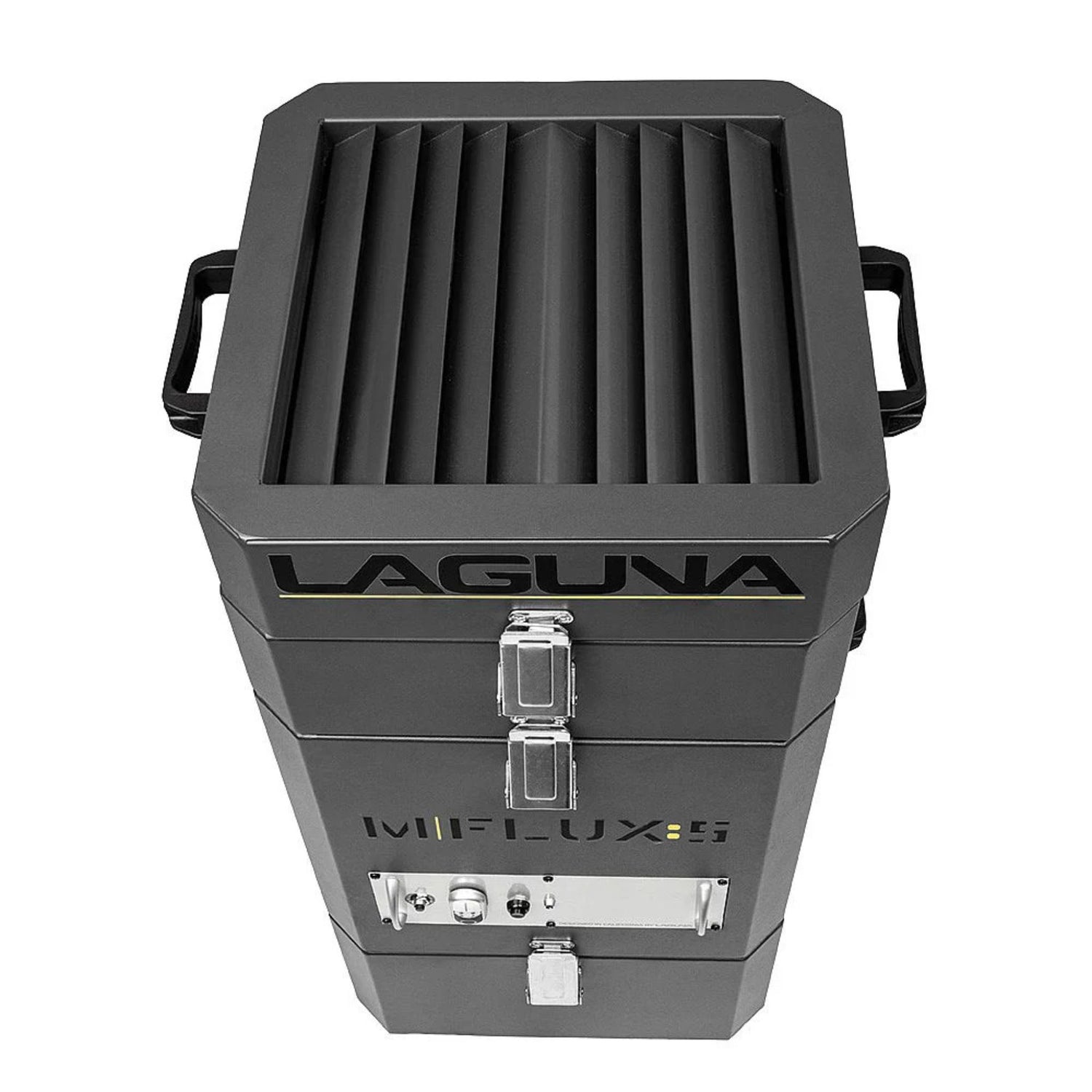

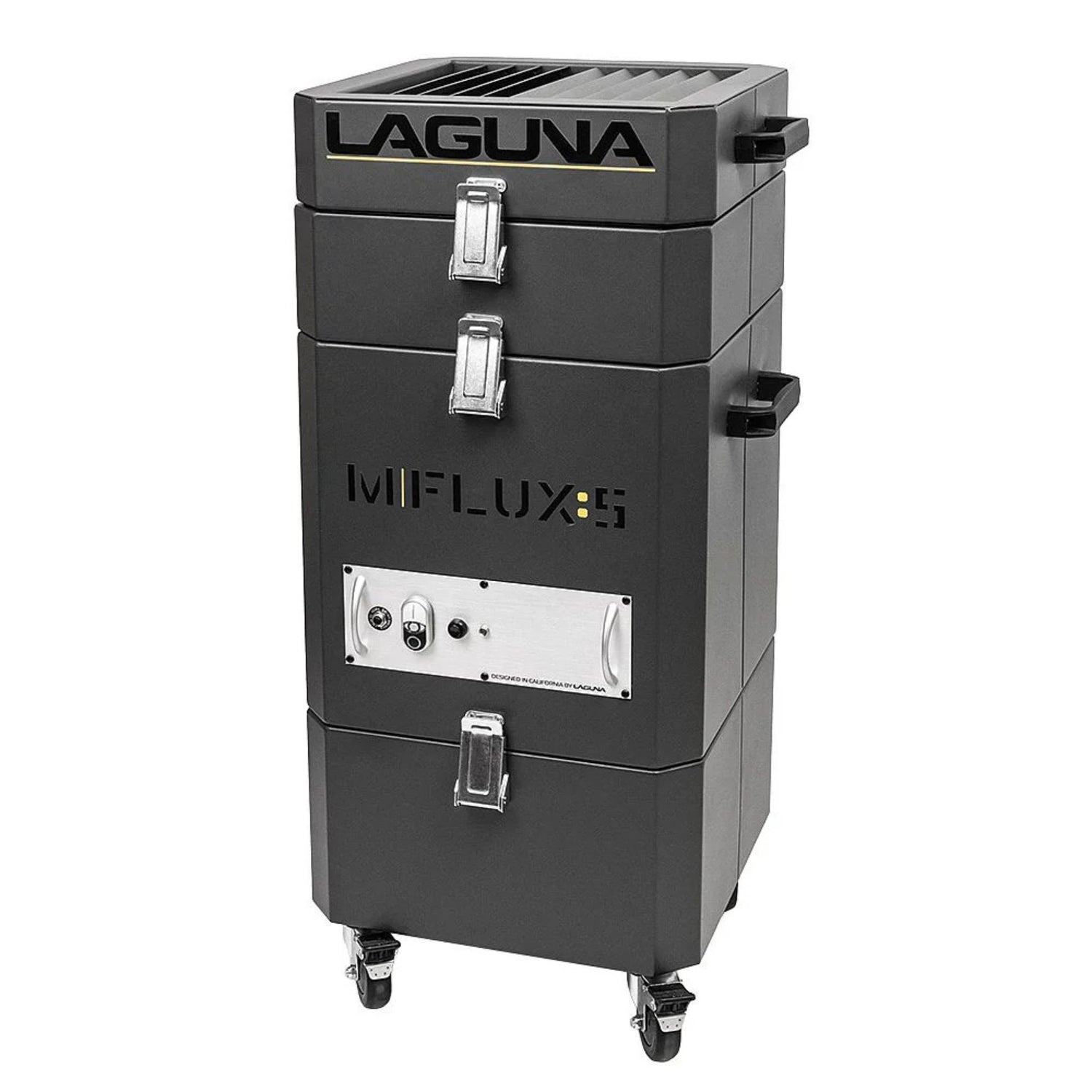

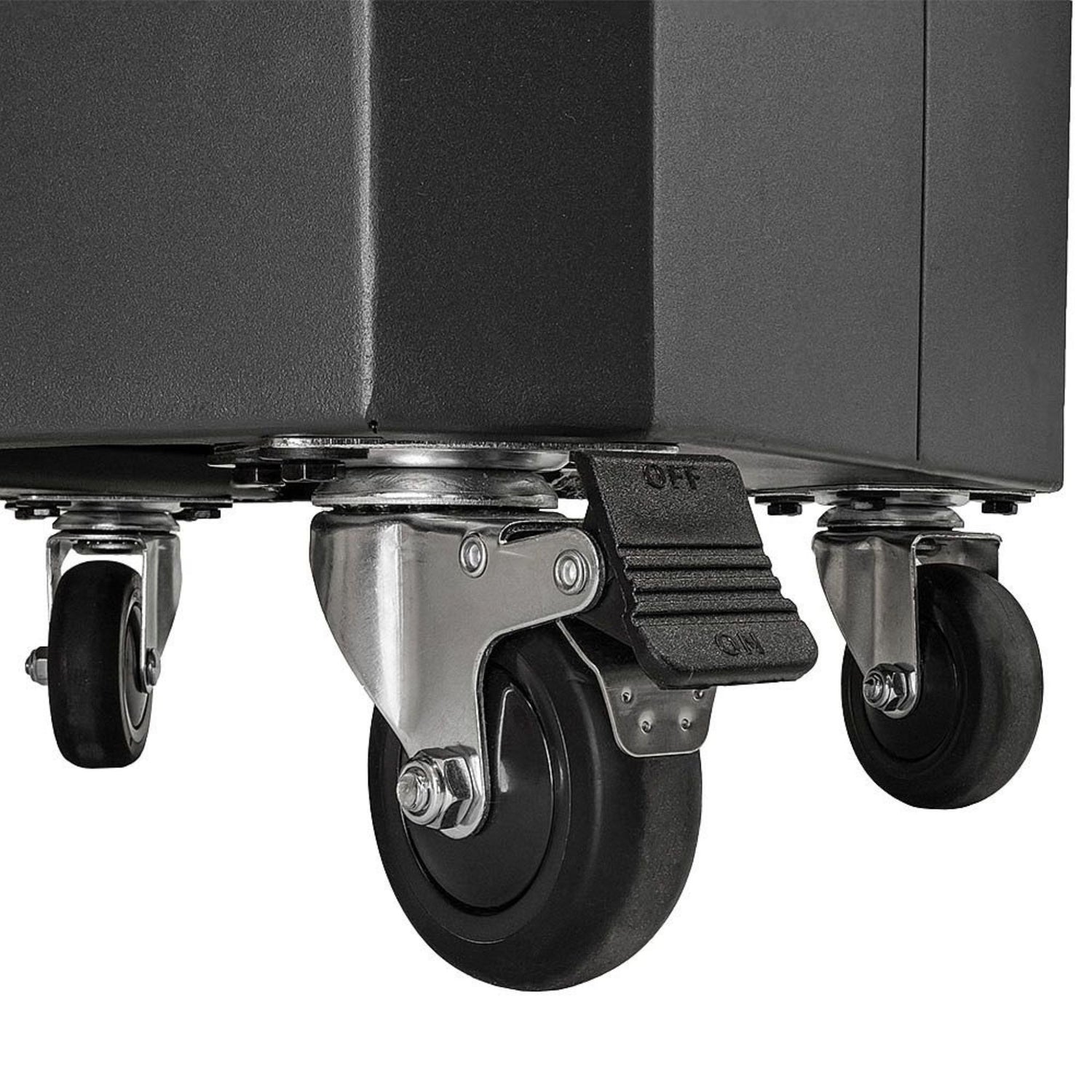

1. Laguna MFlux 5 mobile dust collector – professional filtration system for woodworking workshops. 750 W power, 530 m³/h airflow (the recommended minimum for drum sanders is 1,000 m³/h, so the MFlux 5 is best used as a versatile auxiliary extraction solution). Dual HEPA filters provide 99.99% filtration of particles larger than 0.3 micrometres, with H3 residual dust levels below 0.1 mg/m³. Integrated remote control, 45.2 kg weight and mobile design make it suitable for connection to saws, planers, routers and sanders. Compact dimensions: 483 × 452 × 925 mm.

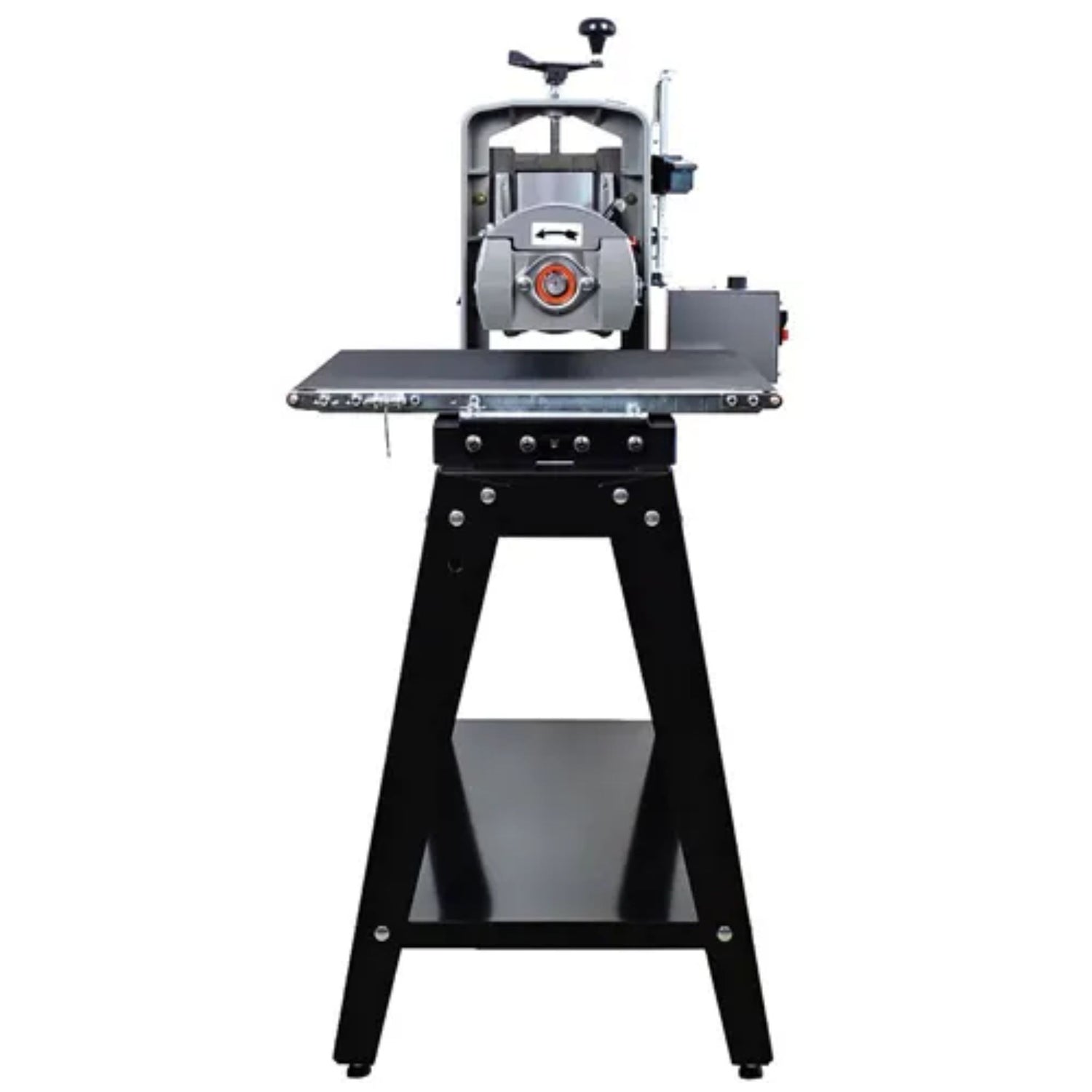

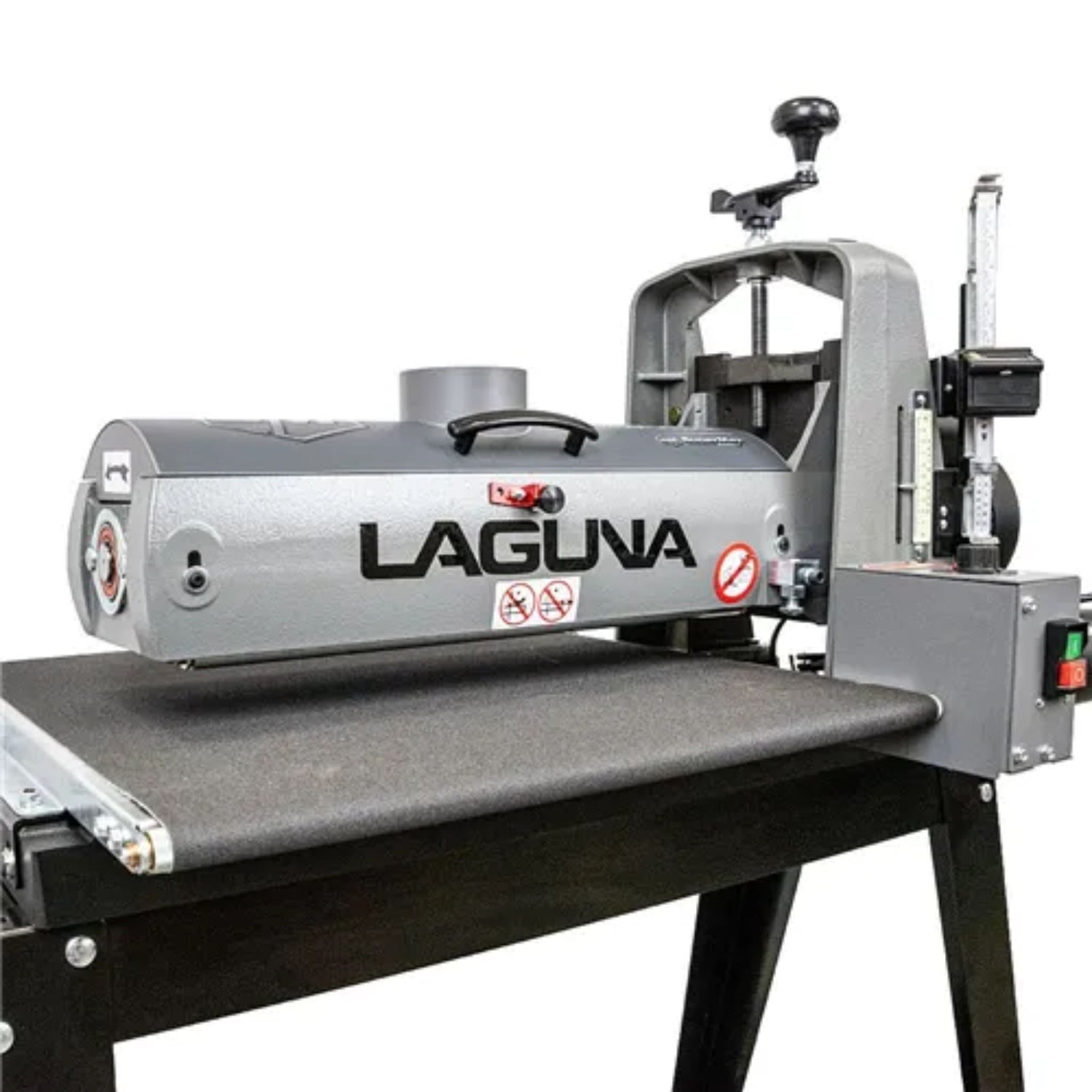

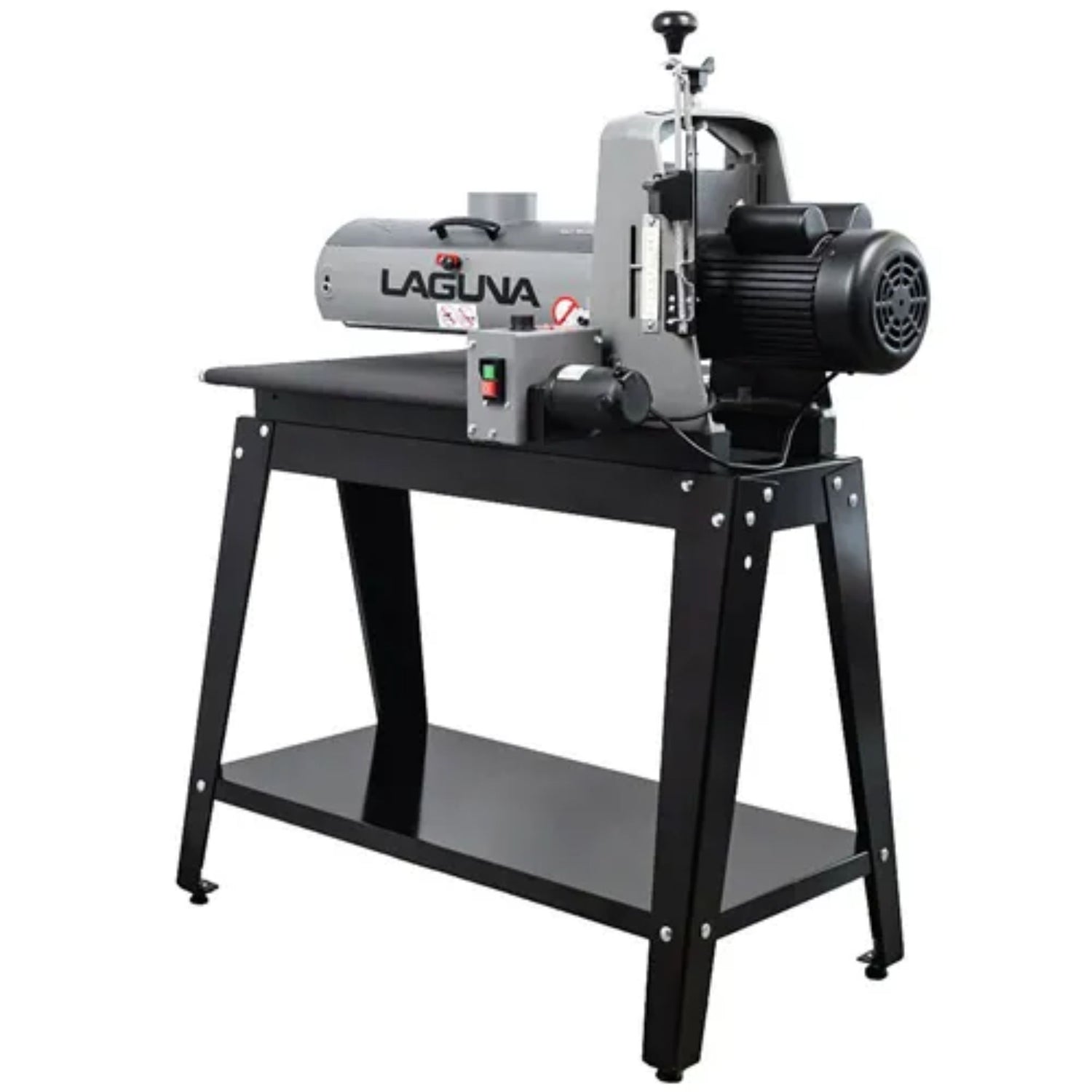

2. LAGUNA 1938 SuperMax drum sander – professional sanding machine for uniform sanding of wide and thin workpieces. 1,350 W power, sanding width up to 965 mm and working thickness from 0.8 to 100 mm. The Ø 127 mm sanding drum minimises curvature and helps produce evenly sanded surfaces. Intellisand technology automatically adjusts the feed speed according to sanding load, reducing the risk of burning on harder woods while maintaining productivity on softer woods. Digital control, minimum workpiece length 60 mm. Weight 118 kg, robust construction for regular professional use.
Who is the Laguna MFlux 5 + LAGUNA 1938 SuperMax combo suitable for?
| User profile | Suitable? | Reason |
|---|
| Professional woodworking shop | Ideal | 965 mm sanding capacity, adaptive Intellisand feed and auxiliary dust extraction |
| Wood restoration workshop | Ideal | Minimum thickness 0.8 mm for delicate workpieces and HEPA filtration for fine sanding dust |
| Artisan finishing production | Ideal | Adjustable feed, repeatable sanding and cleaner working environment |
Not recommended for: occasional hobby users due to the professional investment; liquid extraction or hazardous materials; workpieces shorter than 60 mm.
Technical specifications — Laguna MFlux 5 Dust Collector
Motor and filtration
| Parameter | Value |
|---|
| Power (230 V) | 750 W |
| Airflow | 530 m³/h |
| Filters | 2 × HEPA |
| Filtration efficiency | 99.99% (>0.3 micrometres) |
| Residual dust | H3 (<0.1 mg/m³) |
Features and use
| Parameter | Value |
|---|

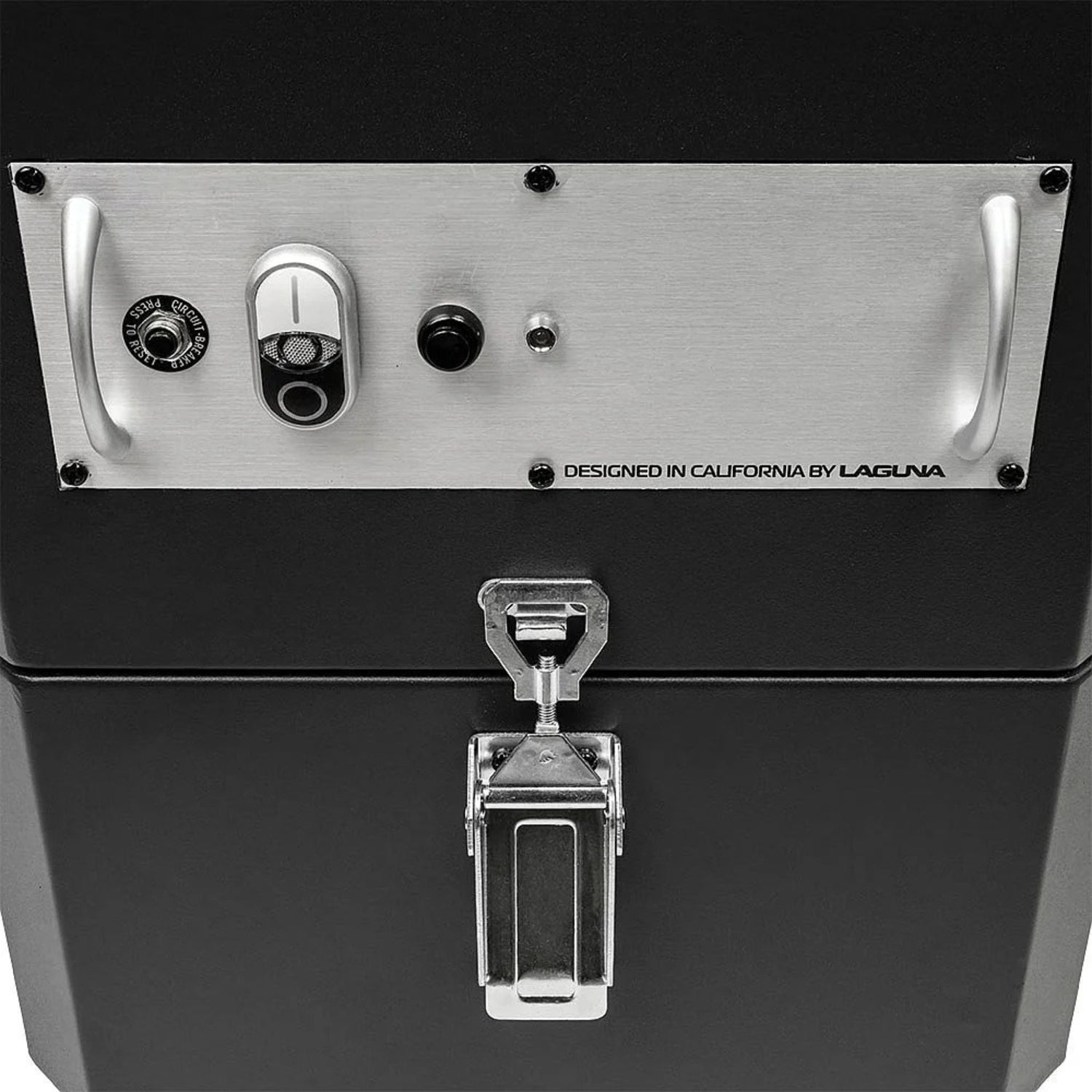

| Remote control | Yes |
| Recommended use | Professional |
| Connection | Flexible hose to individual machines or extraction system |
| Dimensions (L × W × H) | 483 × 452 × 925 mm |
| Weight | 45.2 kg |
Technical specifications — LAGUNA 1938 SuperMax
Motor and performance
| Parameter | Value |
|---|
| Voltage / Power | 230 V / 1,350 W |
| Conveyor motor | 40 W |
| Motor speed | 1,420 rpm |
| Feed speed | 0–3 m/min |
Sanding capacity
| Parameter | Value |
|---|
| Maximum workpiece width | 965 mm |
| Minimum workpiece length | 60 mm |
| Working thickness | 0.8–100 mm |
Drum and abrasive
| Parameter | Value |
|---|

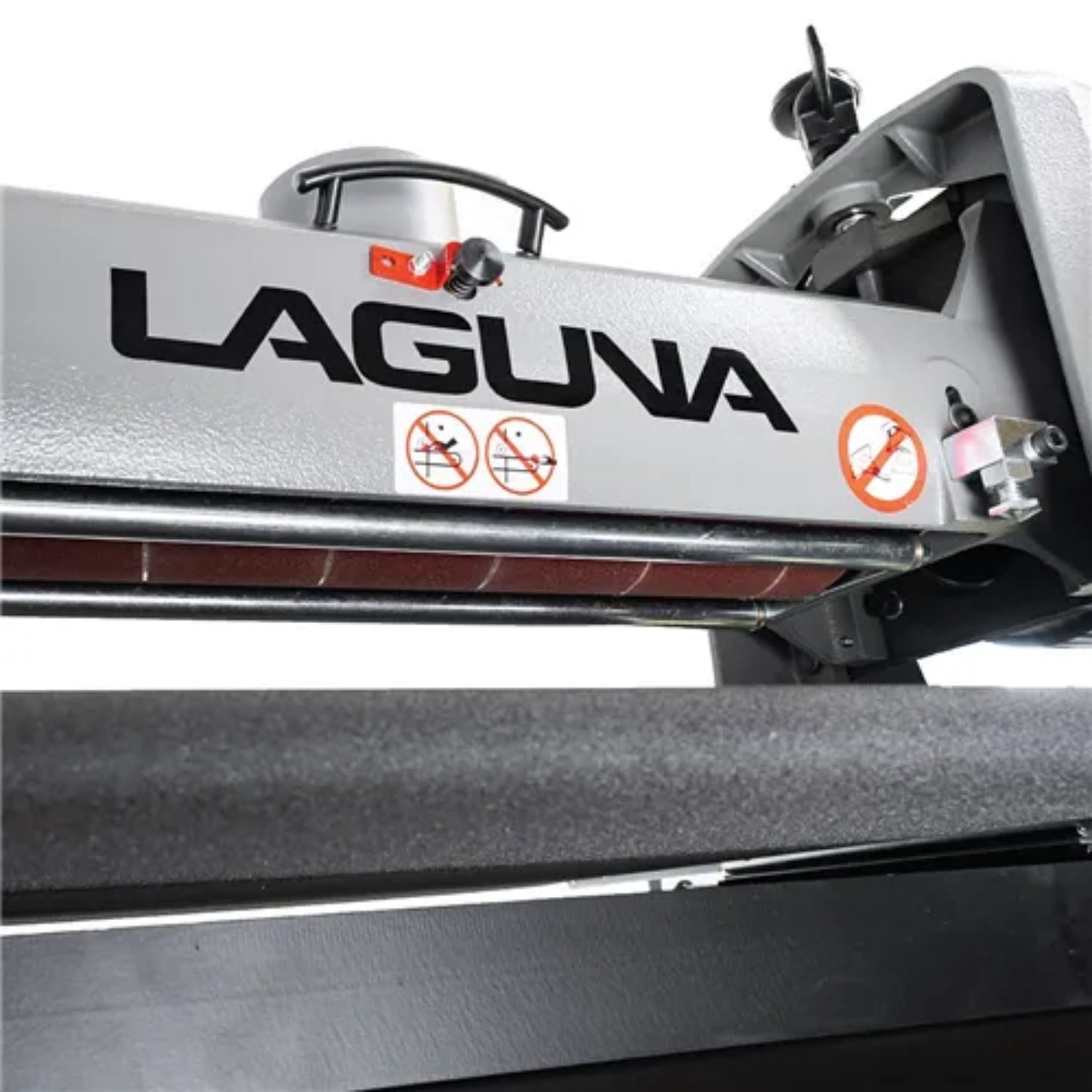

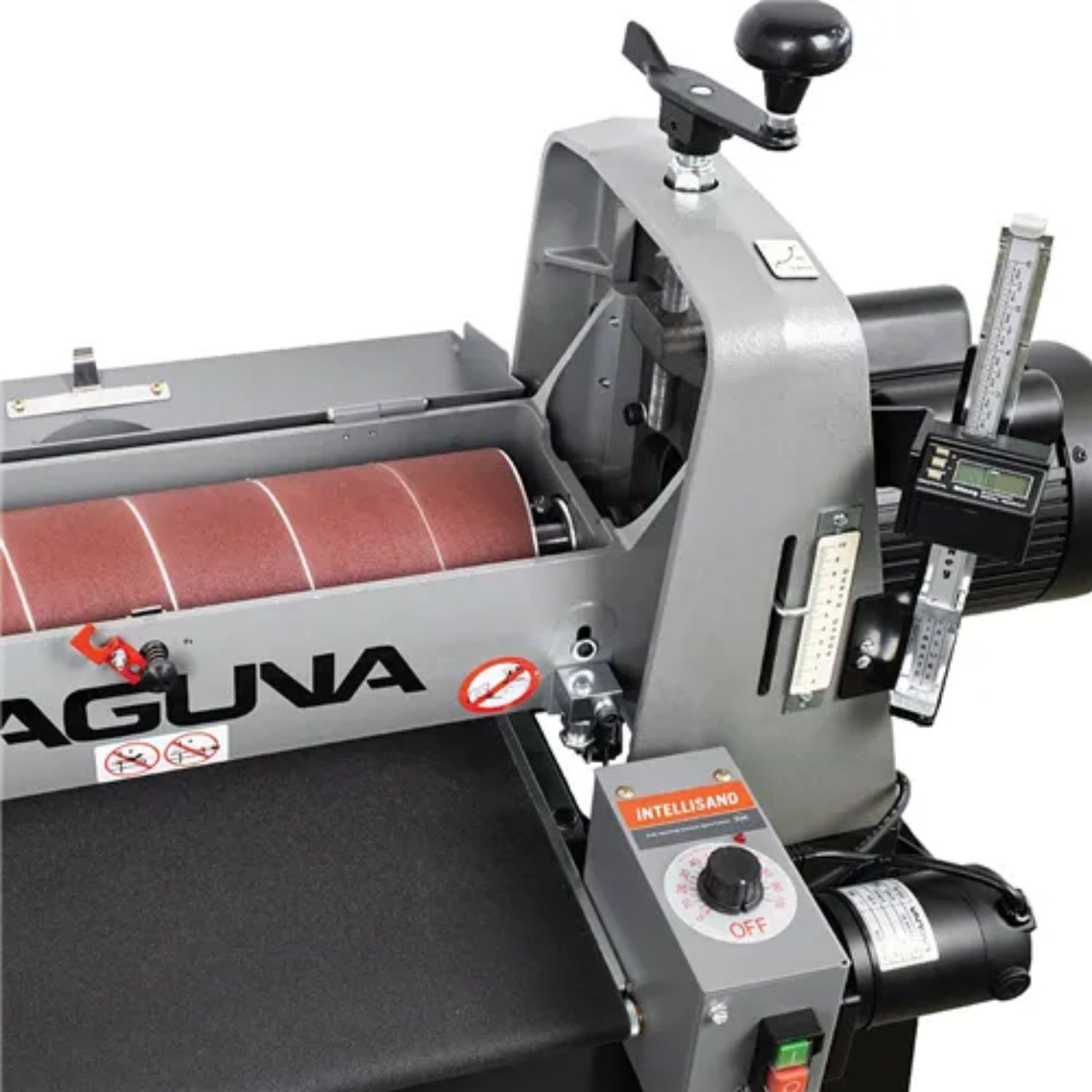

| Sanding drum | Ø 127 × 482 mm |
| Abrasive strip width | 76 mm |
| Replacement system | Quick-change, patented |
Dust extraction and technology
| Parameter | Value |
|---|
| Dust port | 1 × Ø 100 mm |
| Recommended minimum airflow | 1,000 m³/h |
| Technology | Intellisand adaptive feed |

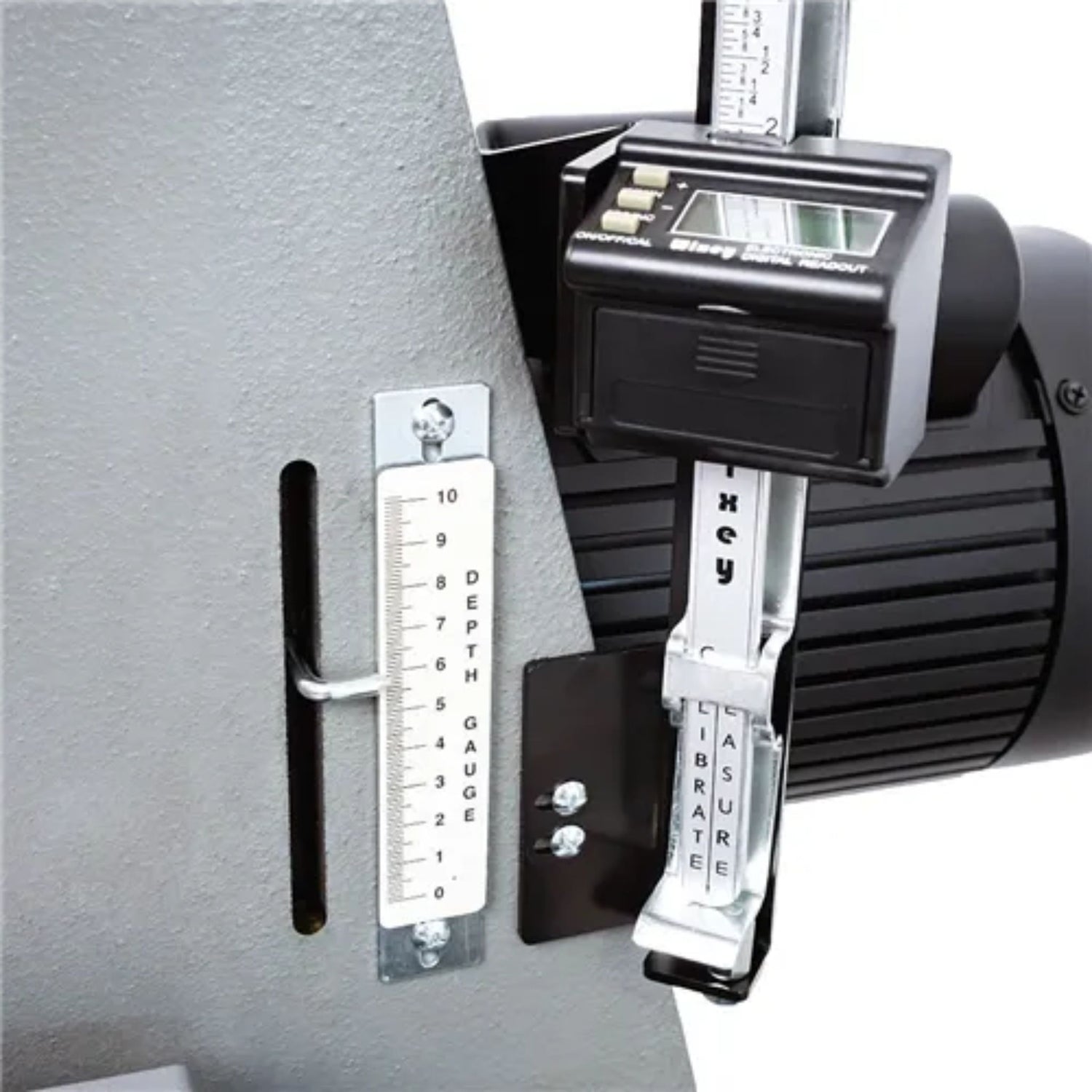

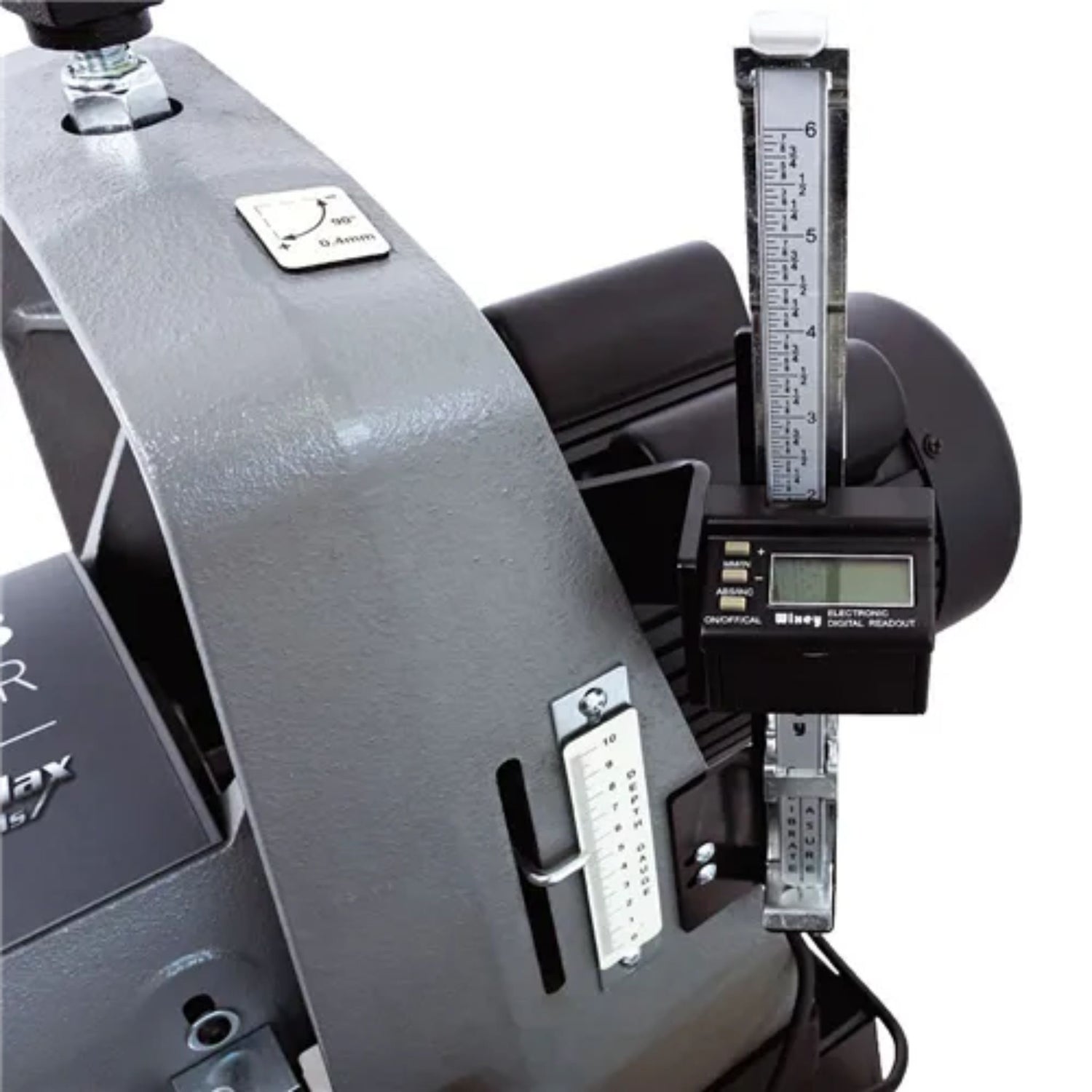

| Control | Digital |
Dimensions and weight
| Parameter | Value |
|---|
| Machine dimensions (L × W × H) | 1,090 × 670 × 1,290 mm |
| Net weight | 118 kg |
| Packaged weight | 130 kg |
Standard equipment — Complete Combo
Laguna MFlux 5:
-
750 W motor
-
Dual HEPA filters
-
Wireless remote control
-
Flexible connection hose
-
Italian instruction manual
-
CE certificate
LAGUNA 1938 SuperMax:
-
1,350 W main motor + 40 W conveyor motor
-
Balanced Ø 127 mm sanding drum
-
Pre-installed abrasive strip
-
Maintenance tools
-
Italian user manual
-
Assembly accessories
-
CE certificate
Frequently asked questions
1. What is the airflow of the MFlux 5, and is it enough for the 1938 SuperMax?
The MFlux 5 provides 530 m³/h airflow. The LAGUNA 1938 recommends approximately 1,000 m³/h. This means the MFlux 5 provides around 53% of the recommended airflow. In practice, it is best considered an auxiliary extraction solution rather than a full-capacity dedicated extractor for the 1938.
2. Do the MFlux 5 HEPA filters really protect against fine sanding dust?
The dual HEPA filtration system is designed to capture very fine airborne particles and helps reduce dust recirculation in the workshop. Regular filter inspection and replacement are important for maintaining filtration efficiency.

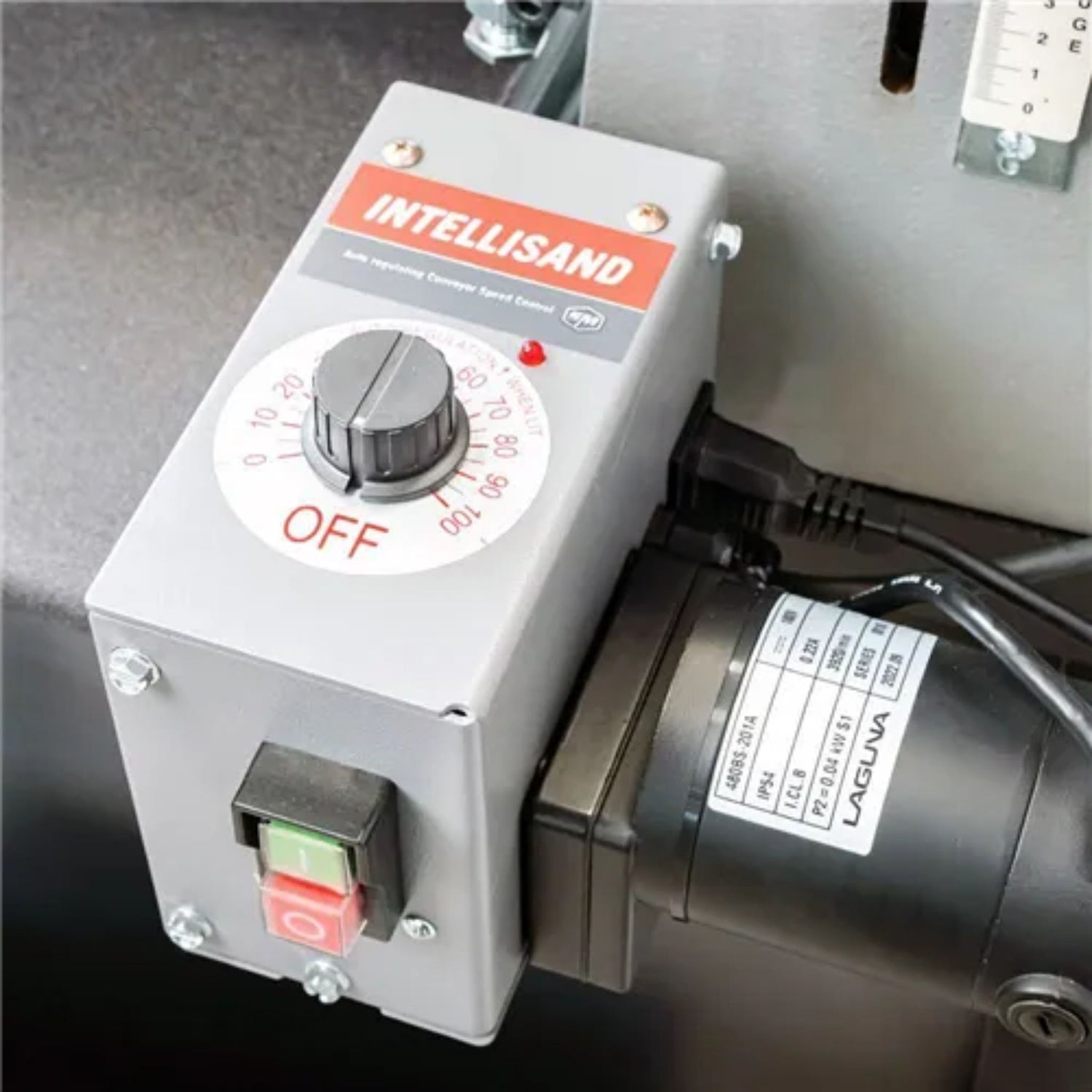

3. How does Intellisand work?
Intellisand automatically adjusts the conveyor feed speed according to sanding load. When the sanding load increases, feed speed is reduced; when the load decreases, the machine can feed faster. This helps improve finish quality and reduces the risk of overheating or burning.
4. Which abrasive should I use, and does the 1938 only support 76 mm width?
The machine uses 76 mm wide abrasive strips. Coarser grits are suitable for higher material removal, medium grits for intermediate sanding and finer grits for finishing.
5. What is the total power consumption? Is a dedicated 230 V line required?
The MFlux 5 is rated at 750 W. The LAGUNA 1938 uses a 1,350 W main motor plus a 40 W conveyor motor, for a combined nominal power of approximately 2,140 W. A suitable dedicated 230 V circuit is recommended.
6. Which maintenance points require the most attention?
For the MFlux 5, filters and dust collection components require regular inspection and cleaning. For the LAGUNA 1938, the abrasive strip, drum condition, conveyor alignment and dust extraction system should be checked periodically according to the manufacturer’s manual.
7. Can I use the combo in a small workshop without a central extraction system?
Yes, but the MFlux 5 should be treated as auxiliary extraction because its airflow is below the 1,000 m³/h recommended for the 1938. For maximum dust removal, a higher-capacity extraction system is preferable.
