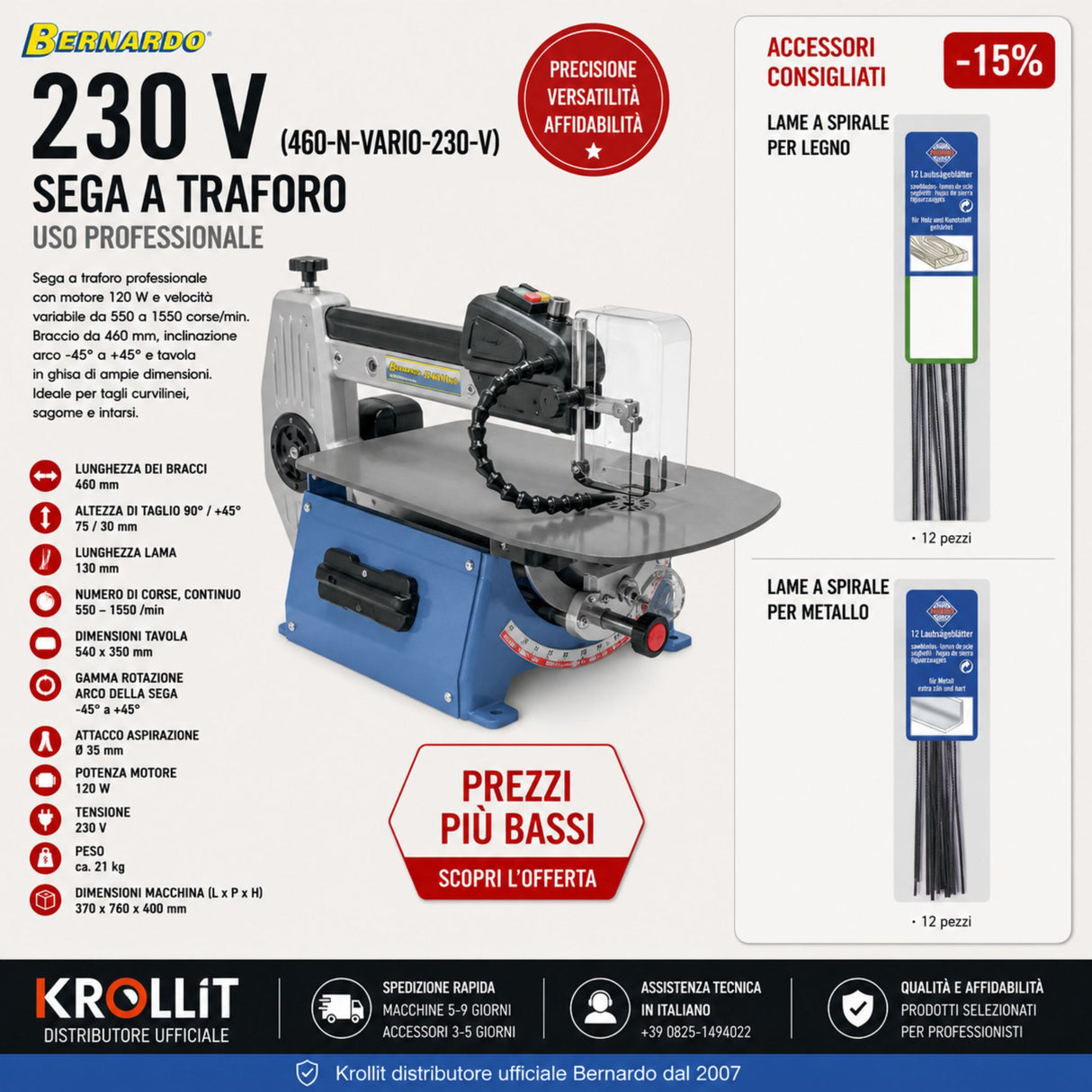

Bernardo 460 N Vario 230 V Scroll Saw Combo + 24 Pinned Blades for Wood and Metal
The Bernardo 460 N Vario is a professional scroll saw with a 460 mm throat, cutting height of 75 mm at 90°, continuously variable stroke rate from 550 to 1,550 strokes/min and a saw arm tilting from -45° to +45°. Combined with two sets of 130 mm pinned blades—one coarse-tooth set for wood, plastic and plaster and one fine-tooth set for metal—it creates a complete scroll-saw workstation for different materials. Distributed in Italy by Krollit, an official Bernardo distributor since 2007.
-
Throat depth: 460 mm
-
Cutting height at 90° / +45°: 75 / 30 mm
-
Stroke rate: 550–1,550/min, continuously variable
-
Saw arm tilt: -45° to +45°
-
Table dimensions: 540 × 350 mm
-
Motor power: 120 W
-
Blades included: 12 coarse blades for wood/plastic/plaster + 12 fine blades for metal
-
Blade length: 130 mm
Why choose this combination
The Bernardo 460 N Vario uses 130 mm pinned blades and offers continuously variable speed to suit different materials. The two blade sets cover two main applications: the coarse set, with 8 teeth/cm and 1.13 mm blade width, removes material quickly from wood, plastic and plaster; the fine set, with 20 teeth/cm and 0.56 mm width, provides slower, cleaner cutting on metal.
Having both sets available means you can move from wood to metal simply by changing the blade.
Who is this combination for?
| User profile | Suitable? | Reason |
|---|
| Craft workshops and cabinetmakers | Suitable | Intricate cuts, shapes and curved contours in solid wood and plywood |
| Model makers and advanced hobbyists | Suitable | Shaped parts, inlays and decorative objects, plus fine metal details |
| Mixed wood/metal workshops | Suitable | Two blade sets allow quick switching between wood/plastic and metal |
Not recommended for: very thick materials or long straight cuts. For long straight cutting, a bandsaw is generally more suitable.
Technical specifications — Bernardo 460 N Vario
Cutting capacity and movement
| Parameter | Value |
|---|
| Cutting height at 90° / +45° | 75 / 30 mm |
| Stroke rate | 550–1,550/min |
| Saw arm tilt range | -45° to +45° |
| Throat depth | 460 mm |
| Blade length | 130 mm |
| Dust extraction port | Ø 35 mm |
Table, dimensions and motor
| Parameter | Value |
|---|
| Table dimensions | 540 × 350 mm |
| Machine dimensions (L × W × H) | 370 × 760 × 400 mm |
| Motor power | 120 W |
| Voltage | 230 V |
| Weight | approx. 21 kg |
Technical specifications — Blades
| Parameter | Coarse set – wood/plastic/plaster | Fine set – metal |
|---|
| Length | 130 mm | 130 mm |
| Blade width | 1.13 mm | 0.56 mm |
| Blade thickness | 0.45 mm | 0.28 mm |
| Teeth | 8/cm | 20/cm |
| Quantity | 12 pcs | 12 pcs |
Frequently asked questions
Are the included blades compatible with the 460 N Vario?
Yes. Both sets use 130 mm pinned blades, the blade length required by the Bernardo 460 N Vario.
The coarse and fine sets share the same length and pinned mounting system but differ in tooth pitch and blade width. For installation documentation, Krollit support is available at +39 0825-1494022.
What is the difference between the coarse and fine blade sets?
The coarse set has 8 teeth/cm and a width of 1.13 mm, making it suitable for faster cutting in wood, plastic and plaster. The fine set has 20 teeth/cm and a width of 0.56 mm for cleaner cutting in metal.
The narrower fine blade also allows tighter curves in detailed work.
What cutting capacity does the 460 N Vario offer?
The saw cuts up to 75 mm high at 90° and 30 mm with the arm tilted to +45°. The 460 mm throat defines the maximum distance between the blade and the rear of the saw frame.
The arm tilts from -45° to +45°, while the continuously adjustable 550–1,550 strokes/min range allows the cutting speed to be adapted to the material.
What power supply does the saw require?
The 460 N Vario operates on 230 V single-phase power with a 120 W motor and can be connected to a standard suitable socket.
Its approximately 21 kg weight also makes it relatively easy to position on a workbench.
What materials can this combination cut?
With the two blade sets, the combo can process solid wood, plywood, plastic and plaster with the coarse blades and metal with the fine blades.
The scroll saw is intended primarily for intricate shapes, curves and detailed cuts rather than long straight cuts.
Is dust extraction necessary?
The machine has a Ø 35 mm dust extraction connection that can be connected to a suitable extractor to keep the cutting area and cutting line visible.
This is particularly useful when working with plaster, wood and plastics, where dust can quickly cover the marked cutting line.
How is the combination shipped?
The saw is shipped within 5–9 working days, approximately 7 days for southern Italian regions. The blade sets generally ship within 3–5 working days from the Krollit warehouse.
Italian customer support is available at +39 0825-1494022. Krollit has been an official Bernardo distributor since 2007.
