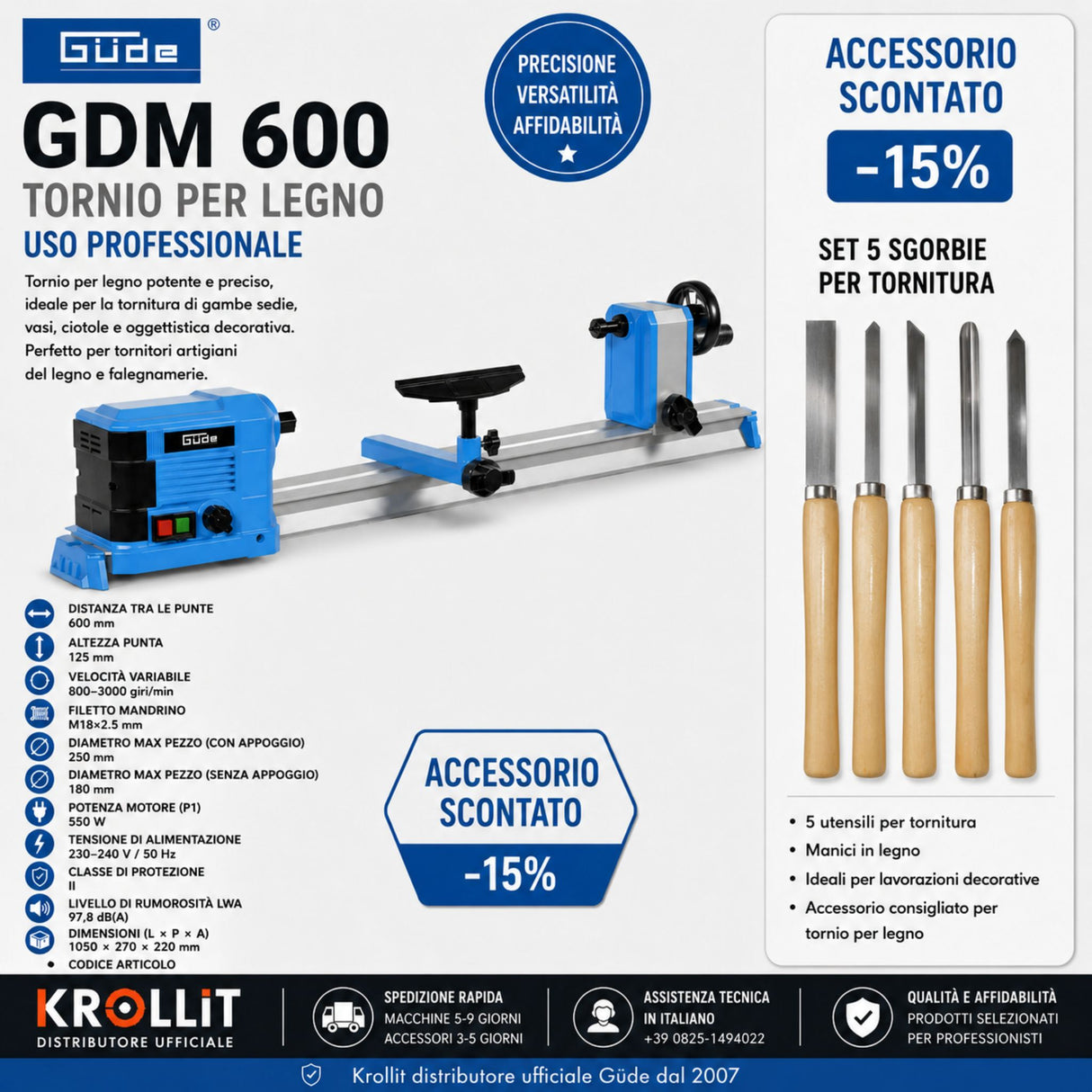

Güde GDM 600 Woodturning Lathe Combo + 5-Piece Woodturning Chisel Set
The Güde GDM 600 is a woodturning lathe for professional use, with 600 mm between centres, 125 mm centre height, variable speed from 800 to 3,000 rpm and a 550 W motor. Combined with the 5-piece woodturning chisel set with long wooden handles, it creates a complete workstation for turning and hand-finishing wood. Manufactured in Germany, it is distributed in Italy by Krollit, an official Güde distributor since 2007.
-
Distance between centres: 600 mm
-
Centre height: 125 mm
-
Variable speed: 800–3,000 rpm
-
Maximum workpiece diameter: 250 mm with support / 180 mm without support
-
Spindle thread: M18 × 2.5 mm
-
Motor power (P1): 550 W
-
Voltage: 230–240 V
-
Turning set: 5 chisels with long wooden handles
Why choose this combination
The GDM 600 rotates the workpiece around its axis, while the actual cutting is performed by the chisels guided manually by the operator. Dedicated turning tools are therefore essential to use the lathe.
The 5-piece set provides the most common tool profiles for woodturning. The 245 mm long wooden handles improve control and handling while the tool rests on the lathe tool rest. With a total length of approximately 365 mm, the tools provide useful leverage when working larger diameters, up to 250 mm with support.
Who is this combination for?
| User profile | Suitable? | Reason |
|---|
| Artisan woodturners | Suitable | Turning chair legs, vases, bowls and decorative objects with 600 mm between centres and included tools |
| Joinery and restoration workshops | Suitable | Production of turned furniture elements and historical reproductions |
| Beginners in woodturning | Suitable | Set includes common turning-tool profiles with long handles for improved control |
Not recommended for: metal turning. The machine is designed specifically for wood; metalworking requires dedicated lathes with appropriate torque, speed and construction.
Technical specifications — Güde GDM 600
Spindle and speed
| Parameter | Value |
|---|
| Variable speed | 800–3,000 rpm |
| Distance between centres | 600 mm |
| Centre height | 125 mm |
| Spindle thread | M18 × 2.5 mm |
| Maximum workpiece diameter with support | 250 mm |
| Maximum workpiece diameter without support | 180 mm |
Motor and power supply
| Parameter | Value |
|---|
| Supply voltage | 230–240 V |
| Frequency | 50 Hz |
| Motor input power P1 | 550 W |
| Duty type | S1 |
| Protection class | II |
| IP rating | X0 |
| Sound power level LWA | 97.8 dB(A) |
Dimensions and general data
| Parameter | Value |
|---|
| Dimensions (L × W × H) | 1,050 × 270 × 220 mm |
| Cable length | 210 cm |
| Item number | 11421 |
| Origin | Germany |
Technical specifications — 5-Piece Woodturning Chisel Set
| Parameter | Value |
|---|
| Number of pieces | 5 |
| Handle length | 245 mm |
| Steel length | 110 mm |
| Total length | 365 mm |
| Width | 29 mm |
| Height | 29 mm |
Frequently asked questions
Are the chisels necessary to use the GDM 600?
Yes. They are the cutting tools used during woodturning. The lathe rotates the workpiece, while the operator guides the chisels against it using the tool rest.
The set includes five commonly used turning profiles with 245 mm wooden handles and an overall length of approximately 365 mm. The long handles provide additional leverage and control, particularly when working larger diameters.
What working capacity does the GDM 600 offer?
The lathe provides 600 mm between centres and a centre height of 125 mm. Maximum workpiece diameter is 250 mm with support and 180 mm without support.
These dimensions suit chair legs, vases, bowls and decorative objects. The 800–3,000 rpm variable-speed range allows the speed to be adapted to workpiece diameter and the type of machining.
What power supply does the GDM 600 require?
The lathe operates on 230–240 V, 50 Hz, with a 550 W P1 motor and protection class II. It is equipped with a 210 cm power cable.
Its duty rating is S1 and the specified LWA sound power level is 97.8 dB(A), so hearing protection is recommended during prolonged use. Güde item number: 11421.
What are the different chisels used for?
The five tools have different profiles for the main stages of woodturning, including roughing the blank, shaping profiles, cutting coves and finishing surfaces.
Each tool has a 110 mm steel section and a 245 mm wooden handle.
Can the GDM 600 turn metal?
No. The GDM 600 is designed exclusively for woodturning. Metalworking requires a dedicated metal lathe with suitable speed, torque, tooling and construction.
How should the chisels be maintained?
The cutting edges should be sharpened regularly and the tools stored in a dry environment to prevent corrosion.
Sharp tools reduce the effort required during turning and generally produce cleaner cuts with less vibration.
How is the combination shipped?
The lathe is shipped within 5–9 working days, approximately 7 days for southern Italian regions. The chisel set is normally shipped within 3–5 working days from the Krollit warehouse.
Italian customer support for technical documentation, product information and orders is available at +39 0825-1494022. Krollit has been an official Güde distributor since 2007.
