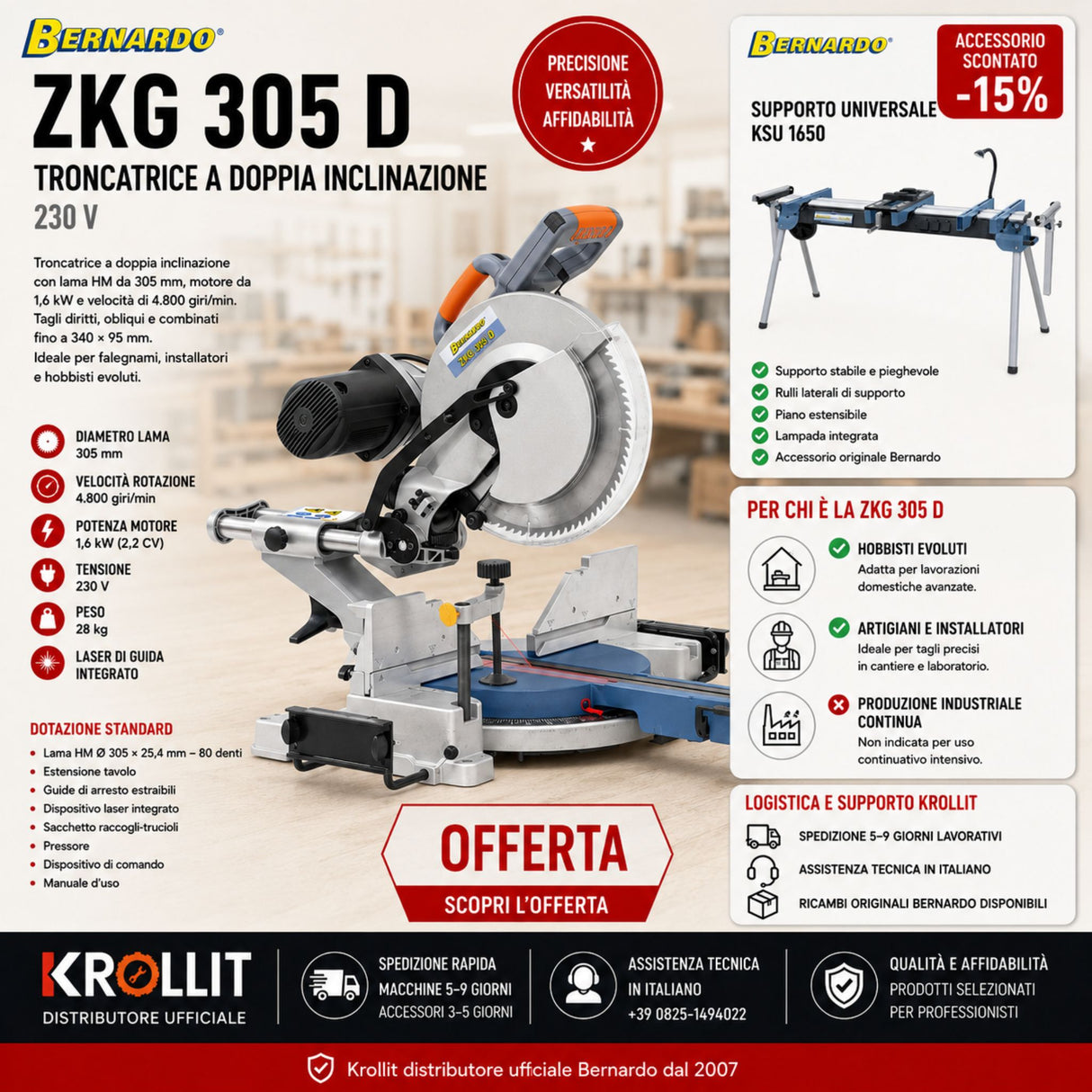

Bernardo ZKG 305 D 230 V Dual-Bevel Mitre Saw Combo + Bernardo KSU 1560 Stand
The Bernardo ZKG 305 D is a dual-bevel mitre saw for advanced hobby and professional use, equipped with a 305 mm HM blade, 1.6 kW motor, 4,800 rpm blade speed and a cutting capacity of up to 340 × 95 mm at 90°. Combined with the universal Bernardo KSU 1560 stand, adjustable in length from 1,400 to 2,900 mm and with a load capacity of up to 250 kg, it creates a complete cutting station with support for long workpieces. Manufactured by the Austrian Bernardo brand, it is distributed in Italy by Krollit, an official Bernardo distributor since 2007.
-
Blade diameter: 305 mm (HM)
-
Blade speed: 4,800 rpm
-
Motor power: 1.6 kW (2.2 HP)
-
Voltage: 230 V
-
Cutting capacity at 90°: 340 × 95 mm
-
Compound cut at 45°: 240 × 55 mm
-
Mitre saw weight: 28 kg
-
Stand: adjustable length 1,400–2,900 mm, 250 kg load capacity
Why choose this combination
The ZKG 305 D cuts profiles and workpieces up to 340 mm wide, but long skirting boards, joists and strips extend beyond the machine table and require stable support. The KSU 1560 stand extends the working length up to 2,900 mm with adjustable support arms, supporting the workpiece before and after the cut.
The height adjustment from 815 to 1,190 mm allows an ergonomic working position, while the folding structure makes it possible to close the stand to 1,800 × 700 × 250 mm for transport to job sites or storage.
Who is this combination for?
| User profile | Suitability | Reason |
|---|
| Advanced hobby users | Suitable | 305 mm blade and 340 mm cutting capacity for demanding home projects, with support for long workpieces |
| Tradespeople and installers | Suitable | Compound cuts and integrated laser for accurate on-site work; folding, transportable stand |
| Continuous industrial production | Not recommended | 1.6 kW motor designed for intermittent rather than intensive production cycles |
Not recommended for: continuous industrial production or intensive cutting of high-strength materials.
Technical specifications — ZKG 305 D Mitre Saw
Cutting capacity
| Cutting configuration | Capacity |
|---|
| 90° / 90° cut | 340 × 95 mm |
| 45° mitre cut | 240 × 95 mm |
| 45° bevel cut | 340 × 55 mm |
| 45° compound cut | 240 × 55 mm |
Motor and power supply
| Parameter | Value |
|---|
| Motor power | 1.6 kW (2.2 HP) |
| Voltage | 230 V |
| Blade diameter | 305 mm (HM) |
| Blade speed | 4,800 rpm |
Dimensions and weight
| Parameter | Value |
|---|
| Machine dimensions | 860 × 900 × 680 mm |
| Weight | 28 kg |
Technical specifications — KSU 1560 Universal Stand
| Parameter | Value |
|---|
| Brand | Bernardo |
| Model | KSU 1560 |
| Working length | 1,400–2,900 mm |
| Working height | 815–1,190 mm |
| Maximum load | 250 kg |
| Dimensions (L × W × H) | 1,800 × 700 × 815 mm |
| Folded dimensions | 1,800 × 700 × 250 mm |
| Weight | approx. 28 kg |
Standard equipment of the stand
-
Bernardo KSU 1560 universal stand
-
Adjustable support arms
-
Base mounting kit
-
User manual
Frequently asked questions
Is the KSU 1560 stand compatible with the ZKG 305 D mitre saw?
The KSU 1560 is a universal stand designed for bench machines and mitre saws, with an adjustable working length from 1,400 to 2,900 mm and a load capacity of up to 250 kg. To confirm the exact mounting configuration with the ZKG 305 D, contact Krollit support at +39 0825-1494022.
As it is a universal stand, compatibility depends on the spacing of the mounting holes. Italian technical support can confirm the configuration and provide technical documentation for both products.
What is the purpose of the stand under the mitre saw?
The stand raises the mitre saw to an ergonomic working height, adjustable from 815 to 1,190 mm, and its support arms extend the working length up to 2,900 mm to support long workpieces before and after the cut.
Without adequate support, long skirting boards, joists and strips may flex or move beyond the saw table, reducing cutting accuracy. The adjustable arms help keep the workpiece aligned and improve both precision and safety.
What cutting capacity does the ZKG 305 D offer?
At 90°, the saw cuts up to 340 × 95 mm. With the blade tilted to 45° for a bevel cut, the capacity is 340 × 55 mm. At a 45° mitre angle it cuts 240 × 95 mm, while a 45° compound cut reaches 240 × 55 mm.
The dual-bevel design allows straight, mitre, bevel and compound cuts on wood, panels and profiles. The 305 mm HM blade rotates at 4,800 rpm.
What power supply does the ZKG 305 D require?
The mitre saw operates on 230 V single-phase power with a 1.6 kW (2.2 HP) motor, so it can be connected to a suitable standard workshop or job-site socket.
The motor is intended for intermittent use, making it suitable for advanced hobby applications and professional on-site work rather than continuous industrial production.
What is the load capacity of the KSU 1560 stand?
The stand supports up to 250 kg, providing ample capacity for the 28 kg ZKG 305 D and allowing use with heavier bench machines as well.
Its folding design allows the stand to be reduced to 1,800 × 700 × 250 mm for transport or storage. At approximately 28 kg, it remains transportable while providing a stable working base.
Can the stand be transported to a job site?
Yes. The KSU 1560 folds down to 1,800 × 700 × 250 mm and weighs approximately 28 kg, making it suitable for transport in a work vehicle.
This is particularly useful for installers and tradespeople who move their cutting station between job sites. Once positioned, the adjustable height of 815–1,190 mm allows the working level to be adapted to the operator.
How is the combination shipped?
The mitre saw and stand are shipped within 5–9 working days, with approximately 7 days for southern Italian regions.
Italian technical support is available throughout the product's service life at +39 0825-1494022, with original Bernardo spare parts available from the Krollit warehouse in Monteforte Irpino (AV). Krollit has been an official Bernardo distributor since 2007.
