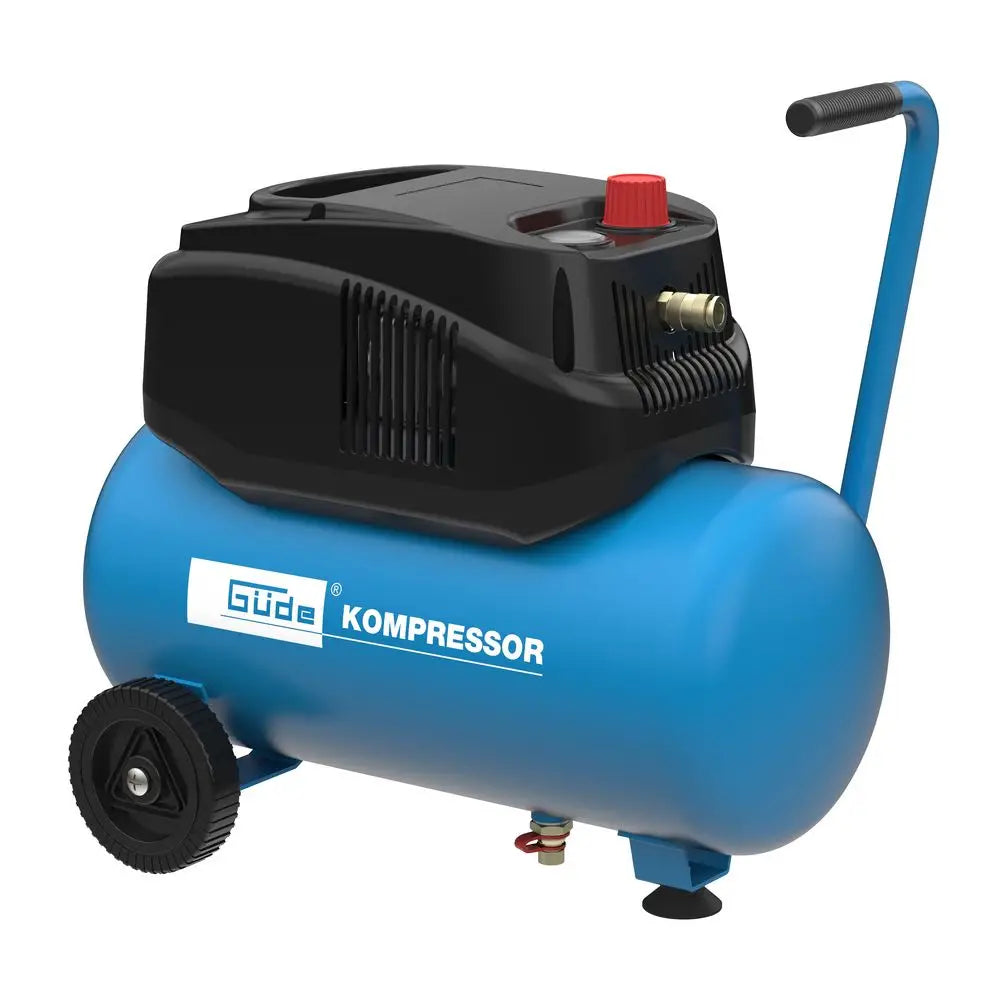

Compressor 190/08/24 oil-free Güde

Güde 190/08/24 is a single-cylinder oil-free piston compressor with toothed belt drive, with 1.2 kW motor power, maximum pressure 8 bar, 24-litre tank capacity and a weight of 15 kg. Germany, since 1979. Distributed in Italy by Krollit, official Güde distributor since 2007.

• Technology: oil-free, single-cylinder, toothed belt drive
• Motor power (P1): 1.2 kW
• Maximum pressure: 8 bar
• Tank capacity: 24 litres
• Suction power: 190 l/min
• Effective delivery at 0 bar: 115 l/min
• Effective delivery at 4 bar: 80 l/min
• Effective delivery at 7 bar: 55 l/min
• Motor speed: 3,450 rpm
• Power supply: 230V single-phase, 50 Hz
• Net weight: 15 kg

Who uses the 190/08/24 and for what

The 190/08/24 is designed for the ambitious home user and craftsman who needs a versatile compressor for recurring jobs at home and in the garage: from the seasonal car tyre change to inflating bicycle tyres, from blowing out dust and debris to occasional use with an air nailer. The 24-litre tank combined with a delivery of 115 l/min at 0 bar provides enough air for most occasional household jobs. The toothed belt drive and oil-free technology make it reliable without the maintenance typical of lubricated compressors.

Its place in the Güde range

Within Güde's oil-free compressor range with a 24-litre tank, the 190/08/24 and the 220/08/24 share the same capacity but differ on other parameters: the 190/08/24 has a slightly more powerful motor (1.2 kW versus 1.1 kW), higher suction power (190 l/min versus 140 l/min) and higher delivery at 0 bar (115 l/min versus 104 l/min), plus a lower weight (15 kg versus 20 kg). The 220/08/24, in turn, offers dual instrumentation (2 pressure gauges versus 1) and direct drive rather than belt drive. Compared with the Airpower series compressors, both remain in the mid-range for tank capacity, below the 350/10/25 (25 litres, 2 cylinders, 73 dB) and above the Airpower 190/08/6 (6 litres, portable). Those looking for high delivery and contained weight with a single gauge will find the 190/08/24 a good solution; those preferring dual pressure control with direct drive will find the 220/08/24 the more suitable alternative.

Krollit logistics and support

Shipping in 5-9 working days (7 days for southern Italy regions). Technical support in Italian available for the product's entire lifetime. Genuine Güde spare parts available from Krollit's warehouse, Monteforte Irpino (AV).

Who the 190/08/24 is for

Not suitable for: intensive professional use with high continuous-draw pneumatic tools or in environments where noise is a critical factor, for which the quieter (73 dB) and more powerful 350/10/25 is more suitable.

Motor and power supply

Operating performance

Noise level

Dimensions and weight

Standard equipment

• Transport handle
• Pressure switch

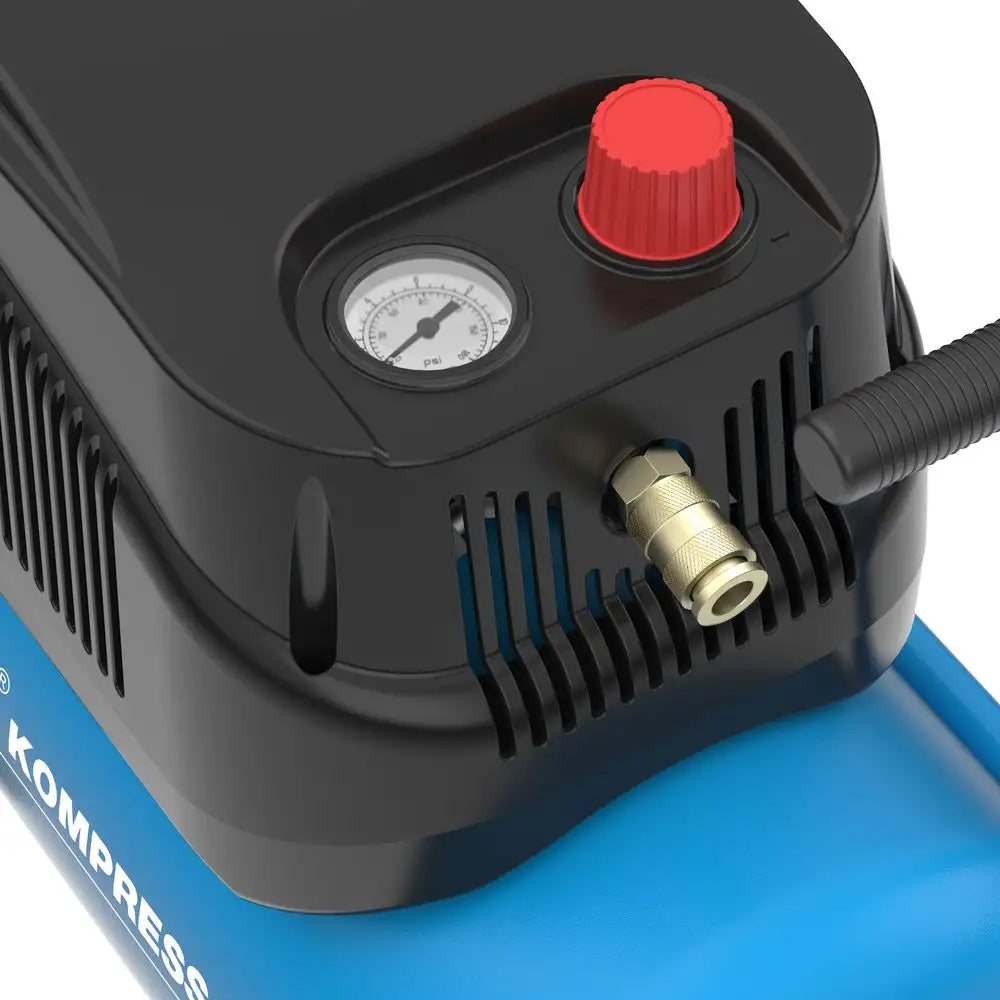

• Tank pressure gauge and working pressure gauge
• Pressure reducer
• 1 compressed air coupling
• Safety valve and condensate drain plug
• Non-return valve
• Integrated air filter
• Relief valve

Warranty terms and support procedures are available on the dedicated Krollit page.

Frequently asked questions

What jobs is the 190/08/24 compressor suitable for?

It's suitable for recurring jobs at home and in the garage: seasonal car tyre changes, inflating bicycle tyres, blowing out dust and debris, and occasional use with pneumatic nailers.

With an effective delivery of 115 l/min at 0 bar, dropping to 55 l/min at 7 bar, it's not suited to continuous use with high-draw professional pneumatic tools.

What's the difference between the 190/08/24 and the 220/08/24?

Both have a 24-litre tank, but the 190/08/24 has a slightly more powerful motor (1.2 kW versus 1.1 kW), higher suction power (190 l/min versus 140 l/min) and lower weight (15 kg versus 20 kg).

The 220/08/24, in turn, offers dual instrumentation with 2 pressure gauges (versus 1 on the 190/08/24) and direct drive rather than toothed belt drive. The choice depends on the preference between delivery and contained weight (190/08/24) or dual pressure control (220/08/24).

Does the 190/08/24 compressor need oil maintenance?

No, it's an oil-free compressor: the compressor unit runs without oil, making it low routine maintenance.

Drive is via toothed belt, a component that should be periodically checked for wear, unlike the direct drive of other models in the range.

What routine maintenance does the 190/08/24 need?

Routine maintenance involves periodic checks of the integrated air filter, toothed belt, non-return valve and relief valve, plus regularly draining condensate from the tank via the dedicated plug.

For support or spare parts information, Krollit is the official Güde distributor since 2007, with technical support in Italian at +39 0825-1494022.

How much does the 190/08/24 weigh compared to other Güde compressors with the same tank?

Net weight is 15 kg, lower than the 20 kg of the 220/08/24, despite sharing the same 24-litre tank capacity.

This makes it relatively easier to move between different workstations, useful for those without a fixed spot in a workshop or garage.
