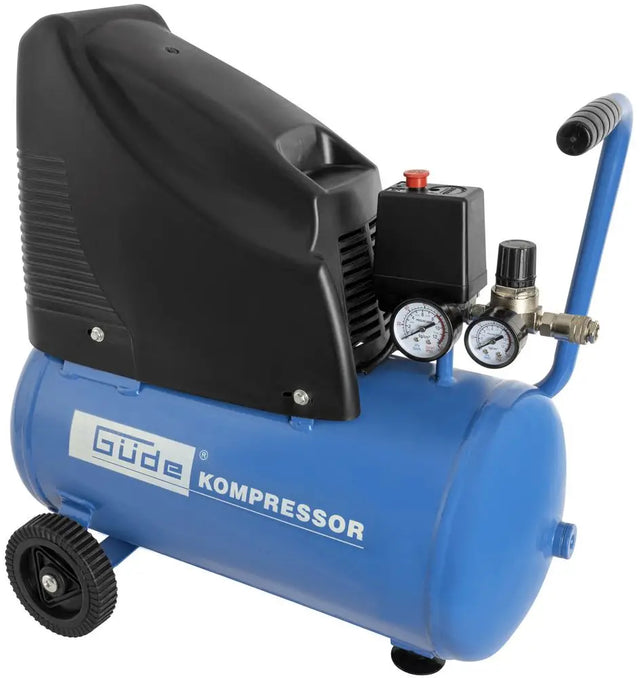

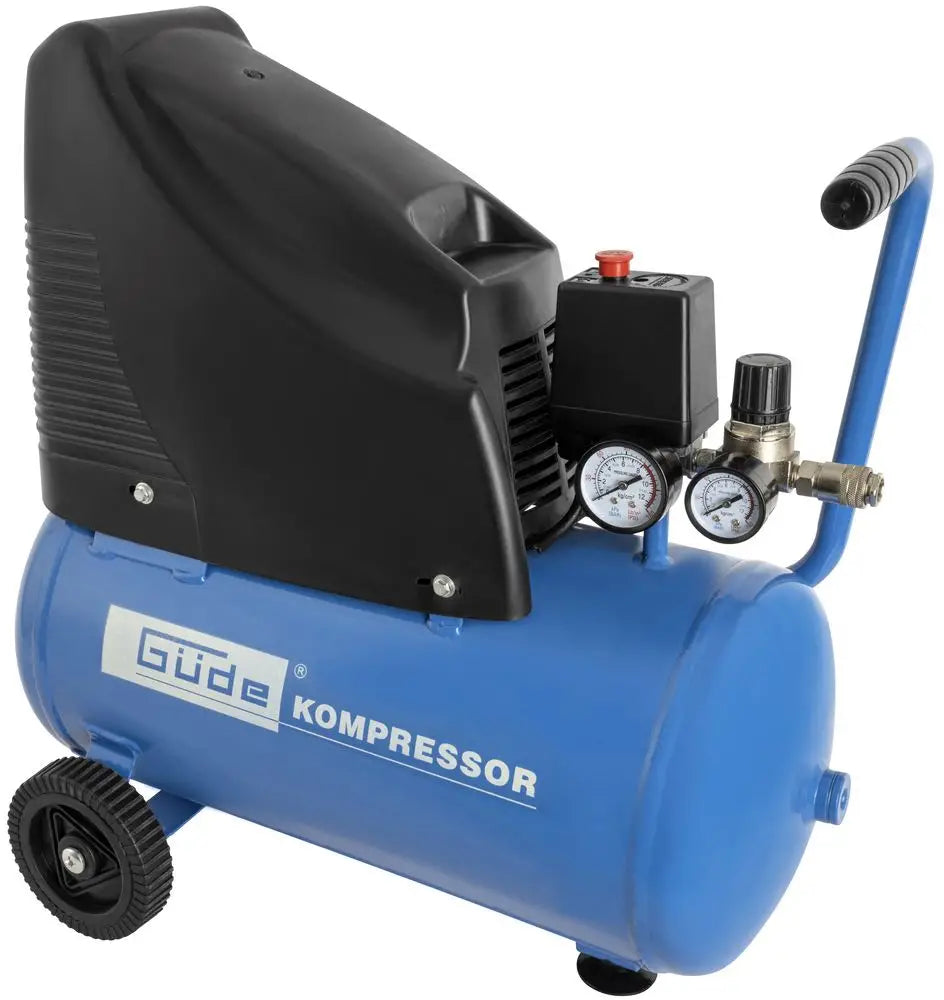

Güde 220/08/24 is an oil-free piston compressor with direct drive, with 1.1 kW motor power, maximum pressure 8 bar, 24-litre tank capacity and a weight of 20 kg. Germany, since 1979. Distributed in Italy by Krollit, official Güde distributor since 2007.
- Technology: oil-free, direct drive
- Motor power (P1): 1.1 kW
- Maximum pressure: 8 bar
- Tank capacity: 24 litres
- Suction power: 140 l/min
- Effective delivery at 0 bar: 104 l/min
- Effective delivery at 4 bar: 86 l/min
- Effective delivery at 7 bar: 66 l/min
- Motor speed: 2,850 rpm
- Power supply: 230V single-phase, 50 Hz
- Net weight: 20 kg
- Noise level LWA: 97 dB
Who uses the 220/08/24 and for what

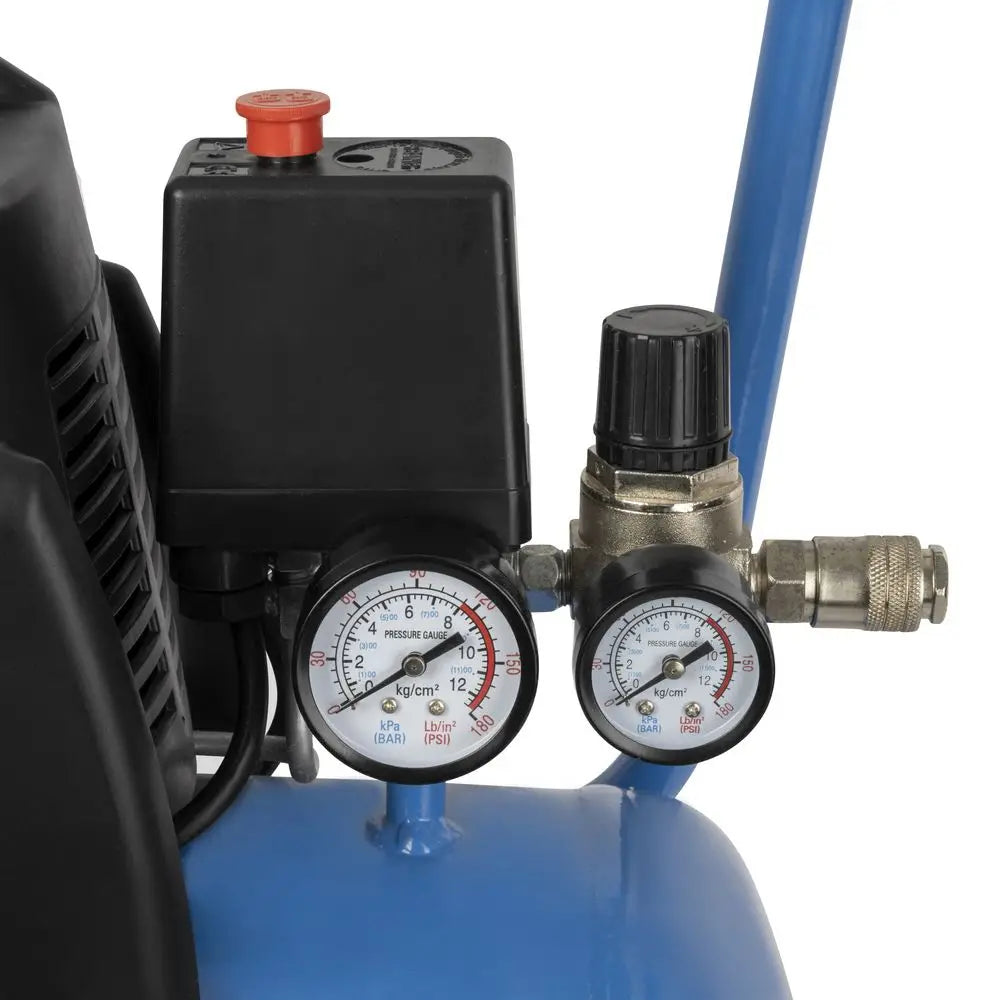

The 220/08/24 is designed for hobbyists and small workshops needing a larger tank than compact compressors, for jobs requiring more available air between compression cycles, such as spray painting, repeated inflation or powering light pneumatic tools. Direct-drive oil-free technology makes it low maintenance, with no need to check or top up motor oil. The dual gauge setup, with tank pressure gauge and working pressure gauge, allows precise monitoring during work, while the integrated air filter protects the compressor unit from dust contamination.
Its place in the Güde range
Within Güde's oil-free compressor line-up, the 220/08/24 sits in an intermediate position. Compared with the Airpower 190/08/6 (1 cylinder, 6-litre tank, 145 l/min at 0 bar, 9.8 kg), the 220/08/24 offers a much larger tank (24 litres) but lower delivery (104 l/min at 0 bar) and greater weight (20 kg). Compared with the Airpower 350/10/25 (2 cylinders, 25-litre tank, 210 l/min at 0 bar, 38.6 kg, 73 dB), the 220/08/24 has a similar tank capacity but notably lower delivery, maximum pressure and weight, plus higher noise (97 dB versus 73 dB). Those looking for a good balance between tank capacity and portability will find the 220/08/24 an intermediate solution; those needing high delivery and low noise for more intensive use should consider the 350/10/25.
Krollit logistics and support
Shipping in 5-9 working days (7 days for southern Italy regions). Technical support in Italian available for the product's entire lifetime. Genuine Güde spare parts available from Krollit's warehouse, Monteforte Irpino (AV).
Who the 220/08/24 is for
| Profile | Fit | Reason |
|---|
| Hobbyist or small workshop with jobs needing more available air | Suitable | 24-litre tank offers greater autonomy than compact compressors for longer work cycles between refills |
| Those wanting low maintenance without needing maximum delivery | Suitable | Direct-drive oil-free technology, no oil checks, suited to painting, inflation and light pneumatic tools |
| Intensive professional use requiring low noise | Not suitable | 97 dB noise level and 66 l/min delivery at 7 bar are lower than higher-tier models like the 350/10/25, which is quieter and more powerful |
Not suitable for: intensive professional use with high continuous-draw pneumatic tools or in environments where noise is a critical factor, for which the quieter (73 dB) and more powerful 350/10/25 is more suitable.
Motor and power supply
| Mains voltage | 230 V |
| Frequency | 50 Hz |
| Motor power (P1) | 1.1 kW |
| Protection rating (IP) | 20 |
| Compressor unit | Oil-free |
| Motor speed | 2,850 rpm |
| Power cable length | 140 cm |
| Cable type | H05VV-F |
Operating performance
| Suction power | 140 l/min |
| Effective delivery at 0 bar | 104 l/min |
| Effective delivery at 4 bar | 86 l/min |
| Effective delivery at 7 bar | 66 l/min |
| Maximum pressure | 8 bar |
| Tank capacity | 24 litres |
| Number of cylinders | 1 |
| Number of air couplings | 1 |
| Pressure gauges | 2 |
Noise level
| Sound power level (LWA) | 97 dB |
Dimensions and weight
| Dimensions (L x W x H) | 550 x 235 x 560 mm |
| Packaging dimensions (L x W x H) | 565 x 255 x 575 mm |
| Net weight | 20 kg |
| Gross weight | 21.5 kg |
Standard equipment
- Pressure switch
- Pressure reducer with easy adjustment of working pressure
- Tank pressure gauge and working pressure gauge
- 1 compressed air coupling
- Safety valve and condensate drain plug
- Non-return valve
- Relief valve

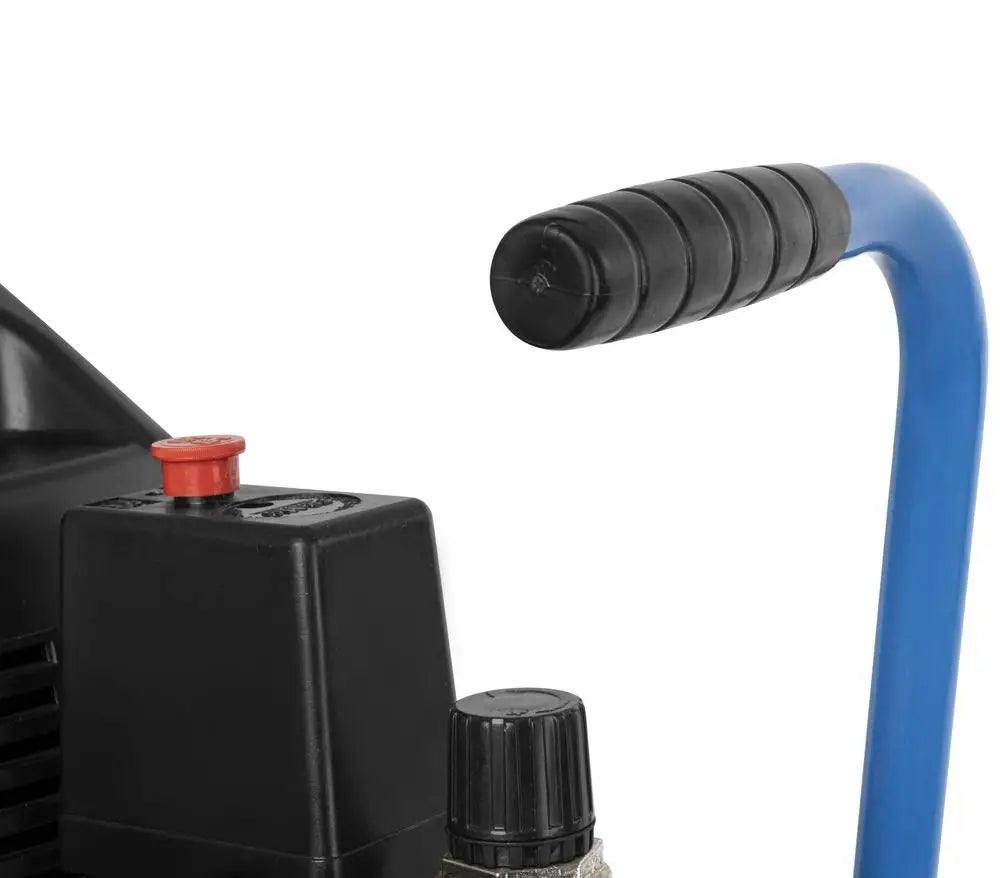

- Practical transport handle
- Integrated air filter
Frequently asked questions
What jobs is the 220/08/24 compressor suitable for?
It's suitable for jobs requiring good air autonomy between cycles, such as spray painting, repeated inflation and powering light pneumatic tools, thanks to the 24-litre tank.
With an effective delivery of 104 l/min at 0 bar, dropping to 66 l/min at 7 bar, it's not suited to continuous use with high-draw pneumatic tools, for which a higher-tier compressor is needed.
What's the difference between the 220/08/24 and the Airpower 190/08/6?
The 220/08/24 has a much larger tank (24 litres versus 6 litres), but lower delivery (104 l/min versus 145 l/min at 0 bar) and greater weight (20 kg versus 9.8 kg).
The choice depends on priority: those needing greater air autonomy for longer work cycles should choose the 220/08/24; those looking for maximum portability for occasional jobs will find the Airpower 190/08/6 a lighter, more manageable compressor.
Does the 220/08/24 compressor need oil maintenance?
No, it's a direct-drive oil-free compressor: the compressor unit runs without oil, making it low maintenance even with the larger tank compared to compact models.
This sets it apart from lubricated compressors of similar power and capacity, which instead require periodic oil level checks.
What routine maintenance does the 220/08/24 need?
Routine maintenance involves periodic checks of the integrated air filter, non-return valve and relief valve, plus regularly draining condensate from the tank via the dedicated plug.
For support or spare parts information, Krollit is the official Güde distributor since 2007, with technical support in Italian at +39 0825-1494022.
Is the 220/08/24 noisier than other Güde compressors in the same range?
Yes, with a declared noise level of 97 dB it's noisier than the 350/10/25 (73 dB), while remaining in line with other compact oil-free compressors like the Airpower 190/08/6, which declares the same value.
Those working in noise-sensitive environments, such as home garages near living spaces, should consider the 350/10/25 model, which is quieter but has greater weight and footprint.
