Güde Airpower 200/10/5 TY Compressor – Mobile Trolley Function 10 bar 5 L Tank Professional Belt Drive
The Airpower 200/10/5 TY is the mobile compressor designed for travelling professional worksites: trolley function for complete mobility, powerful 1.1 kW motor, 200 L/min intake capacity (7.5× the portable Airpower Dual Drive), 5-litre tank for continuous pressure storage, belt drive for relatively quiet smooth operation, included 5 m coiled hose ready to use, included blow gun, oil-free for zero maintenance, and continuous professional reliability.
Who the Güde Airpower 200/10/5 TY compressor is suitable for
|
Profile
|
Suitable?
|
Reason
|
|
Mobile professional worksite / yard
|
Ideal
|
Trolley function for mobility between work areas, 200 L/min capacity for multiple tools, 5 L tank for cycle storage, maximum 10 bar pressure, included 5 m hose
|
|
Craft workshop with periodic relocation
|
Ideal
|
Mobile trolley compressor for site-specific use, 200 L/min capacity for professional sanders/hammers, 10 bar pressure for tools, oil-free with zero maintenance
|
|
Mobile contractor for pneumatic services
|
Ideal
|
Portable station for customer sites, 5 L tank for stable painting pressure, 200 L/min continuous capacity, included 5 m hose + blow gun ready to use
|
Not suitable for: Fixed workshop environment (GWK 160 wall-mounted is more efficient), very high pressure 12+ bar (10 bar maximum, limitation), continuous 8+ hour non-stop cycles (S3/25% intermittent, not for long cycles), noise-critical urban environments (97 dB is high, noise-restriction limitation).
Technical specifications — Güde Airpower 200/10/5 TY Compressor
Power supply and motor
|
Parameter
|
Value
|
|
Mains voltage
|
230 V
|
|
Frequency
|
50 Hz
|
|
Motor power P1
|
1.1 kW
|
|
Motor speed
|
3,400 rpm
|
|
Operating mode
|
S3/25% (25% intermittent duty cycle)
|
|
Transmission
|
Belt drive (smooth operation)
|
|
Start/stop
|
Automatic integrated pressure switch
|
Compressor and pressure
|
Parameter
|
Value
|
|
Type
|
Oil-free, 1 cylinder
|
|
Intake capacity
|
200 L/min
|
|
Effective delivery at 0 bar
|
148 L/min
|
|
Effective delivery at 4 bar
|
80 L/min
|
|
Effective delivery at 7 bar
|
60 L/min
|
|
Maximum pressure
|
10 bar (MAXIMUM in the Güde range)
|
|
Tank capacity
|
5 litres (2.5× GWK 160)
|
|
Integrated pressure switch
|
Yes, automatic control
|
|

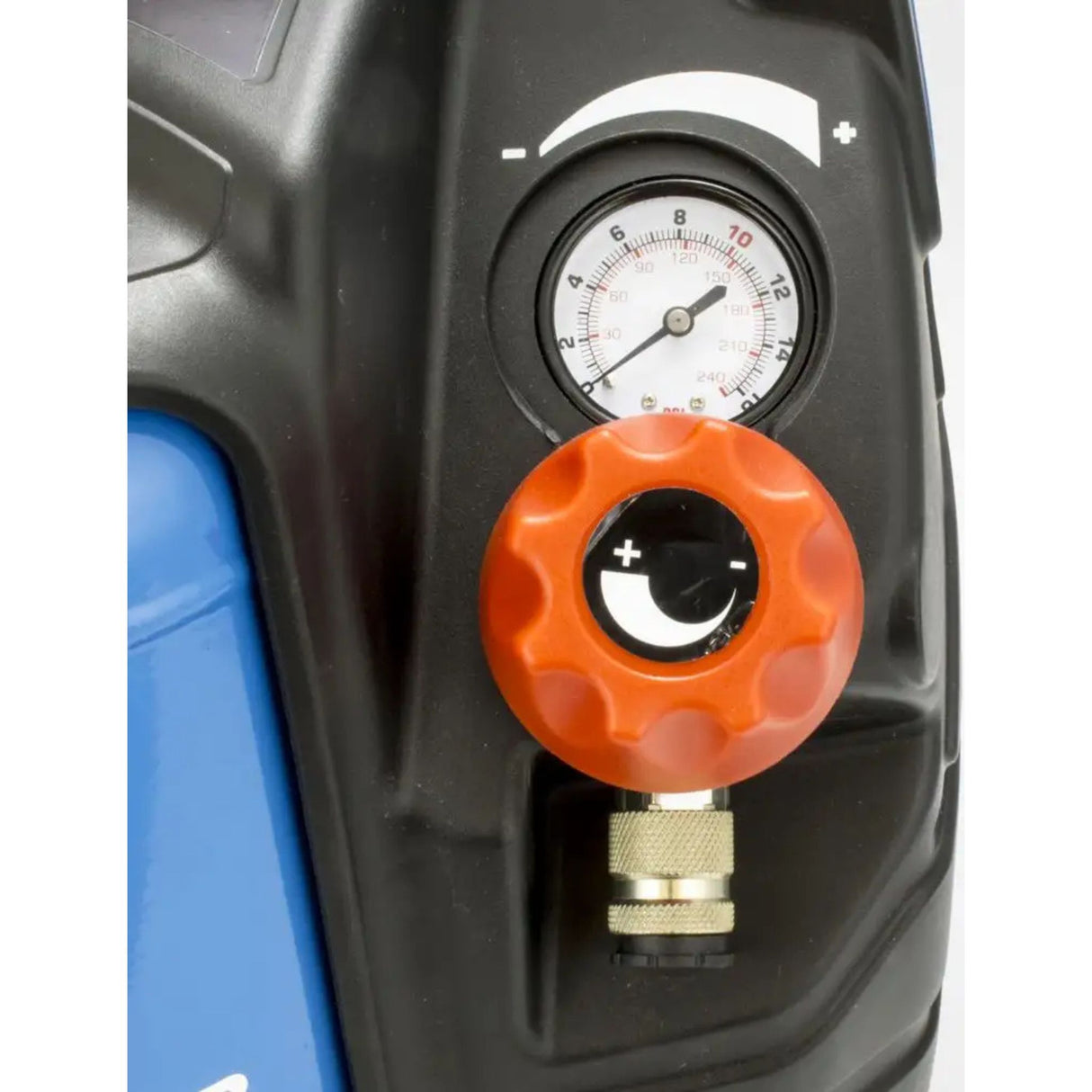

Pressure regulator
|
Yes, with direct-reading pressure gauge
|
|
Compressed-air connections
|
1 main connection
|
Accessories and connections
|
Parameter
|
Value
|
|
Flexible hose
|

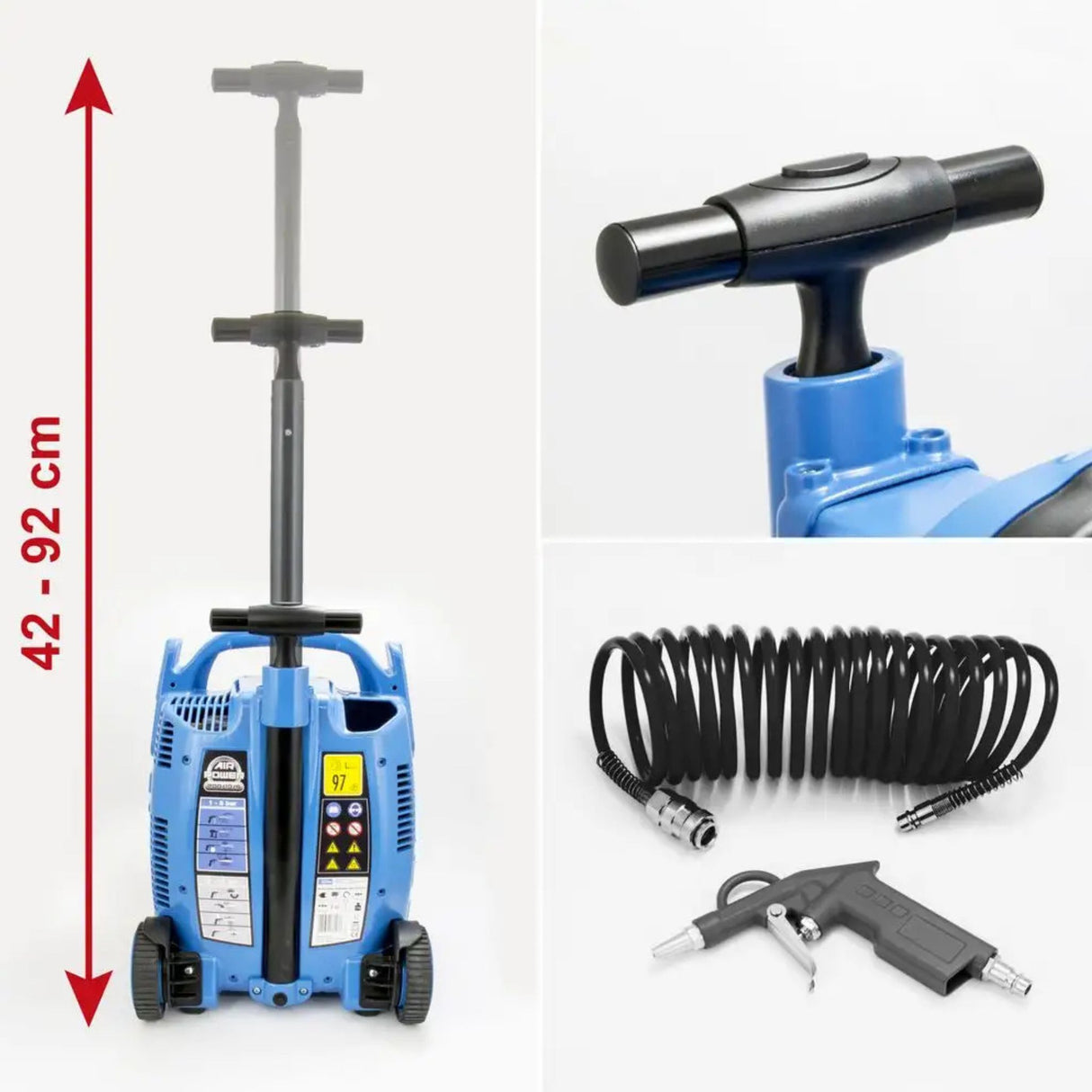

5-metre coiled hose (included)
|
|
Hose type
|
Coiled (compact design, self-retracting)
|
|
Blow gun
|
Included (direct air blowing)
|
|
Power cable
|
170 cm long
|
|

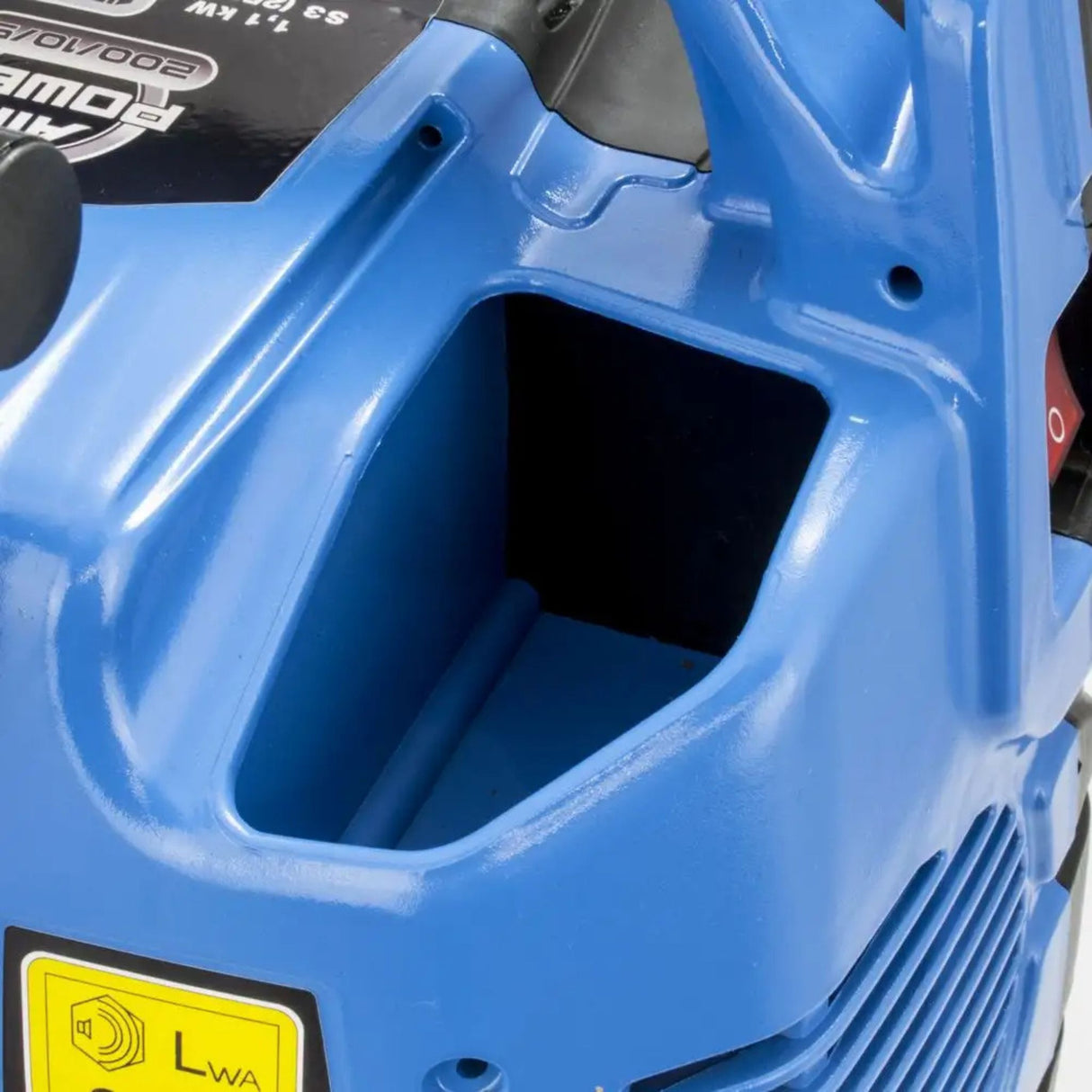

Storage compartment
|
Yes, organisation space
|
|
Safety valve
|
Yes, pressure protection
|
|
Condensate drain screw
|
Yes, moisture maintenance
|
|

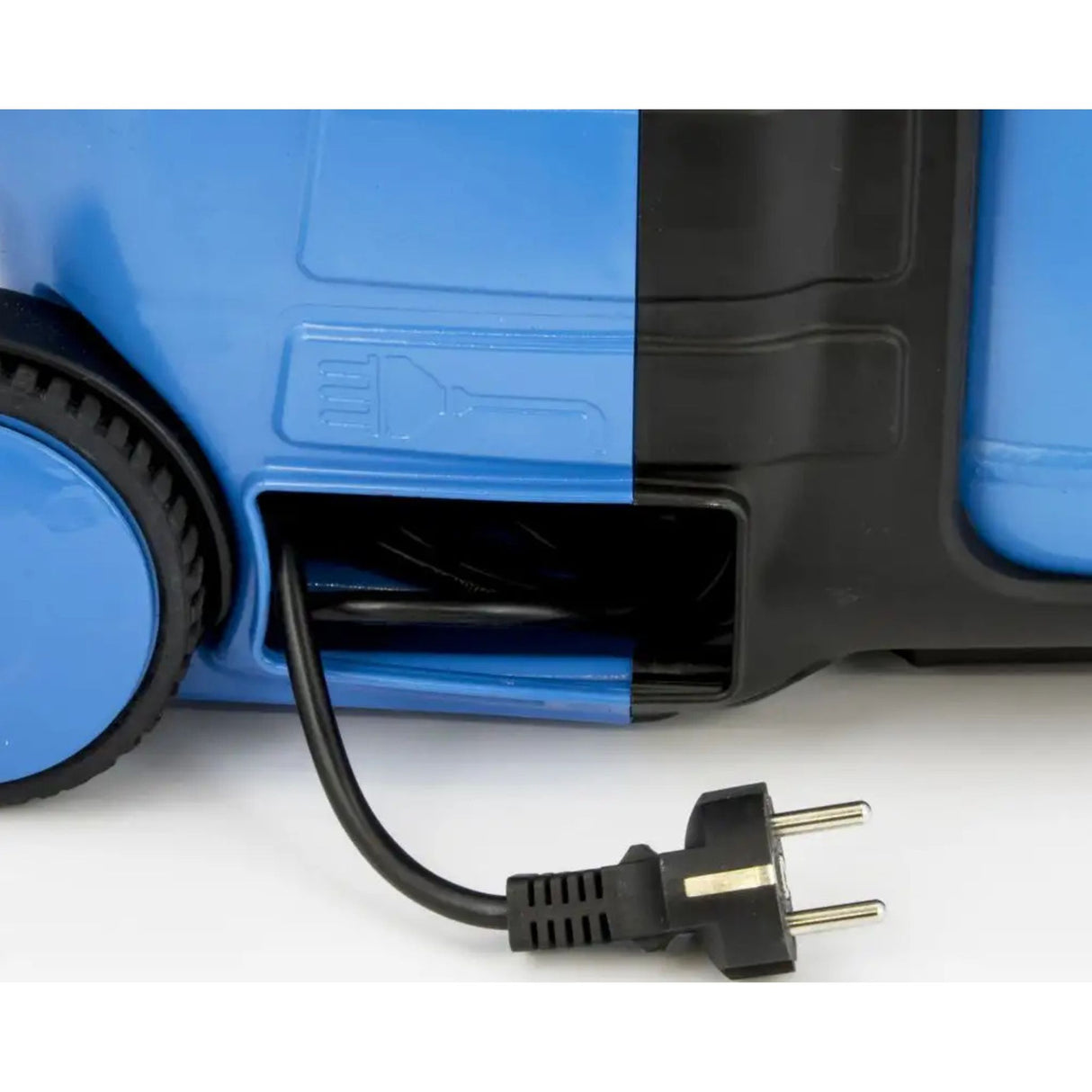

Cable compartment
|
Yes, power-cable organisation
|
Mobility and transport
|
Parameter
|
Value
|
|

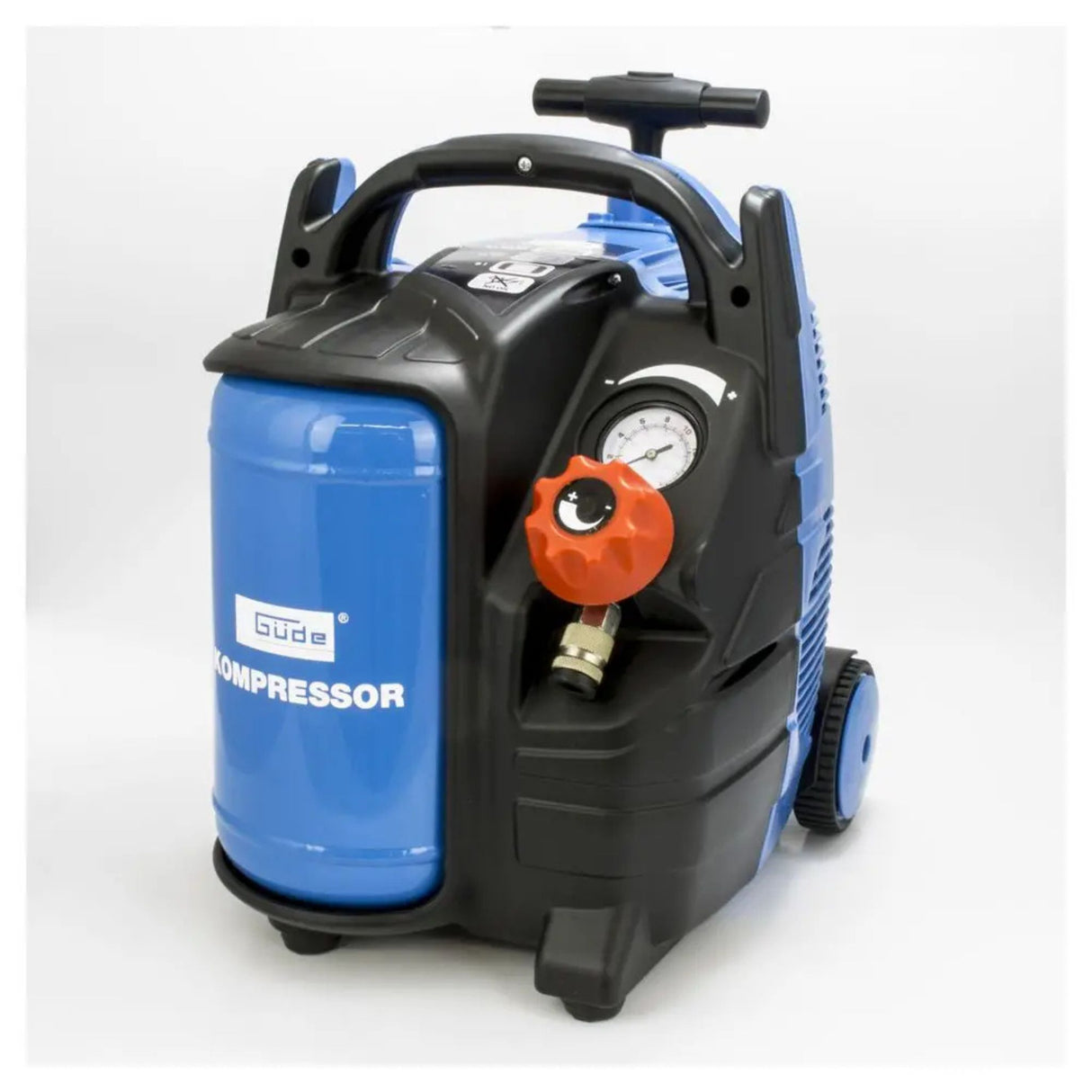

Trolley function
|
Yes, mobility with integrated wheels
|
|
Portability
|
Trolley wheels for easy movement around yards
|
|
Dimensions
|
360×305×430 mm (compact)
|
|
Net weight
|
10.56 kg (lightweight and mobile)
|
|
Gross weight (packaging)
|
12.14 kg
|
Noise
|
Parameter
|
Value
|
|
Noise level LWA
|
97 dB(A) (high professional level)
|
|
Sound pressure level LPA
|
85 dB(A)
|
Compliance
|
Parameter
|
Value
|
|
Marking
|
CE – Machinery Directive 2006/42/EC
|
|
GTIN
|
4015671686978
|
Standard equipment
- Güde Airpower 200/10/5 TY compressor (pre-assembled)
- 1.1 kW oil-free motor (installed)
- Integrated trolley mobility function (wheels included)
- Belt drive (installed)
- Integrated pressure switch (checked)
- Pressure regulator with pressure gauge (included)
- 5-litre tank (integrated)
- 1 compressed-air connection (included)
- 5 m coiled flexible hose (included, ready to use)
- Blow gun (included)
- Storage compartment (included)
- Safety valve (included)
- Condensate drain screw (included)
- Power-cable compartment (included)
- 170 cm connection cable (included)
- Italian user manual
- CE declaration of conformity
- Güde international warranty
Frequently asked questions
1. What is the main difference between the Airpower 200/10/5 TY and the wall-mounted GWK 160/08/2 ST?
Mobile vs stationary. Airpower 200/10/5 TY = TROLLEY compressor for complete mobility around the yard, 200 L/min capacity (25% more than GWK 160), 10 bar pressure (vs GWK 8 bar), 5 L tank (2.5× GWK 2 L), included 5 m hose ready to use. GWK 160/08/2 ST = stationary WALL-MOUNTED compressor for a fixed workshop, automatic 9 m hose reel, hose not included. Choice: mobile travelling worksite = Airpower 200/10/5 TY. Fixed workshop/laboratory = GWK 160/08/2 ST.
2. How long does the 5-litre tank store pressure?
The 5 L tank stores pressure at 10 bar for 2–3 hours in medium-duty cycles (without the compressor running continuously). In practice: a pneumatic hammer uses ~4–6 L/min of air, a sander ~5–8 L/min. The 5 L tank supplies 15–30 minutes of continuous medium-duty cycles, then the compressor recharges automatically (~1.5 minutes to recharge). Benefits: no long downtime waiting for recharge, stable pressure during cycles, short ON/OFF compressor cycles (controlled heat).
3. Is the 200 L/min capacity really 7.5× that of the portable Airpower Dual Drive?
Yes, mathematically. Airpower Dual Drive = 26–27 L/min. Airpower 200/10/5 TY = 200 L/min. Ratio: 200 ÷ 27 = 7.4× (practically 7.5×). Practical difference: inflating a 35 L car tyre volume takes ~2–3 minutes with the Airpower Dual Drive and ~30 seconds with the Airpower 200/10/5 TY (8× faster!).
4. Is 10 bar pressure necessary compared with the GWK 160 at 8 bar?
Only marginally. Standard professional tools (hammers, sanders, impact wrenches) require 6–8 bar operating pressure = the GWK 160 at 8 bar is SUITABLE. The Airpower 200/10/5 TY at 10 bar offers extra pressure headroom (for some specific 10 bar tools, without needing a pressure reducer). Choice: standard 6–8 bar tools = GWK 160 is suitable. Professional 10 bar tools = Airpower 200/10/5 TY is essential.
5. Does the included 5 m hose mean it is ready to use immediately?
Yes. The Airpower 200/10/5 TY includes a 5 m coiled hose + blow gun = the operator receives a compressor ready to use (no separate €30–50 purchases). Practical advantage: the contractor loads the van, arrives on site, positions the compressor = hose ready for blowing (no waiting to buy connections).
6. What does belt drive mean in practical terms?
The mechanical design reduces vibration and relative noise compared with direct motor drive. 3400 rpm motor / reduction belt = smooth operation with minimal oscillation. Disadvantage: the belt is a wear part requiring periodic replacement (~3–5 years of continuous worksite use). Advantage: reliable smooth operation and relatively lower noise (vs direct drive).
7. Is 97 dB a limitation for the working environment?
Potentially yes. 97 dB is high (pneumatic hammer ~105 dB, drill ~100 dB, Airpower 200/10/5 TY ~97 dB = professional level). Limitations: urban/residential environments may prohibit 85+ dB during daytime hours (the Airpower 200/10/5 TY exceeds this). Outdoor worksites/yards = no noise limitations (standard). Craft workshops = hearing protection recommended for operators.
