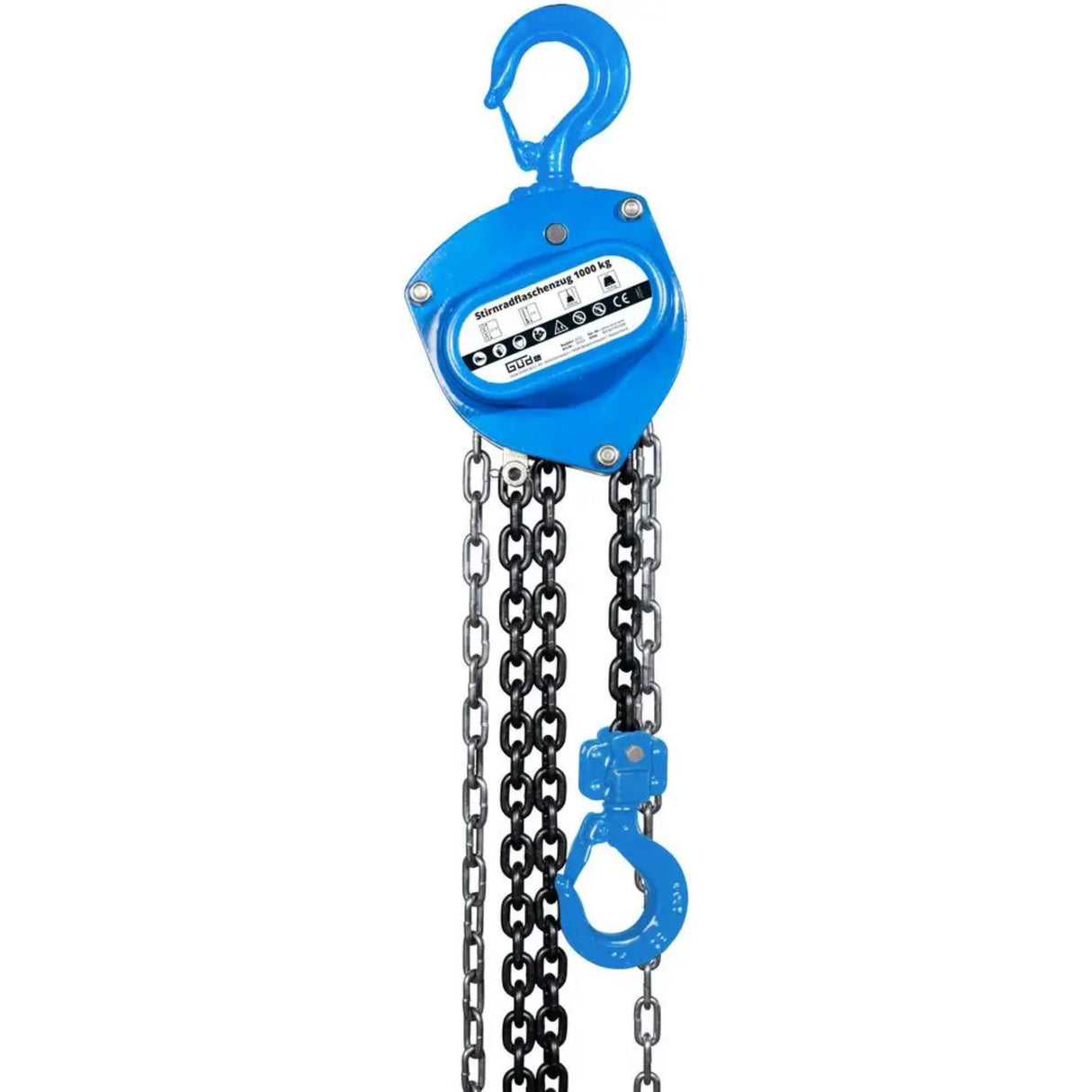

Güde 1000 kg Spur Gear Hoist – Manual, Ø6 mm chain, 3 m height
The Güde 1000 kg hoist is a compact and robust solution for construction sites and workshops requiring heavy load lifting of 1 tonne without the need for electrical power. Unlike manual lever hoists (high physical effort, risk of slipping), the spur gear system ensures force multiplication: the operator applies moderate effort to the control chain, and the spur gearbox amplifies the mechanical power to safely support up to 1,000 kg.
The spur gear mechanism is a practical innovation: it allows for lifting 5–10 times the force applied – to lift 1,000 kg, only ~100–200 kg of manual pressure on the control chain is needed. The 3 m steel chain allows for a standard lifting height for slab work and scaffolding (3 m is the limit for a single run – for higher lifts, hoists with longer chains should be requested). The 360° rotating hook with an integrated latch ensures the load remains secured even with off-axis suspension – providing extremely high safety against torsion and abnormal oscillations.
Who chooses it in Italy
Construction companies performing heavy prefabrication lifts of 1 tonne prefer it for its independence from electrical power – it works anywhere, without the need for generators. Carpenters and workers on remote or unserviced sites request it for its mechanical robustness and no engine maintenance. Construction equipment rental companies include it as standard site equipment because a manual hoist does not require operator certification (unlike cranes). In the Krollit catalog, it represents an essential complement for construction sites needing robust 1-tonne lifting without reliance on electricity.
After-sales support and spare parts
Güde supplies replacement chains, hooks, and gears within 3–5 days from Austria. Krollit manages a spare parts warehouse in Italy. Routine maintenance: lubricate the spur gearbox monthly (apply multi-purpose lubricating oil to the gear teeth), check the hook latch weekly (verify the mechanism snaps correctly), inspect the chain for corrosion and mechanical damage. The gears are robust – no extraordinary maintenance is required with regular lubrication. CE certifications ensure Italian compliance.
Who is the Güde 1000 kg hoist suitable for?
| Profile |
Suitable? |
Reason |
| Construction builder / site lifting heavy elements |
Ideal |
1,000 kg capacity covers 95% of wood and light steel prefabrication (beams, panels). Spur gearbox reduces operator physical effort (only 100-200 kg manual pressure vs 1,000 kg load). 3 m height covers standard slab work and scaffolding. Independence from electrical power. |
| Metal carpenter / heavy assemblies |
Ideal |
Lifting steel plates and components up to 1,000 kg without excessive fatigue. 360° rotating hook with latch ensures stable load during assembly. Manually operated mechanism, always available. |
| Rental company / remote or unserviced site |
Adequate |
Completely autonomous hoist – no power required. Mechanical robustness ensures reliability in harsh environments. However, 3 m height is the limit for a single run – for lifts >3 m, rely on hoists with longer chains or fixed systems. |
Not suitable for: Lifts >1,000 kg (undersized hoist, risk of chain breakage). Continuous lifts >50 cycles/hour (risk of operator fatigue, not designed for speed). Heights >3 m without an extended chain (declared single run limit). Highly corrosive marine environments (basic protection, prefer stainless steel for saline environments).
Technical specifications
Lifting mechanism
| Component |
Specification |
| Hoist type |
Manual spur gear |
| Gearbox mechanism |
Spur gears |
| Maximum load capacity |
1,000 kg (1 tonne) |
| Force multiplication ratio |
Not declared by manufacturer – estimated 5:1 to 10:1 (100-200 kg effort to lift 1,000 kg) |
| Single run lifting height |
3 m |
| Load chain type |
Steel, Ø6 mm |
| Load chain length |
3 m |
| Chain link size |
6 × 18 mm |
| Control chain (operation) |
2.5 m |
| Operation mechanism |
Manual – operator activates gears by pulling the control chain |
| Load locking |
Automatic – gear locks by friction when chain is released |
Hooks and fixings
| Component |
Specification |
| Load hook |
Steel, 1,000 kg maximum |
| Hook rotation |
360° continuous (free rotation) |
| Hook latch |
Yes, integrated mechanical latch (snaps automatically) |
| Upper suspension hook |
Steel, 360° rotating |
| Suspension latch |
Yes, integrated mechanical latch |
| Hook opening |
Not declared by manufacturer – presumably industrial standard |
Structure and components
| Component |
Specification |
| Main body |
Robust steel |
| Gears |
Steel cylinders, integrated lubrication |
| Bearings |
Not declared by manufacturer – presumably standard steel |
| Gear cover |
Partial (protection from elements) |
Dimensions and weight
| Component |
Specification |
| Hoist body length |
230 mm |
| Hoist body depth |
180 mm |
| Hoist body height |
175 mm |
| Net weight |
10.4 kg |
| Gross weight (packaging) |
Not declared by manufacturer |
| Portability |
Manual – moderate weight, transportable by two people or in a backpack with effort |
Compliance
| Component |
Specification |
| CE marking |
Yes, Machinery Directive 2006/42/CE |
| Applied standards |
EN 14491 (manual hoists) – presumed |
| Operator protection |
Hook with latch, self-locking gear, basic gear protection |
| Warranty |
24 months from purchase date (Güde standard) |
| Country of manufacture |
Germany |
Standard equipment
- Güde 1000 kg spur gear hoist assembled and ready for use
- 1,000 kg steel load hook with integrated mechanical latch
- 360° rotating steel upper suspension hook
- Ø6 mm steel load chain, 3 m length
- 2.5 m control chain for manual operation
- Robust steel body with integrated spur gears
- User manual in Italian and German
- CE Declaration of Conformity
-
Not included: lubricating oil (recommended to supply separately), hook rain cover (optional cover), beam attachment bracket (request custom)
Frequently asked questions
How much physical effort is needed to lift 1,000 kg?
The spur gearbox multiplies the force: to lift 1,000 kg, the operator must apply an effort equivalent to ~100–200 kg of manual pressure on the control chain. The exact multiplication ratio is not declared (estimated 5:1 to 10:1 depending on gear configuration). However, lifting is gradual – it's not "one pull" but a sequence of small pulls on the chain.
How does automatic load locking work?
Spur gears have an inclination angle such that the load automatically pulls on the teeth – when you release the control chain, friction and gear geometry lock the load instantly. It is not a snap lock (manual operation) but a mechanical self-lock by gravity. Extremely high safety: even if the chain breaks, the load remains suspended and locked.
Can I lift loads >1,000 kg by forcing it?
No, absolutely not recommended. A Ø6 mm steel chain has a breaking load of ~1,200 kg – a safety margin of only 20% above nominal. Forcing a load >1,000 kg risks: (1) sudden chain breakage, (2) gear failure, (3) load drop. Use an appropriately sized hoist for the actual load.
How do I lubricate the spur gearbox?
Monthly lubrication is recommended: apply multi-purpose lubricating oil (e.g., 32 cSt machine oil) to the visible gear teeth. Quantity: 10–20 ml per session. Method: unscrew the inspection cap (if present) or apply oil to the accessible gear flanks. Do not over-lubricate (risk of dust/dirt accumulation).
How does the hook latch work?
The hook has a spring-loaded mechanism that snaps automatically when a load is placed on it: the locking tooth engages and holds the load. To open, lift the load hook slightly to release the spring, then remove the load. The mechanism is robust – no maintenance is required if the latch snaps correctly (weekly check).
Can I extend the chain if I need a height >3 m?
Modifying the hoist is not recommended. The integrated chain is sized to ensure the correct gear multiplication ratio – extending the chain would change the mechanics and could cause gear slippage. If a height >3 m is required, acquire a hoist with a longer chain or use fixed lifting systems (site cranes).
What extraordinary maintenance is needed?
Minimal. Spur gears are robust and do not require overhaul if: (1) regular lubrication, (2) no violent impacts to the hoist body, (3) load always within nominal capacity. An annual inspection by a Güde technician is recommended (check gear teeth, latch locking) – cost ~€80–120.
Is the hoist suitable for continuous vertical lifts or only occasional ones?
Designed for occasional lifts – it is not suitable for continuous cycles. Operator effort is considerable: even if "only 100-200 kg," pulling for >30 seconds is tiring. Practical limit: ~50 cycles/hour (1 cycle = 3 m lift + 3 m lowering). For continuous cycles >100/hour, electric hoists are required.
