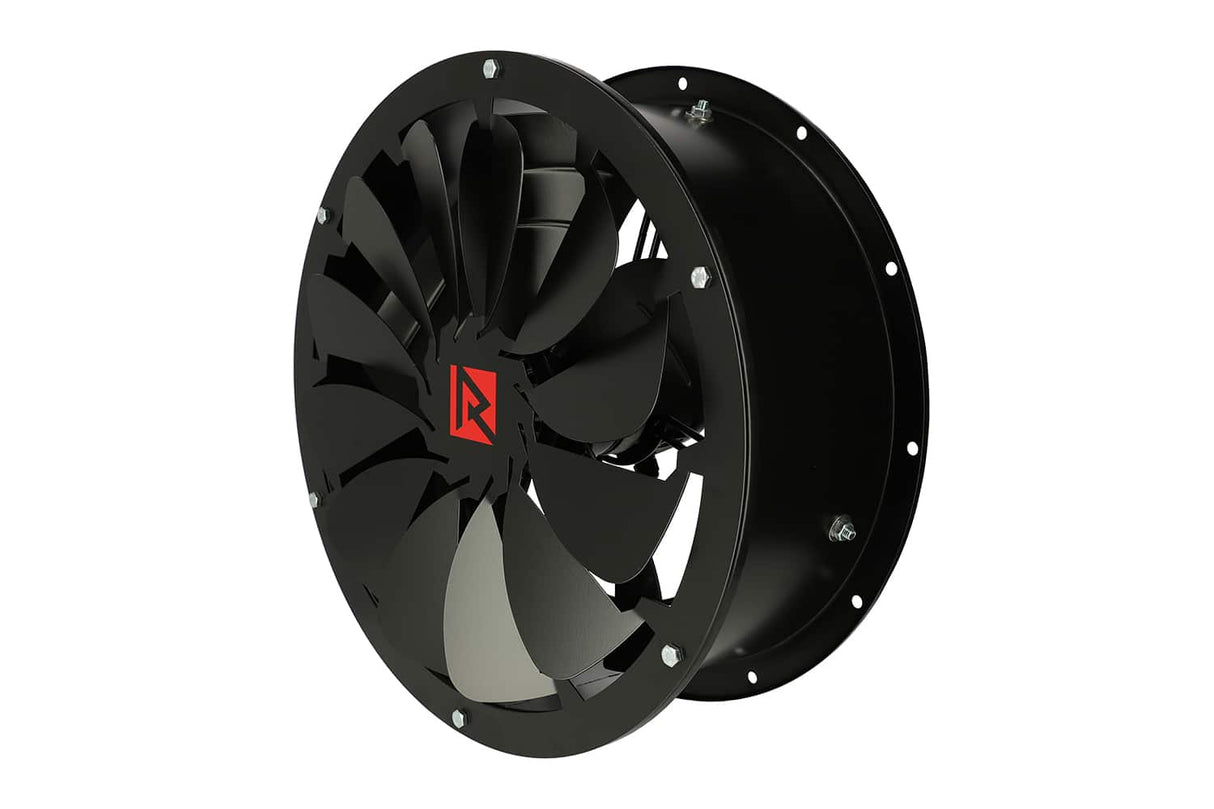

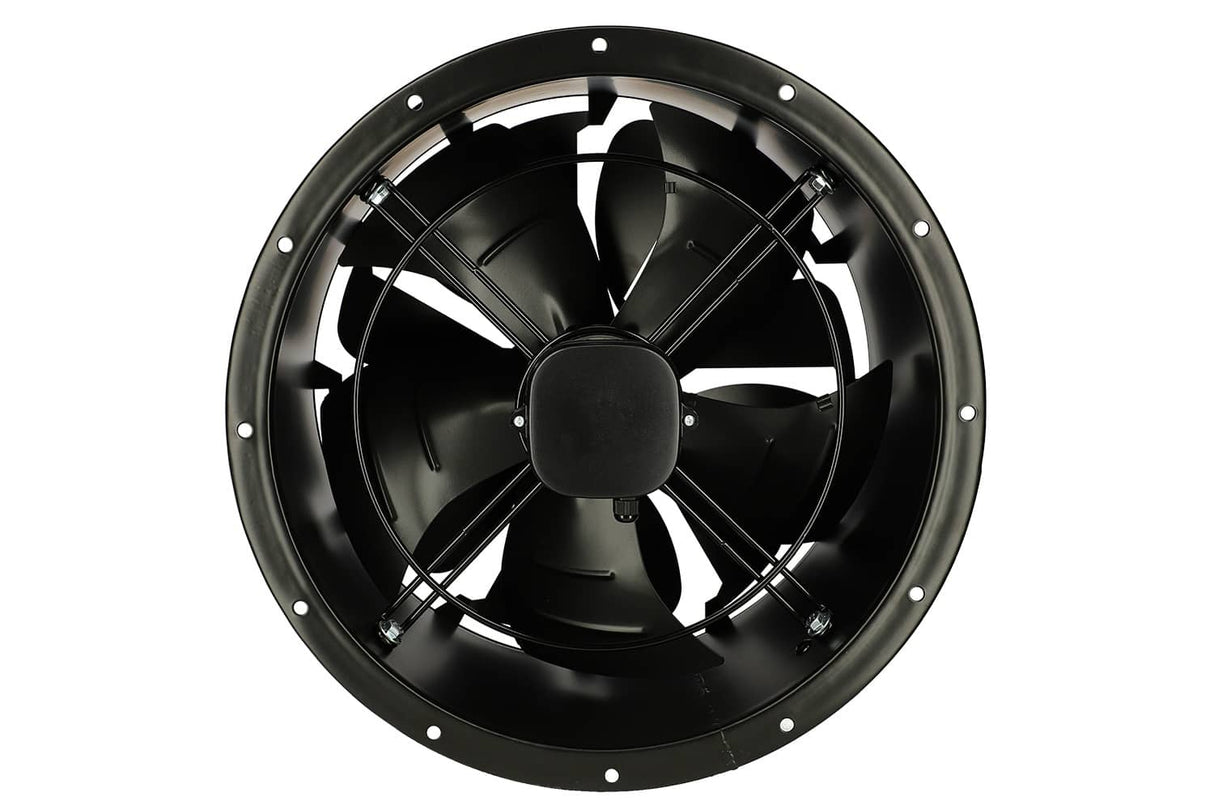

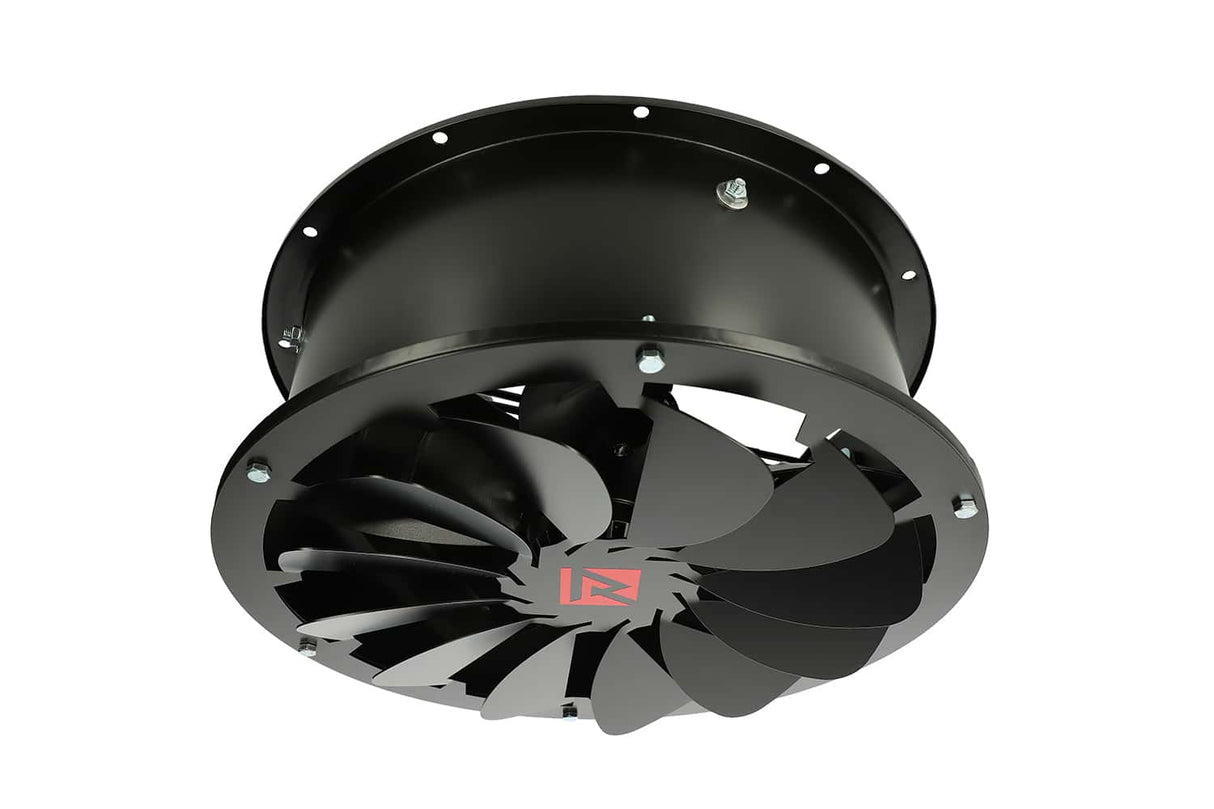

Reventon TORNADO XS3 - 4800 m³/h is a professional destratification fan, with a 0.35 kW motor, weighing 15 kg. Krollit, official Reventon distributor since 2007.
- Maximum airflow: 4800 m³/h
- Power consumption: 0.35 kW
- Power supply: 400 V (three-phase)
- Fan diameter: 600 mm
- Sound level: 45 dB(A) at 3 meters
- Weight: 15 kg
- Materials: Aluminum blades, anti-corrosion painted steel frame
- Rotation speed: Adjustable (0-150 RPM)
Who uses the TORNADO XS3 - 4800 m³/h and for what
Warehouses with air heating use the TORNADO XS3 - 4800 m³/h to move warm air from the ceiling to the floor, reducing heat loss and standardizing temperature.
Its place in the Reventon range
The Reventon TORNADO XS3 - 4800 m³/h is part of the Reventon range of destratification fans, distributed in Italy by Krollit since 2007. The Reventon range includes models of various categories and performance: to choose the right machine for your use case, you can consult the Reventon catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping 3-5 working days from Krollit warehouse. Italian customer support available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the TORNADO XS3 - 4800 m³/h for
| Profile |
Compatibility |
Reason |
| Warehouses with air heating |
Suitable |
Moves warm air from ceiling to floor, reduces dispersion |
| Logistics centers and warehouses |
Suitable |
Standardizes temperature in high-ceiling environments |
| Offices or residential environments |
Not indicated |
Industrial machine: for home use, consider residential ceiling fans |
Not indicated for: offices or residential environments (industrial machine: for home use, consider residential ceiling fans).
Spindle and speed
| Rotation speed |
Adjustable (0-150 RPM) |
Motor and power supply
| Power consumption |
0.35 kW |
| Power supply voltage |
400 V (three-phase) |
Other specifications
| Maximum airflow |
4800 m³/h |
| Fan diameter |
600 mm |
| Sound level |
45 dB(A) at 3 meters |
| Weight |
15 kg |
| Materials |
Aluminum blades, anti-corrosion painted steel structure |
| Estimated coverage area |
Up to 80-100 m² |
Frequently asked questions
What airflow does it offer?
See "Airflow" in the technical table: typically 5,000-30,000 m³/h.
Airflow determines the volume of space that can be treated. For warehouses with a height of 6-8 m, total air movement every 10-15 minutes is recommended.
What ceiling height is it suitable for?
Typically for heights from 4 to 12 m depending on the model.
Higher ceilings require fans with greater airflow and speed to ensure proper destratification of the warm air layer.
Does it reduce heating costs?
Yes, by returning warm air from the ceiling to the floor, 15-30% of heating costs can be saved.
Savings depend on the height of the environment and the type of heating. The greater the thermal delta between ceiling and floor, the greater the savings.
Is it noisy?
Modern models with EC motors and optimized blades have low noise levels (below 60 dB(A)).
Check the "Sound level" data in the technical sheet for applications in environments with personnel present.
What installation does it require?
Ceiling suspension with chains or dedicated brackets, electrical power supply and control thermostat.
Installation must be performed by a qualified electrician. For automatic regulation, a differential thermostat between ceiling and floor is needed.
