Bernardo GB 32 S Vario Pillar Drill
Bernardo GB 32 S Vario Pillar Drill is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Product safety
-
Reviews
Description

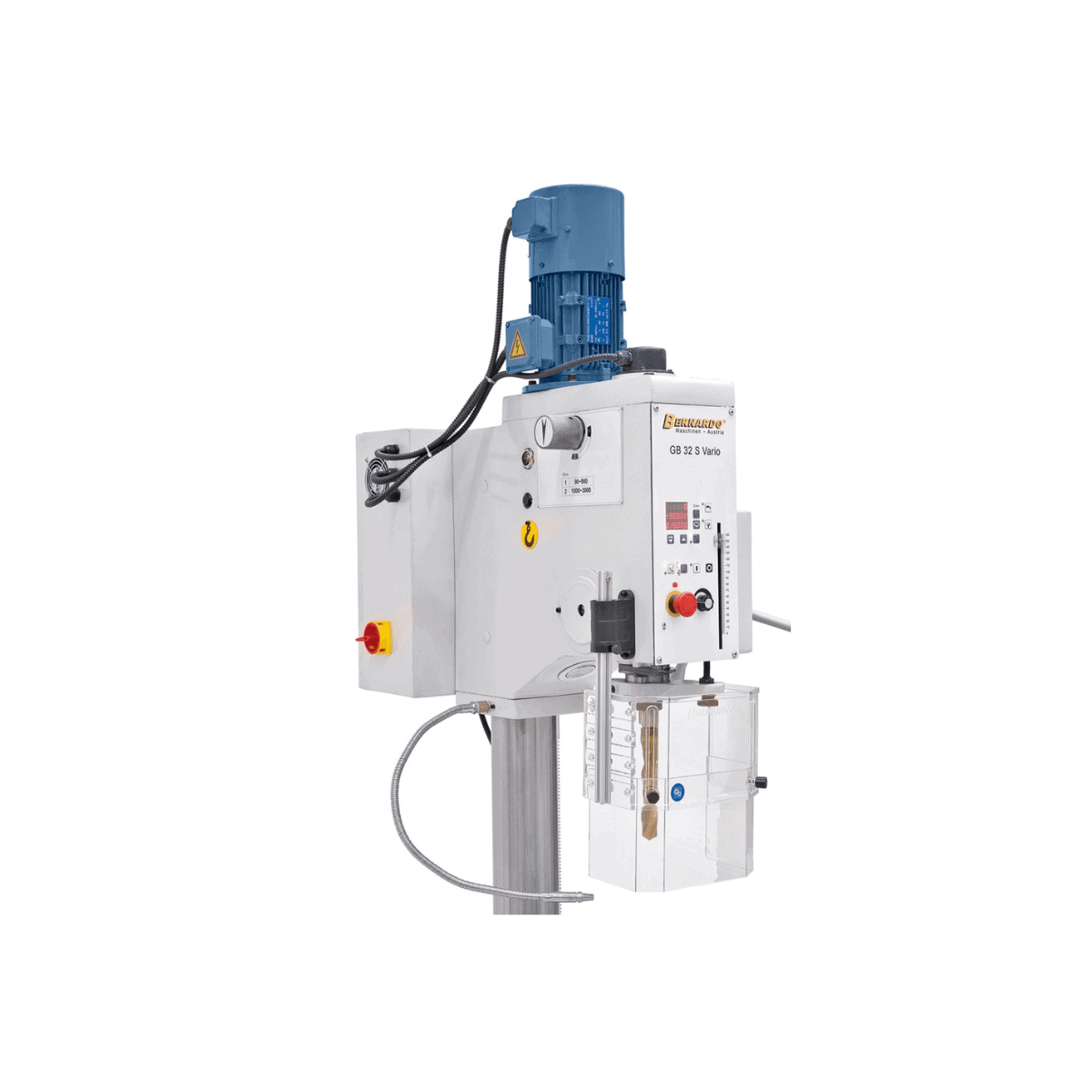

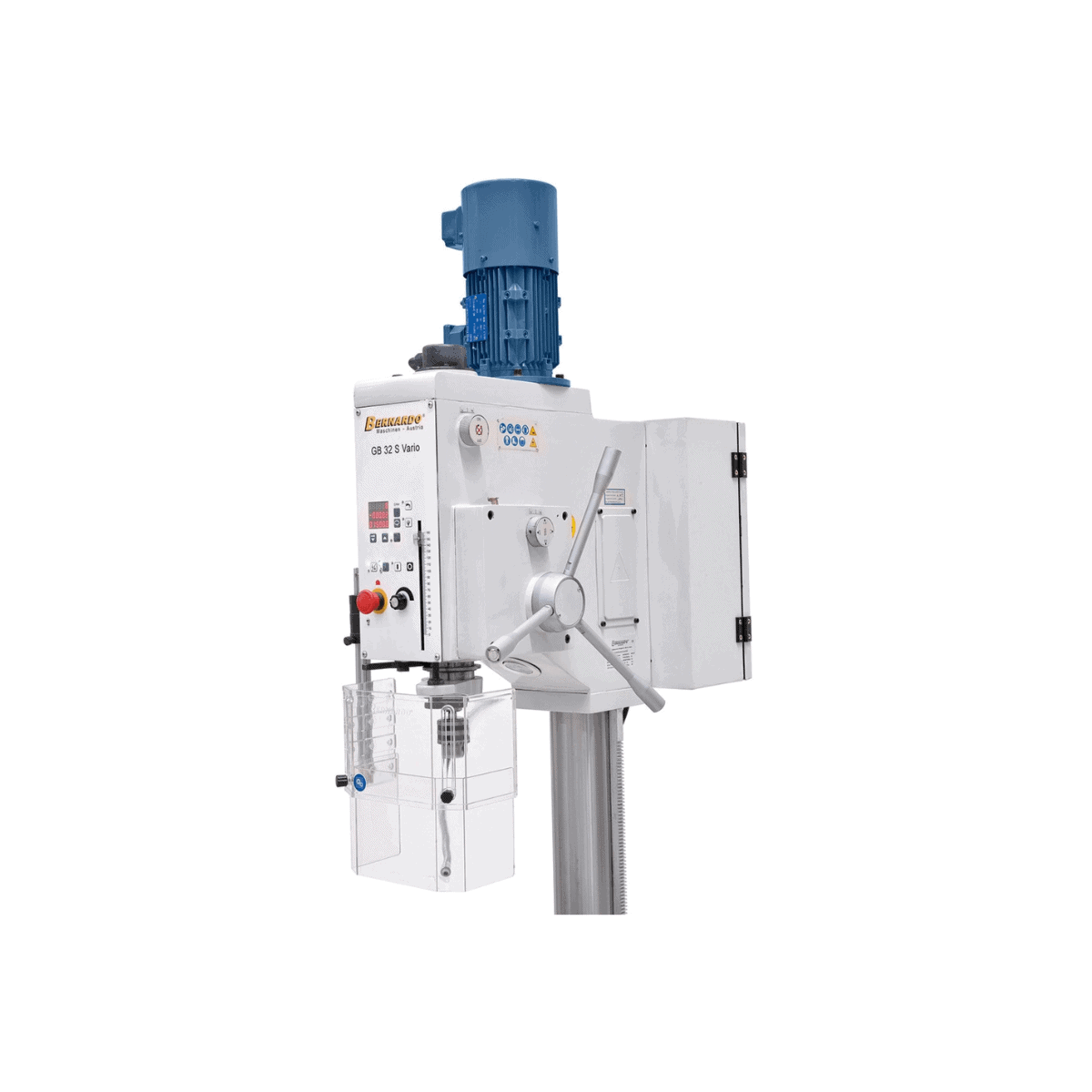

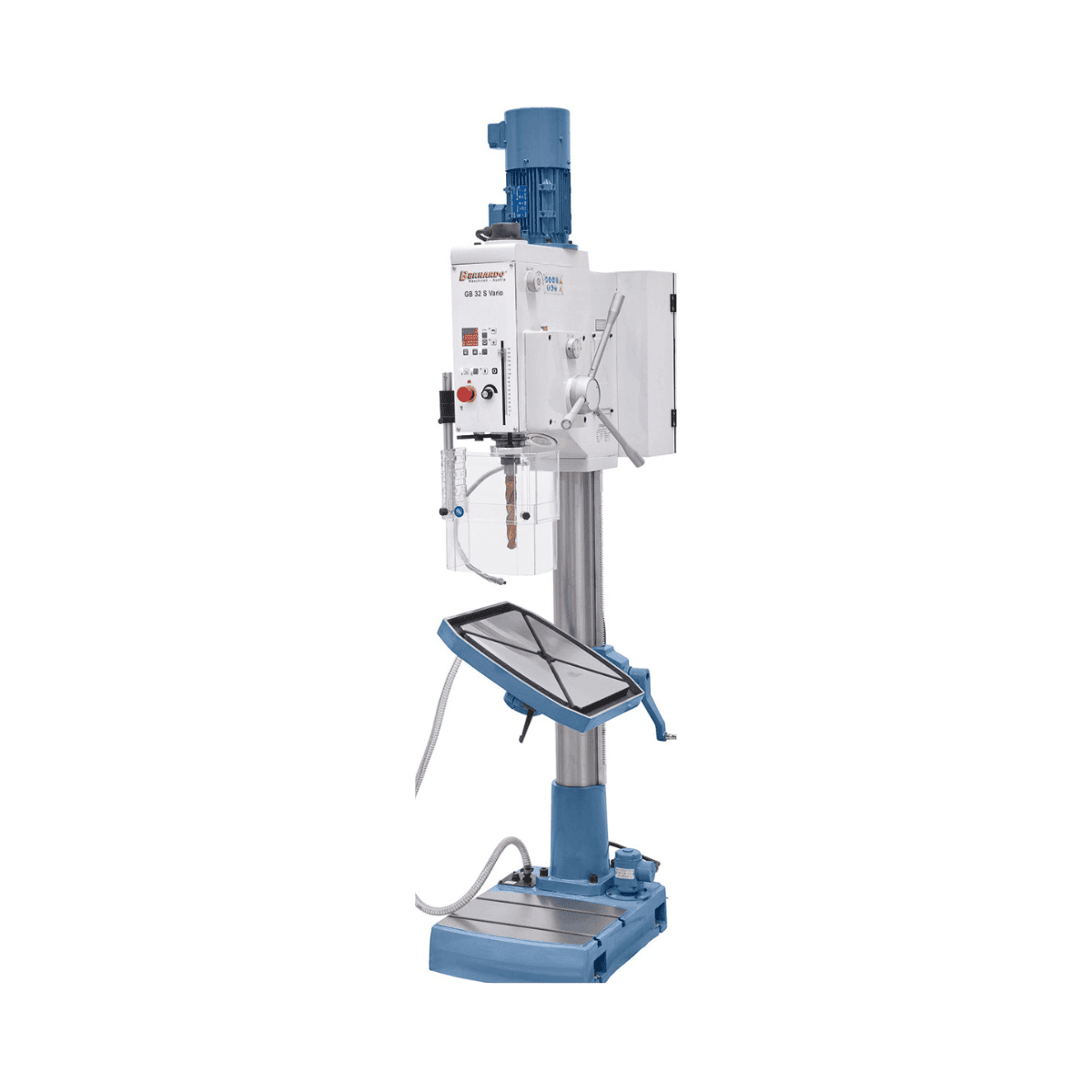

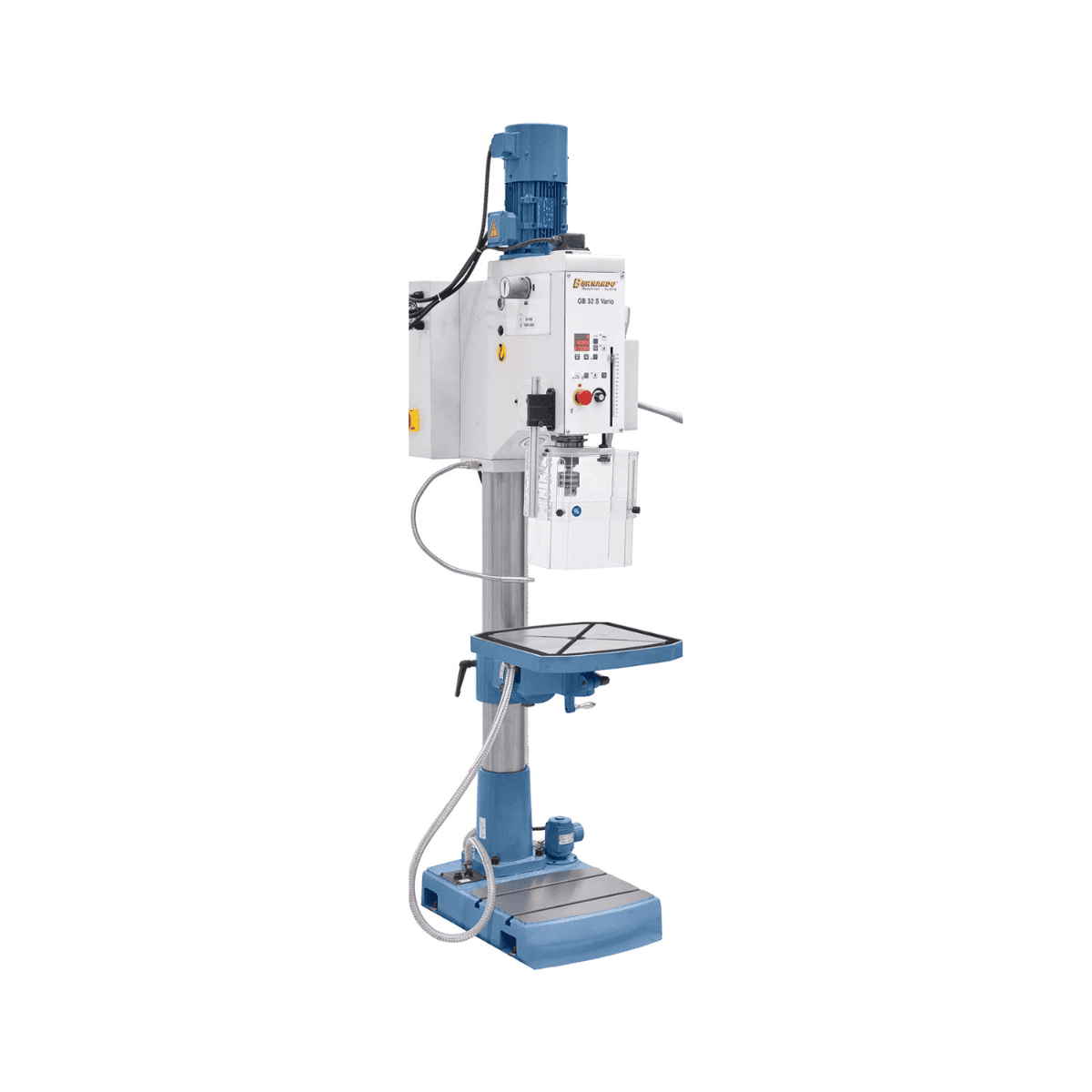

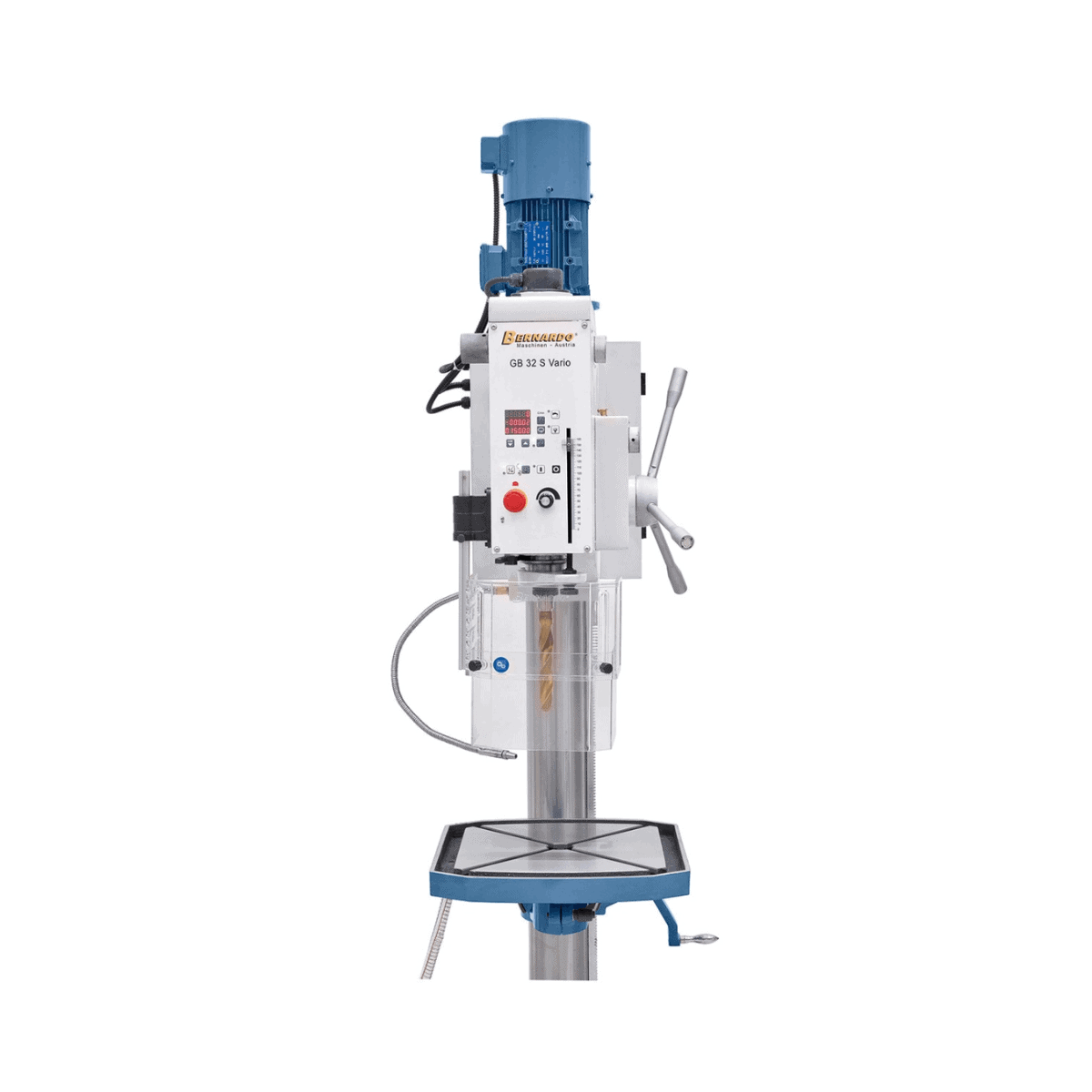

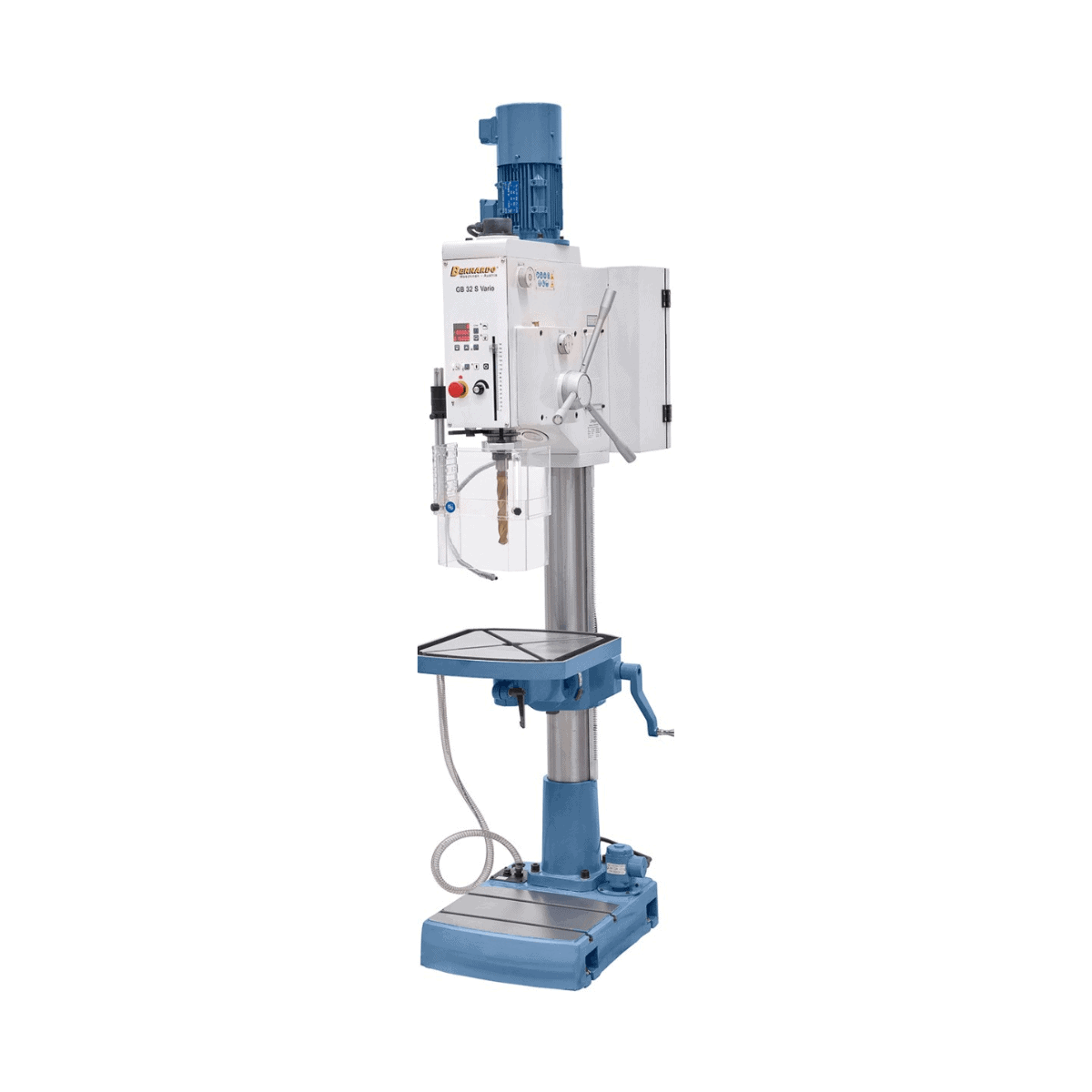

The Bernardo GB 32 S Vario is a pillar drill for professional use, with a drilling capacity of 32 mm, speeds of 90 – 980 / 1000 – 3000 rpm, a 1.5 kW / 400 V motor, and a weight of approx. 360 kg. Krollit, official Bernardo distributor since 2007.
- Max. drilling capacity: 32 mm
- Max. threading capacity: M22
- Chuck: 1 – 13 mm / B16
- Spindle taper: MT 4
- Spindle speed (2 stages): 90 – 980 / 1000 – 3000 rpm
- Automatic feeds: 0.06 / 0.12 / 0.18 mm/rev
- Spindle to column distance: 300 mm
- Max. spindle to table distance: 670 mm
Who uses the GB 32 S Vario and for what
Mechanical workshops and metalworking shops use the GB 32 S Vario for precision drilling on steel and cast iron, threading with a tapping head, and repetitive work on pieces of various sizes.
Its place in the Bernardo range
The Bernardo GB 32 S Vario is part of the Bernardo pillar drill range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance levels: to choose the machine suitable for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Italian-speaking customer support available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who the GB 32 S Vario is for
| Profile | Compatibility | Reason |
|---|---|---|
| Mechanical workshops and metalworking | Suitable | Precision drilling on steel and cast iron, threading with a tapping head |
| Maintenance technicians and repair shops | Suitable | Repetitive drilling work on pieces of various sizes |
| Occasional hobby use | To be evaluated | Professional machine: for domestic use, consider compact bench models |
Not suitable for: applications outside the technical specifications declared by the manufacturer. For doubts about compatibility, contact Krollit customer support.
Working capacity
| Max. drilling capacity | 32 mm |
| Max. threading capacity | M22 |
Spindle and speed
| Chuck | 1 – 13 mm / B16 |
| Spindle taper | MT 4 |
| Spindle speed (2 stages) | 90 – 980 / 1000 – 3000 rpm |
| Spindle to column distance | 300 mm |
| Max. spindle to table distance | 670 mm |
| Spindle to base distance | 1285 mm |
| Spindle stroke | 160 mm |
Table and dimensions

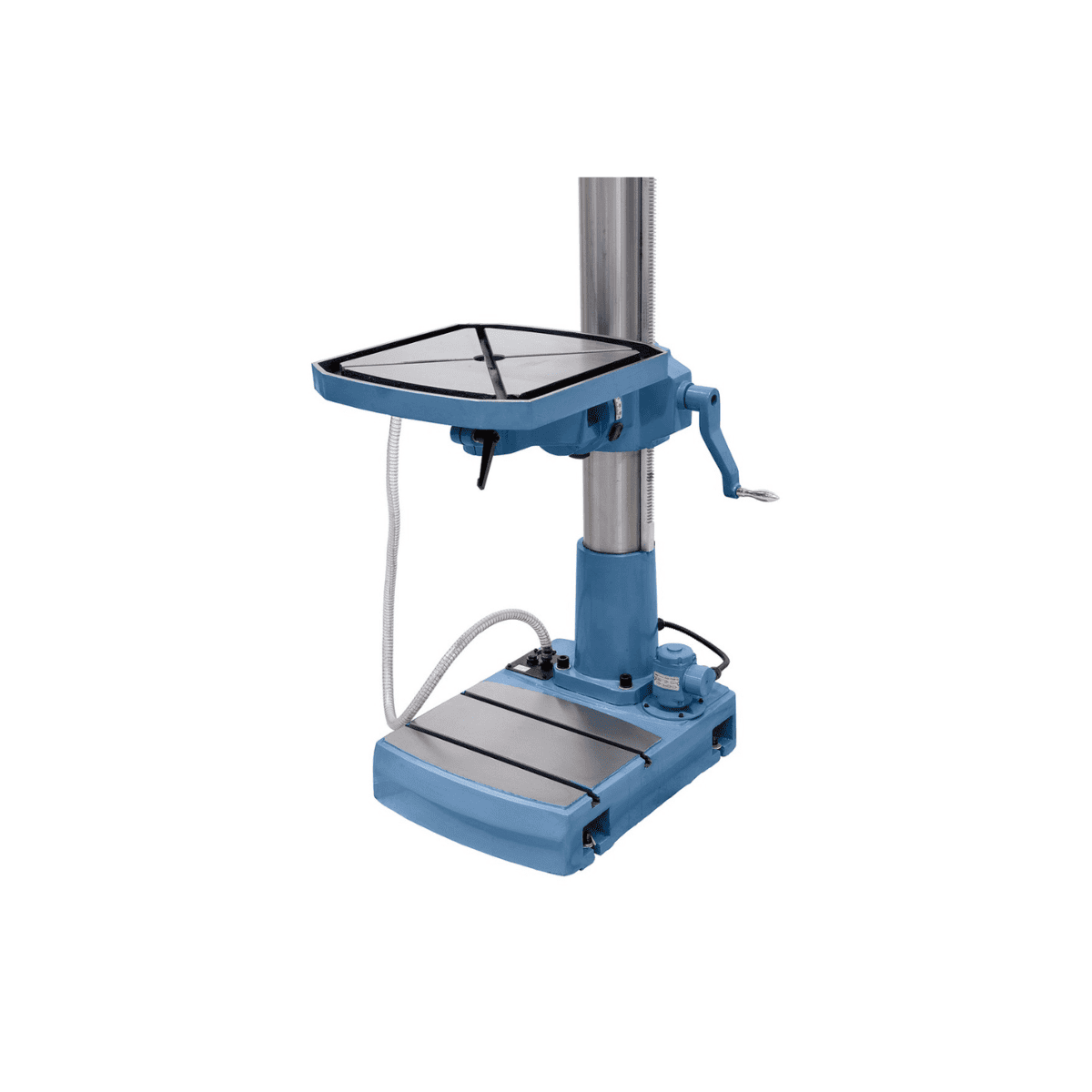

| Column diameter | 125 mm |

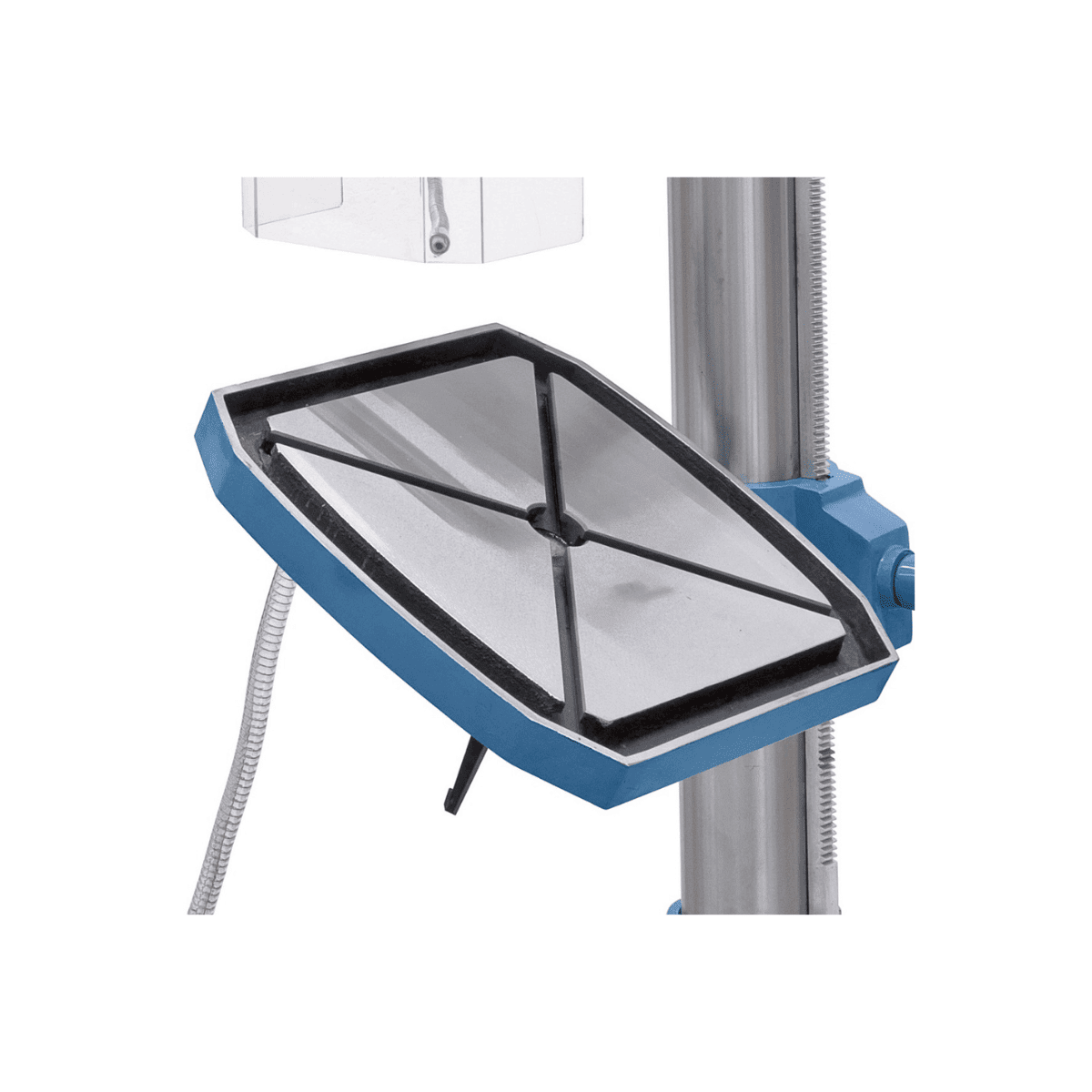

| Table size / T-slots | 460 x 460 mm / 14 mm |
| Machine dimensions (L x W x H) | 540 x 900 x 2120 mm |
Motor and power supply
| Motor power S1 100% | 1.5 kW / 400 V |
| Motor power S6 40% | 2.2 kW / 400 V |
Other specifications
| Automatic feeds | 0.06 / 0.12 / 0.18 mm/rev |
| Usable base plate | 420 x 340 mm |
| Weight | approx. 360 kg |
Frequently Asked Questions
What is the drilling capacity of the GB 32 S Vario?
See the "Drilling capacity" data in the machine's technical table.
The capacity refers to standard unhardened steel. On harder materials or alloyed steels, the actual capacity may be lower: reduce speed and feed to avoid stressing the spindle and tools.
How is the spindle speed adjusted?
Via mechanical belt or gear change in step models, via inverter or variator in Vario models.
Vario models allow continuous adjustment, while step models require moving the belt to different pulleys. Correct speed selection based on drill diameter and material extends tool life.
What spindle taper and type of tools does it support?
See "Spindle taper" in the technical table: typically MT 2, MT 3, or MT 4 depending on the model.
MT (Morse Taper) connections are international standards, and accessories (arbors, keyless chucks, reductions) are commonly available on the market. Krollit supplies original Bernardo accessories.
Does the drill allow threading with a tapping head?
Only models with standard right/left rotation allow threading with automatic tap release.
Check the "Right/left rotation" or "Threading" specification: drills without mechanical reversal are not suitable for repetitive tapping.
What is the machine's weight and what installation does it require?
Weight varies from approximately 25 kg (compact bench models) to over 250 kg (Profi industrial models).
Bench models are installed on a sturdy workbench, while pillar or radial models require floor mounting with expansion anchors for stability during drilling.
