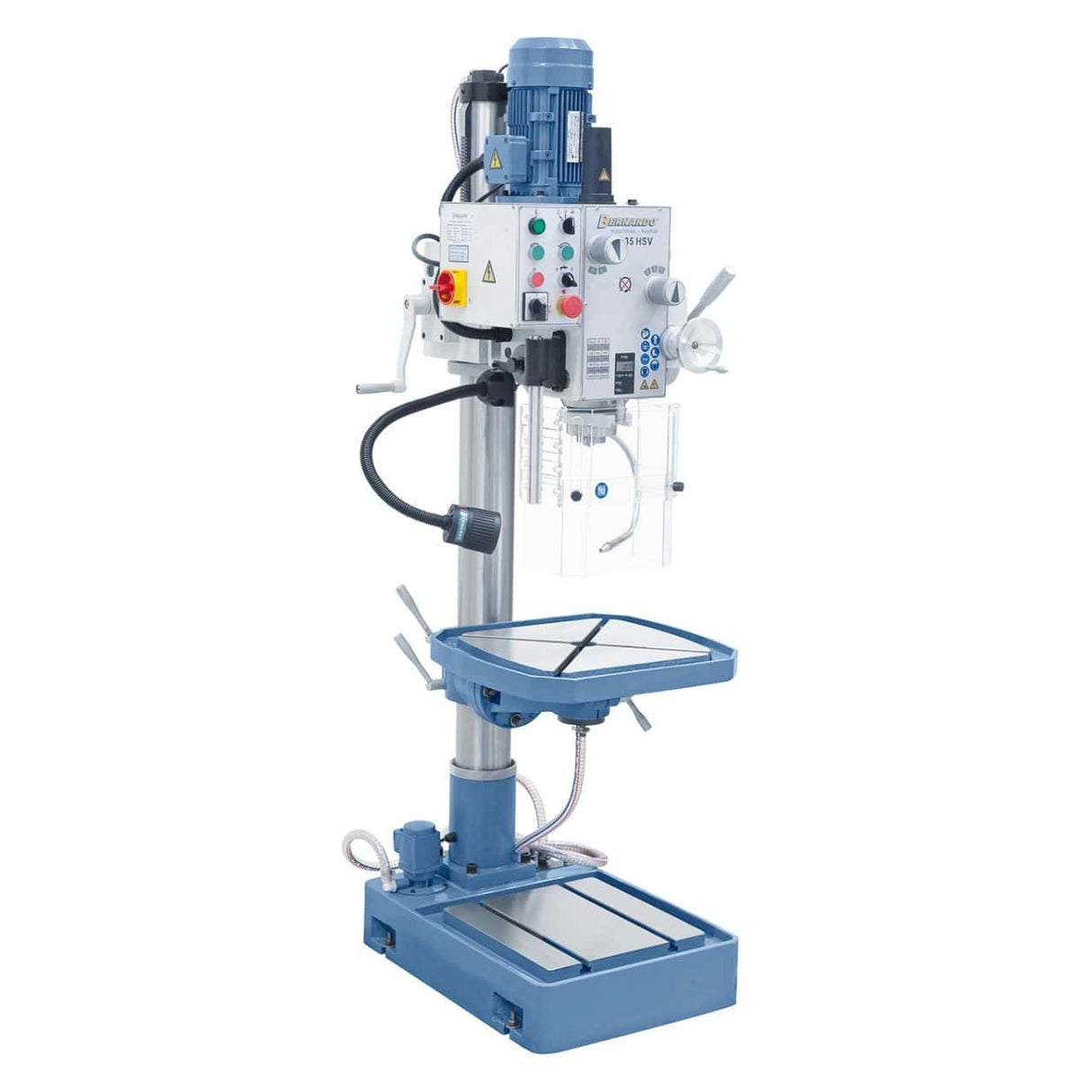

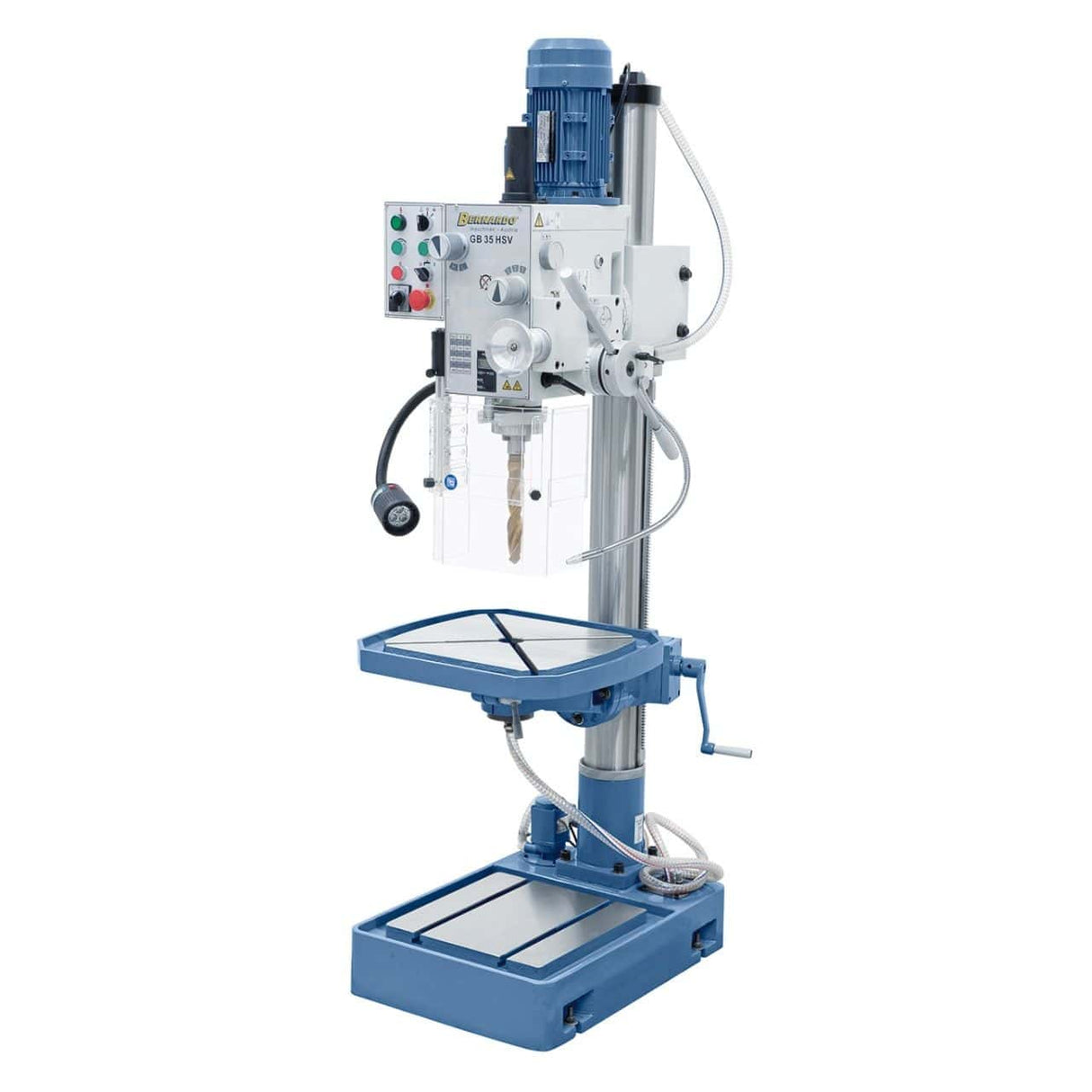

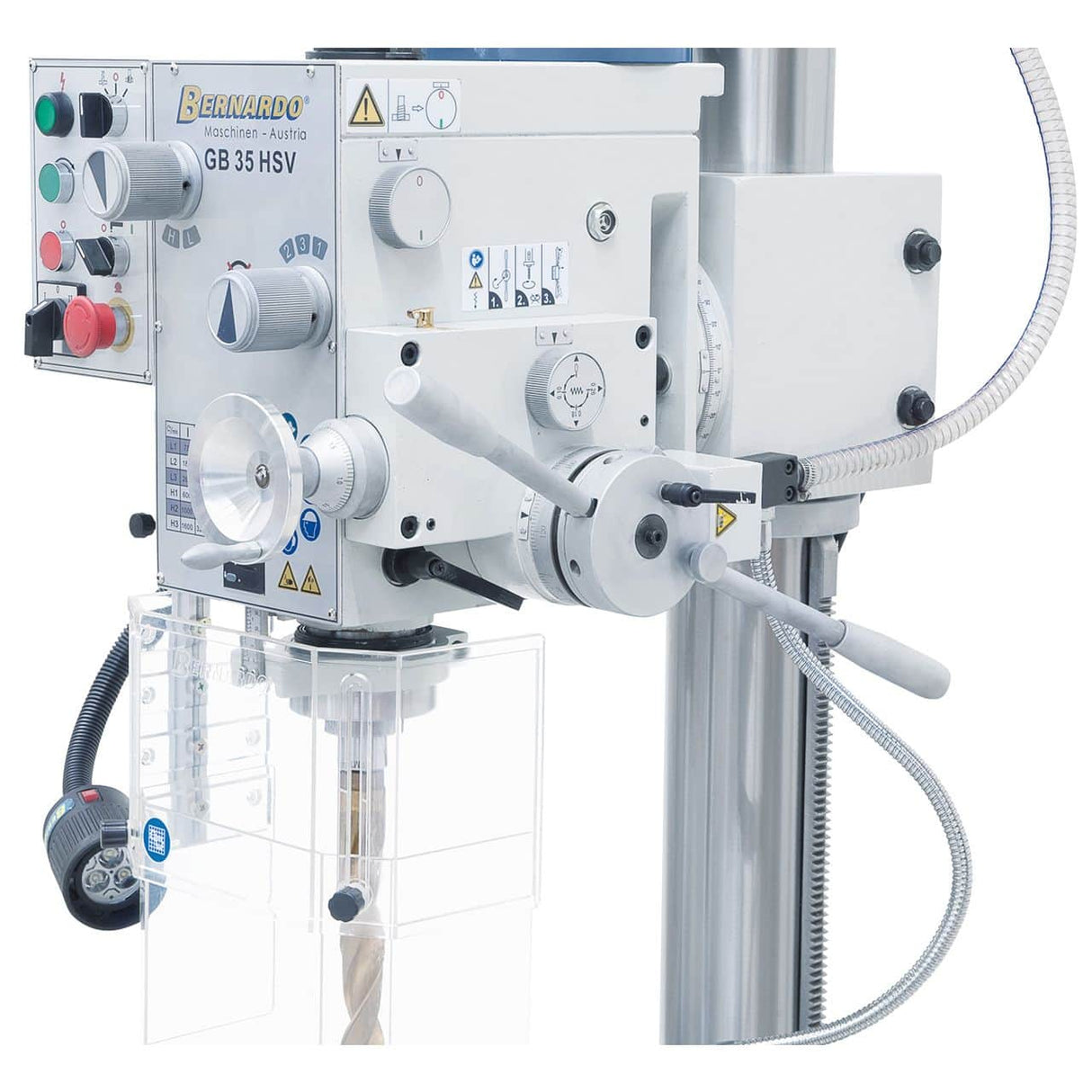

The Bernardo GB 35 HSV gear drill with cooling system is a machine tool accessory for professional use, weighing 340 kg. Krollit, official Bernardo distributor since 2007.
- Max. drilling capacity: 32 mm
- Drill chuck: 1 β 16 mm / B 16
- Morse taper: MK 4
- Spindle speed: (12) 75 β 3200 rpm
- Feed range: 0.10 / 0.18 / 0.26 mm/rev
- Arm length: 295 mm
Who uses the GB 35 HSV gear drill with cooling system and for what
Users who own the compatible machine install the GB 35 HSV gear drill with cooling system as an original accessory to extend functionality or replace worn components.
Its place in the Bernardo range
The Bernardo GB 35 HSV gear drill with cooling system fits into the range of Bernardo machine tool accessories, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Shipping 3-5 working days from Krollit warehouse for spare parts and accessories. Customer support in Italian available for technical documentation and compatibility verification with the reference machine. Krollit has been an official distributor since 2007.
Who is the GB 35 HSV gear drill with cooling system for
The GB 35 HSV gear drill with cooling system is recommended for the following professional profiles:
-
Users who own the compatible machine: original accessory to extend the functionality of the indicated machine.
-
Workshops with specific setup needs: component for special machining or increased precision.
-
Compatibility with machines of other brands or models: check machine model and specifications before purchase.

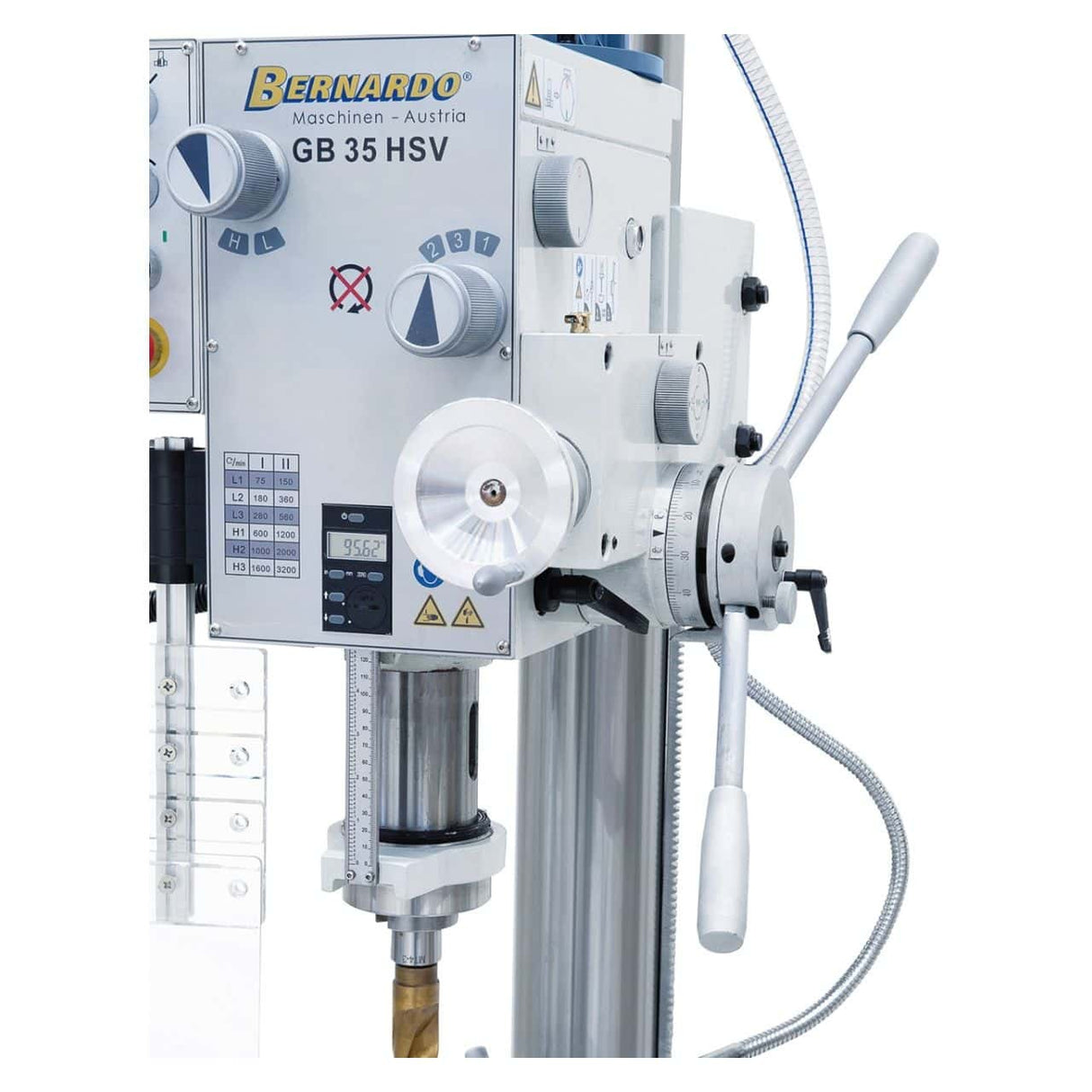

Spindle, tools, and speed
| Drill chuck |
1 β 16 mm / B 16 |
| Morse taper |
MK 4 |
| Spindle speed |
(12) 75 β 3200 rpm |
| Max. spindle β table distance |
775 mm |
| Spindle β base plate distance |
1185 mm |

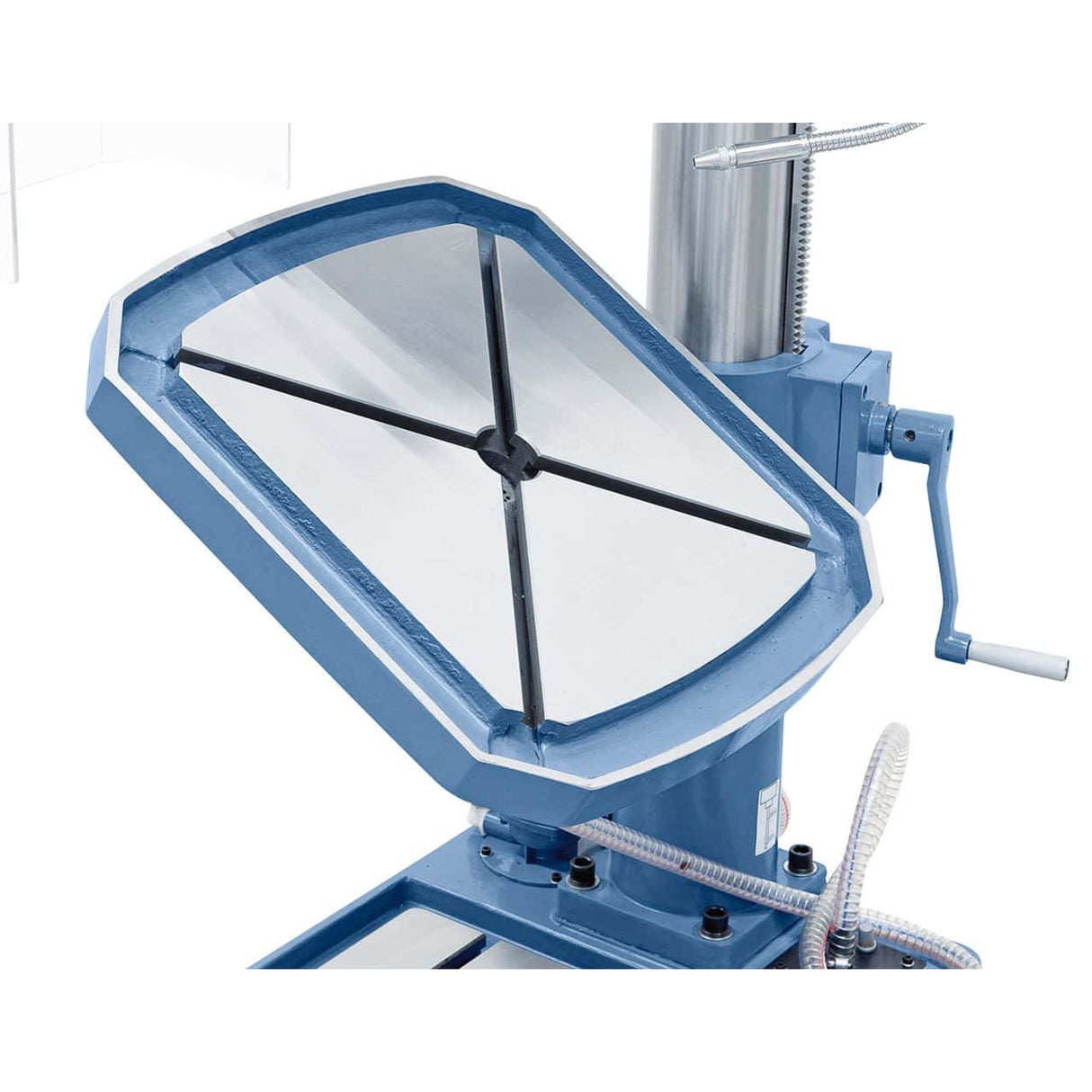

Table, dimensions, and geometry
| Arm length |
295 mm |
| Column diameter |
115 mm |

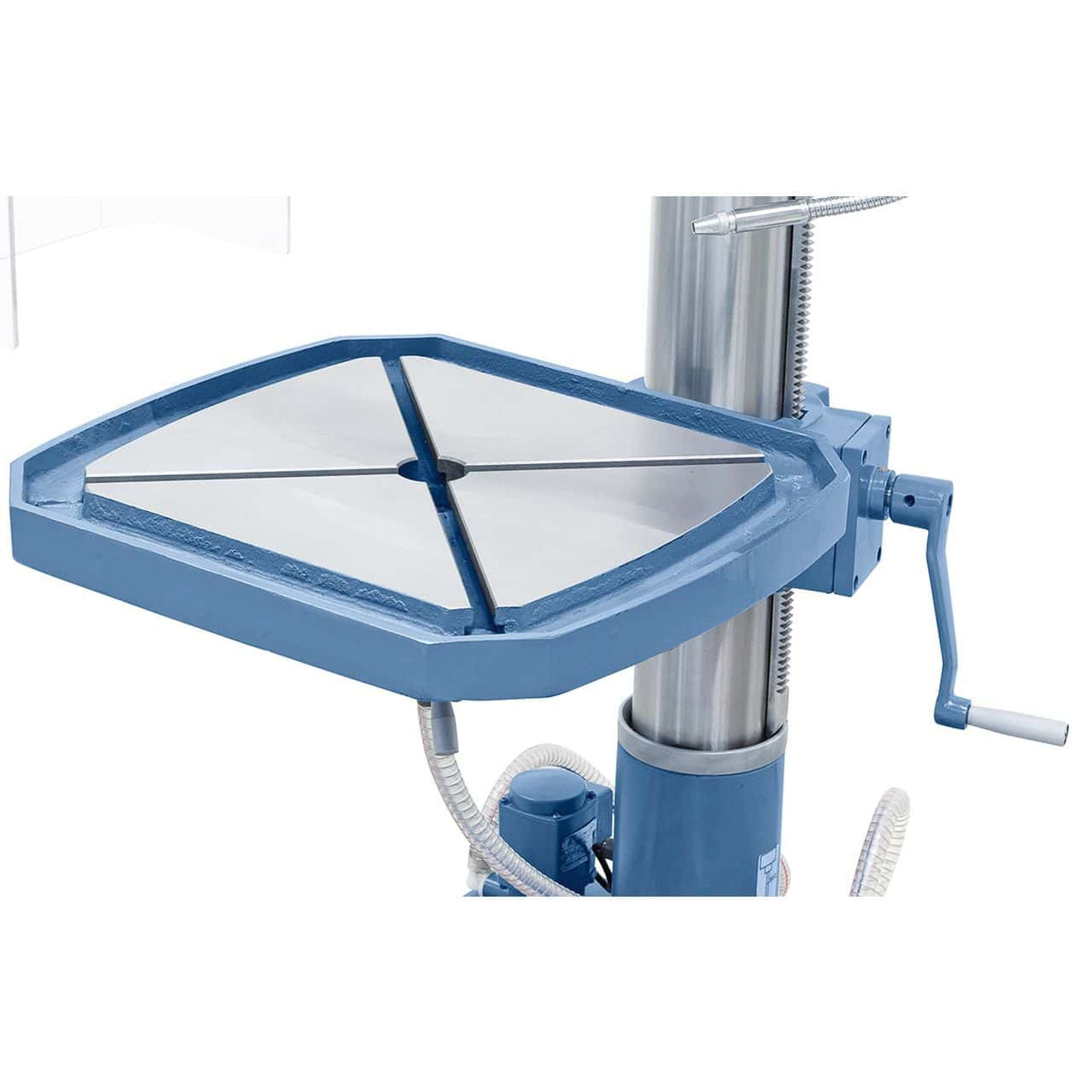

| Table dimensions |
500 x 455 mm |
| T-slot size |
14 mm |

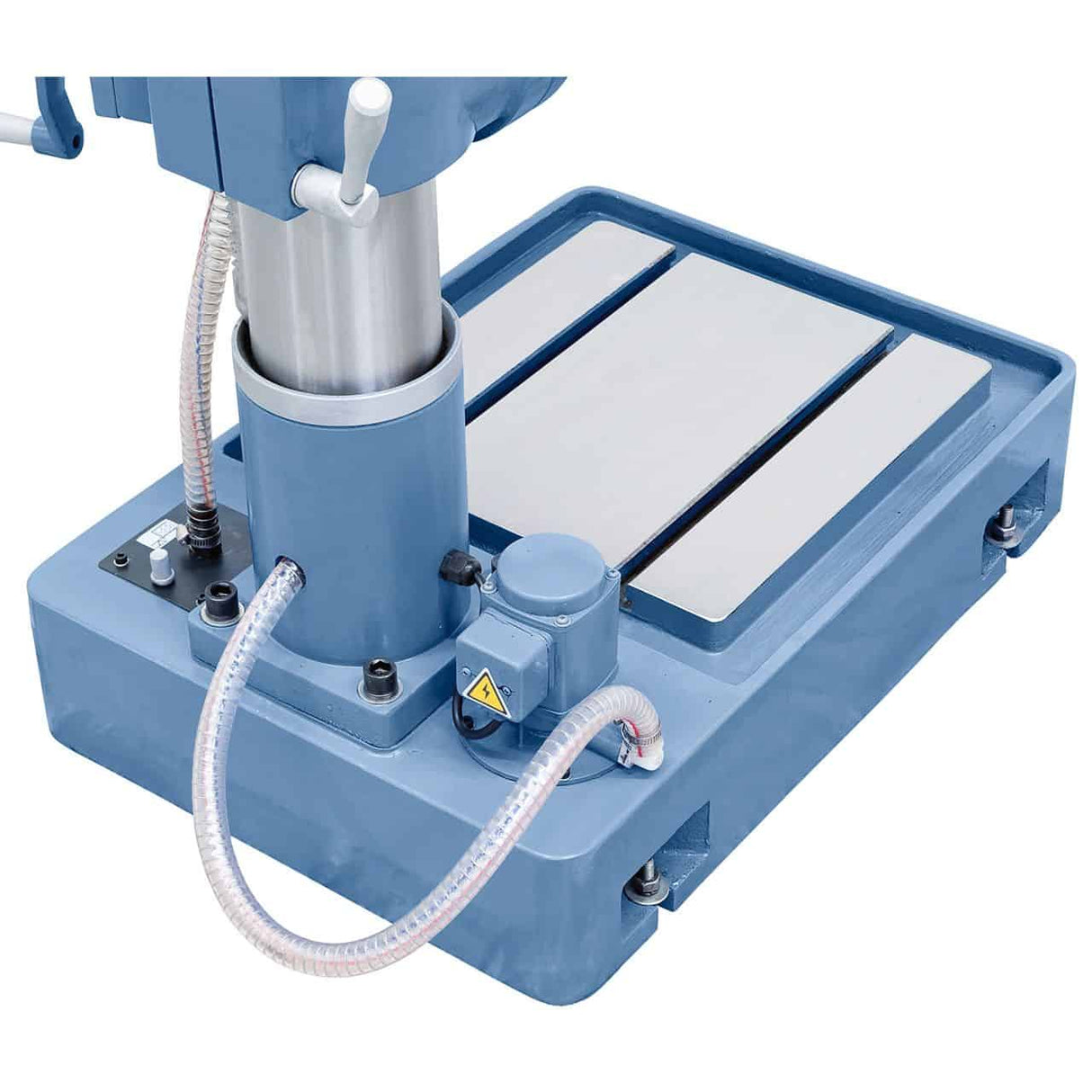

| Base plate working surface |
375 x 365 mm |
| Weight approx. |
340 kg |
Other specifications
| Feed range |
0.10 / 0.18 / 0.26 mm/rev |
| Machine dimensions (L x W x H) |
630 x 700 x 2050 mm |
| Max. drilling capacity |
32 mm |
| Drill stroke |
125 mm |
| Motor input power S1 100% |
1.1 / 1.5 kW (400 V) |
| Motor output power S6 40% |
1.5 / 2.2 kW (400 V) |
Standard equipment
- Keyless drill chuck 1 β 16 mm / B 16
- Drill arbor MK 4 / B 16
- Automatic spindle feed system
- Height-adjustable protective cover
Frequently asked questions
Which machine is it compatible with?
Check the indicated machine model in the title or description. Krollit only supplies original accessories for the machines in its catalog.
If you have doubts about compatibility, contact Krollit customer support providing the machine's serial number.
Is it an original spare part?
Yes, Krollit has been an official Bernardo distributor since 2007 and only supplies original accessories from the manufacturer.
Non-original accessories can compromise the warranty and safety of the machine. It is recommended to always use manufacturer-certified components.
What are the delivery times?
Shipping 3-5 working days from Krollit warehouse.
For out-of-stock accessories, procurement times from the manufacturer can be 2-4 weeks. Check availability before ordering.
Can it be assembled independently?
Yes, for simple accessories; for components that require adjustments or calibrations, intervention by a qualified technician is recommended.
Krollit provides original Bernardo technical documentation for correct assembly.
Is there a warranty?
Yes, manufacturer's warranty according to legal terms. The warranty is void if the accessory is installed on incompatible machines.
Keep the invoice as proof of purchase. For warranty claims, contact Krollit customer support.
