Bernardo | SKU: 01-1292XL

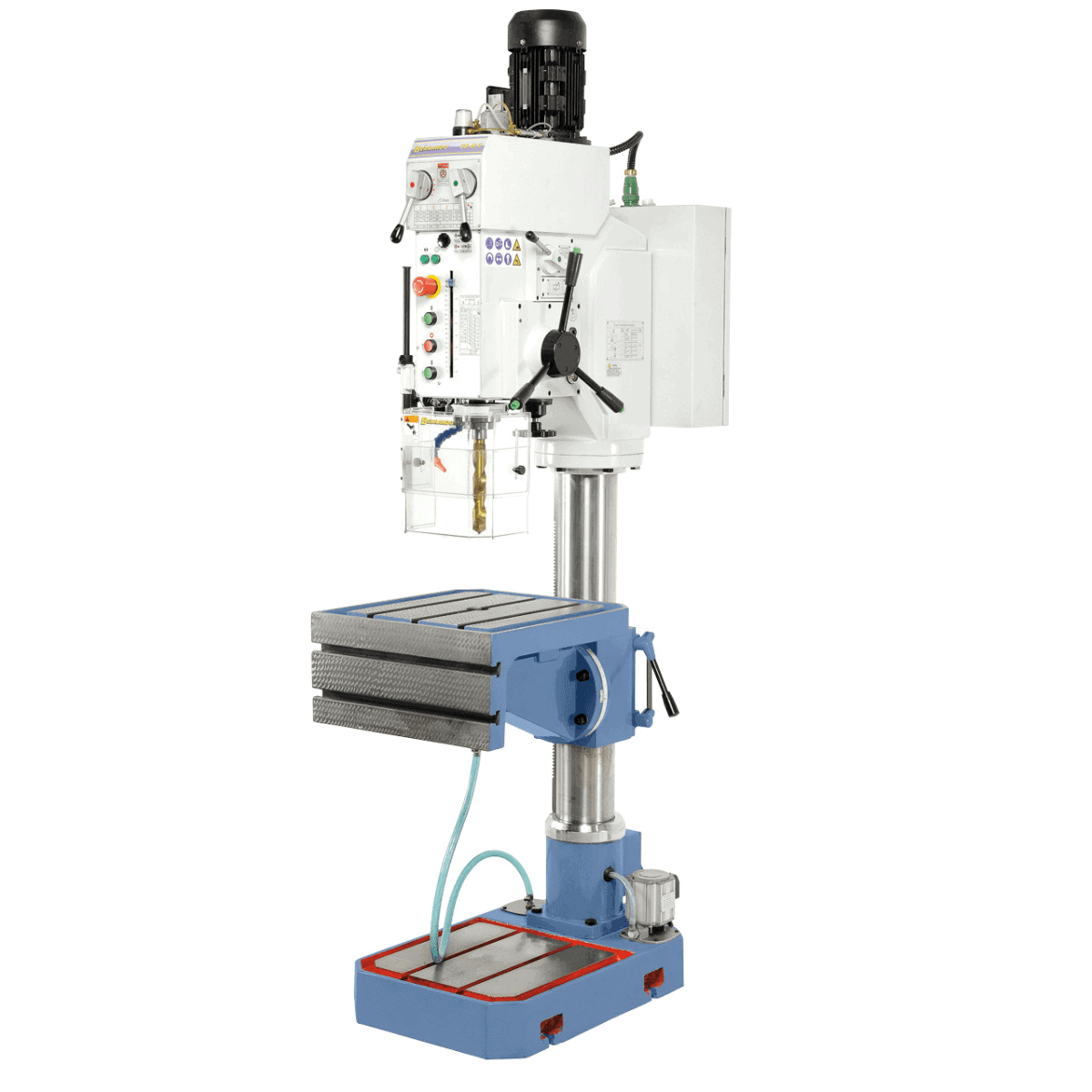

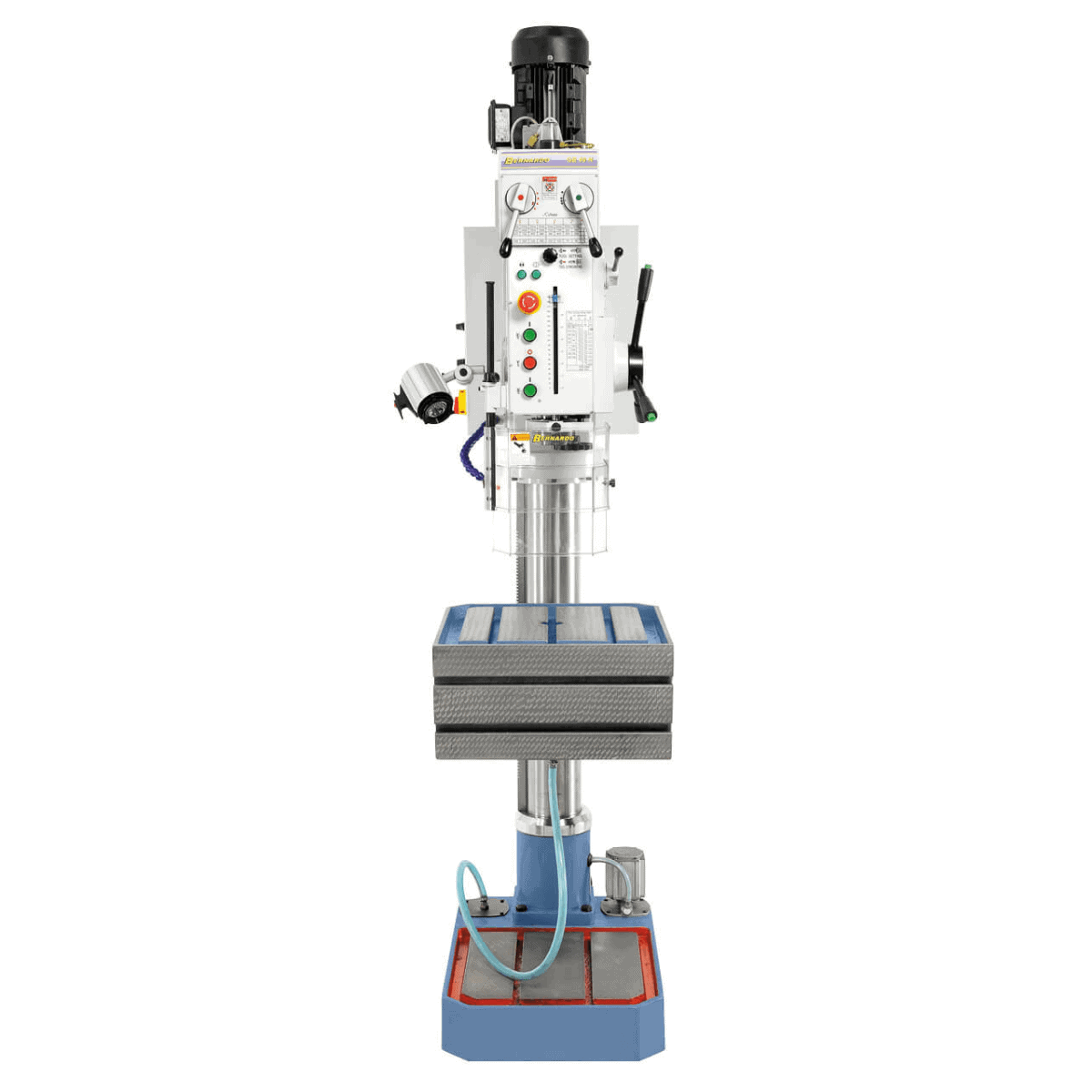

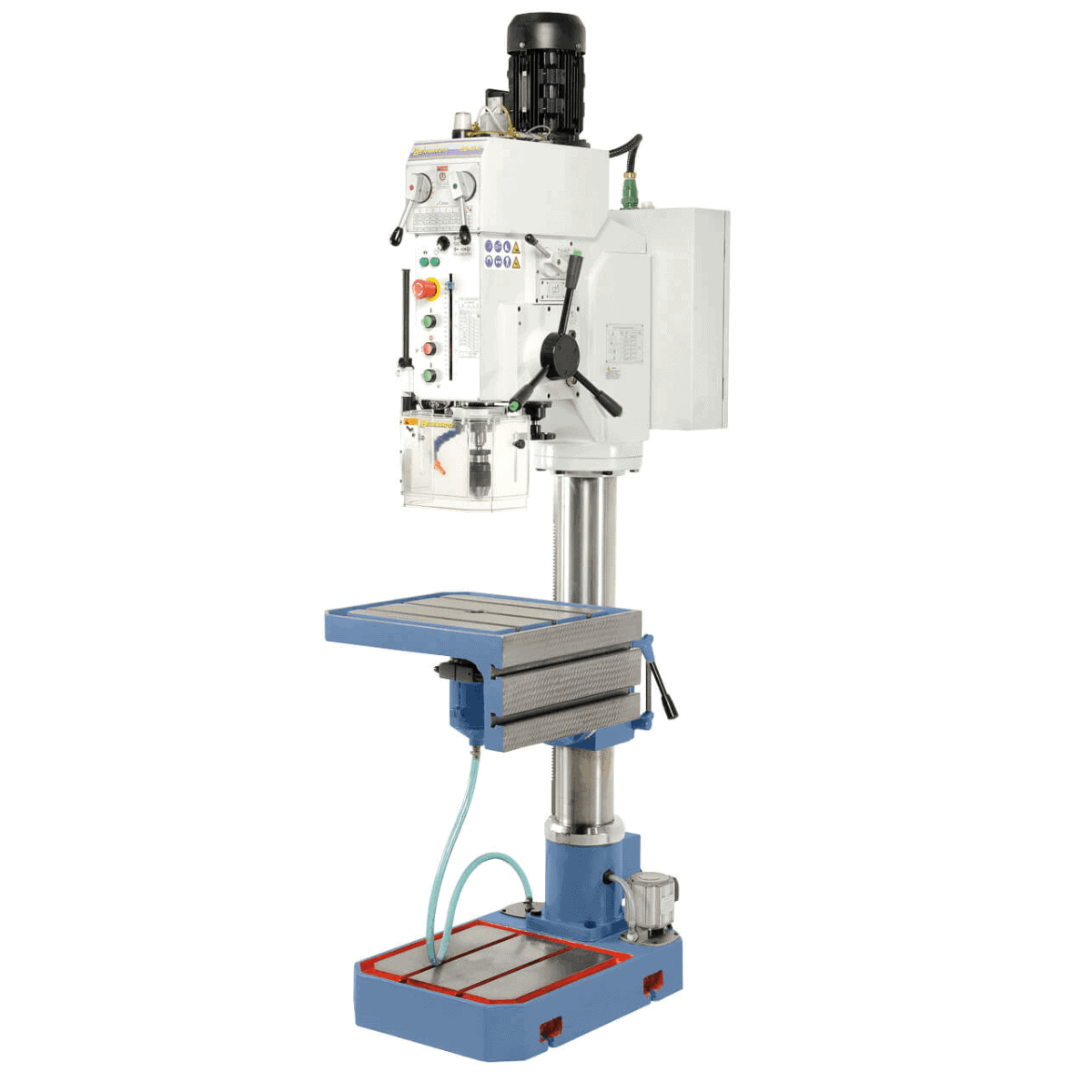

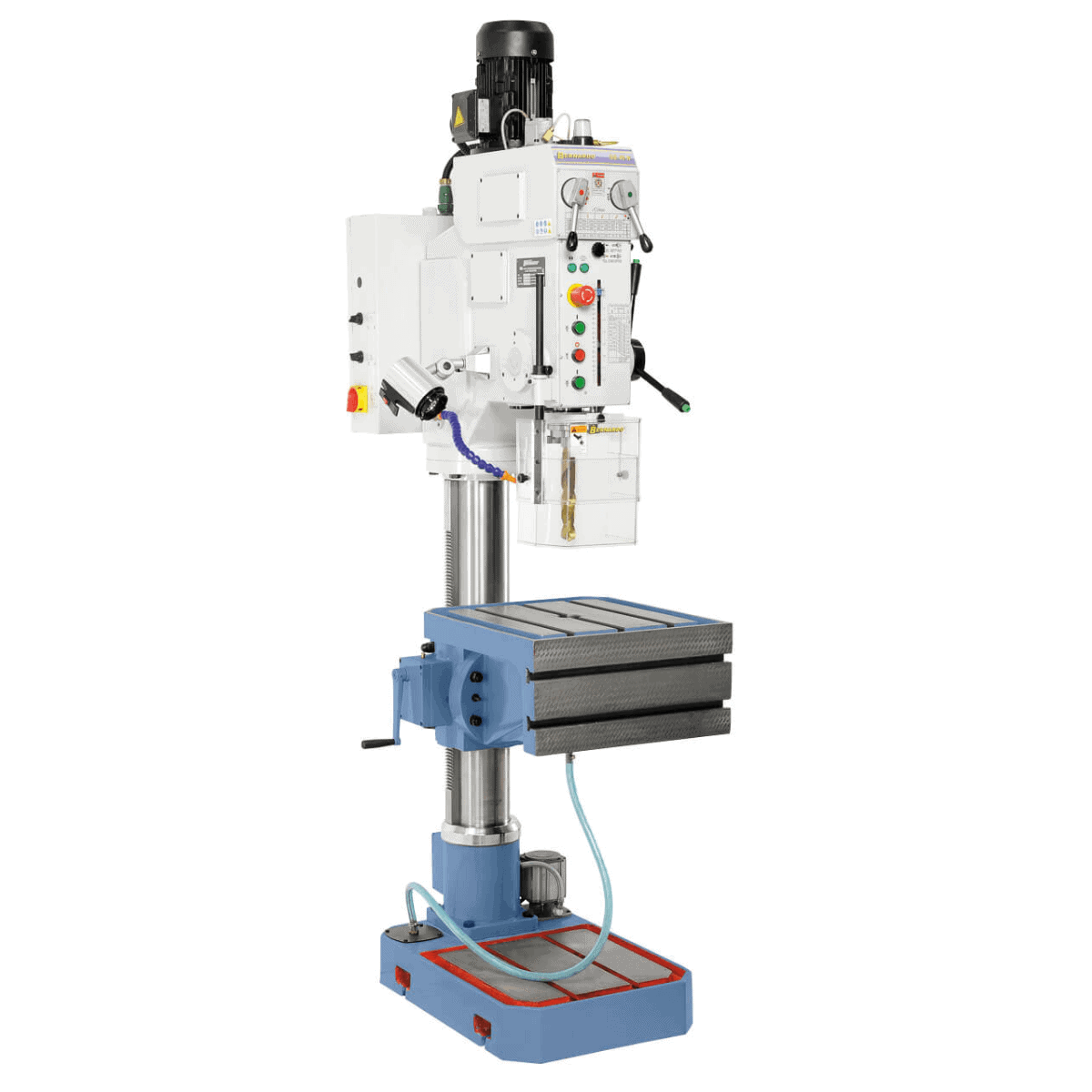

Bernardo GB 40 N geared pillar drill with swivelling table

Name: Bernardo GB 40 N geared pillar drill with swivelling table
Brand: Bernardo
SKU: 01-1292XL
Availability: InStock

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

The Bernardo GB 40 N geared drill press with rotary table is a professional-grade pillar drill with 12 speeds (75 – 2020 rpm) and a weight of 490 kg. Krollit has been the official Bernardo distributor since 2007.

Drilling capacity in steel: 40 mm
Drilling capacity in cast iron: 45 mm
Max. threading: M24
Drill chuck: 1 – 13 mm / B 16
Morse taper: MK 4
Spindle speeds: (12) 75 – 2020 rpm

Who uses the GB 40 N geared drill press with rotary table and for what

Mechanical workshops and metalworking shops use the GB 40 N geared drill press with rotary table for precision drilling on steel and cast iron, tapping with a tapping chuck, and repetitive work on various sized workpieces.

Its place in the Bernardo range

The Bernardo GB 40 N geared drill press with rotary table is part of Bernardo's range of pillar drills, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for assistance with selection.

Krollit logistics and support

Machine shipping in 5-9 working days (7 days for Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.

Who is the GB 40 N geared drill press with rotary table for?

The GB 40 N geared drill press with rotary table is recommended for the following professional profiles:

Mechanical workshops and metalworking: precision drilling on steel and cast iron, tapping with a tapping chuck.
Maintenance technicians and repair shops: repetitive drilling work on various sized workpieces.
Occasional hobby use: professional machine: for home use, consider compact benchtop models.

Technical specifications

Machining Capacity

Drilling capacity in steel	40 mm
Drilling capacity in cast iron	45 mm

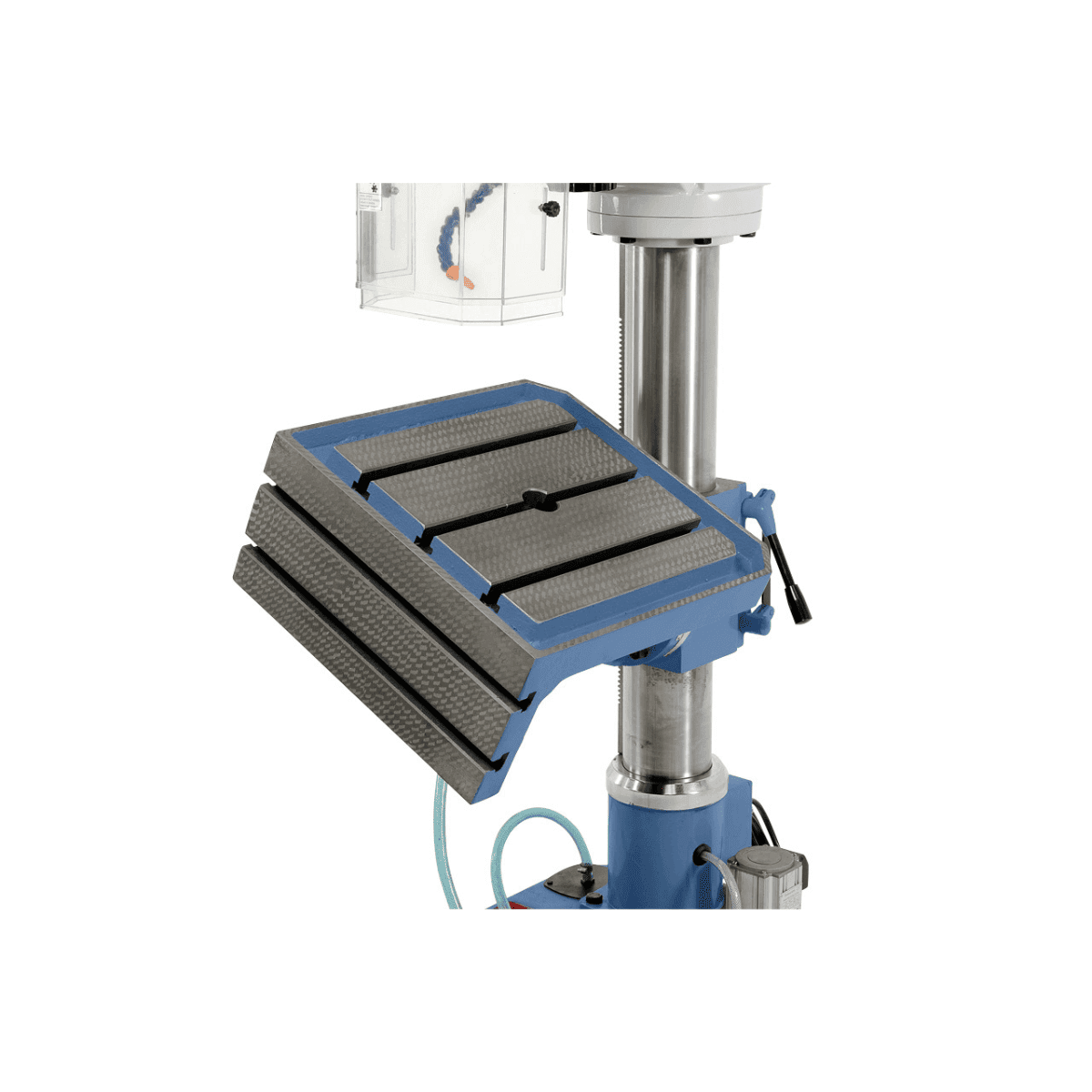

Tilting drilling table	from -45° to +45°
Quill travel	195 mm

Spindle, tools and speed

Drill chuck	1 – 13 mm / B 16
Morse taper	MK 4
Spindle speeds	(12) 75 – 2020 rpm
Max. spindle – table distance	580 mm
Spindle – base plate distance	1200 mm

Table, dimensions and geometry

Arm length	340 mm
Column diameter	140 mm
Table size / T-slot dimensions	500 x 540 mm / 18 mm
Vertical clamping surface / T-slot dimensions	500 x 240 mm / 18 mm

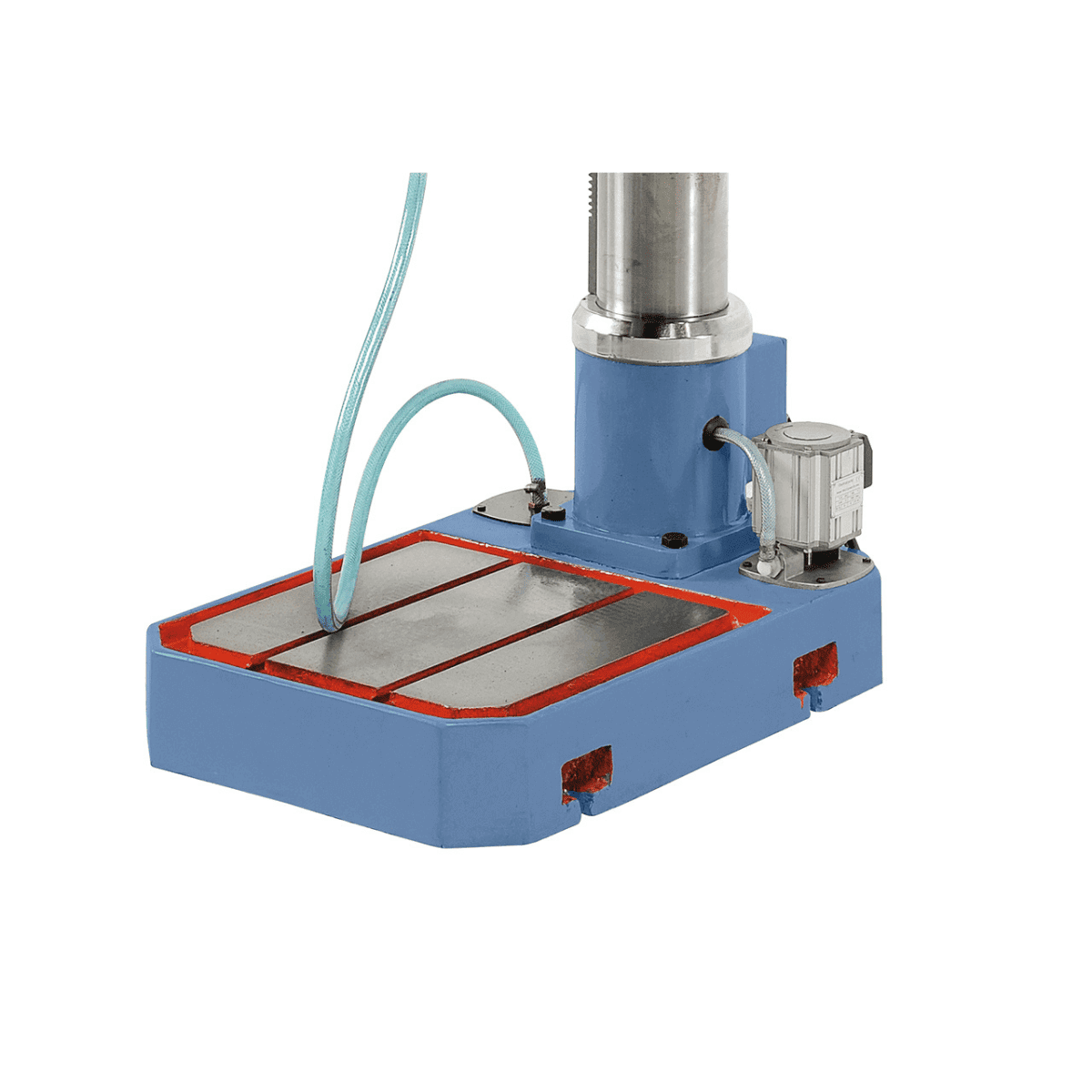

Base plate working surface	400 x 410 mm
Weight approx.	490 kg

Other specifications

Max. threading	M24
Feed range	0.12 / 0.24 / 0.40 mm/rev
Machine dimensions (L x W x H)	570 x 850 x 2230 mm
Motor input power S1 100%	1.5 kW / 400 V
Motor output power S6 40%	2.2 kW / 400 V

Included equipment

Standard equipment

Drill chuck with gear rim 1 – 13 mm / B 16
Drill arbor MK 4 / B 16

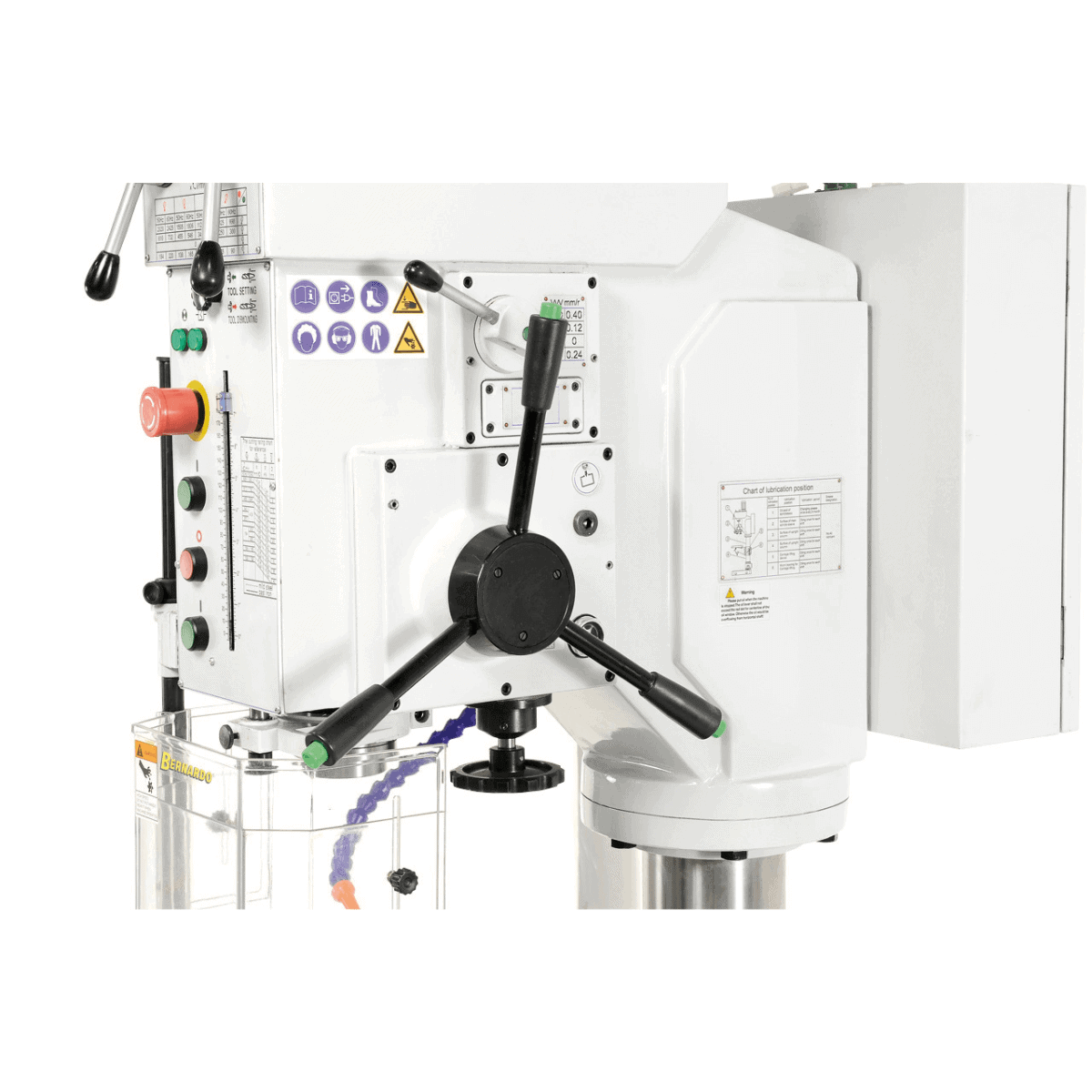

Electromagnetic spindle feed
Height-adjustable protective cover

Warranty

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

FAQ / Frequently asked questions

Frequently asked questions

What is the drilling capacity of the GB 40 N geared drill press with rotary table?

See "Drilling capacity" in the machine's technical table.

The capacity refers to standard unhardened steel. On harder materials or alloyed metals, the actual capacity may be lower: reduce speed and feed to avoid stressing the spindle and tools.

How is the spindle speed adjusted?

Via mechanical gear or belt change in stepped models, via inverter or variator in Vario models.

Vario models allow continuous adjustment, while stepped models require moving the belt to different pulleys. Correct speed selection based on drill diameter and material extends tool life.

What spindle taper and type of tools does it support?

See "Spindle taper" in the technical table: typically MT 2, MT 3, or MT 4 depending on the model.

MT (Morse Taper) connections are international standards, and accessories (arbors, keyless chucks, reductions) are commonly available on the market. Krollit supplies original Bernardo accessories.

Does the drill allow tapping with a tapping chuck?

Only models with standard right/left rotation allow tapping with automatic tap release.

Check the "Right/left rotation" or "Threading" specification: drills without mechanical reversal are not suitable for repetitive tapping.

What is the machine's weight and what installation does it require?

Weight varies from approximately 25 kg (compact benchtop) to over 250 kg (Profi industrial models).

Benchtop models are installed on a sturdy bench, while pillar or radial drills require floor mounting with expansion anchors for stability during drilling.
