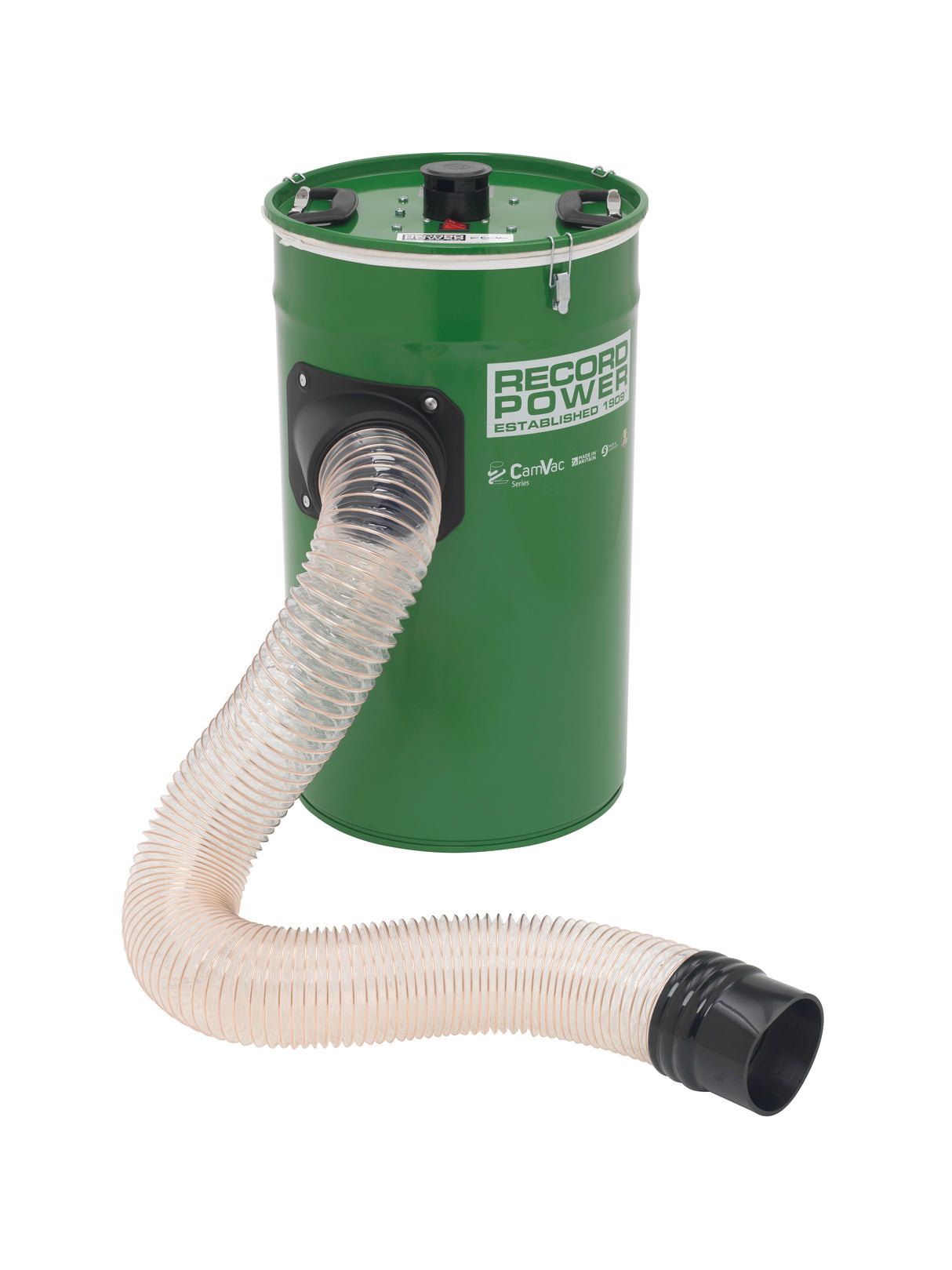

The Record Power CGV336-3 is a professional dust extractor with an airflow of 54 litres/second and a weight of 10.5 kg. Krollit, official Record Power distributor since 2007.
- UK Code: 104790
- EU Code: 104800
- Collection capacity: 55 litres
- Motor: 1 kW
- Airflow: 54 litres/second
- Filtration: 0.5 micron
Who uses the CGV336-3 and what for
Woodworking shops and mechanical workshops use the CGV336-3 for extracting chips and dust from saws, planers, milling machines, and sanders, with the possibility of connection to centralized systems.
Its place in the Record Power range
The Record Power CGV336-3 is part of the Record Power dust extractor range, distributed in Italy by Krollit since 2007. The Record Power range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Record Power catalog on Krollit or contact customer support for assistance with selection.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Italian customer support available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the CGV336-3 for?
The CGV336-3 is recommended for the following professional profiles:
-
Woodworking shops and mechanical workshops: extraction of chips and dust from saws, planers, milling machines, and sanders.
-
Production laboratories and machining centers: connectable to centralized systems or individual machines with flexible hose.
Not suitable for: extraction of liquids or hazardous materials (machine for dry dusts: specific vacuum cleaners are needed for liquids).
Technical specifications
| UK Code |
104790 |
| EU Code |
104800 |
| Airflow |
54 litres/second |
| Filtration |
0.5 micron |
| Inlet diameter |
4″ (100 mm) |
| Sound level with cover |
73.6 dB |
| Sound level with hose |
68.7 dB |
| Collection capacity |
55 litres |
| Weight |
10.5 kg |
| Dimensions (L × W × H) |
355 × 355 × 680 mm |
| Motor |
1 kW |
Frequently Asked Questions
What airflow does the CGV336-3 offer?
See "Airflow" in the technical table: typically 1,000-5,000 m³/h for workshop use.
The flow rate determines the number of machines that can be connected simultaneously. For centralized systems with multiple stations, size with a 30% margin.
What hose diameter does it require?
See "Connection diameter" in the table: typically Ø100, Ø120 or Ø150 mm.
Larger diameters reduce pressure losses and improve efficiency. For systems with long runs (over 10 m), prefer Ø150 mm.
Bag/container capacity?
See "Container capacity" in the technical table: typically 70-300 litres.
Bags must be emptied before they become saturated to maintain suction flow. Models with large bags reduce intervention frequency.
Fine dust filtration?
Professional models offer fine filtration with class M or H for respirable dusts.
For treated wood and MDF panels, class M or higher is recommended. Krollit supplies original replacement filters.
What is its power consumption?
See "Motor power" in the technical table: typically 1-7 kW.
Models above 3 kW require 400 V three-phase. Check availability in the workshop.
