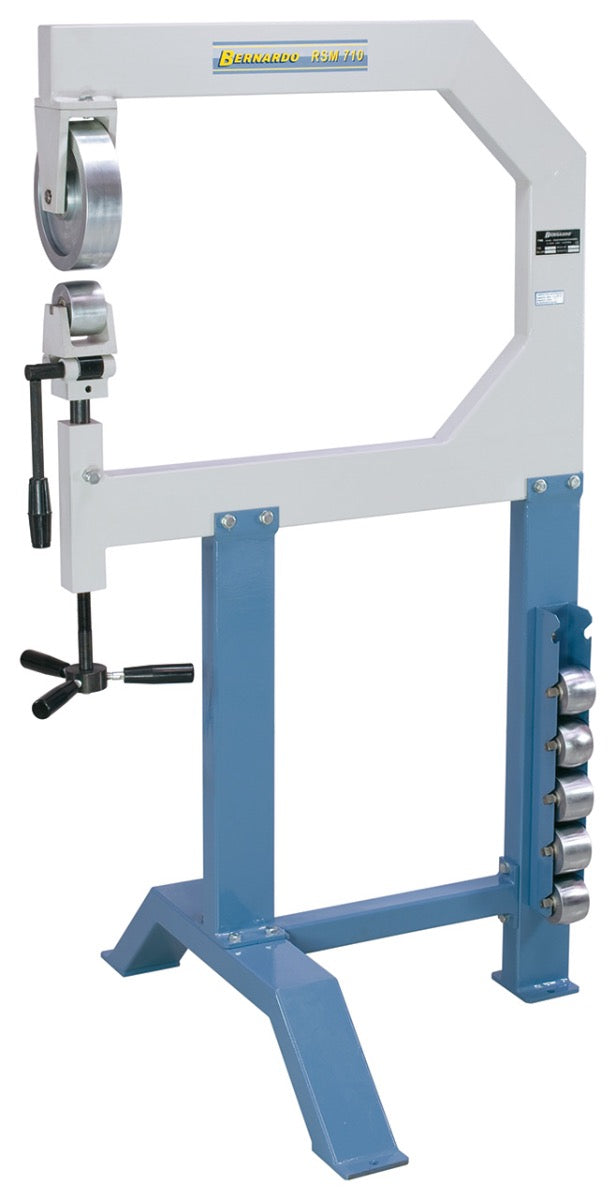

Bernardo English Wheel RSM 710 – 6 Forming Rollers
The Bernardo English Wheel RSM 710 is designed for professional sheet metal fabrication, ideal for body shops, prototyping, and restoration. Equipped with 6 interchangeable forming rollers and a 202 x 51 mm diameter upper roller, it allows for uniform curves and precise radii. The quick-release mechanism for the lower roller facilitates tool changes, increasing productivity. With a 710 mm throat depth and a 515 mm working area height, it can shape large panels. The machine handles sheets up to 1.2 mm steel (400 N/mm²) and 1.5 mm aluminum, maintaining precision and control. Thanks to its solid structure and a weight of 74 kg, it ensures stability and reliability in every application. A versatile solution for craftsmen and metalworking professionals.
Key Specifications

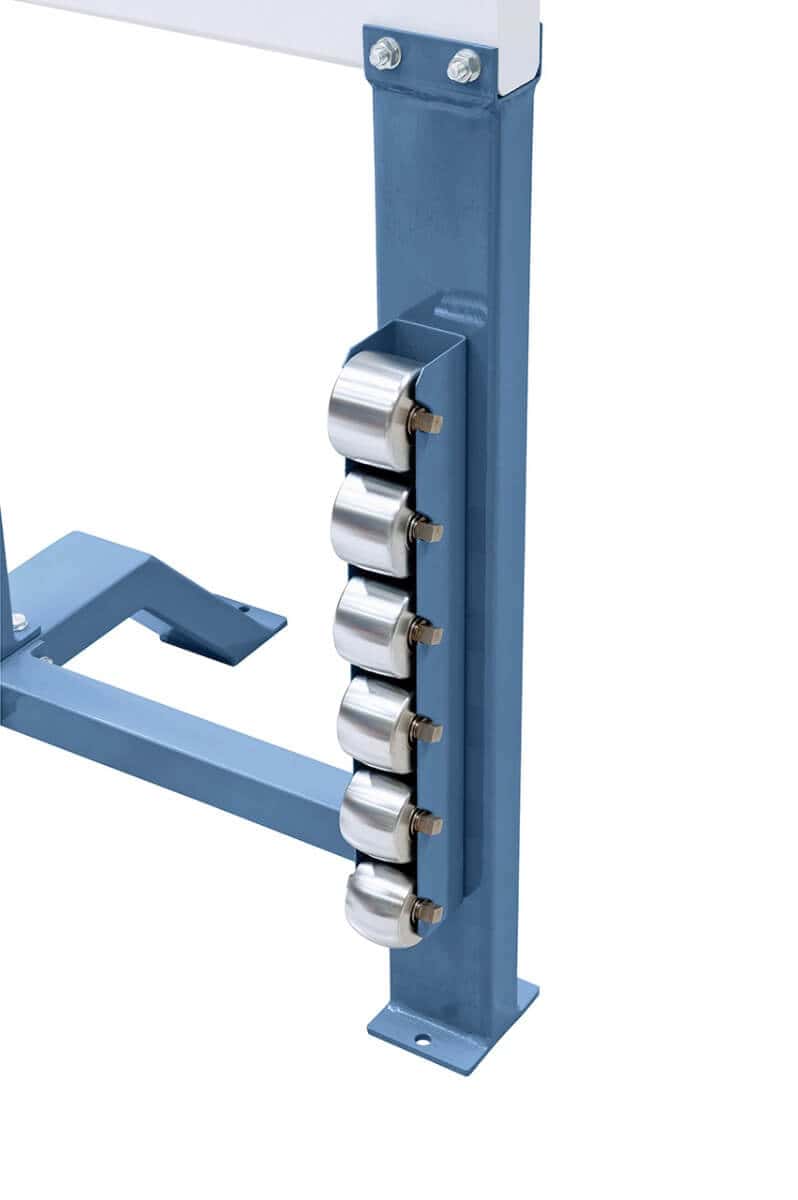

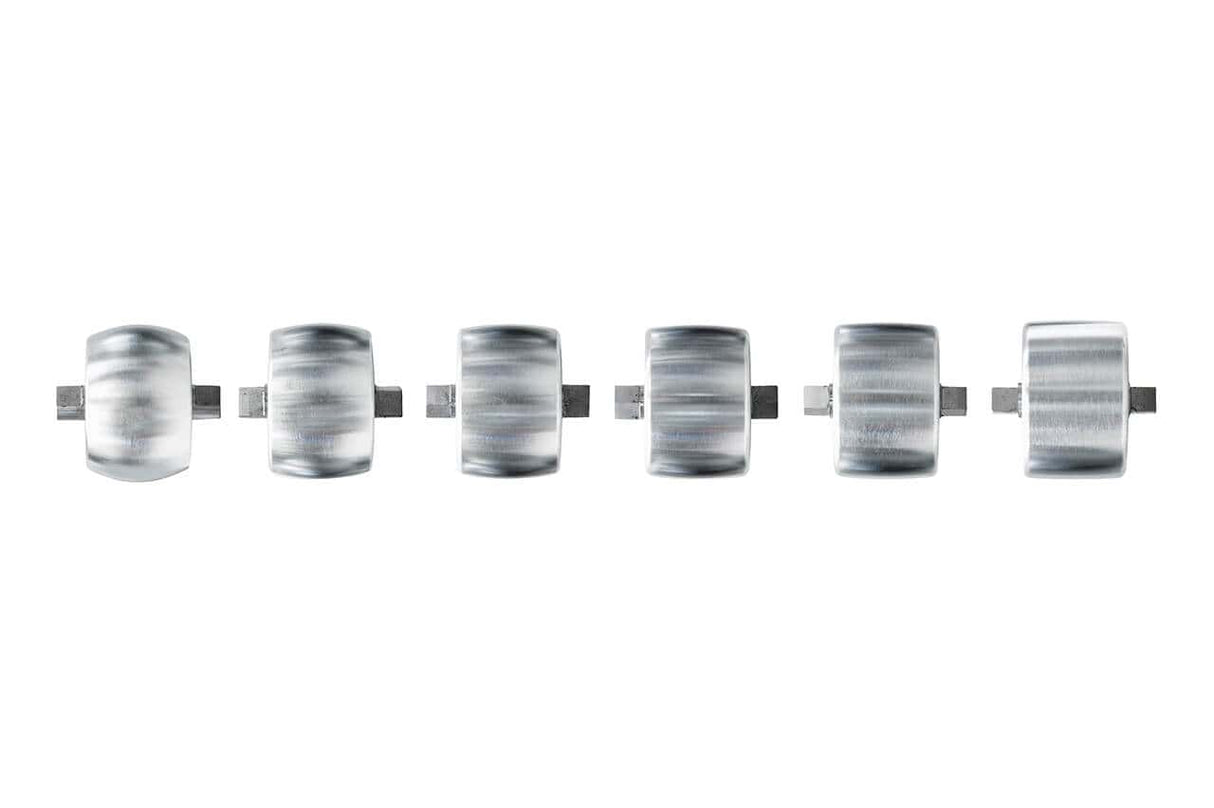

⚙️ 6 interchangeable forming rollers
🔄 Upper roller Ø 202 × 51 mm

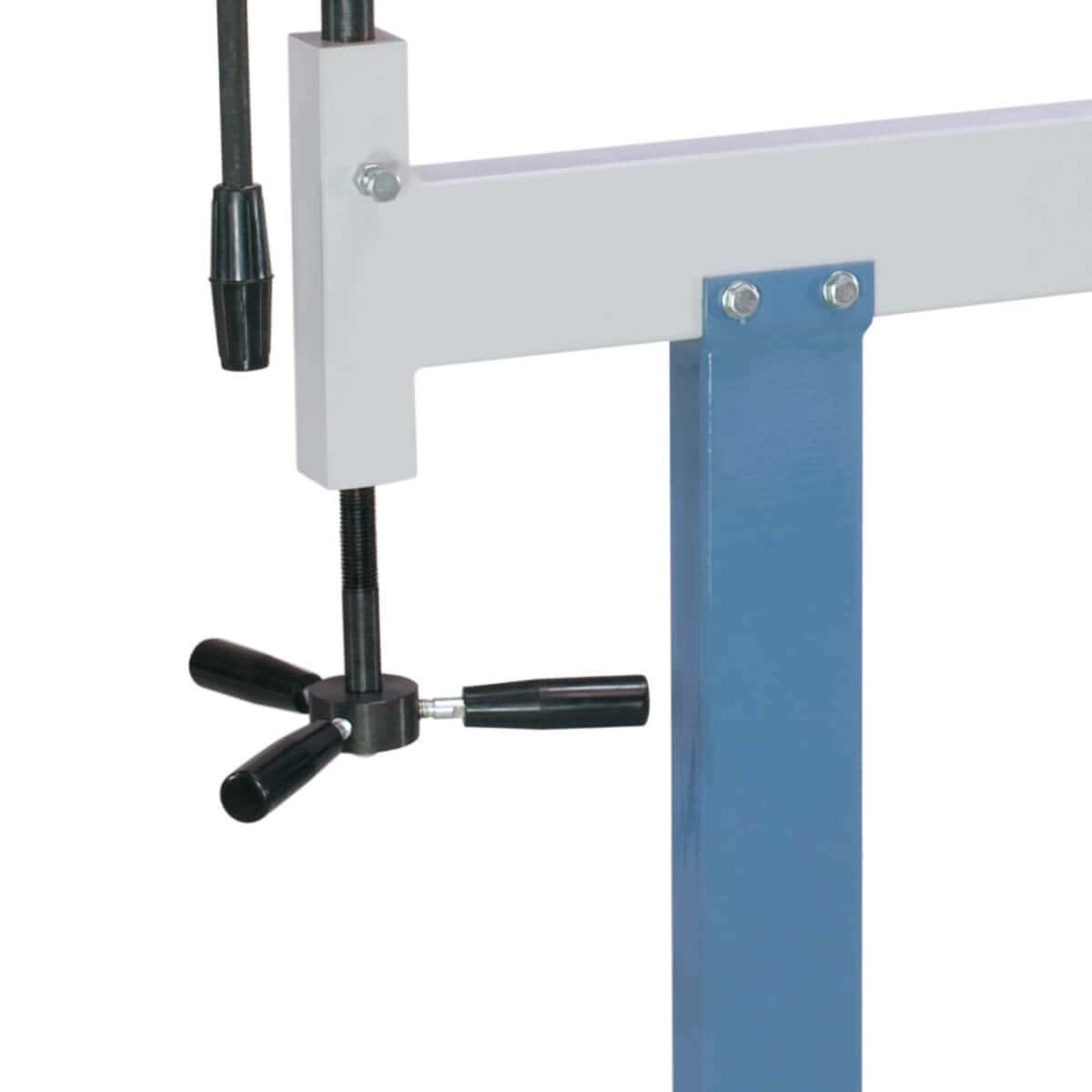

🚀 Quick-release lower roller mechanism
📏 Working throat depth 710 mm
⬆️ Working area height: 515 mm
🪙 Max capacity: 1.2 mm steel / 1.5 mm aluminum
Robust and stable structure, weight 74 kg
📐 Compact dimensions: 900 × 870 × 1530 mm
Technical Table
| Specification |
Value |
| Brand |
Bernardo |
| Model |
RSM 710 |
| Number of rollers |
6 forming + 1 upper |
| Upper roller |
Ø 202 × 51 mm |
| Throat depth |
710 mm |
| Working area height |
515 mm |
| Max steel thickness (400 N/mm²) |
1.2 mm |
| Max aluminum thickness |
1.5 mm |
| Mechanism |
Quick-release lower roller |
| Machine dimensions |
900 × 870 × 1530 mm |
| Weight |
approx. 74 kg |
Package contents:
Bernardo English Wheel RSM 710
6 interchangeable forming rollers
Mounted upper roller
User manual
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support available in Italian.
Frequently Asked Questions
What is an English wheel and what is it used for?
An English wheel is a machine for forming sheet metal with a double curvature: two opposing rollers (upper and lower) press the sheet metal, which is moved back and forth, progressively creating domed surfaces such as fenders, hoods, body panels, and boat hulls. It is the fundamental machine for artisan bodywork and the construction of aluminum components with complex surfaces.
What is the difference between RSM 450, RSM 560, RSM 700, RSM 830, RSM 960, RSM 1040, and RSM 1100?
The number indicates the effective working width in mm — that is, the maximum distance between the centers of the rollers where the sheet metal can be worked. The RSM 450 (450 mm) is the most compact for small pieces; the RSM 1100 (1100 mm) is the largest for standard-sized body panels. The choice depends on the maximum width of the panels to be formed.
What sheet metal thicknesses can the RSM series work with?
In aluminum: up to 1.5–2.0 mm depending on the model. In mild steel: up to 1.0–1.5 mm. For thicker sheets, the required force increases significantly — check the specific model's limits in the technical table. The RSM 1100 × 1.5 indicates a width of 1100 mm with a 1.5-inch diameter lower roller.
Are replacement rollers available?
Original spare parts available with 3–5 business days shipping. Customer support available in Italian.
Is specific training required to use an English wheel?
Yes. Forming with an English wheel requires technique and practice: the tension of the sheet metal, the direction, and the pressure of the passes determine the final shape. An inexperienced operator can create irregular undulations that are difficult to correct. It is advisable to start on scrap material to gain confidence before working on final pieces.
