Bernardo | SKU: 09-11084

Bernardo TK 315 P / 2000 Panel Saw - 400 V

Name: Bernardo TK 315 P / 2000 Panel Saw - 400 V
Brand: Bernardo
SKU: 09-11084
Price: 3560.77 EUR
Availability: InStock

€3.560,77 (22% VAT incl.)

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

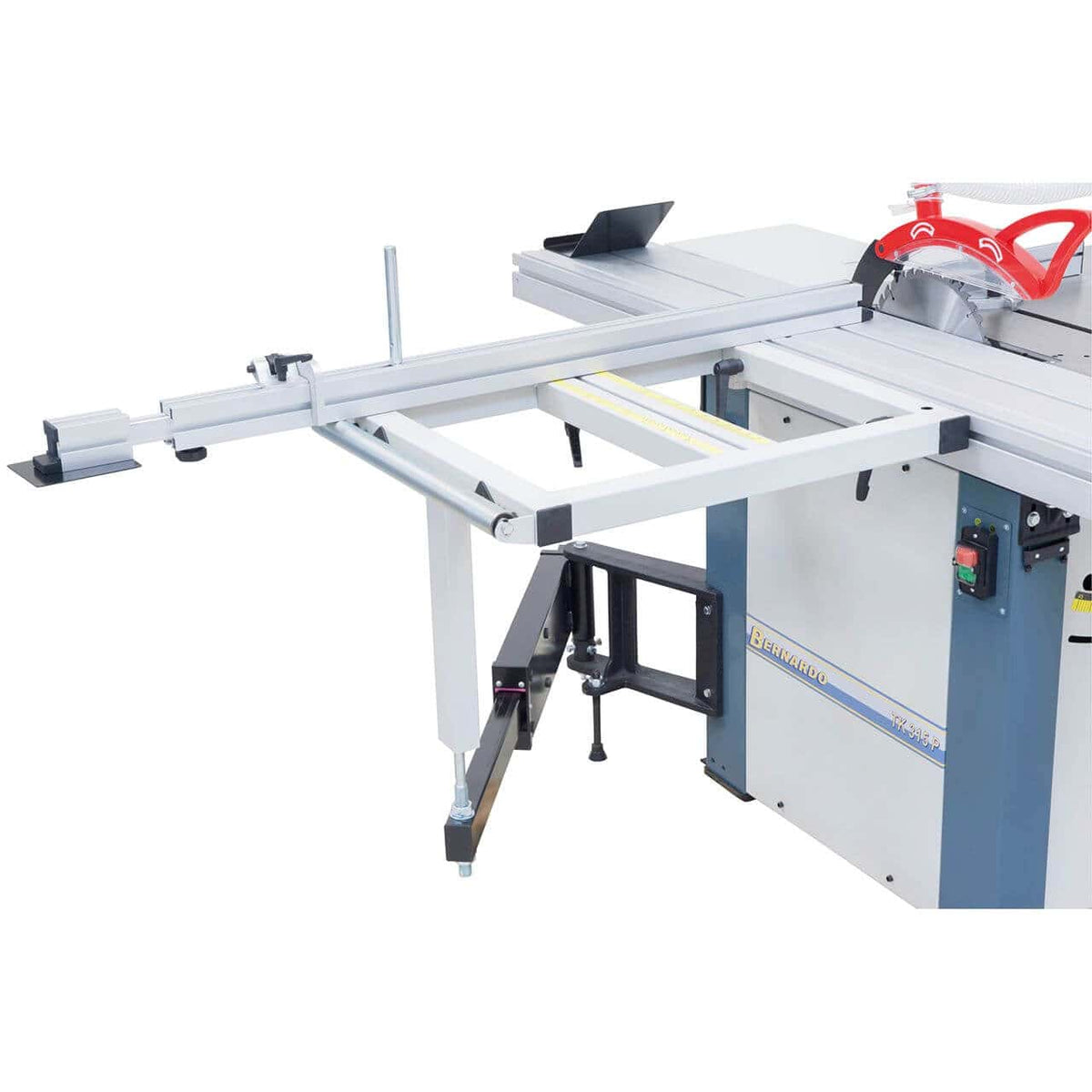

The Bernardo TK 315 P / 2000 - 400 V is a professional woodworking panel saw with a 3.0 kW (4.0 HP) motor and a weight of 258 kg. Krollit, an official Bernardo distributor since 2007.

Table size: 825 x 800 mm
Sliding carriage: 2000 x 270 mm
Cutting length: 2000 mm
Max blade diameter: 315 x 30 mm
Max. cutting height 90° / 45°: 100 / 80 mm
Cutting width on parallel fence: 1240 mm

Who uses the TK 315 P / 2000 - 400 V and for what

Professional carpenters use the TK 315 P / 2000 - 400 V for squaring panels with a sliding carriage, cutting chipboard, MDF, and solid wood panels.

Its place in the Bernardo range

The Bernardo TK 315 P / 2000 - 400 V is part of the Bernardo panel saw range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for assistance with selection.

Logistics and Krollit support

Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.

Who is the TK 315 P / 2000 - 400 V for

The TK 315 P / 2000 - 400 V is recommended for the following professional profiles:

Professional carpenters: squaring panels with a sliding carriage for precise 90° cuts.
Furniture factories and window/door manufacturers: cutting chipboard, MDF, and solid wood panels.

Not suitable for: processing metal sheets (machine dedicated to wood: specific shears and saws are needed for metal).

Technical specifications

Processing capacity

Cutting length	2000 mm
Max. cutting height 90° / 45°	100 / 80 mm
Cutting width on parallel fence	1240 mm

Spindle, tools and speed

Max blade diameter	315 x 30 mm
Blade speed	4000 rpm
Scoring blade speed	5800 rpm
Scoring blade	90 x 20 mm

Table, dimensions and geometry

Table size	825 x 800 mm
Table height	870 mm
Table extension	500 x 310 mm
Machine dimensions (L x W x H)	2000 x 2870 x 1140 mm
Approx. weight	258 kg

Motor and power supply

Motor power (S1 100%)	3.0 kW (4.0 HP)
Motor power (S6 40%)	4.2 kW (5.7 HP)
Voltage	400 V

Other specifications

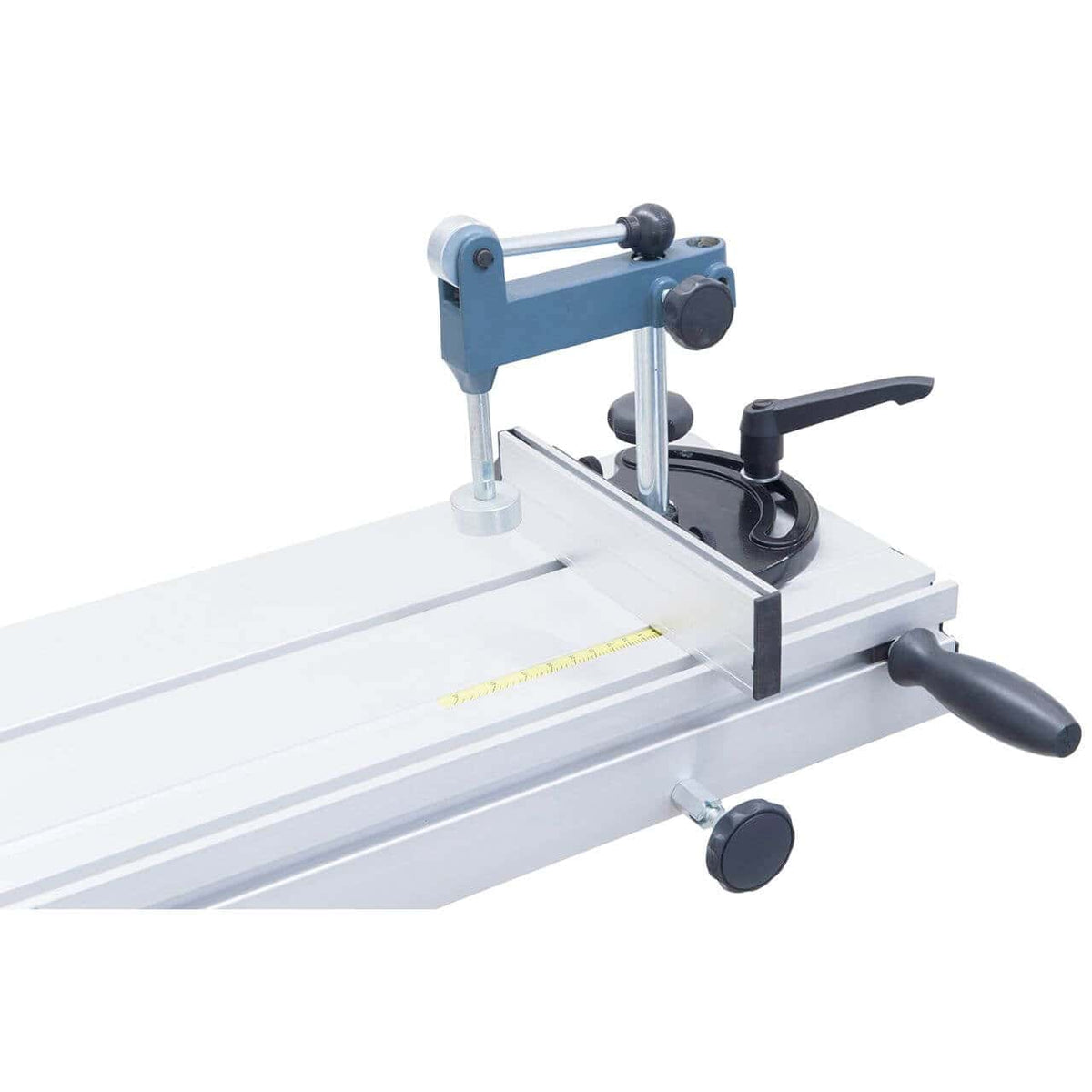

Sliding carriage	2000 x 270 mm

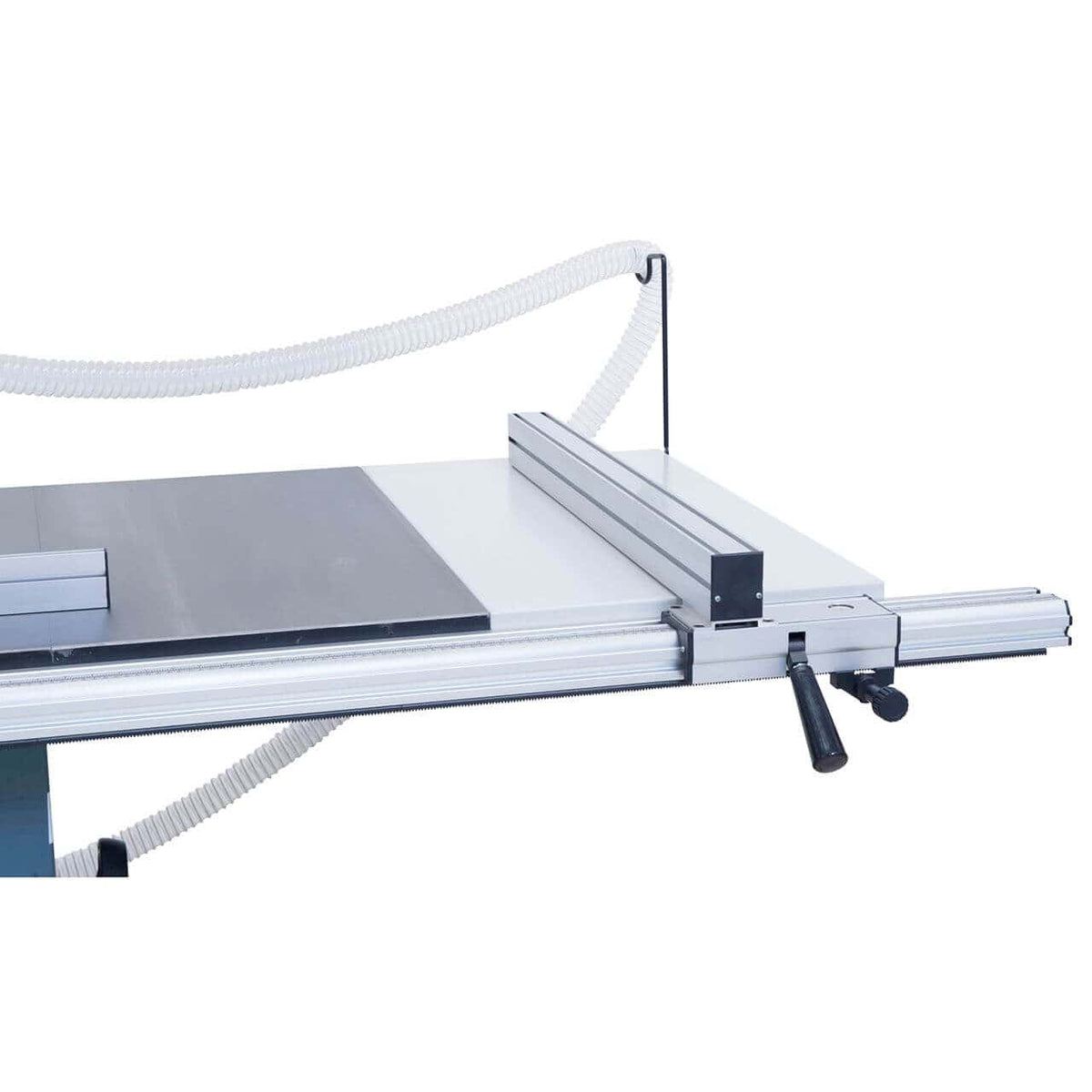

Table widening	800 x 440 mm

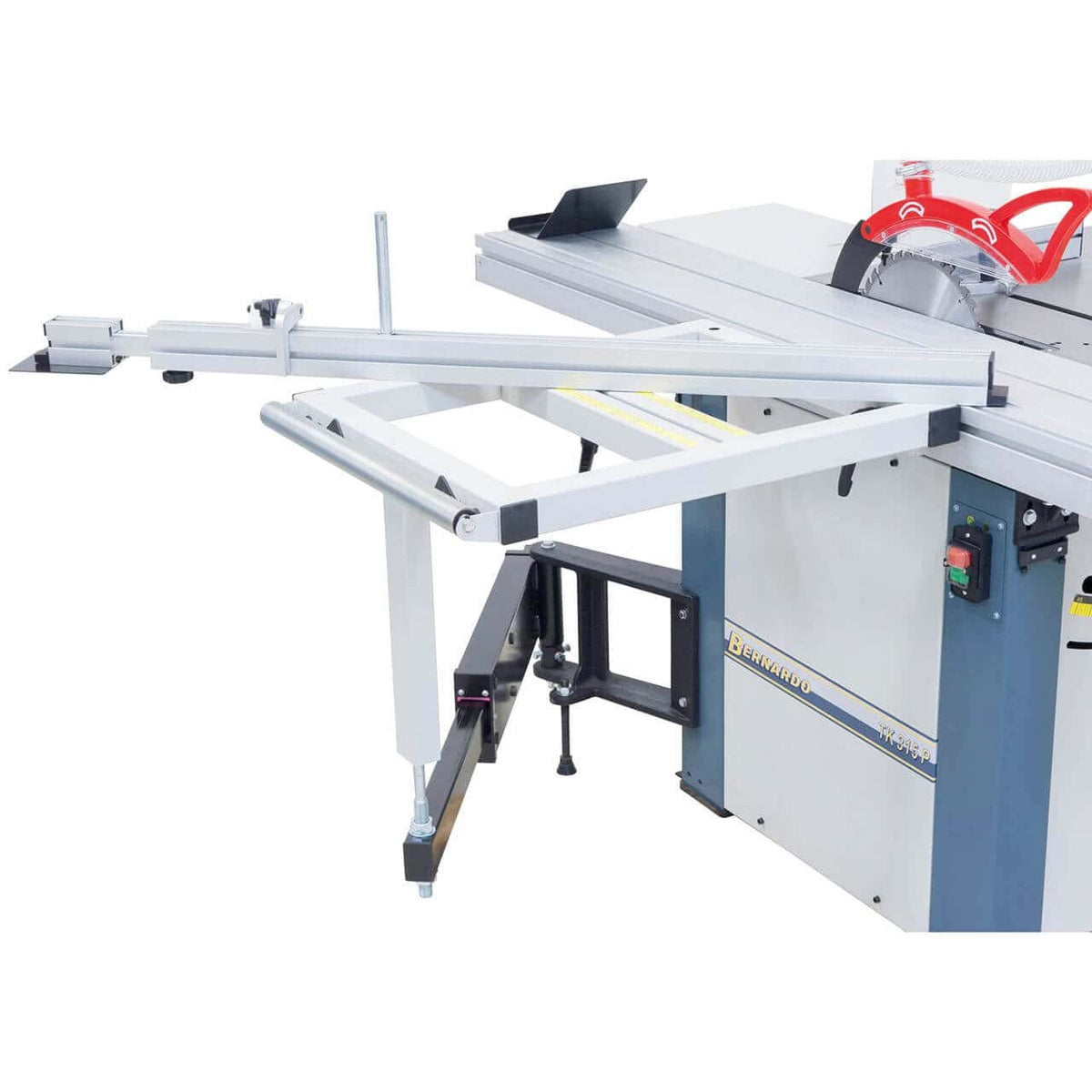

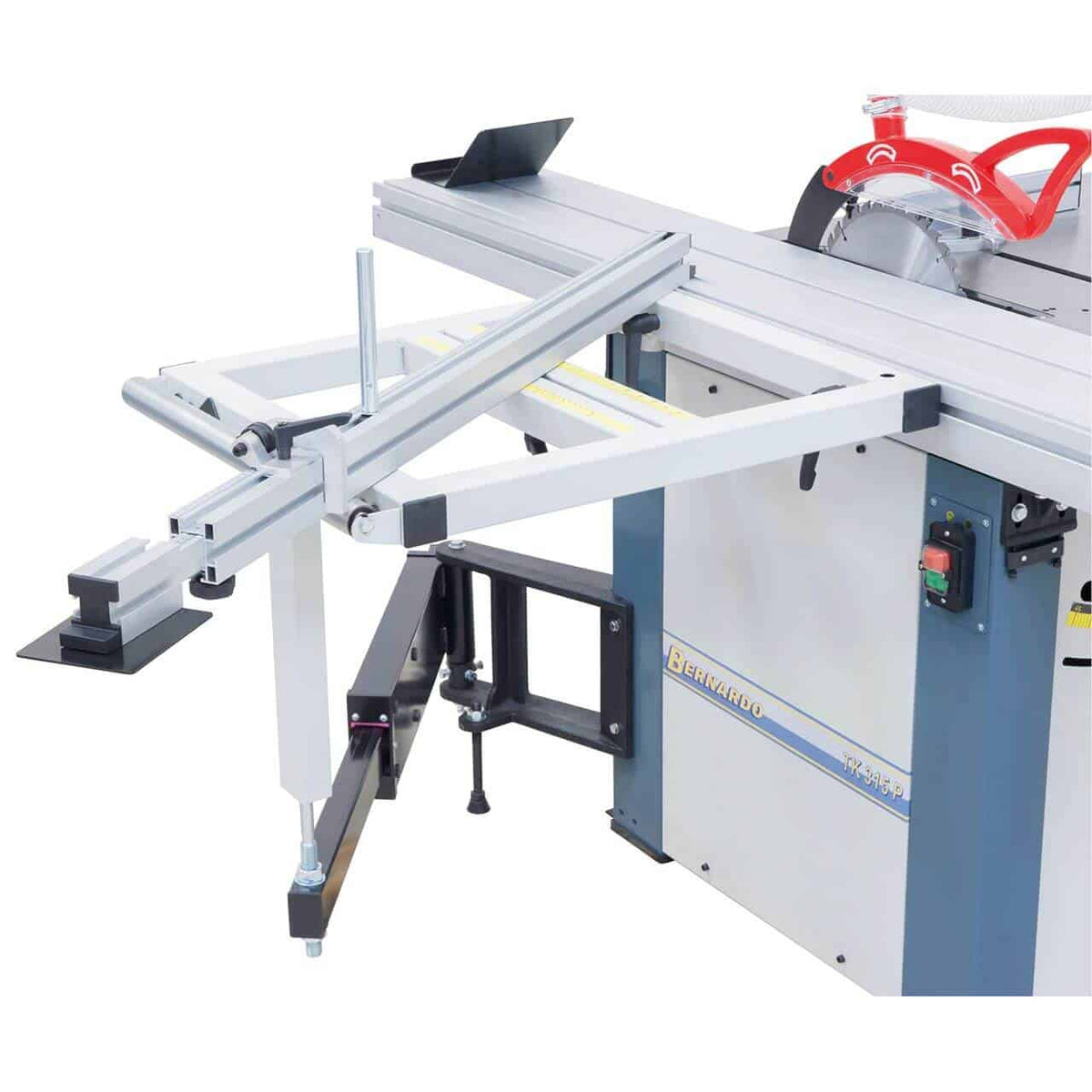

Squaring table with roller	700 x 580 mm
Suction outlet	Ø 100 mm

Warranty

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

FAQ / Frequently asked questions

Frequently asked questions

What panel dimensions can it square?

See "Carriage size" and "Useful carriage length" in the technical table.

Professional sliding carriages measure 2,000-3,200 mm. For longer panels, larger industrial panel saws are needed.

Does it have a scoring saw for coated panels?

Professional models offer a scoring saw as standard or optional to prevent chipping on MDF and laminates.

The scoring saw performs a preliminary surface cut before the main cut, eliminating the problem of chipping on the visible side of the panel.

What cutting height and angle does it offer?

See "Max cutting height" and "Blade tilt" in the technical table.

The blade tilt (typically 0-46°) allows for 45° cuts for joints and chamfered edges. Check the useful height at 45°, which is less than the maximum at 90°.

Power supply and power requirements?

Professional panel saws require 400 V three-phase with motors from 4 to 7 kW.

Check the capacity of the electrical line and the presence of a dedicated residual current device.

How much does the machine weigh?

From 200 kg to over 800 kg for industrial models complete with long carriage.

Installation requires a flat and level floor. For continuous use, fixing with anchors is recommended for stability in more demanding operations.
