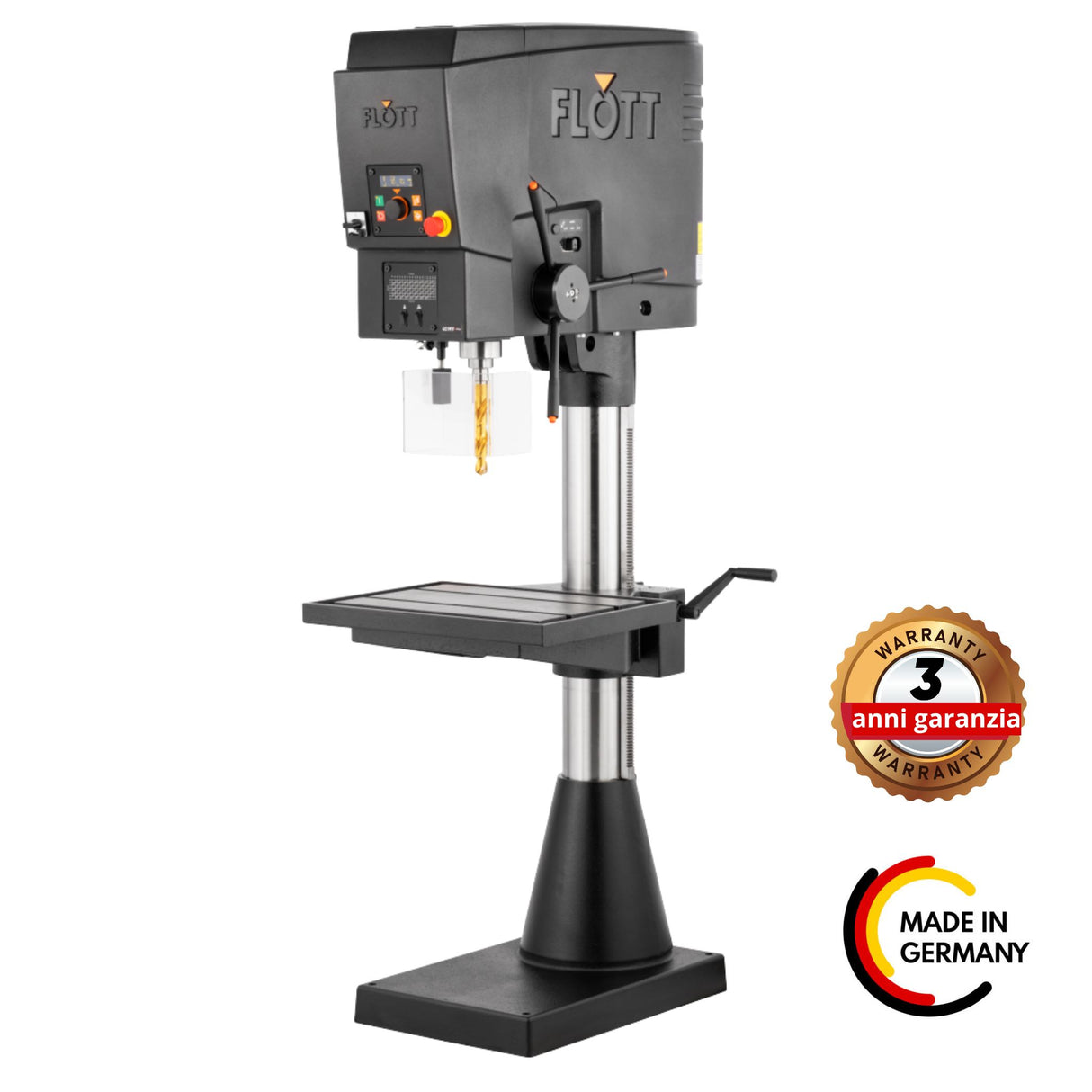

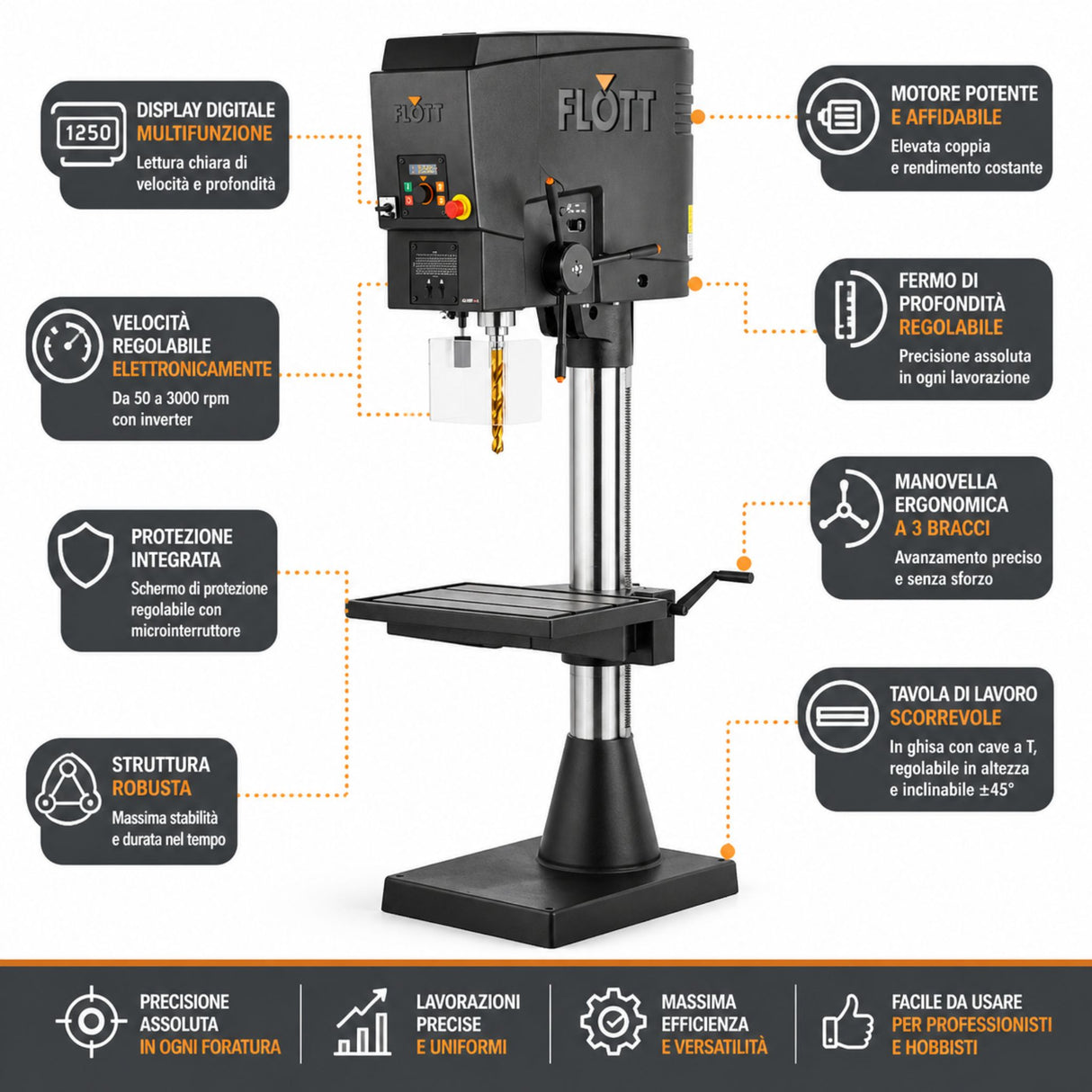

The Flott SB 40 MV Plus is a professional-grade pillar drill, weighing 400–420 kg. Krollit has been an official Flott distributor since 2007.
- Max tapping capacity: R1: M30 – R2: M24 – R3: M36
- Drilling depth: 160 mm
- Column-to-spindle distance: 300 mm
- Column diameter: 140 mm
- Work table: 590 x 450 mm
- Feed: 0.10 / 0.16 / 0.25 mm/rev
Who uses the SB 40 MV Plus and for what
Mechanical workshops and metalworking shops use the SB 40 MV Plus for precision drilling on steel and cast iron, tapping with a tap holder, and repetitive work on various-sized parts.
Its place in the Flott range
The Flott SB 40 MV Plus is part of the Flott pillar drill range, distributed in Italy by Krollit since 2007. The Flott range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Flott catalog on Krollit or contact customer support for assistance with selection.
Krollit Logistics and Support
Machine shipping in 5-9 working days (7 days for Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Italian-speaking customer support available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the SB 40 MV Plus for?
The SB 40 MV Plus is recommended for the following professional profiles:
-
Mechanical workshops and metalworking shops: precision drilling on steel and cast iron, tapping with a tap holder.
-
Maintenance personnel and repair workshops: repetitive drilling work on various-sized parts.
-
Occasional hobbyist use: professional machine; for home use, consider compact benchtop models.

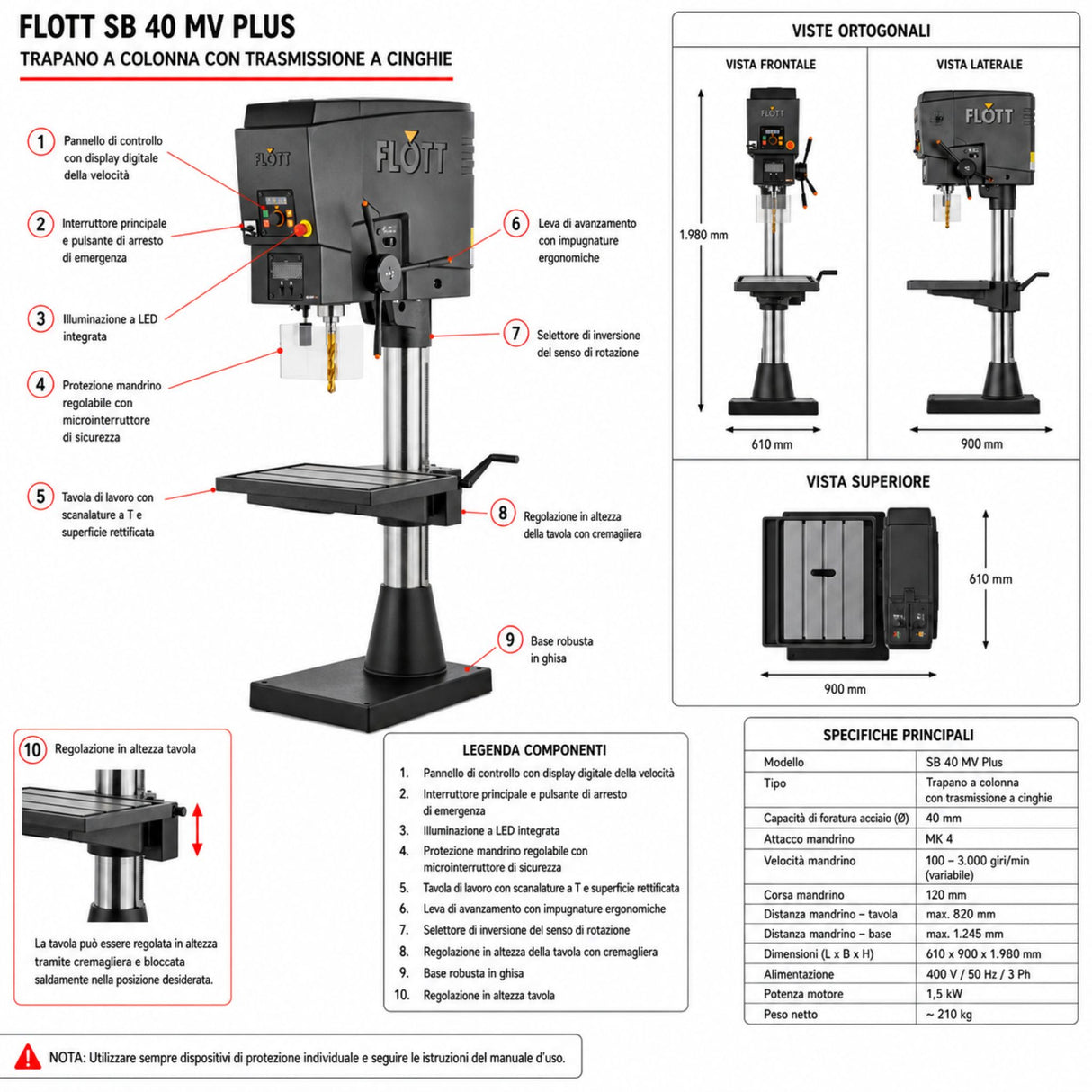

Working capacity
| Drilling depth |
160 mm |
| Spindle travel / working space |
150–700 mm |
| Drilling capacity |
R1: 30/35 mm – R2: 27/32 mm – R3: 35/40 mm |
Spindle, tools and speed
| Column-to-spindle distance |
300 mm |
| Speed R1 |
0–1,000 rpm |
| Speed R2 |
0–1,600 rpm |
| Speed R3 |
0–4,000 rpm |
| Spindle taper |
MK IV |
Table, dimensions and geometry
| Column diameter |
140 mm |
| Work table |
590 x 450 mm |
| Dimensions without VP |
610 x 900 x 1,980 mm |
| Dimensions with VP |
670 x 1,100 x 2,200 mm |
| Weight |
400–420 kg |
Other specifications
| Max tapping capacity |
R1: M30 – R2: M24 – R3: M36 |
| Feed |
0.10 / 0.16 / 0.25 mm/rev |
| Warranty |
3 years |
| Item Codes |
R1: 230.535 – R2: 230.536 – R3: 230.537 |
| Mild steel (S235) |
3.183 |
| Medium steel (C45) |
2.546 |
| Hard steel (42CrMo4) |
1.592 |
| Grey cast iron (GG25) |
2.653 |
| Aluminum (alloy) |
8.488 |
| Brass (CuZn39Pb3) |
5.836 |
| Copper |
4.775 |
| Bronze |
3.395 |
| Mild steel (S235) |
3.714 |
| Medium steel (C45) |
3.183 |
| Hard steel (42CrMo4) |
1.910 |
| Grey cast iron (GG25) |
3.183 |
| Aluminum (alloy) |
10.080 |
| Brass (CuZn39Pb3) |
6.897 |
| Copper |
5.517 |
| Bronze |
4.244 |
| Mild steel (S235) |
0.06 |
| Medium steel (C45) |
0.05 |
| Hard steel (42CrMo4) |
0.04 |
| Grey cast iron (GG25) |
0.08 |
| Aluminum (alloy) |
0.09 |
| Brass (CuZn39Pb3) |
0.09 |
| Copper |
0.08 |
| Bronze |
0.07 |
| Mild steel (S235) |
25-35 |
| Medium steel (C45) |
20-28 |
| Hard steel (42CrMo4) |
12-18 |
| Grey cast iron (GG25) |
20-30 |
| Aluminum (alloy) |
60-100 |
| Brass (CuZn39Pb3) |
40-70 |
| Copper |
35-55 |
| Bronze |
25-40 |
| Mild steel (S235) |
0.11 |
| Medium steel (C45) |
0.09 |
| Hard steel (42CrMo4) |
0.06 |
| Grey cast iron (GG25) |
0.09 |
| Aluminum (alloy) |
0.17 |
| Brass (CuZn39Pb3) |
0.13 |
| Copper |
0.11 |
| Bronze |
0.08 |
| Up to 10 mm |
TB 10 Plus |
| Up to 13 mm |
TB 13 Plus |
| Up to 15 mm |
TB 15 Plus |
| Up to 18 mm |
SB 18 Plus |
| Up to 20 mm |
SB 23 Plus |
| Up to 25 mm |
SB 25 Plus R1 |
| Up to 32 mm |
SB 30 Plus |
| Up to 40 mm |
SB 40 MV Plus |
| M2 |
0.4 |
| M2.5 |
0.45 |
| M3 |
0.5 |
| M4 |
0.7 |
| M5 |
0.8 |
| M6 |
1 |
| M7 |
1 |
| M8 |
1.25 |
| M10 |
1.5 |
| M12 |
1.75 |
| M14 |
2 |
| M16 |
2 |
| M18 |
2.5 |
| M20 |
2.5 |
| M22 |
2.5 |
| M24 |
3 |
| M27 |
3 |
| M30 |
3.5 |
| M6x0.75 |
0.75 |
| M8x0.75 |
0.75 |
| M8x1 |
1 |
| M10x1 |
1 |
| M10x1.25 |
1.25 |
| M12x1 |
1 |
| M12x1.25 |
1.25 |
| M12x1.5 |
1.5 |
| M14x1.5 |
1.5 |
| M16x1 |
1 |
| M16x1.5 |
1.5 |
| M18x1.5 |
1.5 |
| M18x2 |
2 |
| M20x1.5 |
1.5 |
| M20x2 |
2 |
| M22x1.5 |
1.5 |
| M22x2 |
2 |
| M24x2 |
2 |
| Motor |
4.0 kW – 400 V – with inverter |
Frequently Asked Questions
What is the drilling capacity of the SB 40 MV Plus?
See the "Drilling capacity" data in the machine's technical table.
The capacity refers to standard, unhardened steel. For harder materials or alloys, the actual capacity may be lower: reduce speed and feed to avoid stressing the spindle and tools.
How is the spindle speed adjusted?
Via mechanical belt or gear change in stepped models, via inverter or variator in Vario models.
Vario models allow continuous adjustment, while stepped models require moving the belt to different pulleys. Correct speed selection based on drill bit diameter and material extends tool life.
What spindle taper and type of tools does it support?
See "Spindle taper" in the technical table: typically MT 2, MT 3 or MT 4 depending on the model.
MT (Morse Taper) tapers are international standards, and accessories (arbors, keyless chucks, reducers) are commonly available on the market. Krollit supplies original Bernardo accessories.
Does the drill allow tapping with a tap holder?
Only models with standard right/left rotation allow tapping with automatic tap release.
Check the "Right/left rotation" or "Tapping" specification: drills without mechanical reversal are not suitable for repetitive tapping.
What is the machine's weight and what installation does it require?
The weight varies from approximately 25 kg (compact bench models) to over 250 kg (Profi industrial models).
Bench models are installed on a sturdy workbench, while pillar or radial models require floor mounting with expansion anchors for stability during drilling.
