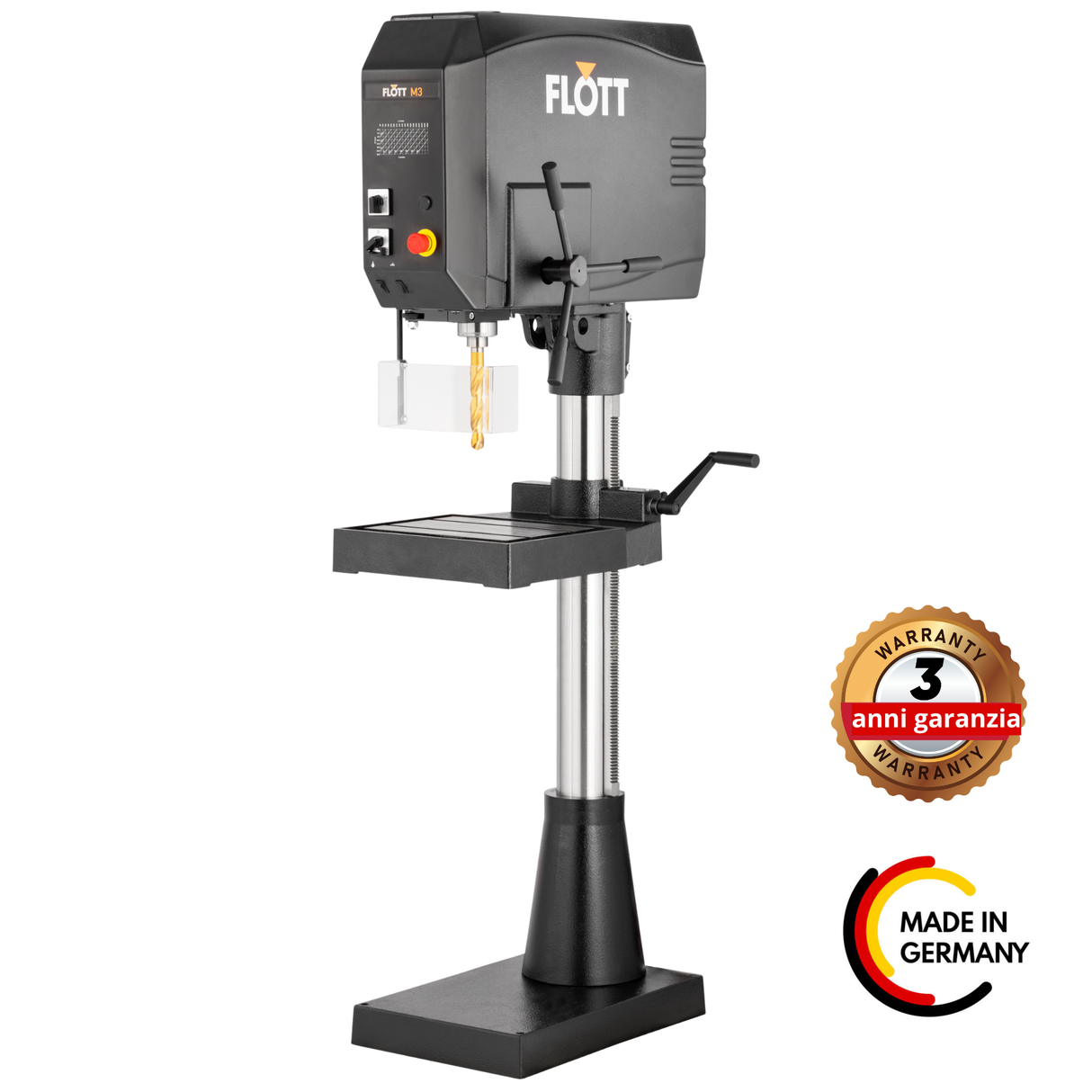

Flott SB M3 ST is a professional pillar drill, weighing 275 kg. Krollit, official Flott distributor since 2007.
- Drilling steel: 25/30 mm (E335/ST60)
- Threading: M20
- Spindle stroke: 125 mm
- RPM indication: Mechanical scale
- Variable speed: 125–4000 rpm
- Motor: Three-phase 400 V – 0.9/1.45 kW – multi-pole
Who uses the SB M3 ST and for what
Mechanical workshops and metalworking shops use the SB M3 ST for precision drilling on steel and cast iron, tapping with a tapping chuck, and repetitive work on parts of various sizes.
Its place in the Flott range
The Flott SB M3 ST is part of the Flott pillar drill range, distributed in Italy by Krollit since 2007. The Flott range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Flott catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who the SB M3 ST is for
The SB M3 ST is recommended for the following professional profiles:
-
Mechanical workshops and metalworking shops: precision drilling on steel and cast iron, tapping with a tapping chuck.
-
Maintenance personnel and repair shops: repetitive drilling work on parts of various sizes.
-
Occasional hobbyist use: professional machine; for domestic use, consider compact bench models.
Machining capacity
| Drilling steel |
25/30 mm (E335/ST60) |
| Spindle stroke |
125 mm |
| Depth indication |
Scale |
| Depth stop |
With fine adjustment |
Spindle, tools, and speed
| Variable speed |
125–4000 rpm |
| Spindle-column distance |
280 mm |
| Spindle-table distance |
240–790 mm |
| Spindle taper |
MK III |
| Speed ranges |
Stage 1: 125–2000 rpm – Stage 2: 250–4000 rpm |
Table, dimensions, and geometry
| Column diameter |
110 mm |
| Work surface |
420 x 340 mm |
| Weight |
275 kg |
| Machine dimensions |
520 x 820 x 1900 mm |
| Packaging dimensions |
670 x 1100 x 2140 mm |
Other specifications
| Threading |
M20 |
| RPM indication |
Mechanical scale |
| Warranty |
12 months |
| Motor |
Three-phase 400 V – 0.9/1.45 kW – multi-pole |
Frequently Asked Questions
What is the drilling capacity of the SB M3 ST?
See the "Drilling capacity" data in the machine's technical table.
The capacity refers to standard unhardened steel. On harder materials or alloyed steels, the actual capacity may be lower: reduce speed and feed to avoid stressing the spindle and tools.
How is the spindle speed adjusted?
Via mechanical belt or gear change in stepped models, via inverter or variator in Vario models.
Vario models allow continuous adjustment, while stepped models require moving the belt to different pulleys. Correct speed selection based on drill diameter and material prolongs tool life.
What spindle taper and type of tools does it support?
See "Spindle taper" in the technical table: typically MT 2, MT 3, or MT 4 depending on the model.
MT (Morse Taper) tapers are international standards, and accessories (arbors, keyless chucks, reductions) are commonly available on the market. Krollit supplies original Bernardo accessories.
Does the drill allow threading with a tapping chuck?
Only models with standard right/left rotation allow threading with automatic tap release.
Check the "Right/left rotation" or "Threading" specification: drills without mechanical reversal are not suitable for repetitive tapping.
What is the weight of the machine and what installation does it require?
The weight varies from approximately 25 kg (compact bench models) to over 250 kg (Profi industrial models).
Bench models are installed on a sturdy workbench, while pillar or radial models require floor mounting with expansion anchors for stability during drilling.
