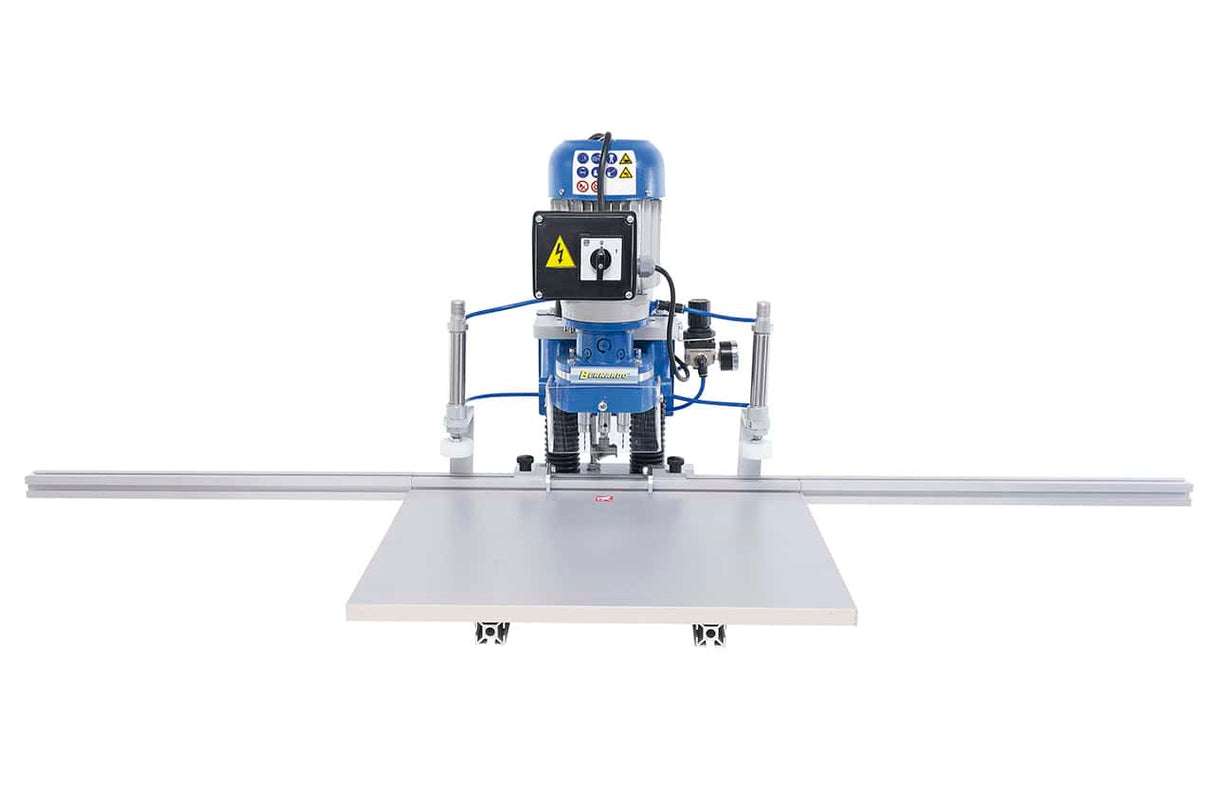

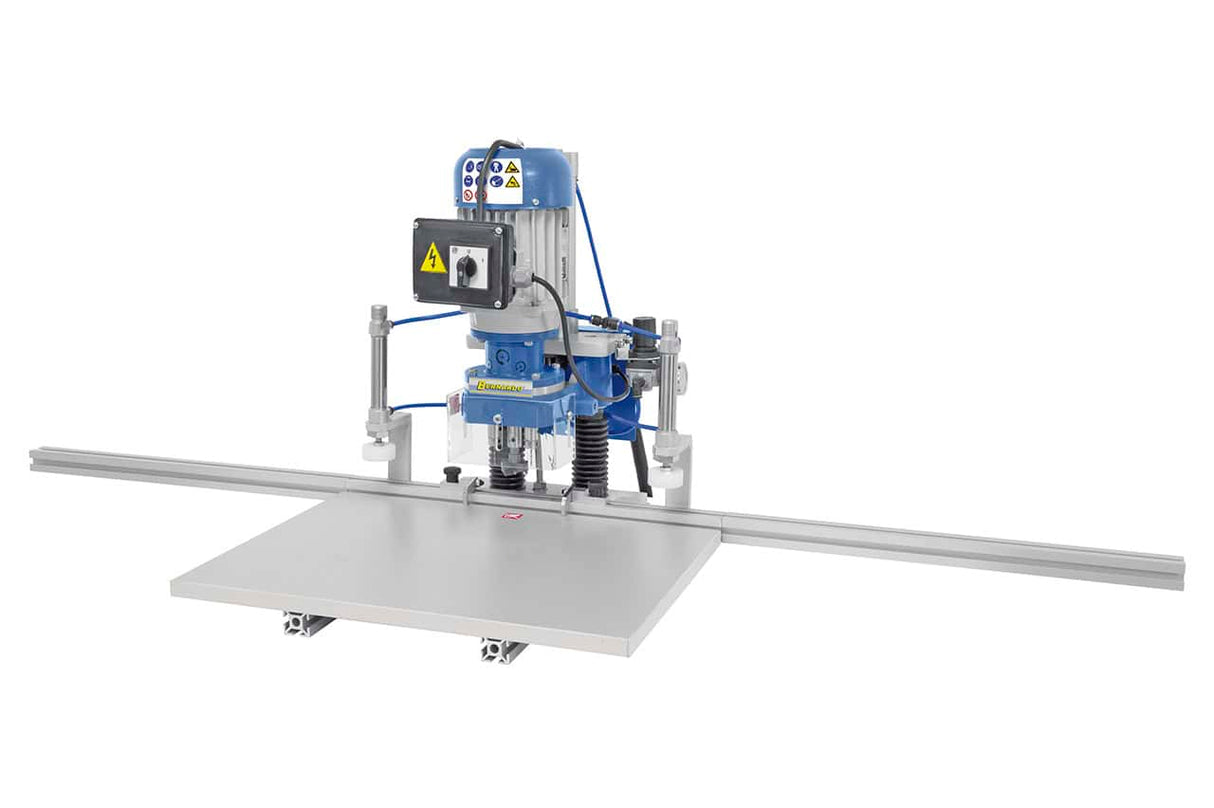

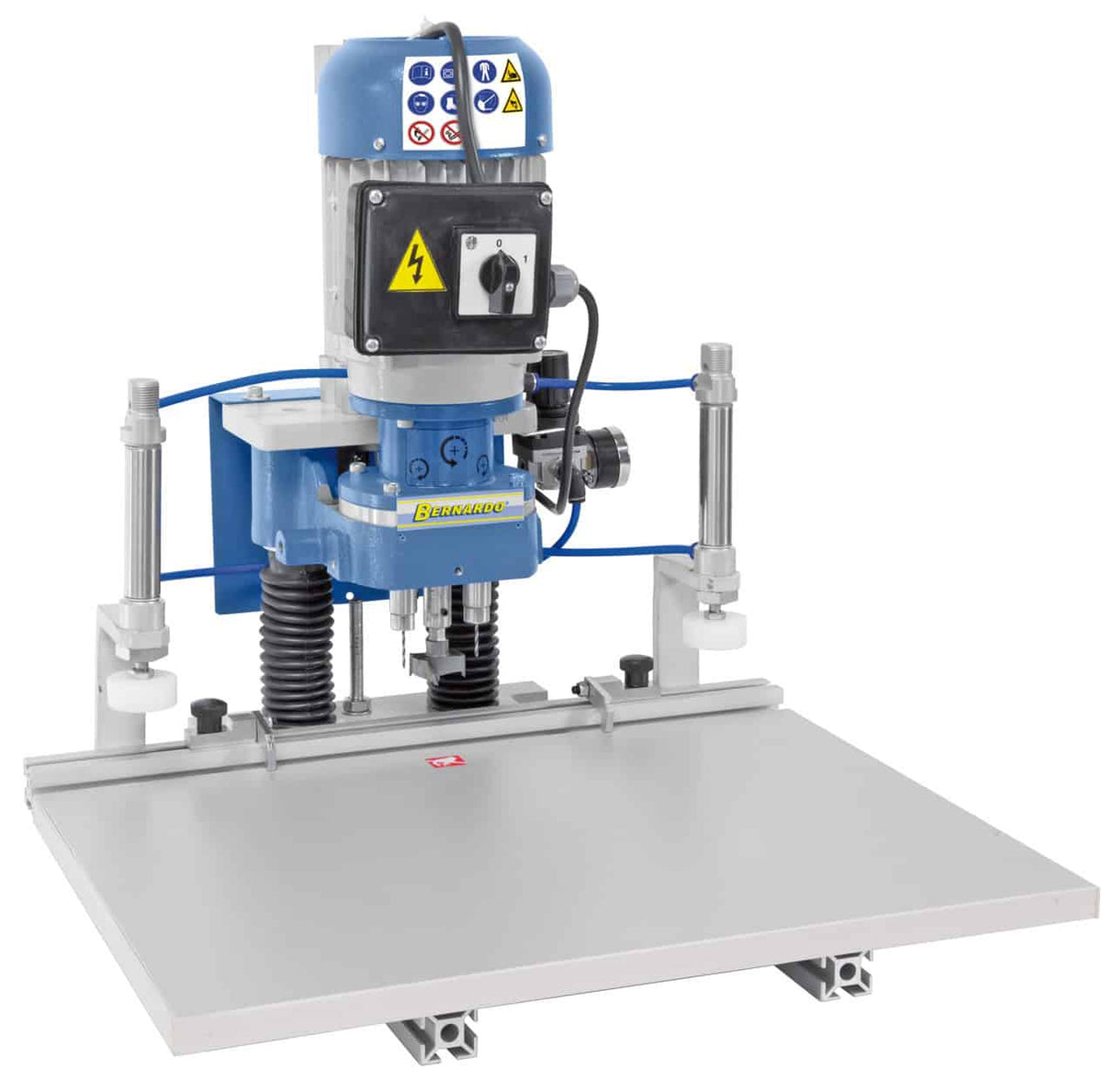

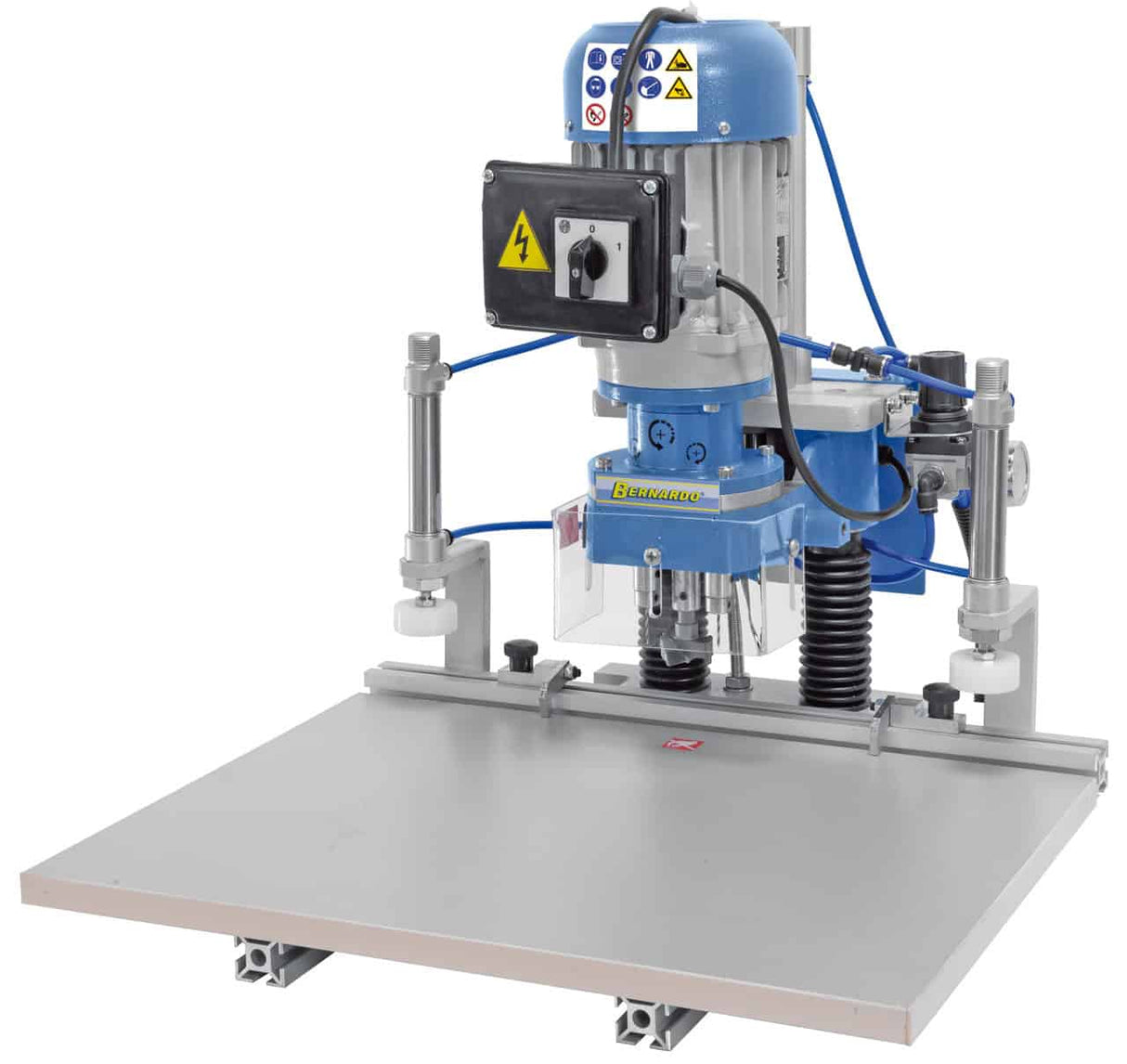

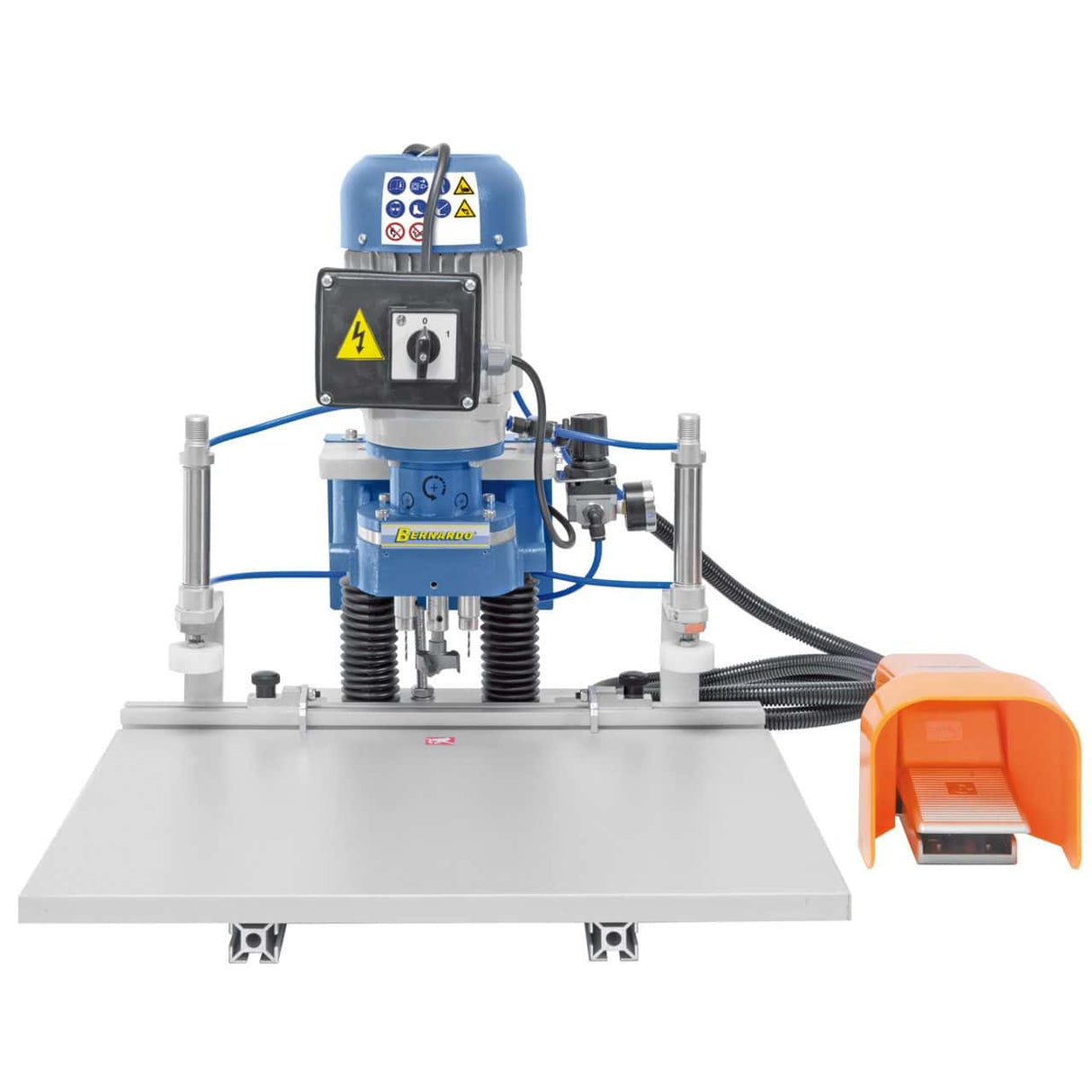

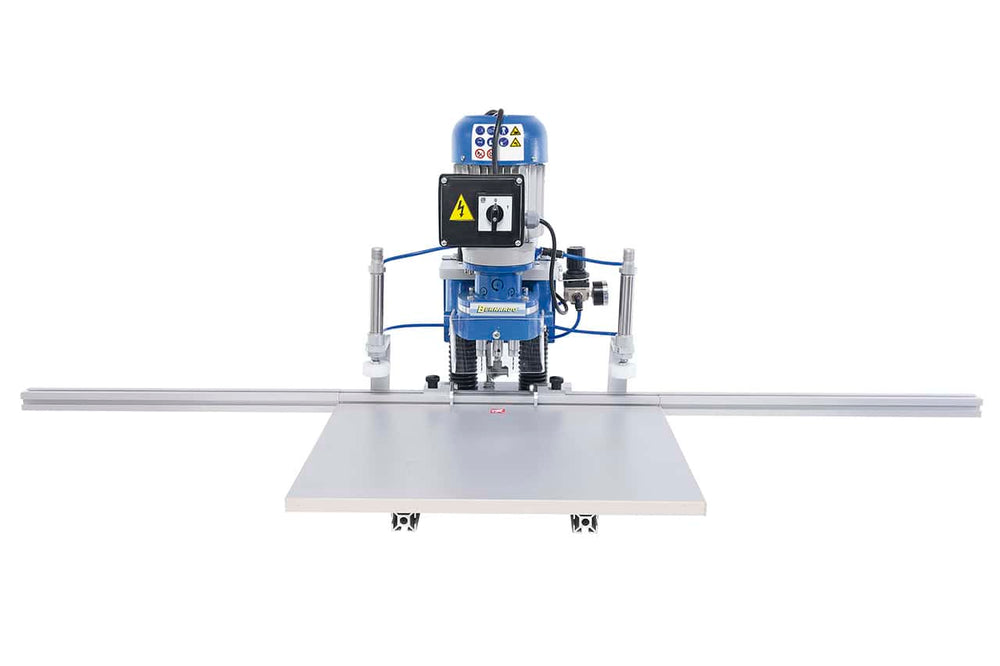

The Bernardo Blum Hinge Boring Machine BBM 35 P is a mortising machine for professional use, with a 0.75 kW motor and a weight of 25 kg. Krollit has been an official Bernardo distributor since 2007.

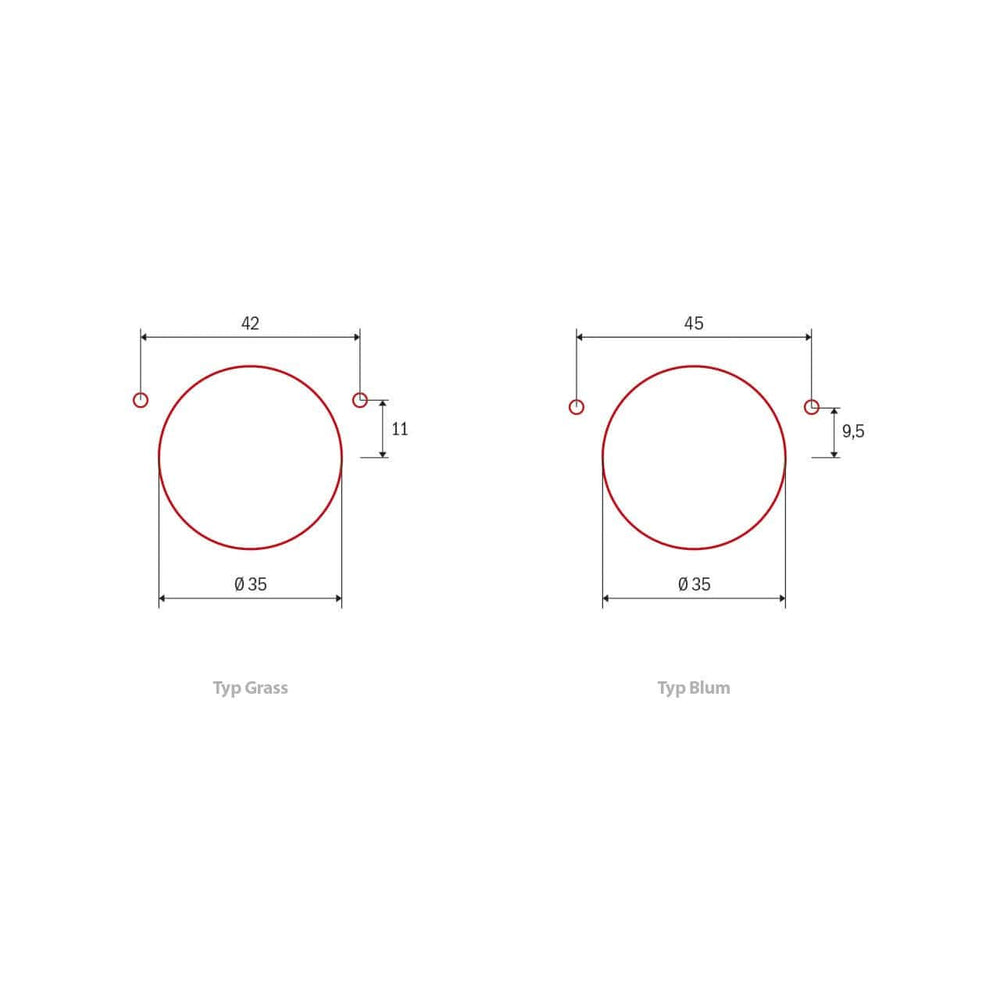

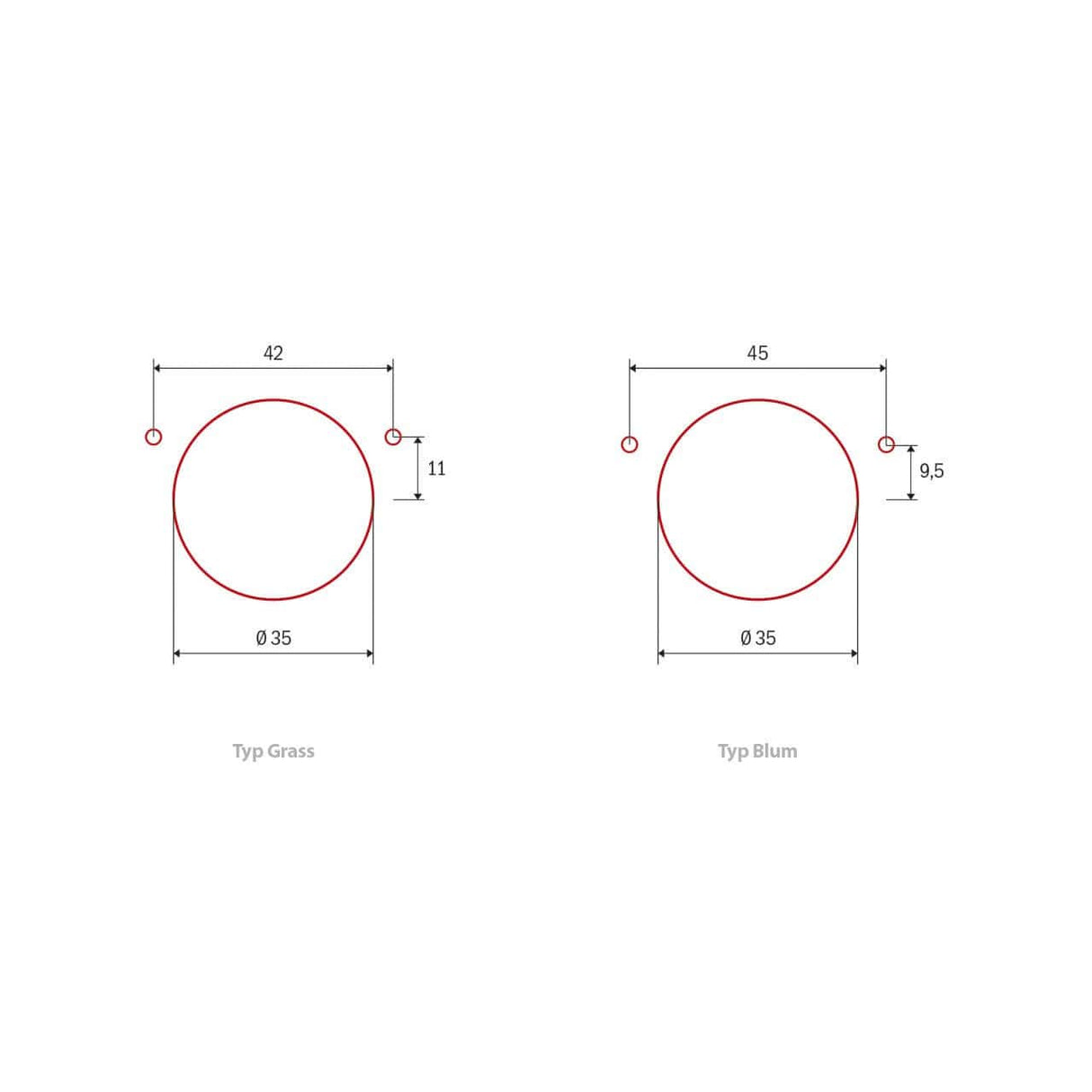

- Drilling diameter: 35 mm
- Number of spindles: 3
- Control: pneumatic
- Workpiece clamping: pneumatic
- Max. table/spindle distance: 85 mm
- Max. table/drill distance: 50 mm
- Table size: 500 x 350 mm
- Table stroke: 105 mm
Who uses the Blum Hinge Boring Machine BBM 35 P and for what
Professional carpenters and furniture manufacturers use the Blum Hinge Boring Machine BBM 35 P to create mortises for tenon joints on doors, windows, and furniture, with precise interlocking on rails and stiles.
Its place in the Bernardo range
The Bernardo Blum Hinge Boring Machine BBM 35 P is part of Bernardo's range of mortising machines, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 business days (7 days for Southern Italy). For spare parts and accessories, shipping in 3-5 business days from Krollit warehouse. Italian customer support available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the Blum Hinge Boring Machine BBM 35 P for?
| Profile |
Compatibility |
Reason |
| Professional carpenters and furniture manufacturers |
Suitable |
Creation of mortises for tenon joints on doors, windows, and furniture |
| Window and door manufacturers |
Suitable |
Processing of rails and stiles with precise interlocking |
| Mortises on metal or plastic |
Not suitable |
Machine dedicated to wood: different processes are required for other materials |
Not suitable for: mortises on metal or plastic (machine dedicated to wood: different processes are required for other materials).
Working capacity

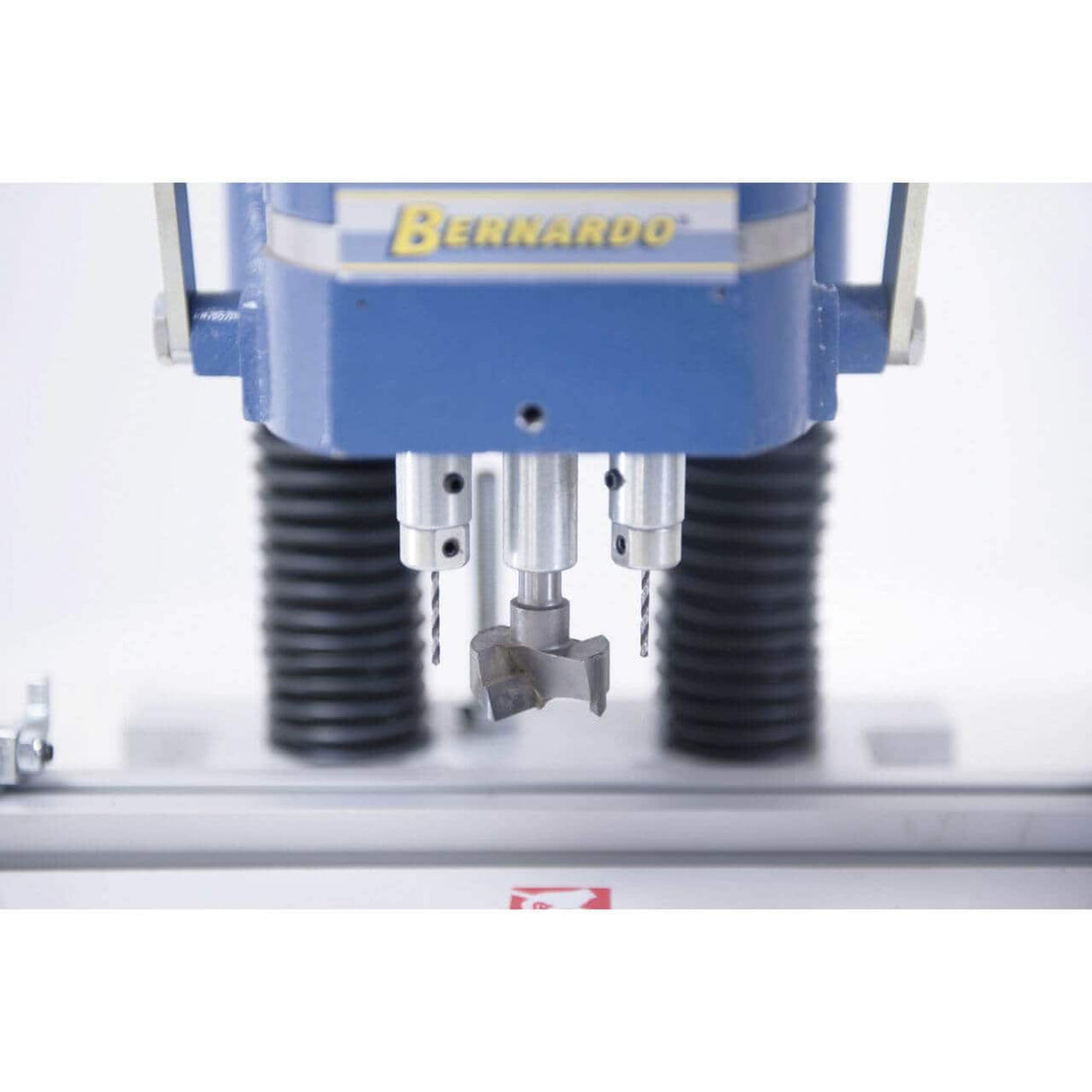

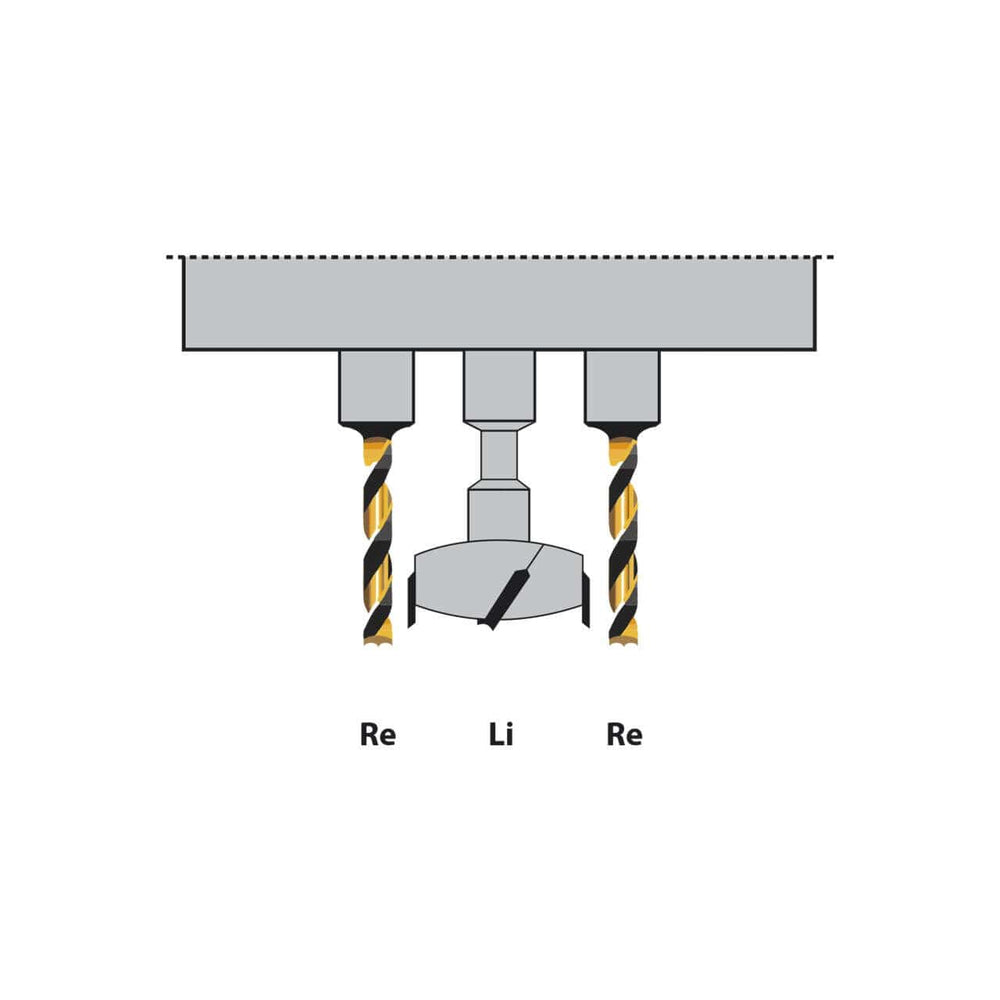

Spindle and speed
| Max. table/spindle distance |
85 mm |
| Rotation speed |
3000 rpm |
Table and dimensions
| Max. table/drill distance |
50 mm |
| Table size |
500 x 350 mm |
| Table stroke |
105 mm |
| Guide length (with extension) |
1500 mm |
| Machine dimensions (L x D x H) |
500 x 520 x 500 mm* |
Motor and power supply
| Motor power |
0.75 kW |
| Voltage |
230 V |
Other specifications

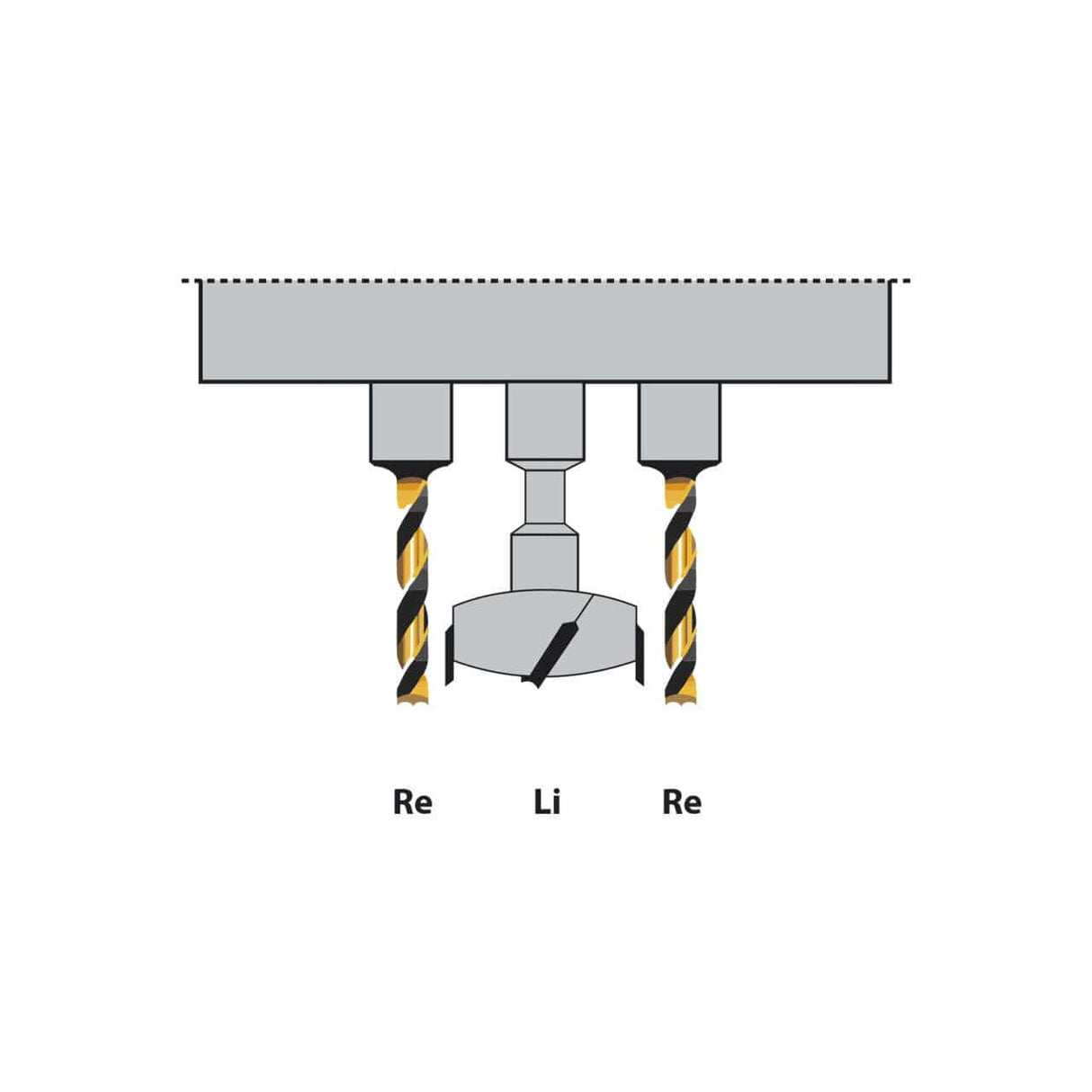

| Number of spindles |
3 |
| Control |
pneumatic |
| Workpiece clamping |
pneumatic |
| Operating pressure |
6 – 8 bar |
| Weight |
25 kg |
Frequently asked questions
What can the Blum Hinge Boring Machine BBM 35 P process?
It creates mortises for tenon joints on solid wood and derived panels.
The size of the mortises depends on the compatible tools. Check the maximum depth and width in the technical data sheet.
What tool holder does it support?
Typically a self-centering chuck or a dedicated Bernardo system. Check the technical table.
Mortising accessories (router bits, chisels) are consumable spare parts. Krollit supplies original tools.
Does it have an adjustable table?
Professional models have an height-adjustable table with lateral guides for centering.
Table adjustment allows working with pieces of different sizes without complex clamping.
What power supply does it require?
See "Voltage" in the technical table.
Industrial models require a 400 V three-phase line. Check the capacity of the electrical line before installation.
How much does the machine weigh?
See "Weight" in the technical table.
Professional mortising machines are heavy machines to ensure rigidity during processing. For models over 200 kg, consider a dedicated base.
