GH 850 forklift system
Description

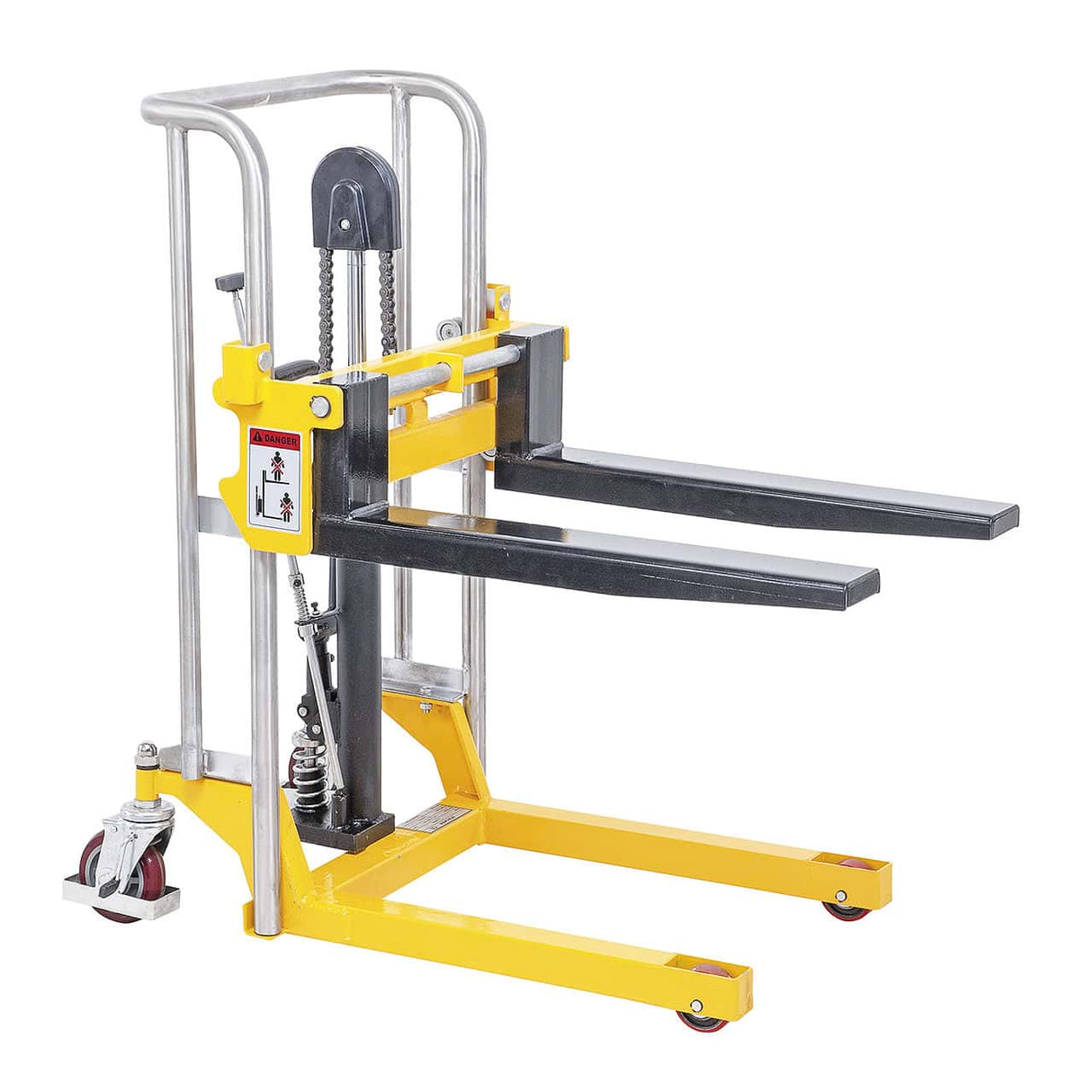

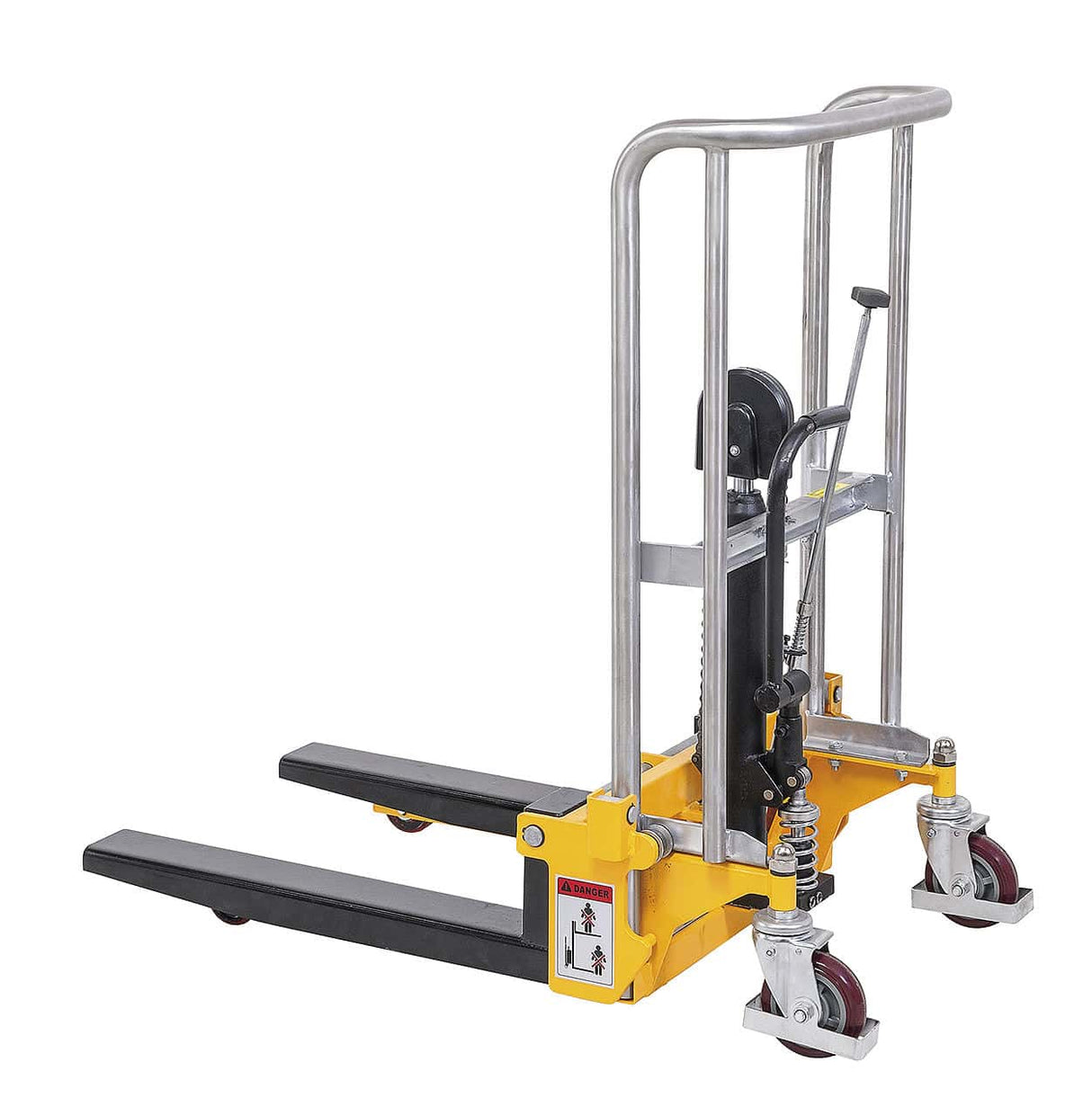

The Bernardo GH 850 manual fork lift system lifts loads up to 400 kg with a maximum height of 850 mm, adjustable forks 210–550 mm, machine weight approx. 63 kg. Distributed in Italy by Krollit as an official Bernardo distributor since 2007.
- Max capacity: 400 kg
- Max lifting height: 850 mm
- Transport width (min–max): 210 – 550 mm
- Net fork width: 10 – 350 mm
- Fork length: 650 mm
- Forks lowered height: 85 mm
- Dimensions (L × W × H): 640 × 1,020 × 1,070 mm
- Weight: approx. 63 kg
Who uses the GH 850 and for what
The Bernardo GH 850 is a manual pallet truck with adjustable forks for lifting and transporting heavy loads up to 400 kg in the workshop, warehouse and laboratory. With a maximum lifting height of 850 mm and manual hydraulic operation, it is sized for lifting sheet metal coils, material pallets and light machinery. The width-adjustable forks (210–550 mm) adapt to standard and non-standard pallets. In Krollit customers' laboratories, it is used by metalworking workshops and processing centers for internal handling of heavy materials.
Logistics
Bernardo shipping: 5–9 working days (7 days in the South). Original spare parts available with 3–5 working days shipping. Customer support available in Italian.
Technical specifications
Technical specifications
| Specification | Value |
|---|---|
| Max capacity | 400 kg |
| Max lifting height | 850 mm |
| Forks lowered height | 85 mm |
| Transport width (min–max) | 210 – 550 mm |
| Net fork width (min–max) | 10 – 350 mm |
| Fork length | 650 mm |
| Fork width | 100 mm |
| Fork height | 50 mm |
| Front wheels (Ø × L) | 125 × 35 mm |
| Fork roller (Ø × L) | 75 × 30 mm |
| Handle height | 1,050 mm |
| Dimensions (L × W × H) | 640 × 1,020 × 1,070 mm |
| Weight | approx. 63 kg |
Compliance and safety
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery 2006/42/EC |
Warranty
Warranty terms and support procedures are available on the dedicated Krollit page.
View Krollit warranty termsFAQ / Frequently asked questions
Frequently asked questions
Does the GH 850 require a specific license or qualification?
Manual/electric warehouse fork lifts do not require a special license for use in private company settings, but the operator must be trained on safety regulations (Legislative Decree 81/2008). For use in public or commercial environments, check applicable local regulations. Customer support available in Italian.
What is the difference between the GH 850 and the electric version?
The E (electric) version adds a 0.8 kW motor and a 12V/60Ah battery for automated lifting and movement — ideal for frequent use or long distances. The manual version has a lower cost and simpler maintenance.
What is the minimum floor requirement for safe operation?
The GH 850 with a 400 kg capacity requires a flat industrial floor free of holes or unevenness greater than 10–15 mm. On ramps, the maximum safe operating gradient is indicated in the supplied manual. Do not use on wet or slippery surfaces with heavy loads.
Are the forks width-adjustable?
Yes. The forks of the GH series have an adjustable transport width from 210 to 550 mm and a net fork width from 10 to 350 mm, adapting to different standard pallet sizes. Adjustment is manual and requires no tools.
Are spare parts available?
Original spare parts available with 3–5 working days shipping. Customer support available in Italian.
-
