Bernardo | SKU: 09-1082

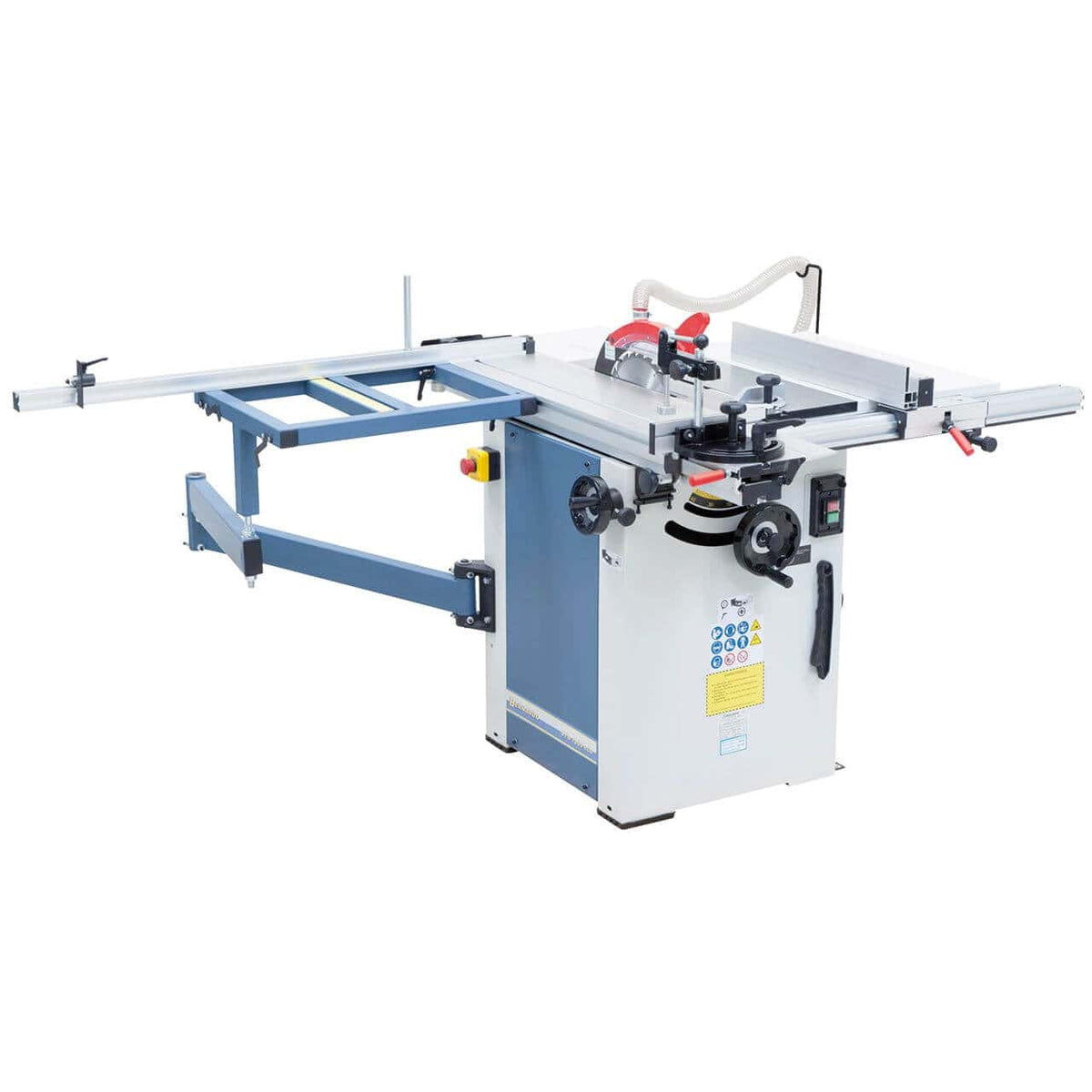

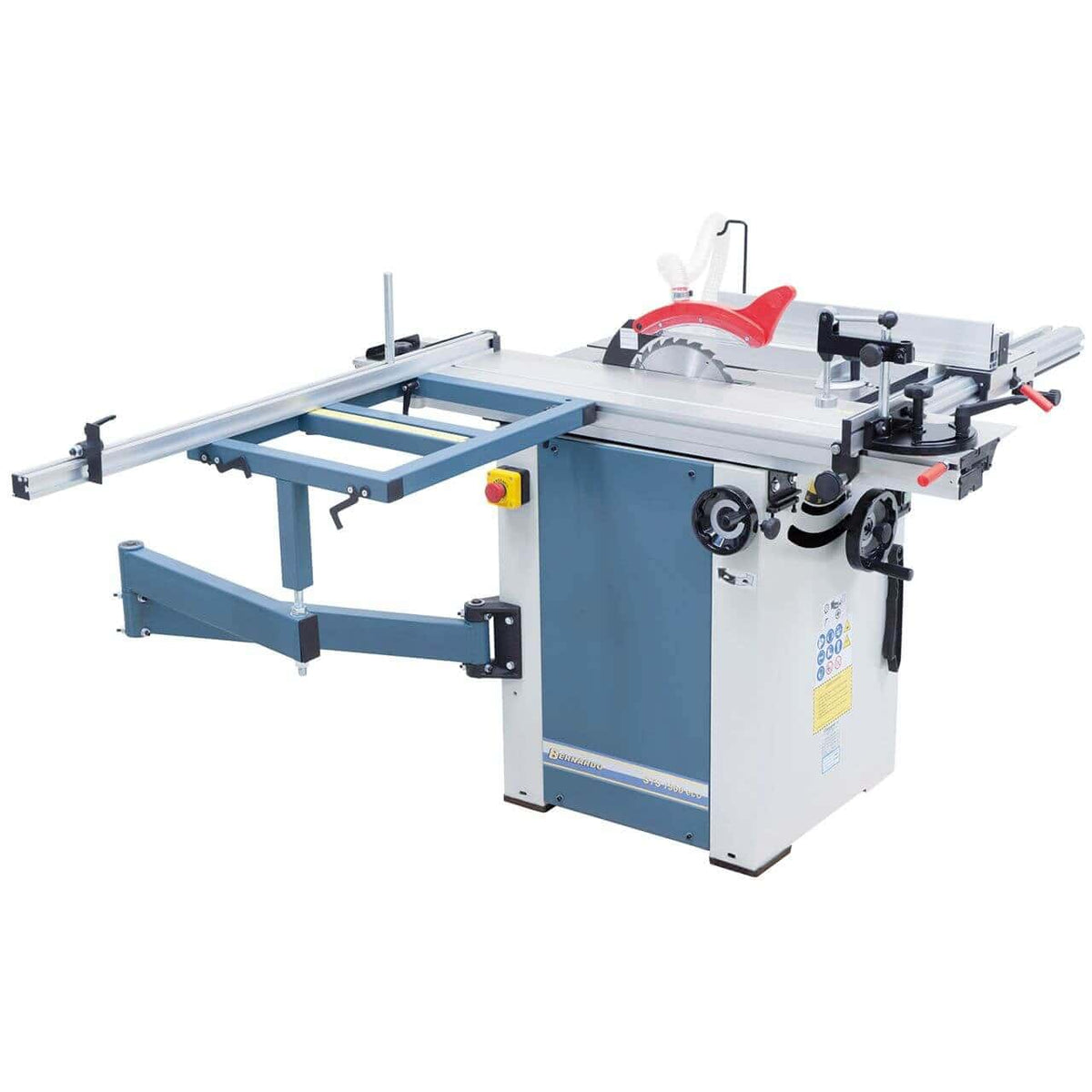

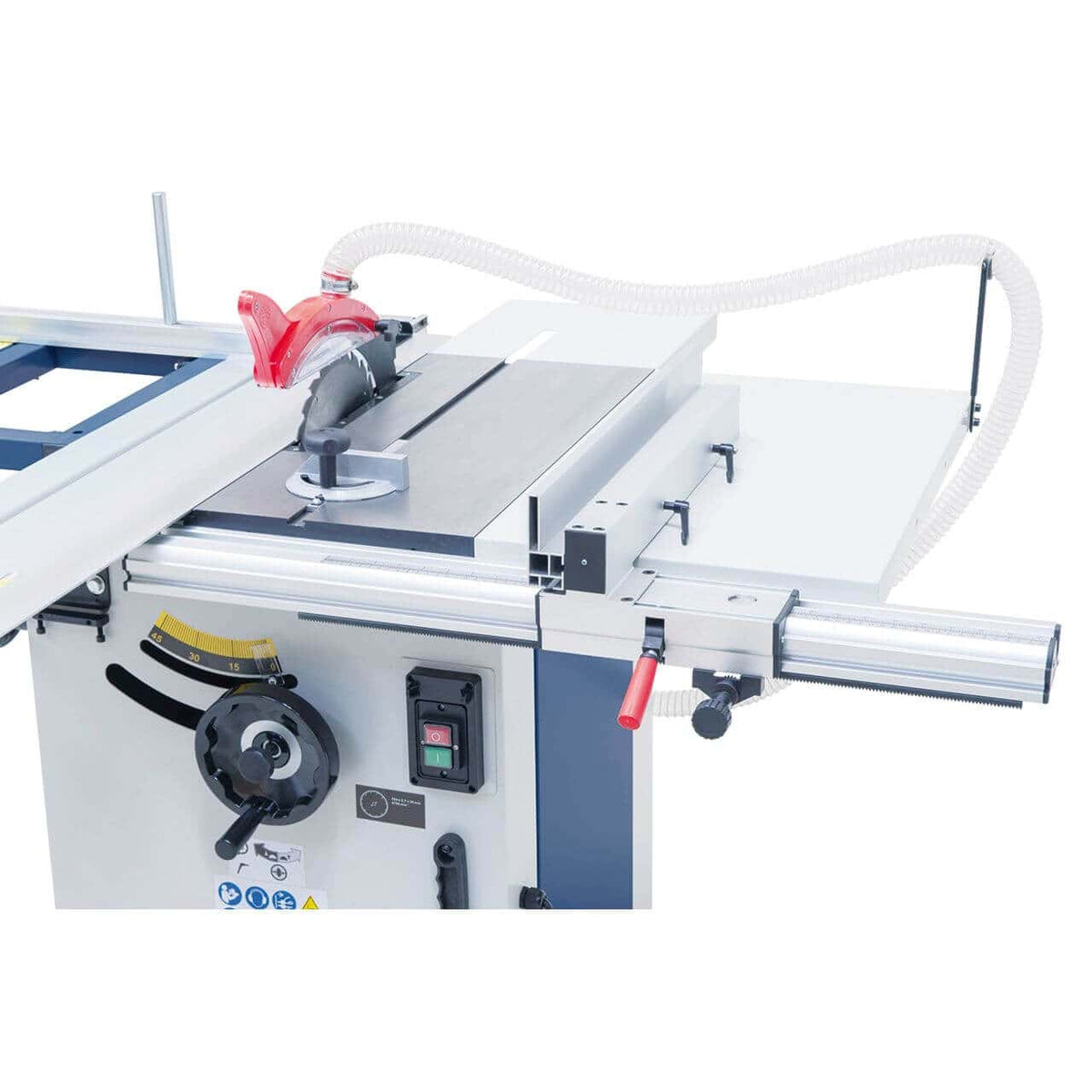

Bernardo STS 1300 Eco Sliding Table Saw

€1.944,07 (22% VAT incl.)

Voltage

230V 400V

Product variants

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

Bernardo STS 1300 eco is a professional woodworking panel saw, with a 2.2 kW (3.0 HP) motor, weighing 135 kg. Krollit, official Bernardo distributor since 2007.

Table size: 670 x 310 mm
Sliding carriage: 1300 x 240 mm
Cutting length: 1300 mm
Max. blade diameter: 254 x 30 mm
Max. cutting height 90° / 45°: 80 / 63 mm
Cutting width on rip fence: 690 mm

Who uses the STS 1300 eco and for what

Professional carpentry workshops use the STS 1300 eco for squaring panels with a sliding carriage, cutting chipboard, MDF, and solid wood panels.

Its place in the Bernardo range

Bernardo STS 1300 eco is part of the Bernardo panel saw range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.

Krollit logistics and support

Machine shipment in 5-9 working days (7 days for Southern Italy). For spare parts and accessories, shipment in 3-5 working days from Krollit warehouse. Italian-speaking customer support available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.

Who the STS 1300 eco is for

The STS 1300 eco is recommended for the following professional profiles:

Professional carpentry workshops: squaring panels with a sliding carriage for precise 90° cuts.
Furniture manufacturers and window/door frame production: cutting chipboard, MDF, and solid wood panels.

Not suitable for: processing metal sheets (this machine is dedicated to wood: metal requires specific shears and saws).

Technical specifications

Working capacity

Cutting length	1300 mm
Max. blade diameter	254 x 30 mm
Max. cutting height 90° / 45°	80 / 63 mm

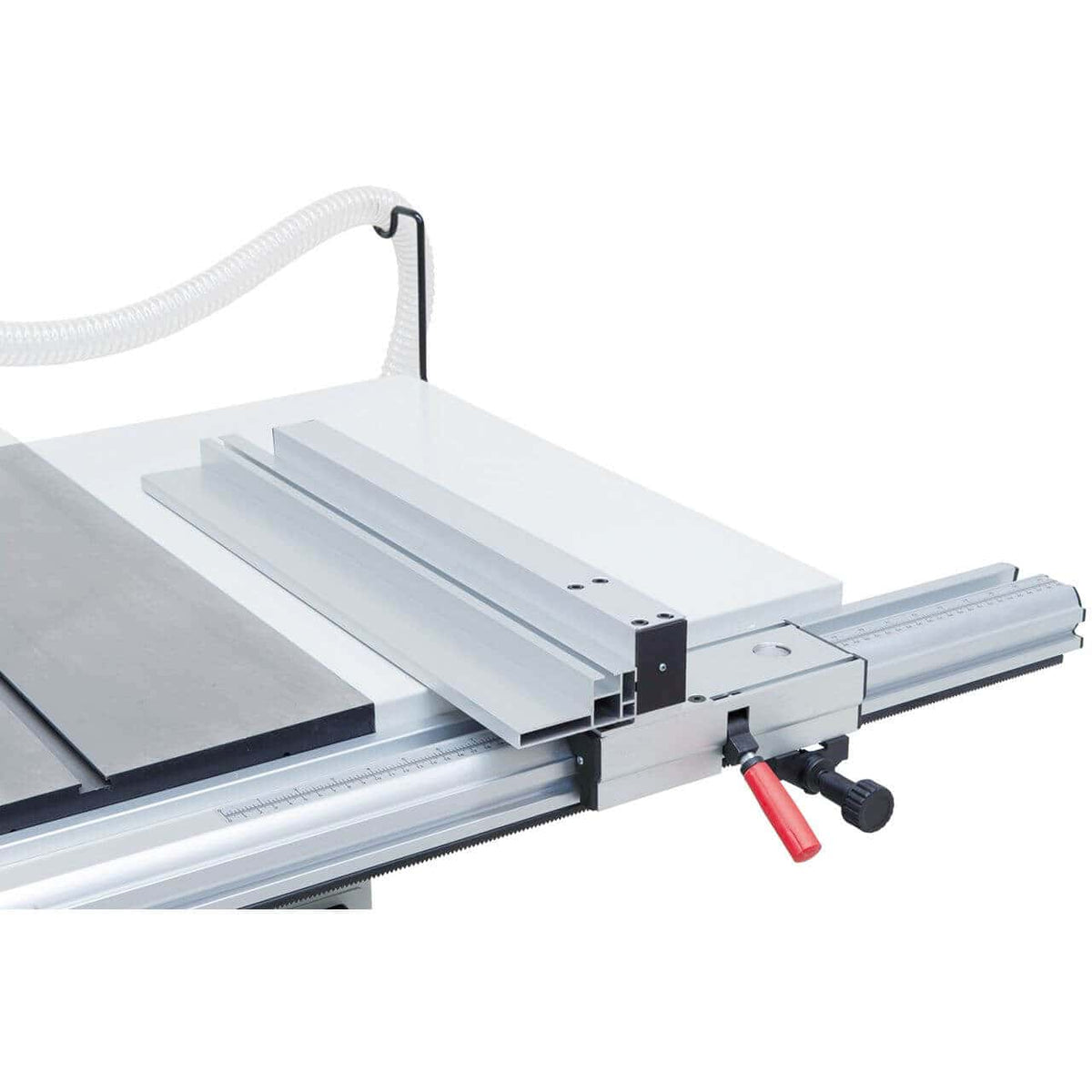

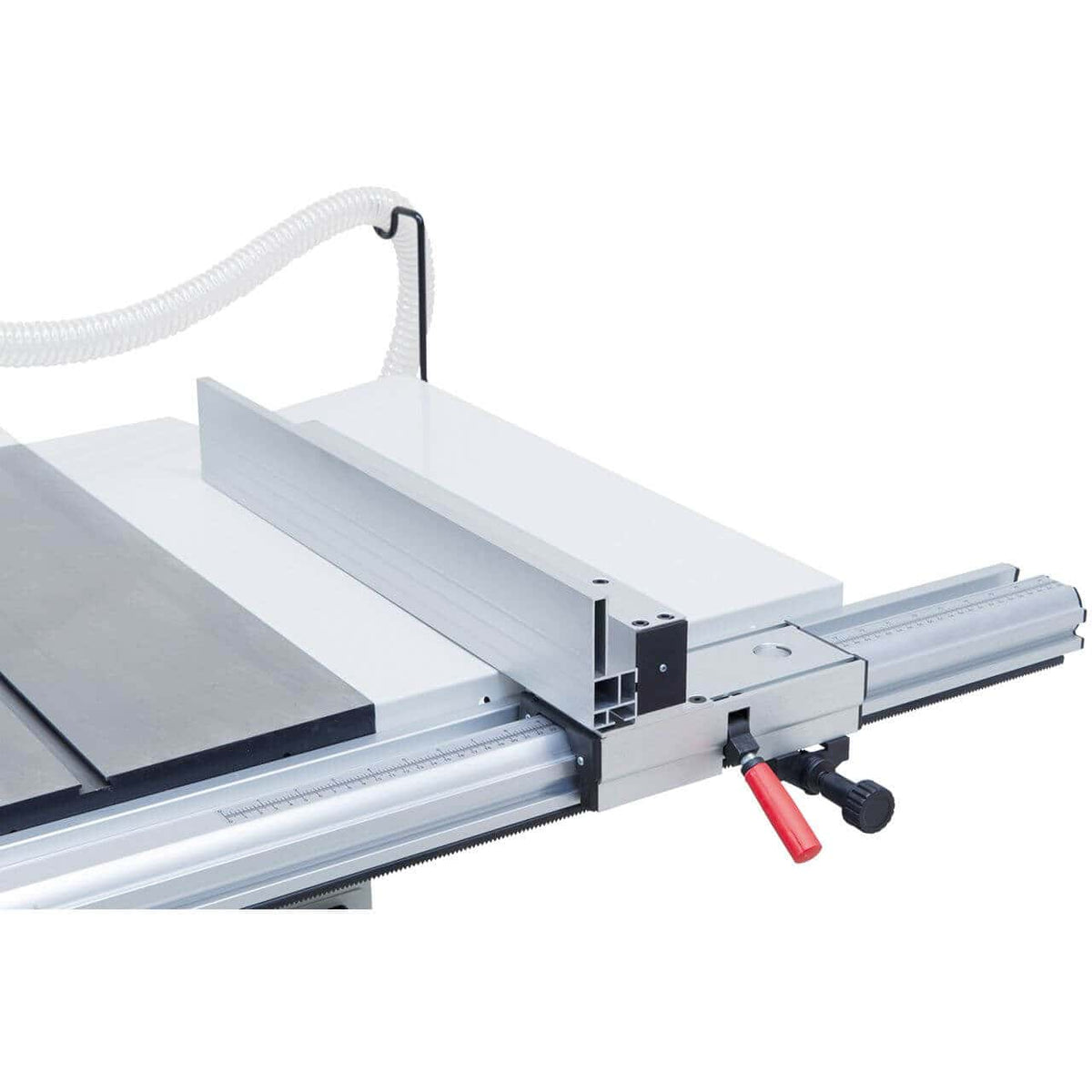

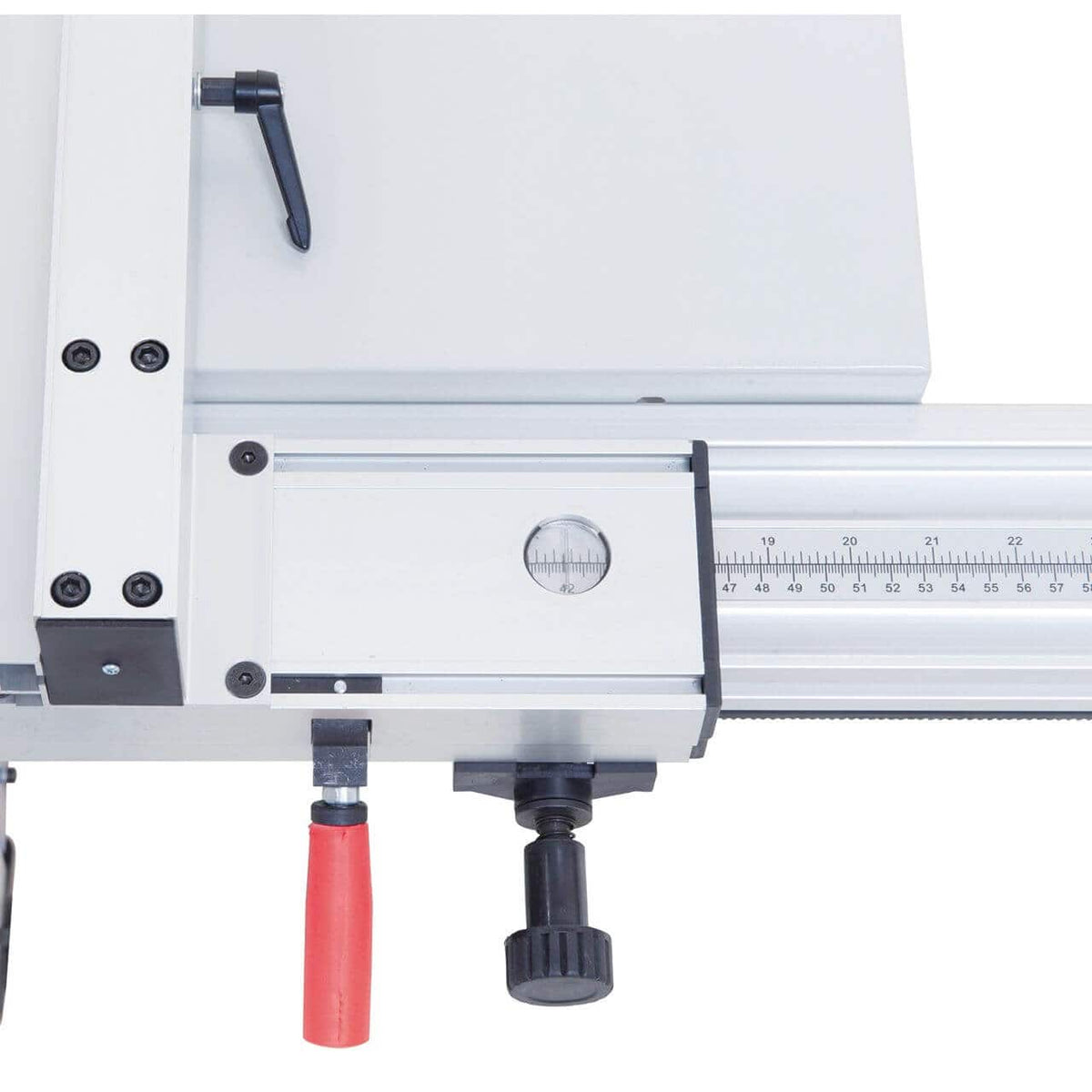

Cutting width on rip fence	690 mm

Table, dimensions and geometry

Table size	670 x 310 mm
Table height	870 mm

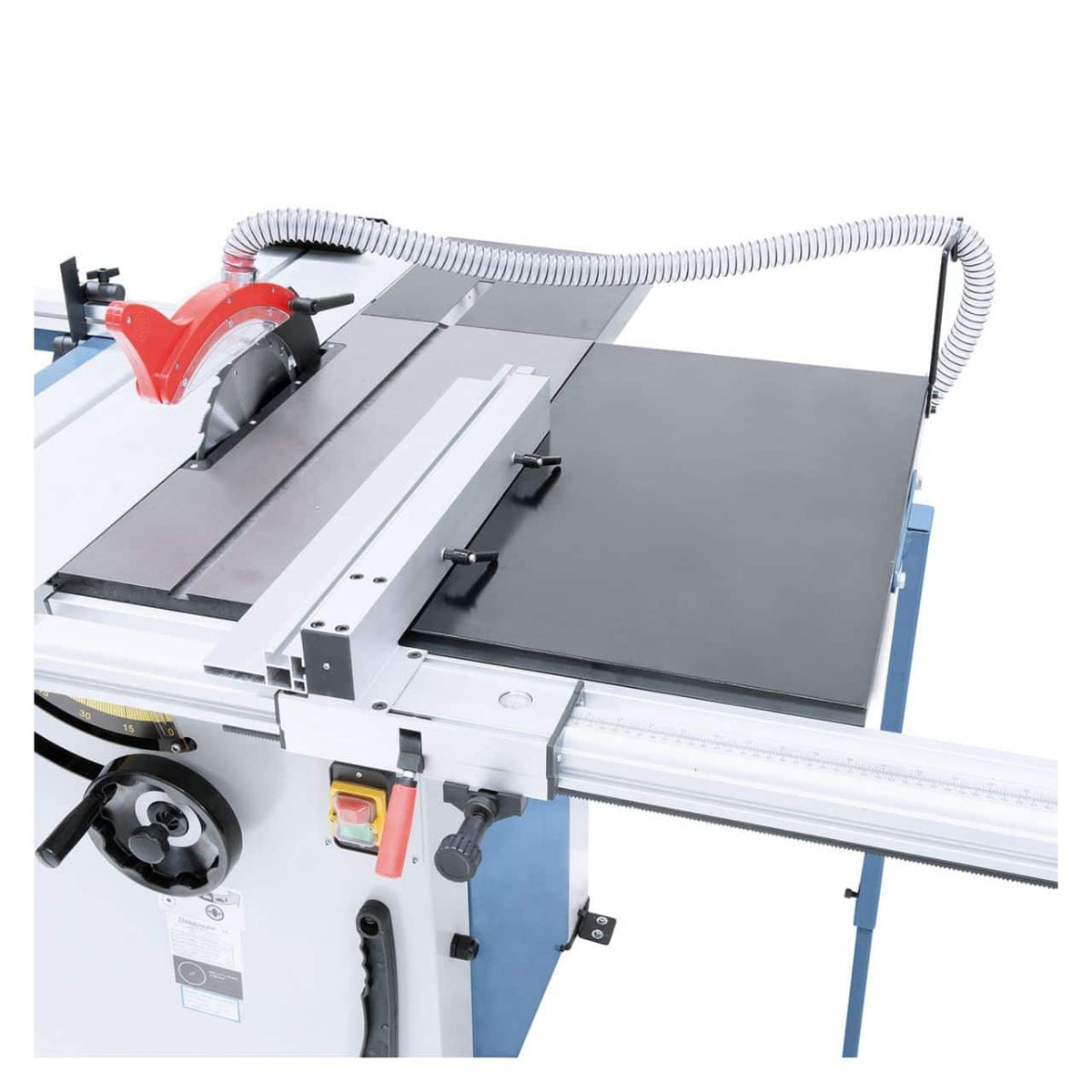

Table extension	325 x 310 mm
Machine dimensions (L x W x H)	1300 x 2160 x 1130 mm
Weight	135 kg

Motor and power supply

Motor power (S1 100%)	2.2 kW (3.0 HP)
Motor power (S6 40%)	3.0 kW (4.0 HP)
Voltage	230 V / 400 V

Other specifications

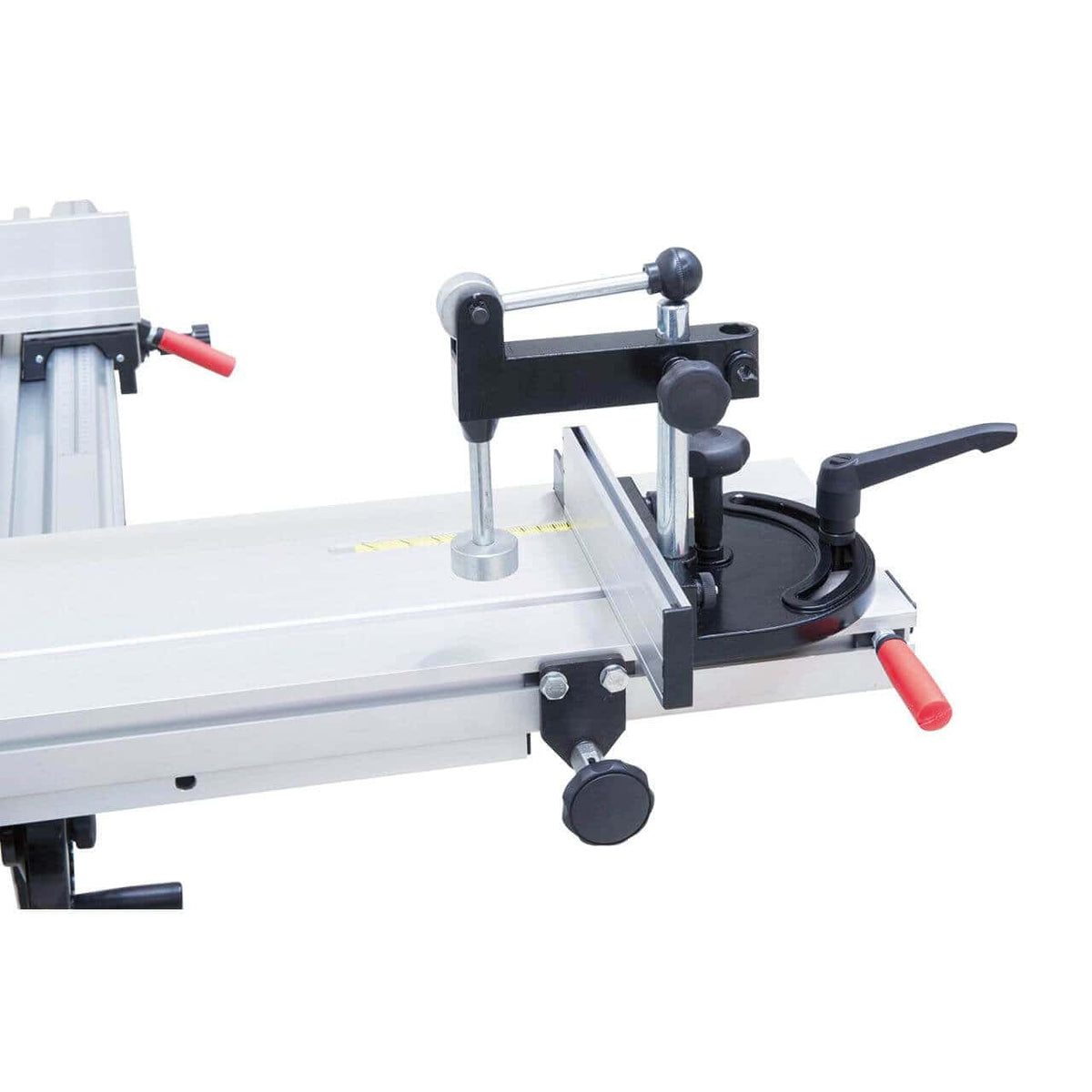

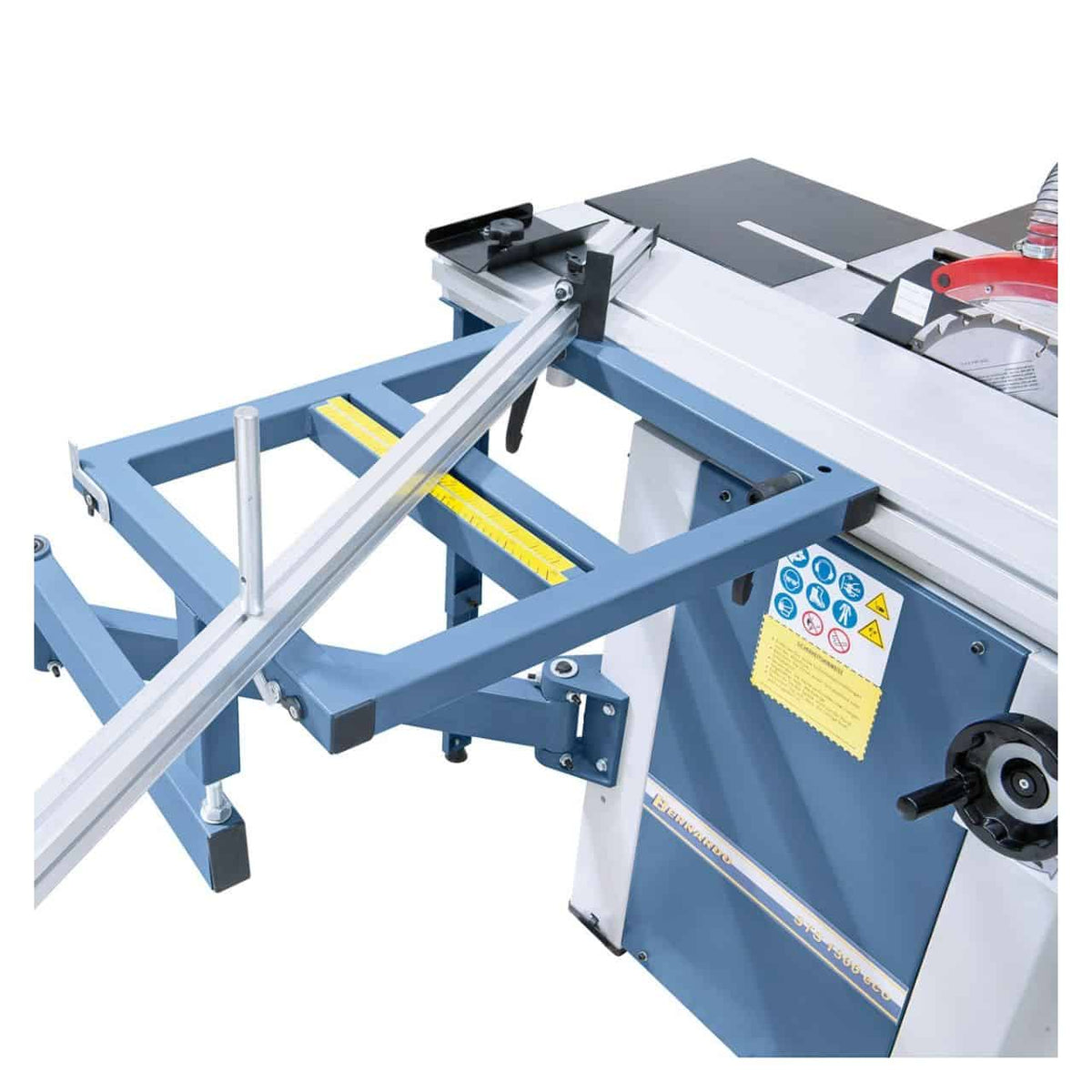

Sliding carriage	1300 x 240 mm
Table extension	670 x 400 mm
Squaring table	600 x 455 mm

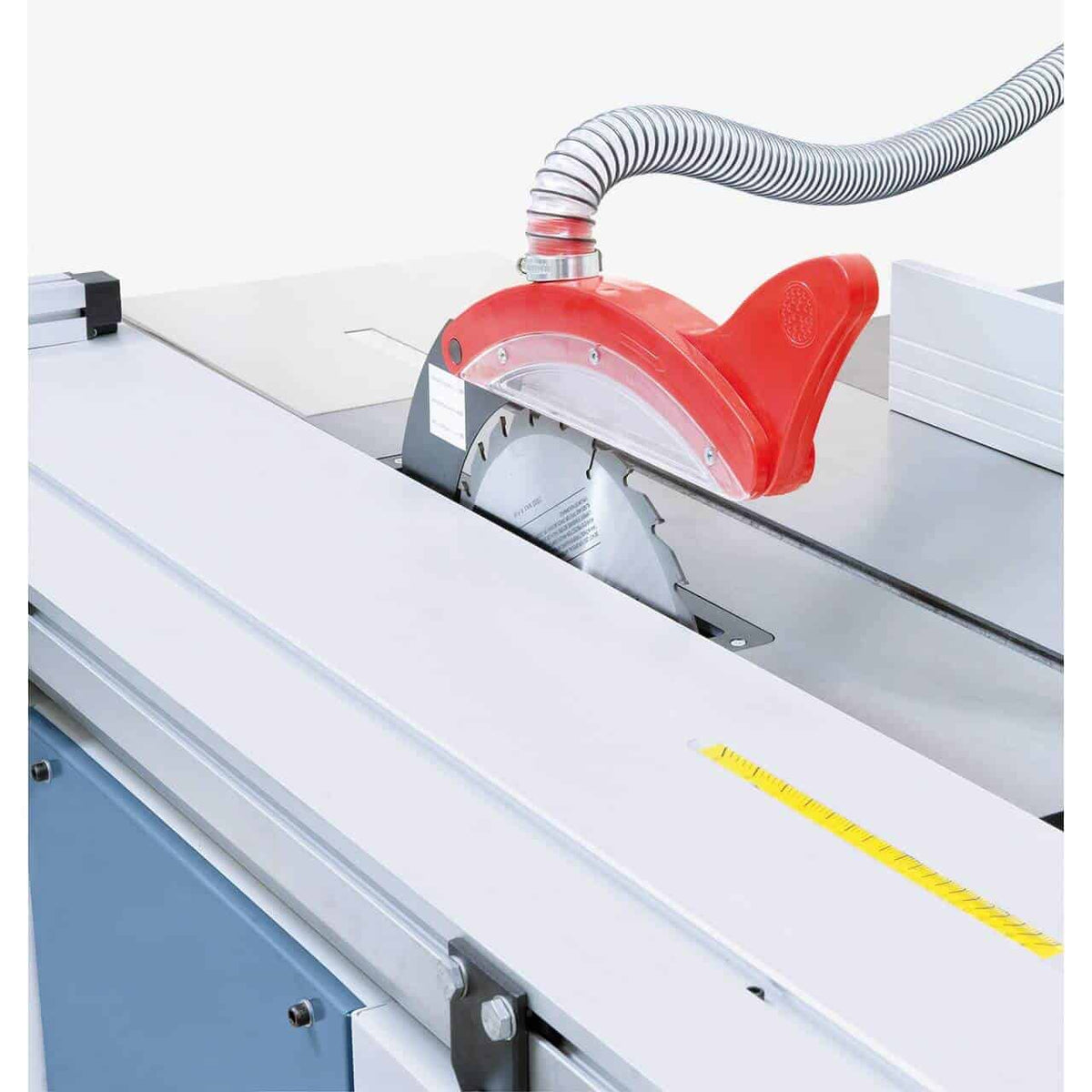

Extraction outlet	Ø 100 mm
Blade speed	4750 rpm

Warranty

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

FAQ / Frequently asked questions

Frequently Asked Questions

What panel sizes can it square?

See "Carriage size" and "Useful carriage length" in the technical table.

Professional sliding carriages measure 2,000-3,200 mm. Longer panels require larger industrial panel saws.

Does it have a scoring saw for coated panels?

Professional models offer a scoring saw as standard or optional to prevent chipping on MDF and laminates.

The scoring saw performs a preliminary surface cut before the main cut, eliminating the problem of chipping on the visible side of the panel.

What cutting height and angle does it offer?

See "Max cutting height" and "Blade inclination" in the technical table.

Blade inclination (typically 0-46°) allows for 45° cuts for joints and chamfered edges. Check the useful height at 45°, which is less than the maximum at 90°.

Power supply and power requirements?

Professional panel saws require 400 V three-phase with motors from 4 to 7 kW.

Check the capacity of the electrical line and the presence of a dedicated residual current device.

How much does the machine weigh?

From 200 kg to over 800 kg for industrial models with long carriages.

Installation requires a flat and level floor. For continuous use, fixing with anchor bolts is recommended for stability during more demanding operations.
