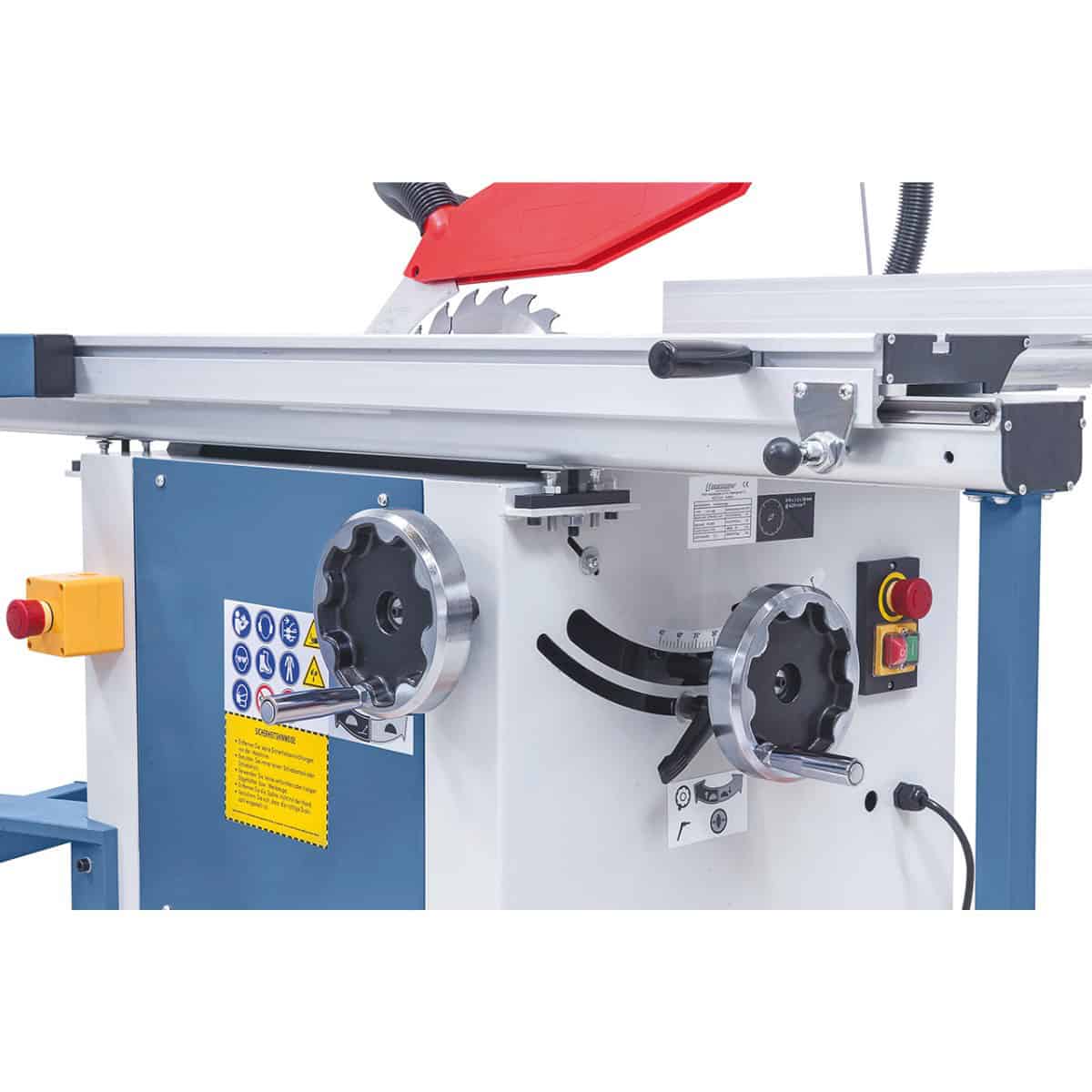

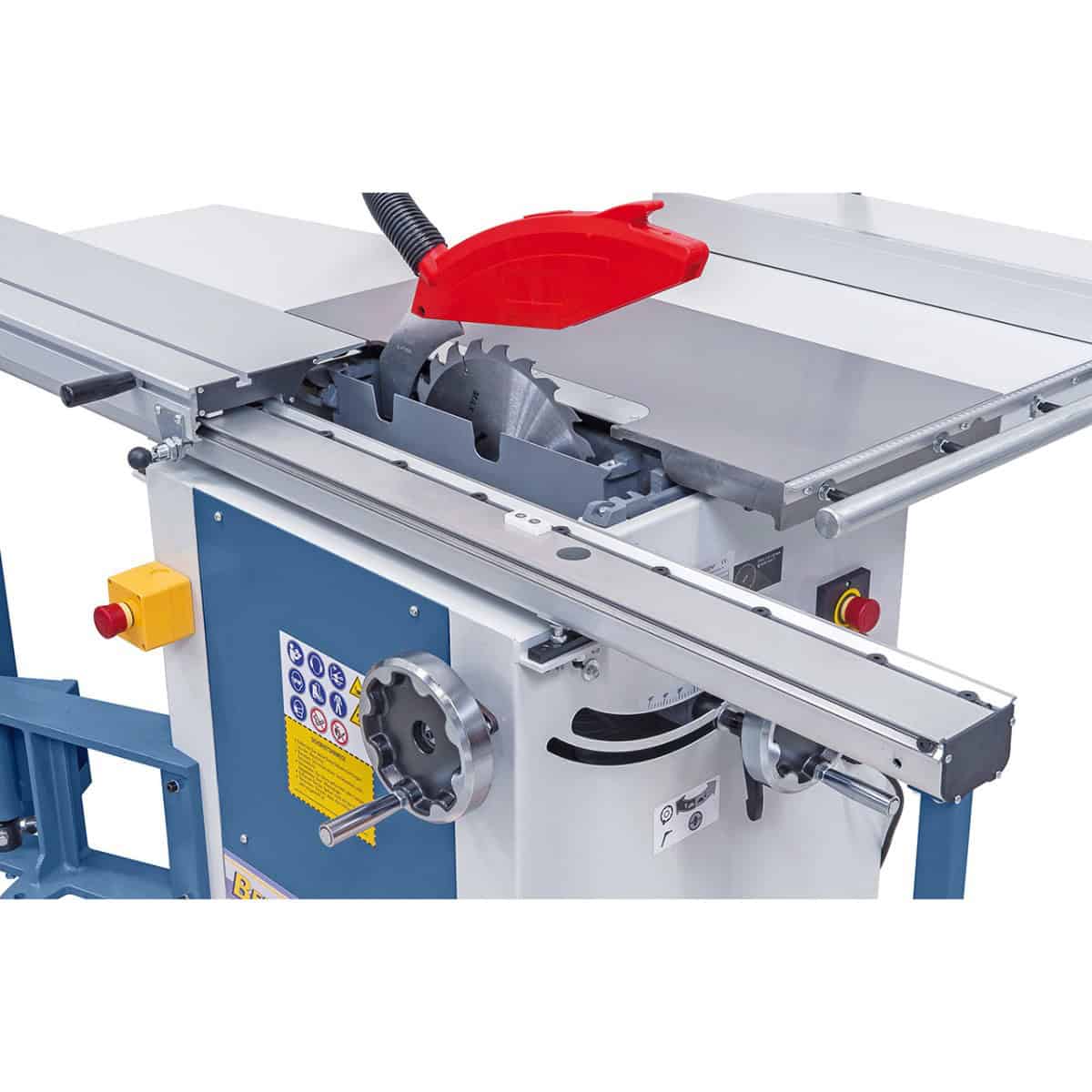

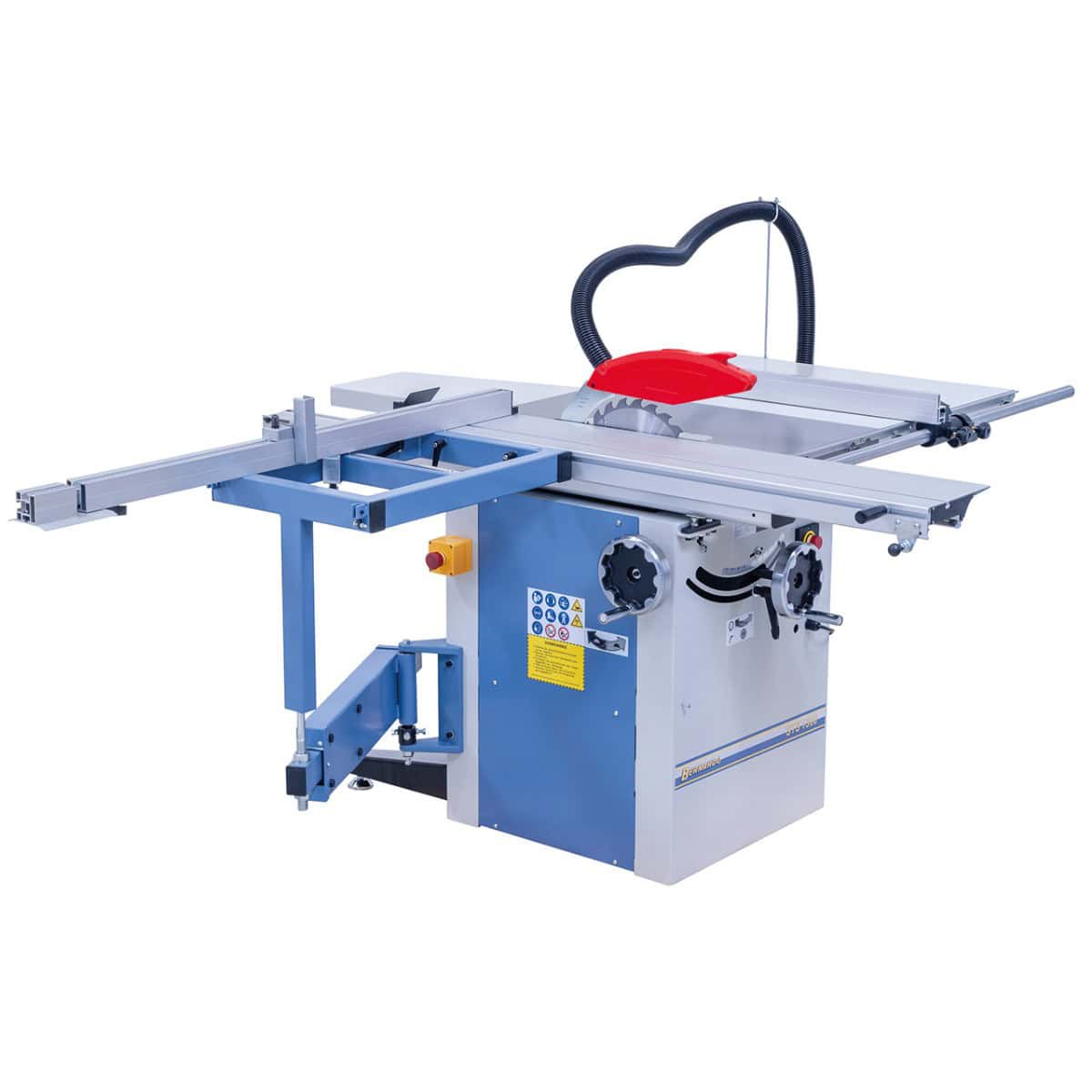

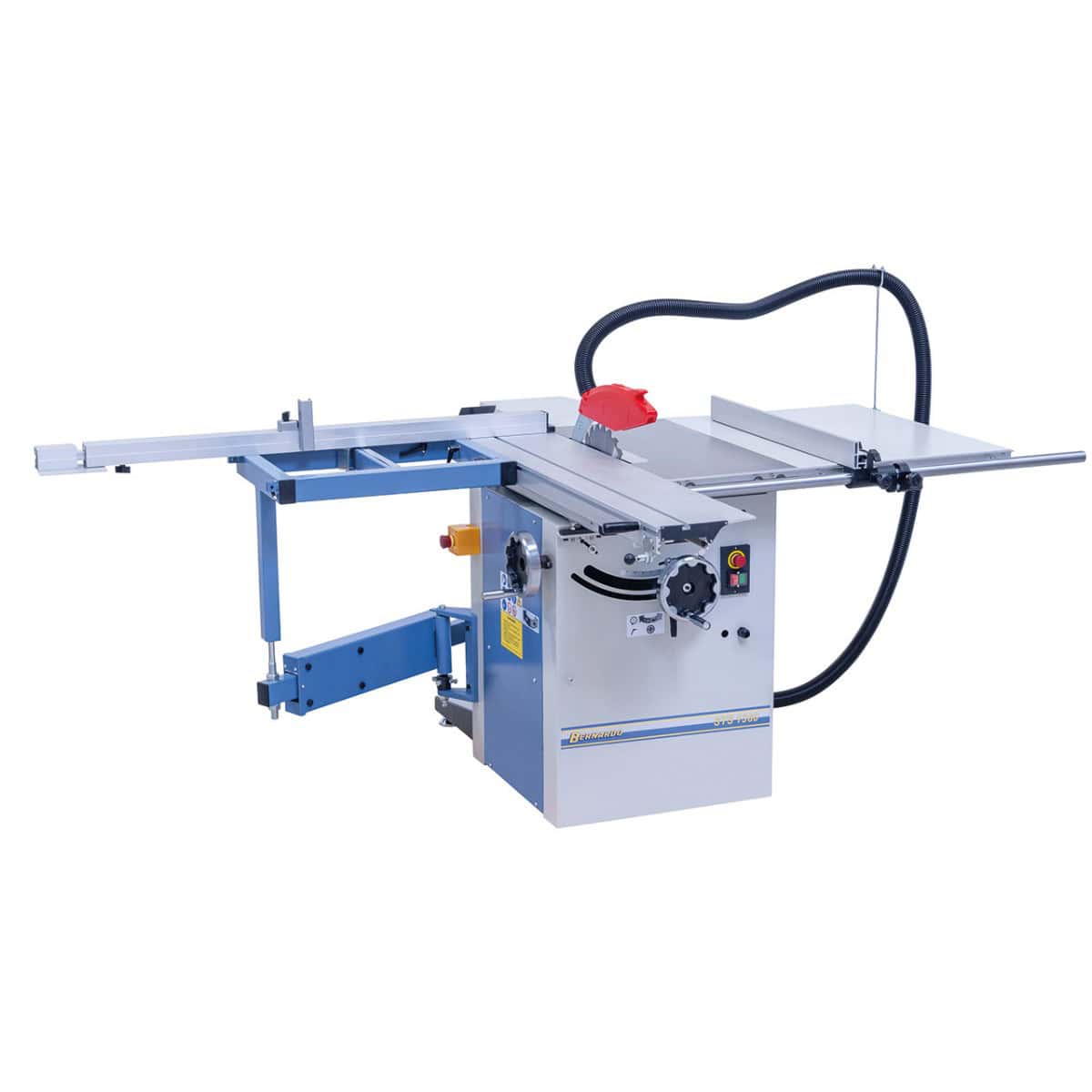

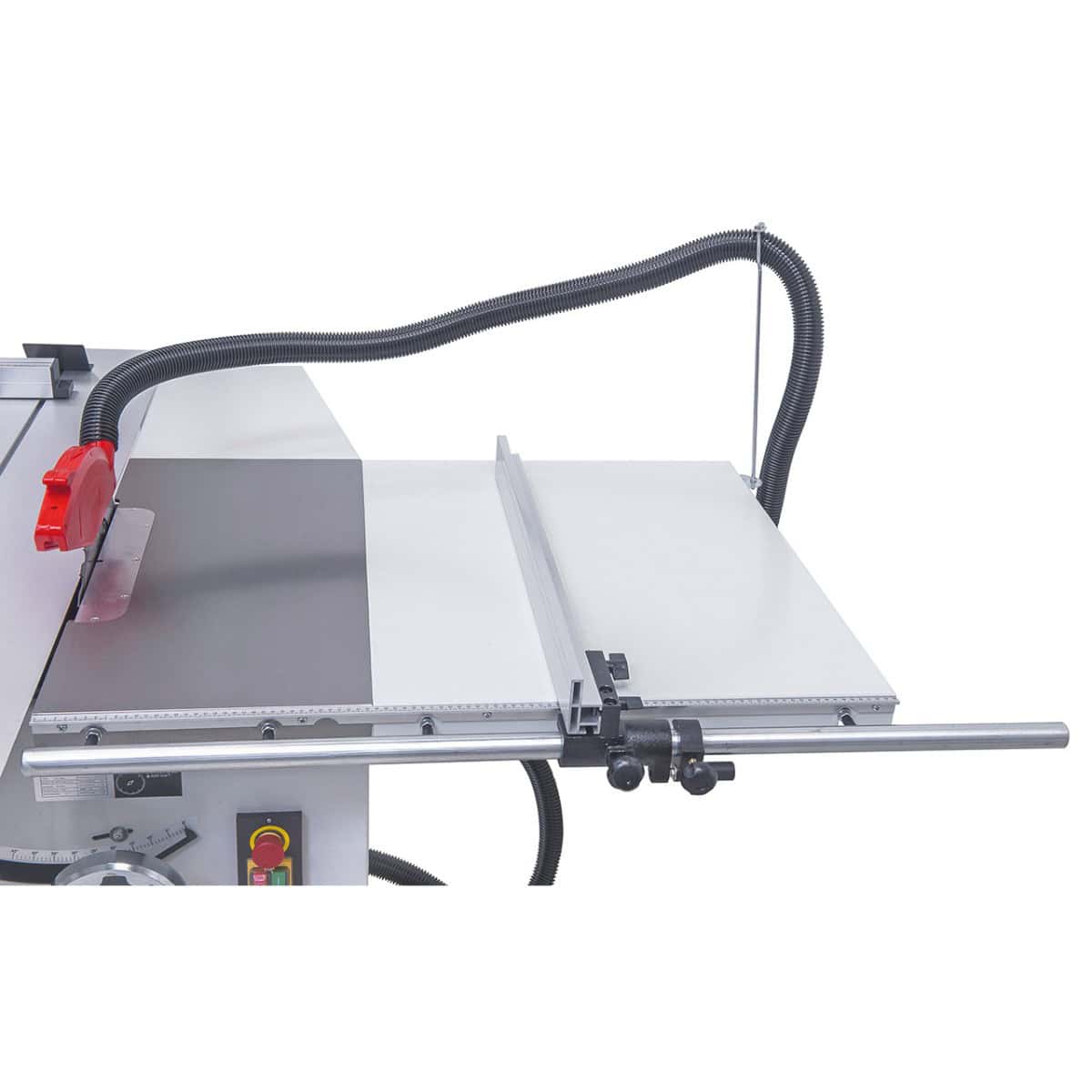

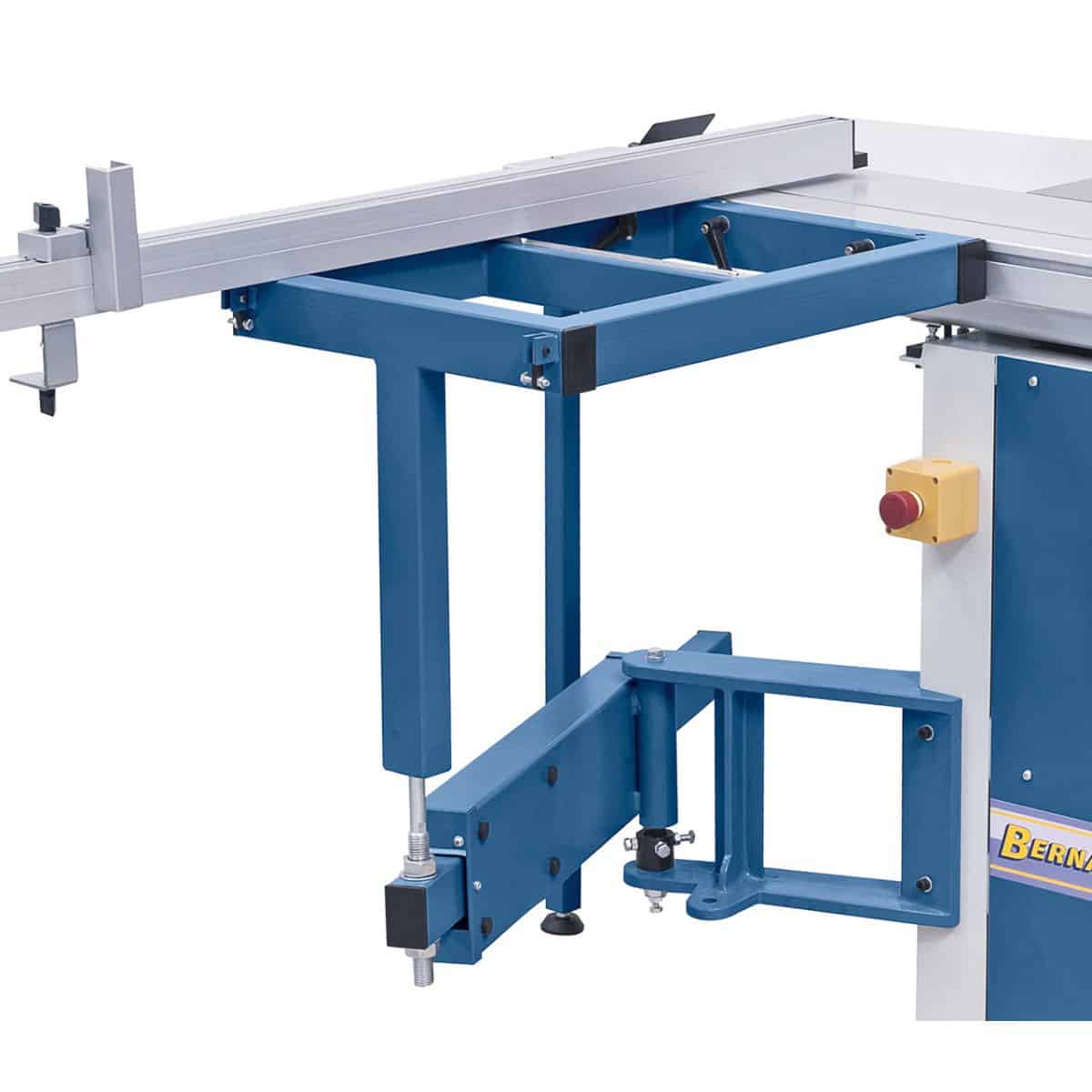

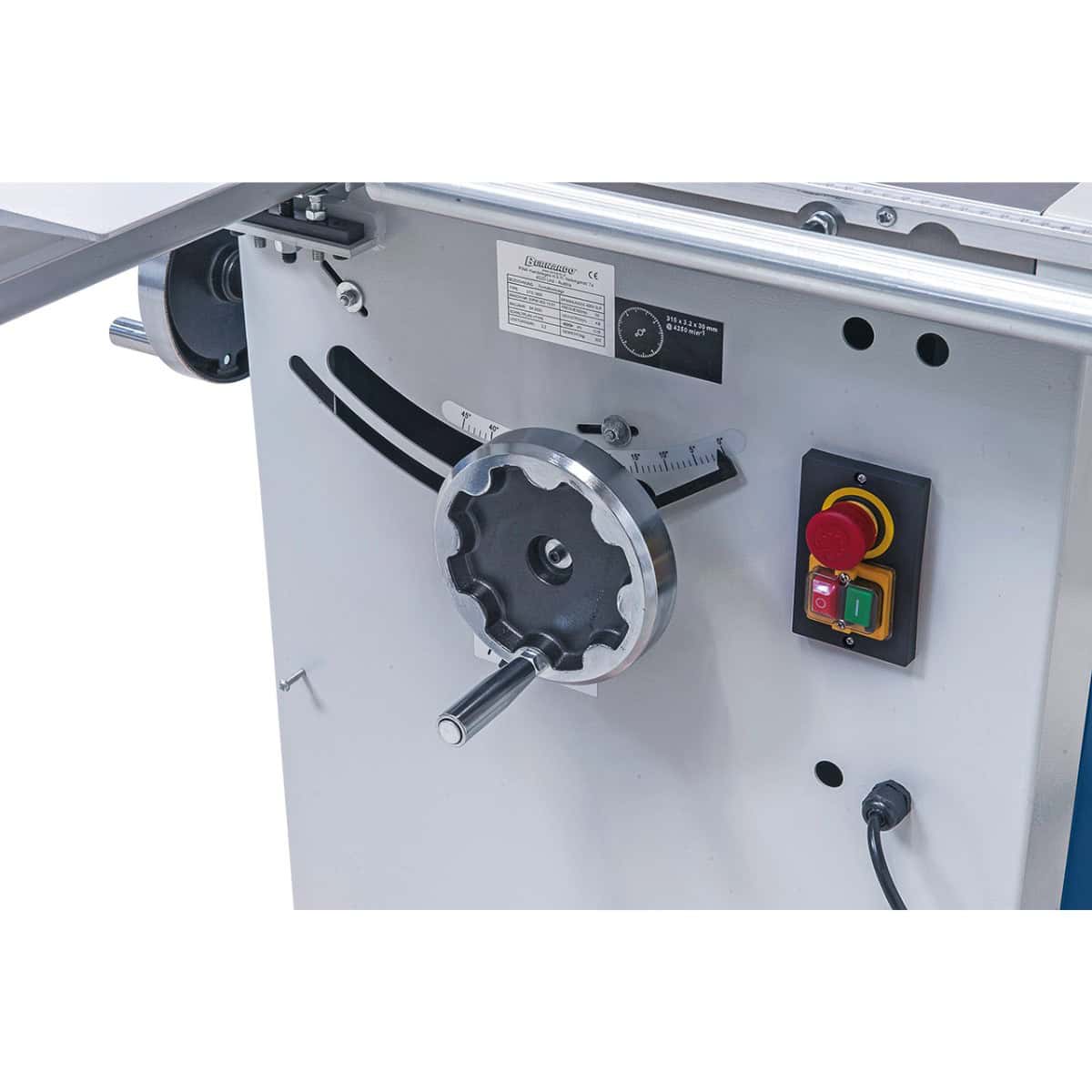

The Bernardo STS 1360 is a professional wood panel saw with a 2.2 kW (3.0 HP) motor, weighing approx. 194 kg. Krollit, official Bernardo distributor since 2007.
- Table dimensions: 760 x 350 mm
- Sliding table dimensions: 1360 x 240 mm
- Squaring length: 1360 mm
- Max. blade diameter: 315 x 30 mm
- Max. cutting height 90° / 45°: 100 / 75 mm
- Cutting width on rip fence: 900 mm
Who uses the STS 1360 and for what
Professional carpenters use the STS 1360 for squaring panels with a sliding carriage, cutting chipboard, MDF, and solid wood panels.
Its place in the Bernardo range
The Bernardo STS 1360 is part of the Bernardo panel saw range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the machine suitable for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for assistance in selection.
Krollit logistics and support
Machine delivery in 5-9 working days (7 days for Southern Italy). For spare parts and accessories, delivery in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit is an official distributor since 2007.
Who is the STS 1360 for
The STS 1360 is recommended for the following professional profiles:
-
Professional carpenters: squaring panels with a sliding carriage for precise 90° cuts.
-
Furniture manufacturers and window/door manufacturers: cutting chipboard, MDF, and solid wood panels.
Not suitable for: processing metal sheets (machine dedicated to wood: specific shears and saws are needed for metal).
Spindle, tools and speed
| Max. blade diameter |
315 x 30 mm |
| Main blade speed |
4250 rpm |
| Dust extraction connection |
Ø 100 mm |
Table, dimensions and geometry
| Squaring length |
1360 mm |
| Table height |
870 mm |
| Table extension |
500 x 350 mm |
| Machine dimensions (L x W x H) |
1700 x 2500 x 1270 mm |
| Weight |
approx. 194 kg |
Motor and power supply
| Motor power S1 100% |
2.2 kW (3.0 HP) |
| Motor power S6 40% |
3.0 kW (4.0 HP) |
| Voltage |
230 V / 400V |
Other specifications
| Table dimensions |
760 x 350 mm |

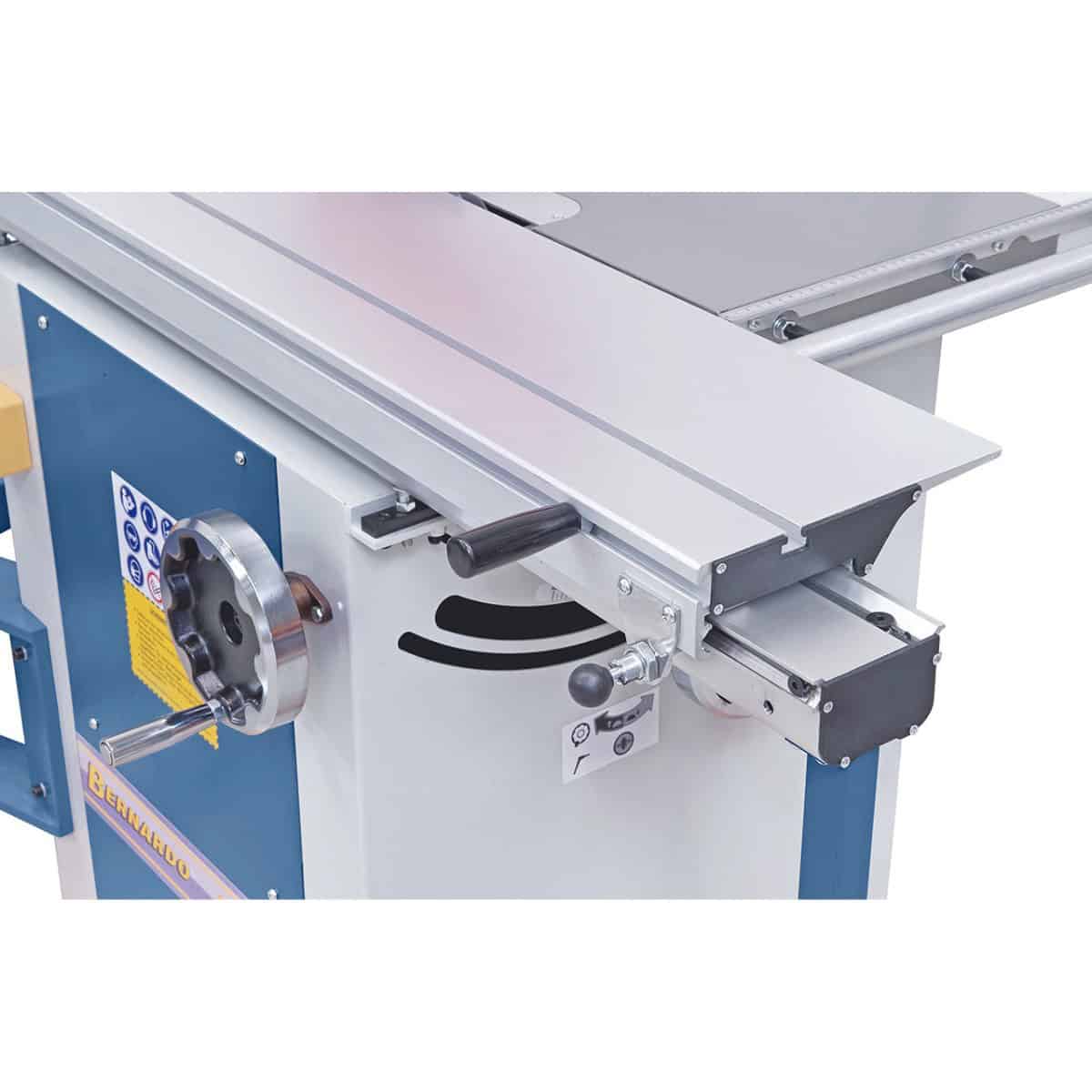

| Sliding table dimensions |
1360 x 240 mm |
| Table enlargement |
760 x 600 mm |

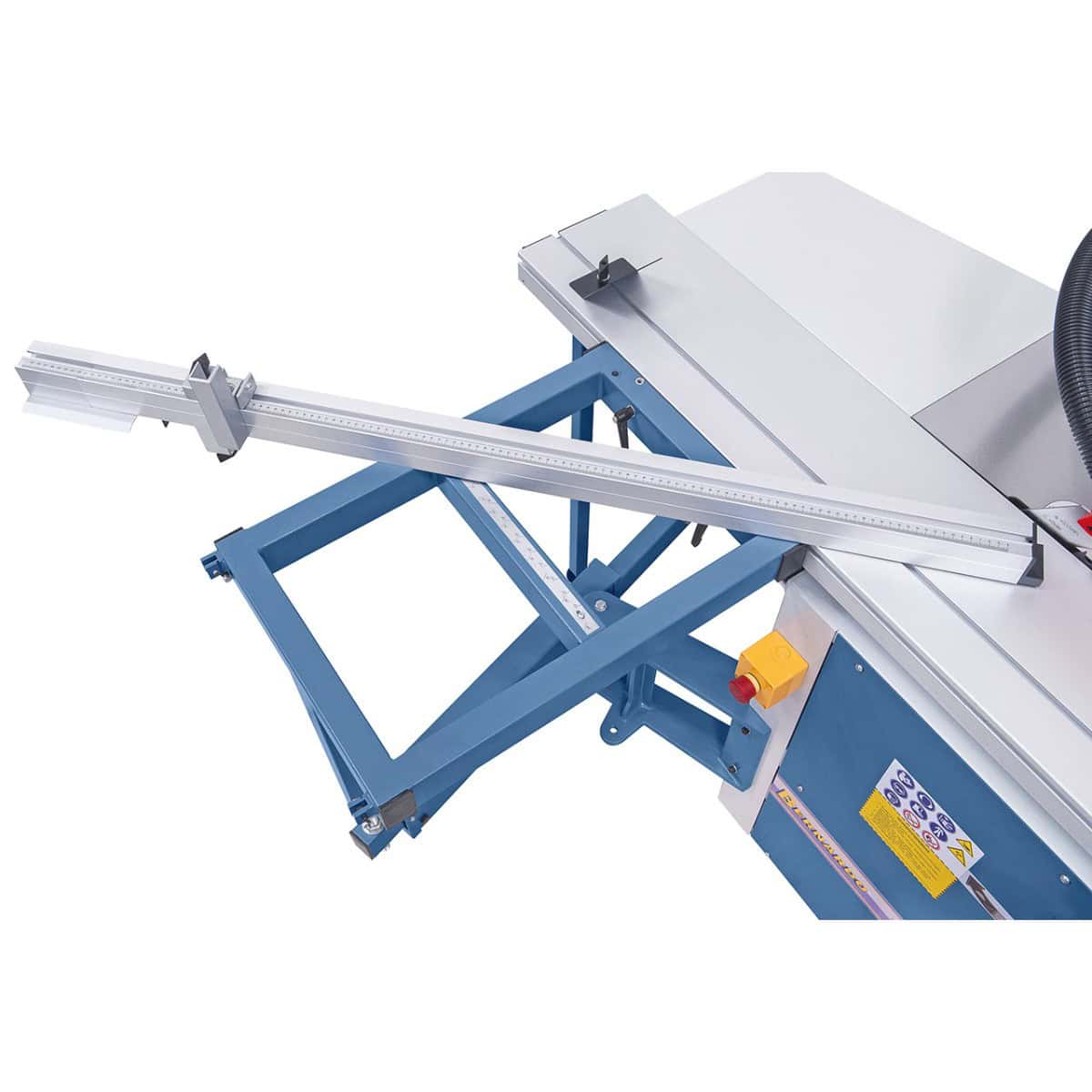

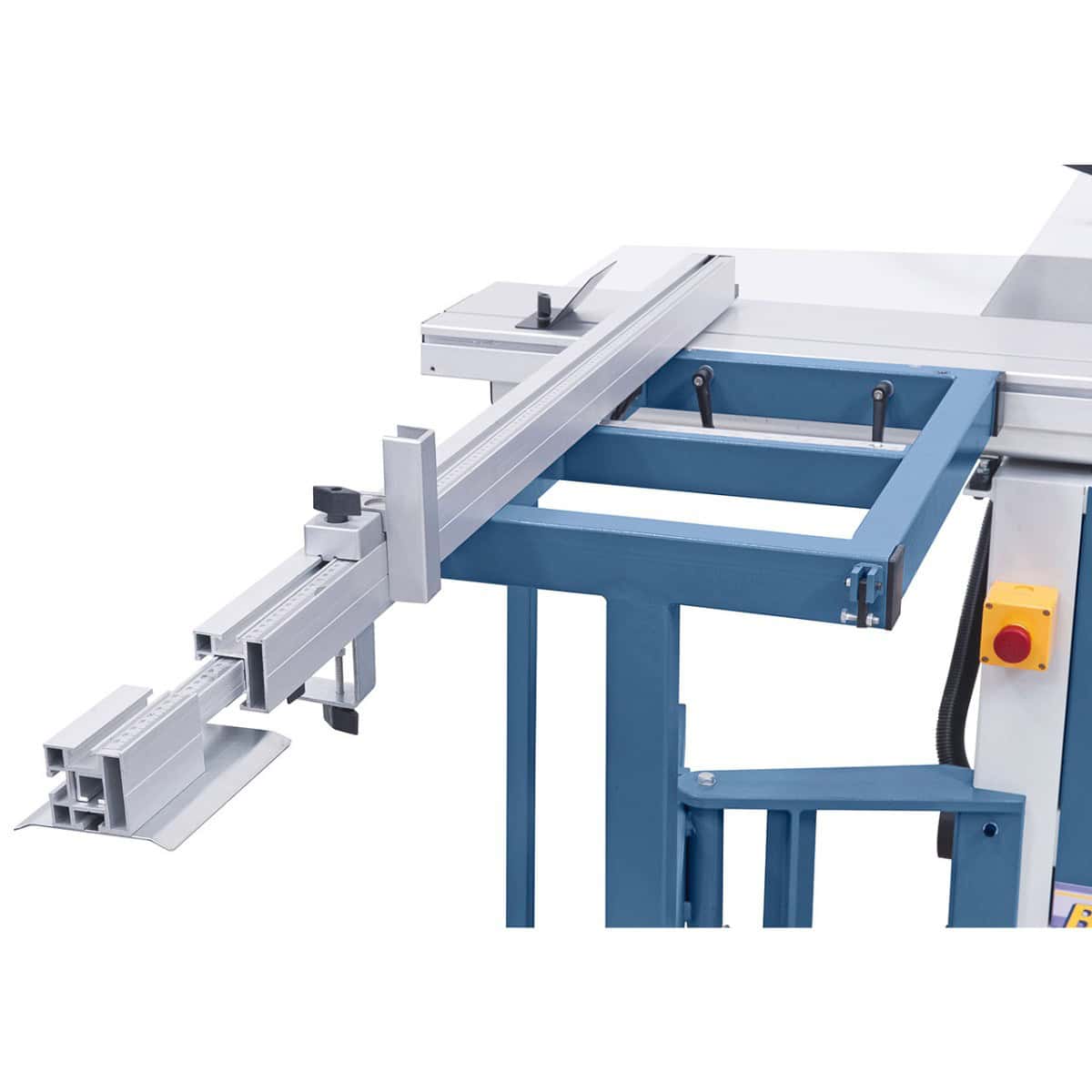

| Squaring frame |
600 x 410 mm |
| Max. cutting height 90° / 45° |
100 / 75 mm |

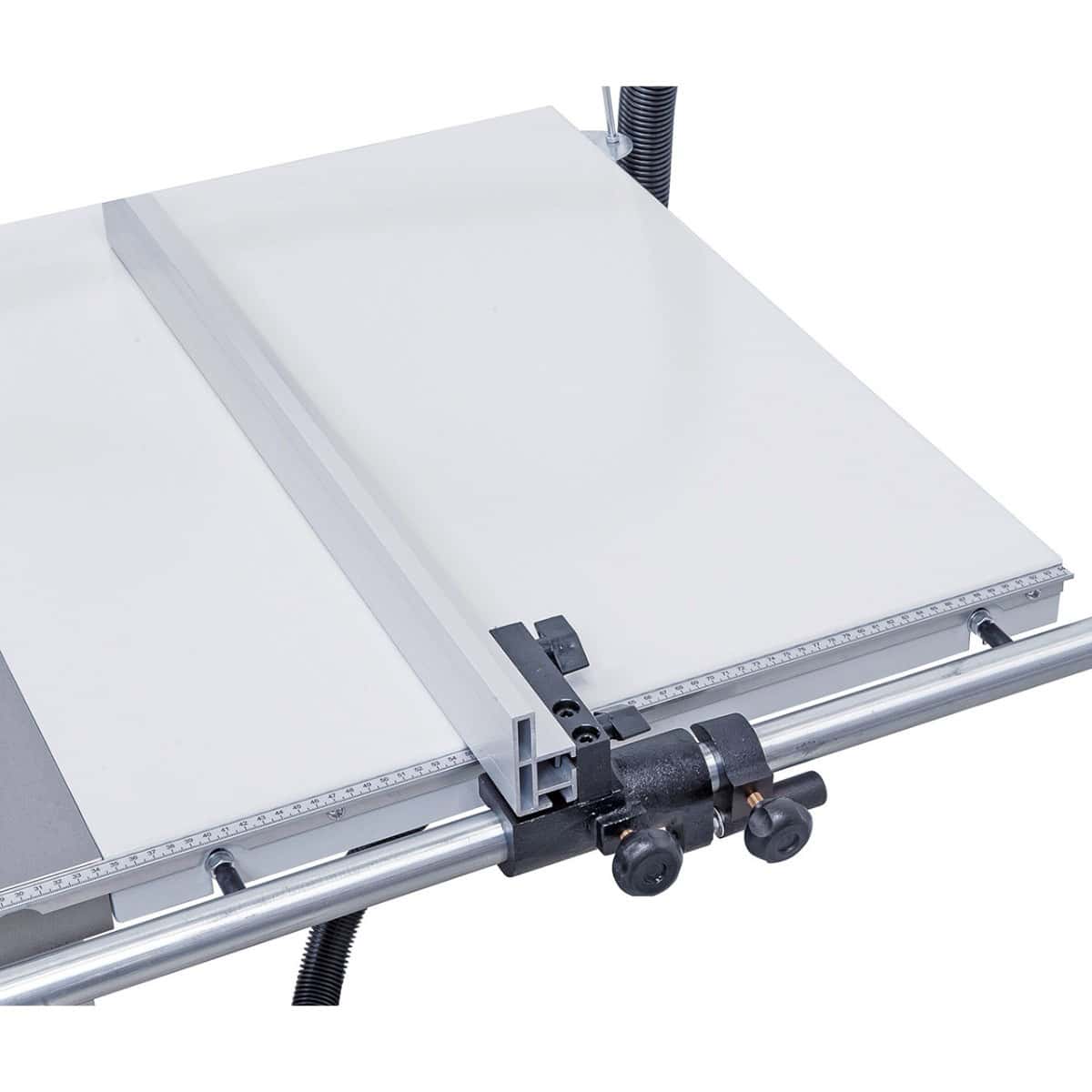

| Cutting width on rip fence |
900 mm |
Frequently Asked Questions
What panel sizes can it cut?
See "Sliding table size" and "Useful sliding table length" in the technical table.
Professional sliding tables measure 2,000-3,200 mm. Longer panels require larger industrial panel saws.
Does it have a scoring saw for coated panels?
Professional models offer a scoring saw as standard or optional to prevent chipping on MDF and laminates.
The scoring saw performs a preliminary surface cut before the main cut, eliminating the problem of chipping on the visible side of the panel.
What cutting height and angle does it offer?
See "Max. cutting height" and "Blade inclination" in the technical table.
Blade inclination (typically 0-46°) allows 45° cuts for joints and chamfered edges. Check the useful height at 45°, which is lower than the maximum at 90°.
Required power supply and power?
Professional panel saws require 400 V three-phase with motors from 4 to 7 kW.
Check the capacity of the electrical line and the presence of a dedicated residual current circuit breaker.
How much does the machine weigh?
From 200 kg to over 800 kg for industrial models complete with long sliding carriage.
Installation requires a flat and level floor. For continuous use, fixing with anchors is recommended for stability in more demanding operations.
