Bernardo | SKU: 09-1097

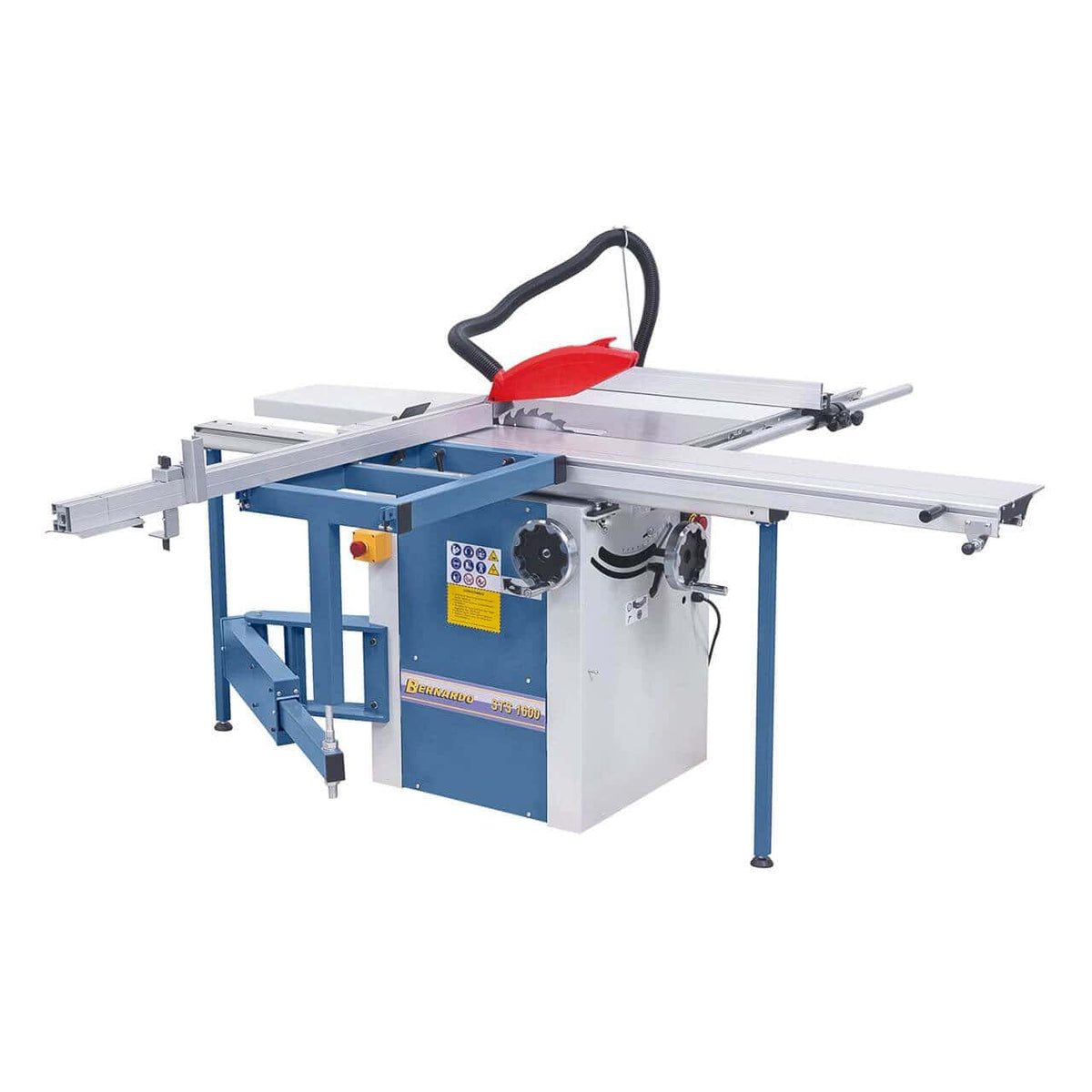

Bernardo STS 1600 / 230 V Panel Saw

Name: Bernardo STS 1600 / 230 V Panel Saw
Brand: Bernardo
SKU: 09-1097
Price: 2187.43 EUR
Availability: InStock

€2.187,43 (22% VAT incl.) ~~€2.604,00~~

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

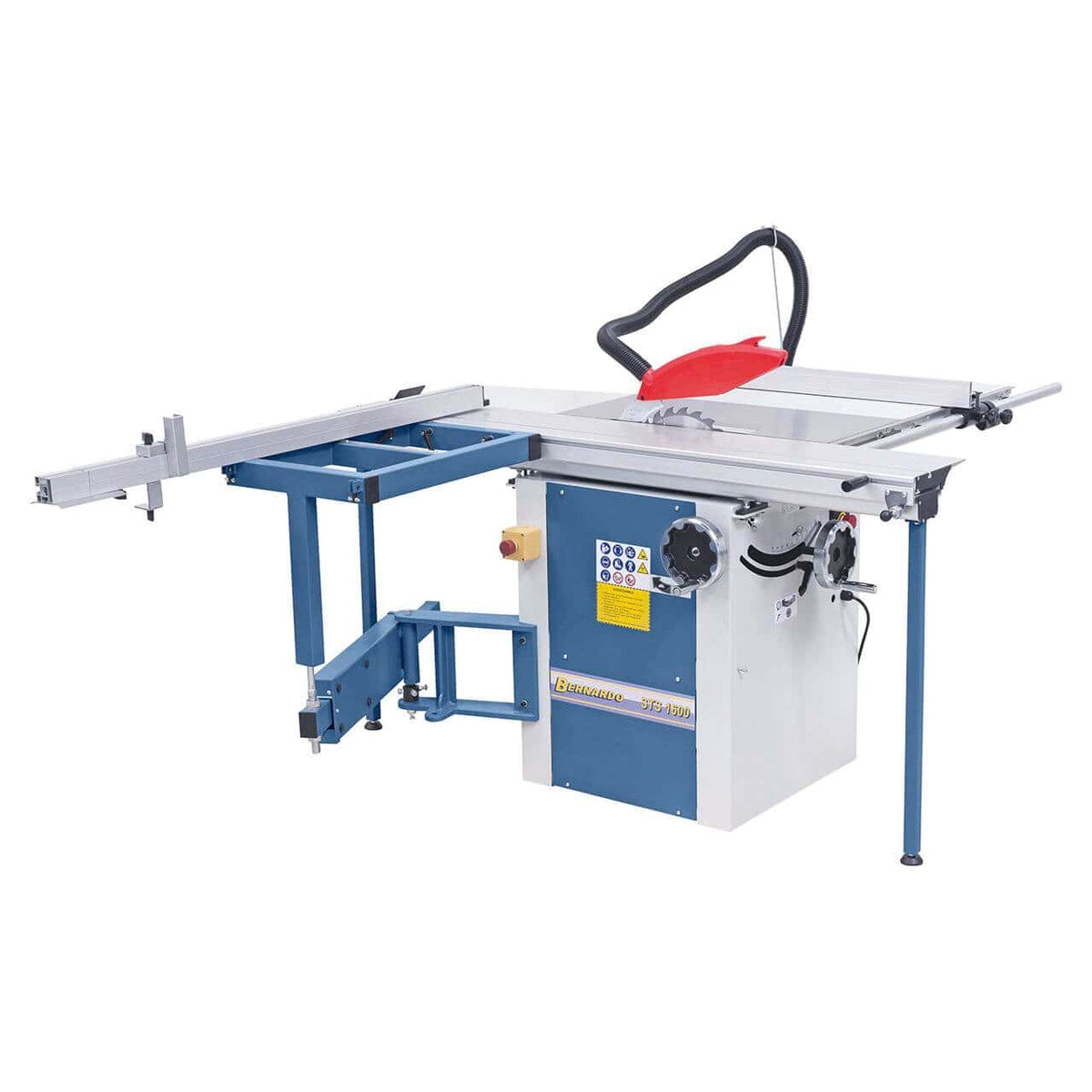

Bernardo STS 1600 / 230 V is a professional wood panel saw with a 2.2 kW (3.0 HP) motor, weighing approximately 204 kg. Krollit, official Bernardo distributor since 2007.

Table size: 760 x 350 mm

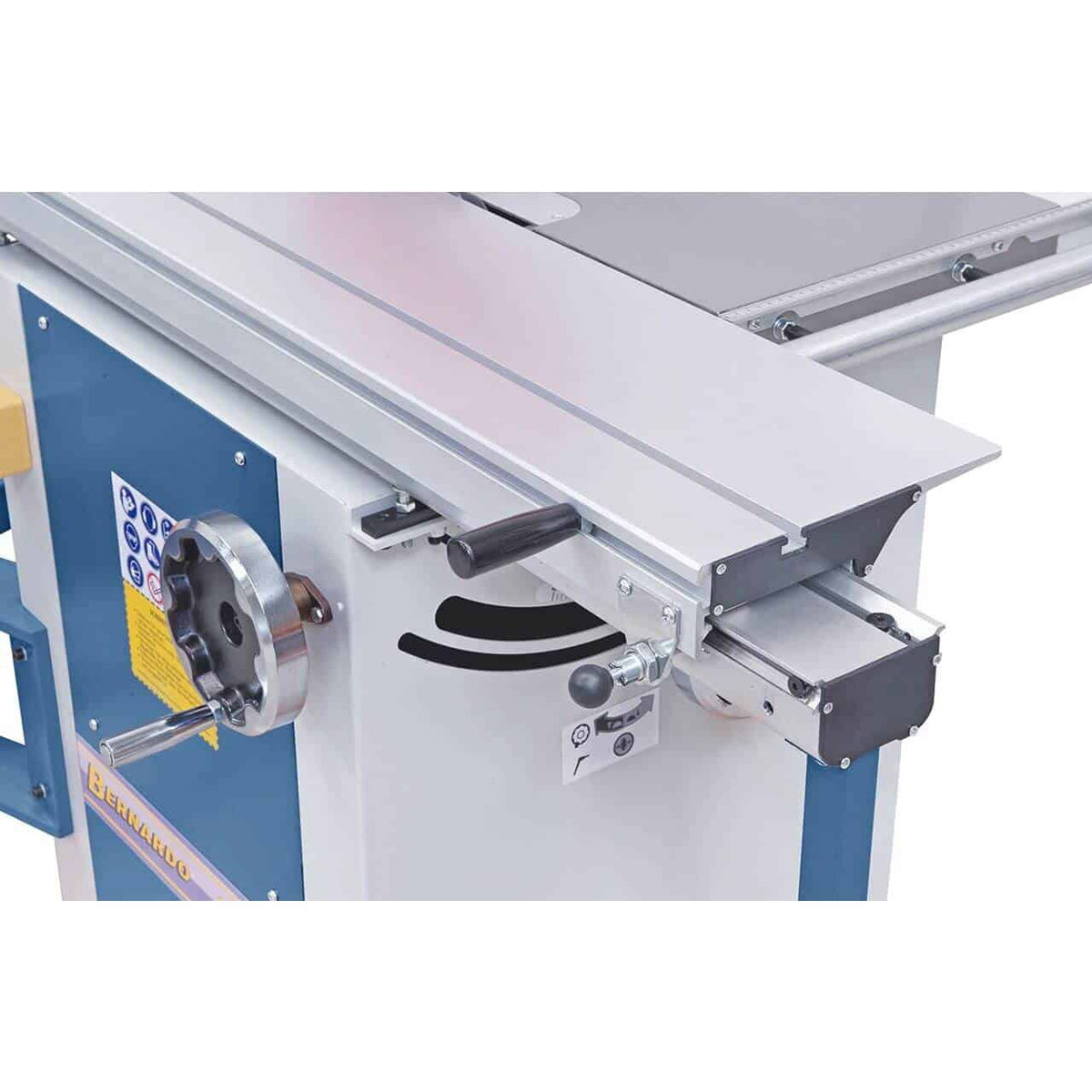

Sliding table: 1600 x 240 mm
Sliding table length: 1600 mm
Max. blade diameter: 315 x 30 mm
Max. cutting height 90° / 45°: 100 / 75 mm

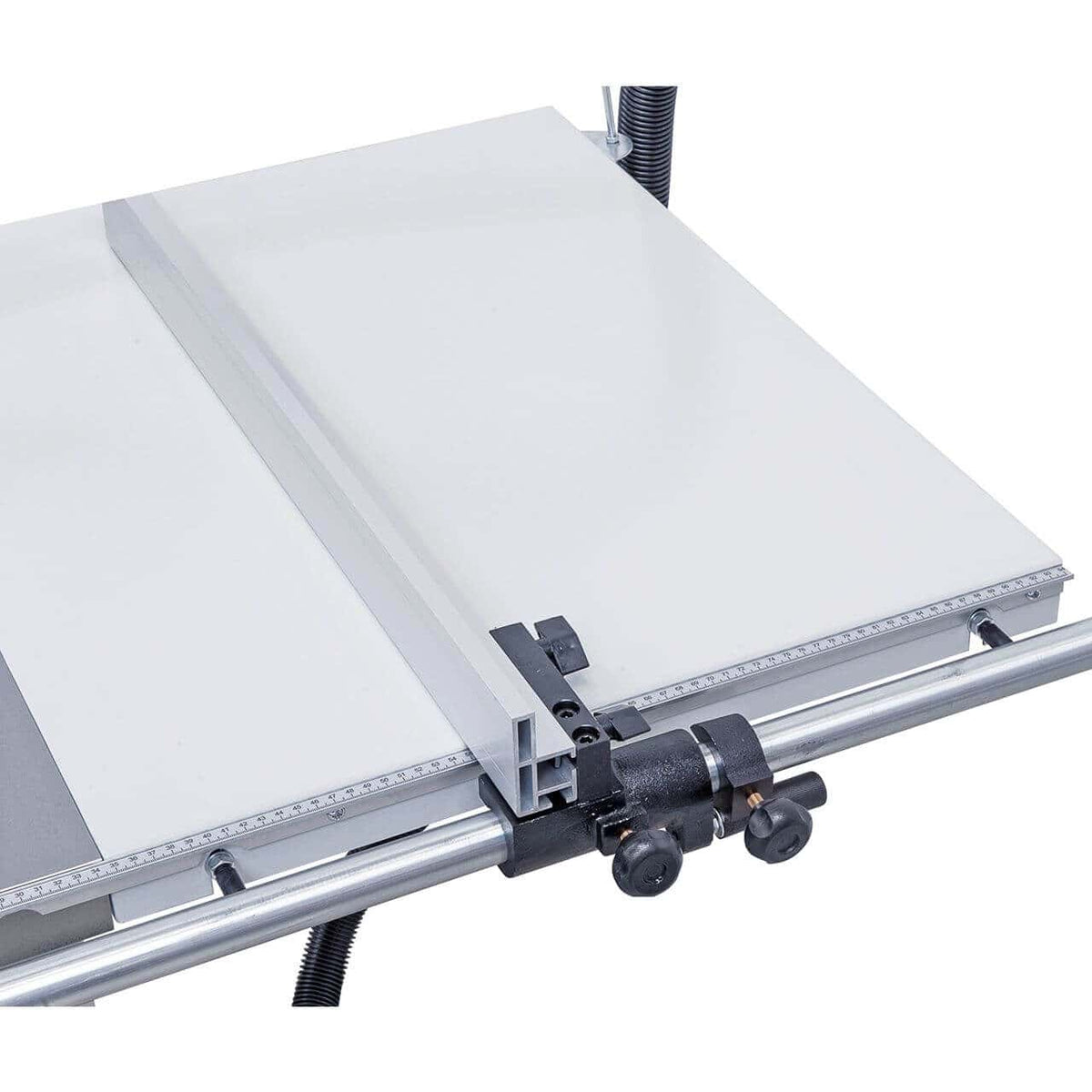

Cutting width at fence: 900 mm

Who uses the STS 1600 / 230 V and for what

Professional carpentry shops use the STS 1600 / 230 V for squaring panels with a sliding carriage, and for cutting chipboard, MDF, and solid wood panels.

Its place in the Bernardo range

The Bernardo STS 1600 / 230 V fits into Bernardo's range of panel saws, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.

Krollit logistics and support

Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer assistance in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.

Who is the STS 1600 / 230 V for

The STS 1600 / 230 V is recommended for the following professional profiles:

Professional carpentry shops: squaring panels with a sliding carriage for precise 90° cuts.
Furniture manufacturers and window/door manufacturers: cutting chipboard, MDF, and solid wood panels.

Not suitable for: processing metal sheets (machine dedicated to wood: specific shears and saws are needed for metal).

Technical specifications

Spindle, tools and speed

Max. blade diameter	315 x 30 mm
Main blade speed	4250 rpm
Dust extraction outlet	Ø 100 mm

Table, dimensions and geometry

Sliding table length	1600 mm
Table height	870 mm
Table extension	500 x 350 mm
Table extension	760 x 600 mm
Machine dimensions (L x W x H)	2000 x 2500 x 1270 mm
Weight	approx. 204 kg

Motor and power supply

Motor power S1 100%	2.2 kW (3.0 HP)
Motor power S6 40%	3.0 kW (4.0 HP)
Voltage	230 V

Other specifications

Table size	760 x 350 mm
Sliding table	1600 x 240 mm
Panel saw	600 x 410 mm
Max. cutting height 90° / 45°	100 / 75 mm
Cutting width at fence	900 mm

Warranty

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

FAQ / Frequently asked questions

Frequently asked questions

What panel dimensions can it square?

See "Carriage dimensions" and "Useful carriage length" in the technical table.

Professional sliding carriages measure 2,000-3,200 mm. For longer panels, larger industrial panel saws are needed.

Does it have a scoring saw for coated panels?

Professional models offer a scoring saw as standard or optional to prevent chipping on MDF and laminates.

The scoring saw performs a shallow pre-cut before the main cut, eliminating the problem of chipping on the visible side of the panel.

What cutting height and angle does it offer?

See "Max cutting height" and "Blade tilt" in the technical table.

Blade tilt (typically 0-46°) allows for 45° cuts for joints and mitered edges. Check the useful height at 45°, which is less than the maximum at 90°.

Power supply and power requirements?

Professional panel saws require 400 V three-phase with motors from 4 to 7 kW.

Check the capacity of the electrical line and the presence of a dedicated residual current device.

How much does the machine weigh?

From 200 kg to over 800 kg for industrial models complete with long carriage.

Installation requires a flat and level floor. For continuous use, fixing with anchor bolts is recommended for stability during more demanding tasks.
