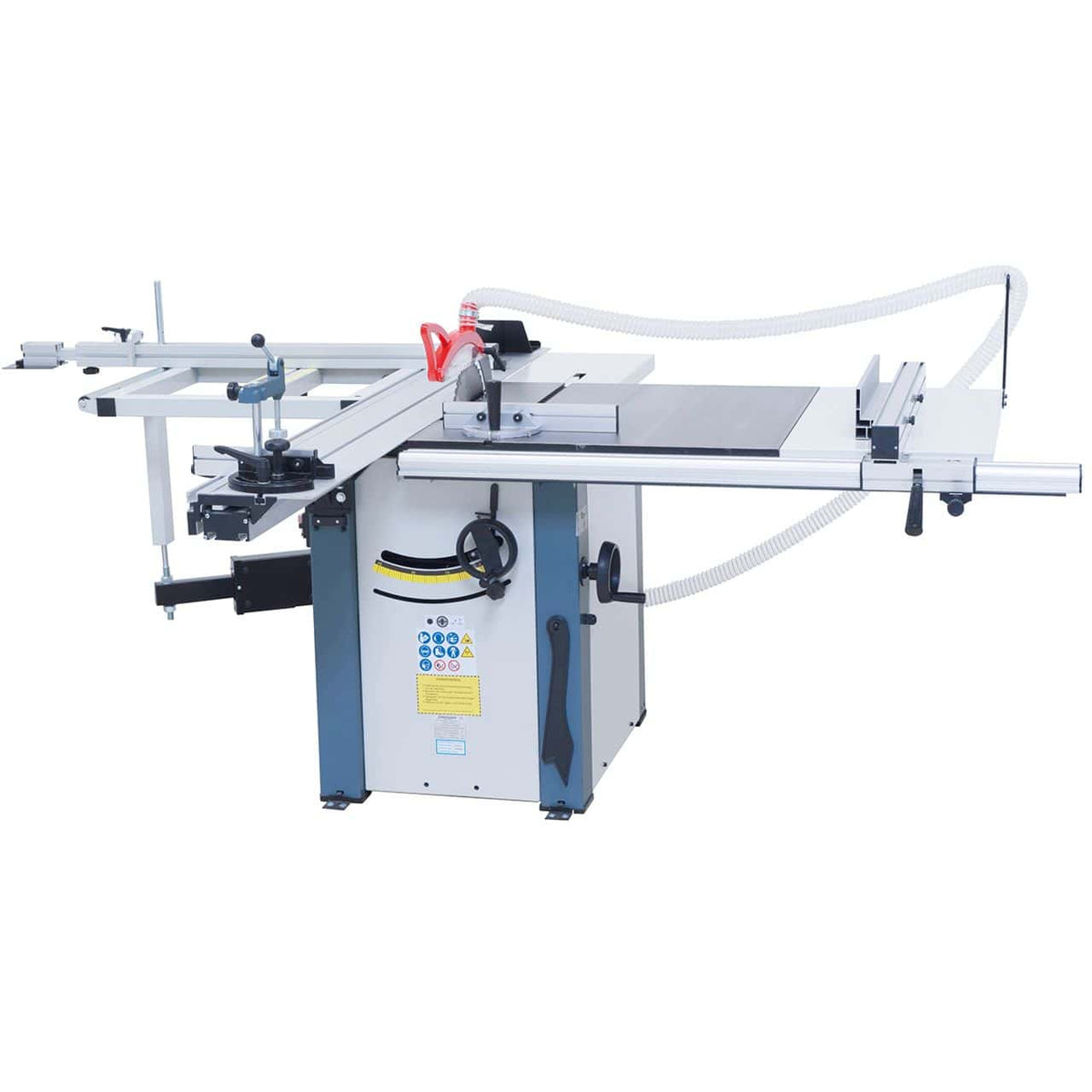

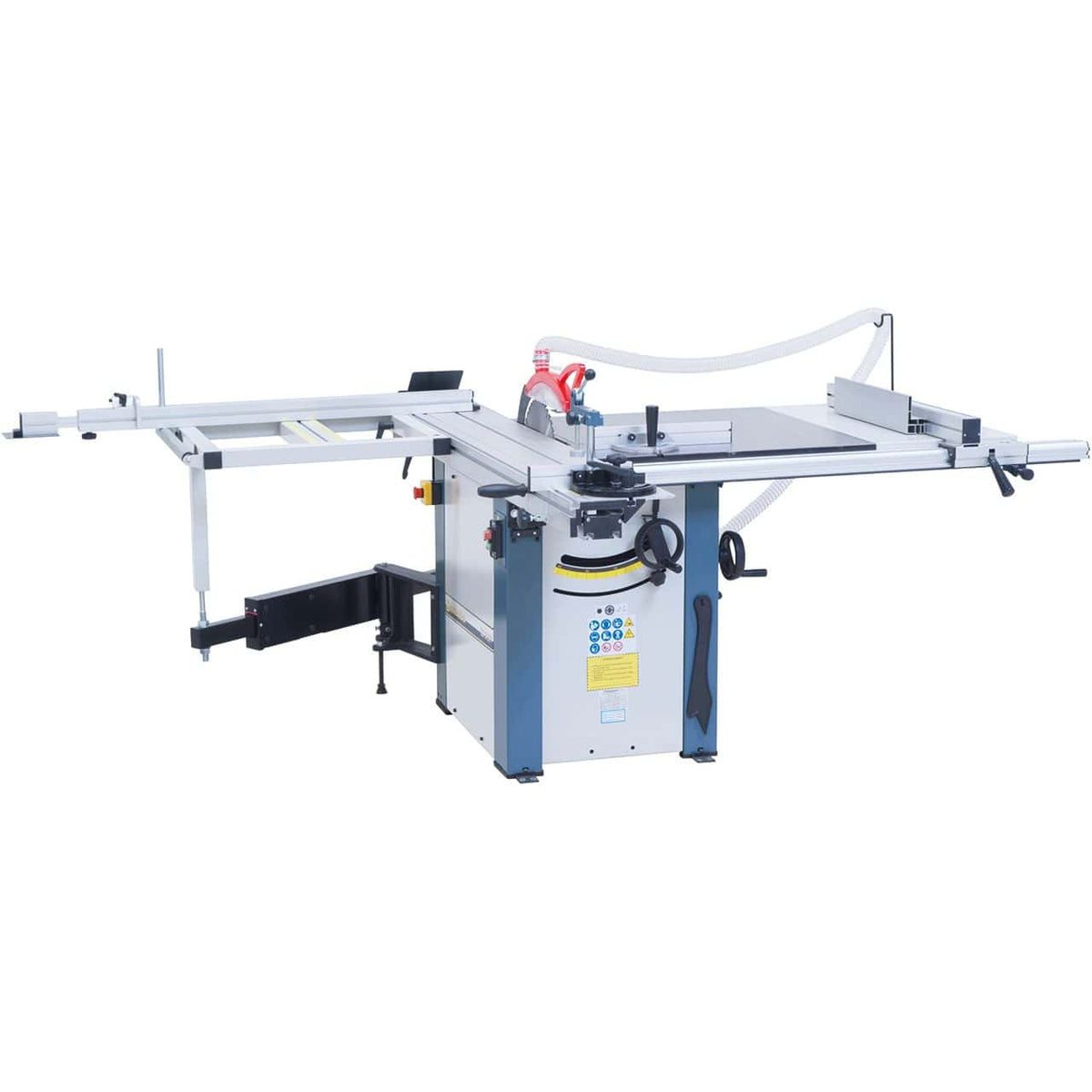

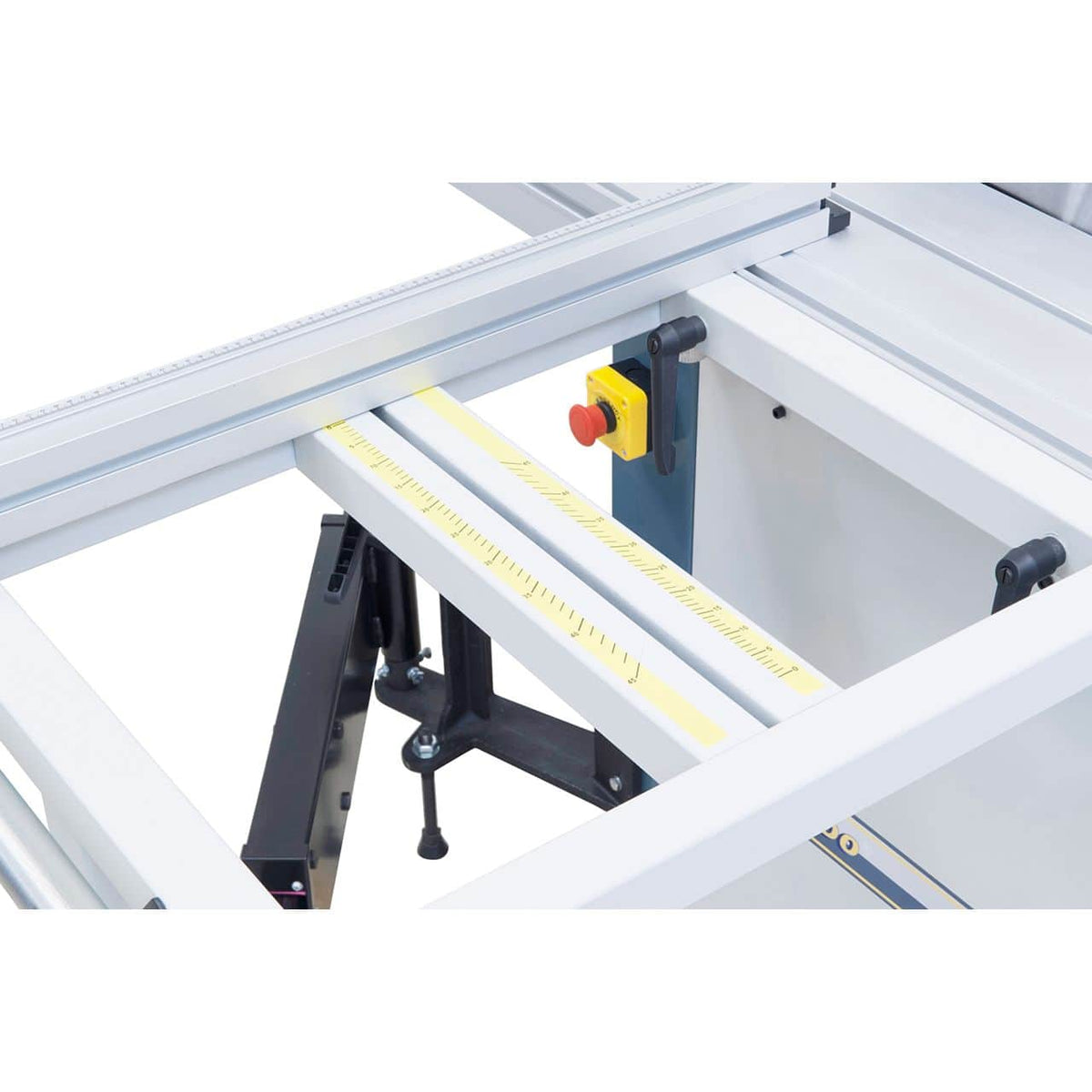

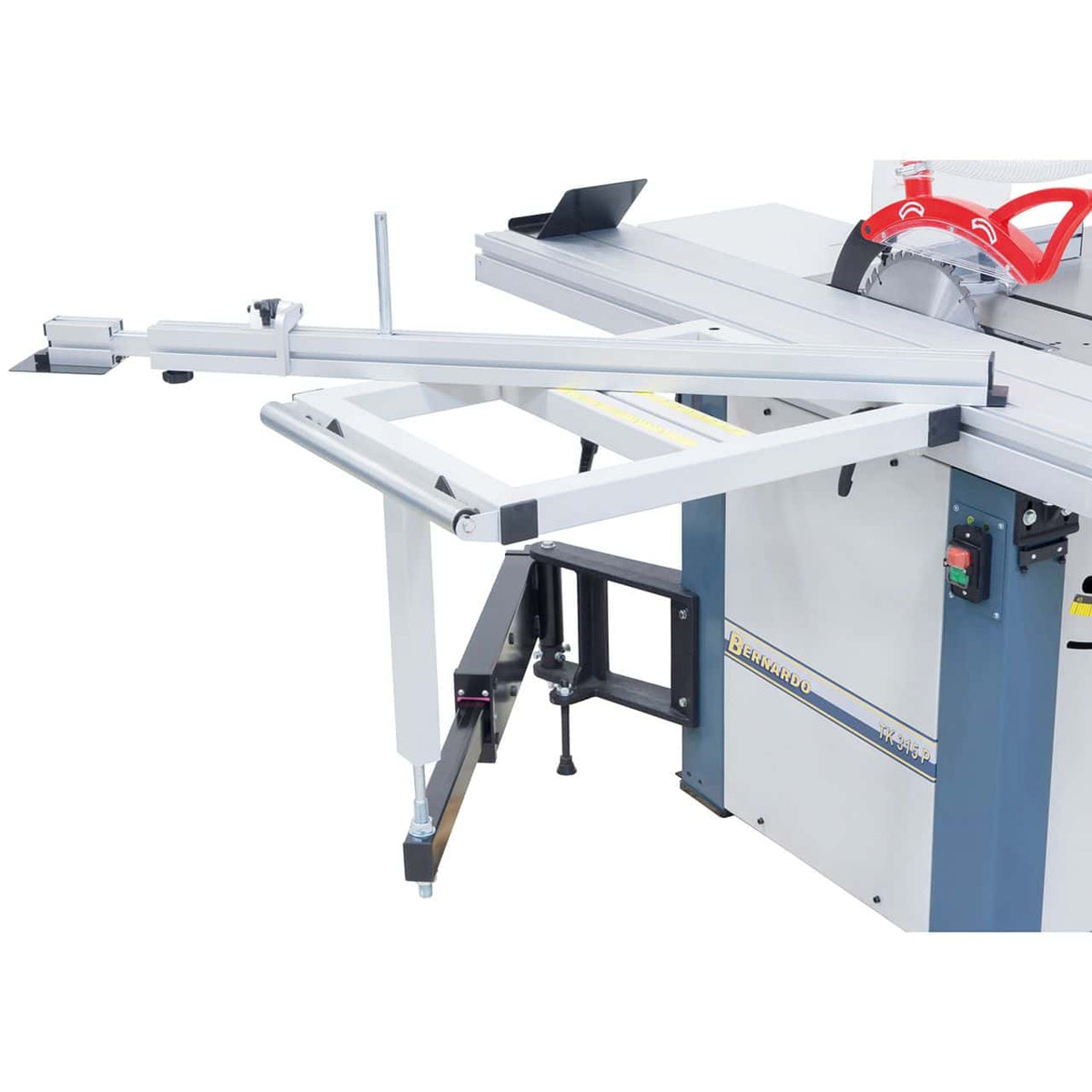

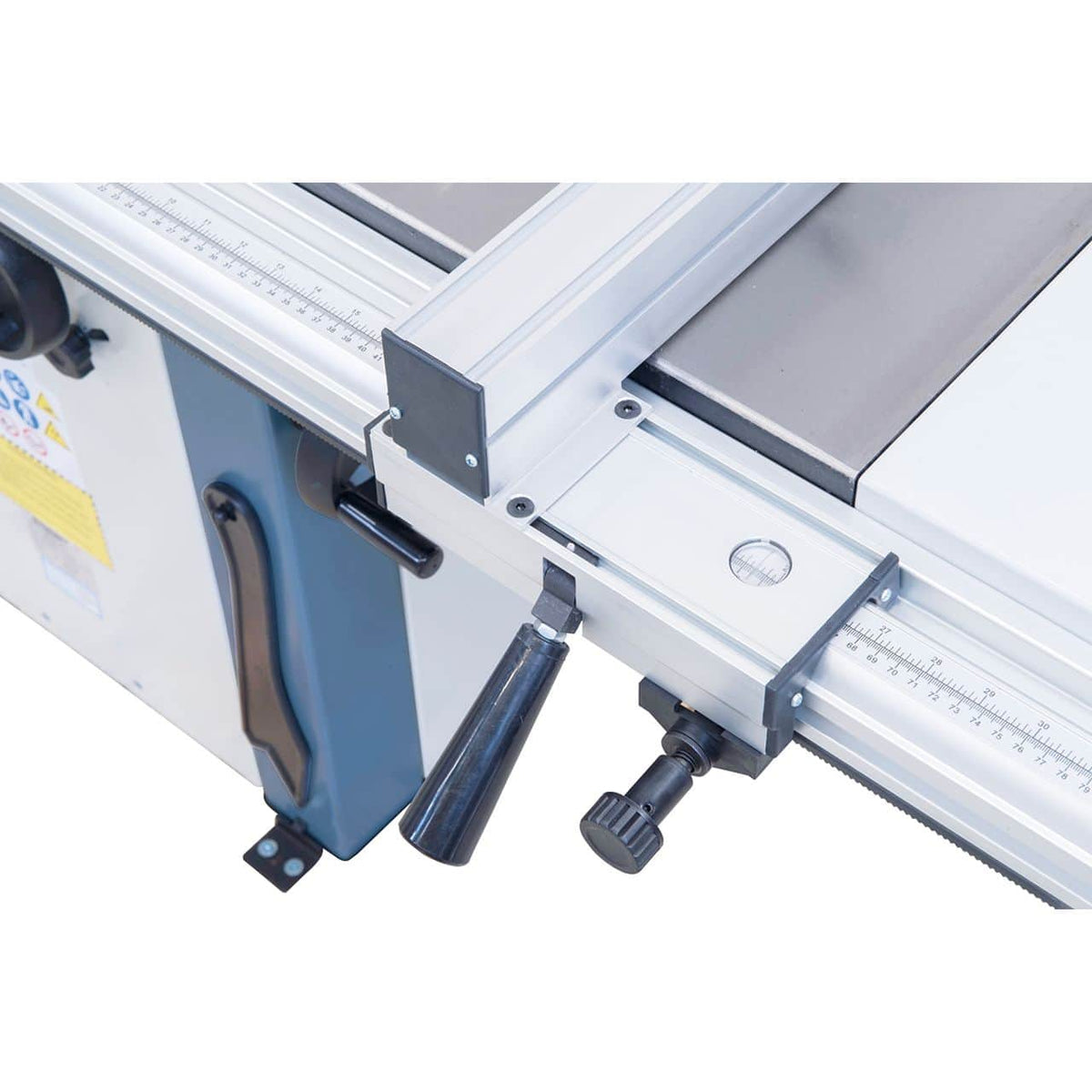

The Bernardo TK 315 P - 2000 - 230 V is a professional woodworking panel saw with a 3.0 kW (4.0 HP) motor, weighing 258 kg. Krollit, official Bernardo distributor since 2007.
- Table size: 825 x 800 mm
- Sliding carriage: 2000 x 270 mm
- Cutting length: 2000 mm
- Max. blade diameter: 315 x 30 mm
- Max. cutting height 90° / 45°: 100 / 80 mm
- Cutting width on rip fence: 1240 mm
- Table height: 870 mm
- Table extension: 500 x 310 mm
Who uses the TK 315 P - 2000 - 230 V and for what
Professional carpentry workshops use the TK 315 P - 2000 - 230 V for squaring panels with a sliding carriage, cutting chipboard, MDF, and solid wood panels.
Its place in the Bernardo range
The Bernardo TK 315 P - 2000 - 230 V fits into the Bernardo panel saw range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 business days (7 days for Southern Italy). For spare parts and accessories, shipping in 3-5 business days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the TK 315 P - 2000 - 230 V for
| Profile |
Compatibility |
Reason |
| Professional carpentry workshops |
Suitable |
Squaring panels with sliding carriage for precise 90° cuts |
| Furniture manufacturers and window/door production |
Suitable |
Cutting chipboard, MDF, and solid wood panels |
| Metal sheet processing |
Not suitable |
Machine dedicated to wood: metal requires specific shears and saws |
Not suitable for: metal sheet processing (machine dedicated to wood: metal requires specific shears and saws).
Processing capacity
| Cutting length |
2000 mm |
| Max. cutting height 90° / 45° |
100 / 80 mm |
| Cutting width on rip fence |
1240 mm |
Spindle and speed
| Blade speed |
4000 rpm |
| Scoring saw speed |
5800 rpm |
Table and dimensions
| Table height |
870 mm |
| Machine dimensions (L x W x H) |
2000 x 2870 x 1140 mm |
Motor and power supply
| Table extension |
500 x 310 mm |
| Motor power (S1 100%) |
3.0 kW (4.0 HP) |
| Motor power (S6 40%) |
4.2 kW (5.7 HP) |
| Voltage |
230 V |
Other specifications
| Table size |
825 x 800 mm |
| Sliding carriage |
2000 x 270 mm |
| Max. blade diameter |
315 x 30 mm |
| Table expansion |
800 x 440 mm |
| Squaring table with roller |
700 x 580 mm |
| Scoring blade |
90 x 20 mm |
| Extraction outlet |
Ø 100 mm |
| Approx. weight |
258 kg |
Frequently Asked Questions
What panel dimensions can it square?
See "Carriage size" and "Useful carriage length" in the technical table.
Professional sliding carriages measure 2,000-3,200 mm. Longer panels require larger industrial panel saws.
Does it have a scoring saw for coated panels?
Professional models offer a scoring saw as standard or optional to prevent chipping on MDF and laminates.
The scoring saw performs a shallow pre-cut before the main cut, eliminating the problem of chipping on the visible side of the panel.
What cutting height and angle does it offer?
See "Max cutting height" and "Blade tilt" in the technical table.
Blade tilt (typically 0-46°) allows for 45° cuts for joints and chamfered edges. Check the useful height at 45°, which is less than the maximum at 90°.
Required power supply and power?
Professional panel saws require 400 V three-phase with motors from 4 to 7 kW.
Check the capacity of the electrical line and the presence of a dedicated residual current device.
How much does the machine weigh?
From 200 kg to over 800 kg for industrial models complete with long carriage.
Installation requires a flat and level floor. For continuous use, anchoring with bolts is recommended for stability during more demanding operations.
