Bernardo | SKU: 09-1305

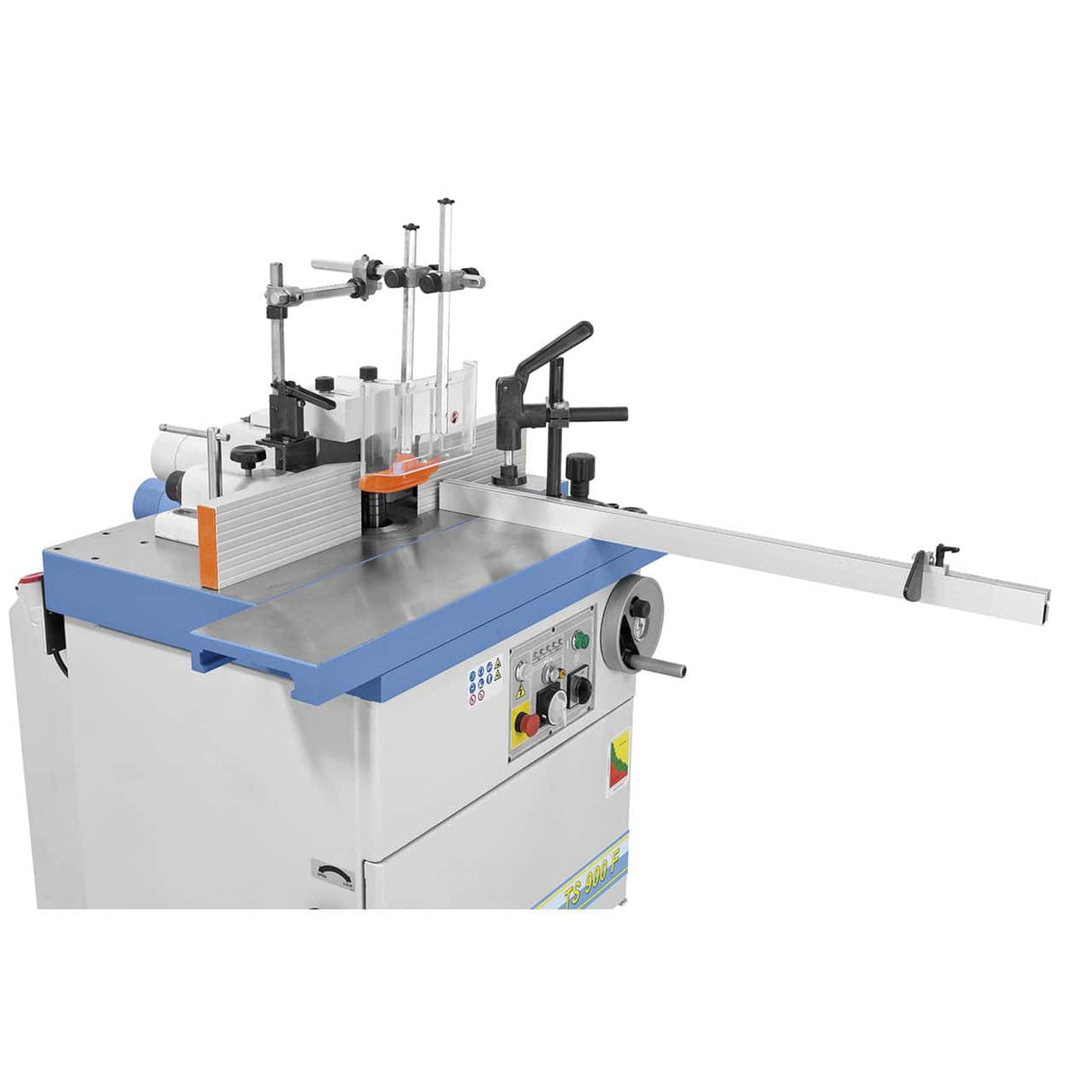

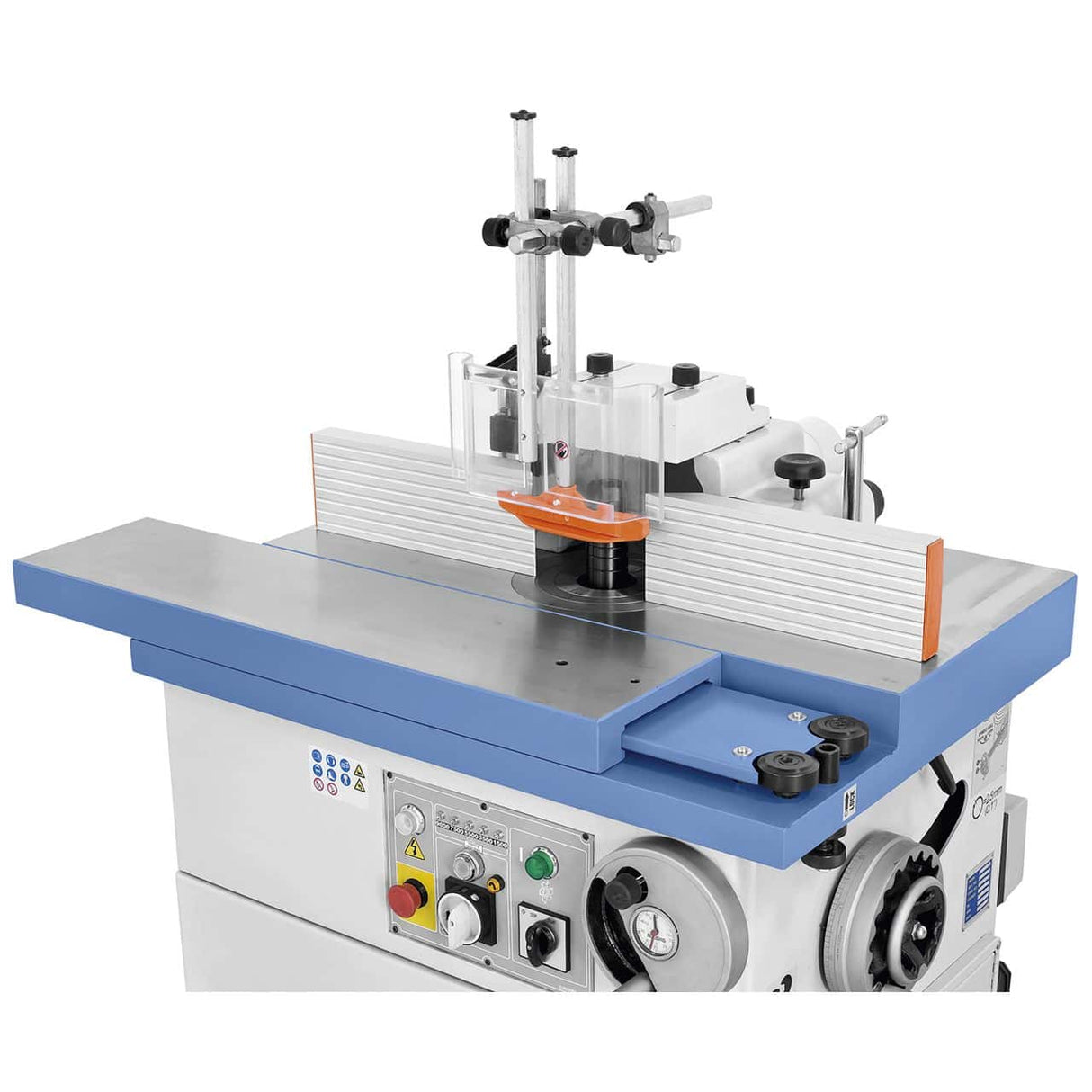

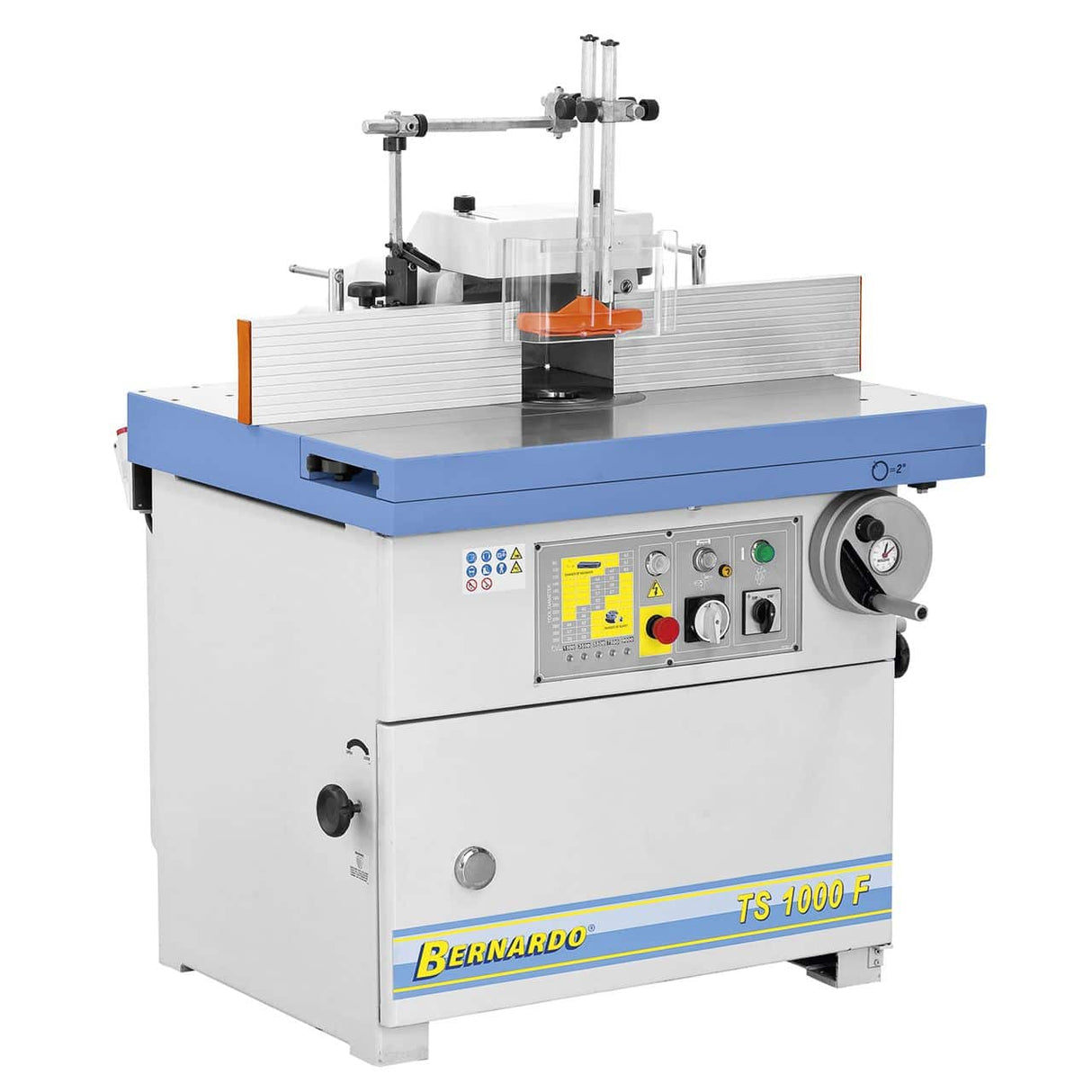

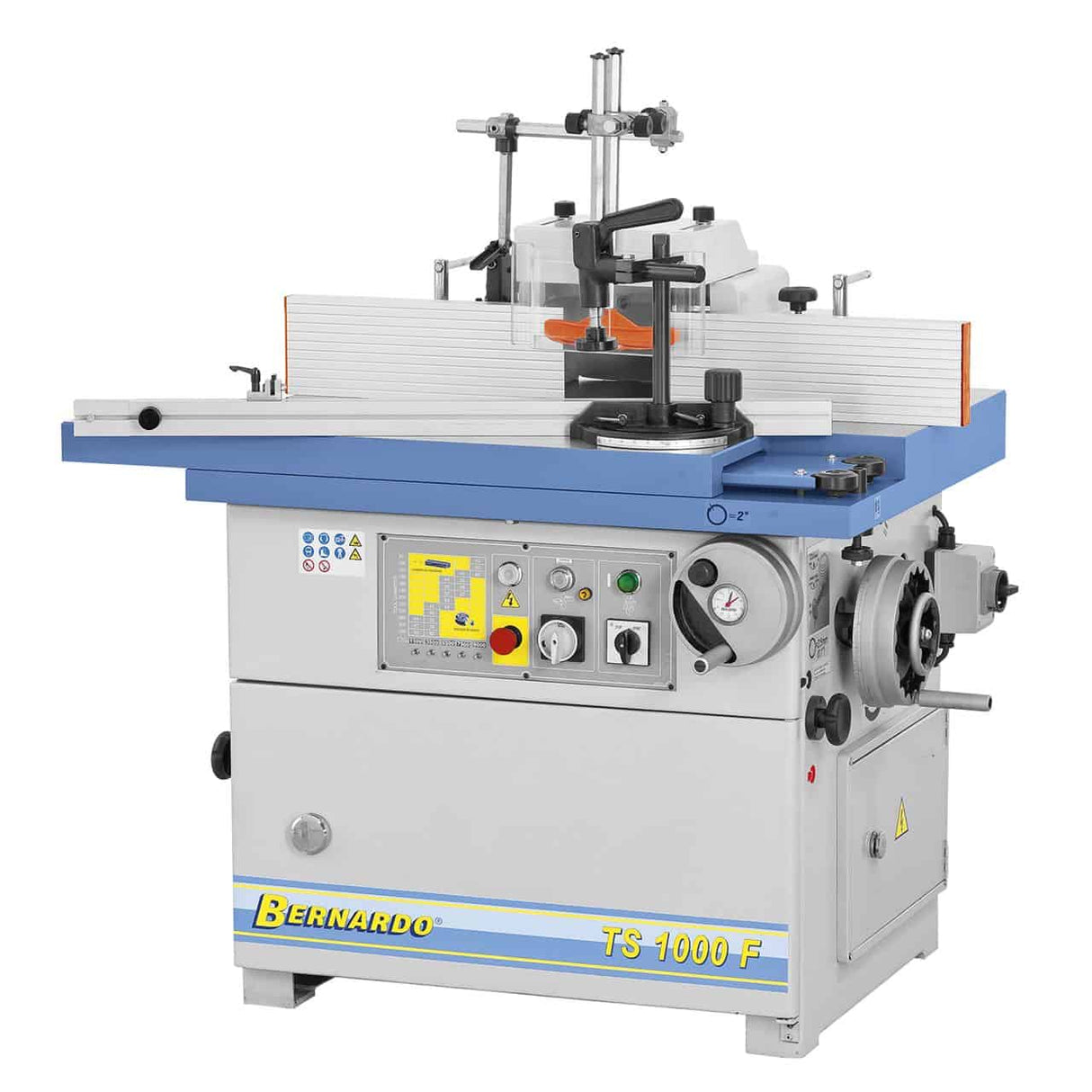

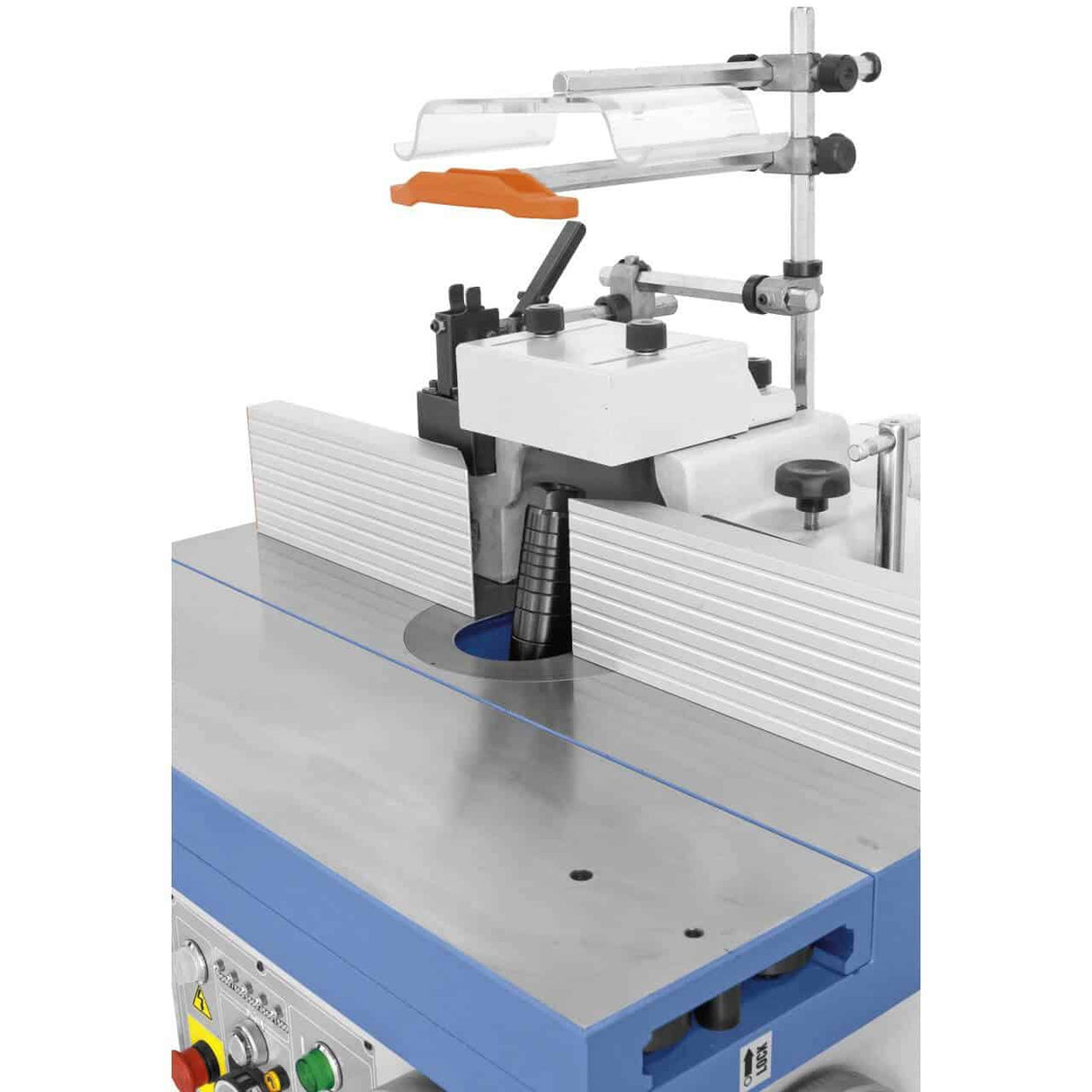

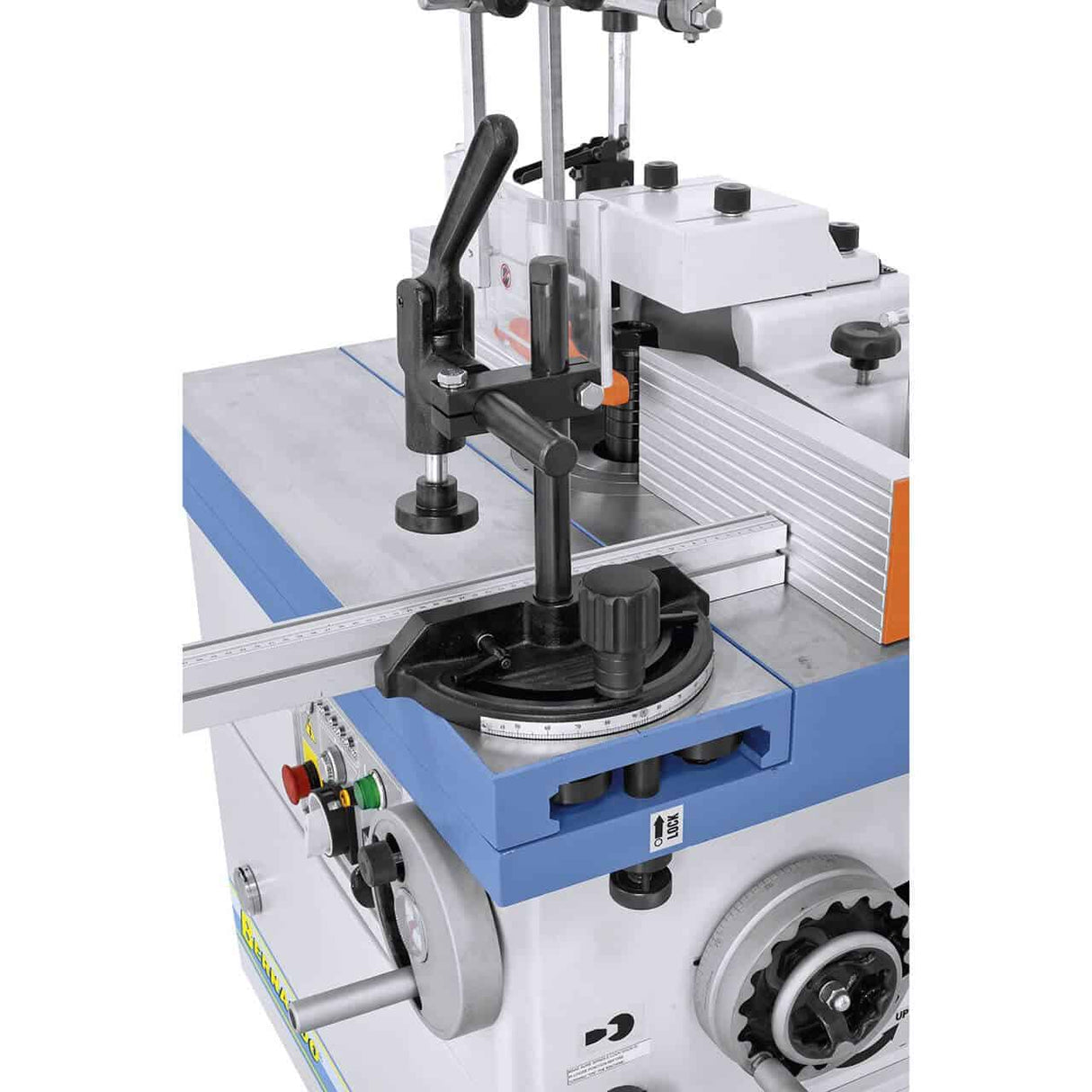

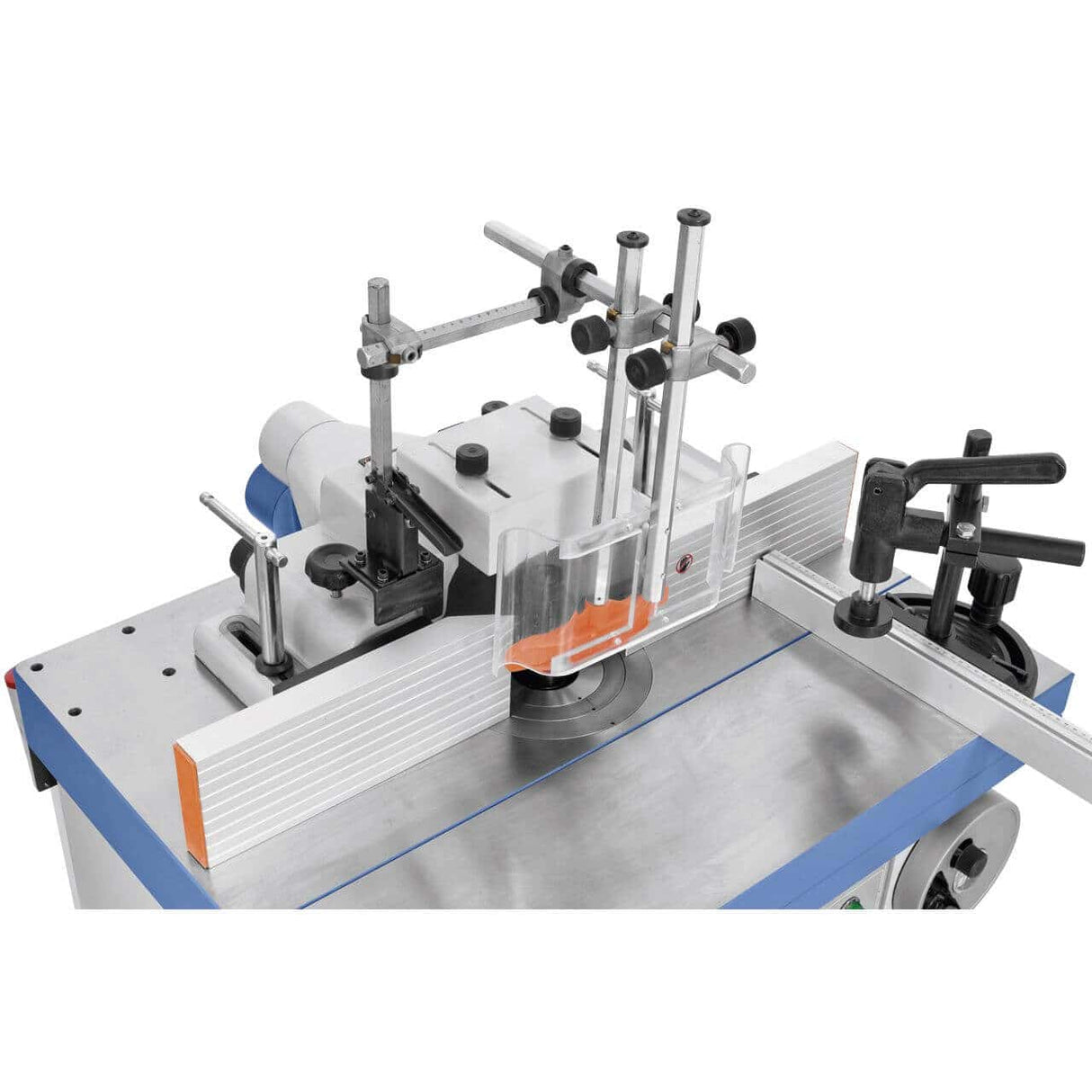

Router spindle moulder TS 1000 F - 400V with sliding table

Name: Router spindle moulder TS 1000 F - 400V with sliding table
Brand: Bernardo
SKU: 09-1305
Availability: InStock

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

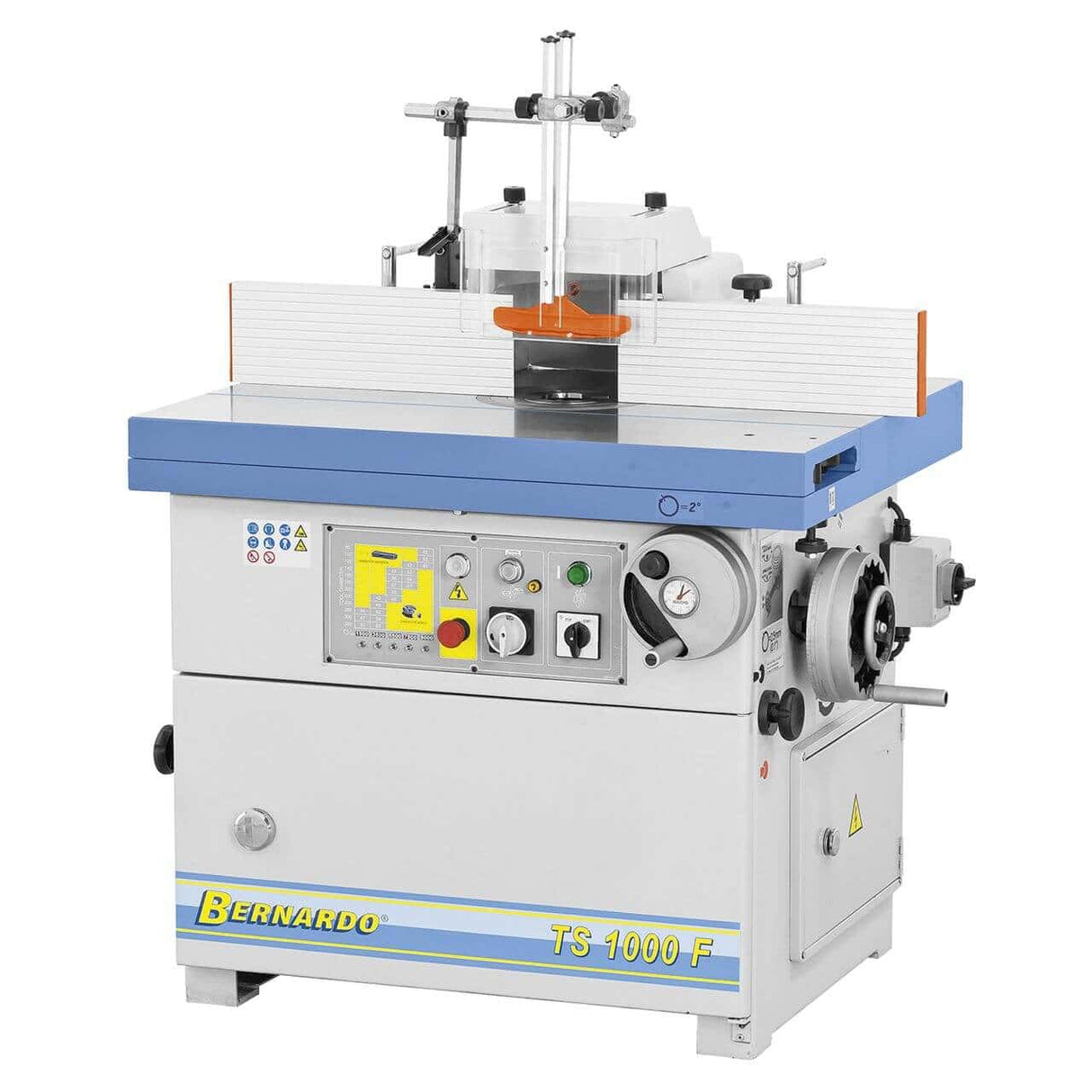

The Bernardo TS 1000 F spindle moulder offers a 1000 × 800 mm table, Ø 30 mm spindle, 5 speeds 1,500/3,500/5,500/7,500/9,000 rpm, max. tool Ø (moulding) 250 mm / (tenoning) 335 mm, 5.5 kW three-phase 400V motor. Manufactured in Austria, distributed in Italy by Krollit as an official Bernardo distributor since 2007.

Table size: 1000 × 800 mm
Working height: 880 mm
Spindle diameter: Ø 30 mm
Spindle speed (5): 1,500 / 3,500 / 5,500 / 7,500 / 9,000 rpm
Spindle height adjustment: 180 mm
Usable spindle length: 120 mm
Max. tool Ø (moulding / tenoning): 250 / 335 mm
Table opening: 220 mm
Dust extraction outlets: Ø 125 / 100 mm
Sliding table: 1000 × 260 mm (stroke 940 mm)
Motor: 5.5 kW – 400 three-phase

Who uses the TS 1000 F and for what

The Bernardo TS 1000 F is a high-end professional spindle moulder with 5 speeds (1,500–9,000 rpm) and a 5.5 kW motor: the choice for joineries and window and door manufacturers that continuously produce complex profiles — mouldings, tenons, grooves, dovetail joints — on solid wood and panels. With a max. tool Ø of 250 mm for moulding and 335 mm for tenoning, it covers a wide range of professional tools. The integrated sliding table (1000 × 260 mm (stroke 940 mm)) allows precise tenoning without additional equipment. In Krollit customers' workshops, it is the reference spindle moulder for professional window and door manufacturers and carpenters.

Who is the Bernardo TS 1000 F for

Profile	Compatibility	Reason
Hobbyist	Not recommended	Professional 5.5 kW three-phase spindle moulder — oversized and expensive for hobby use.
Professional joinery / window and door manufacturer	Ideal	5.5 kW, 5 speeds, Ø 250/335 mm: for continuous moulding and tenoning production on all types of wood.
Industrial production	Ideal	For intensive cycles on hardwoods and complex profiles, the 5.5 kW motor's torque ensures continuity without overheating.

Logistics

Bernardo shipping: 5–9 business days (7 days for Southern Italy). Original spare parts available with 3–5 business days shipping. Customer support in Italian available.

Technical specifications

Table and spindle

Specification	Value
Table size	1000 × 800 mm
Working height	880 mm
Spindle diameter	Ø 30 mm
Spindle speed (5)	1,500 / 3,500 / 5,500 / 7,500 / 9,000 rpm
Spindle height adjustment	180 mm
Usable spindle length	120 mm
Max. tool Ø (moulding)	250 mm
Max. tool Ø (tenoning)	335 mm
Table opening	220 mm
Dust extraction outlets	Ø 125 / 100 mm
Spindle tilt	−10° to +45°
Sliding table	1000 × 260 mm (stroke 940 mm)

Motor and power supply

Specification	Value
Motor power	5.5 kW
Power supply	400V – three-phase

Compliance and safety

Specification	Value
Marking	CE
Directive	Machinery 2006/42/CE

Warranty

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

FAQ / Frequently asked questions

Frequently asked questions

What is the difference between the TS series and the T series in the Bernardo spindle moulder range?

The T series (T 500, T 700, T 750, T 800 F) has 4 speeds (max 9,000 rpm) and motors up to 2.8 kW, also available in 230V single-phase. The TS series (TS 900 F, TS 1000 F, TS 1300) has 5 speeds (1,500–9,000 rpm), much larger tables (up to 1,910 mm) and 5.5 kW motors only three-phase 400V: for intense professional production on hardwoods and large format moulding.

When is the fifth speed of 1,500 rpm needed?

The fifth speed of 1,500 rpm (the slowest) is necessary for large diameter cutters (Ø 250–360 mm) used in tenoning: at higher speeds, the peripheral speed would exceed the allowed safety limit for these cutters. Practical rule: maximum peripheral speed = RPM × π × diameter / 60,000 < 60–80 m/s.

What is the difference between TS 900 F, TS 1000 F and TS 1300?

TS 900 F: table 900 × 700 mm, sliding table 900 × 230 mm, max Ø moulding 180 mm, tenoning 225 mm. TS 1000 F: table 1000 × 800 mm, sliding table 1000 × 260 mm, max Ø moulding 250 mm, tenoning 335 mm. TS 1300: table 1310 × 970 mm, no sliding table as standard, max Ø moulding 260 mm, tenoning 360 mm. The choice depends on the table size and the tenoning carriage required.

What dust extractor is needed for the TS series?

The TS series has Ø 125 and Ø 100 mm dust extraction outlets — superior to the T series (only Ø 100 mm). An industrial dust extractor with a minimum capacity of 1,000–1,500 m³/h is recommended for continuous professional use. Bernardo offers compatible FT and DC dust extractors — contact Krollit for the correct configuration.

Are spare parts and assistance available?

Original Bernardo spare parts available with 3–5 business days shipping. Customer support in Italian available.
