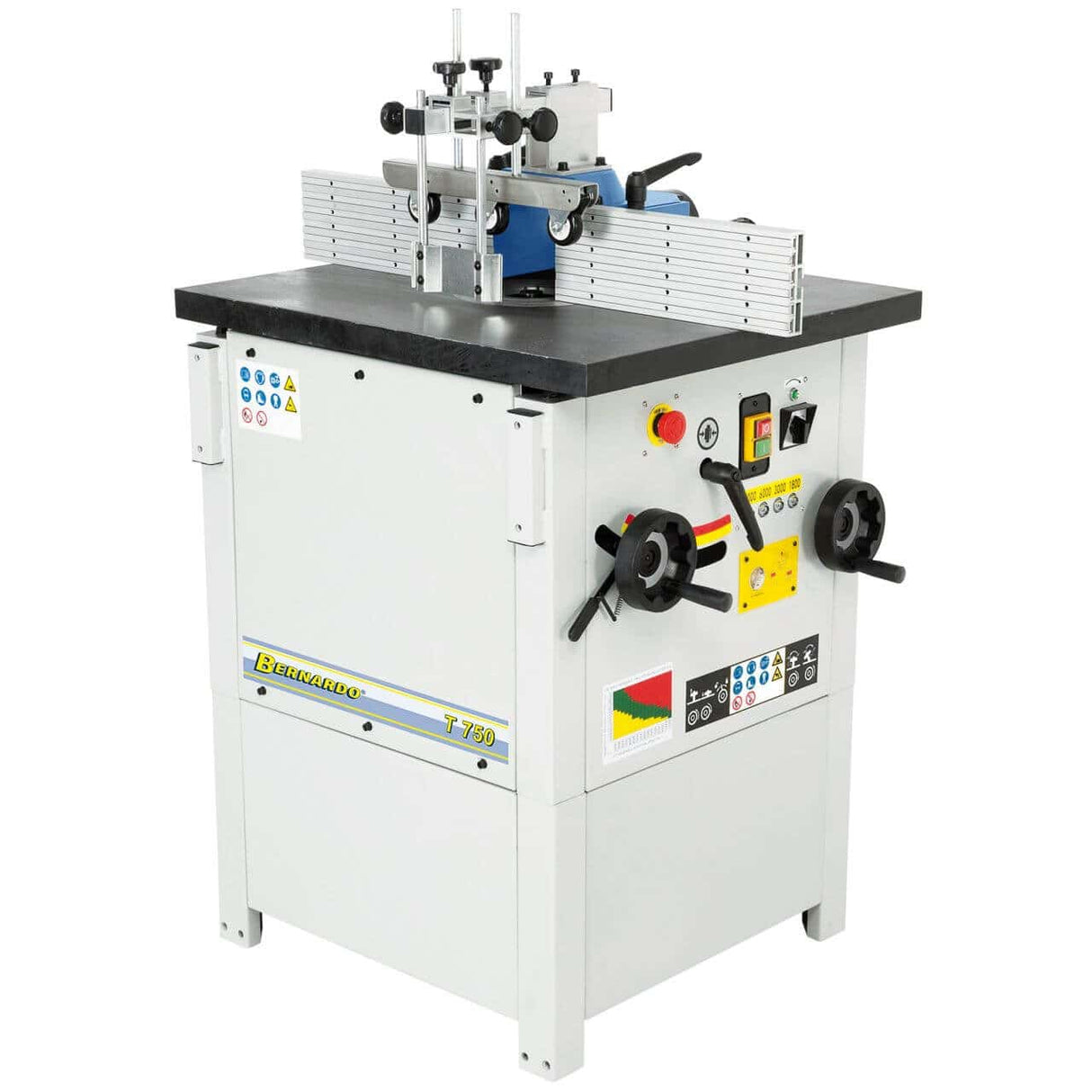

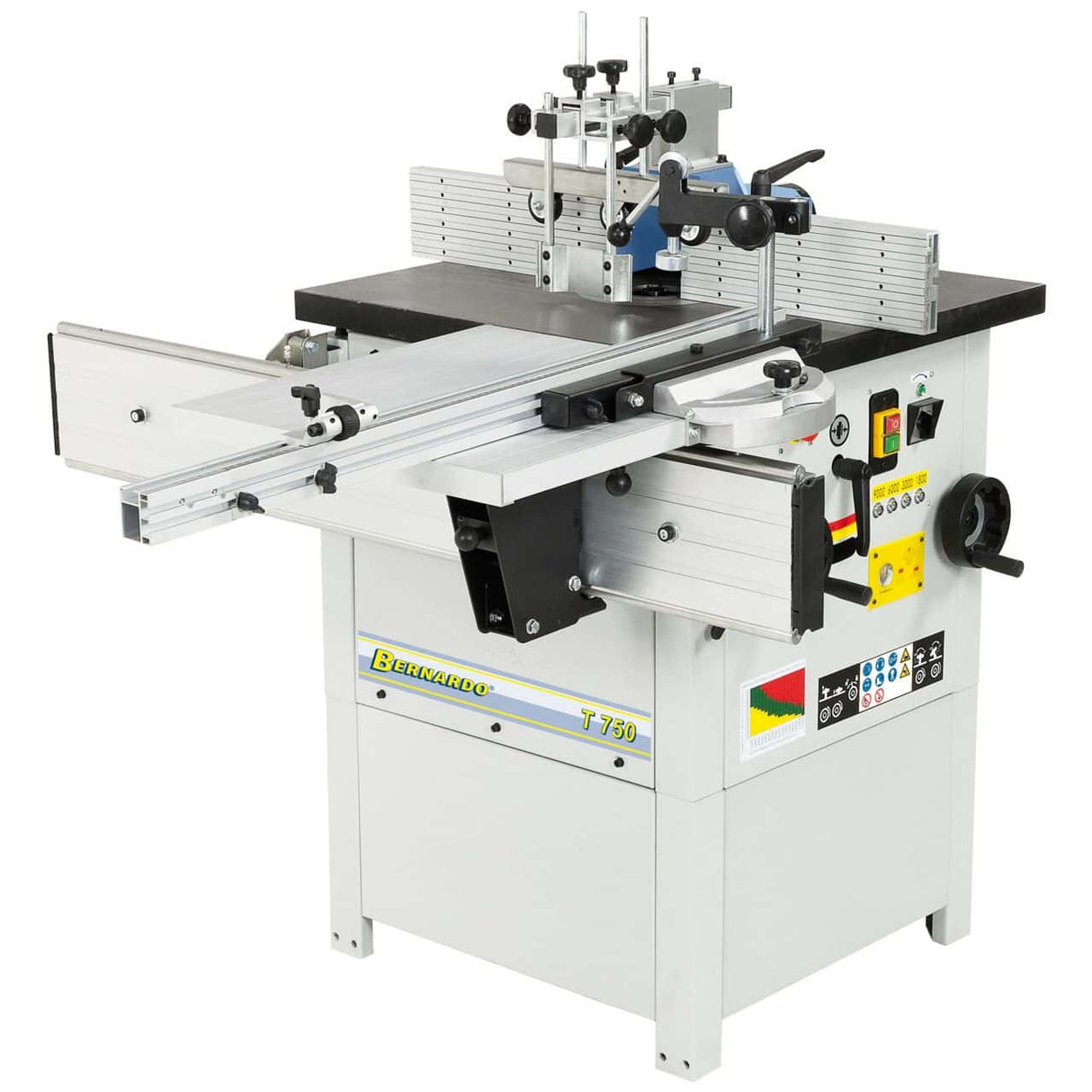

The Bernardo T 750 spindle moulder offers a 710 × 640 mm table, Ø 30 mm spindle, speeds of 1800 / 3000 / 6000 / 9000 rpm, a 2.8 kW S1 / 3.9 kW S6 motor, 400V three-phase. Manufactured in Austria, distributed in Italy by Krollit as an official Bernardo distributor since 2007.
- Table size: 710 × 640 mm
- Working height: 910 mm
- Spindle diameter: Ø 30 mm

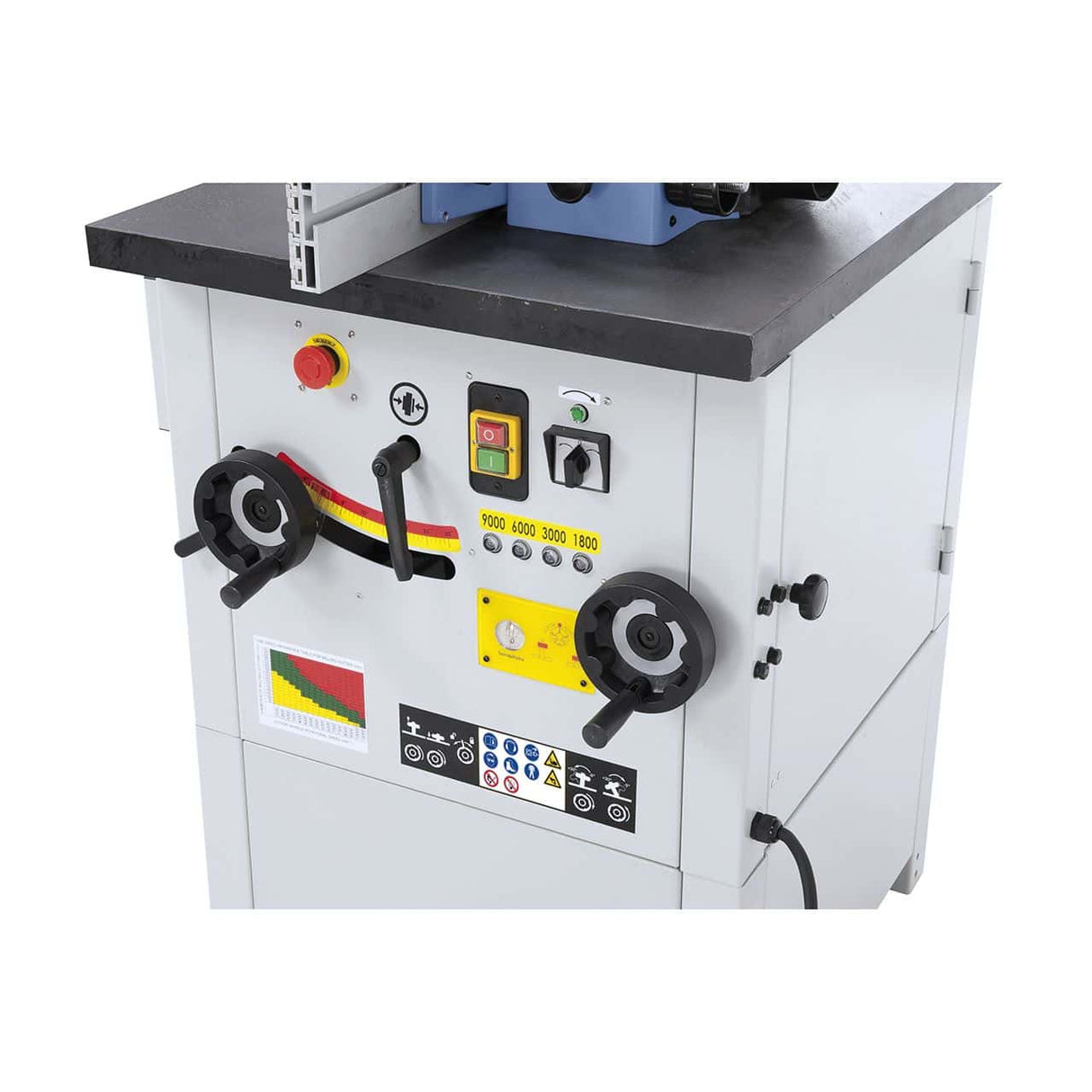

- Spindle speed: 1800 / 3000 / 6000 / 9000 rpm
- Spindle height adjustment: 100 mm
- Usable spindle length: 105 mm
- Max. tool diameter: 200 mm
- Spindle tilt: from -5° to +30°

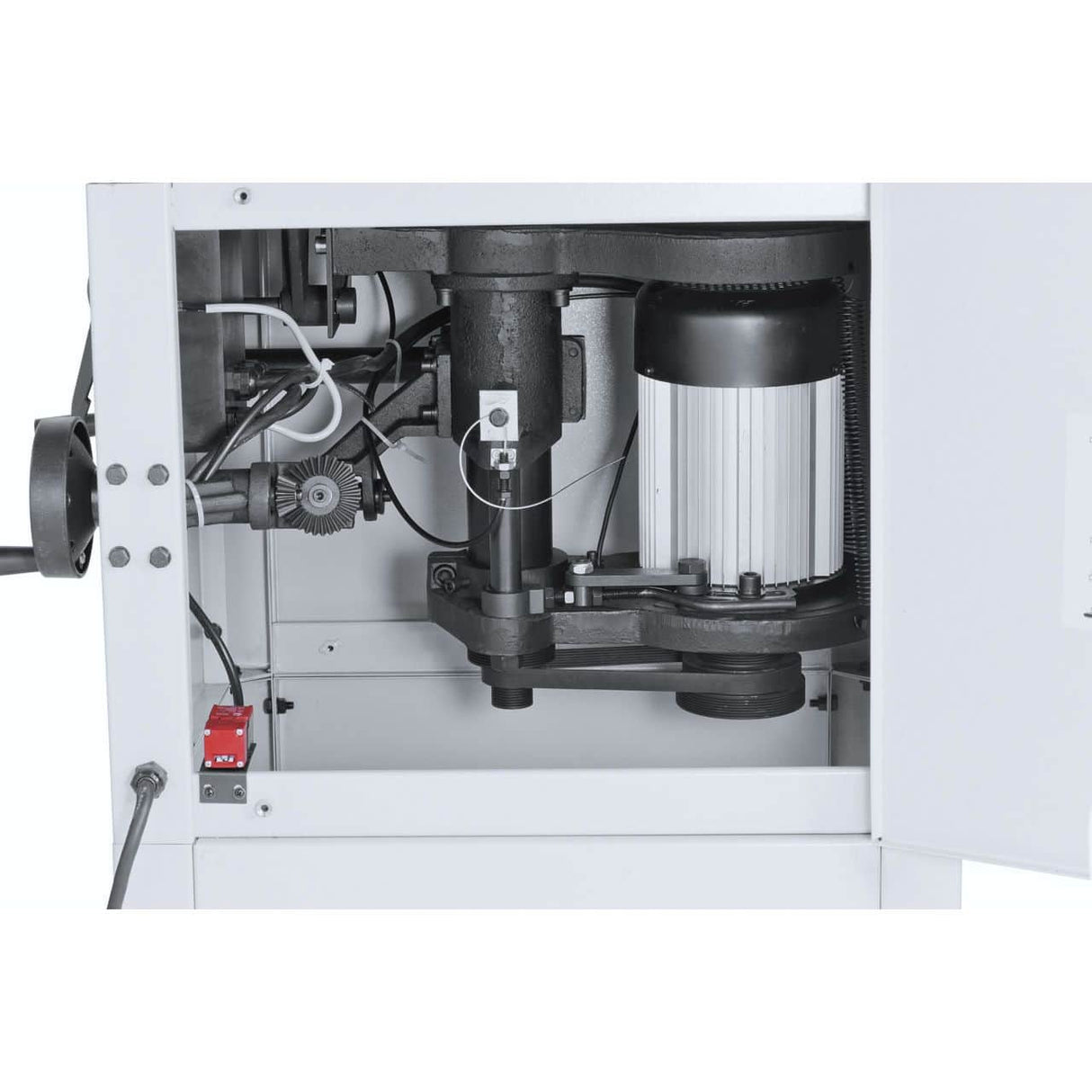

- Motor S1 / S6: 2.8 / 3.9 kW – 400V three-phase
Who uses the T 750 and for what
The Bernardo T 750 is a professional spindle moulder for wood profiling: mouldings, grooves, profiles on battens and panels, tongue and groove joints, door and window profiles. With a 710 × 640 mm table, Ø 30 mm spindle, and 4 selectable speeds (1800 / 3000 / 6000 / 9000 rpm), it covers the full range of profiling operations — from heavy milling with large diameter cutters (1800 rpm) to finishing on softwoods (9000 rpm). Tilting spindle −5°/+30°: for chamfering and angled profiling without rotating the workpiece. In Krollit customers' workshops, it is used by joineries that produce window and door frames, custom-made furniture, and solid wood frames.
Who is the Bernardo T 750 for
| Profile | Compatibility | Reason |
|---|---|---|
| Passionate hobbyist | Not recommended | Requires 400V three-phase. For hobby use, consider single-phase models. |
| Joinery / Window and door manufacturer | Ideal | 710 × 640 mm table, 4 speeds, max Ø 200 mm: for professional profiling in continuous cycle. |
| Industrial production | Adequate | For very high volumes, consider spindle moulders with integrated automatic feeders. |
Not recommended for: workshops without 400V three-phase; those without experience with high-speed woodworking machines.
Table and spindle
| Specification | Value |
|---|---|
| Table size | 710 × 640 mm |
| Working height | 910 mm |
| Spindle diameter | Ø 30 mm |
| Spindle height adjustment | 100 mm |
| Usable spindle length | 105 mm |
| Max. tool diameter | 200 mm |
| Spindle tilt | from −5° to +30° |
| Spindle speed | 1800 / 3000 / 6000 / 9000 rpm |
| Dust extraction outlet | Ø 100 mm |
Motor and power supply
| Specification | Value |
|---|---|
| Motor power S1 (100%) | 2.8 kW |
| Motor power S6 (40%) | 3.9 kW |
| Power supply | 400V three-phase |
Compliance and safety
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery Directive 2006/42/EC |
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
Frequently Asked Questions
How do you choose the correct speed for the type of wood and cutter?
Hardwoods (oak, ash) and large cutters (Ø 150–200 mm): 1800–3000 rpm. Medium woods and MDF with standard cutters (Ø 80–120 mm): 3000–6000 rpm. Softwoods and small cutters (Ø <60 mm): 9000 rpm. The optimal peripheral speed for most profiling cutters is 40–80 m/s.
Which cutters are compatible with the Ø 30 mm spindle?
All tools with a standard European Ø 30 mm conical shank: shank cutters, collet chucks, arbors for disc cutters. Always check the maximum permissible peripheral speed of the tool before use.
Is a fence needed for straight-line work?

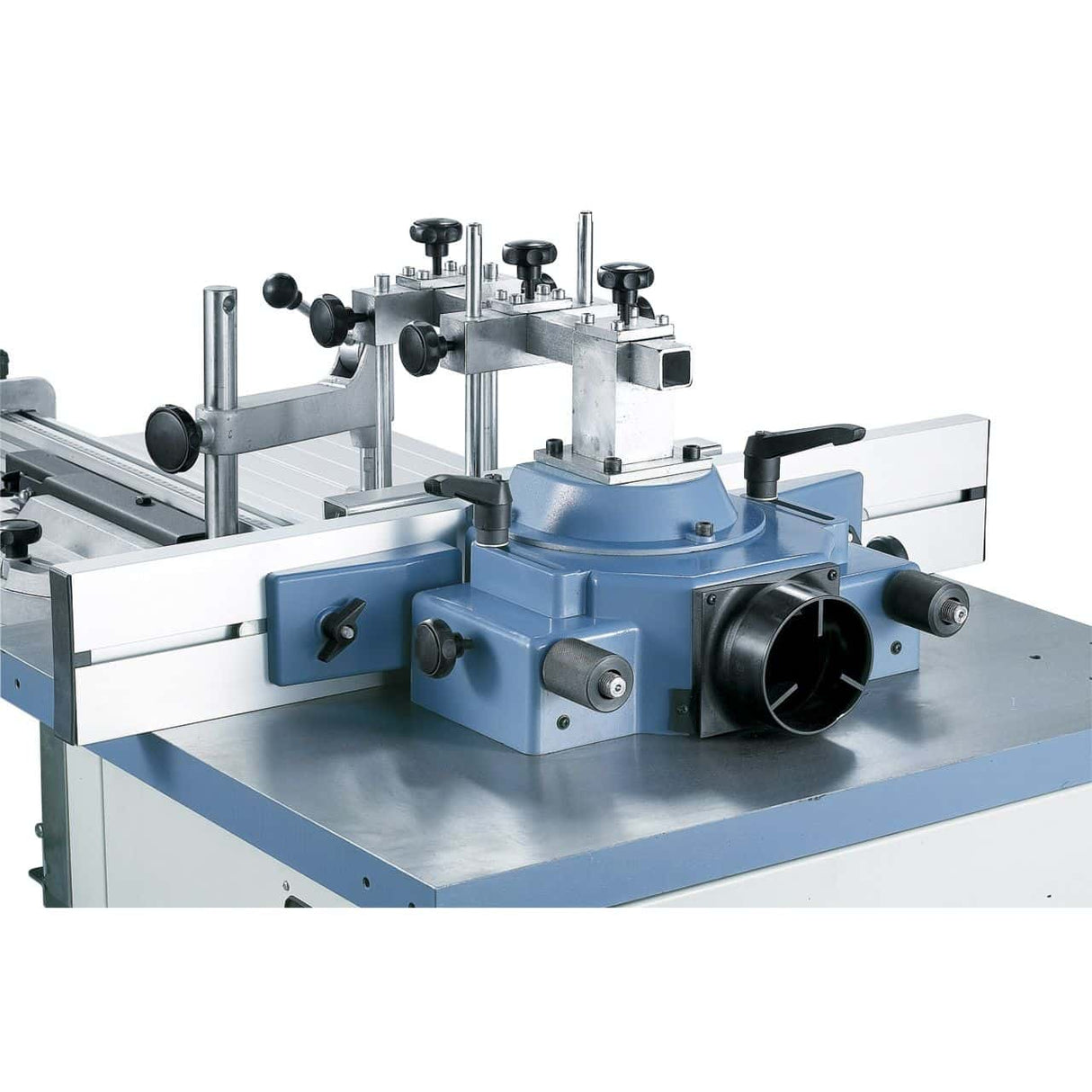

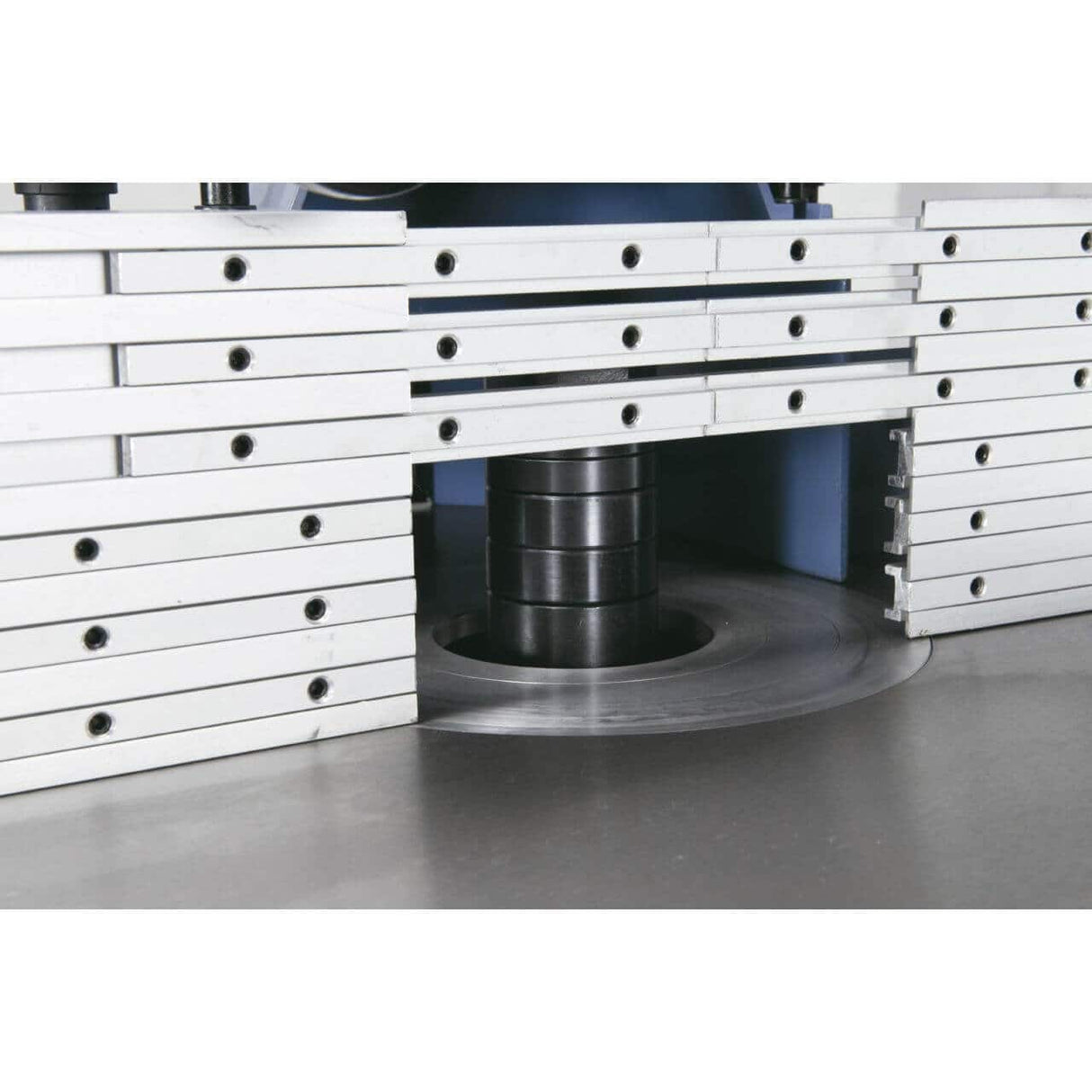

Yes. The parallel fence for straight-line work is available as a Bernardo accessory. For profiling or curved work, the pilot bearing integrated into the cutter is used.
What dust extractor is needed for this spindle moulder?
A dust extractor with a minimum flow rate of 600–800 m³/h and a Ø 100 mm connection. Profiling produces fine chips, especially on MDF: a dust extractor with an adequate filter is essential.
Are spare parts available?
Original Bernardo spare parts available with 3–5 working days shipping. Customer support in Italian available.
