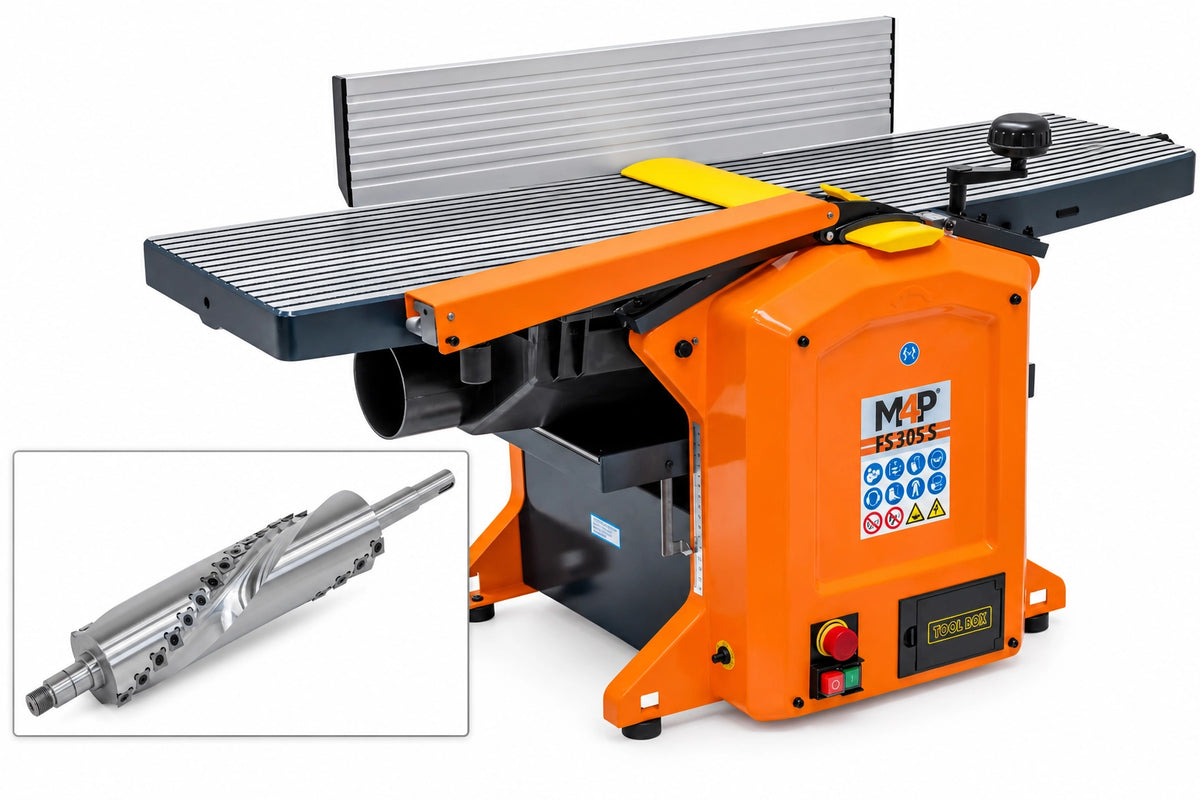

The M4P FS 305 S is a compact jointer-planer featuring a spiral cutterhead, 230 V power supply, a 305 mm planing width, and a thicknessing capacity of up to 150 mm. The spiral cutterhead, equipped with 28 carbide inserts, reduces noise levels and ensures a clean finish on boards, strips, beams, and wooden components.
- Surface planing width: 305 mm
- Thickness planing width: 305 mm
- Thickness planing height: 5 - 150 mm
- Spiral cutterblock with 28 carbide inserts
- Cutterblock speed: 9,500 rpm
- Cutterblock diameter: 50 mm
- Motor S1 100%: 1.8 kW / 2.4 hp
- Motor S6 40%: 2.5 kW / 3.4 hp
- Power supply: 230 V
- Feed speed: 7.5 m/min
- Dust extraction port: Ø 100 mm
- Machine dimensions: 1125 x 560 x 575 mm
- Approximate weight: 41 kg
Why choose the M4P FS 305 S with spiral cutterblock
The M4P FS 305 S is designed for advanced hobbyists, artisan woodworkers, and small workshops seeking a compact, 230V-powered planer-thicknesser with a 305 mm working width. Compared to smaller 250 mm models, it offers greater working capacity while maintaining manageable dimensions and an approximate weight of 41 kg.

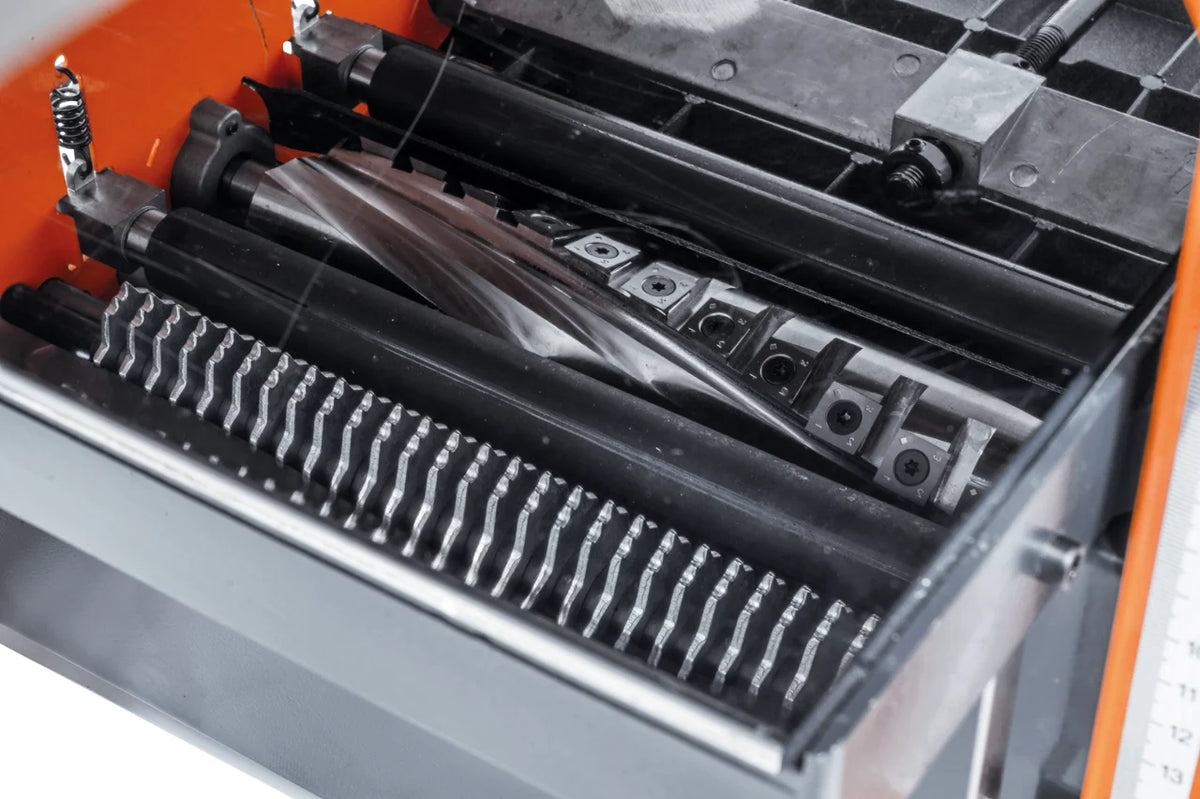

A key technical feature is the spiral cutterblock with 28 carbide inserts. This configuration reduces noise levels, improves surface finish quality, and allows for the replacement of individual inserts in the event of wear or localized damage. Carbide inserts are particularly useful when working with various types of wood, as they ensure smoother planing and a cleaner finish.
Areas of use
| User |
Compatibility |
Reason |
| Advanced hobbyist |
Suitable |
A 230 V power supply, compact design, and 305 mm width make it ideal for well-equipped home workshops. |
| Artisan woodworking |
Suitable for light to medium-duty tasks |
The 305 mm working width allows for processing boards, strips, small beams, and components for custom furniture. |
| Suitable for mobile use or workshops with limited space. |
Suitable for use provided proper handling methods are employed. |
Its approximate weight of 41 kg and compact dimensions make it easy to fit into spaces where room is limited. |
| Continuous industrial production |
Not suitable |
The machine is compact and not designed for intensive production cycles or heavy-duty processing of large workpieces. |
Not suitable for
The M4P FS 305 S is not suitable for high-volume industrial production, continuous planing of heavy workpieces, or heavy-duty tasks requiring long tables, high mass, and a heavy-duty professional structure. For such applications, it is preferable to consider a higher-class jointer-planer featuring greater machine weight, longer tables, and specifications suited to intensive workloads.
Surface planer technical data
| Surfacing width |
305 mm |
| Table length |
1080 mm |
| Cutterblock speed |
9,500 rpm |
| Carbide inserts |
28 pieces |
| Cutterblock diameter |
50 mm |

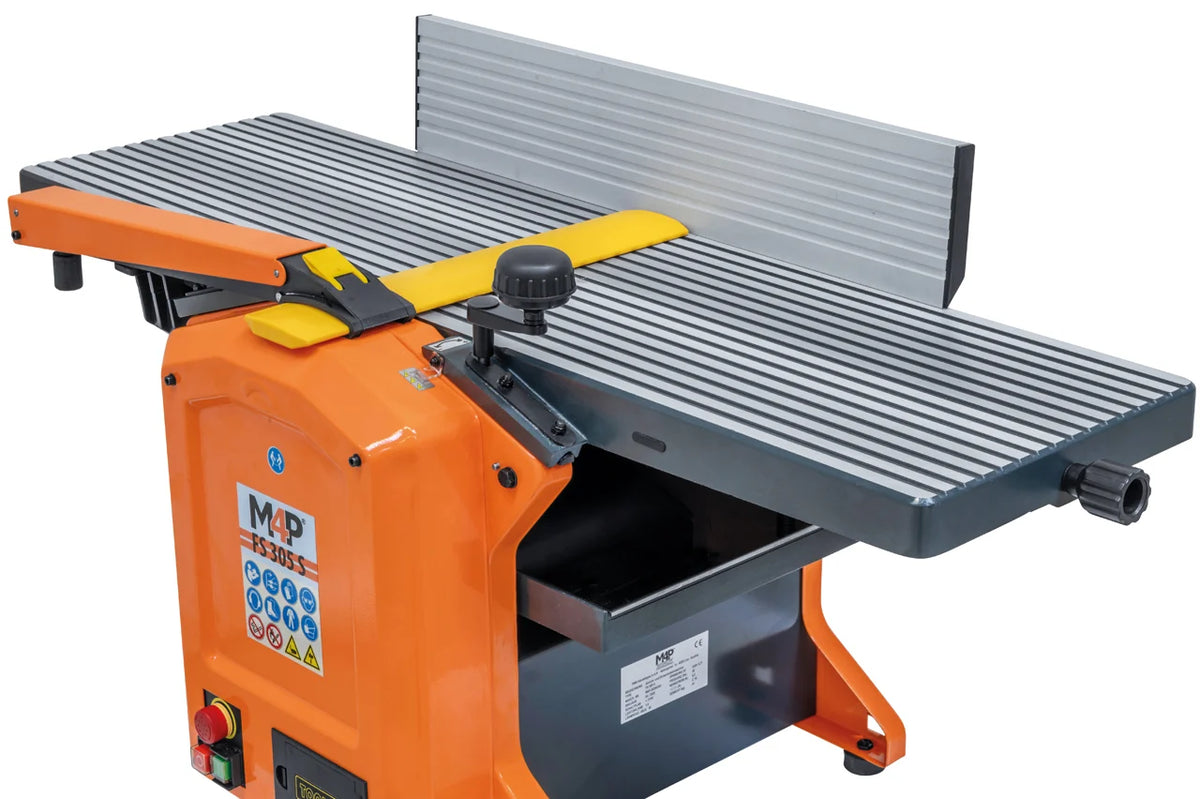

| Planer fence |
640 x 125 mm |
| Fence tilt |
90° - 45° |
| Max. depth of cut |
2 mm |
Thicknesser technical data
| Table length |
500 mm |
| Planing width |
305 mm |
| Min./max. planing height |
5 - 150 mm |
| Max. depth of cut |
2 mm |
| Feed rate |
7,5 m/min |
| Dust extraction port |
Ø 100 mm |
Motor, dimensions, and codes
| Motor power S1 100% |
1,8 kW / 2,4 hp |
| Motor power S6 40% |
2,5 kW / 3,4 hp |
| Power supply |
230 V |
| Machine dimensions |
1125 x 560 x 575 mm |
| Approximate weight |
41 kg |
| Supplier SKU |
3001021 |
| EAN |
9009468083939 |
Standard equipment
- Spiral cutterblock with 28 carbide inserts
- 5 spare carbide inserts
- Dust extraction hood
- Push stick
Technical advantages
- Spiral cutterhead for reduced noise and superior finish quality
- 28 carbide inserts that can be rotated or replaced individually
- 305 mm working width for small-to-medium-sized boards and components
- Thicknessing capacity up to 150 mm

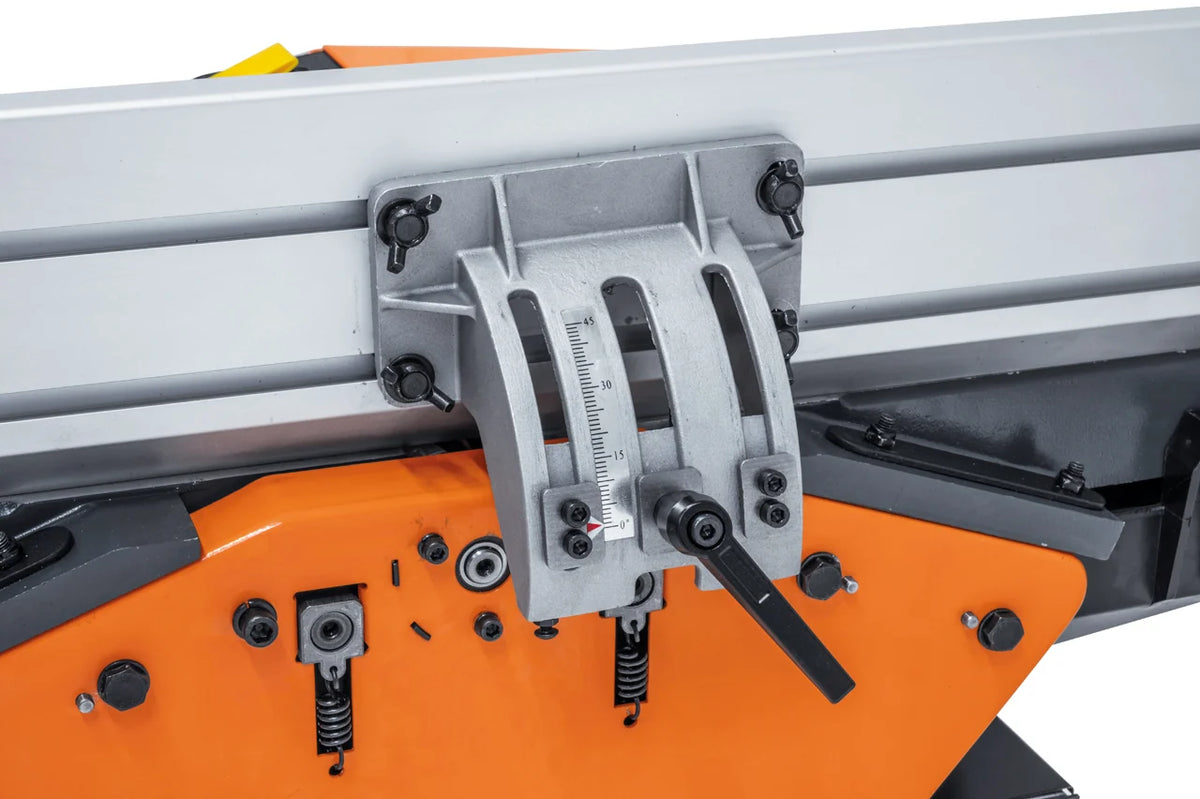

- Stable fence tiltable from 90° to 45°
- Cutterblock guard compliant with CE standards

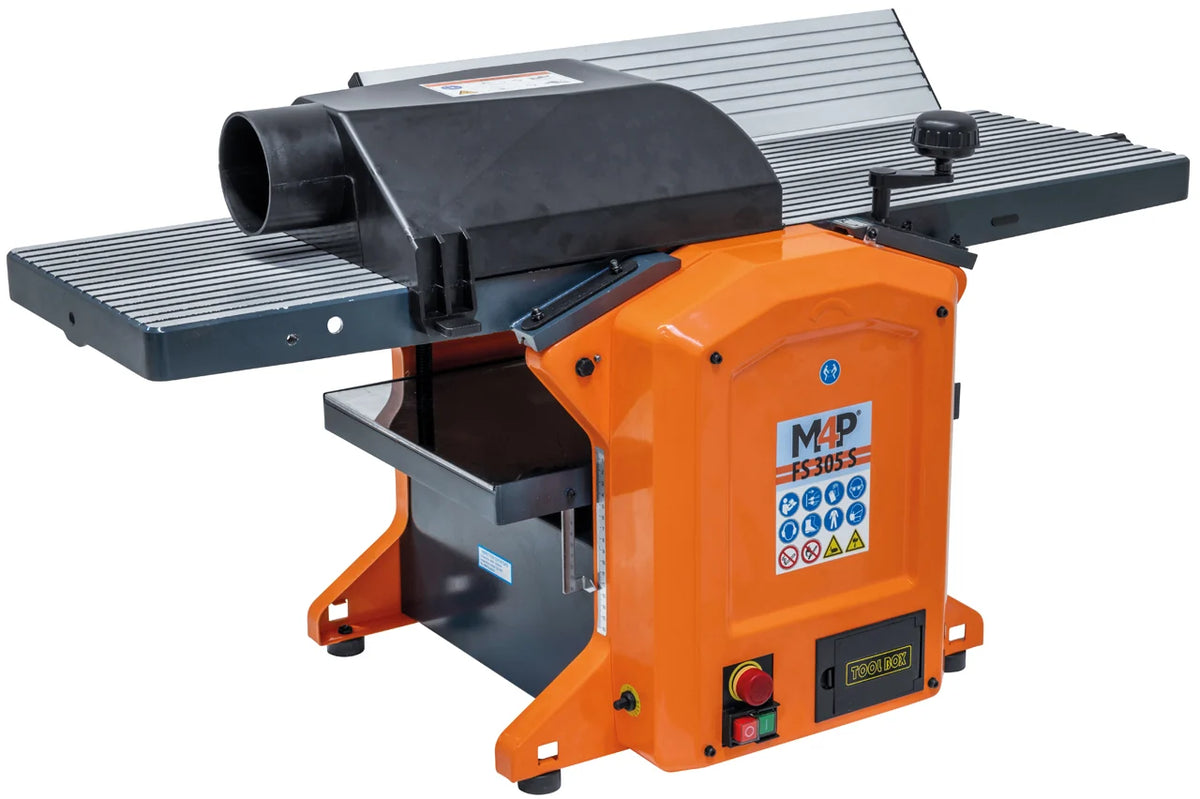

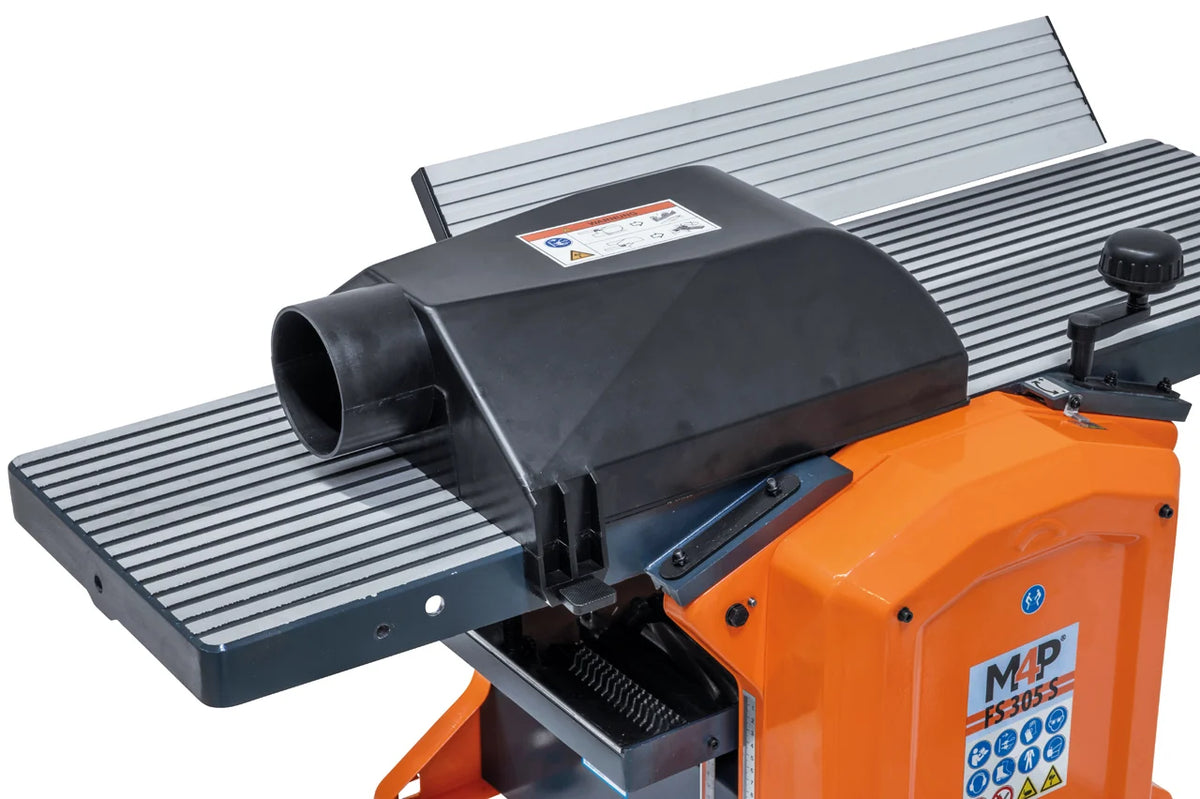

- Combined dust extraction hood for surface planing or thicknessing modes

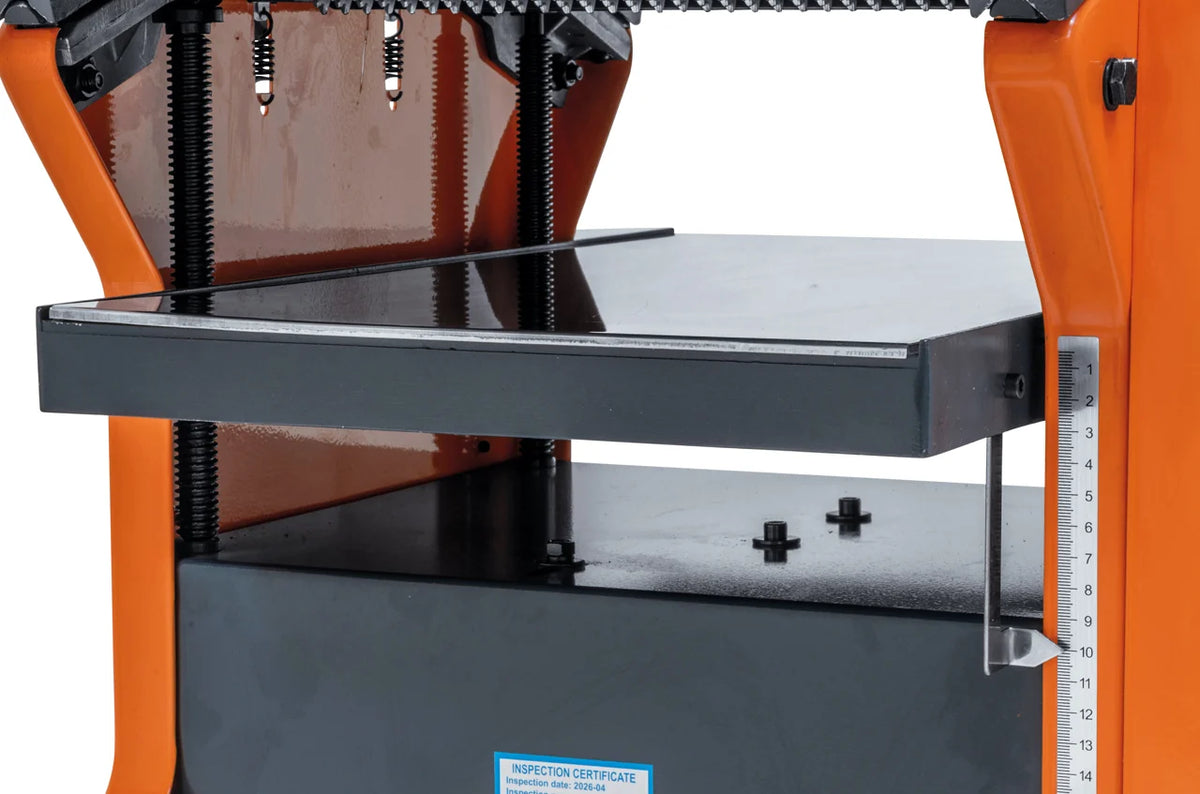

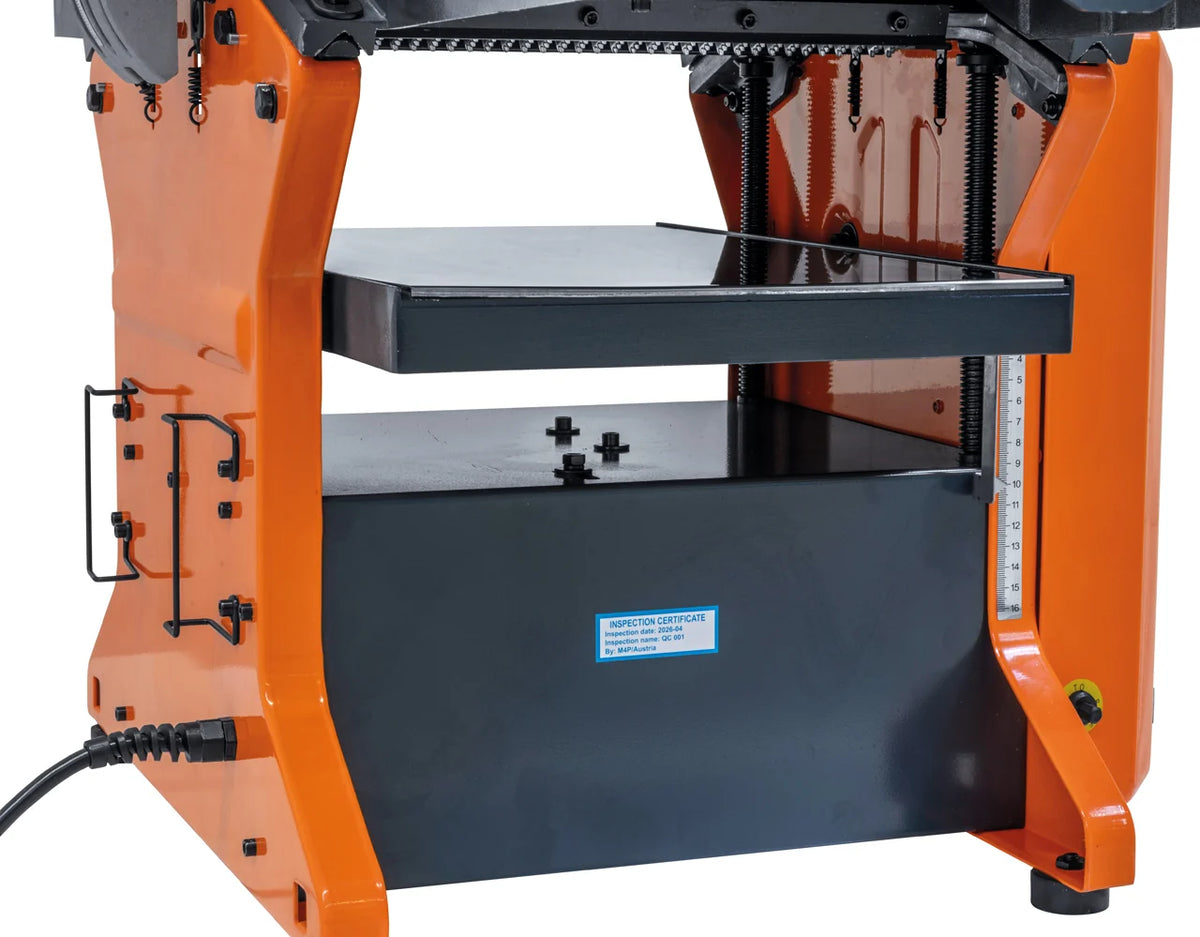

- Thicknessing table with 4-point guidance for greater machining precision
Krollit technical tip
To achieve a smooth finish, it is recommended to connect the machine to a compatible dust extractor with a Ø 100 mm nozzle and to work using progressive passes. Although the maximum stated material removal is 2 mm, it is preferable to reduce the depth of cut when working with hard, knotty, or irregular wood to improve surface quality and reduce strain on the motor.
Last revision: October 10, 2026
Frequently Asked Questions
Does the M4P FS 305 S have a spiral cutterhead?
Yes, the M4P FS 305 S is equipped with a spiral cutterhead featuring 28 carbide inserts. This configuration reduces noise levels and helps achieve cleaner surfaces compared to traditional straight-blade systems.
What is the working width of the M4P FS 305 S?
The planing width is 305 mm in both surface planing and thicknessing modes.
Does the M4P FS 305 S operate on 230 V?
Yes, the machine operates on a 230 V power supply. It is therefore suitable for environments where a three-phase line is not available, provided the electrical system is correctly sized.
What is the maximum thickness planing height?
The thickness planing height ranges from 5 to 150 mm.
What motor does the FS 305 S use?
The M4P FS 305 S is equipped with a motor rated at 1.8 kW for S1 (100%) duty and 2.5 kW for S6 (40%) duty.
Is the stand included with the M4P FS 305 S?
No; the standard equipment specified by the supplier includes a spiral cutterblock with 28 carbide inserts, 5 spare inserts, a dust extraction hood, and a push stick. The stand is not listed as part of the standard equipment for this model.
Is a dust extractor required to use this planer?
Yes, it is recommended to connect a dust extractor to the Ø 100 mm port. Dust extraction helps remove chips and dust, improving cleanliness, visibility, and safety during operation.
