Chuck Jaws DOJ-DK12-125
Description
DOJ jaws Ø 125 mm for DK12 chucks — external gripping jaws. Distributed in Italy by Krollit — official Bernardo distributor since 2007.
Logistics
Original spare parts available with 3–5 working day shipping. Customer support available in Italian.

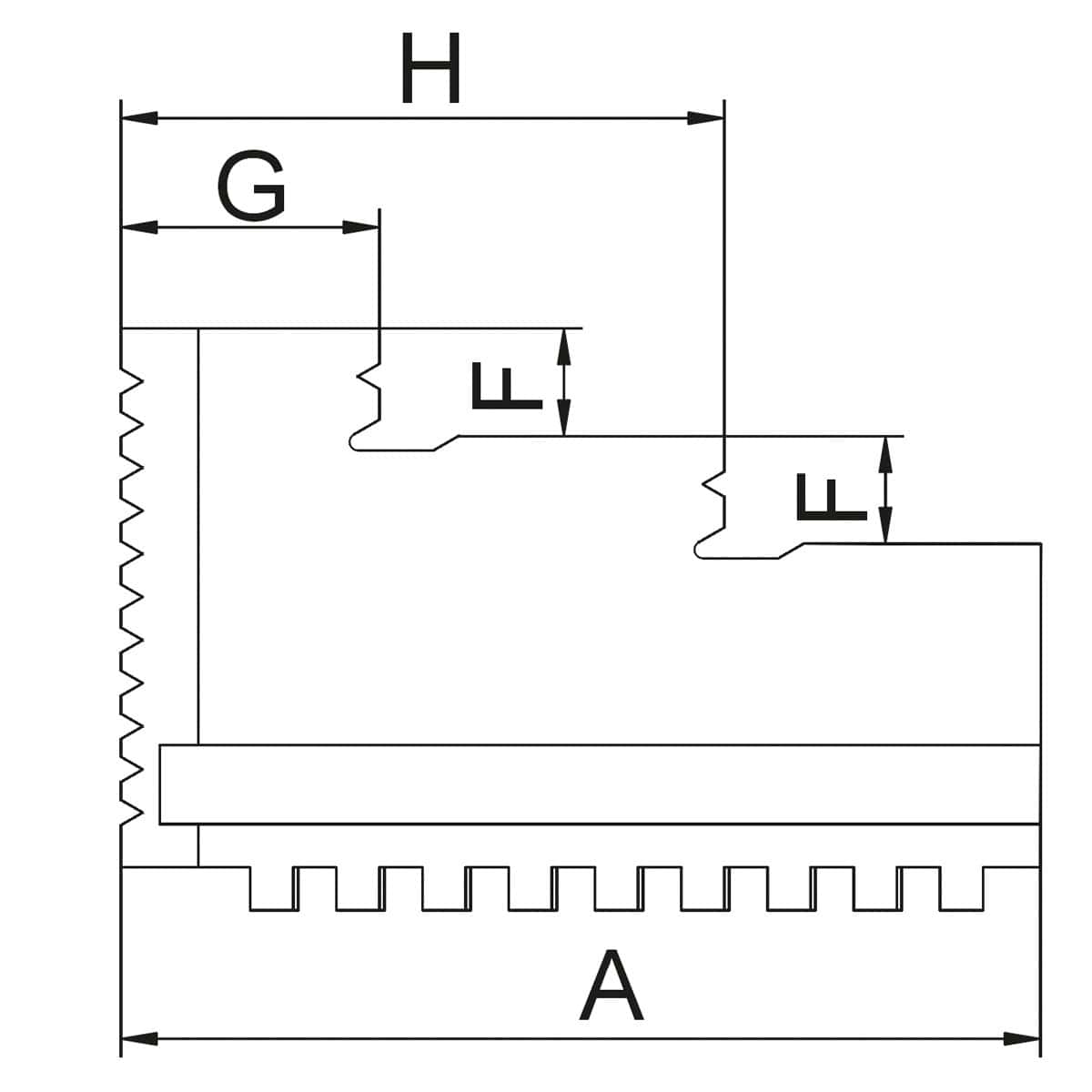

Technical specifications
technical specifications
Chuck size |
125 mm |
A |
56 mm |
B |
16 mm |
C |
45 mm |
d |
7 mm |
E |
8 mm |
F |
9 mm |
h |
38 mm |
G |
18 mm |
Warranty
Warranty terms and support procedures are available on the dedicated Krollit page.
View Krollit warranty termsFAQ / Frequently asked questions
Frequently asked questions
DOJ jaws Ø 125 mm — what does DOJ mean and how do they differ from DIJ jaws?
DOJ (Direct Outer Jaw) refers to external gripping jaws: the teeth grip the outer diameter of the workpiece, tightening inwards. They are the standard jaws for clamping bars, shafts, cylinders and compact shaped parts. DIJ jaws do the opposite — internal gripping on hollow parts. The same machine can use both DIJ and DOJ depending on the workpiece, as long as the chuck size is compatible.
DK12 series — compatibility with my chuck?
DK12 mounting (12 DIN 6350 bolts). Check your chuck's mounting type before purchasing — DK11 and DK12 are not interchangeable. The Ø 125 mm diameter must match the chuck size. Customer support available in Italian.
Hard DOJ jaws vs soft jaws — when to choose one over the other?
Hard DOJ jaws (hardened) are for general use on steel, cast iron, and rough aluminum — they clamp firmly without deforming but leave marks on finished parts. Soft jaws (mild steel) do not leave marks on pre-machined parts and can be turned in situ for maximum concentricity. For finishing operations on pre-machined parts: soft jaws. For roughing and production on raw parts: hard jaws.
Delivery times?
Original spare parts available with 3–5 working day shipping. Customer support available in Italian.
-
