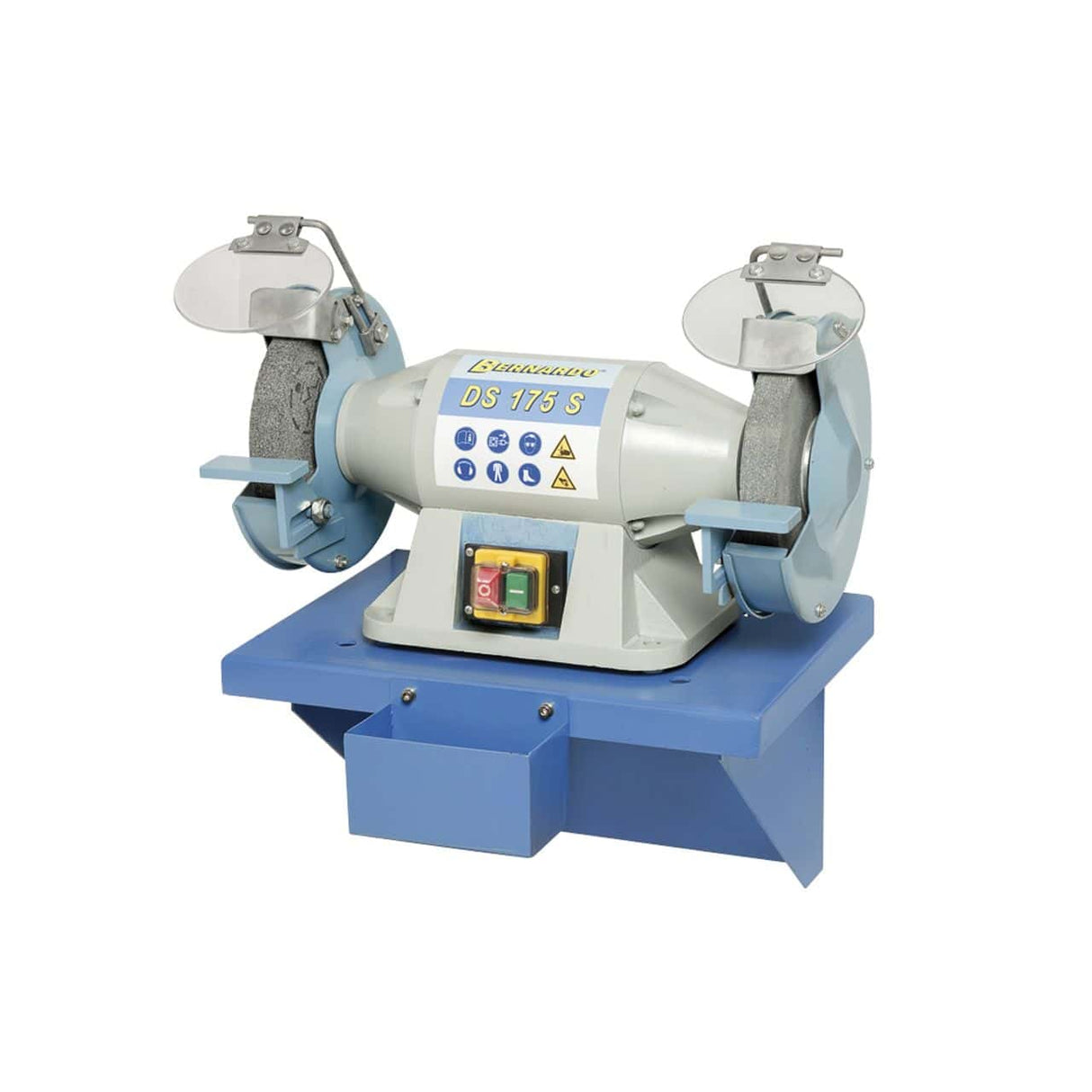

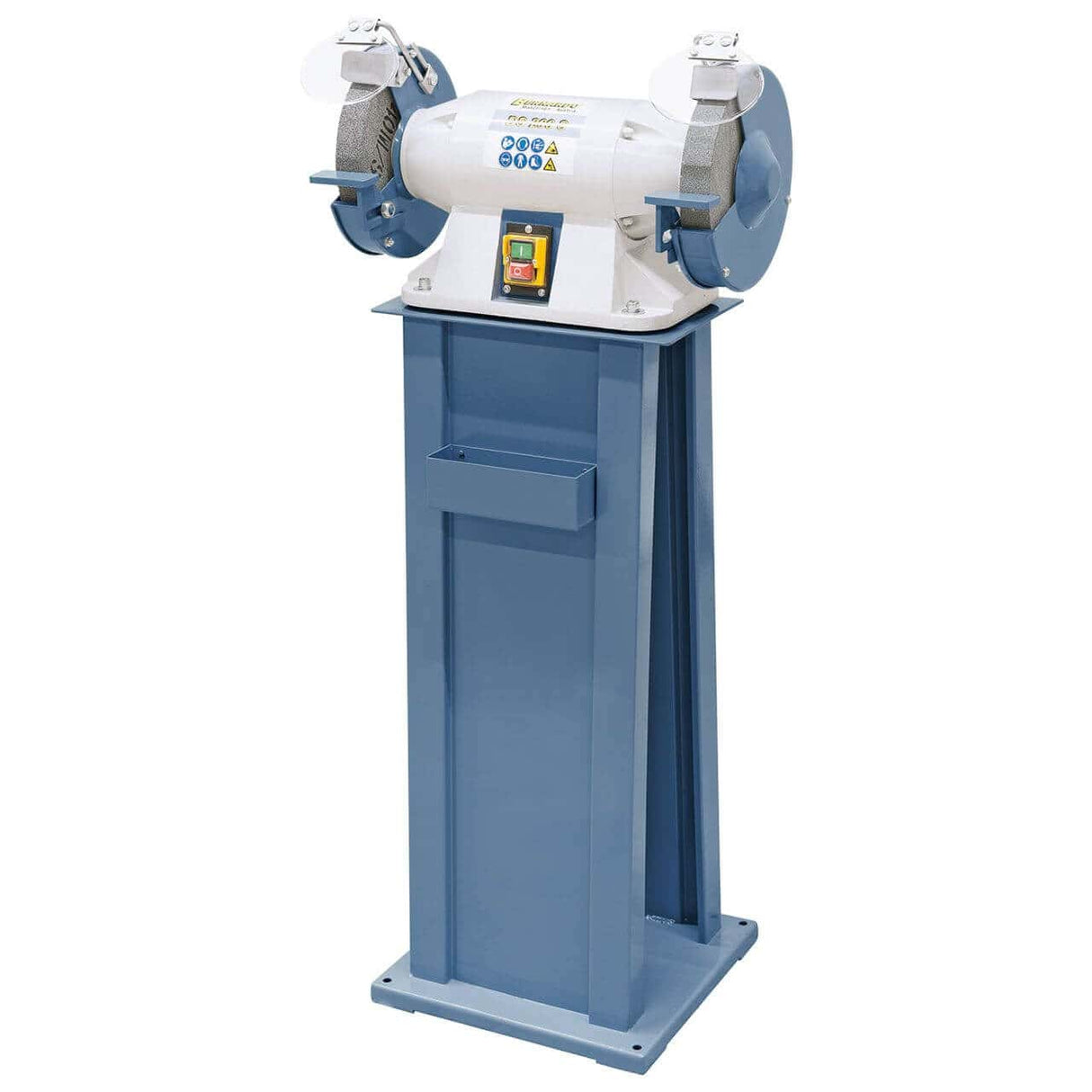

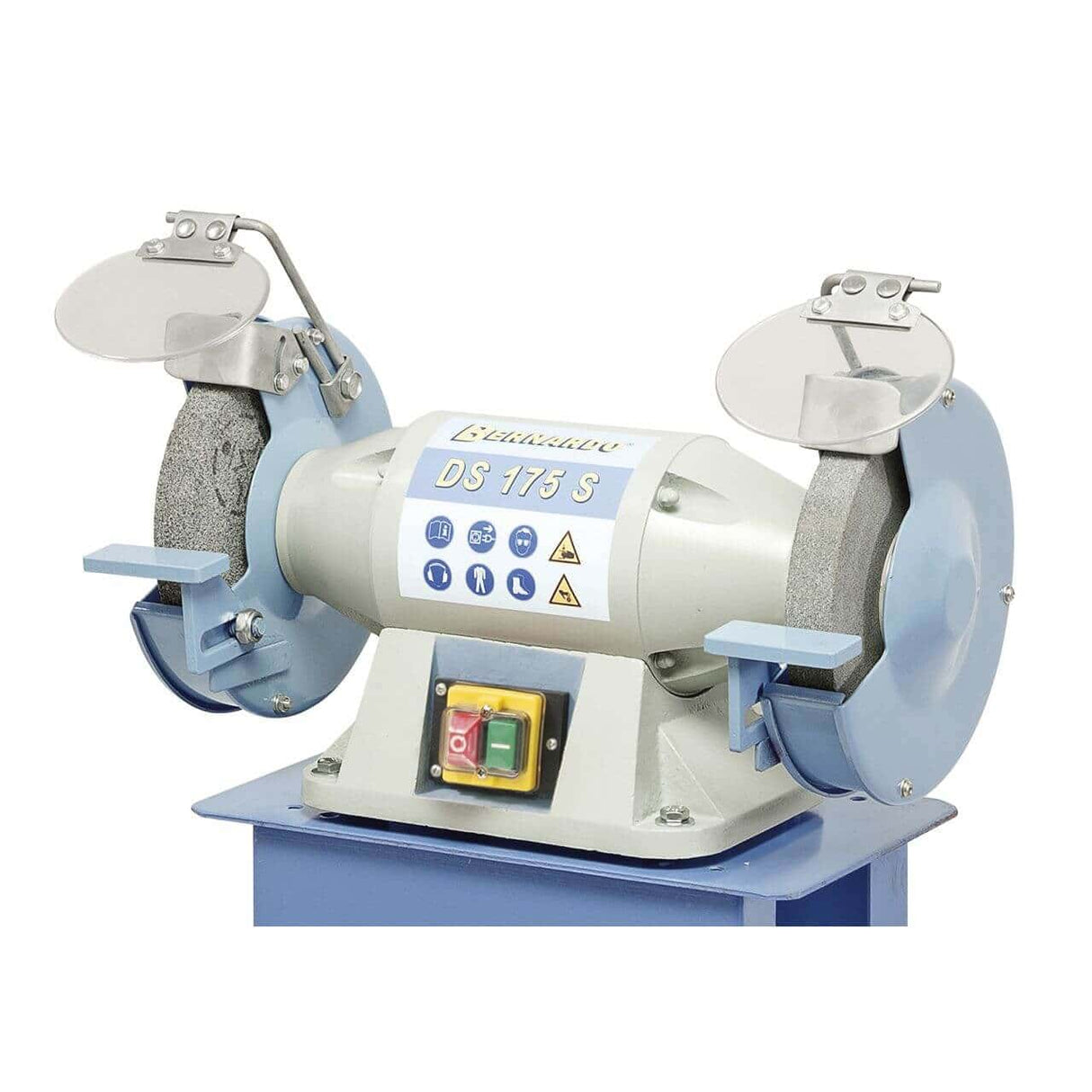

Bernardo Double Grinder DS 175 S – K36/K80 grinding wheels, 230 V
The Bernardo Double Grinder DS 175 S is a compact and reliable bench-mounted machine, ideal for workshops and craft laboratories. Equipped with two Ø175 mm grinding wheels, one K36 for roughing and one K80 for finishing, it allows for both rapid material removal and precise finishing of tools and metal parts. The rotation speed of 2850 rpm and the 0.50 kW (S1) / 0.70 kW (S6) motor, powered at 230 V, ensure power and stability during use. Standard equipment includes spark guards on both sides and adjustable workpiece supports, which improve safety and operational precision. With compact dimensions (450 × 230 × 250 mm) and a weight of 18 kg, it is easy to place on any workbench. A suitable choice for those who value robustness, practicality, and reliability.
Key features:
Grinding wheel Ø175 × 25 mm – K36 (roughing) and K80 (finishing) grits
Grinding wheel bore: 32 mm
Speed: 2850 rpm
Motor 0.50 kW (S1) / 0.70 kW (S6) – 230 V
Spark guards on both sides
Adjustable workpiece supports
Compact and robust structure
Dimensions: 450 × 230 × 250 mm
Weight: 18 kg
Technical specifications
| Specification |
Value |
| Brand |
Bernardo |
| Model |
DS 175 S |
| Grinding wheel |
Ø175 × 25 mm – K36/K80 grits |
| Grinding wheel bore |
32 mm |
| Speed |
2850 rpm |
| Motor power S1 (100%) |
0.50 kW |
| Motor power S6 (40%) |
0.70 kW |
| Voltage |
230 V |
| Machine dimensions (L × W × H) |
450 × 230 × 250 mm |
| Weight |
18 kg |
Standard equipment
Grinding wheel Ø175 mm K36 (roughing)
Grinding wheel Ø175 mm K80 (finishing)
Spark guards (both sides)
Adjustable workpiece support
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
Frequently asked questions
How do you choose the grit size of the grinding wheels for the Bernardo DS 1 Double Grinder?
For roughing and heavy material removal: coarse grit wheel (36–60). For tool sharpening and precision work: medium grit wheel (80–120). For finishing and polishing: fine grit wheel (150–220) or felt disc. The Bernardo DS 1 Double Grinder uses Ø 175 mm wheels — check the correct format before purchasing spare parts.
How often should grinding wheels be balanced?
New grinding wheels should always be checked before installation (ring test — clear sound = intact wheel). Periodic dressing with a wheel dresser maintains the correct shape and reduces vibrations. An unbalanced or misshapen wheel can cause excessive vibrations and risks to the operator.
Can the Bernardo DS 1 Double Grinder mount a leather or felt disc for polishing?
Yes. Most Bernardo double grinders can mount Ø 175 mm leather or felt discs on the same shaft as the abrasive wheels — suitable for polishing metals, plastics, and wood. Check shaft compatibility with Krollit.
What is the difference between DS and DSA in the grinder range?
The DS series is the standard double grinder with an abrasive wheel on both sides. The DSA series adds integrated dust extraction — essential when working on materials that produce fine dust (aluminum, non-ferrous metals, wood) in enclosed environments. The DSA is quieter and keeps the work environment cleaner.
Are spare parts (wheels, supports) available?
Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
