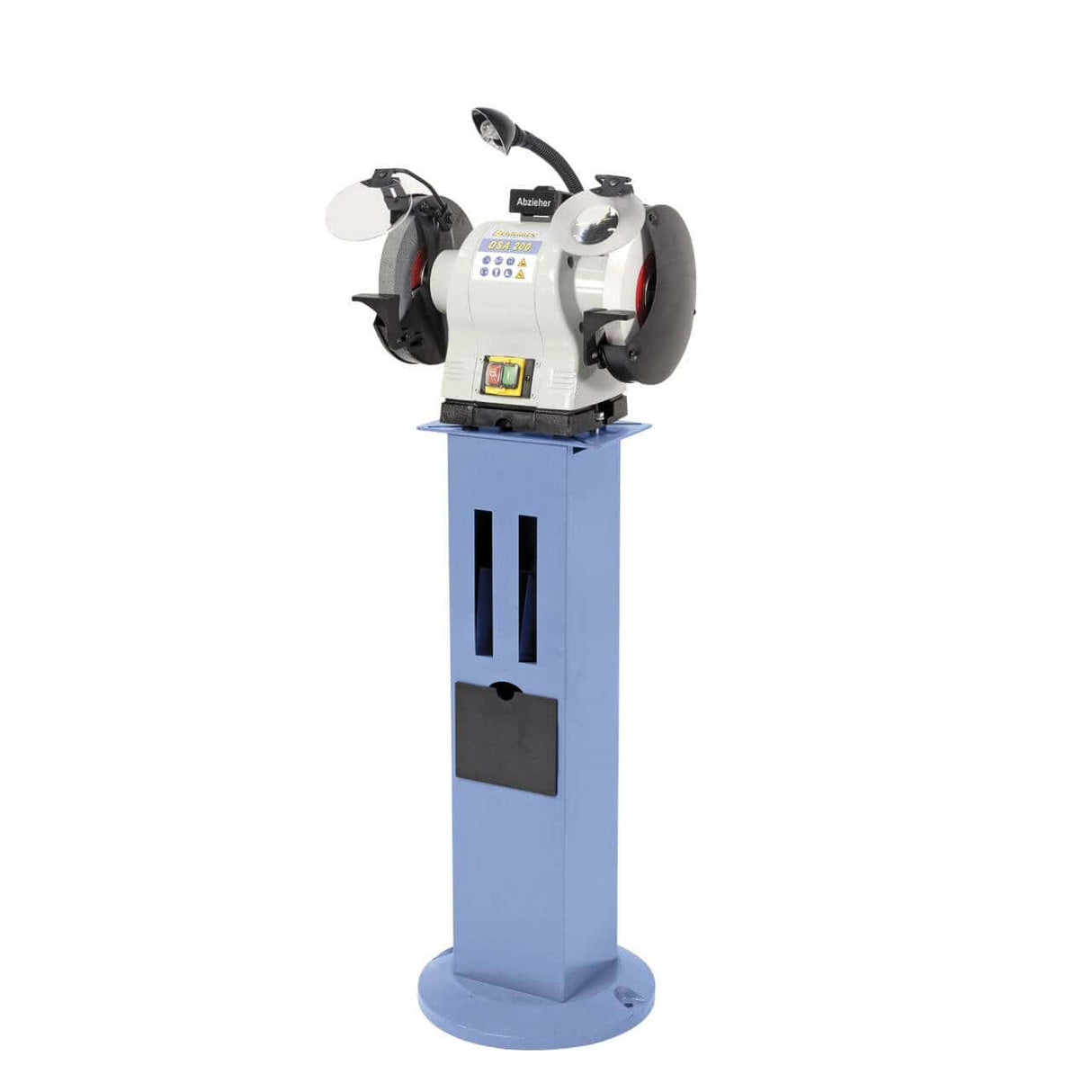

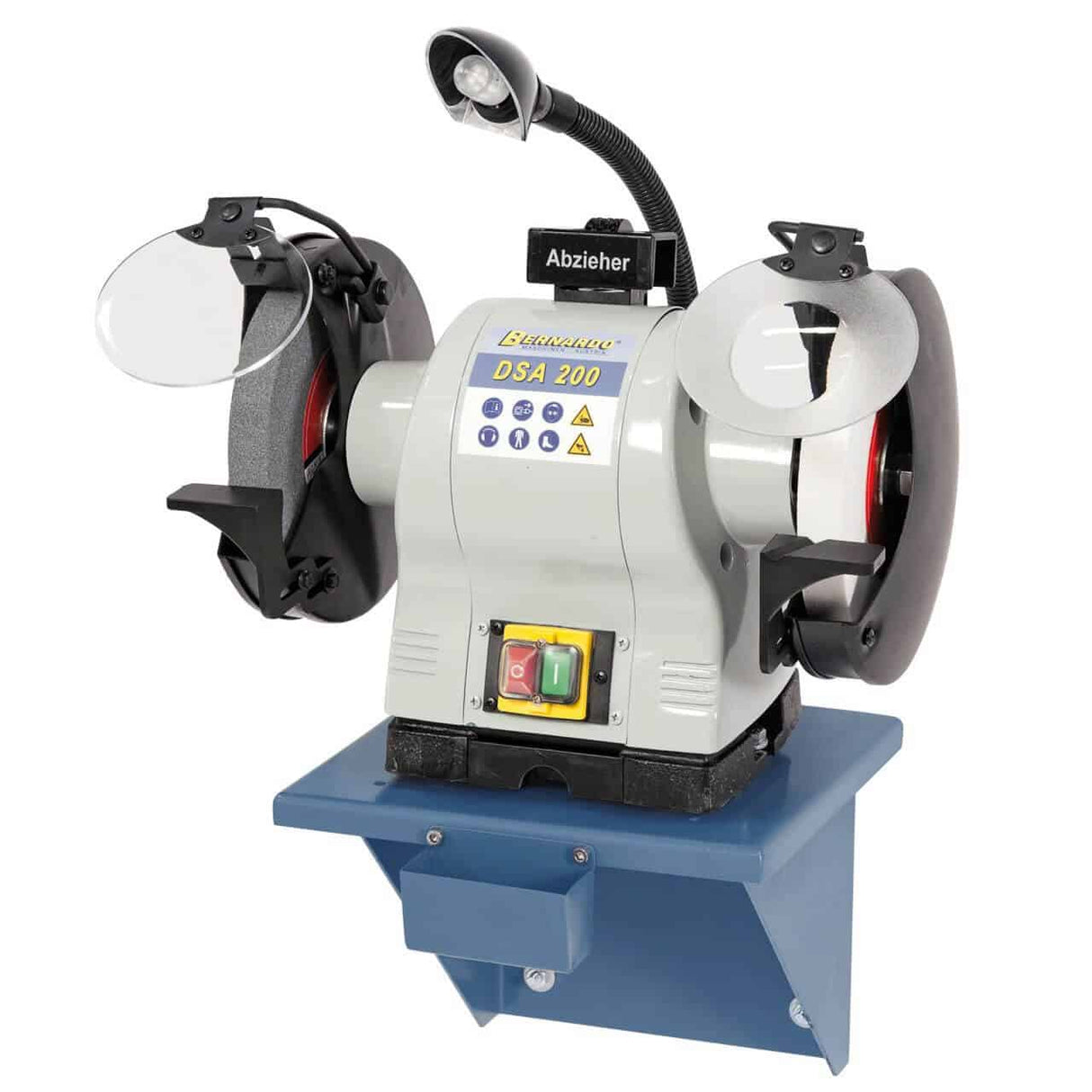

Bernardo Double Grinder DSA 200 – wheels K36/K80, 230/400 V
The Bernardo Double Grinder DSA 200 is a robust and versatile bench machine, designed for sharpening, roughing, and finishing tools and metal parts. Equipped with two Ø200 mm grinding wheels: one K36 for roughing and one K80 for finishing, it guarantees precise and fast work. The speed of 2850 rpm and the 0.55 kW (S1) / 0.75 kW (S6) motor, powered by 230 V or 400 V, ensure constant power and long life. The equipment includes spark protection on both sides, adjustable workpiece support, integrated LED light, and a cooling tank, which increase safety and ease of use. With compact dimensions (410 × 340 × 330 mm) and a weight of 18 kg, it is a stable grinder that can be easily placed in any workshop.
Main features:
Grinding wheel Ø200 × 25.4 mm – grits K36 (roughing) and K80 (finishing)
Grinding wheel bore: 15.88 mm
Speed: 2850 rpm
Motor 0.55 kW (S1) / 0.75 kW (S6) – 230 V / 400 V
Spark protection on both sides
Adjustable workpiece support
Integrated cooling fluid tank

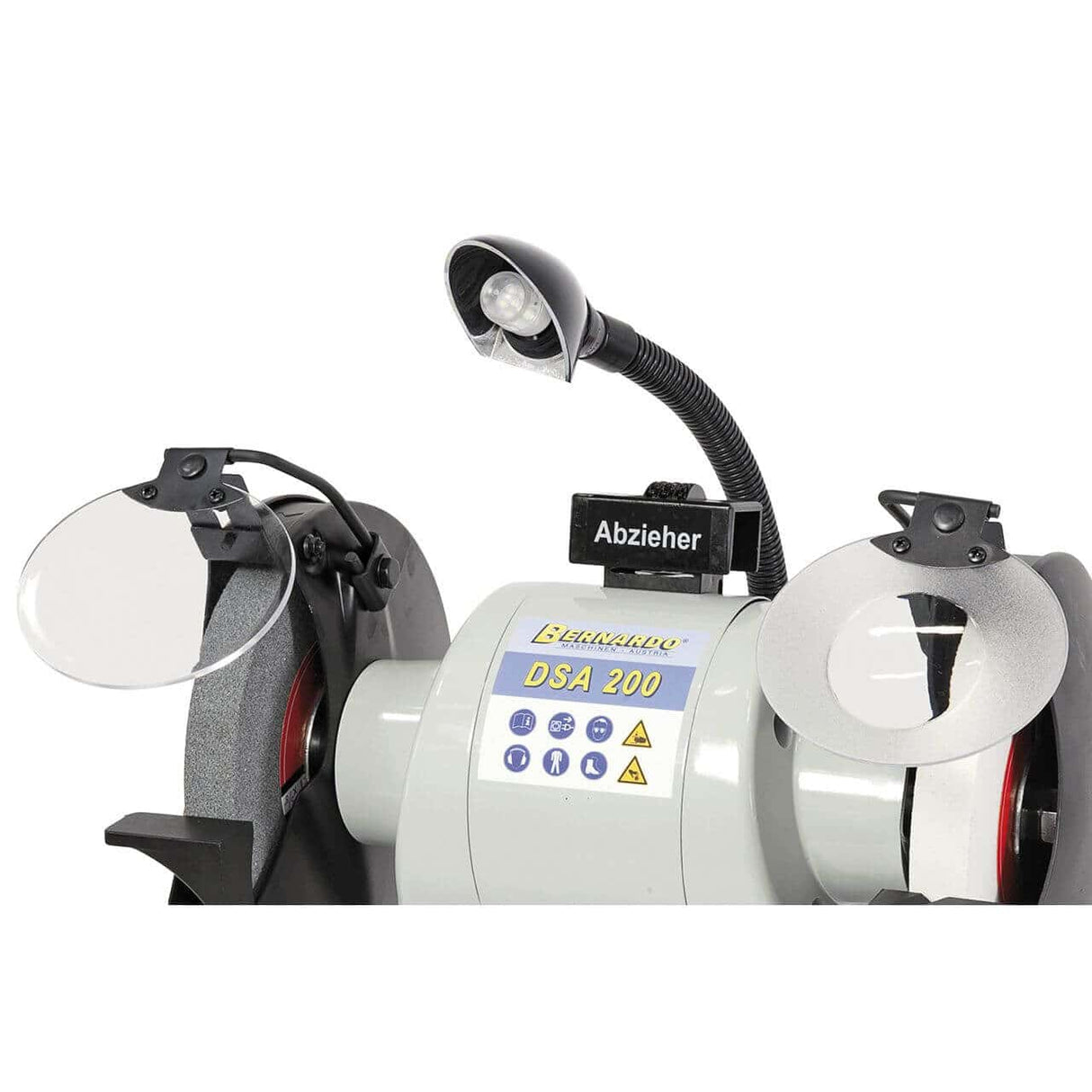

Integrated LED light
Wheel dresser included
Dimensions: 410 × 340 × 330 mm
Weight: 18 kg
Technical specifications
| Specification |
Value |
| Brand |
Bernardo |
| Model |
DSA 200 |
| Grinding wheel |
Ø200 × 25.4 mm – grits K36/K80 |
| Grinding wheel bore |
15.88 mm |
| Speed |
2850 rpm |
| Motor power S1 (100%) |
0.55 kW |
| Motor power S6 (40%) |
0.75 kW |
| Voltage |
230 V / 400 V |
| Machine dimensions (L × W × H) |
410 × 340 × 330 mm |
| Weight |
18 kg |
Standard equipment
Grinding wheel Ø200 mm K36 (roughing)
Grinding wheel Ø200 mm K80 (finishing)
Spark protection on both sides
Workpiece support
Cooling fluid tank
Integrated LED light
Wheel dresser
Logistics
Bernardo shipping: 5–9 business days (7 days in the South). Original spare parts available with 3–5 business days shipping. Italian customer support available.
Frequently asked questions
How do I choose the grit of the grinding wheels for the Bernardo Double Grinder DSA?
For roughing and heavy material removal: coarse-grit wheel (36–60). For tool sharpening and precision work: medium-grit wheel (80–120). For finishing and polishing: fine-grit wheel (150–220) or felt disc. The Bernardo Double Grinder DSA uses Ø 200 mm wheels — check the correct size before purchasing spare parts.
How often should grinding wheels be balanced?
New grinding wheels should always be checked before installation (ring test — clear sound = intact wheel). Periodic dressing with a wheel dresser maintains the correct shape and reduces vibrations. A misaligned or out-of-shape wheel can cause excessive vibrations and risks to the operator.
Can the Bernardo Double Grinder DSA mount a leather or felt disc for polishing?
Yes. Most Bernardo double grinders can mount leather or felt discs Ø 200 mm on the same arbor as the grinding wheels — suitable for polishing metals, plastics, and wood. Check arbor compatibility with Krollit.
What is the difference between DS and DSA in the grinder range?
The DS series is the standard double grinder with a grinding wheel on both sides. The DSA series adds integrated dust extraction — essential when working on materials that produce fine dust (aluminum, non-ferrous metals, wood) in enclosed environments. The DSA is quieter and keeps the work environment cleaner.
Are spare parts (wheels, supports) available?
Original spare parts available with 3–5 business days shipping. Italian customer support available.
