Bernardo Flat Grinding Machine BSG 60160 PLC

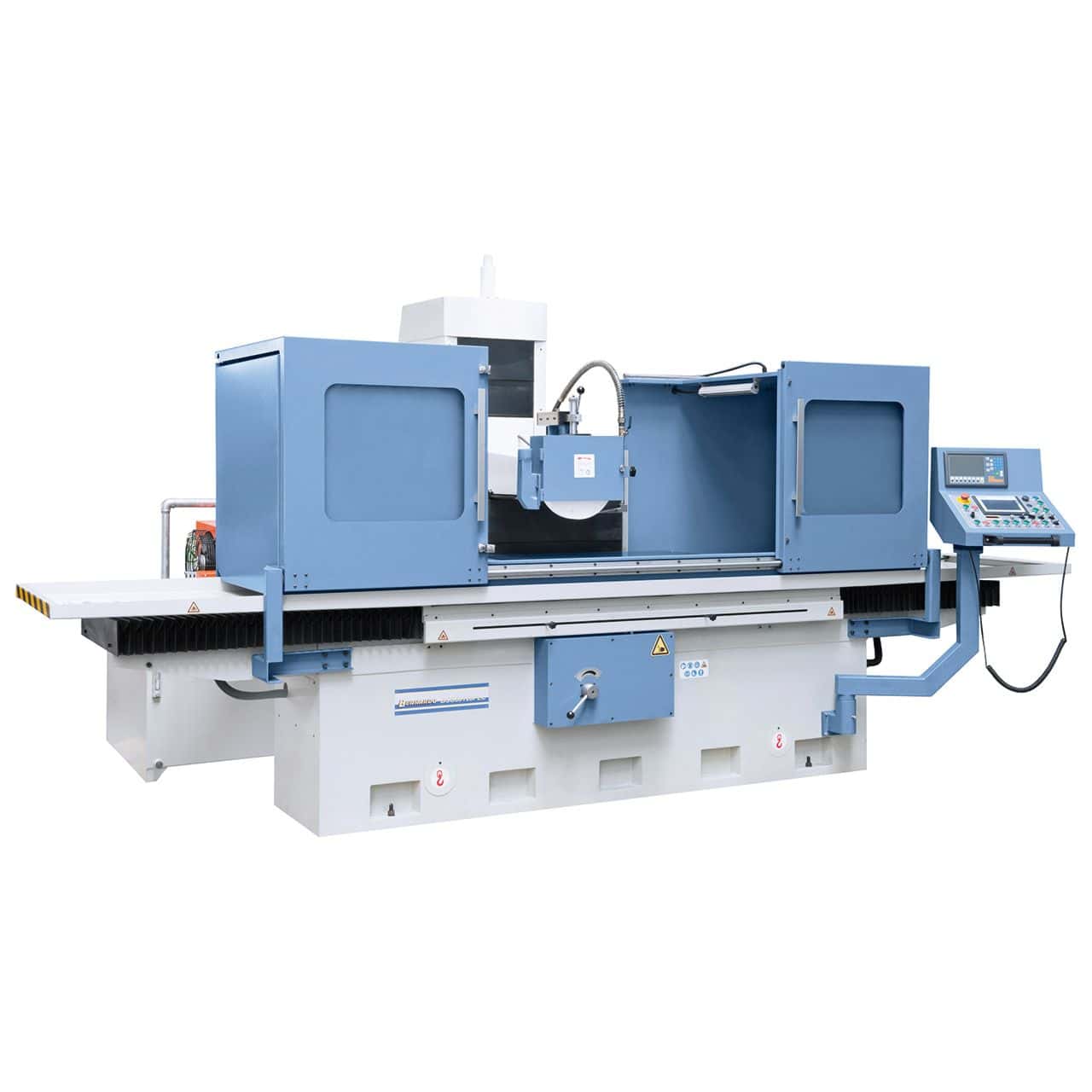

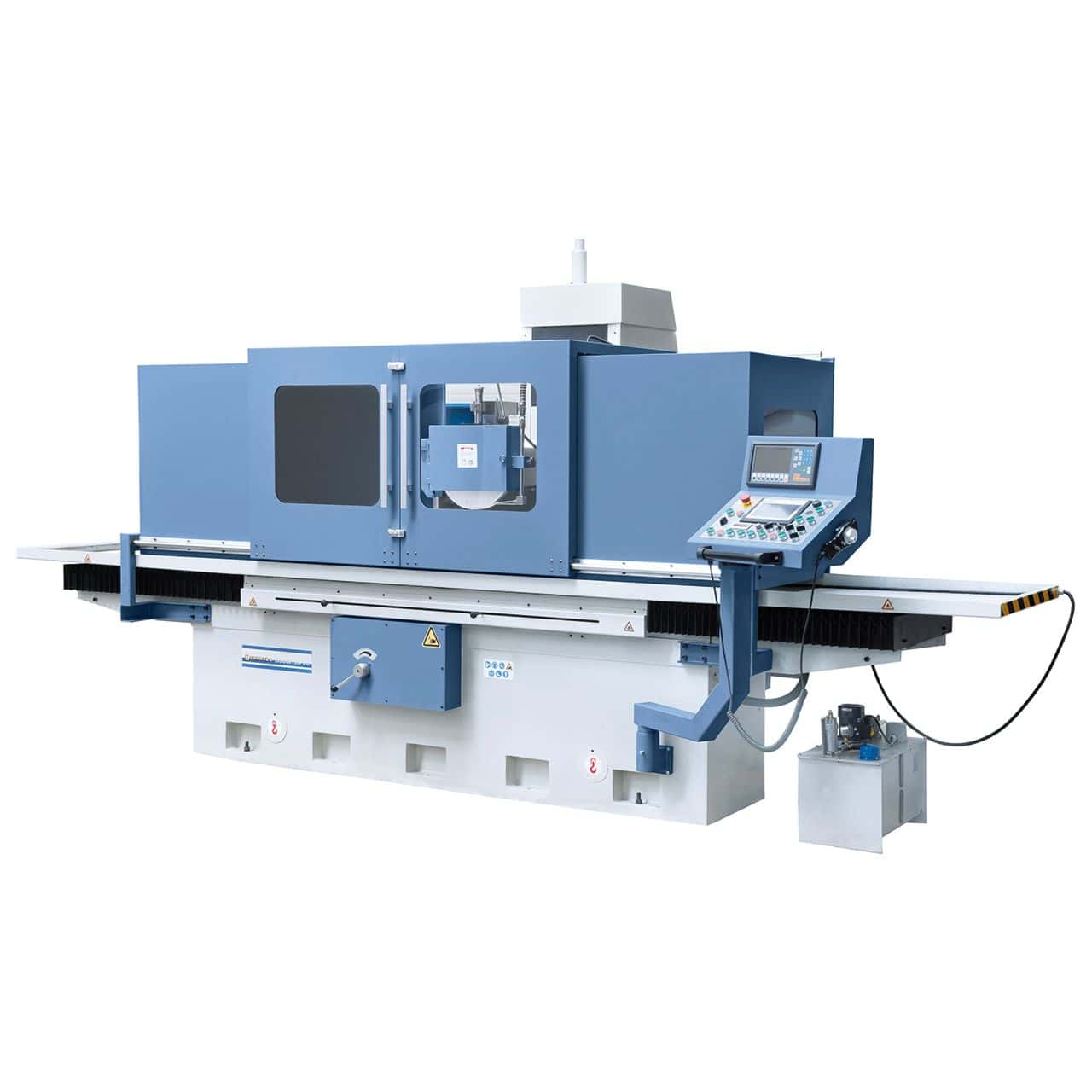

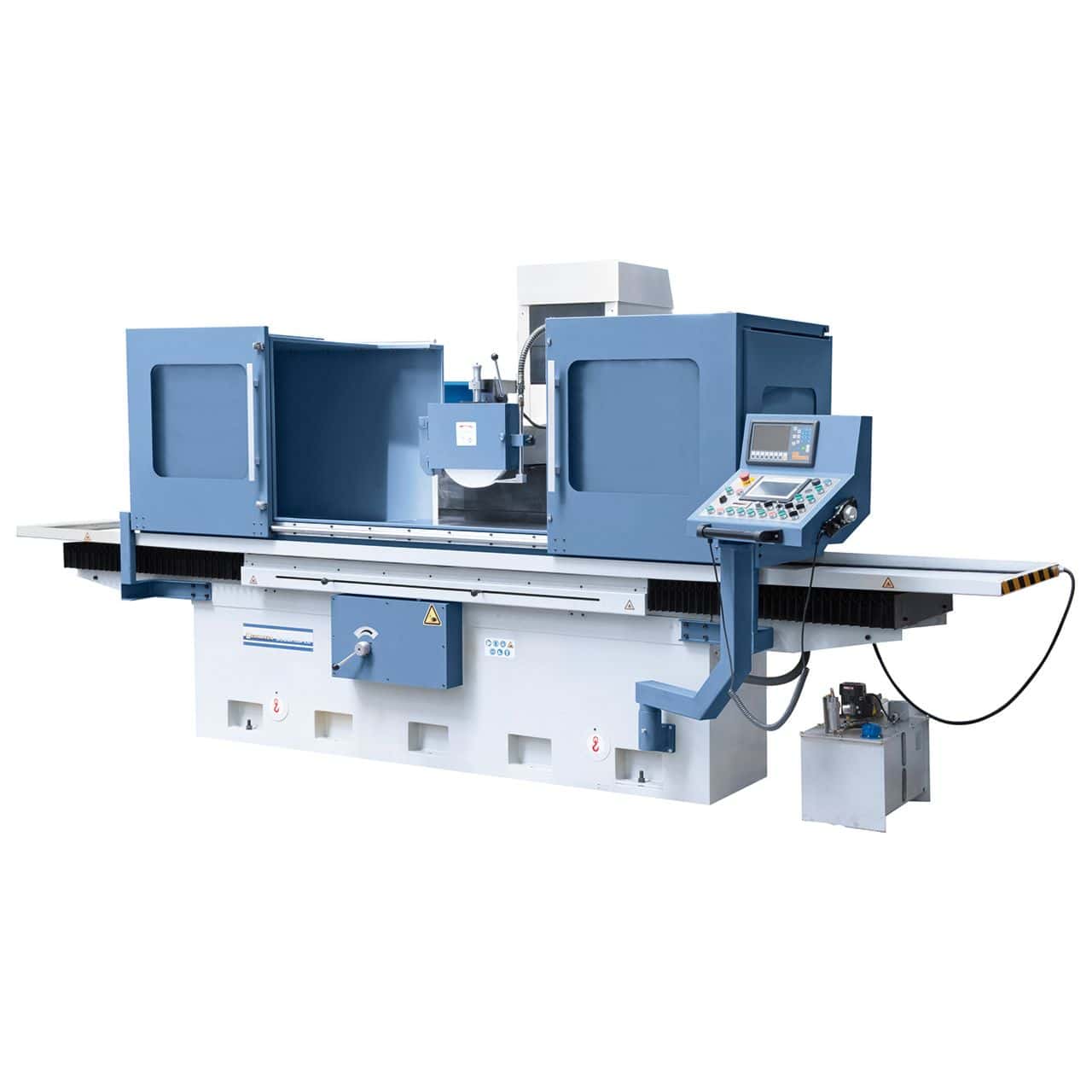

Bernardo BSG 60160 PLC Surface Grinder with 2-Axis DRO

The Bernardo BSG 60160 PLC surface grinder with ES-12 H 2-axis digital readout is designed for precision grinding operations on large and heavy workpieces. The 600 x 1600 mm table, equipped with hardened and ground guideways with Durcit-B coated counter-guideways, ensures rigidity, stability, and long service life. Longitudinal and cross movements are achieved via V-flat guideways, while the modern hydraulic system guarantees smooth feeds even under loads up to 1300 kg. The Siemens PLC control, with a touchscreen panel, allows for rapid programming of automated cycles: roughing, finishing, and automatic return to the home position. With a 350 mm grinding wheel, a 7.5 kW motor, and a massive cast iron structure, the BSG 60160 PLC is a reliable and high-performance machine, ideal for companies and workshops requiring top-level grinding.

---

Main features:
600 x 1600 mm table with hardened and ground guideways
Durcit-B coated counter-guideways for rigidity and smooth movement
Siemens PLC control with touchscreen panel
Automated grinding cycles: roughing and finishing
Two 600 x 800 mm magnetic chucks for loads up to 1300 kg

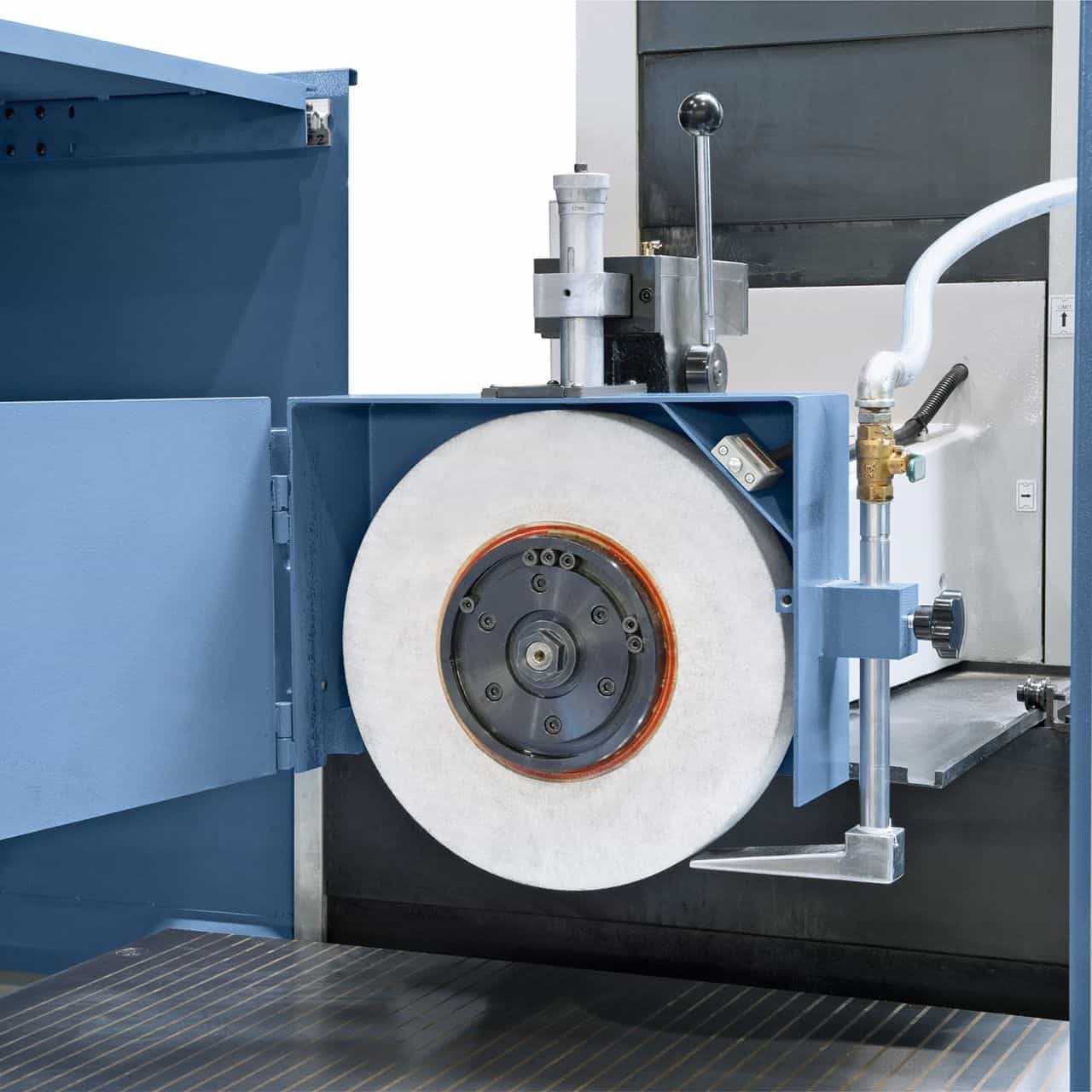

Ø 350 mm grinding wheel with preloaded bearing spindle
7.5 kW motor and 5.5 kW hydraulic pump
Cast iron structure with reinforcements and annealed base for maximum stability

---

Technical specifications

Specification	Value
Brand	Bernardo
Model	BSG 60160 PLC
Work table	600 x 1600 mm
T-slot (n° / width)	3 / 18 mm
Magnetic chucks	2 x 600 x 800 mm
Max. longitudinal travel	1750 mm
Max. cross travel	660 mm
Max. grinding wheel / table distance	600 mm
Max. workpiece weight	1300 kg
Grinding wheel dimensions	350 x 50 x 127 mm
Hydraulic table speed	5 – 25 m/min
Automatic cross adjustment	0.5 – 20 mm/stroke
Rapid cross feed	50 – 600 mm/min
Automatic vertical adjustment	0.005 – 0.04 mm
Rapid vertical feed	50 – 500 mm/min
Spindle motor	7.5 kW
Spindle speed	1450 rpm
Hydraulic pump motor	5.5 kW
Total power consumption	18 kW
Machine dimensions (L x W x H)	5500 x 2750 x 2700 mm
Weight	7000 kg

---

Standard equipment

2-axis digital display ES-12 H

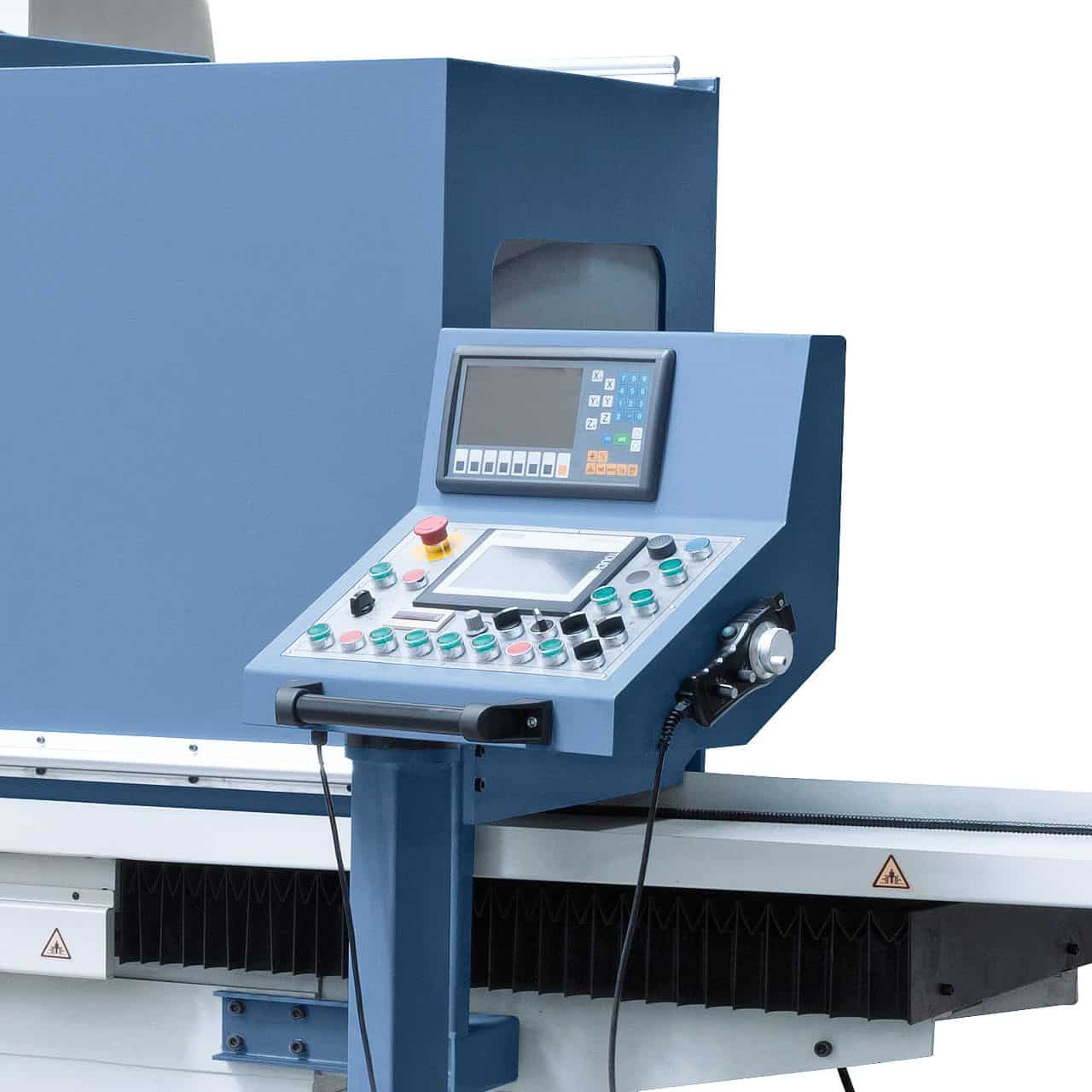

Siemens SMART panel with touchscreen
Electronic handwheel
Grinding wheel and flange
LED work light
2 magnetic chucks 600 x 800 mm
Balancing stand and balancing arbor
Protective covers
Parallel dresser
Demagnetizing device

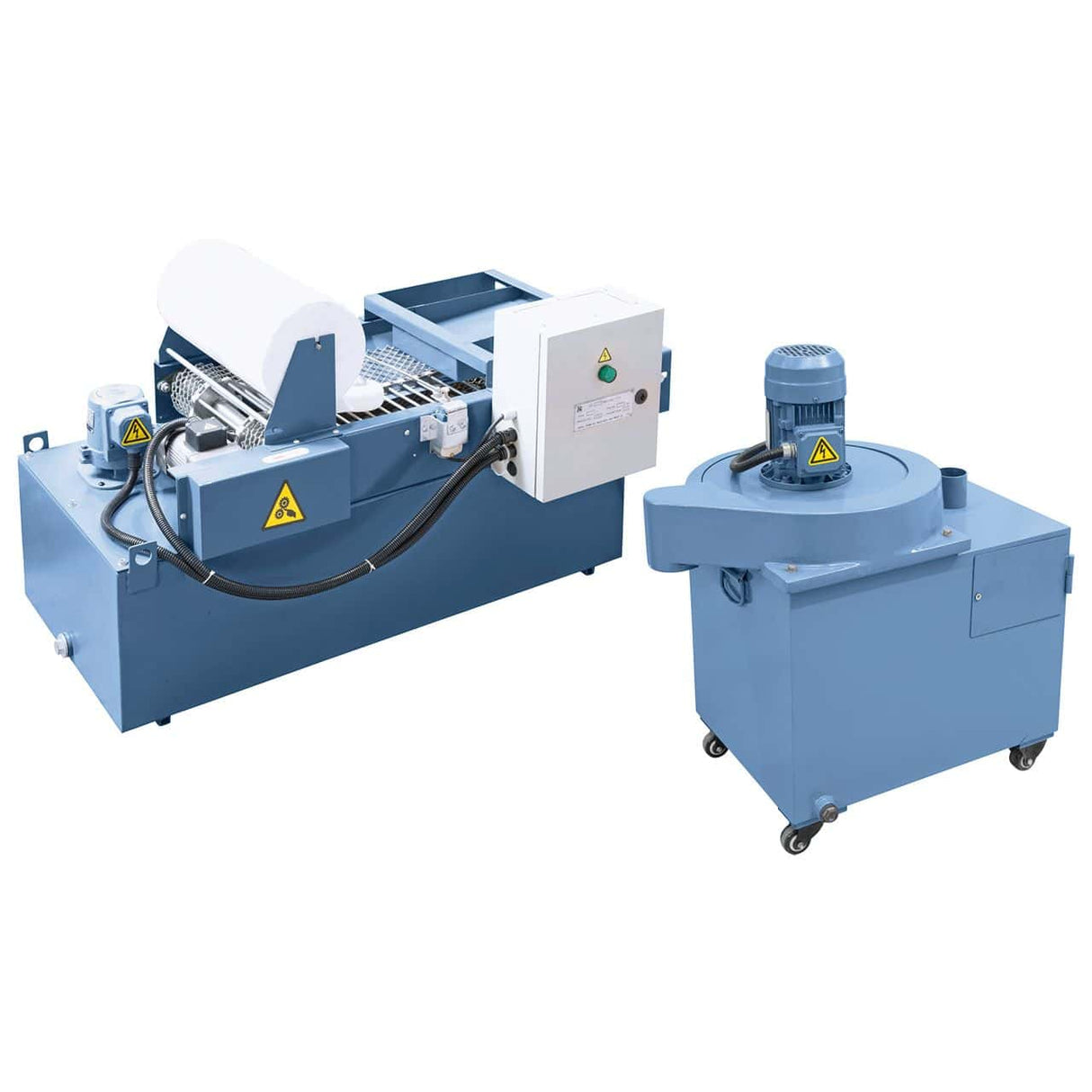

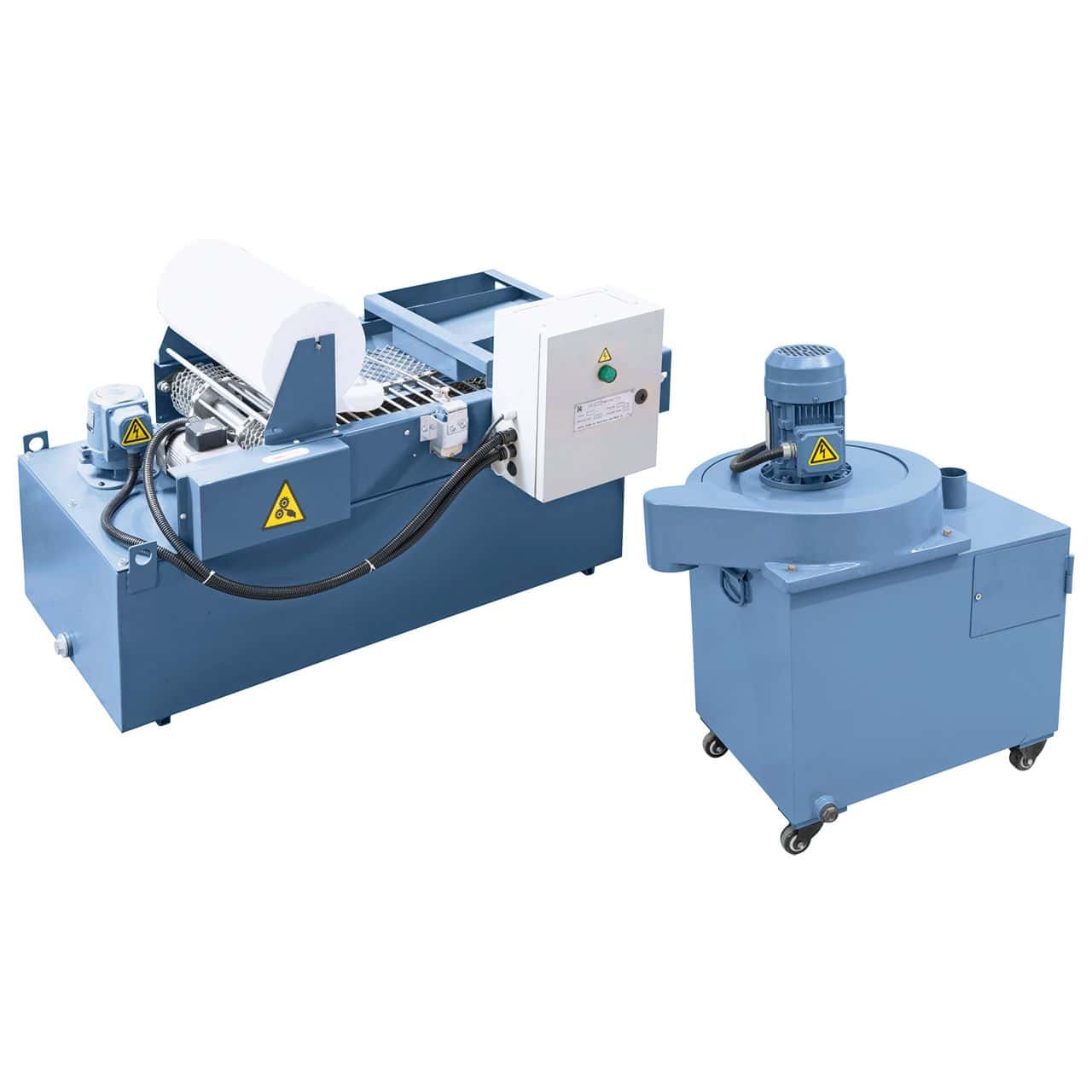

Cooling system
Diamond dresser
Machine feet
Centralized lubrication

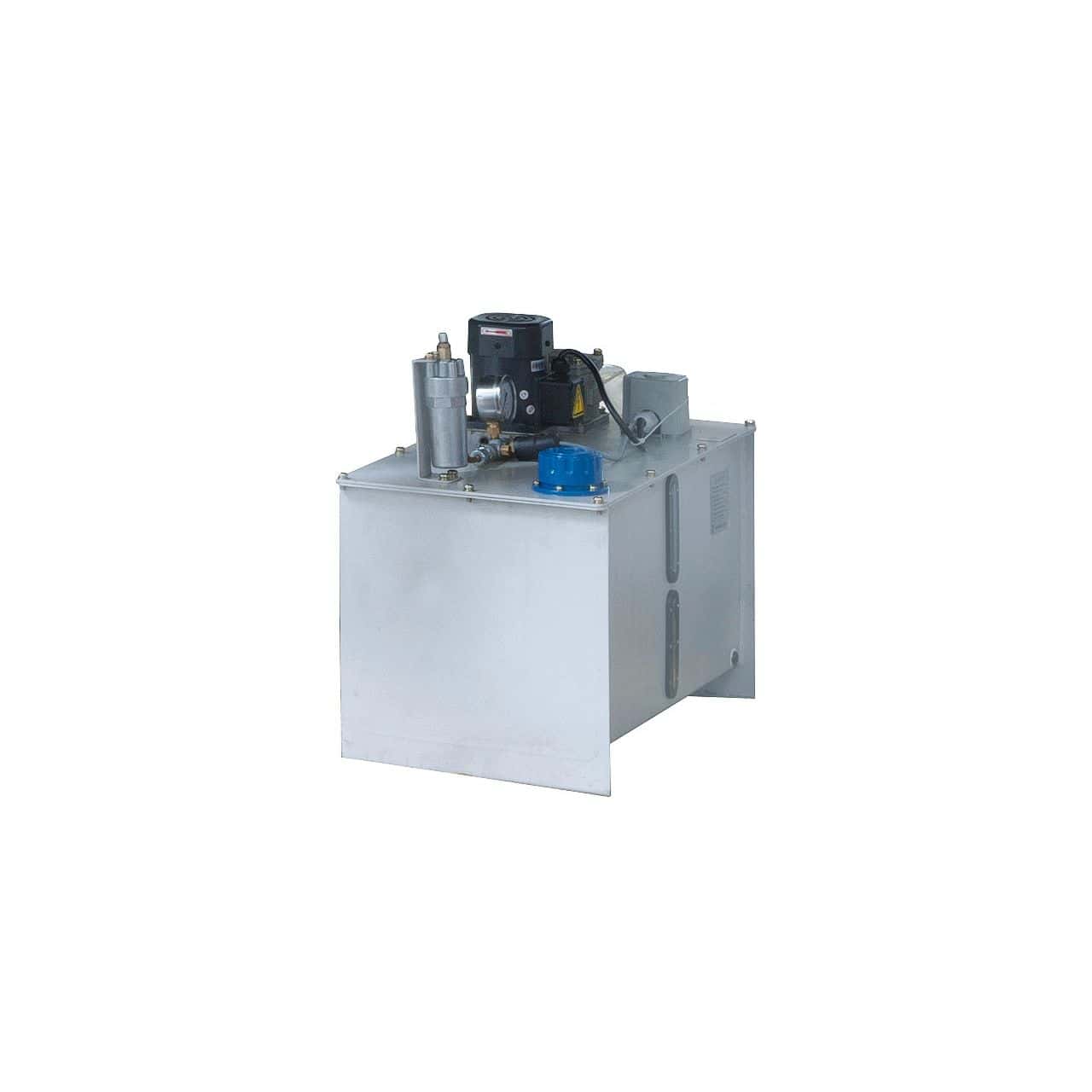

Hydraulic oil cooler
Service tools

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

Frequently asked questions

What grinding precision can be achieved with the Bernardo BSG 6 Surface Grinder?

Under optimal conditions, Bernardo surface grinders achieve dimensional tolerances of IT5–IT6 and roughness Ra 0.4–0.8 µm. Actual precision depends on the condition of the grinding wheel (periodic dressing), workpiece material, coolant, and operator experience.

What does the "PLC" suffix mean in the Bernardo BSG 6 Surface Grinder model?

The PLC suffix indicates that the grinder is equipped with programmable PLC control — it allows for setting automatic grinding cycles (number of passes, depth per pass, feed) without manual intervention during the cycle. Compared to the manual version, it reduces cycle times and produces more repeatable results on batches of identical parts.

Which grinding wheel should be used for steel vs cast iron vs aluminum?

Steel: Alumina (Al₂O₃) grinding wheel A46K–A60K. Cast iron: Silicon carbide (SiC) grinding wheel C46K–C60K. Aluminum: Silicon carbide grinding wheel C46J–C60J with abundant lubrication. Do not mix different materials on the same grinding wheel — metal residues contaminate the ground surface.

Does the Bernardo BSG 6 Surface Grinder require an integrated coolant?

BSG and FSM surface grinders are equipped with an integrated cooling system — essential for precision grinding on hardened steel to prevent surface burns that alter the material's structure. Always use the appropriate type of coolant for the material being processed.

Are spare parts and grinding wheels available?

Original spare parts available with 3–5 working days shipping. Customer support available in Italian.
