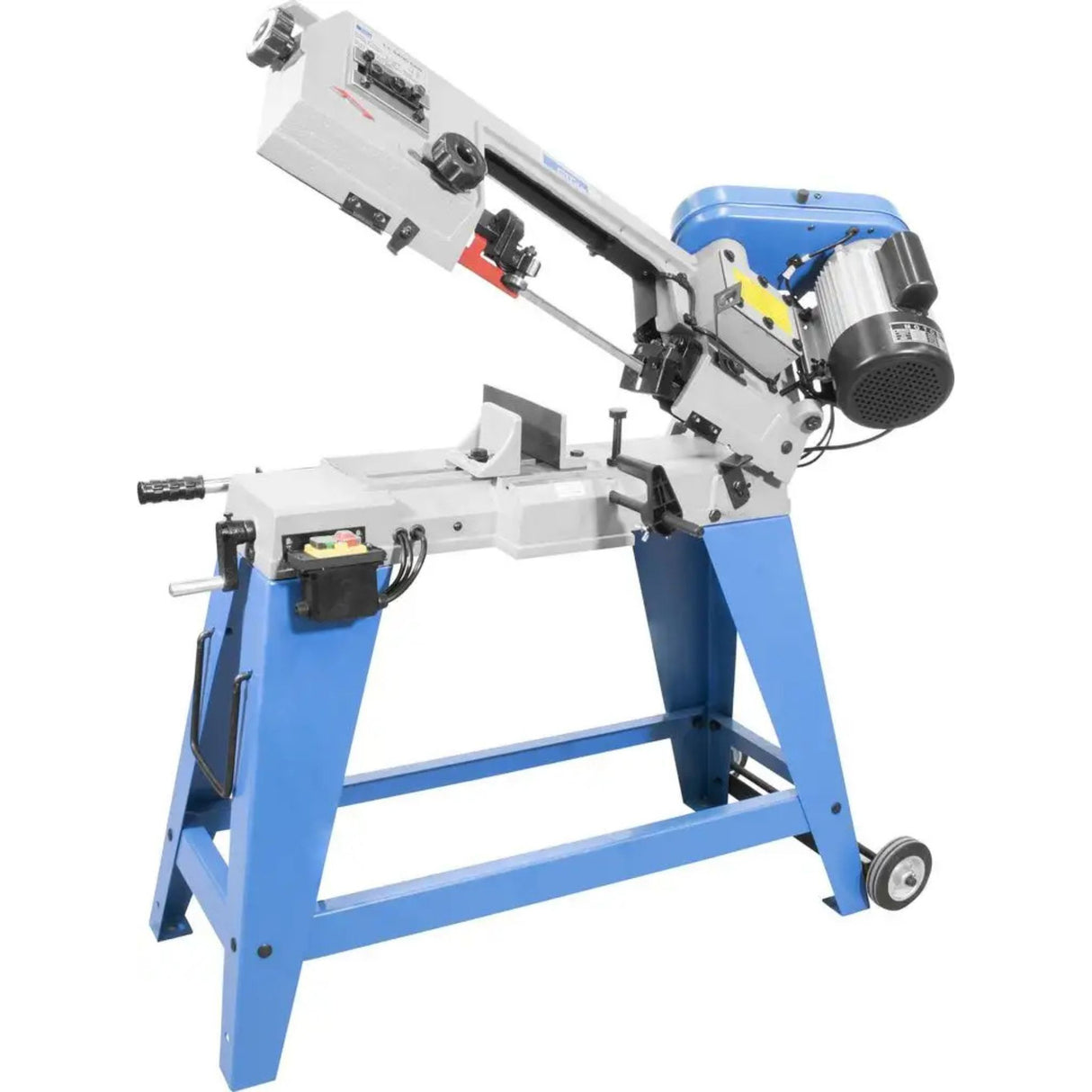

Güde MBS 116 metal band saw – 550 W, variable speed 21–44 m/min
The Güde MBS 116 is a professional metal band saw designed to provide versatility and reliability in demanding work environments. With a 550 W motor and belt speed adjustable over three settings (21, 30, 44 m/min), this machine adapts perfectly to different cutting operations and metal materials.
Main features:

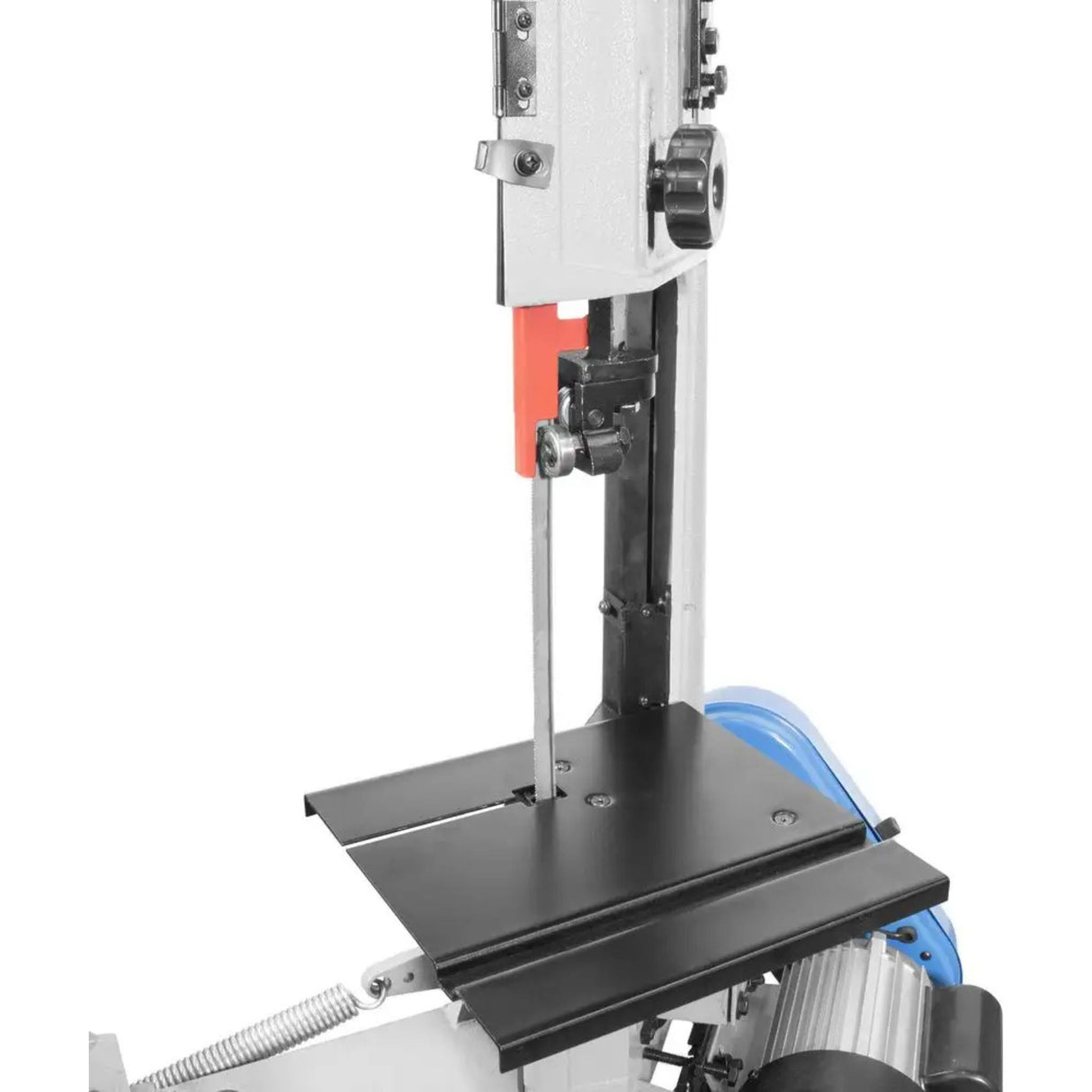

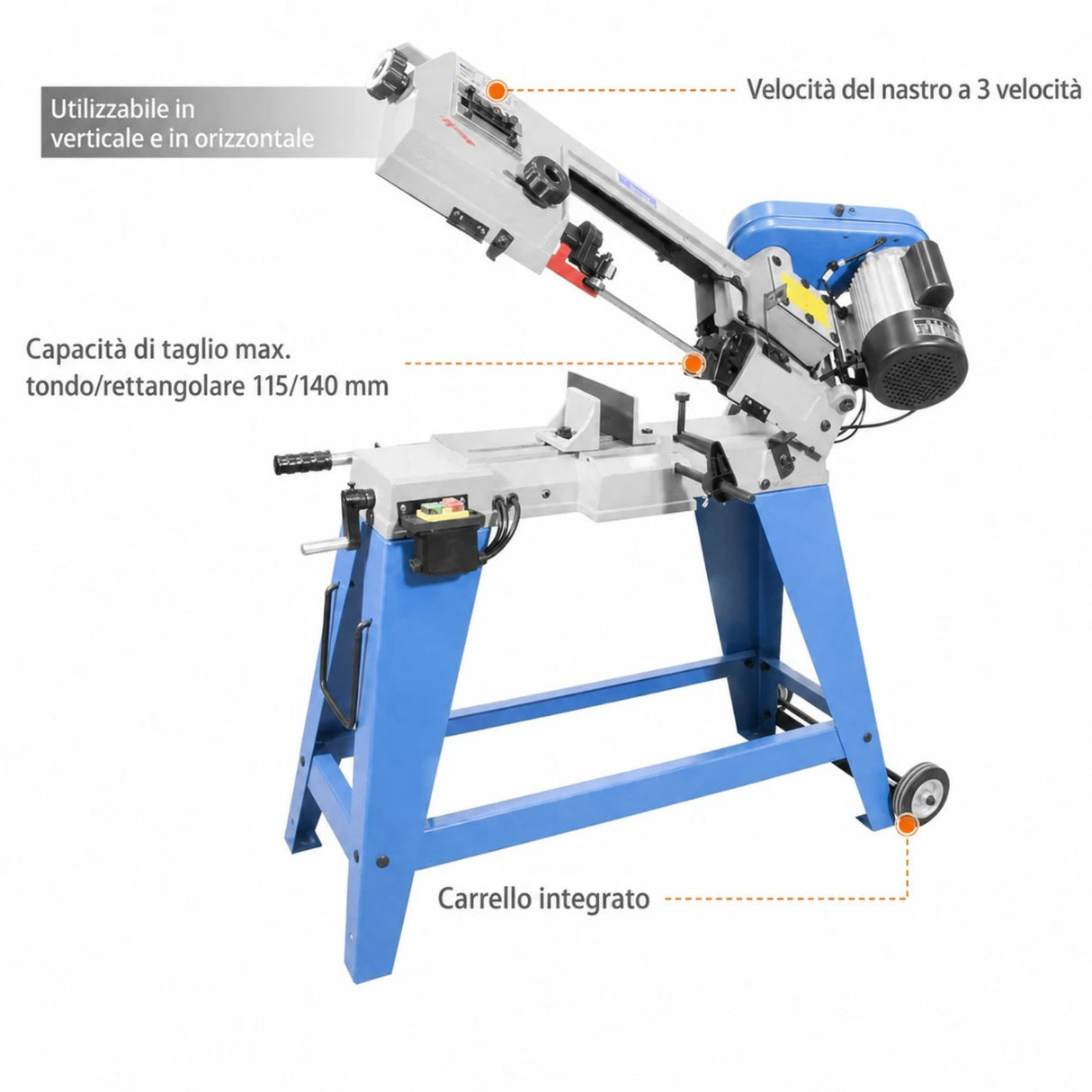

- Possibility to position the blade vertically or horizontally, allowing maximum operational flexibility
- Fully adjustable blade feed to optimise cutting quality according to the material
- Robust and stable structure, guaranteed by welded sheet metal construction and support frame
- Fully adjustable workpiece clamping vice with wide travel
- Motor head swivel from 90° to 45°, for angled cuts up to 45°

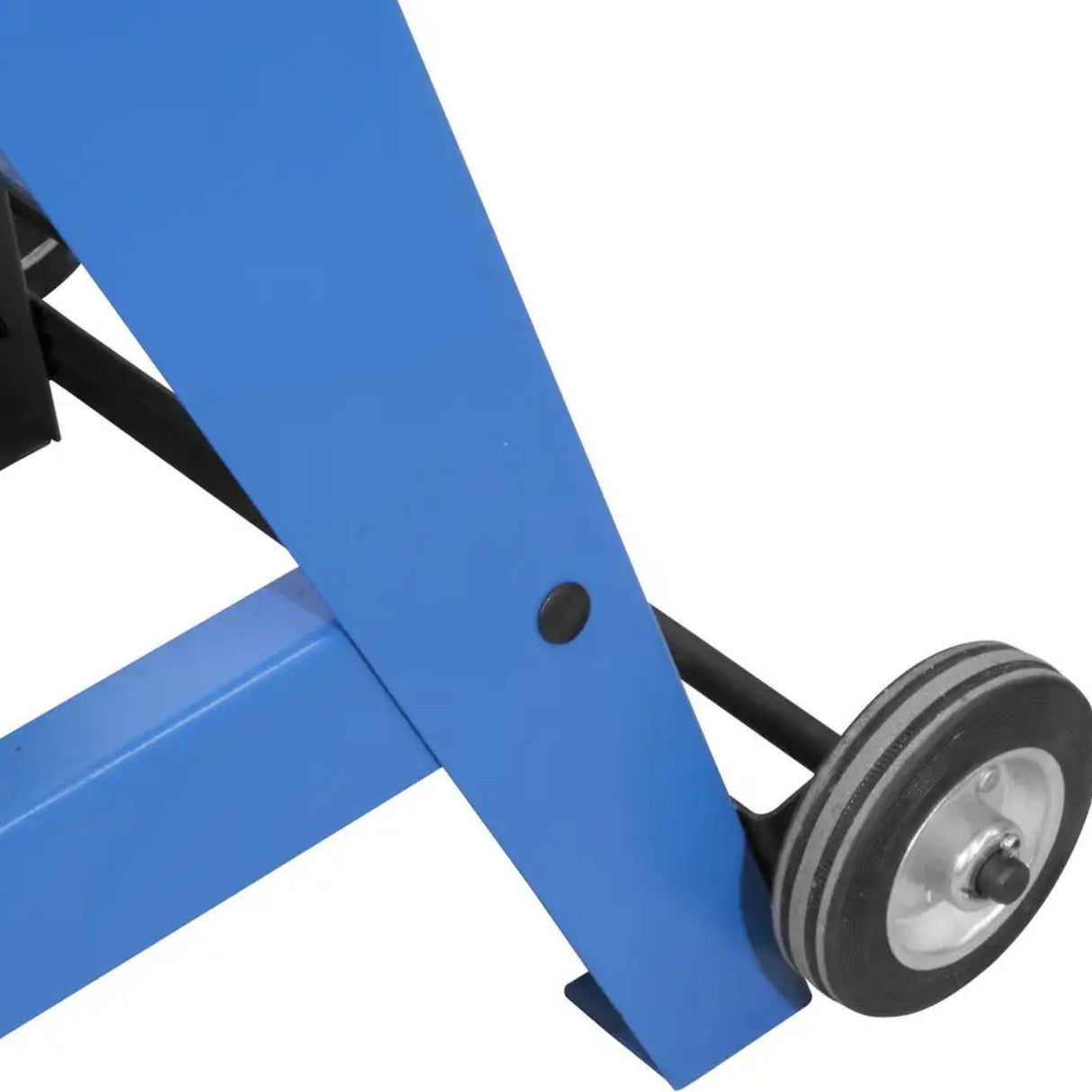

- Transport trolley with two wheels makes movement in the workshop easier
Cutting blade compatibility: The blades are standardised (1638×13×0.65 mm) and available with different tooth densities to suit steel, aluminium, copper and special alloys. Krollit supplies various optional blade profiles, from 6 teeth (coarse cutting) to 14 teeth (finishing).
Three usage profiles:
-
Small mechanical workshop: Ideal for batch work on mild steel and stainless steel, with daily output of up to 50–80 cuts. Speed control allows cycle times to be optimised.
-
Metalworking joinery: Perfect for working on pipes, angles and profiles. The adjustable vice adapts the machine to complex workpieces and irregular shapes.
-
Metal craftsman workshop: Effective for prototyping and small series, with versatility across materials and cutting profiles thanks to the three available speeds.
Positioning compared with the digital version (MBSD 116): The MBS 116 keeps fully mechanical control, ensuring maximum ease of operation and minimal maintenance. The MBSD 116 version adds a digital display and progressive speed control for those requiring greater precision in more complex applications.
After-sales support: Krollit ensures spare parts availability, preventive maintenance and technical advice for optimising the machine according to specific customer applications.
Who it is suitable for
| Profile |
Sector |
Cutting volumes |
Materials |
Main advantages |
| Small workshop |
Mechanical/metalworking |
30–80 cuts/day |
Mild steel, stainless steel |
Adjustable speed, short cycle, manual operation |
| Metalworking joinery |
Window and door frames, profiles |
10–40 cuts/day |
Pipes, angles, profiles |
Adjustable vice, 45–90° swivel, controlled finish |
| Metal craftsman |
Workshop, prototyping |
5–20 cuts/day |
Special alloys, stainless steel |
Material versatility, simple mechanical control |
Not suitable for:
- Very high-speed industrial production (>500 cuts/day)
- Environments requiring automation and digital integration
- Cutting very hard cast iron, which would require a lower speed not available
- Thicknesses greater than 140 mm in rectangular configuration

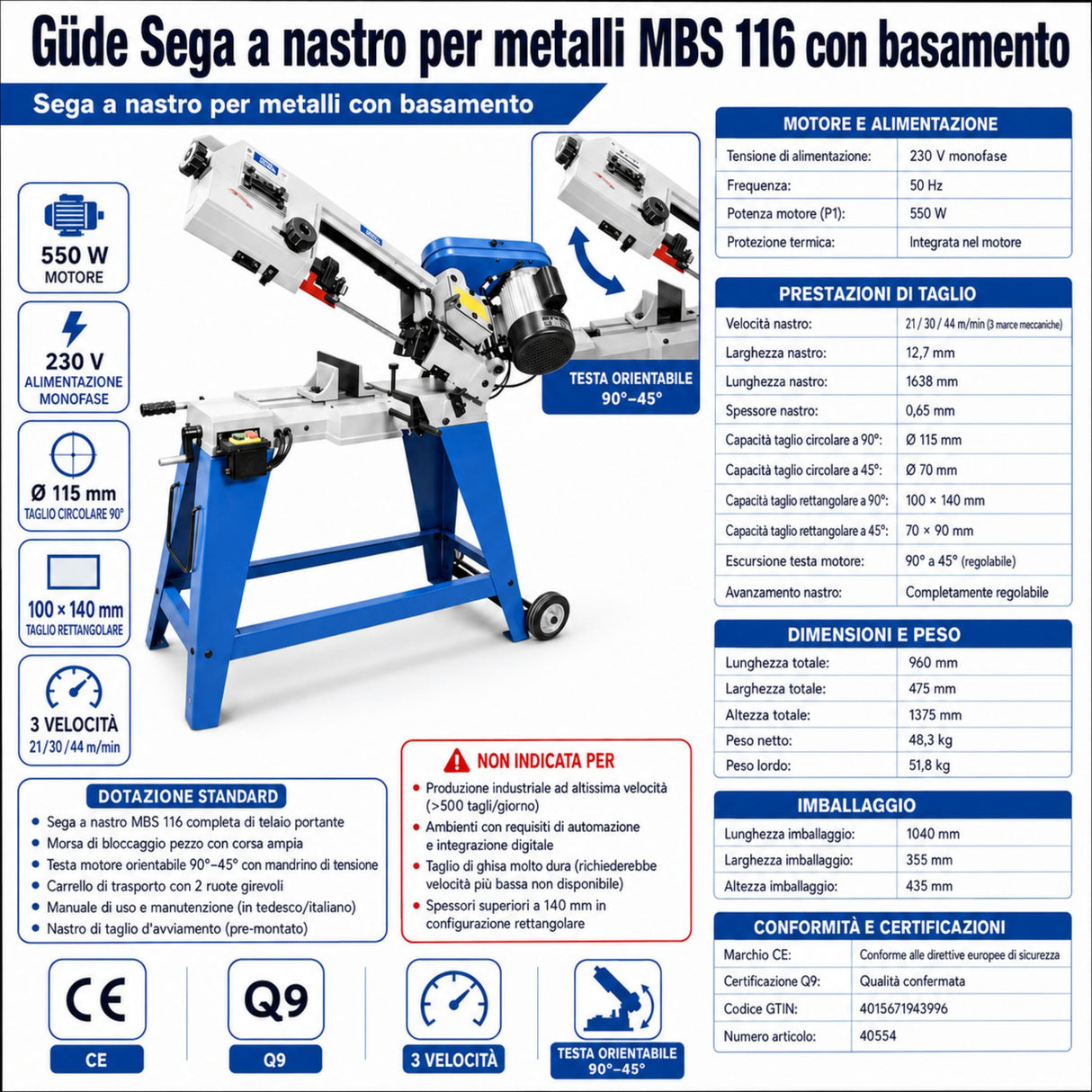

Technical specifications
Motor and power supply
- Supply voltage: 230 V single-phase
- Frequency: 50 Hz
- Motor power (P1): 550 W
- Thermal protection: Integrated in the motor
Cutting performance
- Blade speed: 21 / 30 / 44 m/min (3 mechanical speeds)
- Blade width: 12.7 mm
- Blade length: 1638 mm
- Blade thickness: 0.65 mm
- Round cutting capacity at 90°: Ø 115 mm
- Round cutting capacity at 45°: Ø 70 mm
- Rectangular cutting capacity at 90°: 100 × 140 mm
- Rectangular cutting capacity at 45°: 70 × 90 mm
- Motor head travel: 90° to 45° (adjustable)
- Blade feed: Fully adjustable
Dimensions and weight
- Total length: 960 mm
- Total width: 475 mm
- Total height: 1375 mm
- Net weight: 48.3 kg
- Gross weight: 51.8 kg
Packaging
- Packaging length: 1040 mm
- Packaging width: 355 mm
- Packaging height: 435 mm
Compliance and certifications
- CE mark: Compliant with European safety directives
- Q9 certification: Confirmed quality
- GTIN code: 4015671943996
- Item number: 40554
Standard equipment
- MBS 116 band saw complete with support frame
- Workpiece clamping vice with wide travel
- Motor head adjustable from 90–45° with tensioning spindle
- Transport trolley with 2 swivel wheels
- Use and maintenance manual (German/Italian)
- Starter cutting blade (pre-mounted)
Frequently asked questions
Which materials can I cut with the Güde MBS 116? The machine is ideal for mild steel, stainless steel, aluminium, copper, brass and other non-ferrous alloys. It is not recommended for very hard cast iron without a very low speed. The choice of blade, including the number of teeth, determines the cutting quality on each material.
What is the difference between the three blade speeds? The three speeds (21, 30, 44 m/min) allow the speed to be adapted to the material: mild steel and soft alloys require higher speeds; stainless steel and thick aluminium often perform better at 21–30 m/min to control heat and finish.
Can I use blades with a different number of teeth? Yes, but they must comply with the standard dimensions 1640×13×0.65 mm. 6-tooth blades are suitable for fast cutting, while 14-tooth blades are suitable for fine finishing. Krollit provides advice on choosing the best blade for the application.
How is routine maintenance carried out? Monthly check of blade tension, lubrication of bearings with specific grease, and cleaning of the vice. Annual servicing is recommended at a Krollit service centre. Moving parts have a long service life if kept clean.
What is the operating noise level? Approximately 80–85 dB(A) during cutting. Hearing protection is recommended in continuous working environments.
Is the saw transportable? Yes, the integrated transport trolley with 2 wheels allows movement inside the workshop. For vehicle transport, we recommend removing the trolley and using dedicated packaging. Weight: 48.3 kg.
Do I need to recalibrate anything after purchase? The machine arrives calibrated. On arrival, check blade tension and vice flatness. Krollit provides a first start-up checklist with the manual.
What are the delivery times? Standard delivery time is 5–7 working days for warehouse orders. Contact Krollit for availability and delivery confirmation. Consignment stock delivery may be possible by negotiation.
