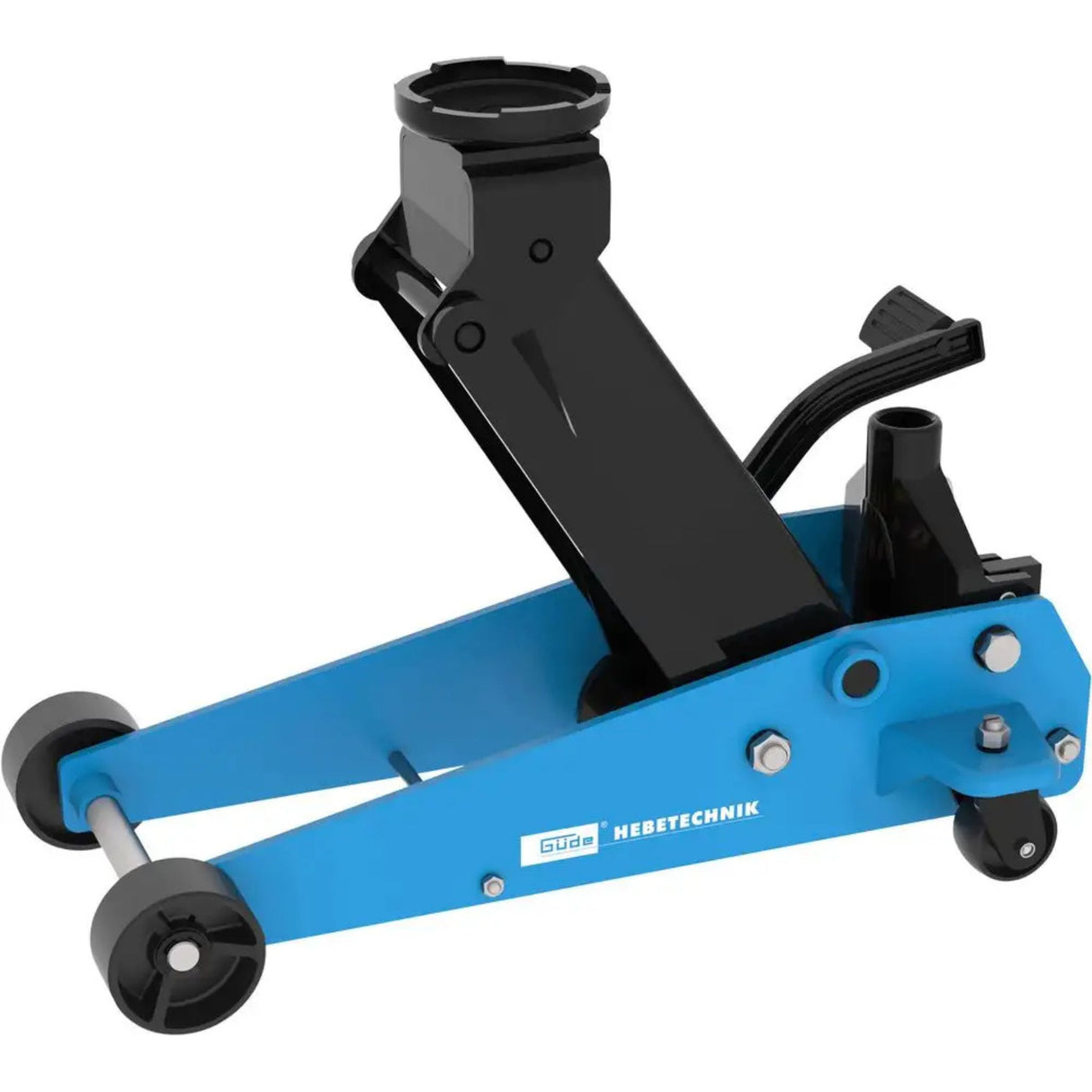

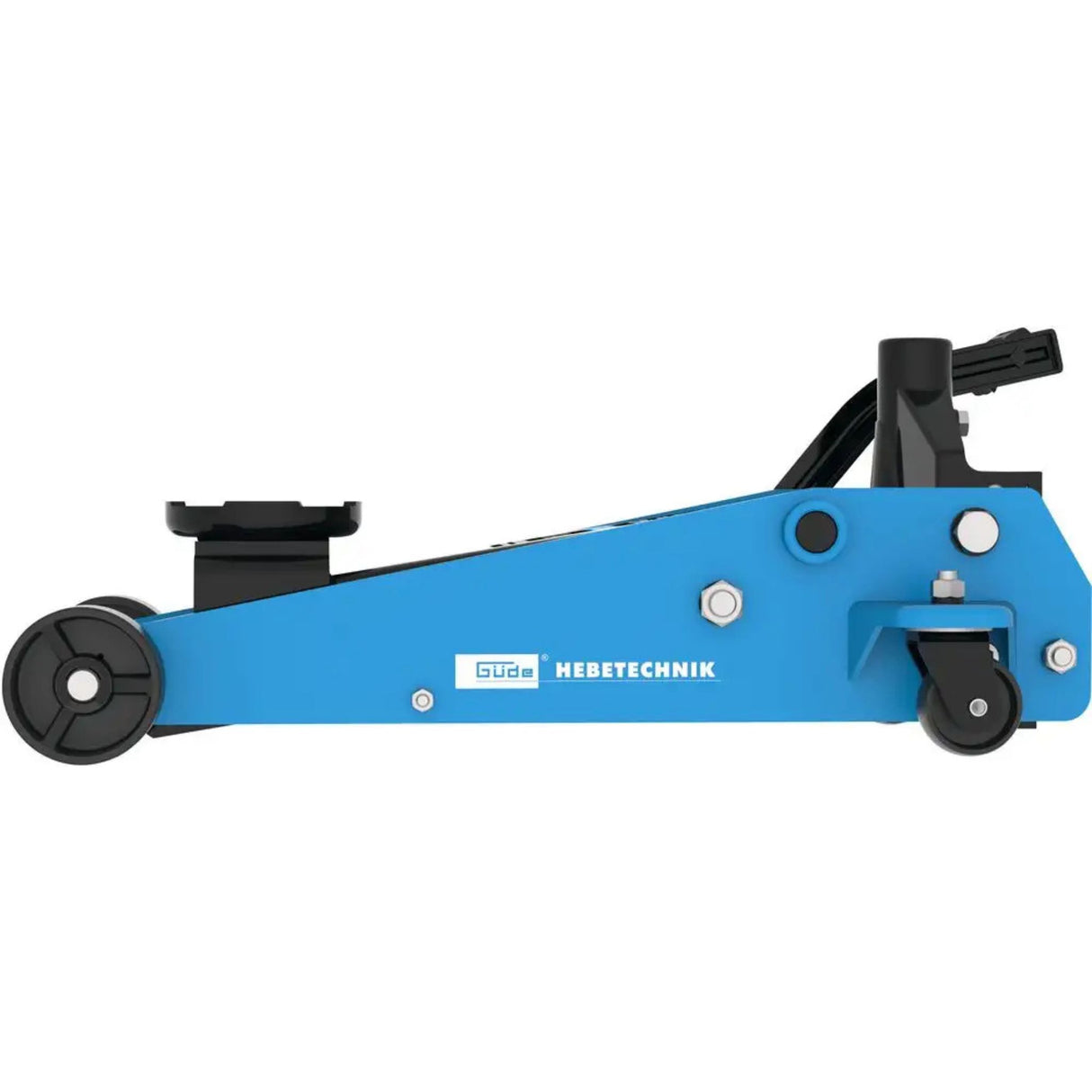

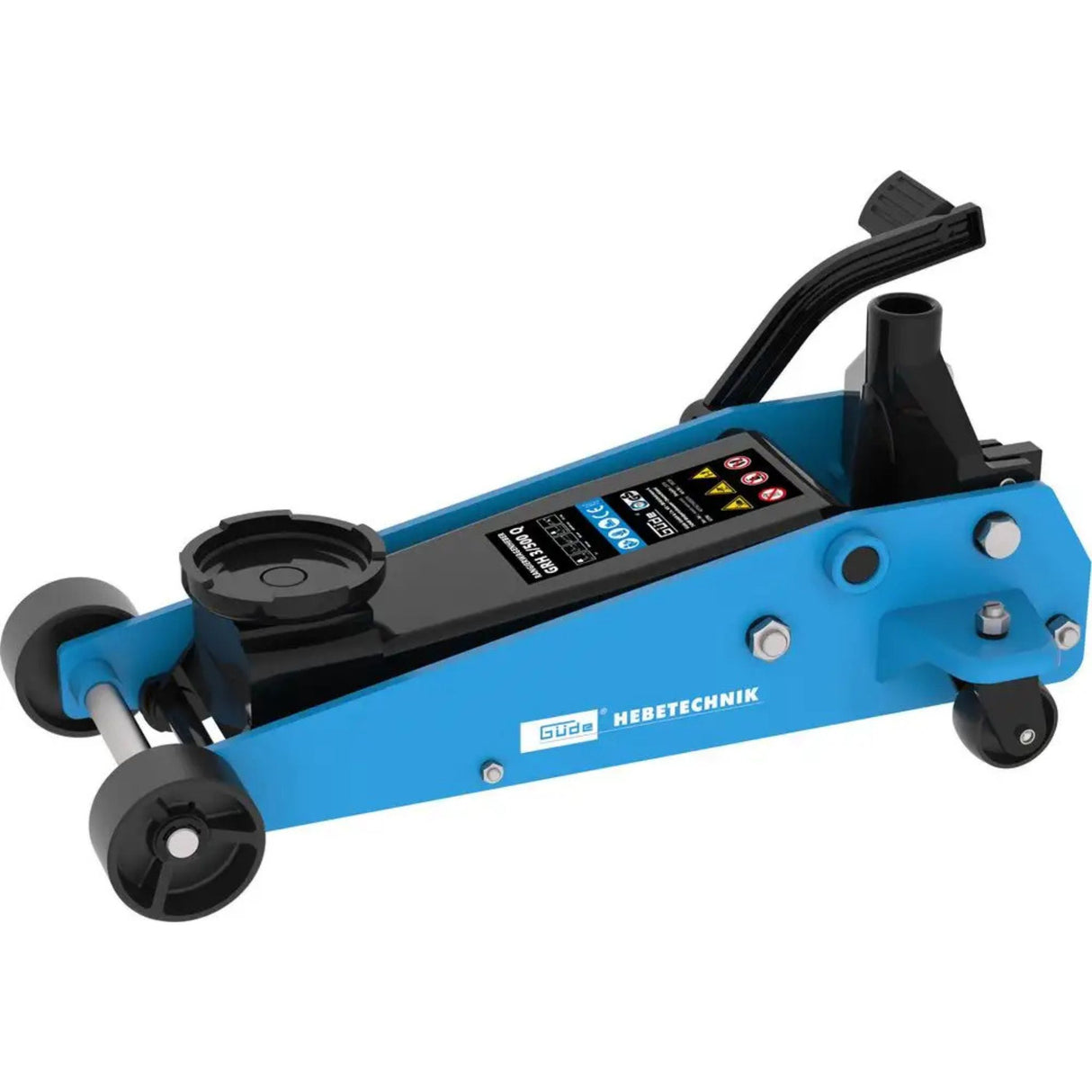

Güde GRH 3/500 Q Hydraulic Trolley Jack – 3000 kg, 145–500 mm height, double cylinder with Quick Lift
The GRH 3/500 Q model introduces Güde’s new GRH 3 series, with capacity increased to 3000 kg compared with the previous GRH 2.5 versions, which had a 2500 kg capacity. The synchronised double hydraulic cylinder lifting system with Quick Lift technology, a double-stage pump, allows lifting speed to be increased by 50% compared with single-cylinder models.
Quick Lift combines an initial fast stage, with high flow and low pressure, followed by a controlled final stage, with low flow and high pressure, ensuring positioning precision and absolute stability under the vehicle. This combination significantly reduces cycle times in workshops with a high volume of operations, while maintaining operational safety.
Design features:
- 3000 kg capacity – Suitable for light commercial vehicles, such as vans, pick-ups and minibuses, as well as heavy passenger cars. Higher safety margin than the GRH 2 versions
- 145 mm minimum height – Access under vehicles with standard ride height. For very lowered vehicles, under 100 mm, consider the GRH 2/330L model
- 500 mm maximum height – Sufficient for almost all professional maintenance operations on passenger cars and light commercial vehicles
- Synchronised double cylinder – Balanced load distribution across both cylinders. No tilting or lateral drift during lifting
- Quick Lift – Fast stage for cycle speed, controlled stage for positioning precision and safety. Reduces operator fatigue
- 690 × 350 mm frame – Compact base while maintaining lateral stability. Easy to handle between different workstations
- 36.8 kg weight – Moderate weight allows manual transport between stations, although a rolling trolley is recommended for long distances
- 360° swivel wheels – Agile mobility for precise positioning under the vehicle from any angle
- GS + CE certifications – Guaranteed compliance with European safety standards, TÜV SÜD and Machinery Directive 2006/42/EC
Who chooses it in Italy
Professional workshops for light vehicle maintenance – Specialised in tyre changes, chassis maintenance and underbody access on standard and heavy passenger cars, including SUVs, luxury saloons and MPVs. The GRH 3/500 Q is an ideal choice for moderate to intensive cycles, 100–200 operations/month.
Craft mechanics and specialised body shops – Frame repair, suspension component replacement and painting work on passenger cars. The 3000 kg capacity allows work on high-value vehicles without compromising safety.
Multi-brand commercial maintenance centres – Fleets of vans, pick-ups, refrigerated vans and minibuses. Double cylinder + Quick Lift reduce cycle times, improving service profitability.
After-sales support and compatibility
Krollit supplies original Güde spare parts for the GRH 3/500 Q with average delivery times of 5–7 working days:
- Replacement hydraulic cylinder, in case of internal damage from overload
- Replacement manual pump, in case of wear from intensive cycles
- Specific H ISO VG 46 hydraulic oil, 2–3 litre bottle
- Replacement hydraulic seals, complete set
- Replacement rubber saddle protection
- Replacement swivel wheel
- Italian manual and technical data sheet available in PDF format
Who the GRH 3/500 Q is suitable for
| Profile |
Suitable? |
Reason |
| Hobby user / private garage |
Not suitable |
3000 kg capacity is excessive for private use. GRH 2 models, 2000–2500 kg, are more appropriate for home maintenance |
| Small workshop or craft mechanic, 1–5 operators |
Suitable |
Covers 3000 kg loads and moderate cycles. Double cylinder + Quick Lift are not essential for cycles under 100 operations/month |
| Continuous production / industrial workshop, 150+ cycles/month |
Ideal |
3000 kg capacity covers the complete range of light vehicles. Double cylinder + Quick Lift reduce cycle times. Professional reliability for intensive use |
Not suitable for: motorcycles, use a motorcycle lift series; light cars under 800 kg; motorised bicycles; scenarios requiring very low access, under 100 mm – consider the GRH 2/330L; occasional hobby users with sporadic maintenance.
Technical specifications
Lifting capacity
| Maximum capacity |
3000 kg |
| Minimum height |
145 mm |
| Maximum height |
500 mm |
| Total travel |
355 mm |

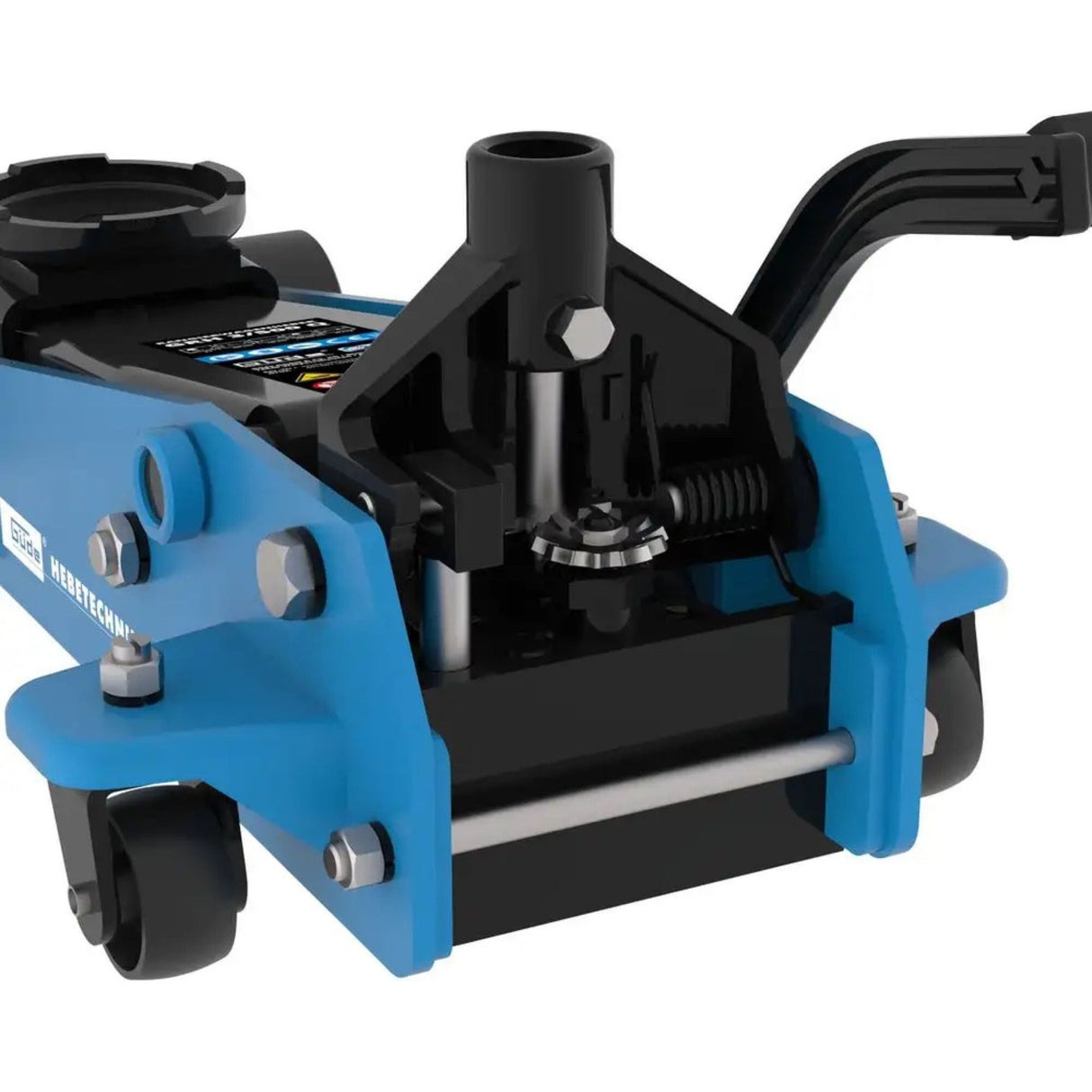

Lifting system
| Cylinder type |
Synchronised double hydraulic cylinder |
| Pump system |
Quick Lift, double stage: fast + controlled |
| Speed increase |
+50% compared with single cylinder |
| Synchronisation technology |
Parallel cylinders with balancing valve |
Frame and mobility
| Frame length |
690 mm |
| Frame width |
350 mm |
| Saddle platform height |
160 mm |
| Saddle/plate diameter |
355 mm |
| Number of wheels |
4 wheels, 2 swivel 360°, 2 fixed |
| Total length, pump handle retracted |
1060 mm |
| Overall height, vertical pump handle extended |
1200 mm |

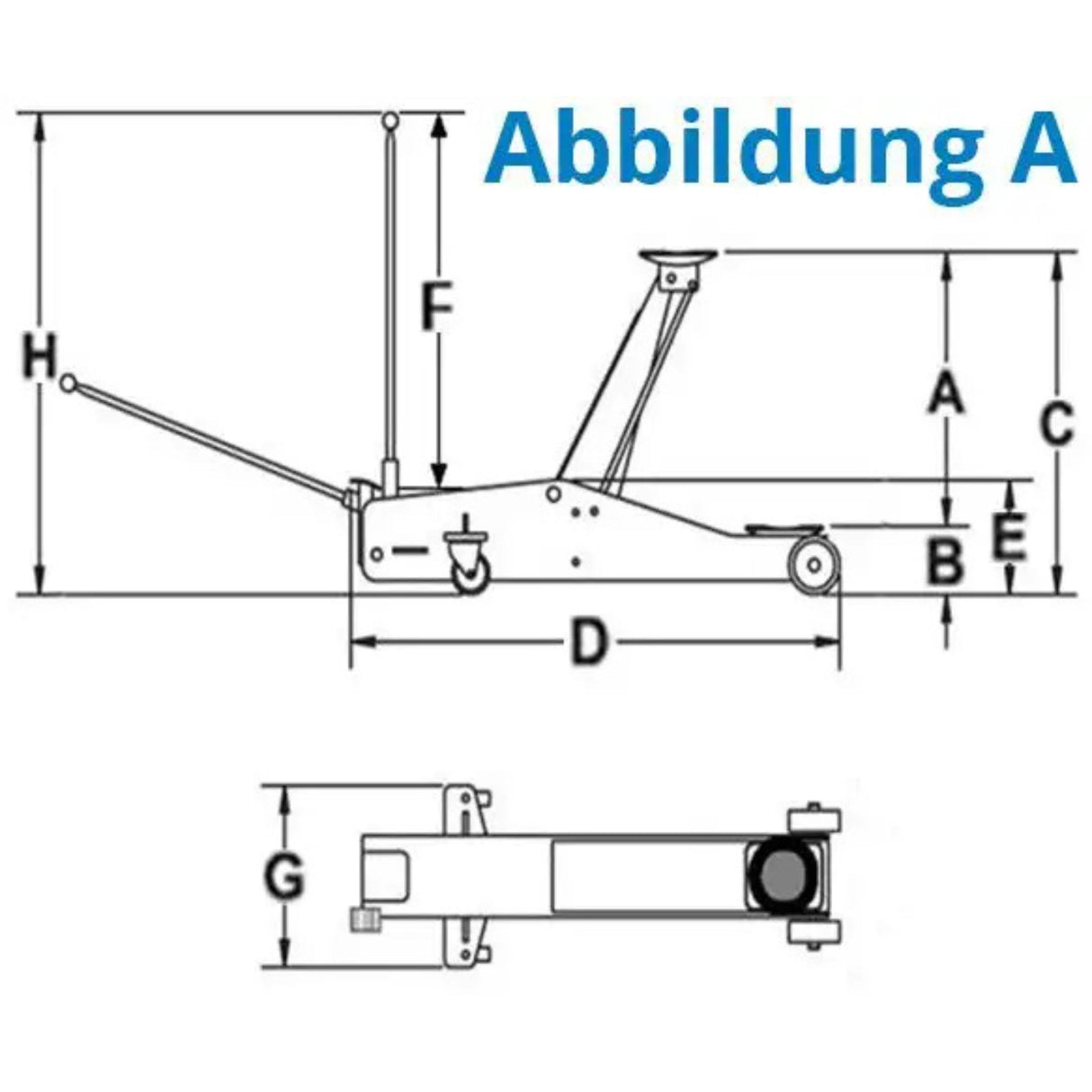

Dimensions and weight
| Base footprint, L × D × H |
690 × 350 × 160 mm |
| Net weight |
36.8 kg |
| Gross weight, packaging |
Not declared |
Compliance and safety
| CE mark |
Yes – Machinery Directive 2006/42/EC |
| GS certification |
Yes – TÜV SÜD |
| Güde item number |
18039 |
| Automatic safety lock |
Yes – does not drop under pressure |
| Pressure release valve |
Integrated, automatic adjustment |
Standard equipment
- Complete GRH 3/500 Q hydraulic trolley jack
- Synchronised double hydraulic cylinder
- Rubber saddle protection
- Two-piece hydraulic pump handle for compact storage
- Four wheels, 2 swivel 360°, 2 fixed
- Ergonomic handle/grip
- Integrated pressure release valve
- Manual in German
- Product technical data sheet
Frequently asked questions
What is the exact capacity of the GRH 3/500 Q?
3000 kg, with the load positioned in the centre of the lifting platform, saddle diameter 355 mm. Never exceed the maximum load; operator safety depends on respecting this limit. Synchronised cylinders ensure balanced load distribution.
Typical applications:
- Standard passenger cars, 1000–1800 kg
- SUVs and heavy saloons, 1800–2500 kg
- Light vans and minibuses, 2000–3000 kg
- Wide safety margin for all these scenarios
What is the minimum lifting height?
145 mm minimum height allows access under vehicles with standard and moderately lowered ride height. For sports cars and hot rods with lowered setup, -100 mm or more, this height may be insufficient; in these cases, the GRH 2/330L version is recommended, with 85 mm minimum height.
What is the maximum lifting height?
500 mm maximum height, with total travel of 355 mm. This height is sufficient for almost all professional maintenance operations: tyre changes, chassis maintenance and underbody access on standard and light commercial vehicles.
What does “Quick Lift” mean and what is the advantage?
The Quick Lift system is a double-stage lifting system: the pump operates in fast mode, with high flow and low pressure, during initial lifting, then automatically switches to controlled mode, with low flow and high pressure, in the final stage to ensure positioning precision and stability. Advantage: it reduces lifting time by up to 50% compared with single-cylinder models, reducing operator fatigue and cycle times.
How much does the GRH 3/500 Q weigh?
36.8 kg net weight. The moderate weight allows manual transport between different workstations over short distances, although a rolling trolley is recommended for longer routes in the workshop. Total length with pump handle retracted is 1060 mm, with a compact footprint.
What are the complete dimensions and how is it stored?

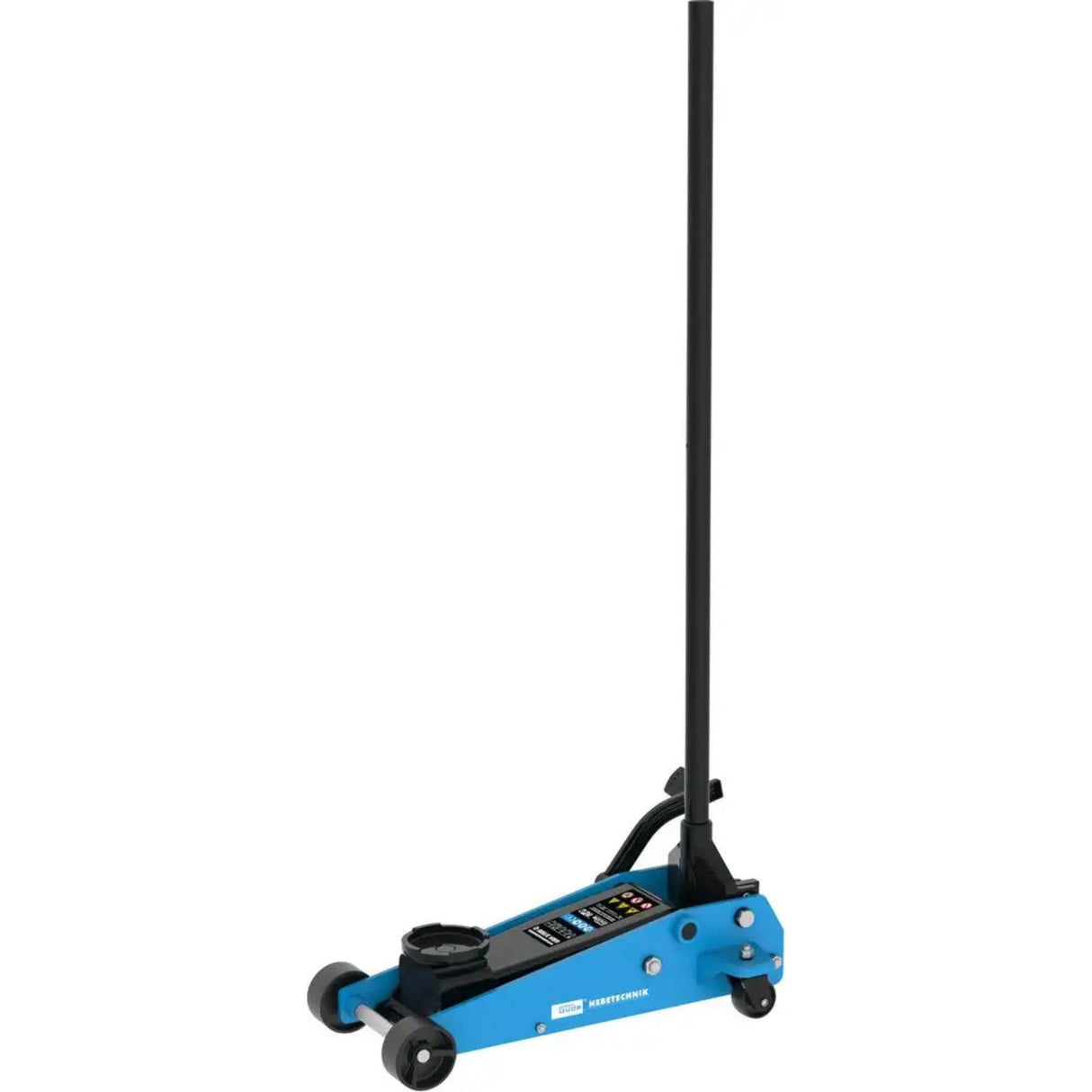

Base frame: 690 mm length × 350 mm width × 160 mm platform height. Total length with pump handle retracted: 1060 mm. Overall height with the pump handle extended vertically, initial positioning: 1200 mm. The two-piece pump handle allows compact storage in workshops with limited space.
What certifications does the GRH 3/500 Q have?
The model has the CE mark according to Machinery Directive 2006/42/EC and GS certification, certified safety, issued by TÜV SÜD. Both certifications guarantee compliance with European safety standards for professional lifting equipment.
What is the difference between the GRH 3/500 Q and the previous GRH 2.5/510L model?
The GRH 3/500 Q offers: (1) increased capacity from 2500 kg to 3000 kg, +500 kg; (2) Quick Lift system with +50% lifting speed; (3) synchronised double cylinder vs single cylinder on the 2.5/510L; (4) 145 mm minimum height, compared with 80 mm on the 2.5/510L for lower access; (5) 36.8 kg weight, compared with 29 kg on the 2.5/510L, due to the robustness required for 3000 kg. The GRH 3/500 Q is the choice for workshops with loads over 2500 kg and frequent cycles.
How do you maintain the GRH 3/500 Q?
Minimal maintenance. Monthly inspection: check oil pressure, which must be smooth; cylinder integrity, with no visible leaks; system operation, with no abnormal resistance. Oil replacement is recommended every 12 months with moderate use, under 50 cycles/month, or every 6 months with intensive use, over 100 cycles/month. Lubricate swivel wheels every 6 months with spray, such as WD-40. Annual safety valve check.
