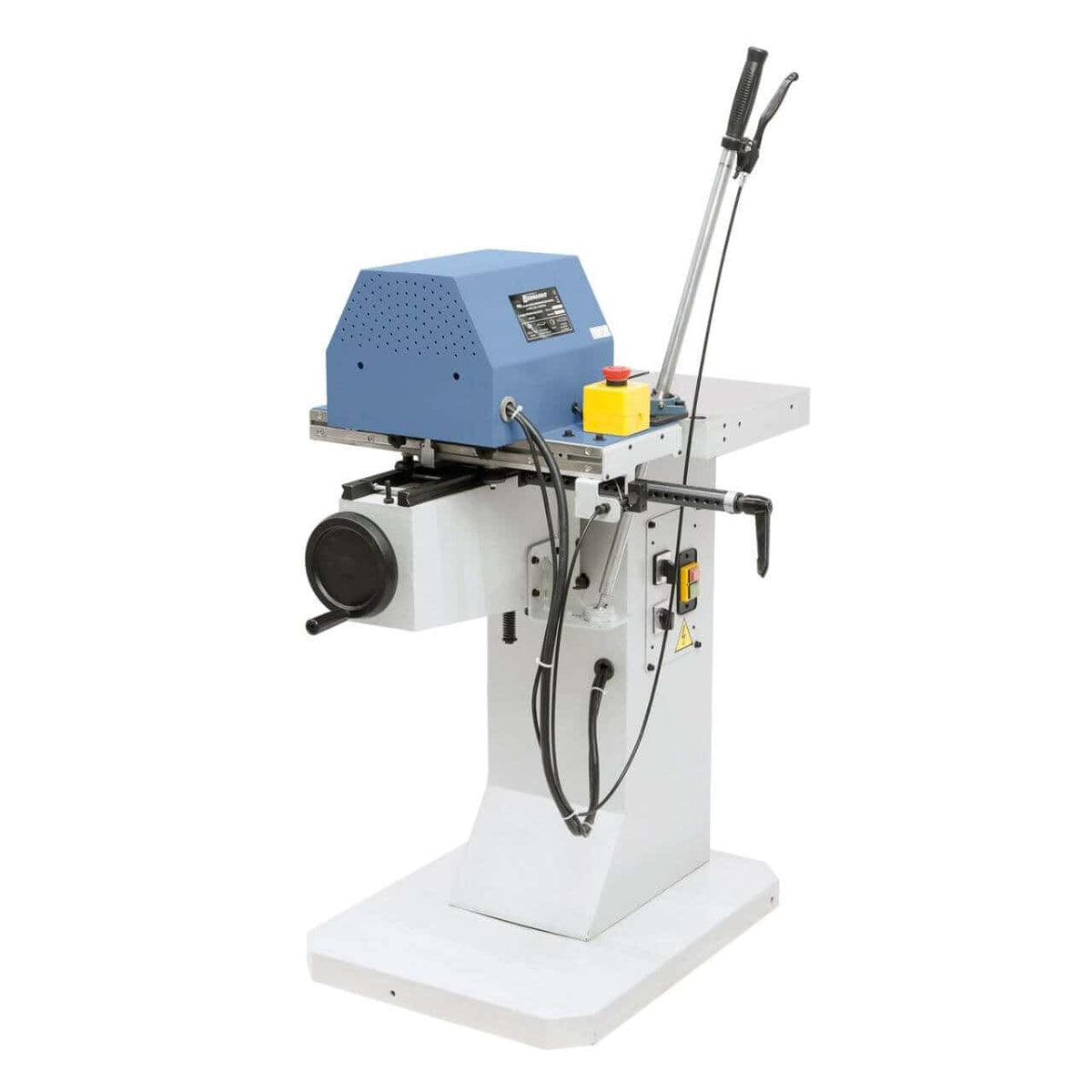

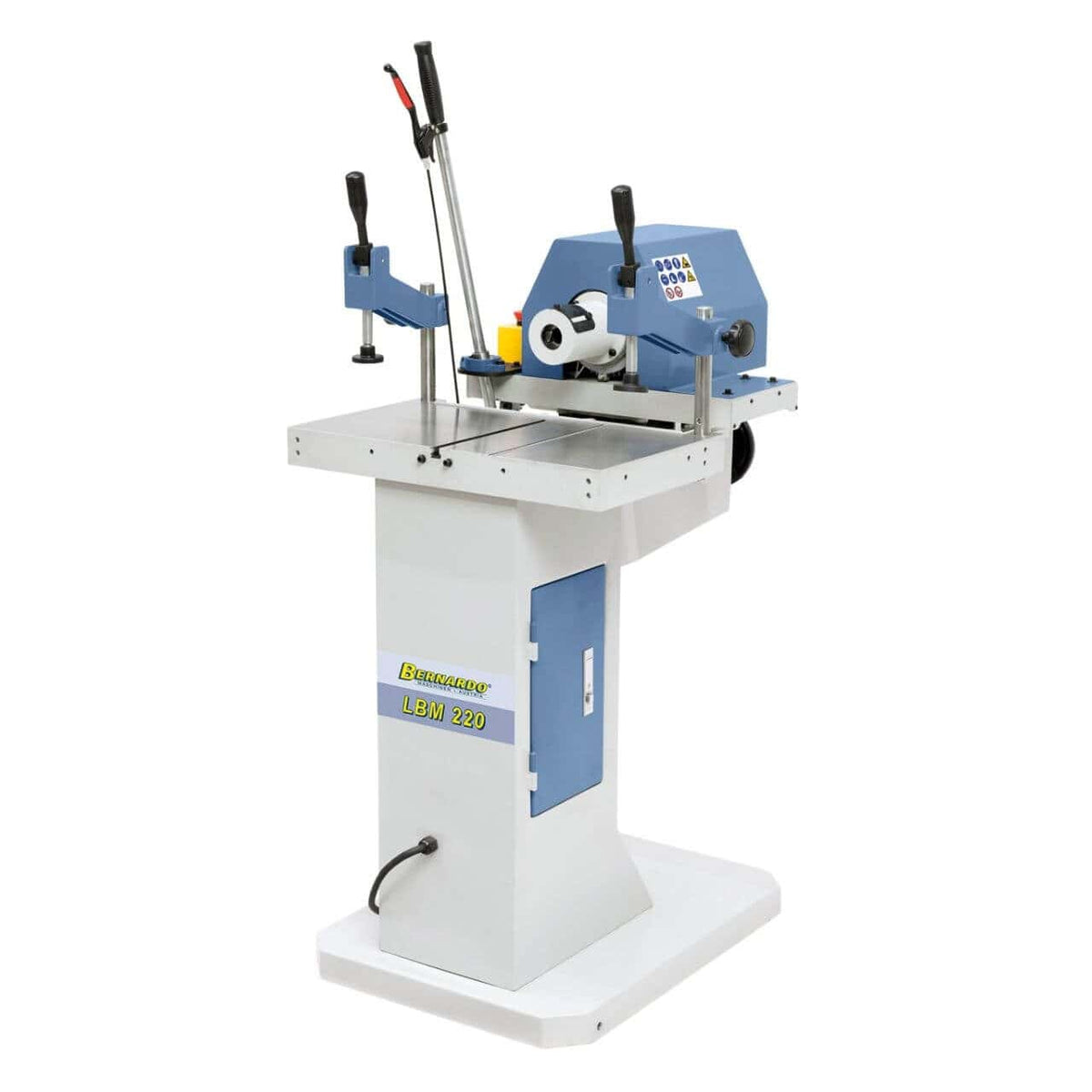

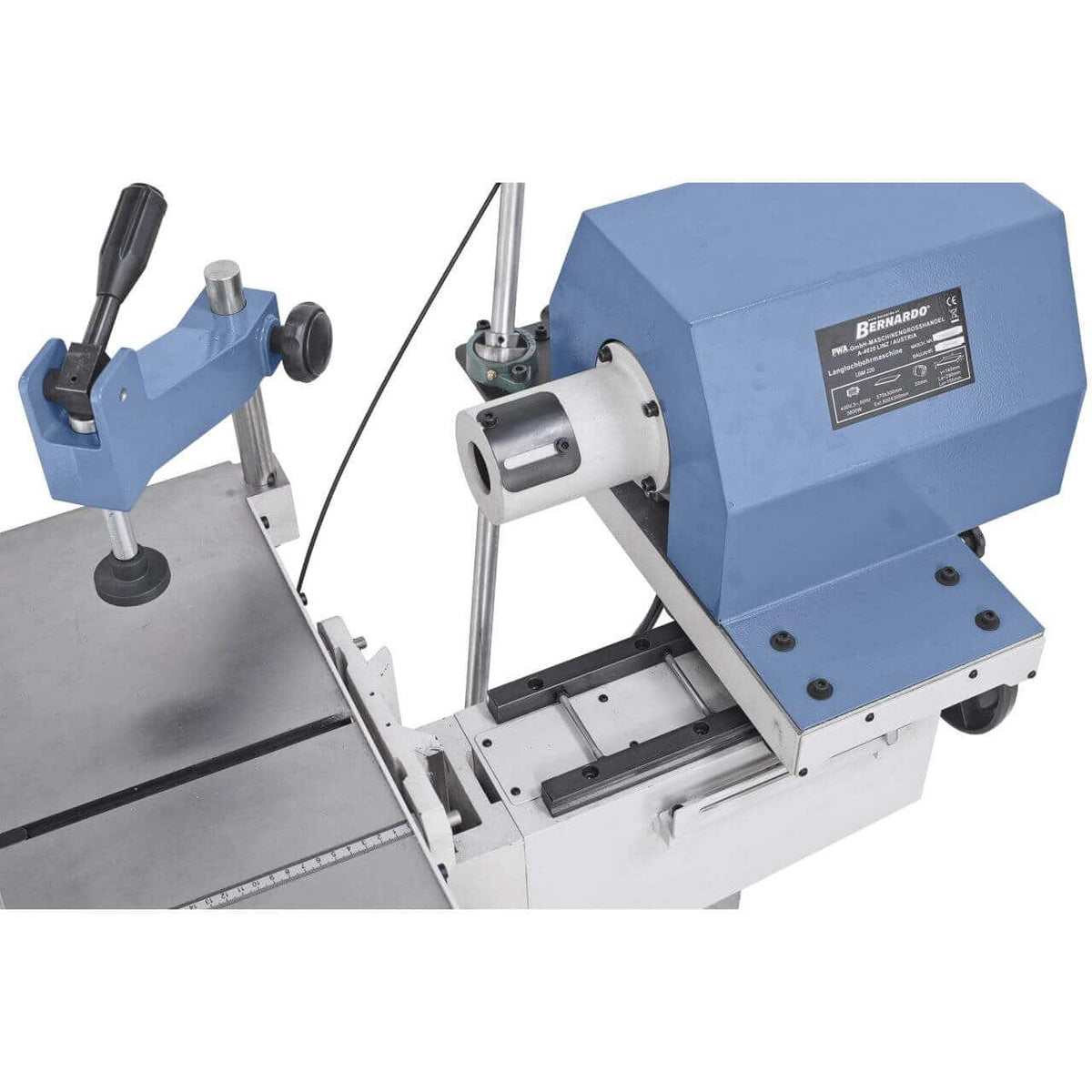

Bernardo LBM 220 - 400 V is a mortiser for professional use, with a capacity of 155 mm, 3.0 kW (4.0 HP) motor, and weighing 140 kg. Krollit, official Bernardo distributor since 2007.
- Table dimensions: 570 x 300 mm
- Table widening (optional): 2 x 600 x 260 mm
- Table extension (optional): 300 x 600 mm
- Table height: 870 mm
- Max drilling depth: 155 mm
- Drilling width: 300 mm
Who uses the LBM 220 - 400 V and for what

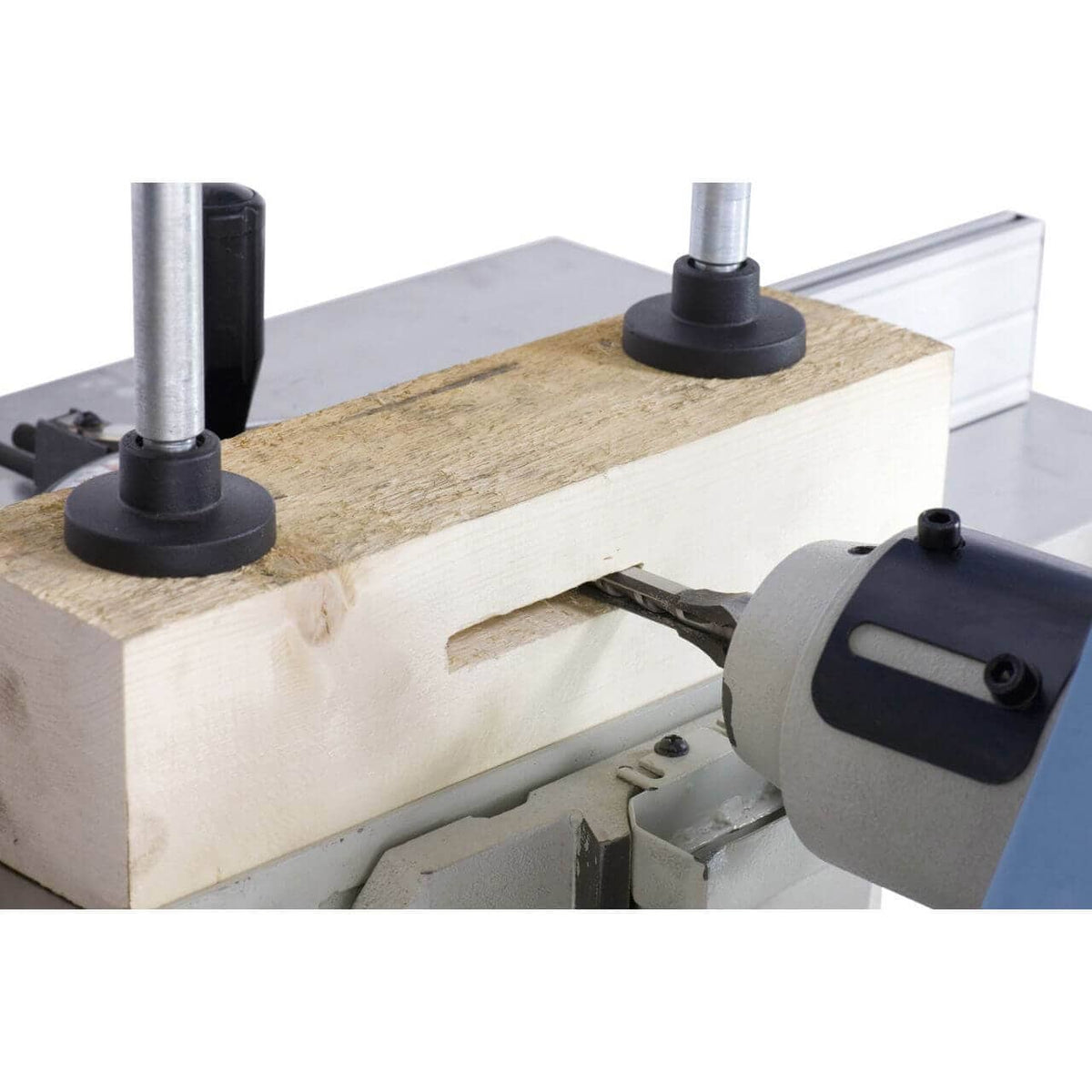

Professional carpenters and furniture manufacturers use the LBM 220 - 400 V for creating mortises for tenon joints on doors, windows, and furniture, with precise joints on crossbars and uprights.
Its place in the Bernardo range
Bernardo LBM 220 - 400 V is part of the Bernardo mortising machine range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the LBM 220 - 400 V for
The LBM 220 - 400 V is recommended for the following professional profiles:
-
Professional carpenters and furniture manufacturers: creating mortises for tenon joints on doors, windows, and furniture.
-
Window and door manufacturers: machining crossbars and uprights with precise joints.
Not suitable for: mortises on metal or plastic (machine dedicated to wood: different processes are needed for other materials).

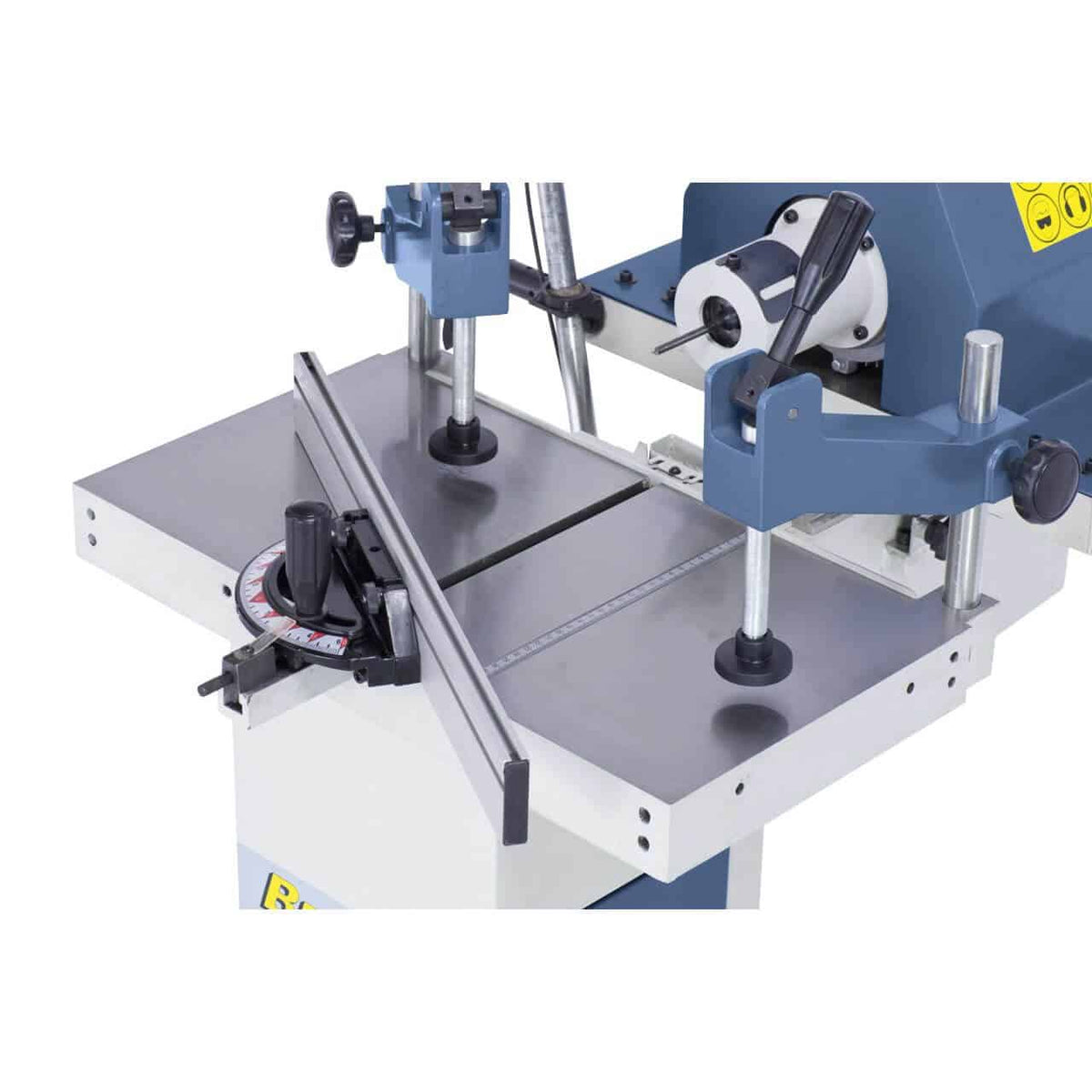

Table, dimensions and geometry
| Table dimensions |
570 x 300 mm |
| Table widening (optional) |
2 x 600 x 260 mm |
| Table extension (optional) |
300 x 600 mm |
| Table height |
870 mm |

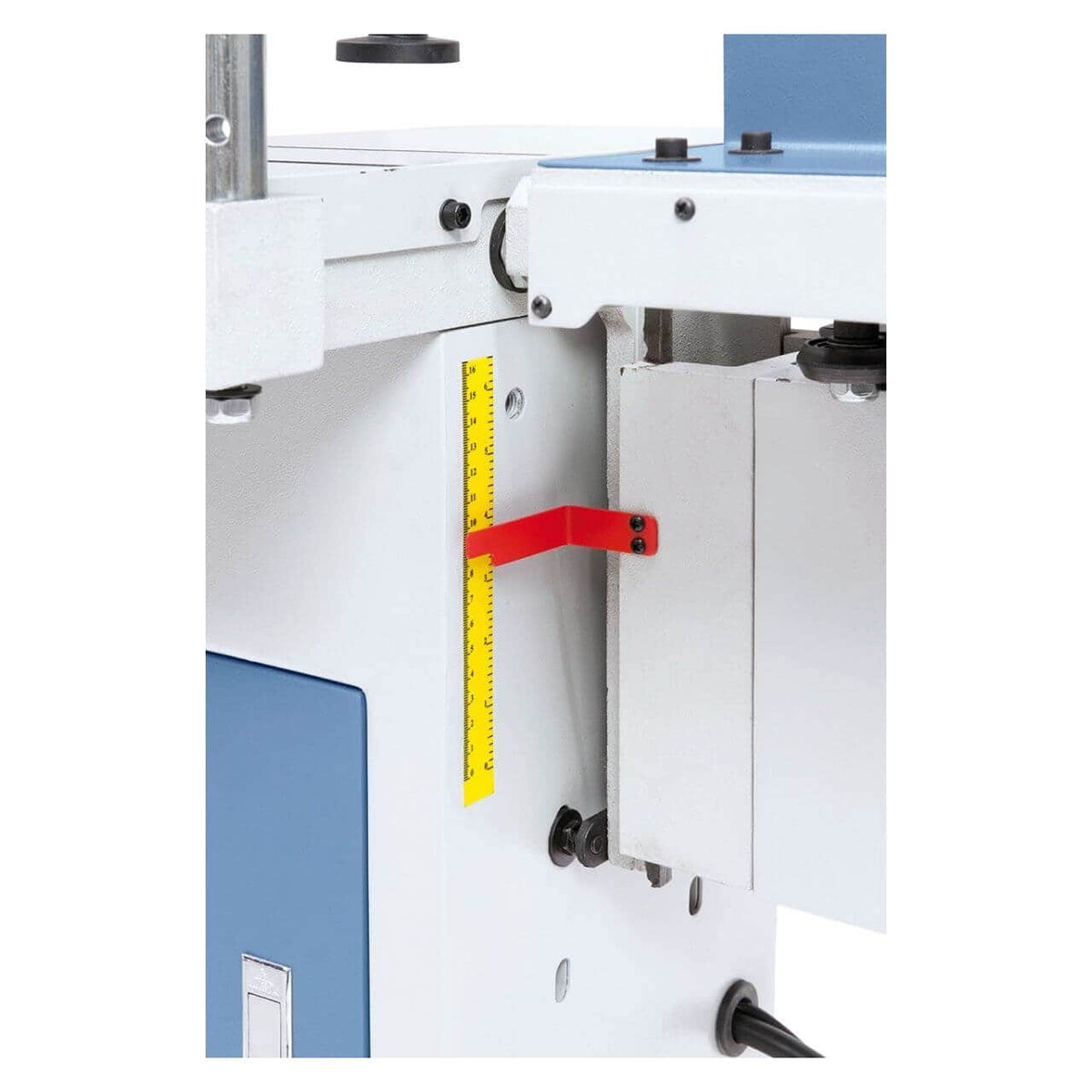

| Height adjustment |
160 mm |
| Machine dimensions (LxWxH) |
570 x 950 x 1340 mm |
| Weight |
140 kg |
Motor and power supply
| Motor power S1 100% |
3.0 kW (4.0 HP) |
| Motor power S6 40% |
4.2 kW (5.7 HP) |
| Voltage |
400 V |
Other specifications

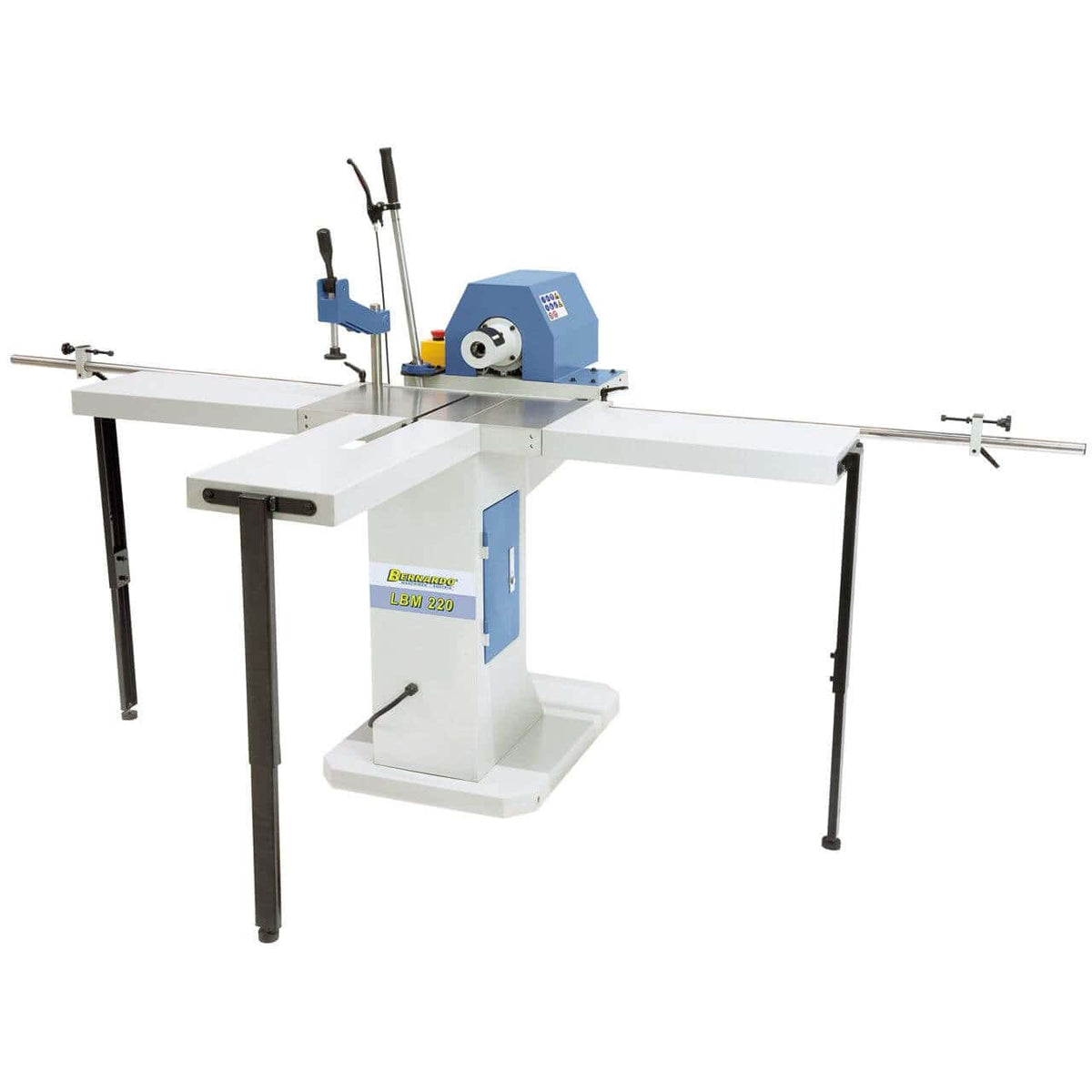

| With extensions mounted |
2500 x 1500 x 1340 mm |
| Max drilling depth |
155 mm |
| Drilling width |
300 mm |
| Rotation speed |
1400 / 2800 rpm |
| Westcott chuck |
0 – 20 mm |
Frequently asked questions
What can the LBM 220 - 400 V process?

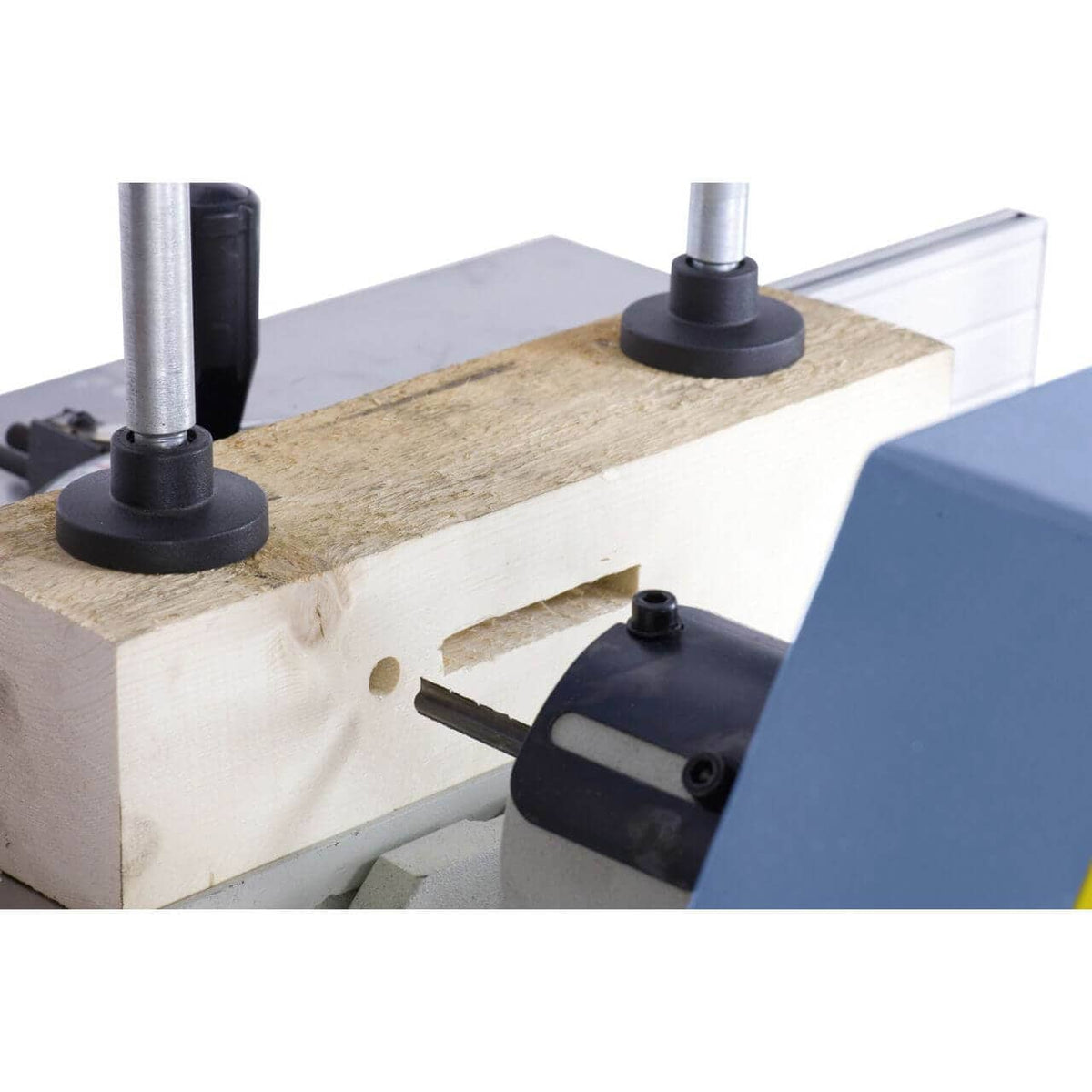

It creates rectangular mortises for tenon-mortise joints on solid wood, plywood, and derived panels.
Bernardo HM square chisel mortisers allow direct creation of right-angle mortises, without the need for manual finishing. Typical applications: door and window frames, chairs, furniture, and structural assemblies.
What chisel sizes does it support?
Typically chisels from 6 to 25 mm in width. Check the technical table for "drilling capacity" or "mortise capacity".
Bernardo HM chisels are dedicated accessories with a cylindrical shank and a hardened hollow tip. Krollit supplies original spare parts compatible with the HM 12, HM 25, and HM 30 series.
Is the head tiltable or rotatable?
It depends on the model: HM 25 has a 180° swivel head, HM 25 TOP has a tiltable head ±22.5° right/left.
The swivel head allows working on large pieces such as doors and frames from the back. The tiltable head allows angled mortises for mitered assemblies.
What power supply does it require?
HM 12, HM 25, and HM 30 models are equipped with a 0.75 kW single-phase 230 V motor. See "Voltage" in the technical table.
The single-phase power supply makes these mortising machines usable even in workshops without a three-phase line. However, the machine still requires dedicated differential protection.
How much does the machine weigh?
See the "Weight" data in the technical table. Typically 100 kg (HM 25) or 110 kg (HM 25 TOP).
The high cast iron mass offers rigidity during mortising, reducing vibrations and improving precision. For handling and installation, a hydraulic trolley or the help of a second operator is recommended.
