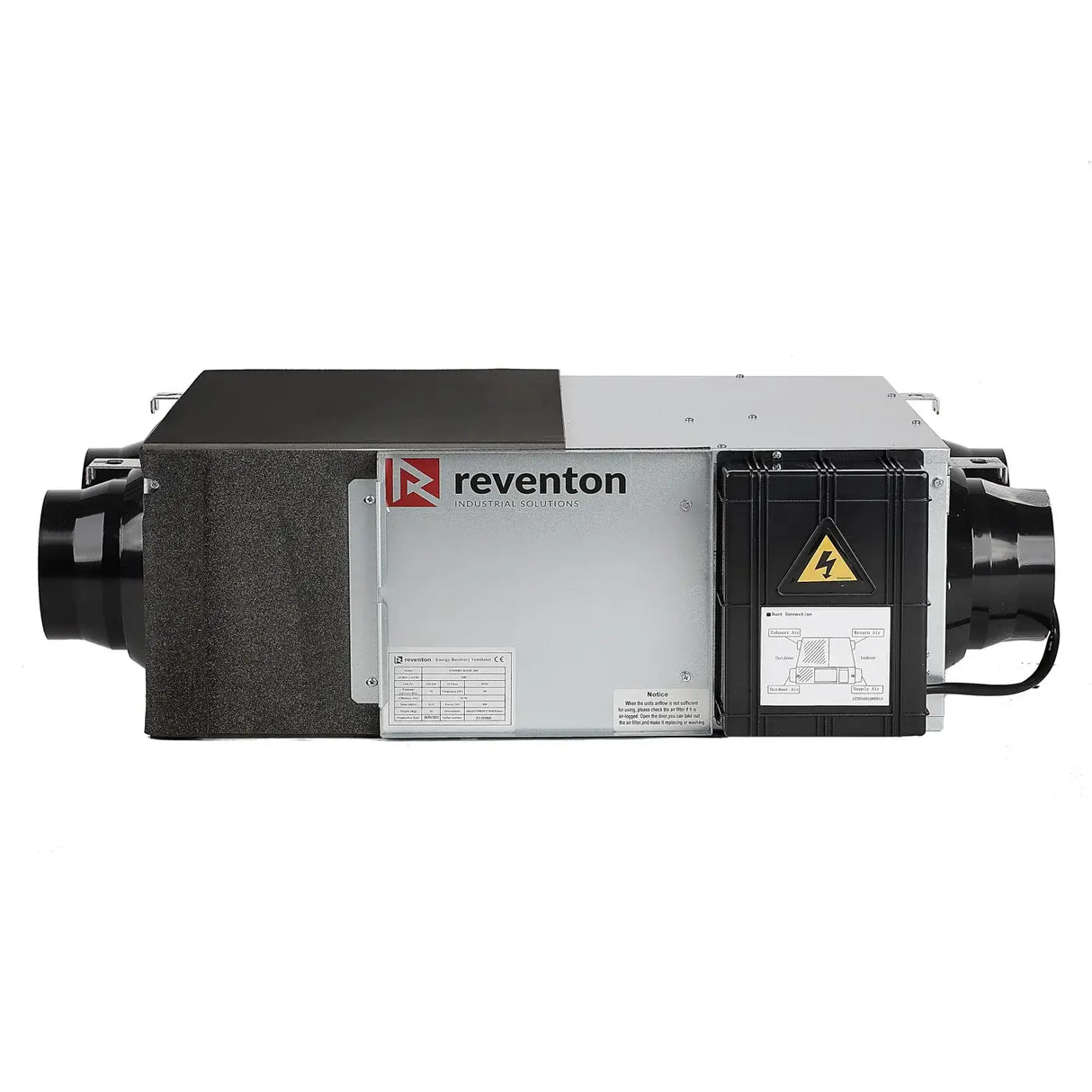

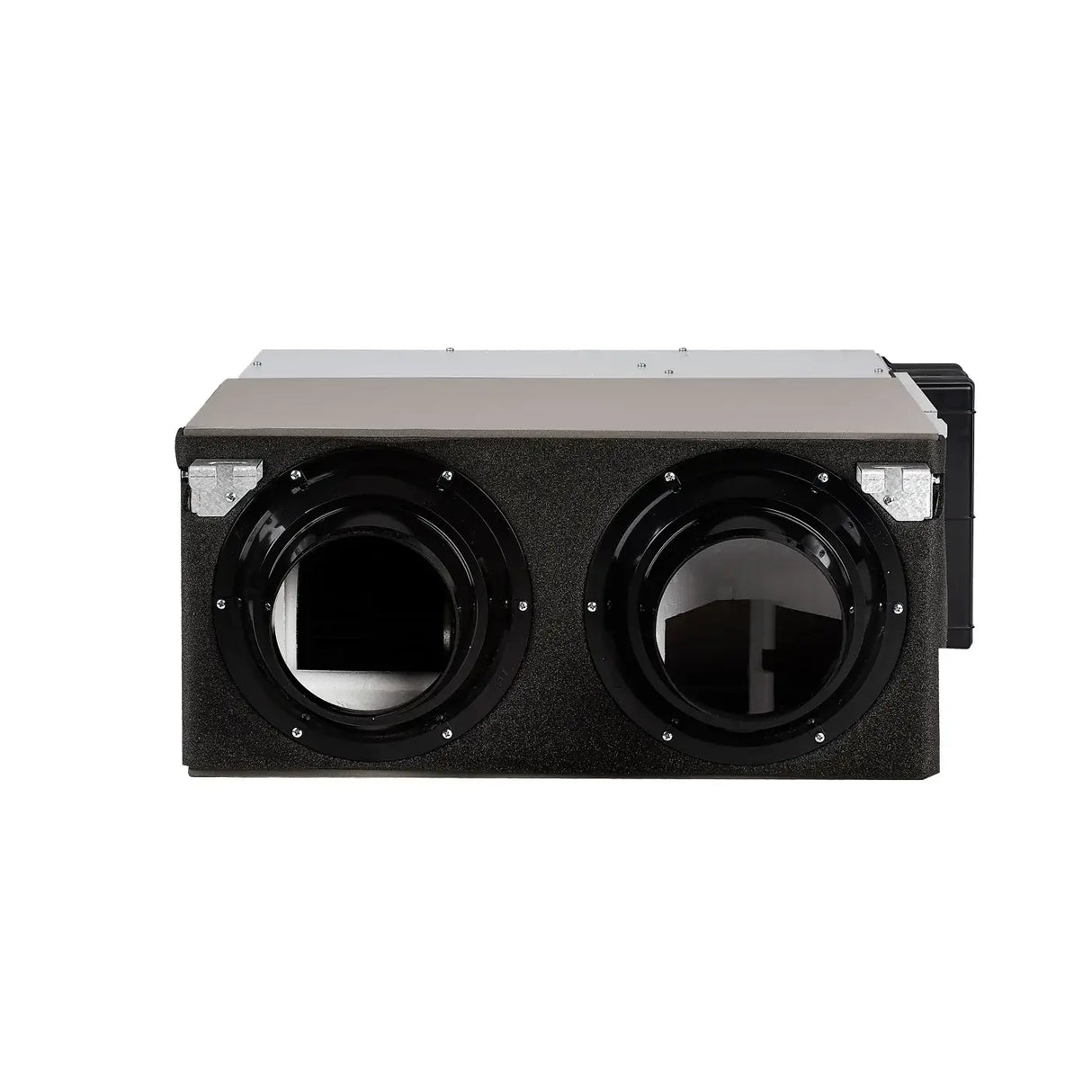

The Reventon INSPIRO BASIC series is a professional heat recovery unit, with a 105 motor, weighing 23 kg. Krollit, official Reventon distributor since 2007.
- Enthalpic exchanger: Allows for the recovery of both heat and humidity from the exhaust air, improving indoor comfort and reducing energy consumption.
- Condensate-free operation: The enthalpic exchanger eliminates the need for a condensate drainage system and minimizes the risk of ice formation.
- 3-speed AC fans: Ensure continuous and smooth air exchange.
- G3 pre-filters: Protect the exchanger from rapid dirt accumulation.
- Intuitive control: Device management via a simple and user-friendly control panel.
- Single-family homes
- Multi-family homes
- Motor power: 105 – 355 W
Who uses the INSPIRO BASIC series and for what
Warehouses and industries with high air exchange rates use the INSPIRO BASIC series for heat recovery from exhaust air, resulting in significant energy savings.
Its place in the Reventon range
The Reventon INSPIRO BASIC series is part of the Reventon heat recovery unit range, distributed in Italy by Krollit since 2007. The Reventon range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Reventon catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the INSPIRO BASIC series for
| Profile |
Compatibility |
Reason |
| Warehouses with high air exchange rates |
Suitable |
Heat recovery from exhaust air with energy savings |
| Industries with temperature-controlled processes |
Suitable |
Reduces air conditioning costs while maintaining air quality |
| Small residential environments |
To be evaluated |
Industrial machine: for home use, consider residential MVHR units |
Not suitable for: applications that deviate from the technical specifications declared by the manufacturer. For doubts about compatibility, contact Krollit customer support.
Motor and power supply
| Voltage/Frequency [V/Hz] |
220-240/50 |
| Rated motor power [W] |
105 |
| Motor IP protection rating |
X2 |
Other specifications
| Product code |
INSPIRO-BASIC-200-2022 |
| Rated airflow [m³/h] |
200 |
| Maximum enthalpic efficiency [%] |
63 |
| Maximum thermal efficiency [%] |
75 |
| Net weight [kg] |
23 |
| Noise [dB] |
31.5 |
| Energy efficiency class |
A |
Frequently asked questions
How does the INSPIRO BASIC series work?
It recovers heat from the exhaust air and transfers it to the incoming fresh air via an exchanger.
Typical recovery efficiency is 70-90% depending on the type of exchanger (plate, rotary, or cross-flow).
What airflow is it sized for?
See "Airflow" in the technical table: typically 500-10,000 m³/h.
The airflow should be sized based on the room volume and the hourly air changes required by regulations for the activity performed.
Does it reduce air conditioning costs?
Yes, by recovering heat (or coolness in summer), 50-80% of air treatment costs can be saved.
The economic payback depends on annual operating hours and energy costs. For continuous industrial use, it is typically 2-4 years.
What maintenance does it require?
Regular filter cleaning (3-6 months) and annual exchanger inspection.
Krollit provides original replacement filters. For plate exchangers, cleaning requires disassembly and washing with specific products.
What power supply does it require?
See "Voltage" and "Power" of the fan motor: typically 230 V single-phase for small units, 400 V for industrial units.
Models with EC motors consume less and allow modulated flow regulation based on demand.
