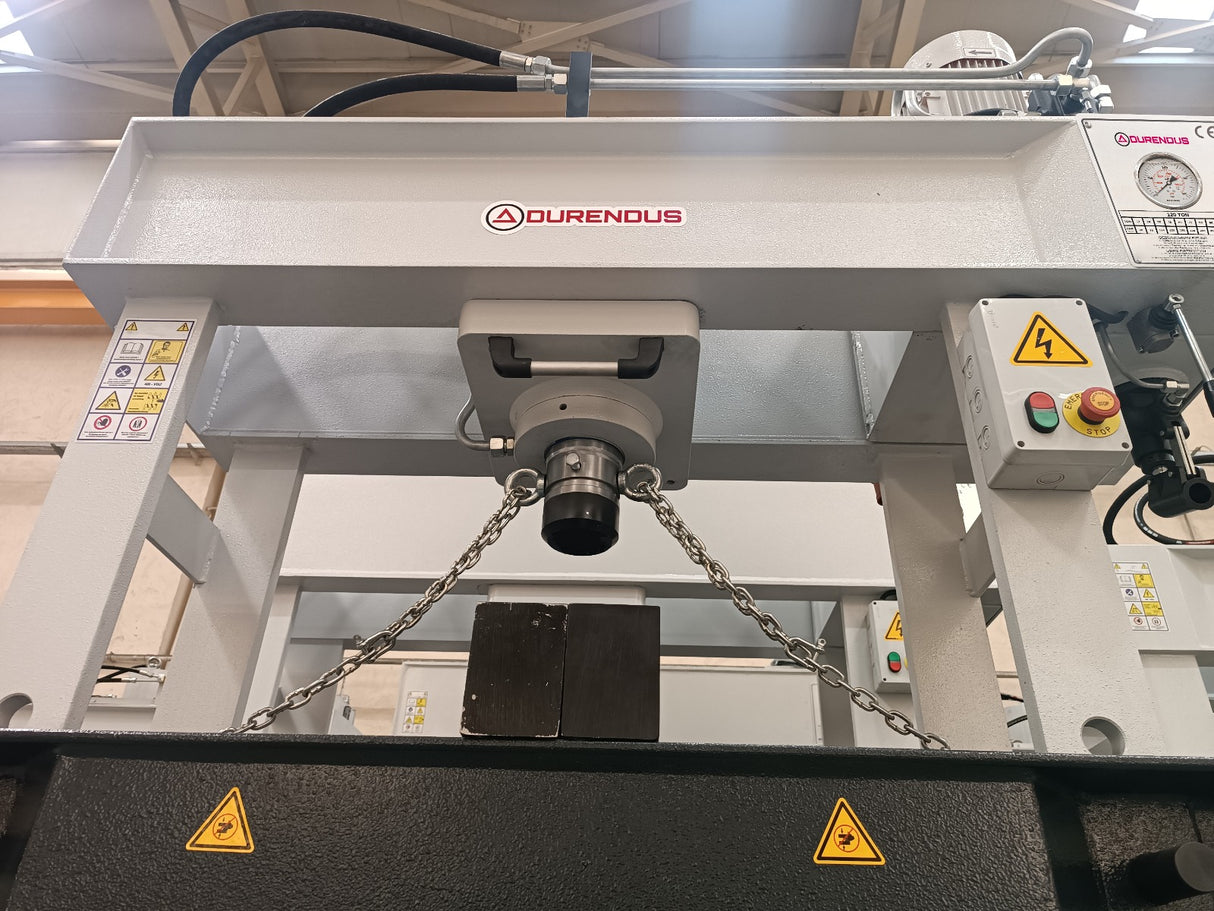

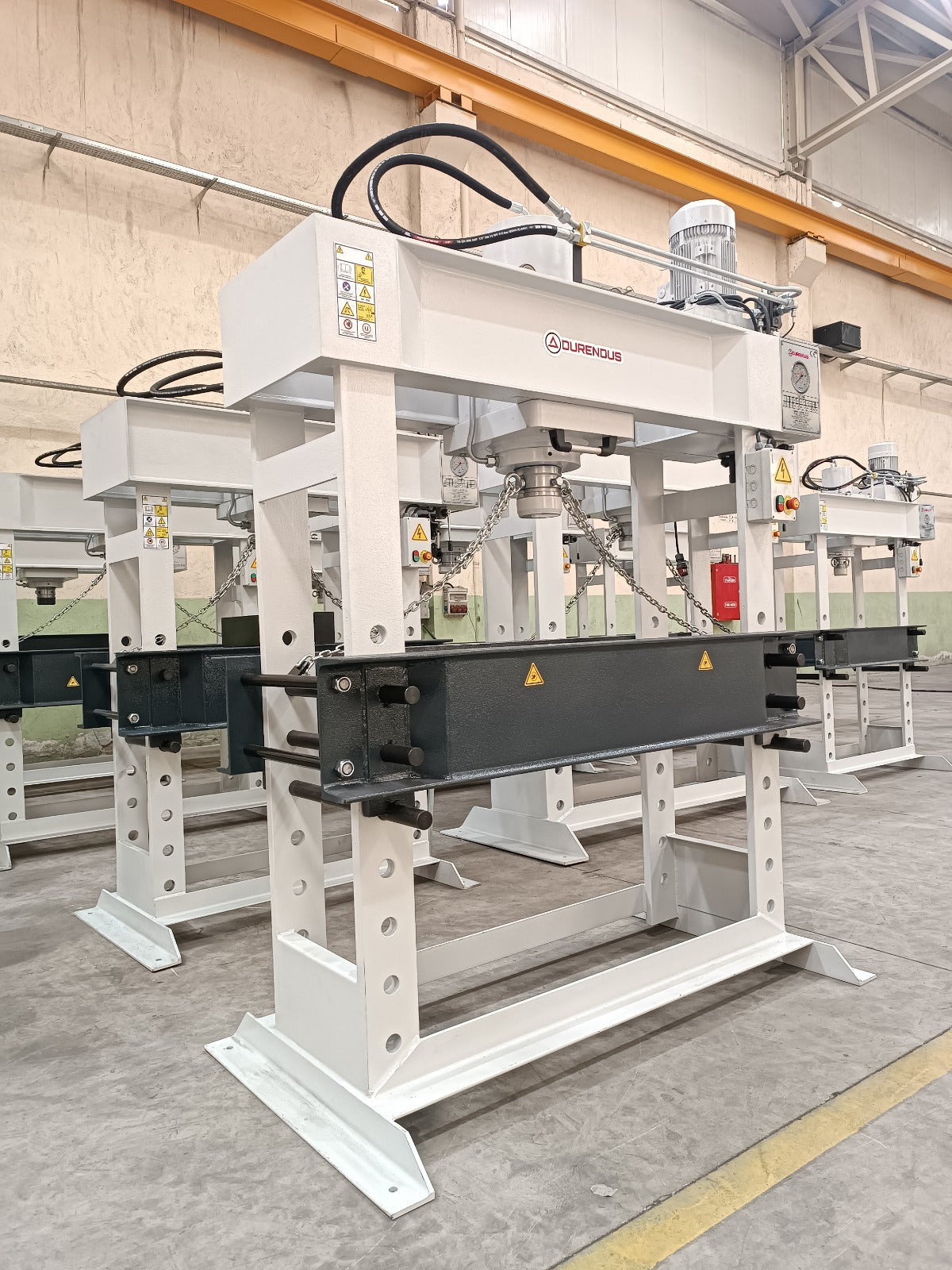

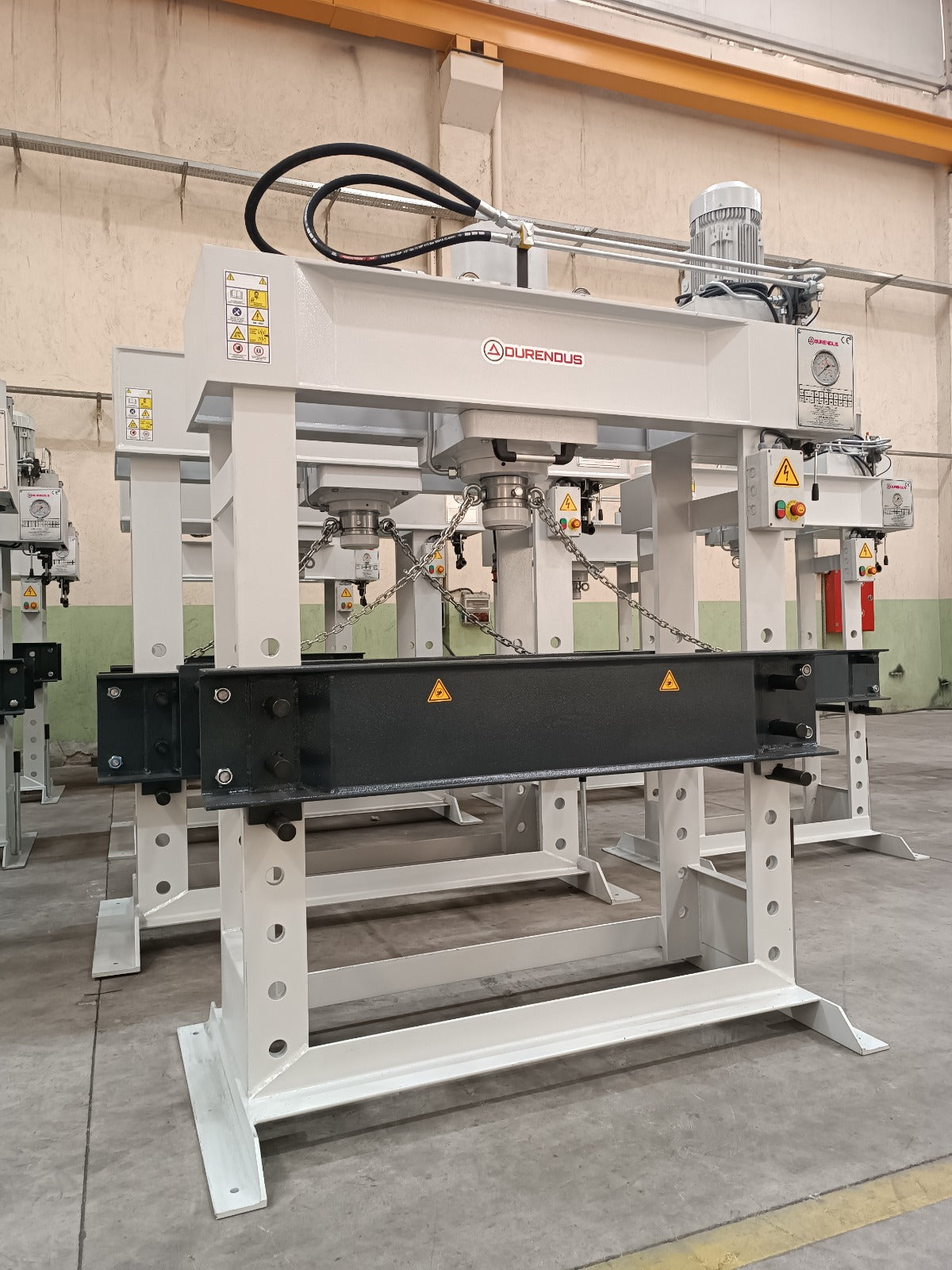

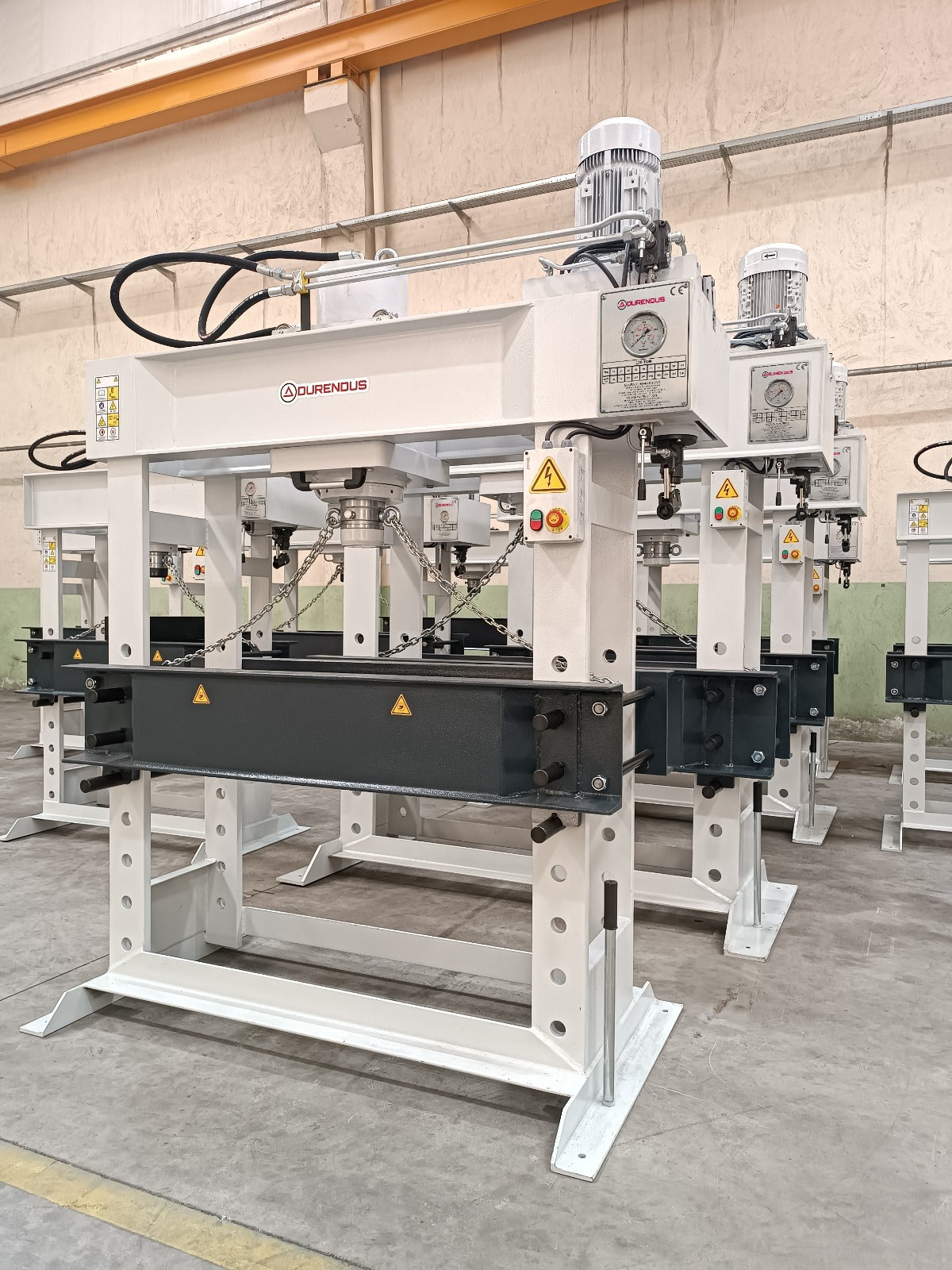

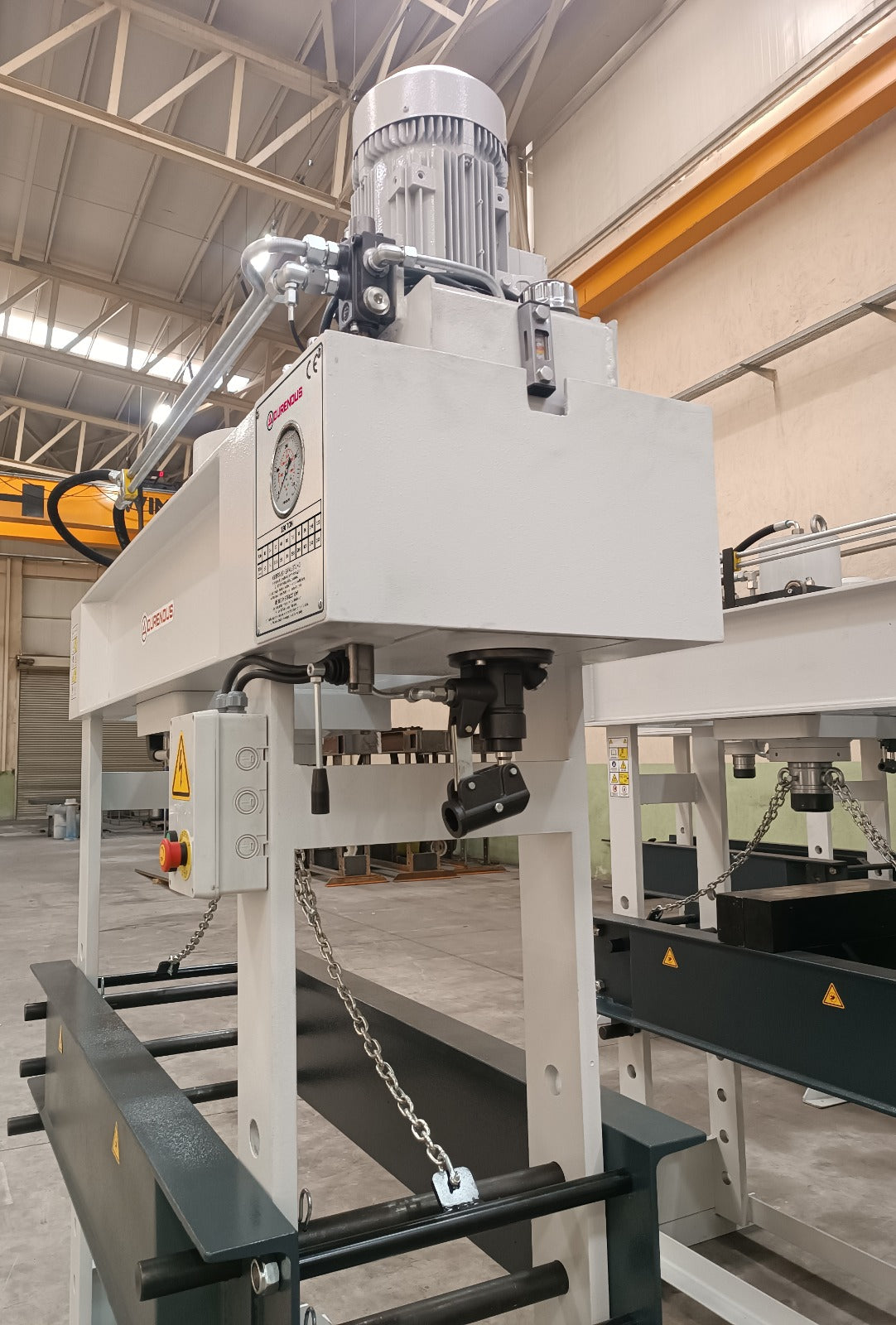

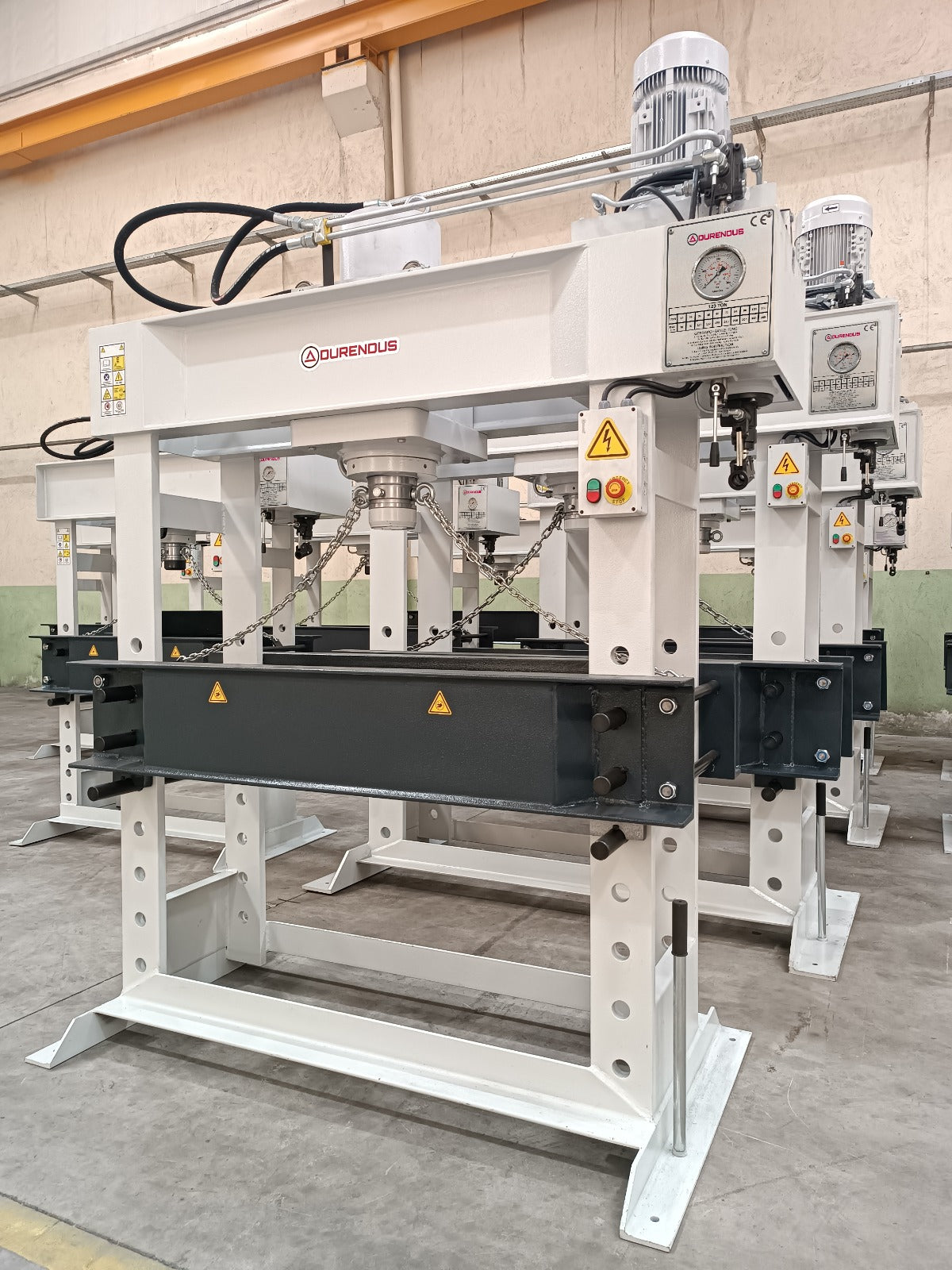

The Durendus DW Series 100 Ton Hydraulic Press with Sliding Cylinder is a professional sheet metal press with 29 L force, 400 mm stroke, 4 kW motor, and 900 kg weight. Krollit, official Durendus distributor since 2007.
- Work surface dimensions: 1000 x 350 mm
- Cylinder diameter: 190 mm
- Piston diameter: 115 mm
- Motor power: 4 kW
- Pump flow rate: 14.5 l/min
- Oil tank capacity: 29 L
Who uses the DW Series 100 Ton Hydraulic Press with Sliding Cylinder and for what
Metal fabricators and sheet metal workshops use the DW Series 100 Ton Hydraulic Press with Sliding Cylinder for deep drawing, stamping, and forming sheet metal up to the stated thickness, with repeated cycles on dedicated dies.
Its place in the Durendus range
The Durendus DW Series 100 Ton Hydraulic Press with Sliding Cylinder is part of the Durendus sheet metal press range, distributed in Italy by Krollit since 2007. The Durendus range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Durendus catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days for Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the DW Series 100 Ton Hydraulic Press with Sliding Cylinder for
The DW series 100 ton hydraulic press with sliding cylinder is recommended for the following professional profiles:
-
Metal fabricators and sheet metal workshops: deep drawing, stamping, and forming of sheet metal up to the stated thickness.
-
Manufacturers of stamped metal components: repeated pressing cycles on a single bench with dedicated dies.
Not suitable for: stamping fragile or ceramic materials (machine optimized for metals: specific presses are needed for other materials).
Table, dimensions and geometry
| Work surface dimensions |
1000 x 350 mm |
| Distance between columns |
900 mm |
| Weight |
900 kg |
Other specifications
| Cylinder diameter |
190 mm |
| Piston diameter |
115 mm |
| Pump flow rate |
14.5 l/min |
| Certification |
CE |
| Oil tank capacity |
29 L |
| Piston stroke |
400 mm |
| Advance speed |
8.5 mm/s |
| Return speed |
13.4 mm/s |
| Motor power |
4 kW |
Frequently asked questions
What sheet metal thickness can the DW Series 100 Ton Hydraulic Press with Sliding Cylinder process?
See "Capacity" or "Max thickness" in the product technical table.
Capacity refers to S235JR mild steel. For stainless steel or high-strength materials, actual capacity may drop to 60-70%.
What pressing force does it deliver?
See "Force" or "Press power" in the technical table, typically expressed in tons.
The nominal force determines the type of dies that can be used and the materials that can be processed. For series production, check the nominal force and duty cycle.
Does it have CNC or manual control?
Professional models offer CNC control for automatic positioning, while compact models have manual or semi-automatic control.
CNC reduces setup times in series production and offers repeatability for the finished product.
What power supply does it require?
Typically 400 V three-phase for industrial models; compact models can be 230 V single-phase.
Verify the presence of an adequate three-phase line and size the cables according to the motor's nominal power.
How much does the machine weigh?
See "Weight" in the technical table: industrial models weigh from 500 to over 5000 kg.
Machines over 1000 kg require industrial flooring and forklift handling during installation.
