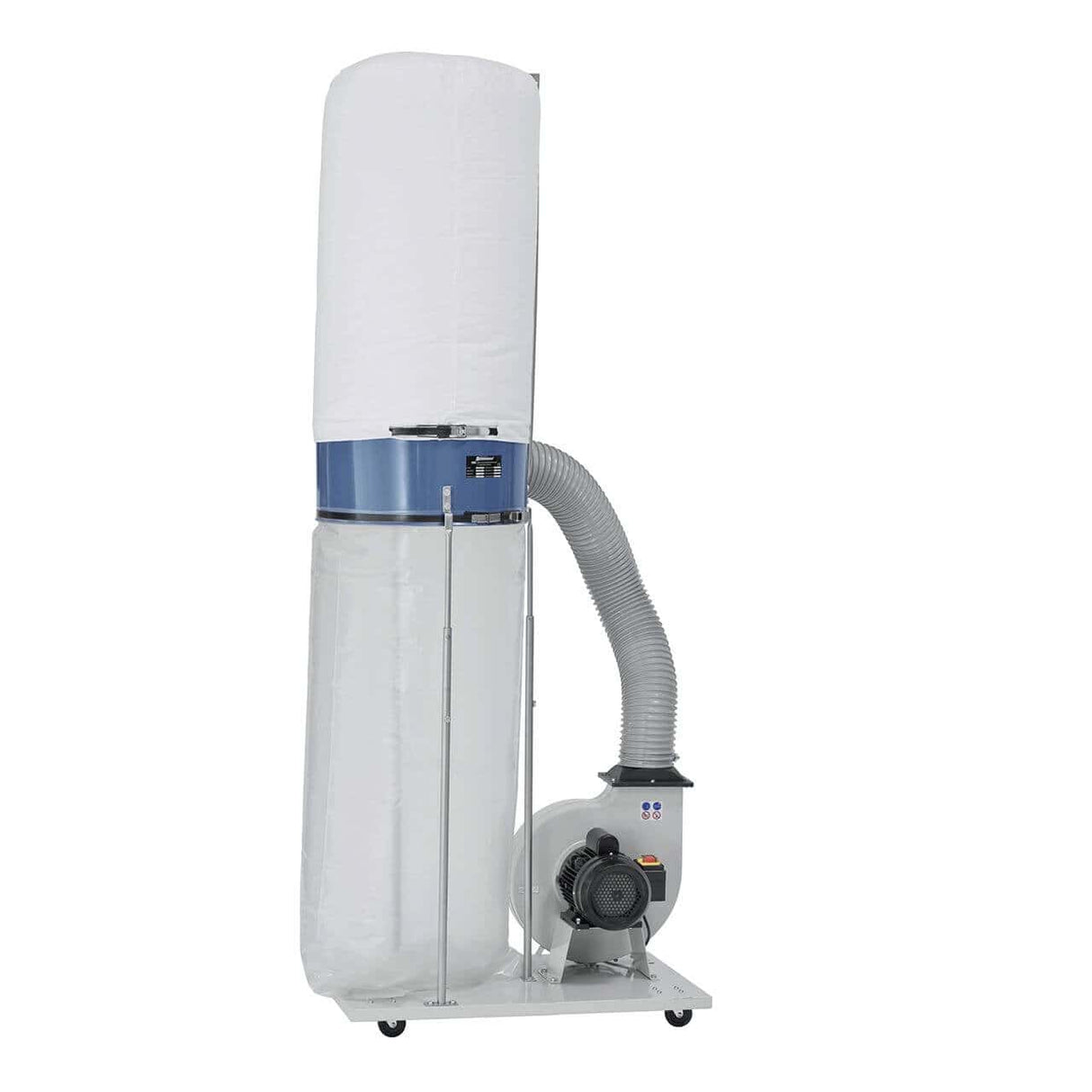

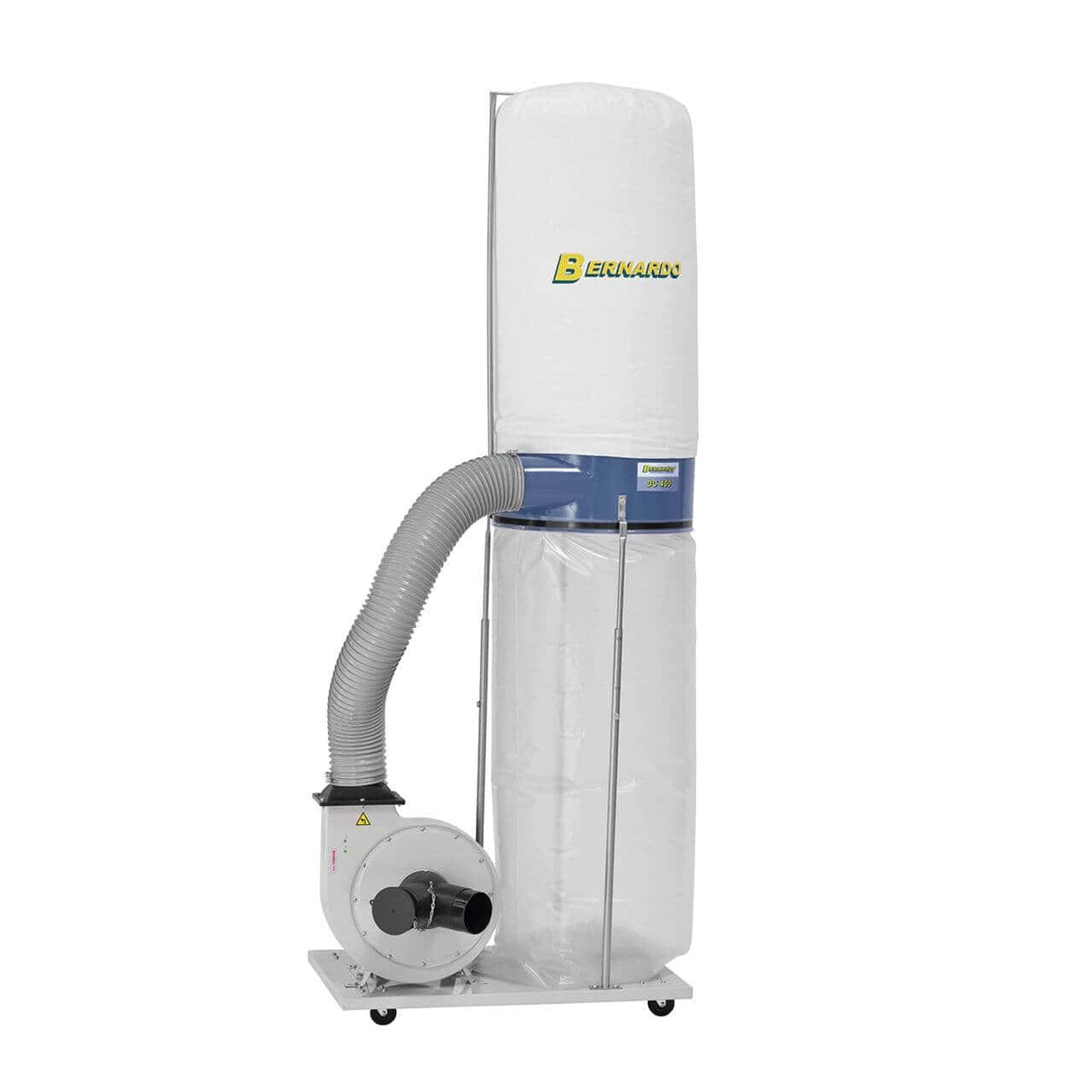

Bernardo DC 400 – Dust collector with 300 L bag and Y-adapter
The Bernardo DC 400 dust collector is suitable for workshops and joineries that want to maintain a clean and efficient work environment. Thanks to its suction power of 2520 m³/h and 300-liter collection bag, it guarantees high performance even during intensive use. The Y-adapter allows two machines to be connected simultaneously (1 x 130 mm / 2 x 100 mm), increasing operational flexibility. The compact structure with a transport device ensures optimal mobility within the workshop. With a filter surface area of 1.45 m² and low noise level (87.1 dB), it is a reliable, safe, and durable machine.
Main specifications
Chip bag with 300 L capacity

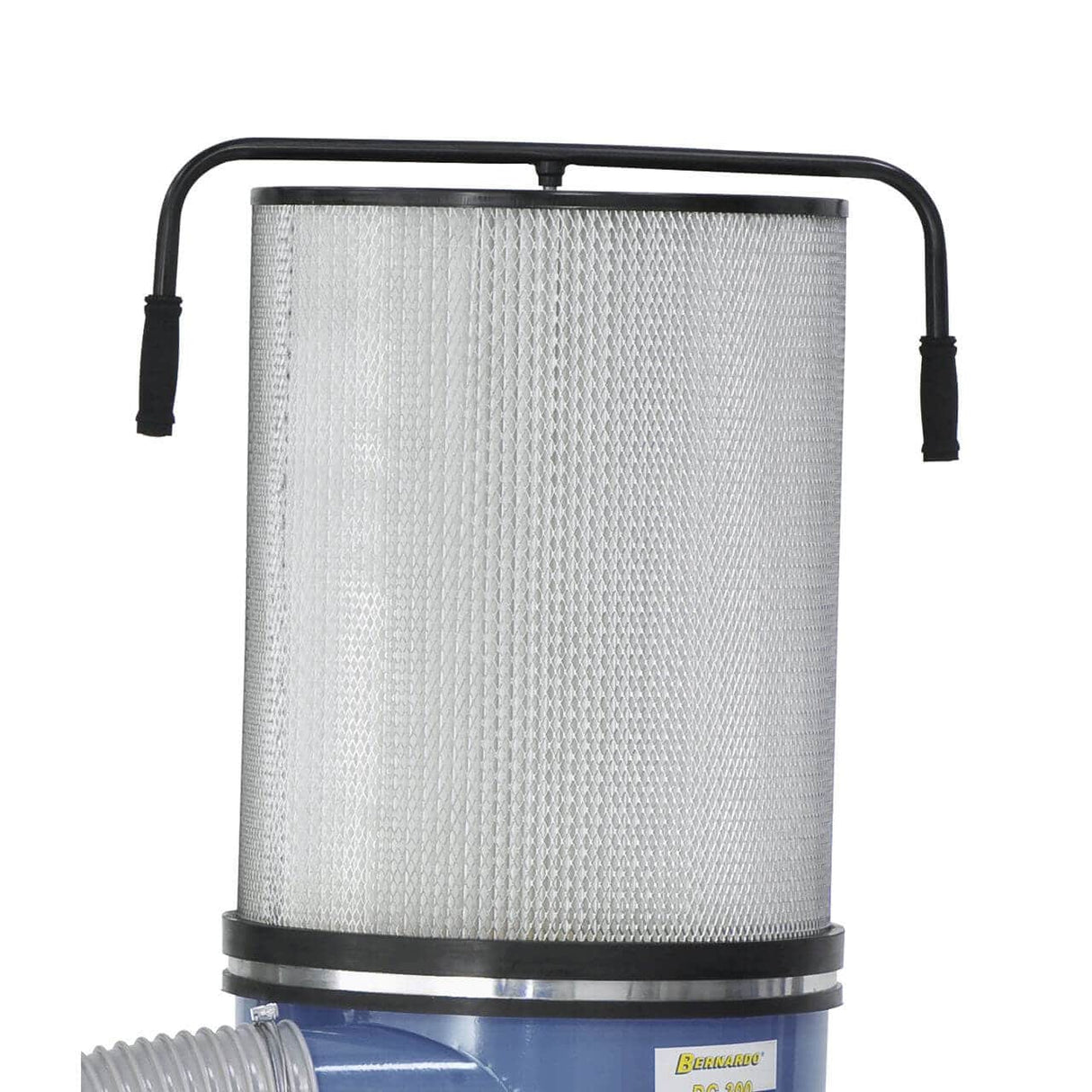

Filter surface area of 1.45 m²
Airflow: 2520 m³/h
Maximum vacuum: 1800 Pa

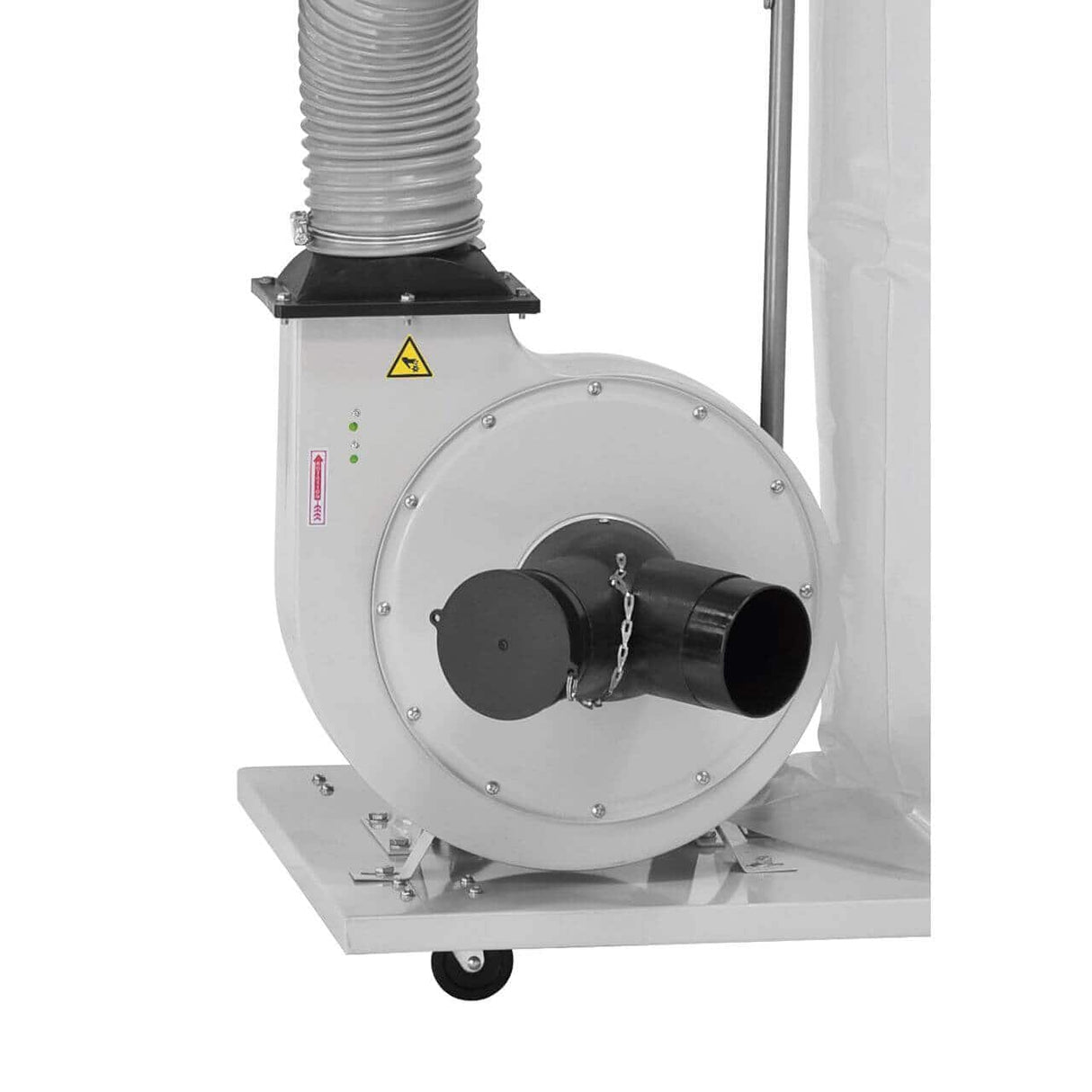

Suction connection 1 x 130 mm or 2 x 100 mm

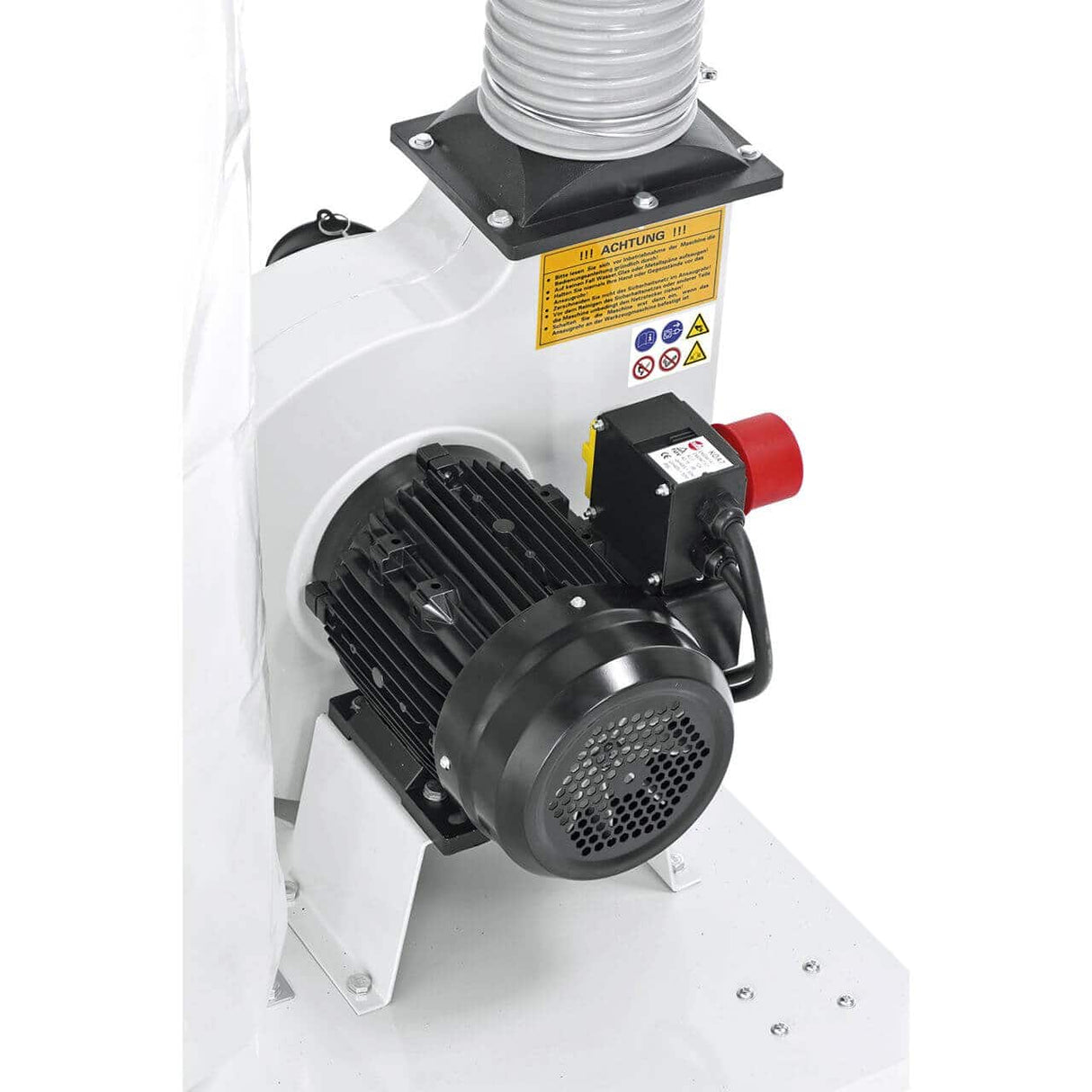

Powerful 1.5 kW (2.0 HP) – S1 motor
Y-adapter included

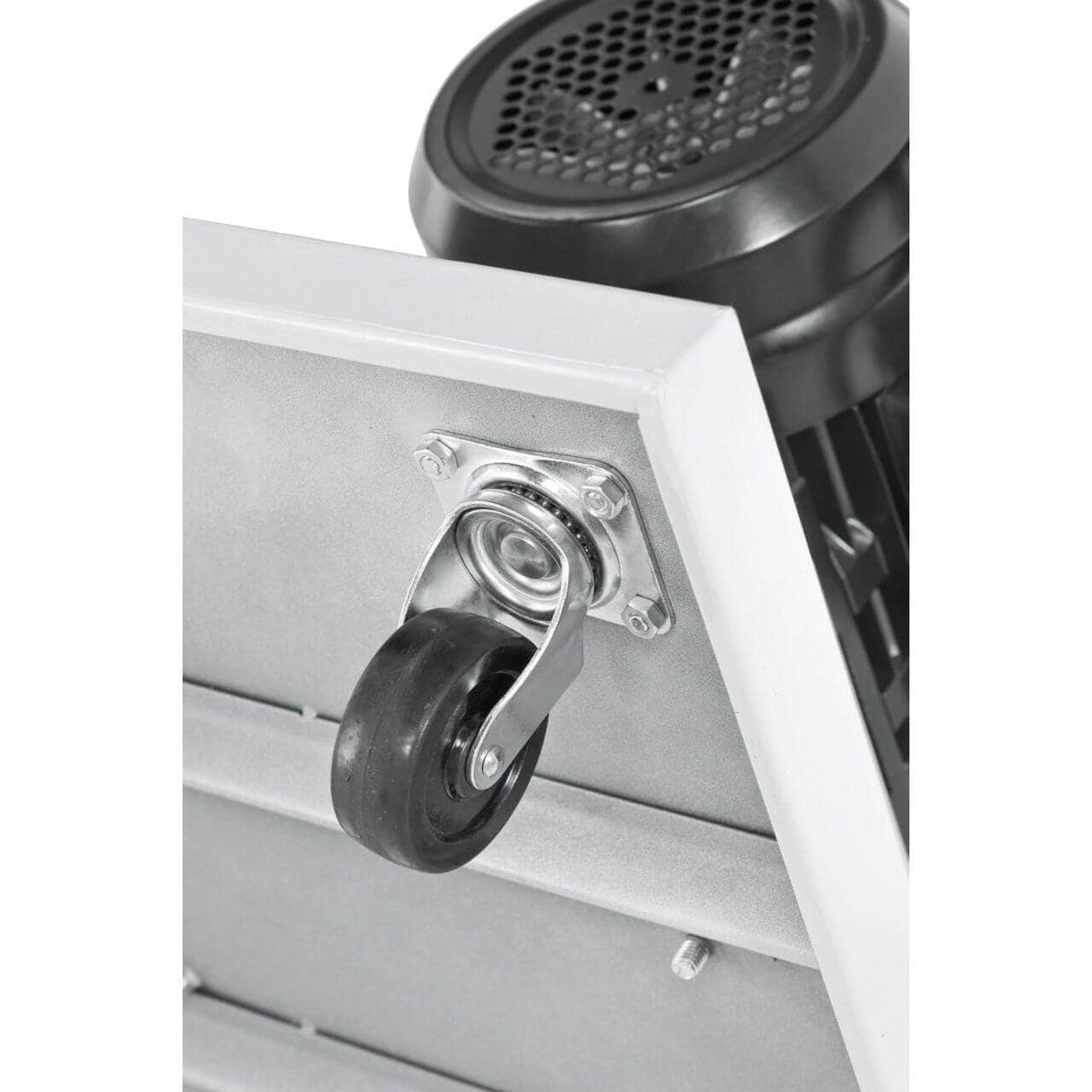

Transport device for easy movement
Machine dimensions: 860 x 670 x 2330 mm
Weight: 40 kg
Technical table:
| Specification | Value |
|---|---|
| Brand | Bernardo |
| Model | DC 400 |
| Air power | 2520 m³/h |
| Filter surface | 1.45 m² |
| Max. vacuum | 1800 Pa |
| Suction connection | 1 x Ø 130 mm / 2 x Ø 100 mm |
| Chip bag capacity | 300 liters |
| Min. rotation speed | 2950 rpm |
| Sound pressure | 87.1 dB |
| Motor input power (S1) | 1.5 kW (2.0 HP) |
| Motor output power (S6 40%) | 2.1 kW (2.8 HP) |
| Voltage | 230 V / 400 V |
| Machine dimensions (L x W x H) | 860 x 670 x 2330 mm |
| Weight | 40 kg |
Package contents:
Bernardo DC 400 dust collector
300 L chip bag
Y-adapter (1 x 130 mm / 2 x 100 mm)
Transport kit for mobility
User manual
Logistics
Bernardo shipping: 5–9 business days (7 days in the South). Original spare parts available with 3–5 business days shipping. Customer support available in Italian.
Frequently asked questions
The DC 400 series — what machines is it suitable for and how does it connect?
The DC 400 connects to circular saws, planers, sanders, and jointers via a 100 or 150 mm hose (depending on the model). Sized for artisan joinery workshops — up to 3 machines connected with appropriate ducting. The connection requires a standard extraction outlet (Ø 100–150 mm) on the power tool. For machines with a different diameter outlet, use reducer fittings.
The 300 L bag — how often should it be emptied?
The emptying frequency depends on the type of work and the wood. For circular saws (large chips): every 2–4 hours. For sanders and jointers (fine dust): every 4–8 hours. Empty when the bag is 70–80% full — beyond this level, the flow rate decreases, and fine dust begins to pass into the filter, reducing its useful life. A level indicator or differential manometer on the filter (where present) is the most reliable way to know when to empty.
Are spare parts and assistance available?
Original spare parts available with 3–5 business days shipping. Customer support available in Italian.
